◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#36567) — 766 parça

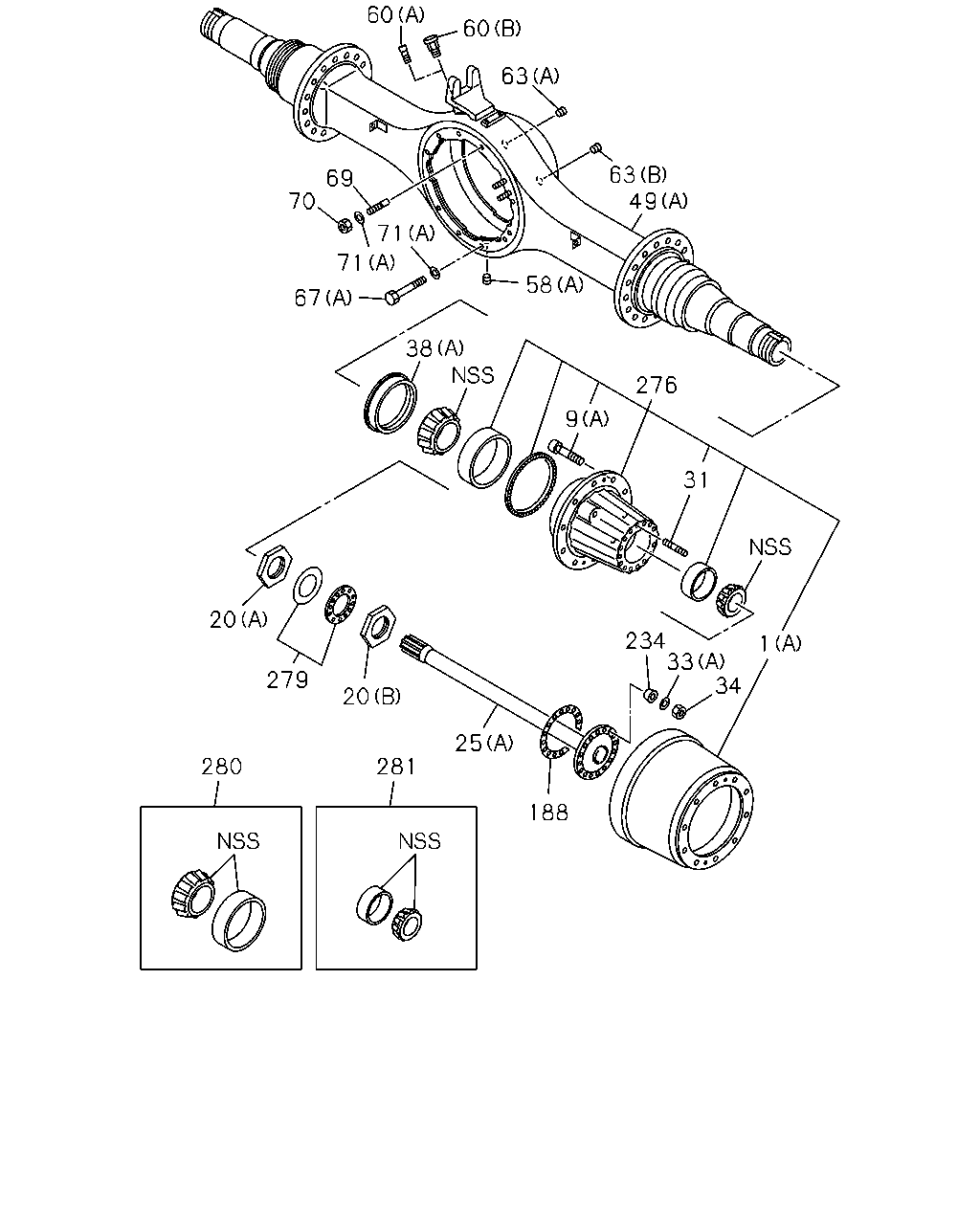

çizim 179693
60 60 63 63 69 49 71 71 70 58 67 38 9 276 31 1 34 33 234 20 279 20 25 188 281 280
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRUM; BRK,RR
(A) 		1-42315-419-0 02 1 0710-0711 ● ● ●
1 DRUM; BRK,RR
(A) 		1-42315-419-0 02 1 0712-1204 ● ●
1 DRUM; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42315-419-0 02 1 0712-1204 ●
1 DRUM; BRK,RR
(D) 		1-42315-422-0 02 1 1205- ● ●
1 DRUM; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		1-42315-422-0 02 1 1205- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-194-4 02 1 0906- ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42315-383-0 02 1 0712-0804 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42315-383-0 02 1 0805- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-194-4 02 1 0712-0712 ●
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-357-0 02 1 0712-0712 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0801-0805 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0806-0905 ●
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0906- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) 		1-42315-401-0 02 1 0906- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0712-0804 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0805- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0712-0805 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0806- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0712-0805 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0806- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 0710-0711 ● ● ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 0712- ● ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42339-033-0 20 1 0712- ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M88 		9-09843-062-2 02 1 0712-0804 ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (C) M88 		9-09843-062-2 02 1 0805- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0710-0711 ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0712- ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-065-0 02 1 0712- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0710-0711 ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0712- ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-067-0 02 1 0712- ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) (B) L=1039 		1-42171-414-0 02 1 0712-0910 ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) (B) L=1050 		8-98146-111-0 02 1 0911- ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) L=1054 		1-42171-355-0 02 1 0712-0804 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054 		1-42171-355-0 02 1 0805-0809 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054 		1-42171-375-0 02 1 0810-0910 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1050 		8-98146-164-0 02 1 0911- ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 0710-0711 ● ● ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 0712- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=951 		1-42171-557-0 01 1 0712- ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 0710-0711 ● ● ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 0712- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1120 		1-42171-558-0 01 1 0712- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 0710-0711 ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 0712- ● ●
31 STUD; AXLE SHAFT TO HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-171-0 16 1 0712- ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) ID=14.2 		0-91510-814-0 20 1 0712-0804 ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) ID=14.2 		0-91510-814-0 20 1 0805- ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 0710-0711 ● ● ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 0712- ● ●
33 WASHER; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42179-003-0 16 1 0712- ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0710-0711 ● ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0712- ● ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-005-0 16 1 0712- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NOK 		1-09625-265-0 02 1 0712-0804 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) NOK 		1-09625-265-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) TKK 		1-09625-350-0 02 1 0712-0804 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) TKK 		1-09625-350-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 0710-0711 ● ● ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 0712- ● ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42319-172-0 02 1 0712- ●
49 CASE; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) STABILIZER REAR LIGHT DUTY<GN1> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98098-891-0 01 1 0712-1004 ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STABILIZER REAR LIGHT DUTY<GN1> (C) 		8-98098-892-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) STABILIZER REAR LIGHT DUTY<GN1> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98098-893-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B) 		8-98098-895-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B) 		8-98098-895-0 01 1 0805- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) STABILIZER REAR LIGHT DUTY<GN1> ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98098-896-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) STABILIZER REAR LIGHT DUTY<GN1> ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98098-896-0 01 1 0805-1005 ●
49 CASE; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98024-661-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. STABILIZER REAR LIGHT DUTY<GN1> (C) 		8-98003-968-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98024-660-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B) 		8-98024-656-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B) 		8-98024-656-0 01 1 0805- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98024-657-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98024-657-0 01 1 0805- ●
49 CASE; RR AXLE
(A) 		1-42190-729-0 01 1 0710-1107 ● ●
49 CASE; RR AXLE
(A) 		1-42190-743-0 01 1 1108-1306 ● ●
49 CASE; RR AXLE
(A) 		1-42190-754-0 01 1 1307- ● ●
49 CASE; RR AXLE
(C) 		1-42190-728-0 01 1 0710-0711 ●
49 CASE; RR AXLE
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42190-728-0 01 1 0712-1306 ●
49 CASE; RR AXLE
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42190-755-0 01 1 1307- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M24X17 FLANGE 		1-09604-023-0 01 1 0712-0804 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M24X17 FLANGE 		1-09604-023-0 01 1 0805- ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 0710-0711 ● ● ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 0712- ● ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-054-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-032-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09893-032-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09893-016-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09893-003-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0710-0711 ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0710-0711 ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0712-1312 ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0712-1312 ● ●
60 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09893-028-0 01 1 0712-1312 ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) (A) 		1-09893-028-0 01 1 0712-1312 ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-09893-028-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE
(B) 		1-09893-016-0 01 1 0710-0710 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M24X17 FLANGE 		1-09604-022-0 01 1 0712-0804 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (C) M24X17 FLANGE 		1-09604-022-0 01 1 0805- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0710-0711 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0712- ● ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42119-135-0 02 1 0712- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0710-0711 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0712- ● ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-054-0 01 1 0712- ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M16X70 		0-10956-670-0 04 1 0712-0804 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X70 		0-10956-670-0 04 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M16X40 		0-20951-640-0 08 1 0712-0804 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X40 		0-20951-640-0 08 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 0710-0711 ● ● ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 0712- ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42119-136-0 08 1 0712- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0710-0711 ● ● ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0712- ● ●
69 STUD; AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=120.65 		1-42119-184-0 04 1 0712- ●
70 NUT; CARRIER 1-42179-005-0 04 1 0710-0711 ● ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0712- ● ●
70 NUT; CARRIER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-005-0 04 1 0712- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) ID=16.2 		0-91510-816-0 12 1 0712-0804 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) ID=16.2 		0-91510-816-0 12 1 0805- ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 0710-0711 ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 0712- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-41229-168-0 12 1 0712- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0710-0711 ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0712- ● ●
188 GASKET; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42175-013-0 02 1 0712- ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0710-0711 ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0712- ● ●
234 DOWEL; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-162-0 16 1 0712- ●
276 HUB & DRUM ASM 1-42311-158-0 02 1 0710-0711 ● ● ●
276 HUB & DRUM ASM 1-42311-158-0 02 1 0712-1204 ● ●
276 HUB & DRUM ASM
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42311-158-0 02 1 0712-1204 ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 0710-0711 ● ● ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 0712- ● ●
279 RING & WASHER; LK,BRG NUT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-022-0 02 1 0712- ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 0710-0711 ● ● ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 0712- ● ●
280 BEARING SET; HUB,INNER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85573-012-0 02 1 0712- ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 0710-0711 ● ● ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 0712- ● ●
281 BEARING SET; HUB,OUTER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85573-013-0 02 1 0712- ●

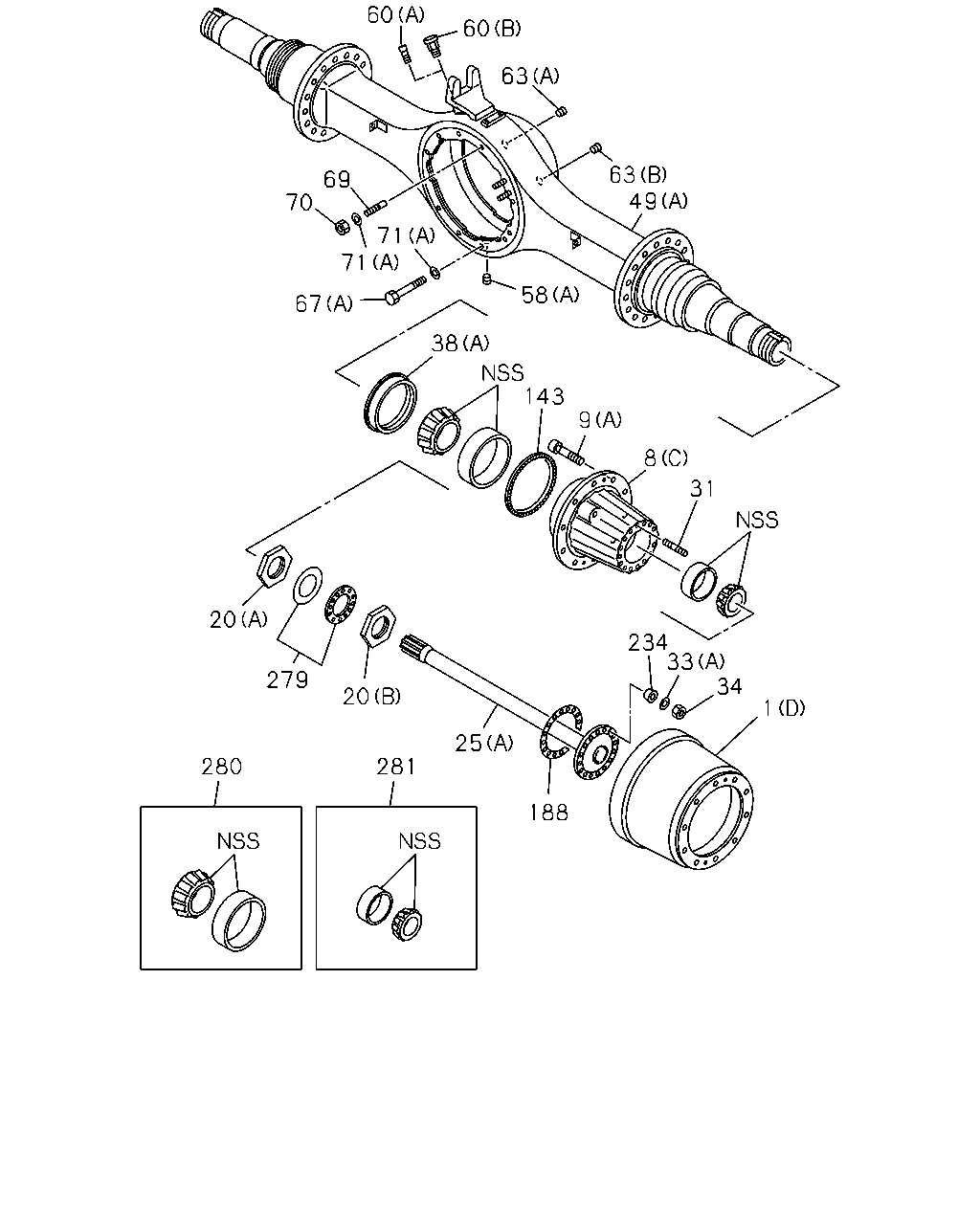

çizim 179910
60 63 60 63 58 49 69 70 71 71 67 38 143 8 234 33 34 1 188 25 281 20 279 20 280 31 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRUM; BRK,RR
(A) 		1-42315-419-0 02 1 0710-0711 ● ● ●
1 DRUM; BRK,RR
(A) 		1-42315-419-0 02 1 0712-1204 ● ●
1 DRUM; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42315-419-0 02 1 0712-1204 ●
1 DRUM; BRK,RR
(D) 		1-42315-422-0 02 1 1205- ● ●
1 DRUM; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		1-42315-422-0 02 1 1205- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-194-4 02 1 0906- ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42315-383-0 02 1 0712-0804 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42315-383-0 02 1 0805- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-194-4 02 1 0712-0712 ●
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-357-0 02 1 0712-0712 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0801-0805 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0806-0905 ●
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0906- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) 		1-42315-401-0 02 1 0906- ●
8 HUB; RR AXLE
(C) 		1-42311-164-0 02 1 1205- ● ●
8 HUB; RR AXLE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42311-164-0 02 1 1205- ●
8 HUB; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42311-094-0 02 1 0712-0804 ●
8 HUB; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42311-094-0 02 1 0805- ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. ANTI LOCK BRAKE<JE5> (B) 		1-42311-085-0 02 1 0712-0804 ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. ANTI LOCK BRAKE<JE5> (B) 		1-42311-085-0 02 1 0805- ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) 		1-42311-104-0 02 1 0712-0805 ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-42311-104-0 02 1 0712-0805 ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) 		1-42311-104-0 02 1 0806- ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-42311-104-0 02 1 0806- ●
8 HUB; RR AXLE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 45/7 17.5"(W3X) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) 		1-42311-105-0 02 1 0712- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0712-0804 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0805- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0712-0805 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0806- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0712-0805 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0806- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 0710-0711 ● ● ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 0712- ● ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42339-033-0 20 1 0712- ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M88 		9-09843-062-2 02 1 0712-0804 ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (C) M88 		9-09843-062-2 02 1 0805- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0710-0711 ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0712- ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-065-0 02 1 0712- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0710-0711 ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0712- ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-067-0 02 1 0712- ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) (B) L=1039 		1-42171-414-0 02 1 0712-0910 ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) (B) L=1050 		8-98146-111-0 02 1 0911- ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) L=1054 		1-42171-355-0 02 1 0712-0804 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054 		1-42171-355-0 02 1 0805-0809 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054 		1-42171-375-0 02 1 0810-0910 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1050 		8-98146-164-0 02 1 0911- ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 0710-0711 ● ● ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 0712- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=951 		1-42171-557-0 01 1 0712- ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 0710-0711 ● ● ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 0712- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1120 		1-42171-558-0 01 1 0712- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 0710-0711 ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 0712- ● ●
31 STUD; AXLE SHAFT TO HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-171-0 16 1 0712- ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) ID=14.2 		0-91510-814-0 20 1 0712-0804 ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) ID=14.2 		0-91510-814-0 20 1 0805- ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 0710-0711 ● ● ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 0712- ● ●
33 WASHER; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42179-003-0 16 1 0712- ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0710-0711 ● ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0712- ● ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-005-0 16 1 0712- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NOK 		1-09625-265-0 02 1 0712-0804 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) NOK 		1-09625-265-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) TKK 		1-09625-350-0 02 1 0712-0804 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) TKK 		1-09625-350-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 0710-0711 ● ● ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 0712- ● ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42319-172-0 02 1 0712- ●
49 CASE; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) STABILIZER REAR LIGHT DUTY<GN1> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98098-891-0 01 1 0712-1004 ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STABILIZER REAR LIGHT DUTY<GN1> (C) 		8-98098-892-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) STABILIZER REAR LIGHT DUTY<GN1> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98098-893-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B) 		8-98098-895-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B) 		8-98098-895-0 01 1 0805- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) STABILIZER REAR LIGHT DUTY<GN1> ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98098-896-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) STABILIZER REAR LIGHT DUTY<GN1> ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98098-896-0 01 1 0805-1005 ●
49 CASE; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98024-661-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. STABILIZER REAR LIGHT DUTY<GN1> (C) 		8-98003-968-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98024-660-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B) 		8-98024-656-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B) 		8-98024-656-0 01 1 0805- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98024-657-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98024-657-0 01 1 0805- ●
49 CASE; RR AXLE
(A) 		1-42190-729-0 01 1 0710-1107 ● ●
49 CASE; RR AXLE
(A) 		1-42190-743-0 01 1 1108-1306 ● ●
49 CASE; RR AXLE
(A) 		1-42190-754-0 01 1 1307- ● ●
49 CASE; RR AXLE
(C) 		1-42190-728-0 01 1 0710-0711 ●
49 CASE; RR AXLE
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42190-728-0 01 1 0712-1306 ●
49 CASE; RR AXLE
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42190-755-0 01 1 1307- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M24X17 FLANGE 		1-09604-023-0 01 1 0712-0804 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M24X17 FLANGE 		1-09604-023-0 01 1 0805- ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 0710-0711 ● ● ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 0712- ● ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-054-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-032-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09893-032-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09893-016-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09893-003-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0710-0711 ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0710-0711 ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0712-1312 ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0712-1312 ● ●
60 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09893-028-0 01 1 0712-1312 ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) (A) 		1-09893-028-0 01 1 0712-1312 ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-09893-028-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE
(B) 		1-09893-016-0 01 1 0710-0710 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M24X17 FLANGE 		1-09604-022-0 01 1 0712-0804 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (C) M24X17 FLANGE 		1-09604-022-0 01 1 0805- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0710-0711 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0712- ● ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42119-135-0 02 1 0712- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0710-0711 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0712- ● ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-054-0 01 1 0712- ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M16X70 		0-10956-670-0 04 1 0712-0804 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X70 		0-10956-670-0 04 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M16X40 		0-20951-640-0 08 1 0712-0804 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X40 		0-20951-640-0 08 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 0710-0711 ● ● ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 0712- ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42119-136-0 08 1 0712- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0710-0711 ● ● ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0712- ● ●
69 STUD; AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=120.65 		1-42119-184-0 04 1 0712- ●
70 NUT; CARRIER 1-42179-005-0 04 1 0710-0711 ● ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0712- ● ●
70 NUT; CARRIER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-005-0 04 1 0712- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) ID=16.2 		0-91510-816-0 12 1 0712-0804 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) ID=16.2 		0-91510-816-0 12 1 0805- ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 0710-0711 ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 0712- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-41229-168-0 12 1 0712- ●
143 RING; EXCITER 1-42319-224-0 02 1 1205- ● ●
143 RING; EXCITER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-224-0 02 1 1205- ●
143 RING; EXCITER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> 		1-42319-173-0 02 1 0712-0804 ●
143 RING; EXCITER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> 		1-42319-173-0 02 1 0805- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0710-0711 ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0712- ● ●
188 GASKET; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42175-013-0 02 1 0712- ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0710-0711 ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0712- ● ●
234 DOWEL; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-162-0 16 1 0712- ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 0710-0711 ● ● ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 0712- ● ●
279 RING & WASHER; LK,BRG NUT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-022-0 02 1 0712- ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 0710-0711 ● ● ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 0712- ● ●
280 BEARING SET; HUB,INNER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85573-012-0 02 1 0712- ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 0710-0711 ● ● ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 0712- ● ●
281 BEARING SET; HUB,OUTER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85573-013-0 02 1 0712- ●

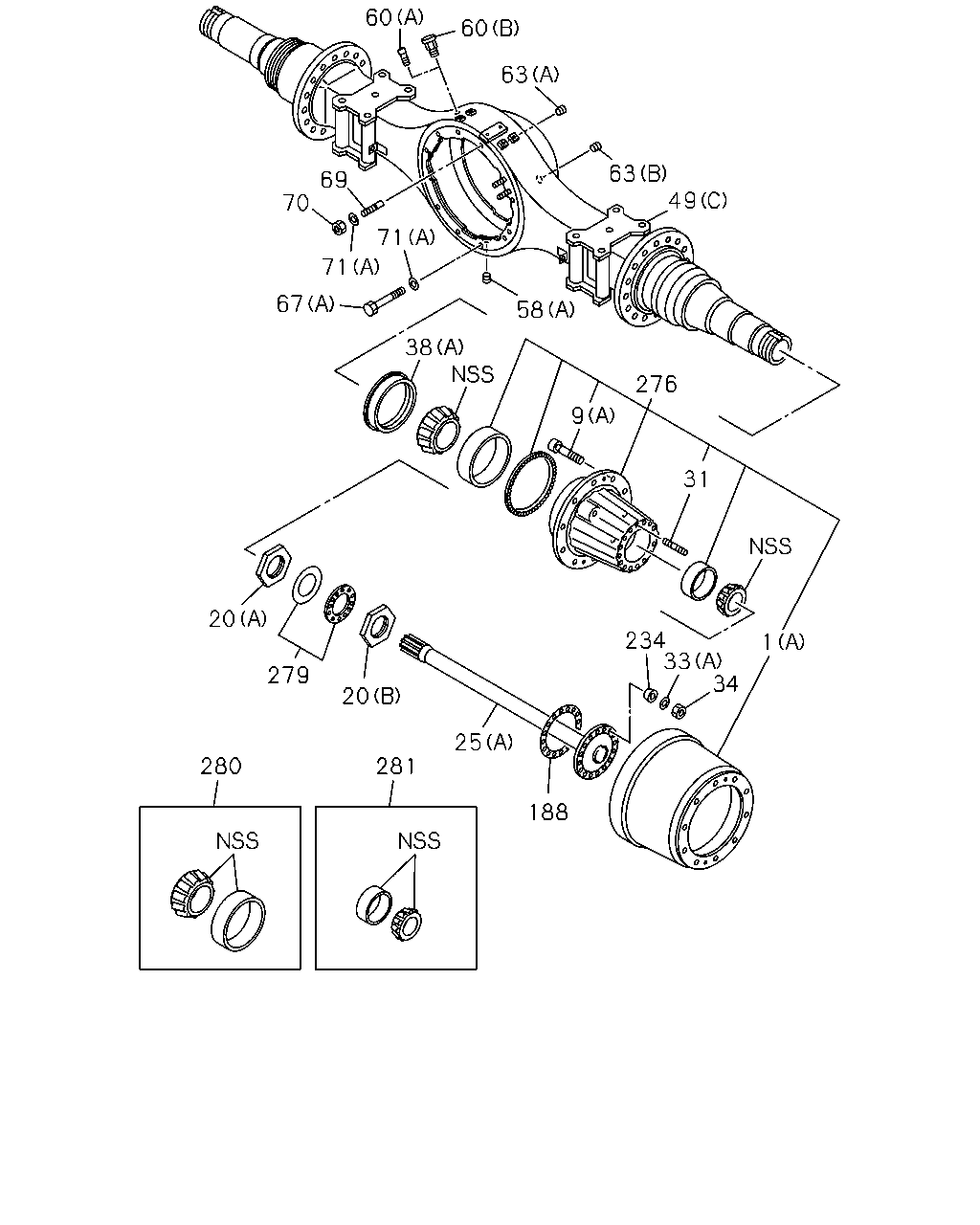

çizim 180061
60 60 63 63 58 276 71 69 70 71 67 38 9 31 1 34 33 234 25 188 281 20 279 20 280 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRUM; BRK,RR
(A) 		1-42315-419-0 02 1 0710-0711 ● ● ●
1 DRUM; BRK,RR
(A) 		1-42315-419-0 02 1 0712-1204 ● ●
1 DRUM; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42315-419-0 02 1 0712-1204 ●
1 DRUM; BRK,RR
(D) 		1-42315-422-0 02 1 1205- ● ●
1 DRUM; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		1-42315-422-0 02 1 1205- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-194-4 02 1 0906- ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42315-383-0 02 1 0712-0804 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42315-383-0 02 1 0805- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-194-4 02 1 0712-0712 ●
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-357-0 02 1 0712-0712 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0801-0805 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0806-0905 ●
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0906- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) 		1-42315-401-0 02 1 0906- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0712-0804 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0805- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0712-0805 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0806- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0712-0805 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0806- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 0710-0711 ● ● ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 0712- ● ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42339-033-0 20 1 0712- ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M88 		9-09843-062-2 02 1 0712-0804 ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (C) M88 		9-09843-062-2 02 1 0805- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0710-0711 ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0712- ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-065-0 02 1 0712- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0710-0711 ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0712- ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-067-0 02 1 0712- ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) (B) L=1039 		1-42171-414-0 02 1 0712-0910 ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) (B) L=1050 		8-98146-111-0 02 1 0911- ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) L=1054 		1-42171-355-0 02 1 0712-0804 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054 		1-42171-355-0 02 1 0805-0809 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054 		1-42171-375-0 02 1 0810-0910 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1050 		8-98146-164-0 02 1 0911- ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 0710-0711 ● ● ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 0712- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=951 		1-42171-557-0 01 1 0712- ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 0710-0711 ● ● ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 0712- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1120 		1-42171-558-0 01 1 0712- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 0710-0711 ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 0712- ● ●
31 STUD; AXLE SHAFT TO HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-171-0 16 1 0712- ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) ID=14.2 		0-91510-814-0 20 1 0712-0804 ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) ID=14.2 		0-91510-814-0 20 1 0805- ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 0710-0711 ● ● ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 0712- ● ●
33 WASHER; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42179-003-0 16 1 0712- ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0710-0711 ● ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0712- ● ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-005-0 16 1 0712- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NOK 		1-09625-265-0 02 1 0712-0804 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) NOK 		1-09625-265-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) TKK 		1-09625-350-0 02 1 0712-0804 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) TKK 		1-09625-350-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 0710-0711 ● ● ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 0712- ● ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42319-172-0 02 1 0712- ●
49 CASE; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) STABILIZER REAR LIGHT DUTY<GN1> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98098-891-0 01 1 0712-1004 ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STABILIZER REAR LIGHT DUTY<GN1> (C) 		8-98098-892-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) STABILIZER REAR LIGHT DUTY<GN1> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98098-893-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B) 		8-98098-895-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B) 		8-98098-895-0 01 1 0805- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) STABILIZER REAR LIGHT DUTY<GN1> ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98098-896-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) STABILIZER REAR LIGHT DUTY<GN1> ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98098-896-0 01 1 0805-1005 ●
49 CASE; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98024-661-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. STABILIZER REAR LIGHT DUTY<GN1> (C) 		8-98003-968-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98024-660-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B) 		8-98024-656-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B) 		8-98024-656-0 01 1 0805- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98024-657-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98024-657-0 01 1 0805- ●
49 CASE; RR AXLE
(A) 		1-42190-729-0 01 1 0710-1107 ● ●
49 CASE; RR AXLE
(A) 		1-42190-743-0 01 1 1108-1306 ● ●
49 CASE; RR AXLE
(A) 		1-42190-754-0 01 1 1307- ● ●
49 CASE; RR AXLE
(C) 		1-42190-728-0 01 1 0710-0711 ●
49 CASE; RR AXLE
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42190-728-0 01 1 0712-1306 ●
49 CASE; RR AXLE
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42190-755-0 01 1 1307- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M24X17 FLANGE 		1-09604-023-0 01 1 0712-0804 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M24X17 FLANGE 		1-09604-023-0 01 1 0805- ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 0710-0711 ● ● ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 0712- ● ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-054-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-032-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09893-032-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09893-016-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09893-003-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0710-0711 ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0710-0711 ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0712-1312 ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0712-1312 ● ●
60 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09893-028-0 01 1 0712-1312 ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) (A) 		1-09893-028-0 01 1 0712-1312 ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-09893-028-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE
(B) 		1-09893-016-0 01 1 0710-0710 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M24X17 FLANGE 		1-09604-022-0 01 1 0712-0804 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (C) M24X17 FLANGE 		1-09604-022-0 01 1 0805- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0710-0711 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0712- ● ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42119-135-0 02 1 0712- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0710-0711 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0712- ● ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-054-0 01 1 0712- ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M16X70 		0-10956-670-0 04 1 0712-0804 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X70 		0-10956-670-0 04 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M16X40 		0-20951-640-0 08 1 0712-0804 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X40 		0-20951-640-0 08 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 0710-0711 ● ● ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 0712- ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42119-136-0 08 1 0712- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0710-0711 ● ● ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0712- ● ●
69 STUD; AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=120.65 		1-42119-184-0 04 1 0712- ●
70 NUT; CARRIER 1-42179-005-0 04 1 0710-0711 ● ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0712- ● ●
70 NUT; CARRIER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-005-0 04 1 0712- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) ID=16.2 		0-91510-816-0 12 1 0712-0804 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) ID=16.2 		0-91510-816-0 12 1 0805- ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 0710-0711 ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 0712- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-41229-168-0 12 1 0712- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0710-0711 ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0712- ● ●
188 GASKET; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42175-013-0 02 1 0712- ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0710-0711 ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0712- ● ●
234 DOWEL; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-162-0 16 1 0712- ●
276 HUB & DRUM ASM 1-42311-158-0 02 1 0710-0711 ● ● ●
276 HUB & DRUM ASM 1-42311-158-0 02 1 0712-1204 ● ●
276 HUB & DRUM ASM
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42311-158-0 02 1 0712-1204 ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 0710-0711 ● ● ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 0712- ● ●
279 RING & WASHER; LK,BRG NUT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-022-0 02 1 0712- ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 0710-0711 ● ● ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 0712- ● ●
280 BEARING SET; HUB,INNER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85573-012-0 02 1 0712- ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 0710-0711 ● ● ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 0712- ● ●
281 BEARING SET; HUB,OUTER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85573-013-0 02 1 0712- ●

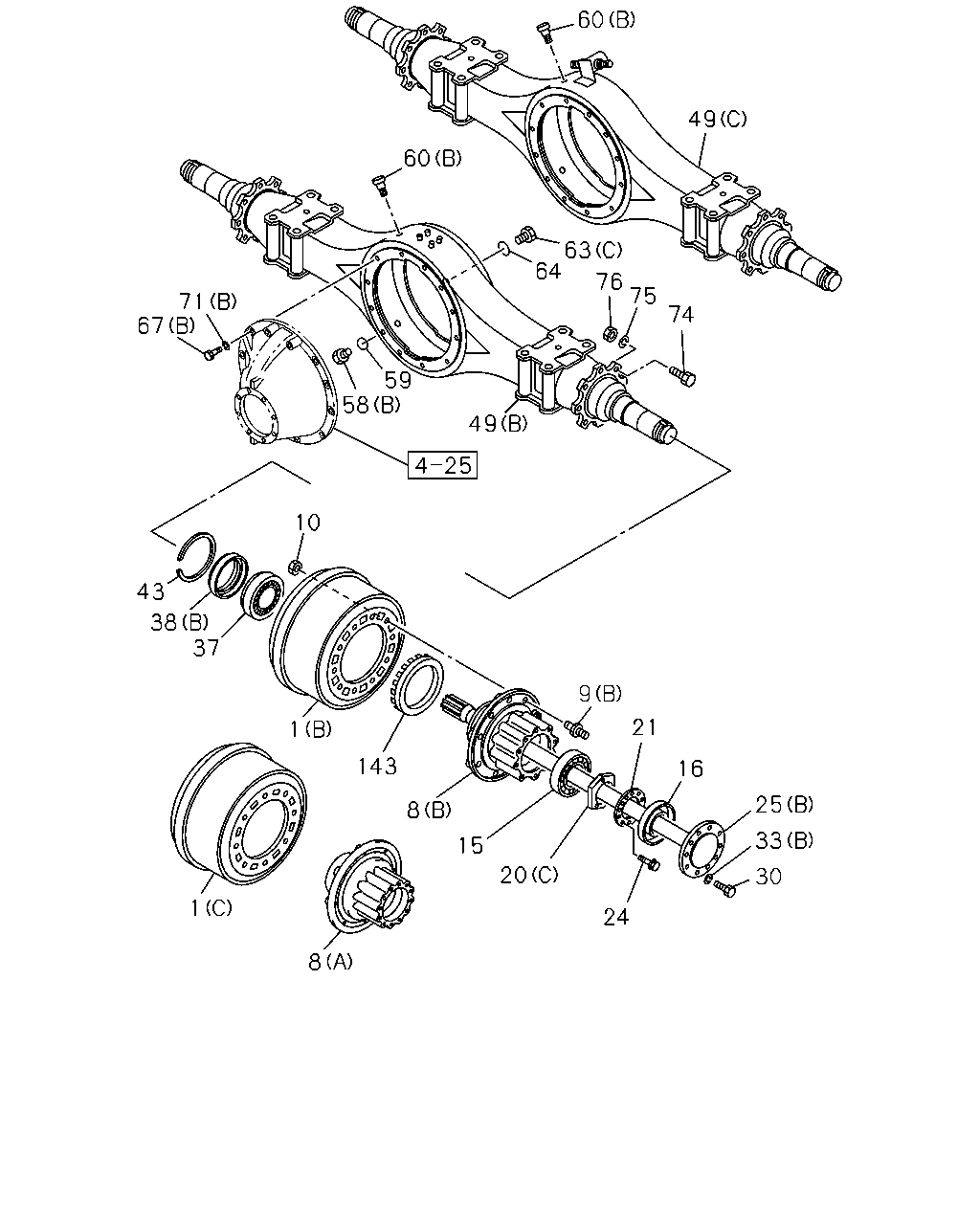

çizim 292078
49 60 63 74 75 76 64 60 49 58 59 71 67 10 1 143 8 15 20 24 16 21 9 25 33 30 1 37 38 43 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRUM; BRK,RR
(A) 		1-42315-419-0 02 1 0710-0711 ● ● ●
1 DRUM; BRK,RR
(A) 		1-42315-419-0 02 1 0712-1204 ● ●
1 DRUM; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42315-419-0 02 1 0712-1204 ●
1 DRUM; BRK,RR
(D) 		1-42315-422-0 02 1 1205- ● ●
1 DRUM; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		1-42315-422-0 02 1 1205- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-194-4 02 1 0906- ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42315-383-0 02 1 0712-0804 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42315-383-0 02 1 0805- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-194-4 02 1 0712-0712 ●
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-357-0 02 1 0712-0712 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0801-0805 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0806-0905 ●
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0906- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) 		1-42315-401-0 02 1 0906- ●
8 HUB; RR AXLE
(C) 		1-42311-164-0 02 1 1205- ● ●
8 HUB; RR AXLE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42311-164-0 02 1 1205- ●
8 HUB; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42311-094-0 02 1 0712-0804 ●
8 HUB; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42311-094-0 02 1 0805- ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. ANTI LOCK BRAKE<JE5> (B) 		1-42311-085-0 02 1 0712-0804 ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. ANTI LOCK BRAKE<JE5> (B) 		1-42311-085-0 02 1 0805- ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) 		1-42311-104-0 02 1 0712-0805 ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-42311-104-0 02 1 0712-0805 ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) 		1-42311-104-0 02 1 0806- ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-42311-104-0 02 1 0806- ●
8 HUB; RR AXLE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 45/7 17.5"(W3X) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) 		1-42311-105-0 02 1 0712- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0712-0804 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0805- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0712-0805 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0806- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0712-0805 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0806- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 0710-0711 ● ● ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 0712- ● ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42339-033-0 20 1 0712- ●
10 NUT; WHEEL PIN,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22 		1-09400-071-0 20 1 0712-0804 ●
10 NUT; WHEEL PIN,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22 		1-09400-071-0 20 1 0805- ●
10 NUT; WHEEL PIN,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M22 FLANGE 		1-09440-065-0 16 1 0712-0805 ●
10 NUT; WHEEL PIN,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M22 FLANGE 		1-09440-065-0 16 1 0806- ●
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) SKF 		1-09812-256-0 02 1 1209- ●
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BEST VALUE PARTS 		1-87610-136-0 02 1 1209- ●
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) JTEKT 		1-09812-232-0 02 1 0712-0804 ●
15 BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) JTEKT 		1-09812-232-0 02 1 0805- ●
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TKK 		1-09625-444-0 02 1 0712-0804 ●
16 SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) TKK 		1-09625-444-0 02 1 0805- ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M88 		9-09843-062-2 02 1 0712-0804 ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (C) M88 		9-09843-062-2 02 1 0805- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0710-0711 ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0712- ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-065-0 02 1 0712- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0710-0711 ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0712- ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-067-0 02 1 0712- ●
21 WASHER; LK,BRG NUT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=88 		9-09854-112-0 02 1 0712-0804 ●
21 WASHER; LK,BRG NUT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ID=88 		9-09854-112-0 02 1 0805- ●
24 BOLT; LK WASHER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M6X16 FLANGE 		0-28650-616-0 06 1 0712-0804 ●
24 BOLT; LK WASHER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) M6X16 FLANGE 		0-28650-616-0 06 1 0805- ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) (B) L=1039 		1-42171-414-0 02 1 0712-0910 ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) (B) L=1050 		8-98146-111-0 02 1 0911- ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) L=1054 		1-42171-355-0 02 1 0712-0804 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054 		1-42171-355-0 02 1 0805-0809 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054 		1-42171-375-0 02 1 0810-0910 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1050 		8-98146-164-0 02 1 0911- ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 0710-0711 ● ● ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 0712- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=951 		1-42171-557-0 01 1 0712- ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 0710-0711 ● ● ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 0712- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1120 		1-42171-558-0 01 1 0712- ●
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M14X58 		1-09000-582-0 20 1 0712-0804 ●
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) M14X58 		1-09000-582-0 20 1 0805- ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) ID=14.2 		0-91510-814-0 20 1 0712-0804 ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) ID=14.2 		0-91510-814-0 20 1 0805- ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 0710-0711 ● ● ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 0712- ● ●
33 WASHER; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42179-003-0 16 1 0712- ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BEST VALUE PARTS 		1-87610-138-0 02 1 1209- ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) SKF 		1-09812-257-0 02 1 1209- ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) JTEKT 		1-09812-233-0 02 1 0712-0804 ●
37 BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) JTEKT 		1-09812-233-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NOK 		1-09625-265-0 02 1 0712-0804 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) NOK 		1-09625-265-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) TKK 		1-09625-350-0 02 1 0712-0804 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) TKK 		1-09625-350-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 0710-0711 ● ● ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 0712- ● ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42319-172-0 02 1 0712- ●
43 RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) OD=179 		1-09587-057-0 02 1 0712-0804 ●
43 RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) OD=179 		1-09587-057-0 02 1 0805- ●
49 CASE; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) STABILIZER REAR LIGHT DUTY<GN1> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98098-891-0 01 1 0712-1004 ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STABILIZER REAR LIGHT DUTY<GN1> (C) 		8-98098-892-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) STABILIZER REAR LIGHT DUTY<GN1> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98098-893-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B) 		8-98098-895-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B) 		8-98098-895-0 01 1 0805- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) STABILIZER REAR LIGHT DUTY<GN1> ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98098-896-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) STABILIZER REAR LIGHT DUTY<GN1> ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98098-896-0 01 1 0805-1005 ●
49 CASE; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98024-661-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. STABILIZER REAR LIGHT DUTY<GN1> (C) 		8-98003-968-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98024-660-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B) 		8-98024-656-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B) 		8-98024-656-0 01 1 0805- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98024-657-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98024-657-0 01 1 0805- ●
49 CASE; RR AXLE
(A) 		1-42190-729-0 01 1 0710-1107 ● ●
49 CASE; RR AXLE
(A) 		1-42190-743-0 01 1 1108-1306 ● ●
49 CASE; RR AXLE
(A) 		1-42190-754-0 01 1 1307- ● ●
49 CASE; RR AXLE
(C) 		1-42190-728-0 01 1 0710-0711 ●
49 CASE; RR AXLE
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42190-728-0 01 1 0712-1306 ●
49 CASE; RR AXLE
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42190-755-0 01 1 1307- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M24X17 FLANGE 		1-09604-023-0 01 1 0712-0804 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M24X17 FLANGE 		1-09604-023-0 01 1 0805- ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 0710-0711 ● ● ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 0712- ● ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-054-0 01 1 0712- ●
59 GASKET; DRAIN PLUG
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=26.8 		9-09920-605-0 01 1 0712-0804 ●
59 GASKET; DRAIN PLUG
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ID=26.8 		9-09920-605-0 01 1 0805- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-032-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09893-032-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09893-016-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09893-003-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0710-0711 ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0710-0711 ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0712-1312 ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0712-1312 ● ●
60 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09893-028-0 01 1 0712-1312 ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) (A) 		1-09893-028-0 01 1 0712-1312 ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-09893-028-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE
(B) 		1-09893-016-0 01 1 0710-0710 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M24X17 FLANGE 		1-09604-022-0 01 1 0712-0804 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (C) M24X17 FLANGE 		1-09604-022-0 01 1 0805- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0710-0711 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0712- ● ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42119-135-0 02 1 0712- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0710-0711 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0712- ● ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-054-0 01 1 0712- ●
64 GASKET; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=26.8 		9-09920-605-0 01 1 0712-0804 ●
64 GASKET; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ID=26.8 		9-09920-605-0 01 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M16X70 		0-10956-670-0 04 1 0712-0804 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X70 		0-10956-670-0 04 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M16X40 		0-20951-640-0 08 1 0712-0804 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X40 		0-20951-640-0 08 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 0710-0711 ● ● ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 0712- ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42119-136-0 08 1 0712- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) ID=16.2 		0-91510-816-0 12 1 0712-0804 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) ID=16.2 		0-91510-816-0 12 1 0805- ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 0710-0711 ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 0712- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-41229-168-0 12 1 0712- ●
74 BOLT; RR BRK ASM SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M14X50 		1-09040-066-0 14 1 0906- ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50 		1-09040-066-0 12 1 0712-0804 ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50 		1-09040-066-0 12 1 0805- ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X80 		9-92621-480-0 04 1 0712-0804 ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X80 		9-92621-480-0 04 1 0805-1504 ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X60 		1-09040-084-0 04 1 1505- ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X50 		1-09040-066-0 16 1 0712-0804 ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> M14X50 		1-09040-066-0 16 1 0712-0804 ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X50 		1-09040-066-0 16 1 0805-0905 ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> M14X50 		1-09040-066-0 16 1 0805-0905 ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M14X50 		1-09040-066-0 16 1 0906- ●
74 BOLT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> M14X50 		1-09040-066-0 16 1 0906- ●
75 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=14.2 		0-91510-814-0 16 1 0712-0804 ●
75 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ID=14.2 		0-91510-814-0 16 1 0805- ●
76 NUT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M14 		0-91110-514-0 16 1 0712-0804 ●
76 NUT; RR BRK ASM SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) M14 		0-91110-514-0 16 1 0805- ●
143 RING; EXCITER 1-42319-224-0 02 1 1205- ● ●
143 RING; EXCITER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-224-0 02 1 1205- ●
143 RING; EXCITER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> 		1-42319-173-0 02 1 0712-0804 ●
143 RING; EXCITER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> 		1-42319-173-0 02 1 0805- ●
çizim 292083
63 60 60 70 69 71 71 67 38 143 8 31 9 58 63 49 34 1 33 234 188 25 20 281 279 20 280
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRUM; BRK,RR
(A) 		1-42315-419-0 02 1 0710-0711 ● ● ●
1 DRUM; BRK,RR
(A) 		1-42315-419-0 02 1 0712-1204 ● ●
1 DRUM; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42315-419-0 02 1 0712-1204 ●
1 DRUM; BRK,RR
(D) 		1-42315-422-0 02 1 1205- ● ●
1 DRUM; BRK,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		1-42315-422-0 02 1 1205- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-194-4 02 1 0906- ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42315-383-0 02 1 0712-0804 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42315-383-0 02 1 0805- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-194-4 02 1 0712-0712 ●
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-357-0 02 1 0712-0712 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0801-0805 ●
1 DRUM; BRK,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0806-0905 ●
1 DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (C) 		1-42315-401-0 02 1 0906- ●
1 DRUM; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) 		1-42315-401-0 02 1 0906- ●
8 HUB; RR AXLE
(C) 		1-42311-164-0 02 1 1205- ● ●
8 HUB; RR AXLE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42311-164-0 02 1 1205- ●
8 HUB; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42311-094-0 02 1 0712-0804 ●
8 HUB; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42311-094-0 02 1 0805- ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. ANTI LOCK BRAKE<JE5> (B) 		1-42311-085-0 02 1 0712-0804 ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. ANTI LOCK BRAKE<JE5> (B) 		1-42311-085-0 02 1 0805- ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) 		1-42311-104-0 02 1 0712-0805 ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-42311-104-0 02 1 0712-0805 ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) 		1-42311-104-0 02 1 0806- ●
8 HUB; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-42311-104-0 02 1 0806- ●
8 HUB; RR AXLE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 45/7 17.5"(W3X) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) 		1-42311-105-0 02 1 0712- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0712-0804 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0805- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0712-0805 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0806- ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0712-0805 ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0806- ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 0710-0711 ● ● ●
9 PIN; WHEEL,RR AXLE
(A) 		1-42339-033-0 20 1 0712- ● ●
9 PIN; WHEEL,RR AXLE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42339-033-0 20 1 0712- ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M88 		9-09843-062-2 02 1 0712-0804 ●
20 NUT; BRG,RR HUB
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (C) M88 		9-09843-062-2 02 1 0805- ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0710-0711 ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0712- ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-065-0 02 1 0712- ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0710-0711 ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0712- ● ●
20 NUT; BRG,RR HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-067-0 02 1 0712- ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) (B) L=1039 		1-42171-414-0 02 1 0712-0910 ●
25 SHAFT; AXLE,RR
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) (B) L=1050 		8-98146-111-0 02 1 0911- ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) L=1054 		1-42171-355-0 02 1 0712-0804 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054 		1-42171-355-0 02 1 0805-0809 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1054 		1-42171-375-0 02 1 0810-0910 ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) L=1050 		8-98146-164-0 02 1 0911- ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 0710-0711 ● ● ●
25 SHAFT; AXLE,RR
(A) L=951 		1-42171-557-0 01 1 0712- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=951 		1-42171-557-0 01 1 0712- ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 0710-0711 ● ● ●
25 SHAFT; AXLE,RR
(A) L=1120 		1-42171-558-0 01 1 0712- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1120 		1-42171-558-0 01 1 0712- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 0710-0711 ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 0712- ● ●
31 STUD; AXLE SHAFT TO HUB
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-171-0 16 1 0712- ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) ID=14.2 		0-91510-814-0 20 1 0712-0804 ●
33 WASHER; AXLE SHAFT
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) ID=14.2 		0-91510-814-0 20 1 0805- ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 0710-0711 ● ● ●
33 WASHER; AXLE SHAFT
(A) 		1-42179-003-0 16 1 0712- ● ●
33 WASHER; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42179-003-0 16 1 0712- ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0710-0711 ● ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0712- ● ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-005-0 16 1 0712- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NOK 		1-09625-265-0 02 1 0712-0804 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) NOK 		1-09625-265-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) TKK 		1-09625-350-0 02 1 0712-0804 ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) TKK 		1-09625-350-0 02 1 0805- ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 0710-0711 ● ● ●
38 SEAL; OIL,RR HUB,INNER
(A) 		1-42319-172-0 02 1 0712- ● ●
38 SEAL; OIL,RR HUB,INNER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42319-172-0 02 1 0712- ●
49 CASE; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) STABILIZER REAR LIGHT DUTY<GN1> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98098-891-0 01 1 0712-1004 ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STABILIZER REAR LIGHT DUTY<GN1> (C) 		8-98098-892-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) STABILIZER REAR LIGHT DUTY<GN1> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98098-893-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B) 		8-98098-895-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B) 		8-98098-895-0 01 1 0805- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) STABILIZER REAR LIGHT DUTY<GN1> ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98098-896-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) STABILIZER REAR LIGHT DUTY<GN1> ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98098-896-0 01 1 0805-1005 ●
49 CASE; RR AXLE
ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98024-661-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. STABILIZER REAR LIGHT DUTY<GN1> (C) 		8-98003-968-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98024-660-1 01 1 0712- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B) 		8-98024-656-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B) 		8-98024-656-0 01 1 0805- ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98024-657-0 01 1 0712-0804 ●
49 CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. STABILIZER REAR LIGHT DUTY<GN1> (B) 		8-98024-657-0 01 1 0805- ●
49 CASE; RR AXLE
(A) 		1-42190-729-0 01 1 0710-1107 ● ●
49 CASE; RR AXLE
(A) 		1-42190-743-0 01 1 1108-1306 ● ●
49 CASE; RR AXLE
(A) 		1-42190-754-0 01 1 1307- ● ●
49 CASE; RR AXLE
(C) 		1-42190-728-0 01 1 0710-0711 ●
49 CASE; RR AXLE
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42190-728-0 01 1 0712-1306 ●
49 CASE; RR AXLE
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-42190-755-0 01 1 1307- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M24X17 FLANGE 		1-09604-023-0 01 1 0712-0804 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M24X17 FLANGE 		1-09604-023-0 01 1 0805- ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 0710-0711 ● ● ●
58 PLUG; DRAIN,AXLE CASE
(A) 		1-42129-054-0 01 1 0712- ● ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42129-054-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-032-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09893-032-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09893-016-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-09893-003-0 01 1 0712- ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0710-0711 ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0710-0711 ● ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0712-1312 ● ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 0712-1312 ● ●
60 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09893-028-0 01 1 0712-1312 ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) (A) 		1-09893-028-0 01 1 0712-1312 ●
60 BREATHER; RR AXLE CASE
(A) 		1-09893-028-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-09893-028-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE
(B) 		1-09893-016-0 01 1 0710-0710 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M24X17 FLANGE 		1-09604-022-0 01 1 0712-0804 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (C) M24X17 FLANGE 		1-09604-022-0 01 1 0805- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0710-0711 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0712- ● ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42119-135-0 02 1 0712- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0710-0711 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0712- ● ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-42129-054-0 01 1 0712- ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M16X70 		0-10956-670-0 04 1 0712-0804 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X70 		0-10956-670-0 04 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M16X40 		0-20951-640-0 08 1 0712-0804 ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) M16X40 		0-20951-640-0 08 1 0805- ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 0710-0711 ● ● ●
67 BOLT; FINAL DRIVE SETTING
(A) 		1-42119-136-0 08 1 0712- ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-42119-136-0 08 1 0712- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0710-0711 ● ● ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0712- ● ●
69 STUD; AXLE CASE
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=120.65 		1-42119-184-0 04 1 0712- ●
70 NUT; CARRIER 1-42179-005-0 04 1 0710-0711 ● ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0712- ● ●
70 NUT; CARRIER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-005-0 04 1 0712- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) ID=16.2 		0-91510-816-0 12 1 0712-0804 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) (B) ID=16.2 		0-91510-816-0 12 1 0805- ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 0710-0711 ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
(A) 		1-41229-168-0 12 1 0712- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-41229-168-0 12 1 0712- ●
143 RING; EXCITER 1-42319-224-0 02 1 1205- ● ●
143 RING; EXCITER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-224-0 02 1 1205- ●
143 RING; EXCITER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> 		1-42319-173-0 02 1 0712-0804 ●
143 RING; EXCITER
FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> 		1-42319-173-0 02 1 0805- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0710-0711 ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0712- ● ●
188 GASKET; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42175-013-0 02 1 0712- ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0710-0711 ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0712- ● ●
234 DOWEL; AXLE SHAFT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42319-162-0 16 1 0712- ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 0710-0711 ● ● ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 0712- ● ●
279 RING & WASHER; LK,BRG NUT
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42179-022-0 02 1 0712- ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 0710-0711 ● ● ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 0712- ● ●
280 BEARING SET; HUB,INNER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85573-012-0 02 1 0712- ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 0710-0711 ● ● ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 0712- ● ●
281 BEARING SET; HUB,OUTER
FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85573-013-0 02 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
