Sayfa 4-11 - Isuzu EPC

4-11 — FRONT HUB AND DRUM OR ROTOR (#36566) — 261 parça

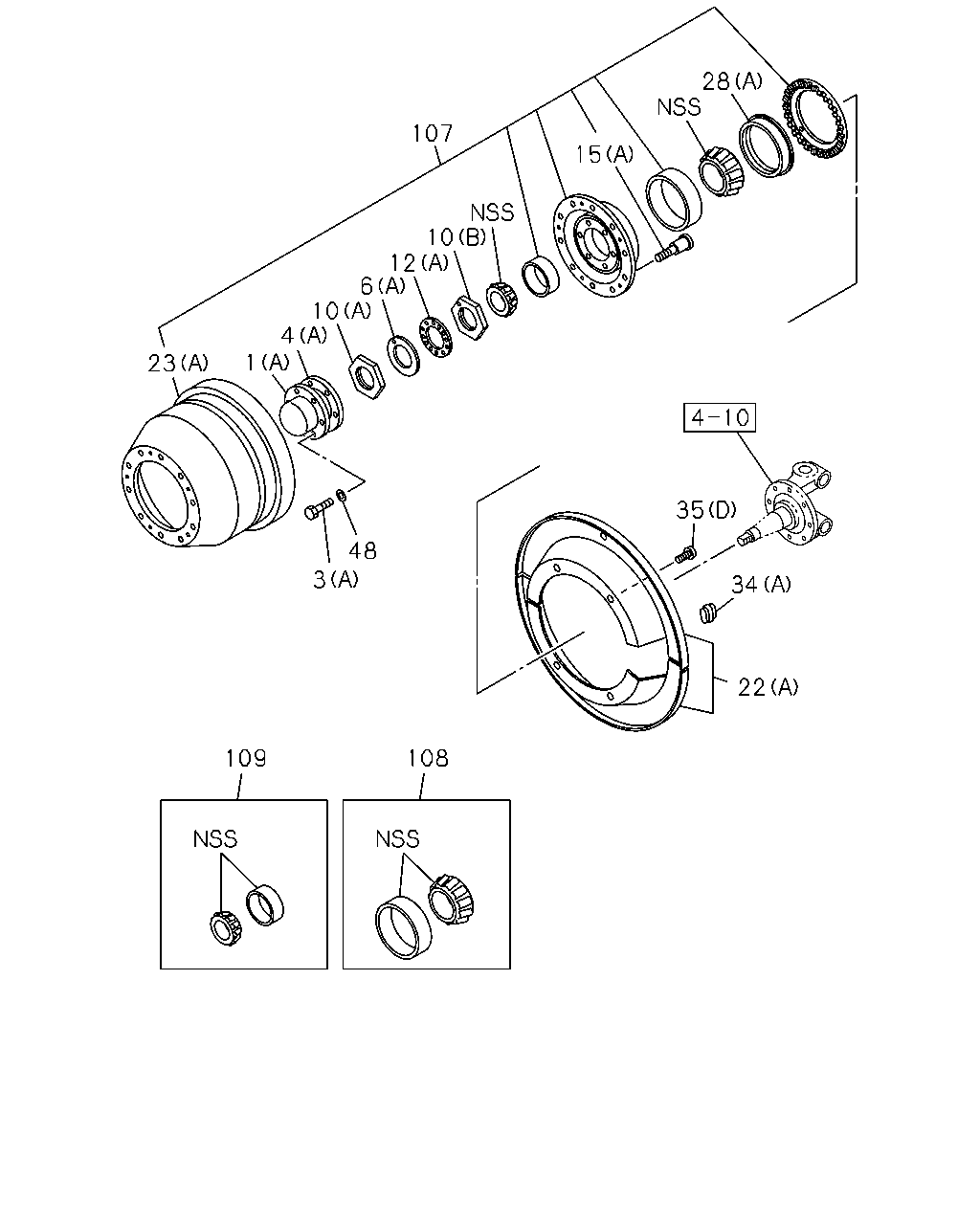

107 15 28 10 12 10 1 4 23 48 35 34 22 108 109 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=156	9-42313-123-2	02	1	0712-	●
1	CAP; HUB,FRT AXLE (A)	1-42313-028-0	02	1	0710-0711	●	●	●
1	CAP; HUB,FRT AXLE (A)	1-42313-028-0	02	1	0712-1507		●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42313-028-0	02	1	0712-1507	●
1	CAP; HUB,FRT AXLE (A)	8-98329-296-0	02	1	1508-		●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	8-98329-296-0	02	1	1508-	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B) M8X12 FLANGE	0-28050-812-0	12	1	0712-	●
3	BOLT; HUB CAP,FRT WHEEL (A)	1-42319-189-0	12	1	0710-0711	●	●	●
3	BOLT; HUB CAP,FRT WHEEL (A)	1-42319-189-0	12	1	0712-		●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	1-42319-189-0	12	1	0712-	●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-185-2	02	1	0712-	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-186-0	02	1	0710-0711	●	●	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-186-0	02	1	0712-1507		●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	1-42319-186-0	02	1	0712-1507	●
4	GASKET; HUB CAP,FRT WHEEL (A)	8-98329-302-0	02	1	1508-		●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	8-98329-302-0	02	1	1508-	●
6	WASHER; LK,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=48	8-98084-561-0	02	1	0712-	●
6	WASHER; LK,FRT HUB (A)	1-42329-018-0	02	1	0710-0711	●	●	●
6	WASHER; LK,FRT HUB (A)	1-42329-018-0	02	1	0712-		●	●
6	WASHER; LK,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A)	1-42329-018-0	02	1	0712-	●
10	NUT; FRT HUB BRG EXC. HUB LUBRICATION OIL BATH<C5K> (C) M48	1-09840-012-5	02	1	0712-	●
10	NUT; FRT HUB BRG (A)	1-42329-016-0	02	1	0710-0711	●	●	●
10	NUT; FRT HUB BRG (A)	1-42329-016-0	02	1	0712-		●	●
10	NUT; FRT HUB BRG HUB LUBRICATION OIL BATH<C5K> (A)	1-42329-016-0	02	1	0712-	●
10	NUT; FRT HUB BRG (B)	1-42329-017-0	02	1	0710-0711	●	●	●
10	NUT; FRT HUB BRG (B)	1-42329-017-0	02	1	0712-		●	●
10	NUT; FRT HUB BRG HUB LUBRICATION OIL BATH<C5K> (B)	1-42329-017-0	02	1	0712-	●
12	WASHER; LK,FRT HUB BRG EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=48	1-09533-016-0	02	1	0712-0911	●
12	WASHER; LK,FRT HUB BRG EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=48	8-98156-755-0	02	1	0912-	●
12	WASHER; LK,FRT HUB BRG (A)	1-42329-015-0	02	1	0710-0711	●	●	●
12	WASHER; LK,FRT HUB BRG (A)	1-42329-015-0	02	1	0712-		●	●
12	WASHER; LK,FRT HUB BRG HUB LUBRICATION OIL BATH<C5K> (A)	1-42329-015-0	02	1	0712-	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0712-	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0712-	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0712-	●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-063-0	20	1	0710-0711	●	●	●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-063-0	20	1	0712-		●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42337-063-0	20	1	0712-	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-225-0	02	1	0712-	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47151-458-1	02	1	0712-	●
22	COVER SET; FRT BRK DRUM (A)	1-47151-708-0	02	1	0710-0711	●	●	●
22	COVER SET; FRT BRK DRUM (A)	1-47151-708-0	02	1	0712-		●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-708-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-365-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-380-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42315-355-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42315-397-0	02	1	0712-	●
23	DRUM; BRK,FRT (A)	1-42315-378-0	02	1	0710-0711	●	●	●
23	DRUM; BRK,FRT (A)	1-42315-378-0	02	1	0712-1204		●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-42315-378-0	02	1	0712-1204	●
23	DRUM; BRK,FRT (D)	1-42315-420-0	02	1	1205-		●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (D)	1-42315-420-0	02	1	1205-	●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=140	1-09625-041-0	02	1	0712-	●
28	SEAL; OIL,FRT HUB (A)	1-09625-636-0	02	1	0710-0711	●	●	●
28	SEAL; OIL,FRT HUB (A)	1-09625-636-0	02	1	0712-		●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-636-0	02	1	0712-	●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	0710-0711	●	●	●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	0712-		●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-87050-011-0	04	1	0712-	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-09333-151-0	04	1	0712-	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (A) M10X12	1-47159-187-0	12	1	0712-	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X65	1-09000-583-0	04	1	0712-0805	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X65	1-09000-789-0	04	1	0806-	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X45	9-92061-845-0	08	1	0712-0805	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X45	1-09000-790-0	08	1	0806-	●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M16X52	1-09044-120-0	04	1	0712-	●
35	BOLT; DRUM COVER (D)	1-47159-176-0	12	1	0710-0711	●	●	●
35	BOLT; DRUM COVER (D)	1-47159-176-0	12	1	0712-		●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (D)	1-47159-176-0	12	1	0712-	●
48	WASHER; LK,HUB CAP,FRT WHEEL	1-42319-190-0	12	1	0710-0711	●	●	●
48	WASHER; LK,HUB CAP,FRT WHEEL	1-42319-190-0	12	1	0712-1507		●	●
48	WASHER; LK,HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-42319-190-0	12	1	0712-1507	●
48	WASHER; LK,HUB CAP,FRT WHEEL	1-41519-055-0	12	1	1508-		●	●
48	WASHER; LK,HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-41519-055-0	12	1	1508-	●
107	HUB & DRUM ASM	1-42311-152-0	02	1	0710-0711	●	●	●
107	HUB & DRUM ASM	1-42311-152-0	02	1	0712-1204		●	●
107	HUB & DRUM ASM HUB LUBRICATION OIL BATH<C5K>	1-42311-152-0	02	1	0712-1204	●
108	BEARING SET; HUB,INNER	1-85573-010-0	02	1	0710-0711	●	●	●
108	BEARING SET; HUB,INNER	1-85573-010-0	02	1	0712-		●	●
108	BEARING SET; HUB,INNER HUB LUBRICATION OIL BATH<C5K>	1-85573-010-0	02	1	0712-	●
109	BEARING SET; HUB,OUTER	1-85573-011-0	02	1	0710-0711	●	●	●
109	BEARING SET; HUB,OUTER	1-85573-011-0	02	1	0712-		●	●
109	BEARING SET; HUB,OUTER HUB LUBRICATION OIL BATH<C5K>	1-85573-011-0	02	1	0712-	●

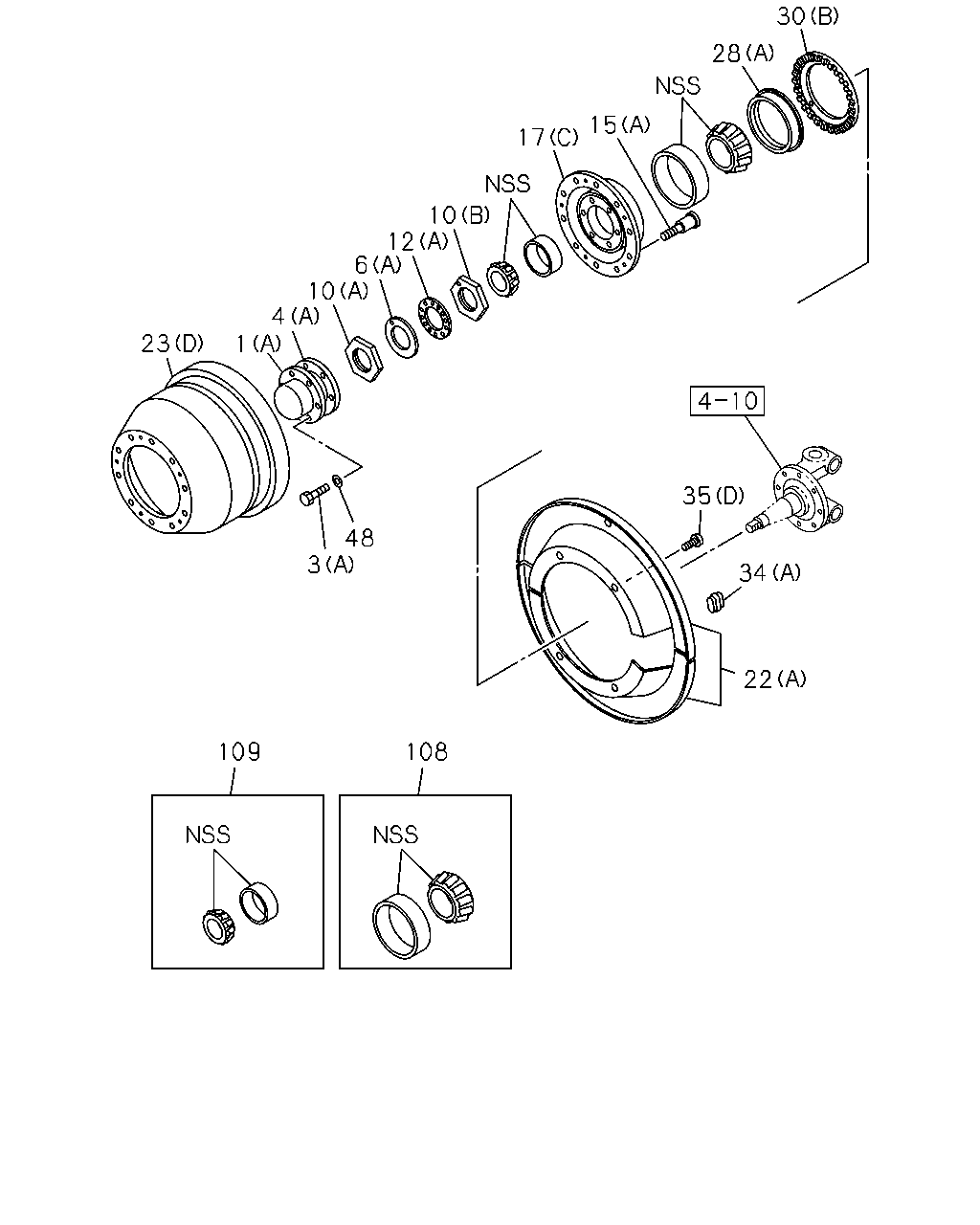

23 4 1 10 6 12 10 17 15 28 30 35 34 22 108 109 3 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=156	9-42313-123-2	02	1	0712-	●
1	CAP; HUB,FRT AXLE (A)	1-42313-028-0	02	1	0710-0711	●	●	●
1	CAP; HUB,FRT AXLE (A)	1-42313-028-0	02	1	0712-1507		●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42313-028-0	02	1	0712-1507	●
1	CAP; HUB,FRT AXLE (A)	8-98329-296-0	02	1	1508-		●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	8-98329-296-0	02	1	1508-	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B) M8X12 FLANGE	0-28050-812-0	12	1	0712-	●
3	BOLT; HUB CAP,FRT WHEEL (A)	1-42319-189-0	12	1	0710-0711	●	●	●
3	BOLT; HUB CAP,FRT WHEEL (A)	1-42319-189-0	12	1	0712-		●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	1-42319-189-0	12	1	0712-	●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-185-2	02	1	0712-	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-186-0	02	1	0710-0711	●	●	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-186-0	02	1	0712-1507		●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	1-42319-186-0	02	1	0712-1507	●
4	GASKET; HUB CAP,FRT WHEEL (A)	8-98329-302-0	02	1	1508-		●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	8-98329-302-0	02	1	1508-	●
6	WASHER; LK,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=48	8-98084-561-0	02	1	0712-	●
6	WASHER; LK,FRT HUB (A)	1-42329-018-0	02	1	0710-0711	●	●	●
6	WASHER; LK,FRT HUB (A)	1-42329-018-0	02	1	0712-		●	●
6	WASHER; LK,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A)	1-42329-018-0	02	1	0712-	●
10	NUT; FRT HUB BRG EXC. HUB LUBRICATION OIL BATH<C5K> (C) M48	1-09840-012-5	02	1	0712-	●
10	NUT; FRT HUB BRG (A)	1-42329-016-0	02	1	0710-0711	●	●	●
10	NUT; FRT HUB BRG (A)	1-42329-016-0	02	1	0712-		●	●
10	NUT; FRT HUB BRG HUB LUBRICATION OIL BATH<C5K> (A)	1-42329-016-0	02	1	0712-	●
10	NUT; FRT HUB BRG (B)	1-42329-017-0	02	1	0710-0711	●	●	●
10	NUT; FRT HUB BRG (B)	1-42329-017-0	02	1	0712-		●	●
10	NUT; FRT HUB BRG HUB LUBRICATION OIL BATH<C5K> (B)	1-42329-017-0	02	1	0712-	●
12	WASHER; LK,FRT HUB BRG EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=48	1-09533-016-0	02	1	0712-0911	●
12	WASHER; LK,FRT HUB BRG EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=48	8-98156-755-0	02	1	0912-	●
12	WASHER; LK,FRT HUB BRG (A)	1-42329-015-0	02	1	0710-0711	●	●	●
12	WASHER; LK,FRT HUB BRG (A)	1-42329-015-0	02	1	0712-		●	●
12	WASHER; LK,FRT HUB BRG HUB LUBRICATION OIL BATH<C5K> (A)	1-42329-015-0	02	1	0712-	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0712-	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0712-	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0712-	●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-063-0	20	1	0710-0711	●	●	●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-063-0	20	1	0712-		●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42337-063-0	20	1	0712-	●
17	HUB; FRT AXLE (C)	1-42311-163-0	02	1	1205-		●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (C)	1-42311-163-0	02	1	1205-	●
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-160-0	02	1	0712-	●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-100-1	02	1	0712-	●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-128-2	02	1	0712-	●
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-151-3	02	1	0712-	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-225-0	02	1	0712-	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47151-458-1	02	1	0712-	●
22	COVER SET; FRT BRK DRUM (A)	1-47151-708-0	02	1	0710-0711	●	●	●
22	COVER SET; FRT BRK DRUM (A)	1-47151-708-0	02	1	0712-		●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-708-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-365-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-380-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42315-355-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42315-397-0	02	1	0712-	●
23	DRUM; BRK,FRT (A)	1-42315-378-0	02	1	0710-0711	●	●	●
23	DRUM; BRK,FRT (A)	1-42315-378-0	02	1	0712-1204		●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-42315-378-0	02	1	0712-1204	●
23	DRUM; BRK,FRT (D)	1-42315-420-0	02	1	1205-		●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (D)	1-42315-420-0	02	1	1205-	●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=140	1-09625-041-0	02	1	0712-	●
28	SEAL; OIL,FRT HUB (A)	1-09625-636-0	02	1	0710-0711	●	●	●
28	SEAL; OIL,FRT HUB (A)	1-09625-636-0	02	1	0712-		●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-636-0	02	1	0712-	●
30	RING; EXCITER,FRT HUB (B)	1-42319-223-0	02	1	1205-		●	●
30	RING; EXCITER,FRT HUB HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-223-0	02	1	1205-	●
30	RING; EXCITER,FRT HUB ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42319-203-0	02	1	0712-	●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	0710-0711	●	●	●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	0712-		●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-87050-011-0	04	1	0712-	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-09333-151-0	04	1	0712-	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (A) M10X12	1-47159-187-0	12	1	0712-	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X65	1-09000-583-0	04	1	0712-0805	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X65	1-09000-789-0	04	1	0806-	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X45	9-92061-845-0	08	1	0712-0805	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X45	1-09000-790-0	08	1	0806-	●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M16X52	1-09044-120-0	04	1	0712-	●
35	BOLT; DRUM COVER (D)	1-47159-176-0	12	1	0710-0711	●	●	●
35	BOLT; DRUM COVER (D)	1-47159-176-0	12	1	0712-		●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (D)	1-47159-176-0	12	1	0712-	●
48	WASHER; LK,HUB CAP,FRT WHEEL	1-42319-190-0	12	1	0710-0711	●	●	●
48	WASHER; LK,HUB CAP,FRT WHEEL	1-42319-190-0	12	1	0712-1507		●	●
48	WASHER; LK,HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-42319-190-0	12	1	0712-1507	●
48	WASHER; LK,HUB CAP,FRT WHEEL	1-41519-055-0	12	1	1508-		●	●
48	WASHER; LK,HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-41519-055-0	12	1	1508-	●
108	BEARING SET; HUB,INNER	1-85573-010-0	02	1	0710-0711	●	●	●
108	BEARING SET; HUB,INNER	1-85573-010-0	02	1	0712-		●	●
108	BEARING SET; HUB,INNER HUB LUBRICATION OIL BATH<C5K>	1-85573-010-0	02	1	0712-	●
109	BEARING SET; HUB,OUTER	1-85573-011-0	02	1	0710-0711	●	●	●
109	BEARING SET; HUB,OUTER	1-85573-011-0	02	1	0712-		●	●
109	BEARING SET; HUB,OUTER HUB LUBRICATION OIL BATH<C5K>	1-85573-011-0	02	1	0712-	●

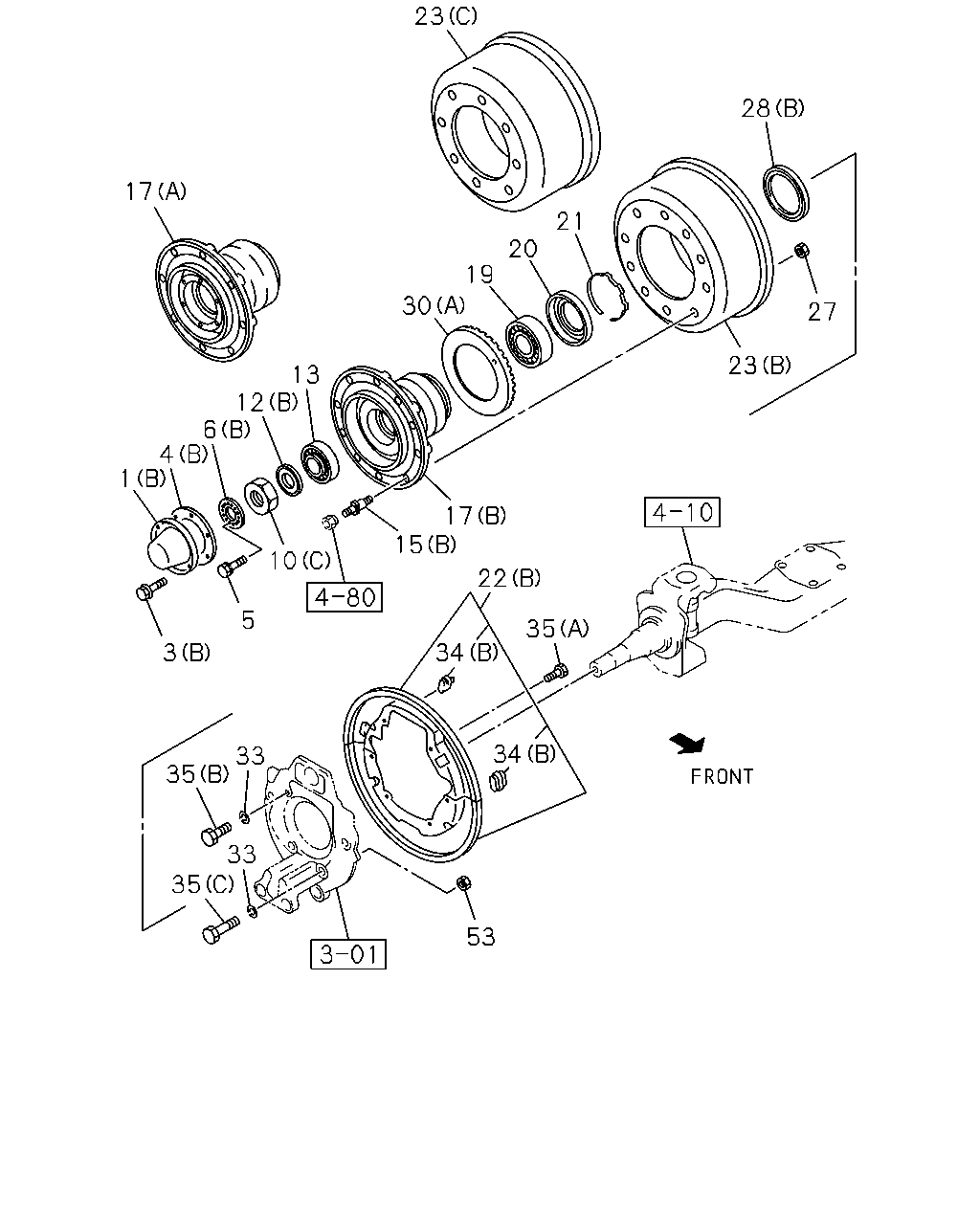

17 23 28 21 20 19 30 13 12 6 4 1 3 5 10 15 17 23 27 35 22 34 33 35 33 35 53 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=156	9-42313-123-2	02	1	0712-	●
1	CAP; HUB,FRT AXLE (A)	1-42313-028-0	02	1	0710-0711	●	●	●
1	CAP; HUB,FRT AXLE (A)	1-42313-028-0	02	1	0712-1507		●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42313-028-0	02	1	0712-1507	●
1	CAP; HUB,FRT AXLE (A)	8-98329-296-0	02	1	1508-		●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	8-98329-296-0	02	1	1508-	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B) M8X12 FLANGE	0-28050-812-0	12	1	0712-	●
3	BOLT; HUB CAP,FRT WHEEL (A)	1-42319-189-0	12	1	0710-0711	●	●	●
3	BOLT; HUB CAP,FRT WHEEL (A)	1-42319-189-0	12	1	0712-		●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	1-42319-189-0	12	1	0712-	●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-185-2	02	1	0712-	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-186-0	02	1	0710-0711	●	●	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-186-0	02	1	0712-1507		●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	1-42319-186-0	02	1	0712-1507	●
4	GASKET; HUB CAP,FRT WHEEL (A)	8-98329-302-0	02	1	1508-		●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> (A)	8-98329-302-0	02	1	1508-	●
5	BOLT; LK WASHER EXC. HUB LUBRICATION OIL BATH<C5K> M6X16 HEX SOCKET	8-98084-271-0	04	1	0712-1201	●
5	BOLT; LK WASHER EXC. HUB LUBRICATION OIL BATH<C5K> M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-	●
6	WASHER; LK,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=48	8-98084-561-0	02	1	0712-	●
6	WASHER; LK,FRT HUB (A)	1-42329-018-0	02	1	0710-0711	●	●	●
6	WASHER; LK,FRT HUB (A)	1-42329-018-0	02	1	0712-		●	●
6	WASHER; LK,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A)	1-42329-018-0	02	1	0712-	●
10	NUT; FRT HUB BRG EXC. HUB LUBRICATION OIL BATH<C5K> (C) M48	1-09840-012-5	02	1	0712-	●
10	NUT; FRT HUB BRG (A)	1-42329-016-0	02	1	0710-0711	●	●	●
10	NUT; FRT HUB BRG (A)	1-42329-016-0	02	1	0712-		●	●
10	NUT; FRT HUB BRG HUB LUBRICATION OIL BATH<C5K> (A)	1-42329-016-0	02	1	0712-	●
10	NUT; FRT HUB BRG (B)	1-42329-017-0	02	1	0710-0711	●	●	●
10	NUT; FRT HUB BRG (B)	1-42329-017-0	02	1	0712-		●	●
10	NUT; FRT HUB BRG HUB LUBRICATION OIL BATH<C5K> (B)	1-42329-017-0	02	1	0712-	●
12	WASHER; LK,FRT HUB BRG EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=48	1-09533-016-0	02	1	0712-0911	●
12	WASHER; LK,FRT HUB BRG EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=48	8-98156-755-0	02	1	0912-	●
12	WASHER; LK,FRT HUB BRG (A)	1-42329-015-0	02	1	0710-0711	●	●	●
12	WASHER; LK,FRT HUB BRG (A)	1-42329-015-0	02	1	0712-		●	●
12	WASHER; LK,FRT HUB BRG HUB LUBRICATION OIL BATH<C5K> (A)	1-42329-015-0	02	1	0712-	●
13	BEARING; HUB OUTER,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09812-234-0	02	1	0712-	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0712-	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0712-	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0712-	●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-063-0	20	1	0710-0711	●	●	●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-063-0	20	1	0712-		●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-42337-063-0	20	1	0712-	●
17	HUB; FRT AXLE (C)	1-42311-163-0	02	1	1205-		●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (C)	1-42311-163-0	02	1	1205-	●
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-160-0	02	1	0712-	●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-100-1	02	1	0712-	●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-128-2	02	1	0712-	●
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-151-3	02	1	0712-	●
19	BEARING; HUB INNER,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09812-231-0	02	1	0712-	●
20	COVER; HUB BRG INNER EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-039-0	02	1	0712-	●
21	RING; SNAP,HUB EXC. HUB LUBRICATION OIL BATH<C5K>	1-09587-017-0	02	1	0712-	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-225-0	02	1	0712-	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47151-458-1	02	1	0712-	●
22	COVER SET; FRT BRK DRUM (A)	1-47151-708-0	02	1	0710-0711	●	●	●
22	COVER SET; FRT BRK DRUM (A)	1-47151-708-0	02	1	0712-		●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K> (A)	1-47151-708-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-365-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-380-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42315-355-0	02	1	0712-	●
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42315-397-0	02	1	0712-	●
23	DRUM; BRK,FRT (A)	1-42315-378-0	02	1	0710-0711	●	●	●
23	DRUM; BRK,FRT (A)	1-42315-378-0	02	1	0712-1204		●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-42315-378-0	02	1	0712-1204	●
23	DRUM; BRK,FRT (D)	1-42315-420-0	02	1	1205-		●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (D)	1-42315-420-0	02	1	1205-	●
27	NUT; WHEEL PIN,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09400-071-0	20	1	0712-	●
27	NUT; WHEEL PIN,FRT AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. HUB LUBRICATION OIL BATH<C5K> M22 FLANGE	1-09440-065-0	16	1	0712-	●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> (B) OD=140	1-09625-041-0	02	1	0712-	●
28	SEAL; OIL,FRT HUB (A)	1-09625-636-0	02	1	0710-0711	●	●	●
28	SEAL; OIL,FRT HUB (A)	1-09625-636-0	02	1	0712-		●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-636-0	02	1	0712-	●
30	RING; EXCITER,FRT HUB (B)	1-42319-223-0	02	1	1205-		●	●
30	RING; EXCITER,FRT HUB HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-223-0	02	1	1205-	●
30	RING; EXCITER,FRT HUB ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42319-203-0	02	1	0712-	●
33	WASHER; LK,DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> ID=18.2	0-91510-818-0	12	1	0712-	●
33	WASHER; LK,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> ID=16.2	0-91510-816-0	04	1	0712-	●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	0710-0711	●	●	●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	0712-		●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-87050-011-0	04	1	0712-	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-09333-151-0	04	1	0712-	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (A) M10X12	1-47159-187-0	12	1	0712-	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X65	1-09000-583-0	04	1	0712-0805	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X65	1-09000-789-0	04	1	0806-	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X45	9-92061-845-0	08	1	0712-0805	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X45	1-09000-790-0	08	1	0806-	●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M16X52	1-09044-120-0	04	1	0712-	●
35	BOLT; DRUM COVER (D)	1-47159-176-0	12	1	0710-0711	●	●	●
35	BOLT; DRUM COVER (D)	1-47159-176-0	12	1	0712-		●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (D)	1-47159-176-0	12	1	0712-	●
53	NUT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M16	0-91110-516-0	04	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
