Sayfa 4-10 - Isuzu EPC

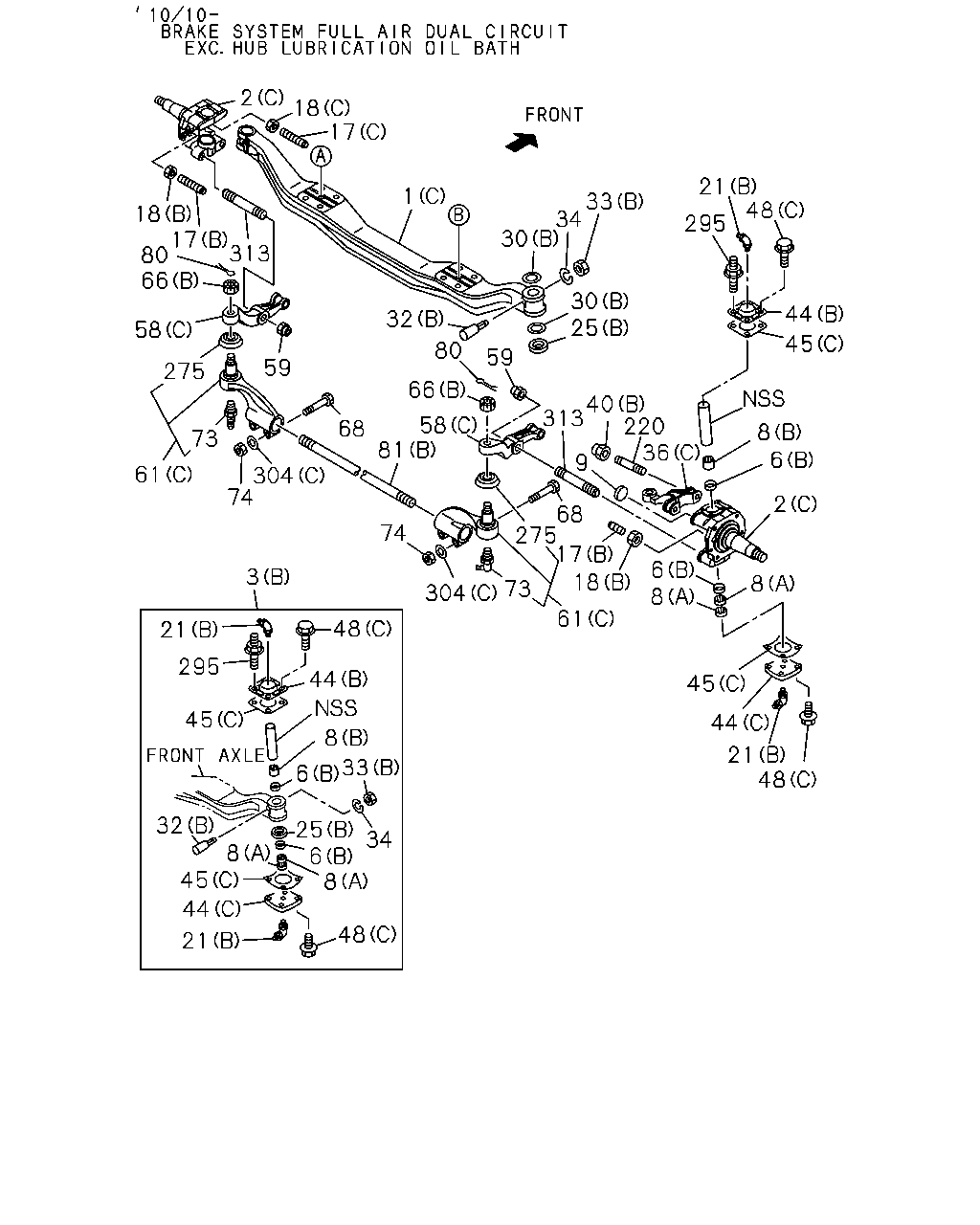

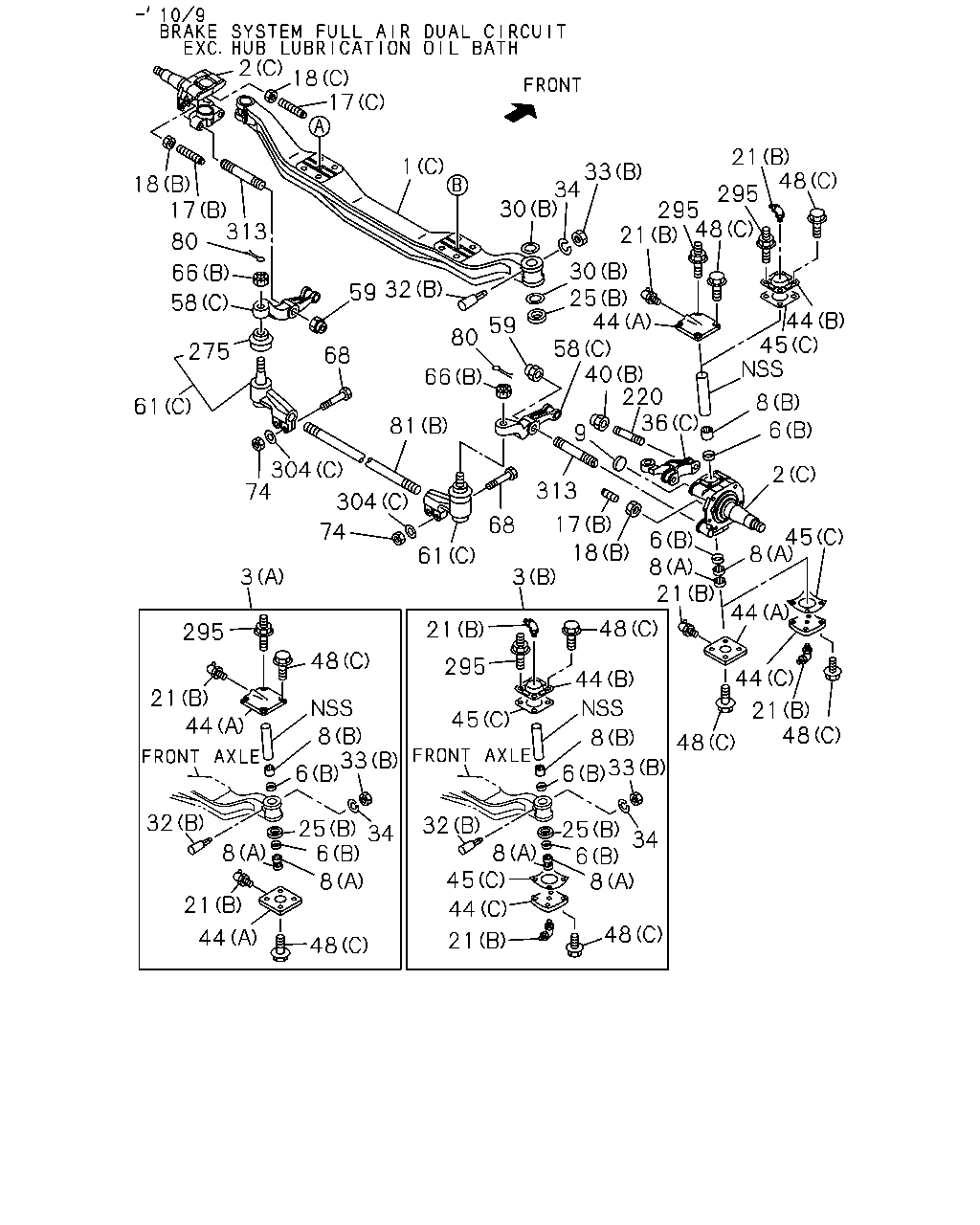

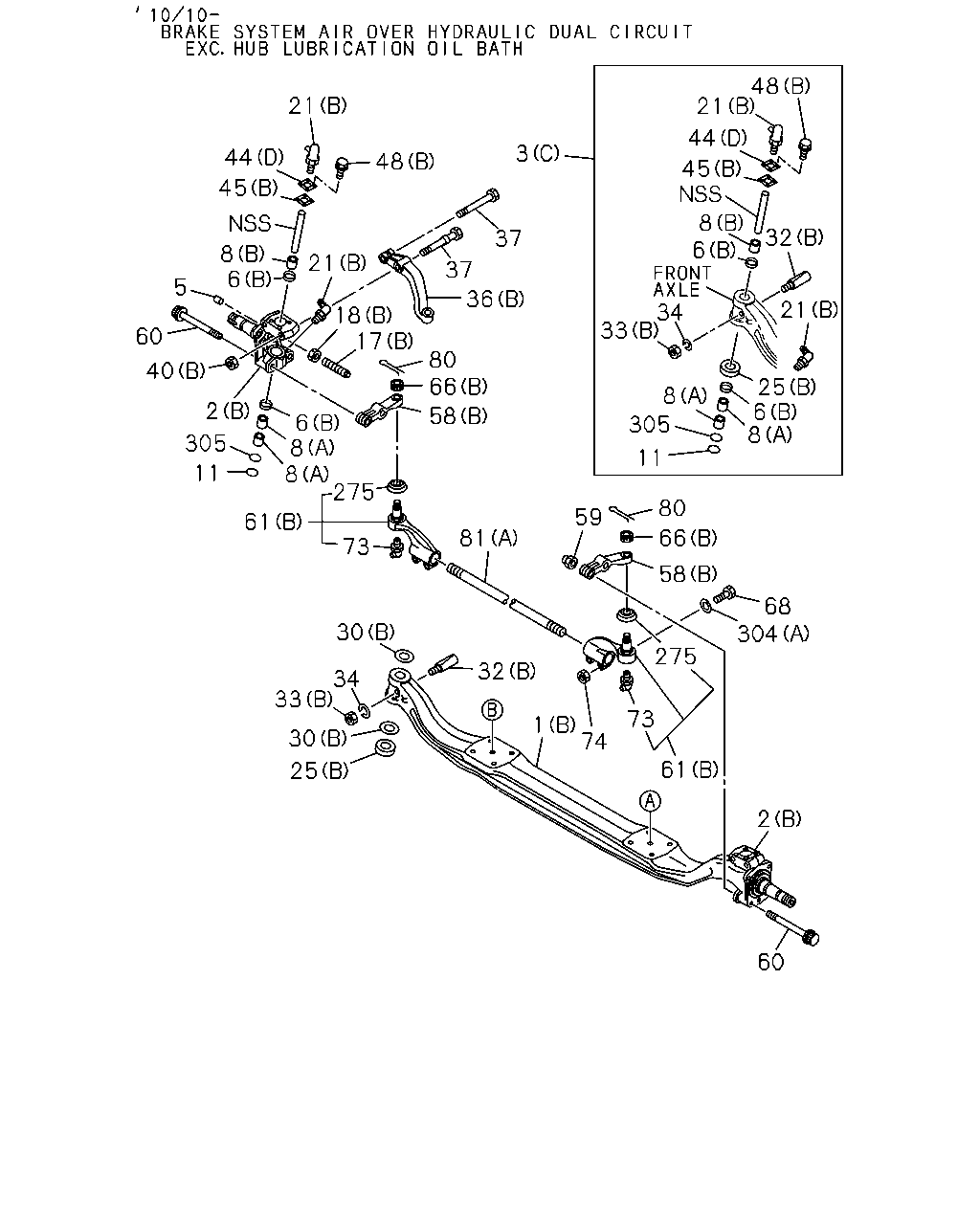

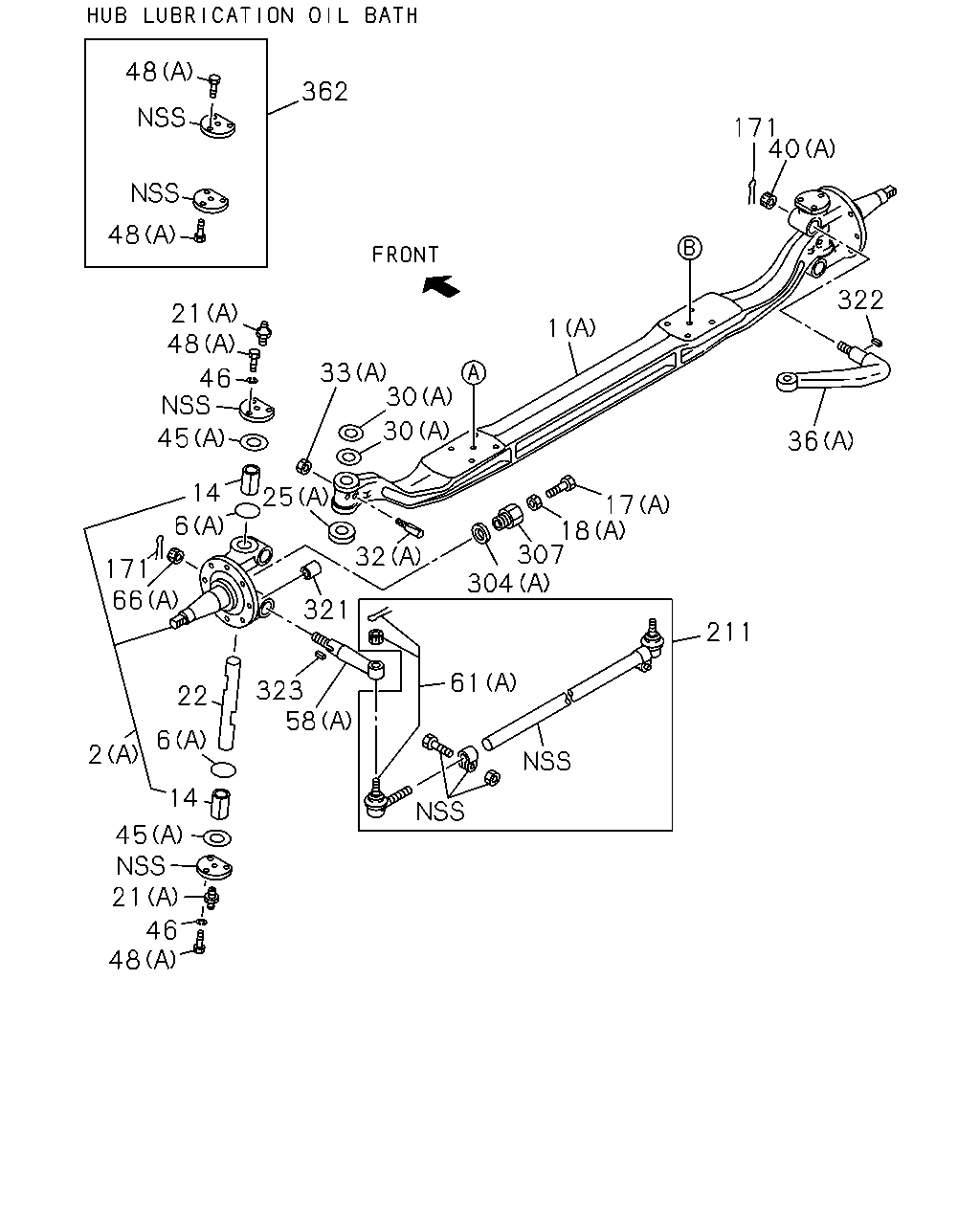

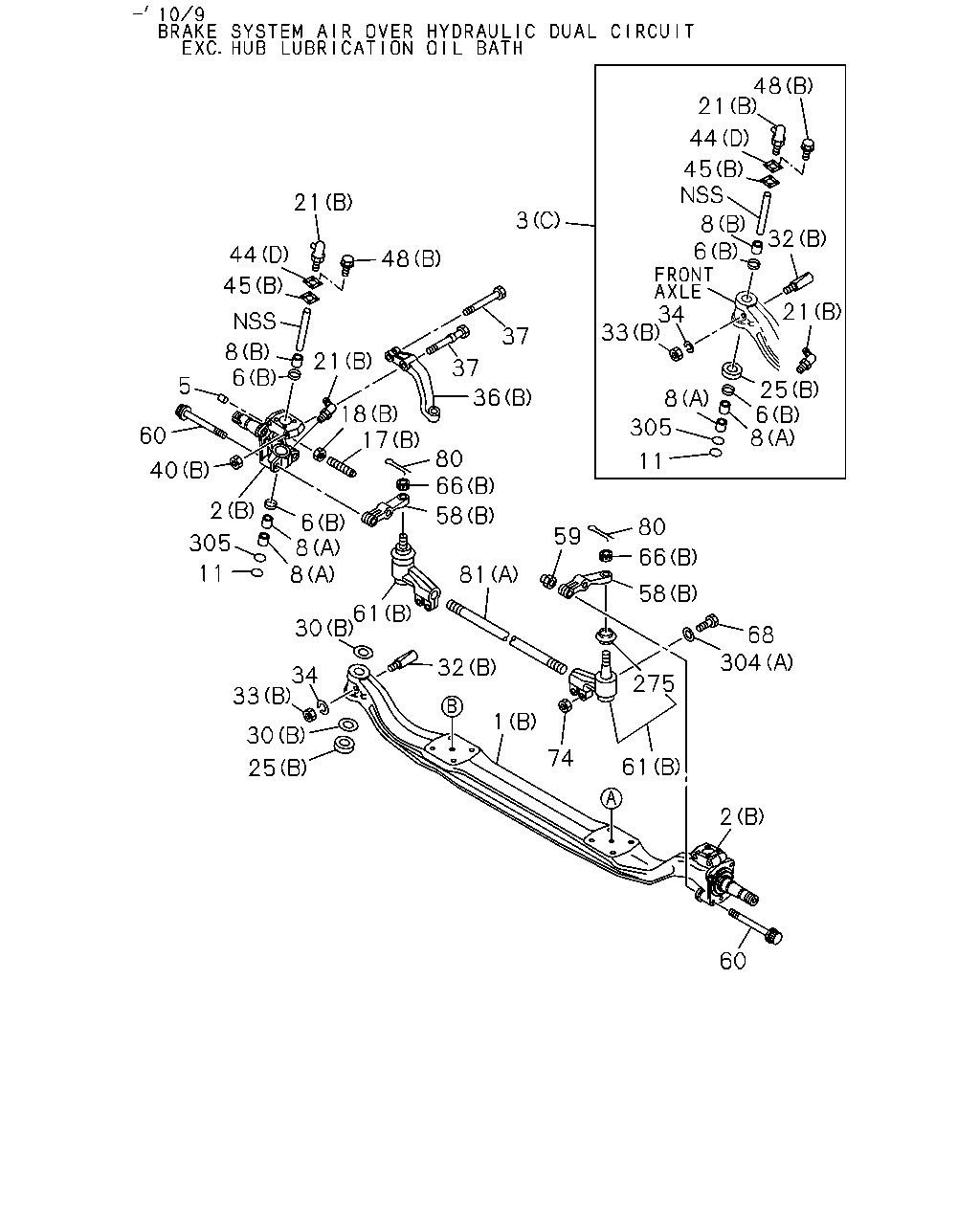

4-10 — FRONT AXLE (#36565) — 900 parça

60 2 304 68 58 66 80 59 1 74 61 81 58 66 80 36 37 37 3 48 21 44 45 8 6 21 18 17 5 60 40 2 6 8 8 11 30 61 34 33 30 25 305 8 25 6 8 21 32 8 6 45 44 21 48 33 34 32 11 275 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> (C)	8-98061-842-3	01	1	1012-	●
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43111-113-6	01	1	0712-	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-0711	●	●	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0712-		●	●
1	AXLE; FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-43111-161-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43131-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43132-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0710-0711	●	●	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0712-		●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43131-108-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0710-0711	●	●	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0712-		●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43132-107-0	01	1	0712-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-410-3	02	1	1012-	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-87831-301-1	02	1	0712-0801	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> (B)	1-87831-349-3	02	1	1012-	●
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-87831-302-3	02	1	0712-	●
5	PIN; KNUCKLE TO DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-09740-072-0	02	1	0712-	●
6	SEAL; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	9-09926-024-0	04	1	0712-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-0711	●	●	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0712-		●	●
6	SEAL; KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-634-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (A) NTN	9-00096-242-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NTN	9-00096-243-0	02	1	0712-	●
11	RING; SNAP,KNUCKLE PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	9-09950-204-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X43	1-09009-190-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-0711	●	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0712-		●	●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-014-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18	0-91110-518-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-0711	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0712-		●	●
18	NUT; STOPPER BOLT,KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-013-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-0711	●	●	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0712-		●	●
21	NIPPLE; GREASE,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-48259-253-0	04	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NSK	1-09829-043-2	02	1	0712-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-0711	●	●	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0712-		●	●
25	BEARING; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-43173-004-0	02	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.015"	1-43171-338-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.010"	1-43171-339-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.005"	1-43171-340-0	AR	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-0711	●	●	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0712-		●	●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=98.4	1-43116-014-0	02	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43116-002-2	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-0711	●	●	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0712-		●	●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=3.25"	1-43116-006-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-0711	●	●	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0712-		●	●
33	NUT; KEY BOLT HUB LUBRICATION OIL BATH<C5K> (A)	1-43119-002-0	04	1	0712-	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	0712-1011	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	1303-	●
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43133-063-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0710-0711	●	●	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0712-		●	●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43133-087-0	01	1	0712-	●
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M22X179	8-98052-380-1	01	1	0712-	●
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M22X167	8-98052-381-1	01	1	0712-	●
40	NUT; KNUCKLE ARM EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22	1-09449-084-0	02	1	0712-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-0711	●	●	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0712-		●	●
40	NUT; KNUCKLE ARM HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-059-0	01	1	0712-	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-43175-025-0	04	1	0712-0801	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98100-654-0	02	1	0802-	●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-43175-014-1	02	1	0712-	●
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-044-0	02	1	0712-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-0711	●	●	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0712-		●	●
45	GASKET; KING PIN COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-044-0	04	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M12X16 FLANGE	0-28051-216-0	08	1	0712-	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-0711	●	●	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0712-		●	●
48	BOLT; COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-045-0	12	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43134-042-3	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43135-042-3	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-0711	●	●	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0712-		●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43134-061-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-0711	●	●	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0712-		●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43135-066-0	01	1	0712-	●
59	NUT; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09449-084-0	04	1	0712-	●
60	BOLT; TIE ROD ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M22X193	8-98052-379-1	04	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43150-801-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43150-802-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-0711	●	●	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0712-		●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43155-058-0	01	1	0712-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-0711	●	●	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0712-		●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43156-058-0	01	1	0712-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-0711	●	●	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0712-		●	●
66	NUT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-052-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24	1-09442-032-0	02	1	0806-	●
68	BOLT; TIE ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	02	1	0712-1009	●
68	BOLT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	04	1	1010-	●
68	BOLT; TIE ROD END BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	04	1	0712-1009	●
74	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12	0-91110-512-0	04	1	0712-	●
80	PIN; SPLIT,ROD END EXC. HUB LUBRICATION OIL BATH<C5K> OD=4.6 L=35	0-81125-035-0	02	1	0712-	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43151-157-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-947-0	01	1	1010-	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-43151-119-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98193-965-0	01	1	1110-	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-107-0	02	1	0712-1009	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	8-98229-116-0	02	1	1307-	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	0712-1009	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	1010-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-0711	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0712-		●	●
304	WASHER; PL HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-011-0	02	1	0712-	●
305	COVER; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98052-291-0	02	1	0712-	●

21 44 48 3 37 37 36 80 58 66 17 18 21 45 8 5 6 60 2 305 40 11 61 73 30 34 33 30 25 32 74 59 81 73 275 68 58 80 66 304 61 2 1 11 305 8 6 25 8 21 32 8 6 33 34 45 44 21 48 6 8 8 60 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> (C)	8-98061-842-3	01	1	1012-	●
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43111-113-6	01	1	0712-	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-0711	●	●	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0712-		●	●
1	AXLE; FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-43111-161-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43131-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43132-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0710-0711	●	●	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0712-		●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43131-108-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0710-0711	●	●	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0712-		●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43132-107-0	01	1	0712-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-410-3	02	1	1012-	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-87831-301-1	02	1	0712-0801	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> (B)	1-87831-349-3	02	1	1012-	●
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-87831-302-3	02	1	0712-	●
5	PIN; KNUCKLE TO DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-09740-072-0	02	1	0712-	●
6	SEAL; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	9-09926-024-0	04	1	0712-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-0711	●	●	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0712-		●	●
6	SEAL; KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-634-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (A) NTN	9-00096-242-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NTN	9-00096-243-0	02	1	0712-	●
11	RING; SNAP,KNUCKLE PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	9-09950-204-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X43	1-09009-190-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-0711	●	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0712-		●	●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-014-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18	0-91110-518-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-0711	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0712-		●	●
18	NUT; STOPPER BOLT,KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-013-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-0711	●	●	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0712-		●	●
21	NIPPLE; GREASE,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-48259-253-0	04	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NSK	1-09829-043-2	02	1	0712-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-0711	●	●	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0712-		●	●
25	BEARING; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-43173-004-0	02	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.015"	1-43171-338-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.010"	1-43171-339-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.005"	1-43171-340-0	AR	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-0711	●	●	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0712-		●	●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=98.4	1-43116-014-0	02	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43116-002-2	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-0711	●	●	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0712-		●	●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=3.25"	1-43116-006-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-0711	●	●	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0712-		●	●
33	NUT; KEY BOLT HUB LUBRICATION OIL BATH<C5K> (A)	1-43119-002-0	04	1	0712-	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	0712-1011	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	1303-	●
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43133-063-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0710-0711	●	●	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0712-		●	●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43133-087-0	01	1	0712-	●
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M22X179	8-98052-380-1	01	1	0712-	●
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M22X167	8-98052-381-1	01	1	0712-	●
40	NUT; KNUCKLE ARM EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22	1-09449-084-0	02	1	0712-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-0711	●	●	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0712-		●	●
40	NUT; KNUCKLE ARM HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-059-0	01	1	0712-	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-43175-025-0	04	1	0712-0801	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98100-654-0	02	1	0802-	●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-43175-014-1	02	1	0712-	●
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-044-0	02	1	0712-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-0711	●	●	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0712-		●	●
45	GASKET; KING PIN COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-044-0	04	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M12X16 FLANGE	0-28051-216-0	08	1	0712-	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-0711	●	●	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0712-		●	●
48	BOLT; COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-045-0	12	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43134-042-3	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43135-042-3	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-0711	●	●	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0712-		●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43134-061-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-0711	●	●	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0712-		●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43135-066-0	01	1	0712-	●
59	NUT; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09449-084-0	04	1	0712-	●
60	BOLT; TIE ROD ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M22X193	8-98052-379-1	04	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43150-801-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43150-802-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-0711	●	●	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0712-		●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43155-058-0	01	1	0712-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-0711	●	●	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0712-		●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43156-058-0	01	1	0712-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-0711	●	●	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0712-		●	●
66	NUT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-052-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24	1-09442-032-0	02	1	0806-	●
68	BOLT; TIE ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	02	1	0712-1009	●
68	BOLT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	04	1	1010-	●
68	BOLT; TIE ROD END BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	04	1	0712-1009	●
73	NIPPLE; GREASE,TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-133-0	02	1	1010-	●
74	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12	0-91110-512-0	04	1	0712-	●
80	PIN; SPLIT,ROD END EXC. HUB LUBRICATION OIL BATH<C5K> OD=4.6 L=35	0-81125-035-0	02	1	0712-	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43151-157-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-947-0	01	1	1010-	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-43151-119-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98193-965-0	01	1	1110-	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-107-0	02	1	0712-1009	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	8-98229-116-0	02	1	1307-	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	0712-1009	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	1010-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-0711	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0712-		●	●
304	WASHER; PL HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-011-0	02	1	0712-	●
305	COVER; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98052-291-0	02	1	0712-	●

48 362 171 40 322 48 21 48 1 33 30 46 30 45 36 14 25 17 18 307 304 6 32 171 66 321 211 61 323 58 22 6 2 14 45 21 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> (C)	8-98061-842-3	01	1	1012-	●
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43111-113-6	01	1	0712-	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-0711	●	●	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0712-		●	●
1	AXLE; FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-43111-161-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43131-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43132-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0710-0711	●	●	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0712-		●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43131-108-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0710-0711	●	●	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0712-		●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43132-107-0	01	1	0712-	●
6	SEAL; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	9-09926-024-0	04	1	0712-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-0711	●	●	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0712-		●	●
6	SEAL; KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-634-0	04	1	0712-	●
14	BUSHING; KING PIN	1-43149-015-0	04	1	0710-0711	●	●	●
14	BUSHING; KING PIN	1-43149-015-0	04	1	0712-		●	●
14	BUSHING; KING PIN HUB LUBRICATION OIL BATH<C5K>	1-43149-015-0	04	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X43	1-09009-190-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-0711	●	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0712-		●	●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-014-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18	0-91110-518-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-0711	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0712-		●	●
18	NUT; STOPPER BOLT,KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-013-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-0711	●	●	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0712-		●	●
21	NIPPLE; GREASE,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-48259-253-0	04	1	0712-	●
22	PIN; KING,FRT AXLE	1-43161-016-0	02	1	0710-0711	●	●	●
22	PIN; KING,FRT AXLE	1-43161-016-0	02	1	0712-		●	●
22	PIN; KING,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-43161-016-0	02	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NSK	1-09829-043-2	02	1	0712-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-0711	●	●	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0712-		●	●
25	BEARING; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-43173-004-0	02	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.015"	1-43171-338-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.010"	1-43171-339-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.005"	1-43171-340-0	AR	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-0711	●	●	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0712-		●	●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=98.4	1-43116-014-0	02	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43116-002-2	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-0711	●	●	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0712-		●	●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=3.25"	1-43116-006-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-0711	●	●	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0712-		●	●
33	NUT; KEY BOLT HUB LUBRICATION OIL BATH<C5K> (A)	1-43119-002-0	04	1	0712-	●
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43133-063-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0710-0711	●	●	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0712-		●	●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43133-087-0	01	1	0712-	●
40	NUT; KNUCKLE ARM EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22	1-09449-084-0	02	1	0712-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-0711	●	●	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0712-		●	●
40	NUT; KNUCKLE ARM HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-059-0	01	1	0712-	●
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-044-0	02	1	0712-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-0711	●	●	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0712-		●	●
45	GASKET; KING PIN COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-044-0	04	1	0712-	●
46	WASHER; LK,COVER	1-41519-055-0	12	1	0710-0711	●	●	●
46	WASHER; LK,COVER	1-41519-055-0	12	1	0712-		●	●
46	WASHER; LK,COVER HUB LUBRICATION OIL BATH<C5K>	1-41519-055-0	12	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M12X16 FLANGE	0-28051-216-0	08	1	0712-	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-0711	●	●	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0712-		●	●
48	BOLT; COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-045-0	12	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43134-042-3	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43135-042-3	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-0711	●	●	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0712-		●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43134-061-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-0711	●	●	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0712-		●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43135-066-0	01	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43150-801-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43150-802-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-0711	●	●	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0712-		●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43155-058-0	01	1	0712-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-0711	●	●	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0712-		●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43156-058-0	01	1	0712-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-0711	●	●	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0712-		●	●
66	NUT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-052-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24	1-09442-032-0	02	1	0806-	●
171	PIN; SPLIT,STRG ARM	1-43139-048-0	03	1	0710-0711	●	●	●
171	PIN; SPLIT,STRG ARM	1-43139-048-0	03	1	0712-		●	●
171	PIN; SPLIT,STRG ARM HUB LUBRICATION OIL BATH<C5K>	1-43139-048-0	03	1	0712-	●
211	ROD ASM; STEERING TIE ROD	1-43150-861-0	01	1	0710-0711	●	●	●
211	ROD ASM; STEERING TIE ROD	1-43150-861-0	01	1	0712-		●	●
211	ROD ASM; STEERING TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43150-861-0	01	1	0712-	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	0712-1009	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	1010-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-0711	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0712-		●	●
304	WASHER; PL HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-011-0	02	1	0712-	●
307	STOPPER; STEERING,RR	1-43149-012-0	02	1	0710-0711	●	●	●
307	STOPPER; STEERING,RR	1-43149-012-0	02	1	0712-		●	●
307	STOPPER; STEERING,RR HUB LUBRICATION OIL BATH<C5K>	1-43149-012-0	02	1	0712-	●
321	BUSHING; KNUCKLE	1-42319-213-0	02	1	0710-0711	●	●	●
321	BUSHING; KNUCKLE	1-42319-213-0	02	1	0712-		●	●
321	BUSHING; KNUCKLE HUB LUBRICATION OIL BATH<C5K>	1-42319-213-0	02	1	0712-	●
322	KEY; KNUCKLE ARM	1-43139-046-0	01	1	0710-0711	●	●	●
322	KEY; KNUCKLE ARM	1-43139-046-0	01	1	0712-		●	●
322	KEY; KNUCKLE ARM HUB LUBRICATION OIL BATH<C5K>	1-43139-046-0	01	1	0712-	●
323	KEY; TIE ROD ARM	1-43139-046-0	02	1	0710-0711	●	●	●
323	KEY; TIE ROD ARM	1-43139-046-0	02	1	0712-		●	●
323	KEY; TIE ROD ARM HUB LUBRICATION OIL BATH<C5K>	1-43139-046-0	02	1	0712-	●
362	COVER SET; KING PIN	1-43175-027-0	02	1	0710-0711	●	●	●
362	COVER SET; KING PIN	1-43175-027-0	02	1	0712-		●	●
362	COVER SET; KING PIN HUB LUBRICATION OIL BATH<C5K>	1-43175-027-0	02	1	0712-	●

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 110 128 127 111 110 105 234 87 91 91 127 128 111 82 296 234 103 103 234 93 87 304 303 303 304 87 93 93 237 87 234 105 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	0710-	●	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	0710-	●	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	0710-	●	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0710-	●	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0710-	●	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0710-	●	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0710-	●	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0710-	●	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0710-	●	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0710-	●	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0710-	●	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0710-	●	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	0710-	●	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0710-	●	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0710-	●	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0710-	●	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0710-	●	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	0710-	●	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0710-	●	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0710-	●	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	0710-	●	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0710-	●	●	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	0712-1009	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	1010-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-0711	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0712-		●	●
304	WASHER; PL HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-011-0	02	1	0712-	●

2 18 313 17 17 18 1 33 34 30 59 32 80 58 66 68 275 61 304 74 304 74 3 61 313 81 68 3 17 9 66 80 59 30 58 25 21 295 295 21 48 44 45 8 2 45 8 220 40 18 8 21 36 48 6 44 44 21 48 48 295 21 48 44 8 33 6 25 6 8 34 32 21 44 48 8 21 295 45 32 45 44 21 48 8 25 6 44 48 33 8 34 8 6 6 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> (C)	8-98061-842-3	01	1	1012-	●
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43111-113-6	01	1	0712-	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-0711	●	●	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0712-		●	●
1	AXLE; FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-43111-161-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43131-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43132-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0710-0711	●	●	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0712-		●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43131-108-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0710-0711	●	●	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0712-		●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43132-107-0	01	1	0712-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-410-3	02	1	1012-	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-87831-301-1	02	1	0712-0801	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> (B)	1-87831-349-3	02	1	1012-	●
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-87831-302-3	02	1	0712-	●
6	SEAL; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	9-09926-024-0	04	1	0712-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-0711	●	●	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0712-		●	●
6	SEAL; KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-634-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (A) NTN	9-00096-242-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NTN	9-00096-243-0	02	1	0712-	●
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X43	1-09009-190-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-0711	●	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0712-		●	●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-014-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18	0-91110-518-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-0711	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0712-		●	●
18	NUT; STOPPER BOLT,KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-013-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-0711	●	●	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0712-		●	●
21	NIPPLE; GREASE,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-48259-253-0	04	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NSK	1-09829-043-2	02	1	0712-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-0711	●	●	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0712-		●	●
25	BEARING; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-43173-004-0	02	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.015"	1-43171-338-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.010"	1-43171-339-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.005"	1-43171-340-0	AR	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-0711	●	●	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0712-		●	●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=98.4	1-43116-014-0	02	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43116-002-2	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-0711	●	●	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0712-		●	●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=3.25"	1-43116-006-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-0711	●	●	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0712-		●	●
33	NUT; KEY BOLT HUB LUBRICATION OIL BATH<C5K> (A)	1-43119-002-0	04	1	0712-	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	0712-1011	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	1303-	●
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43133-063-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0710-0711	●	●	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0712-		●	●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43133-087-0	01	1	0712-	●
40	NUT; KNUCKLE ARM EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22	1-09449-084-0	02	1	0712-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-0711	●	●	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0712-		●	●
40	NUT; KNUCKLE ARM HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-059-0	01	1	0712-	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-43175-025-0	04	1	0712-0801	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98100-654-0	02	1	0802-	●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-43175-014-1	02	1	0712-	●
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-044-0	02	1	0712-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-0711	●	●	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0712-		●	●
45	GASKET; KING PIN COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-044-0	04	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M12X16 FLANGE	0-28051-216-0	08	1	0712-	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-0711	●	●	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0712-		●	●
48	BOLT; COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-045-0	12	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43134-042-3	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43135-042-3	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-0711	●	●	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0712-		●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43134-061-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-0711	●	●	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0712-		●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43135-066-0	01	1	0712-	●
59	NUT; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09449-084-0	04	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43150-801-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43150-802-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-0711	●	●	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0712-		●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43155-058-0	01	1	0712-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-0711	●	●	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0712-		●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43156-058-0	01	1	0712-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-0711	●	●	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0712-		●	●
66	NUT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-052-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24	1-09442-032-0	02	1	0806-	●
68	BOLT; TIE ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	02	1	0712-1009	●
68	BOLT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	04	1	1010-	●
68	BOLT; TIE ROD END BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	04	1	0712-1009	●
74	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12	0-91110-512-0	04	1	0712-	●
80	PIN; SPLIT,ROD END EXC. HUB LUBRICATION OIL BATH<C5K> OD=4.6 L=35	0-81125-035-0	02	1	0712-	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43151-157-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-947-0	01	1	1010-	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-43151-119-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98193-965-0	01	1	1110-	●
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M22X145	1-09300-127-1	02	1	0712-	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-107-0	02	1	0712-1009	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	8-98229-116-0	02	1	1307-	●
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	0712-1009	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	1010-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-0711	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0712-		●	●
304	WASHER; PL HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-011-0	02	1	0712-	●
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M22X145	1-09300-127-1	04	1	0712-	●

267 274 348 274 267 272 267 274 272 265 295 274 274 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K>	8-98073-525-0	01	1	0712-1007	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K>	8-98073-525-0	01	1	1008-	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K>	8-98073-526-0	01	1	0712-1007	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K>	8-98073-526-0	01	1	1008-	●
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=11 L=20	0-95235-035-0	02	1	0712-	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	06	1	0710-0711	●	●	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	06	1	0712-		●	●
267	CLIP; HARNESS HUB LUBRICATION OIL BATH<C5K> (A) ID=11 L=16	0-95235-025-0	06	1	0712-	●
268	CLIP; HARNESS FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=20	0-95235-035-0	09	1	0712-0804	●
268	CLIP; HARNESS FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=20	0-95235-035-0	09	1	0805-	●
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	07	1	0710-		●	●
268	CLIP; HARNESS (B) ID=11X2 L=16	0-95325-025-0	01	1	0710-0710		●	●
268	CLIP; HARNESS (B) ID=11X2 L=16	0-95325-025-0	02	1	0710-		●	●
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	08	1	0710-0711	●
268	CLIP; HARNESS FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=20	0-95235-035-0	08	1	0712-	●
272	NUT; CLIP ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10 FLANGE	0-91180-110-0	04	1	0712-	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●	●	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0712-		●	●
272	NUT; CLIP HUB LUBRICATION OIL BATH<C5K> (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	0710-0711	●
274	BOLT; CLIP FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X10 FLANGE	0-28050-810-0	08	1	0712-	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	0710-0710	●	●	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	09	1	0710-0711		●	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	09	1	0712-0804		●	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/6 16.5"(W5V) (A) M8X10 FLANGE	0-28050-810-0	09	1	0712-0804	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	09	1	0805-		●	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 41/6 16.5"(W5V) (A) M8X10 FLANGE	0-28050-810-0	09	1	0805-	●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	04	1	0710-0711	●	●	●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	04	1	0712-		●	●
274	BOLT; CLIP HUB LUBRICATION OIL BATH<C5K> (B) M8X16 FLANGE	0-28050-816-0	04	1	0712-	●
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-	●
348	BRACKET; CLIP	8-98034-794-0	01	1	0710-0711	●	●	●
348	BRACKET; CLIP	8-98034-794-0	01	1	0712-		●	●
348	BRACKET; CLIP HUB LUBRICATION OIL BATH<C5K>	8-98034-794-0	01	1	0712-	●
348	BRACKET; CLIP	8-98034-793-0	01	1	0710-0711	●	●	●
348	BRACKET; CLIP	8-98034-793-0	01	1	0712-		●	●
348	BRACKET; CLIP HUB LUBRICATION OIL BATH<C5K>	8-98034-793-0	01	1	0712-	●

2 1 18 21 295 48 33 30 34 30 44 8 2 6 8 45 44 21 48 8 45 17 18 66 80 313 58 59 68 61 304 74 73 275 81 58 66 32 17 304 74 80 313 40 25 59 220 3 61 17 18 68 275 6 73 21 295 45 48 44 8 6 33 25 6 8 48 32 8 44 21 34 36 45 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> (C)	8-98061-842-3	01	1	1012-	●
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43111-113-6	01	1	0712-	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-0711	●	●	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0712-		●	●
1	AXLE; FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-43111-161-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43131-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43132-079-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0710-0711	●	●	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0712-		●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43131-108-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0710-0711	●	●	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0712-		●	●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43132-107-0	01	1	0712-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-410-3	02	1	1012-	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-87831-301-1	02	1	0712-0801	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> (B)	1-87831-349-3	02	1	1012-	●
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-87831-302-3	02	1	0712-	●
6	SEAL; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	9-09926-024-0	04	1	0712-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-0711	●	●	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0712-		●	●
6	SEAL; KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-634-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (A) NTN	9-00096-242-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NTN	9-00096-243-0	02	1	0712-	●
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>,ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X43	1-09009-190-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-0711	●	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0712-		●	●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-014-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18	0-91110-518-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-0711	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0712-		●	●
18	NUT; STOPPER BOLT,KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-013-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-0711	●	●	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0712-		●	●
21	NIPPLE; GREASE,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-48259-253-0	04	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NSK	1-09829-043-2	02	1	0712-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-0711	●	●	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0712-		●	●
25	BEARING; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-43173-004-0	02	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.015"	1-43171-338-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.010"	1-43171-339-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-0711	●	●	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0712-		●	●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.005"	1-43171-340-0	AR	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-0711	●	●	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0712-		●	●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=98.4	1-43116-014-0	02	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43116-002-2	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-0711	●	●	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0712-		●	●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=3.25"	1-43116-006-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-0711	●	●	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0712-		●	●
33	NUT; KEY BOLT HUB LUBRICATION OIL BATH<C5K> (A)	1-43119-002-0	04	1	0712-	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	0712-1011	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	1303-	●
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43133-063-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0710-0711	●	●	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0712-		●	●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43133-087-0	01	1	0712-	●
40	NUT; KNUCKLE ARM EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22	1-09449-084-0	02	1	0712-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-0711	●	●	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0712-		●	●
40	NUT; KNUCKLE ARM HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-059-0	01	1	0712-	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-43175-025-0	04	1	0712-0801	●
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98100-654-0	02	1	0802-	●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-43175-014-1	02	1	0712-	●
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-044-0	02	1	0712-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-0711	●	●	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0712-		●	●
45	GASKET; KING PIN COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-044-0	04	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M12X16 FLANGE	0-28051-216-0	08	1	0712-	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-0711	●	●	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0712-		●	●
48	BOLT; COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-045-0	12	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43134-042-3	01	1	0712-	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43135-042-3	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-0711	●	●	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0712-		●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43134-061-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-0711	●	●	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0712-		●	●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43135-066-0	01	1	0712-	●
59	NUT; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09449-084-0	04	1	0712-	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43150-801-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43150-802-0	01	1	0712-1009	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-0711	●	●	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0712-		●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43155-058-0	01	1	0712-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-0711	●	●	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0712-		●	●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43156-058-0	01	1	0712-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-0711	●	●	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0712-		●	●
66	NUT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-052-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24	1-09442-032-0	02	1	0806-	●
68	BOLT; TIE ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	02	1	0712-1009	●
68	BOLT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	04	1	1010-	●
68	BOLT; TIE ROD END BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	04	1	0712-1009	●
73	NIPPLE; GREASE,TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-133-0	02	1	1010-	●
74	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12	0-91110-512-0	04	1	0712-	●
80	PIN; SPLIT,ROD END EXC. HUB LUBRICATION OIL BATH<C5K> OD=4.6 L=35	0-81125-035-0	02	1	0712-	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43151-157-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98171-947-0	01	1	1010-	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-43151-119-0	01	1	0712-1009	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98193-965-0	01	1	1110-	●
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M22X145	1-09300-127-1	02	1	0712-	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-107-0	02	1	0712-1009	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	8-98229-116-0	02	1	1307-	●
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-	●
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	0712-1009	●
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	02	1	0712-1009	●
304	WASHER; PL EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	1010-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-0711	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0712-		●	●
304	WASHER; PL HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-011-0	02	1	0712-	●
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M22X145	1-09300-127-1	04	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
