Isuzu WW
▶
TRUCKS
▶
FVR
▶
11106 - FVR/GVR-RHD EURO2/4
▶
3 - Brakes, Brake System
▶
3-83 - FIXING PARTS; TRAILER PIPING
▶

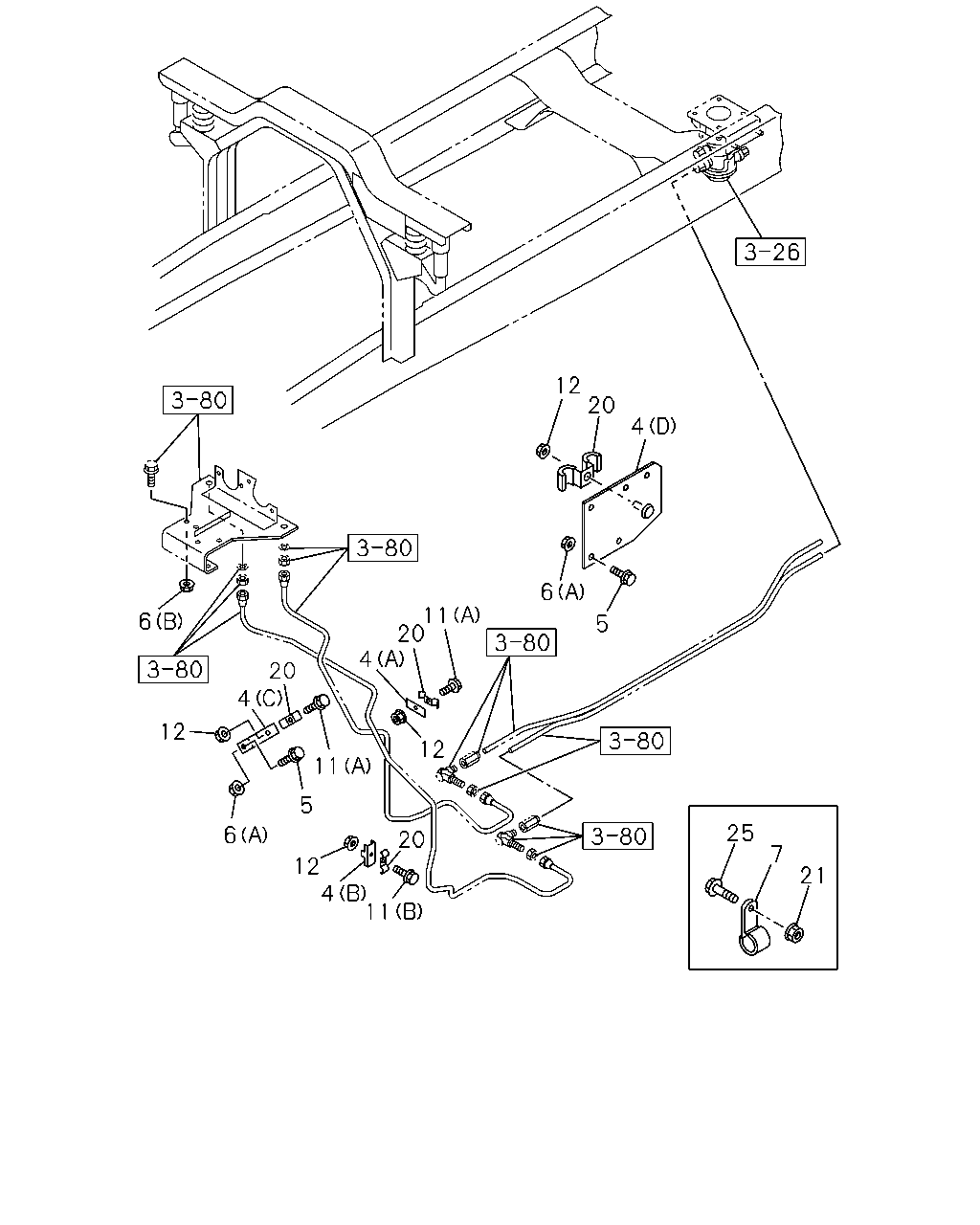

3-83 — FIXING PARTS; TRAILER PIPING
(#36563) — 19 parça
12
20
4
6
11
20
6
5
4
20
4
12
12
11
5
25
6
20
7
12
4
11
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BRACKET; AIR PIPE
(A) L=50
1-47475-299-2
01
1
0710-
4
BRACKET; AIR PIPE
(B)
1-47475-427-1
01
1
0710-
4
BRACKET; AIR PIPE
(C)
1-47477-261-0
01
1
0710-0806
4
BRACKET; AIR PIPE
(D)
8-98119-186-0
01
1
0807-
5
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0710-0806
5
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0807-
6
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
01
1
0710-0806
6
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
0807-
6
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
04
1
0710-0712
7
CLIP; NYLON TUBE
ID=9 L=20
0-95234-835-0
01
1
0801-
11
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
02
1
0710-0806
11
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
01
1
0807-0902
11
BOLT; CLIP
(A) M8X20 FLANGE
0-28050-820-0
01
1
0903-
11
BOLT; CLIP
(B) M8X45 FLANGE
0-28050-845-0
01
1
0710-
12
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0710-1009
12
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
1010-
20
CLIP; AIR PIPE
ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
03
1
0710-
21
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0801-
25
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0801-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
