13 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
0801- |
● |
|
|
| |
22 |
BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(E)
|
1-47479-693-0 |
01 |
1 |
0801-0803 |
|
|
● |
| |
22 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(E)
|
1-47479-693-0 |
01 |
1 |
0801-0803 |
● |
|
|
| |
22 |
BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(E)
|
1-47479-693-0 |
01 |
1 |
0804-0808 |
|
|
● |
| |
22 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(E)
|
1-47479-693-0 |
01 |
1 |
0804-0808 |
● |
|
|
| |
22 |
BRACKET; CLIP
(E)
|
8-98119-184-1 |
01 |
1 |
0809-0907 |
|
|
● |
| |
22 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(E)
|
8-98119-184-1 |
01 |
1 |
0809-0907 |
● |
|
|
| |
22 |
BRACKET; CLIP
(E)
|
8-98119-184-1 |
01 |
1 |
0908- |
|
|
● |
| |
22 |
BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(E)
|
8-98119-184-1 |
01 |
1 |
0908- |
● |
|
|
| |
22 |
BRACKET; CLIP
(B)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0807-0809 |
|
● |
|
| |
22 |
BRACKET; CLIP
(A)
|
1-47475-881-0 |
01 |
1 |
0710-0711 |
|
|
● |
| |
22 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
(A)
|
1-47475-881-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
22 |
BRACKET; CLIP
(A)
|
1-47475-881-0 |
01 |
1 |
0712-0907 |
|
|
● |
| |
22 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
|
1-47475-881-0 |
01 |
1 |
0712-0907 |
● |
|
|
| |
22 |
BRACKET; CLIP
(A)
|
1-47475-881-0 |
01 |
1 |
0908- |
|
|
● |
| |
22 |
BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
|
1-47475-881-0 |
01 |
1 |
0908- |
● |
|
|
| |
22 |
BRACKET; CLIP
(B)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0710-0711 |
|
|
● |
| |
22 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
(B)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0710-0711 |
● |
|
|
| |
22 |
BRACKET; CLIP
(B)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0712-0712 |
|
|
● |
| |
22 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(B)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0712-0712 |
● |
|
|
| |
22 |
BRACKET; CLIP
(C)
L=100
|
1-47477-620-1 |
03 |
1 |
0710-0710 |
● |
|
|
| |
22 |
BRACKET; CLIP
(C)
L=100
|
1-47477-620-1 |
02 |
1 |
0710-0711 |
● |
|
|
| |
22 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=100
|
1-47477-620-1 |
02 |
1 |
0712-0712 |
● |
|
|
| |
22 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=100
|
1-47477-620-1 |
01 |
1 |
0801- |
● |
|
|
| |
22 |
BRACKET; CLIP
(D)
L=55 B=25
|
1-47478-439-0 |
01 |
1 |
0710-0712 |
|
● |
|
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0908- |
● |
|
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0908- |
|
● |
|
| |
34 |
NUT; BRKT
MZX6P M/T(RSW)
WHEEL BASE 4600MM(46W)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0712-0801 |
● |
|
|
| |
34 |
NUT; BRKT
MZX6P M/T(RSW)
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0802-0805 |
● |
|
|
| |
34 |
NUT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C)
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0806-0811 |
● |
|
|
| |
34 |
NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M6 FLANGE
|
0-91180-106-0 |
02 |
1 |
0804- |
● |
|
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0807-0809 |
|
● |
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0712 |
|
|
● |
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0801-0801 |
● |
● |
● |
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0801-0801 |
|
|
● |
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0802-0806 |
|
● |
● |
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0802-0806 |
|
|
● |
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0802-0806 |
● |
|
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0807-0809 |
|
|
● |
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0807-0809 |
|
|
● |
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0807-0809 |
● |
|
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0810-0907 |
|
● |
● |
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0810-0907 |
|
|
● |
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0810-0907 |
● |
|
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0908- |
|
|
● |
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0711 |
● |
● |
|
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
|
● |
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
34 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
|
|
● |
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
34 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
34 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
|
|
● |
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
|
|
● |
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
34 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
34 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
34 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0802-0803 |
|
|
● |
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0802-0803 |
|
|
● |
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0802-0803 |
● |
|
|
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0802-0803 |
● |
|
|
| |
34 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0802-0803 |
● |
|
|
| |
34 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0802-0803 |
● |
|
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804-0811 |
|
|
● |
| |
34 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804-0811 |
|
|
● |
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804-0811 |
● |
|
|
| |
34 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804-0811 |
● |
|
|
| |
34 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804-0811 |
● |
|
|
| |
34 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804-0811 |
● |
|
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0812-0907 |
|
|
● |
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0812-0907 |
|
|
● |
| |
34 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0812-0907 |
● |
|
|
| |
34 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0908- |
|
|
● |
| |
34 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0908- |
● |
|
|
| |
39 |
CLIP; AIR PIPE
L=350
|
1-09707-183-0 |
01 |
1 |
0812- |
|
|
● |
| |
39 |
CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
L=350
|
1-09707-183-0 |
01 |
1 |
0812- |
● |
|
|
| |
39 |
CLIP; AIR PIPE
L=350
|
1-09707-183-0 |
04 |
1 |
0710-0711 |
|
|
● |
| |
39 |
CLIP; AIR PIPE
WHEEL BASE 6500MM(65W)
L=350
|
1-09707-183-0 |
04 |
1 |
0710-0711 |
● |
|
|
| |
39 |
CLIP; AIR PIPE
L=350
|
1-09707-183-0 |
04 |
1 |
0712-0804 |
|
|
● |
| |
39 |
CLIP; AIR PIPE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
L=350
|
1-09707-183-0 |
04 |
1 |
0712-0804 |
● |
|
|
| |
67 |
BRACKET; CLIP
(A)
|
8-98119-184-1 |
01 |
1 |
0809-0907 |
|
|
● |
| |
67 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
|
8-98119-184-1 |
01 |
1 |
0809-0907 |
● |
|
|
| |
67 |
BRACKET; CLIP
(A)
|
8-98119-184-1 |
01 |
1 |
0908- |
|
|
● |
| |
67 |
BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
|
8-98119-184-1 |
01 |
1 |
0908- |
● |
|
|
| |
67 |
BRACKET; CLIP
(C)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0801-0801 |
● |
|
● |
| |
67 |
BRACKET; CLIP
(A)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0801-0801 |
|
● |
|
| |
67 |
BRACKET; CLIP
(D)
L=150
|
8-98108-503-0 |
01 |
1 |
0801- |
|
● |
|
| |
67 |
BRACKET; CLIP
MZX6P M/T(RSW)
WHEEL BASE 4600MM(46W)
(E)
|
8-98021-994-1 |
02 |
1 |
0712-0801 |
● |
|
|
| |
67 |
BRACKET; CLIP
MZX6P M/T(RSW)
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(E)
|
8-98021-994-1 |
02 |
1 |
0802-0805 |
● |
|
|
| |
67 |
BRACKET; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C)
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(E)
|
8-98021-994-1 |
02 |
1 |
0806-0807 |
● |
|
|
| |
67 |
BRACKET; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C)
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(F)
|
8-98117-686-0 |
02 |
1 |
0808-0811 |
● |
|
|
| |
67 |
BRACKET; CLIP
WHEEL BASE 5000MM(50W)
(B)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0712-0801 |
● |
|
|
| |
67 |
BRACKET; CLIP
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0802-0811 |
● |
|
|
| |
67 |
BRACKET; CLIP
(A)
L=150 H=30
|
1-47477-629-2 |
02 |
1 |
0710-0711 |
|
|
● |
| |
67 |
BRACKET; CLIP
(A)
L=150 H=30
|
1-47477-629-2 |
02 |
1 |
0712-0801 |
● |
|
● |
| |
67 |
BRACKET; CLIP
(A)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0802-0811 |
|
● |
● |
| |
67 |
BRACKET; CLIP
(A)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0802-0811 |
|
|
● |
| |
67 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0802-0811 |
● |
|
|
| |
67 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0802-0811 |
● |
|
|
| |
67 |
BRACKET; CLIP
(A)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0812- |
|
● |
● |
| |
67 |
BRACKET; CLIP
(A)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0812- |
|
|
● |
| |
67 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0812- |
● |
|
|
| |
67 |
BRACKET; CLIP
(A)
|
1-47479-693-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
67 |
BRACKET; CLIP
(A)
|
1-47479-693-0 |
01 |
1 |
0712-0712 |
|
|
● |
| |
67 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47479-693-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
67 |
BRACKET; CLIP
(A)
|
1-47479-693-0 |
01 |
1 |
0801-0801 |
|
|
● |
| |
67 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
|
1-47479-693-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
67 |
BRACKET; CLIP
(A)
|
1-47479-693-0 |
01 |
1 |
0802-0808 |
|
|
● |
| |
67 |
BRACKET; CLIP
(A)
|
1-47479-693-0 |
01 |
1 |
0802-0808 |
|
|
● |
| |
67 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
|
1-47479-693-0 |
01 |
1 |
0802-0808 |
● |
|
|
| |
67 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47479-693-0 |
01 |
1 |
0802-0808 |
● |
|
|
| |
67 |
BRACKET; CLIP
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
|
1-47479-693-0 |
01 |
1 |
0809- |
● |
|
|
| |
67 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
|
1-47479-693-0 |
01 |
1 |
0809- |
● |
|
|
| |
71 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1106- |
|
● |
● |
| |
71 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1106- |
● |
|
|
| |
71 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0801-0811 |
|
|
● |
| |
71 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0801-0811 |
● |
|
|
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0812-0907 |
|
|
● |
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0908- |
|
● |
● |
| |
71 |
NUT; BRKT
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0908- |
● |
|
|
| |
71 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0908- |
● |
|
|
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0710 |
|
● |
● |
| |
71 |
NUT; BRKT
WHEEL BASE 4200MM(42W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0710 |
● |
|
|
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0712 |
|
|
● |
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0803 |
|
● |
● |
| |
71 |
NUT; BRKT
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0803 |
● |
|
|
| |
71 |
NUT; BRKT
EXC. AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0803 |
● |
|
|
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804-0811 |
|
● |
● |
| |
71 |
NUT; BRKT
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804-0811 |
● |
|
|
| |
71 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804-0811 |
● |
|
|
| |
71 |
NUT; BRKT
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0812-0907 |
● |
|
|
| |
71 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0812-0907 |
● |
|
|
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0812-0907 |
|
● |
|
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0711 |
● |
|
● |
| |
71 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0711 |
|
|
● |
| |
71 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0811 |
|
|
● |
| |
71 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0811 |
|
|
● |
| |
71 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0811 |
● |
|
|
| |
71 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0811 |
● |
|
|
| |
71 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0812-0907 |
|
|
● |
| |
71 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0812-0907 |
|
|
● |
| |
71 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0812-0907 |
● |
|
|
| |
71 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0812-0907 |
● |
|
|
| |
71 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0908- |
|
|
● |
| |
71 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0908- |
|
|
● |
| |
71 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0908- |
● |
|
|
| |
71 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0908- |
● |
|
|
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
11 |
1 |
0710-0711 |
● |
|
● |
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
11 |
1 |
0712-0811 |
|
|
● |
| |
71 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
11 |
1 |
0712-0811 |
● |
|
|
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
08 |
1 |
0812- |
|
● |
● |
| |
71 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
08 |
1 |
0812- |
● |
|
|
| |
71 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
13 |
1 |
0710- |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
12 |
1 |
1010- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
12 |
1 |
0812-1009 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
(C)
L=350
|
1-09707-183-0 |
10 |
1 |
1010- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
13 |
1 |
0812- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
10 |
1 |
0812-0907 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
03 |
1 |
0908-1009 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
03 |
1 |
0908-1009 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
03 |
1 |
0908-1009 |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
03 |
1 |
1010- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
03 |
1 |
1010- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
03 |
1 |
1010- |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
15 |
1 |
0812- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
(C)
L=350
|
1-09707-183-0 |
11 |
1 |
0712-0801 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
11 |
1 |
0802-0811 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
08 |
1 |
0812-1009 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
(C)
L=350
|
1-09707-183-0 |
08 |
1 |
1010- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
10 |
1 |
0712-0803 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE REGULATION ADR(TDU)
(C)
L=350
|
1-09707-183-0 |
10 |
1 |
0804-0808 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
BRAKE REGULATION ADR(TDU)
(C)
L=350
|
1-09707-183-0 |
10 |
1 |
0809-0811 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
0812-0907 |
● |
|
|
| |
74 |

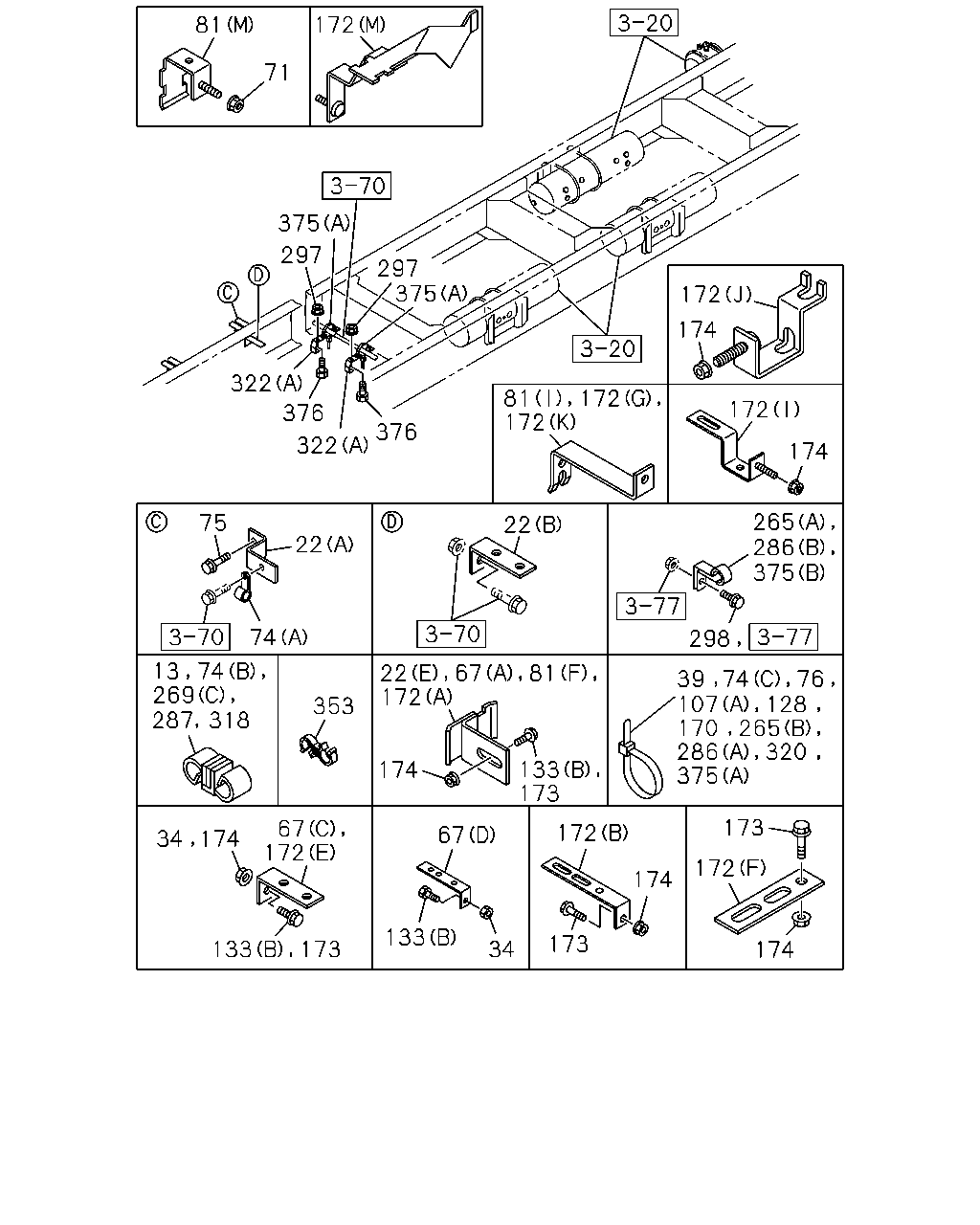

CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
0812-0907 |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
0908-1009 |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
0908-1009 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
0908-1009 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
0908-1009 |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
1010- |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
1010- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
1010- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
1010- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
1010- |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
13 |
1 |
0801-0806 |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
14 |
1 |
0807- |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
(C)
L=350
|
1-09707-183-0 |
05 |
1 |
0710-0907 |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
(C)
L=350
|
1-09707-183-0 |
05 |
1 |
0908- |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
05 |
1 |
0908- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
02 |
1 |
0710-0811 |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
03 |
1 |
0812-0907 |
|
● |
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
03 |
1 |
0812-0907 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
03 |
1 |
0812-0907 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(C)
L=350
|
1-09707-183-0 |
02 |
1 |
0908- |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
07 |
1 |
0710-0811 |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
11 |
1 |
0812- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
(C)
L=350
|
1-09707-183-0 |
10 |
1 |
0710-0711 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
10 |
1 |
0712-0712 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
(C)
L=350
|
1-09707-183-0 |
10 |
1 |
0712-0712 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V),
ZF9S1110 M/T(Y5E)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V),
ZF9S1110 M/T(Y5E)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0801 |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V),
ZF9S1110 M/T(Y5E)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0802-0805 |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0802-0805 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0802-0805 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0802-0805 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V),
ZF9S1110 M/T(Y5E)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0802-0805 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0806-0808 |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0806-0808 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0806-0808 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0806-0808 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V),ZF9S1110 M/T(Y5E)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0806-0808 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0809-0811 |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0809-0811 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0809-0811 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W),
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0809-0811 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD
M/T(Y4V),ZF9S1110 M/T(Y5E)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0809-0811 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0812-0911 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE REGULATION ADR(TDU)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0812-0911 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0812-0911 |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
BRAKE REGULATION ADR(TDU)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0912- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE REGULATION ADR(TDU)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0912- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0912- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(C)
L=350
|
1-09707-183-0 |
01 |
1 |
0912- |
|
● |
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W)
(C)
L=350
|
1-09707-183-0 |
12 |
1 |
0712-0801 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
12 |
1 |
0802-0811 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=350
|
1-09707-183-0 |
09 |
1 |
0812-1009 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=350
|
1-09707-183-0 |
09 |
1 |
1010- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(C)
L=350
|
1-09707-183-0 |
09 |
1 |
1010- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0710-0711 |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0712-0907 |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0712-0907 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0908- |
|
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0908- |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(B)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
0710-0712 |
● |
● |
● |
| |
74 |
CLIP; NYLON TUBE
(B)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
0801-0903 |
|
● |
● |
| |
74 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
0801-0903 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(B)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
0904-1008 |
|
● |
● |
| |
74 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. EURO2 SPECIFICATION<NT2>
(B)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
0904-1008 |
● |
|
|
| |
74 |
CLIP; NYLON TUBE
(B)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
1009- |
|
● |
● |
| |
74 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
1009- |
● |
|
|
| |
75 |
BOLT; CLIP
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0710-0711 |
|
|
● |
| |
75 |
BOLT; CLIP
WHEEL BASE 6500MM(65W)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
75 |
BOLT; CLIP
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0712-0907 |
|
|
● |
| |
75 |
BOLT; CLIP
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0712-0907 |
● |
|
|
| |
75 |
BOLT; CLIP
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0908- |
|
|
● |
| |
75 |
BOLT; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0908- |
● |
|
|
| |
76 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=350
|
1-09707-183-0 |
01 |
1 |
0805-0811 |
● |
|
|
| |
76 |
CLIP; NYLON TUBE
H.S.A SYSTEM<6EP>
EXC. ANTI LOCK BRAKE<JE5>
L=350
|
1-09707-183-0 |
01 |
1 |
0812- |
|
|
● |
| |
76 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
H.S.A SYSTEM<6EP>
EXC. ANTI LOCK BRAKE<JE5>,RIGID SEAT WO/ARM
REST<TAZ>
L=350
|
1-09707-183-0 |
01 |
1 |
0812- |
● |
|
|
| |
76 |
CLIP; NYLON TUBE
L=350
|
1-09707-183-0 |
04 |
1 |
0710-0711 |
|
|
● |
| |
76 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
L=350
|
1-09707-183-0 |
04 |
1 |
0710-0711 |
● |
|
|
| |
76 |
CLIP; NYLON TUBE
L=350
|
1-09707-183-0 |
04 |
1 |
0712-0906 |
|
|
● |
| |
76 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
L=350
|
1-09707-183-0 |
04 |
1 |
0712-0906 |
● |
|
|
| |
76 |
CLIP; NYLON TUBE
L=350
|
1-09707-183-0 |
04 |
1 |
0907-0907 |
|
|
● |
| |
76 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
L=350
|
1-09707-183-0 |
04 |
1 |
0907-0907 |
● |
|
|
| |
76 |
CLIP; NYLON TUBE
L=350
|
1-09707-183-0 |
03 |
1 |
0908- |
|
|
● |
| |
76 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
L=350
|
1-09707-183-0 |
03 |
1 |
0908- |
● |
|
|
| |

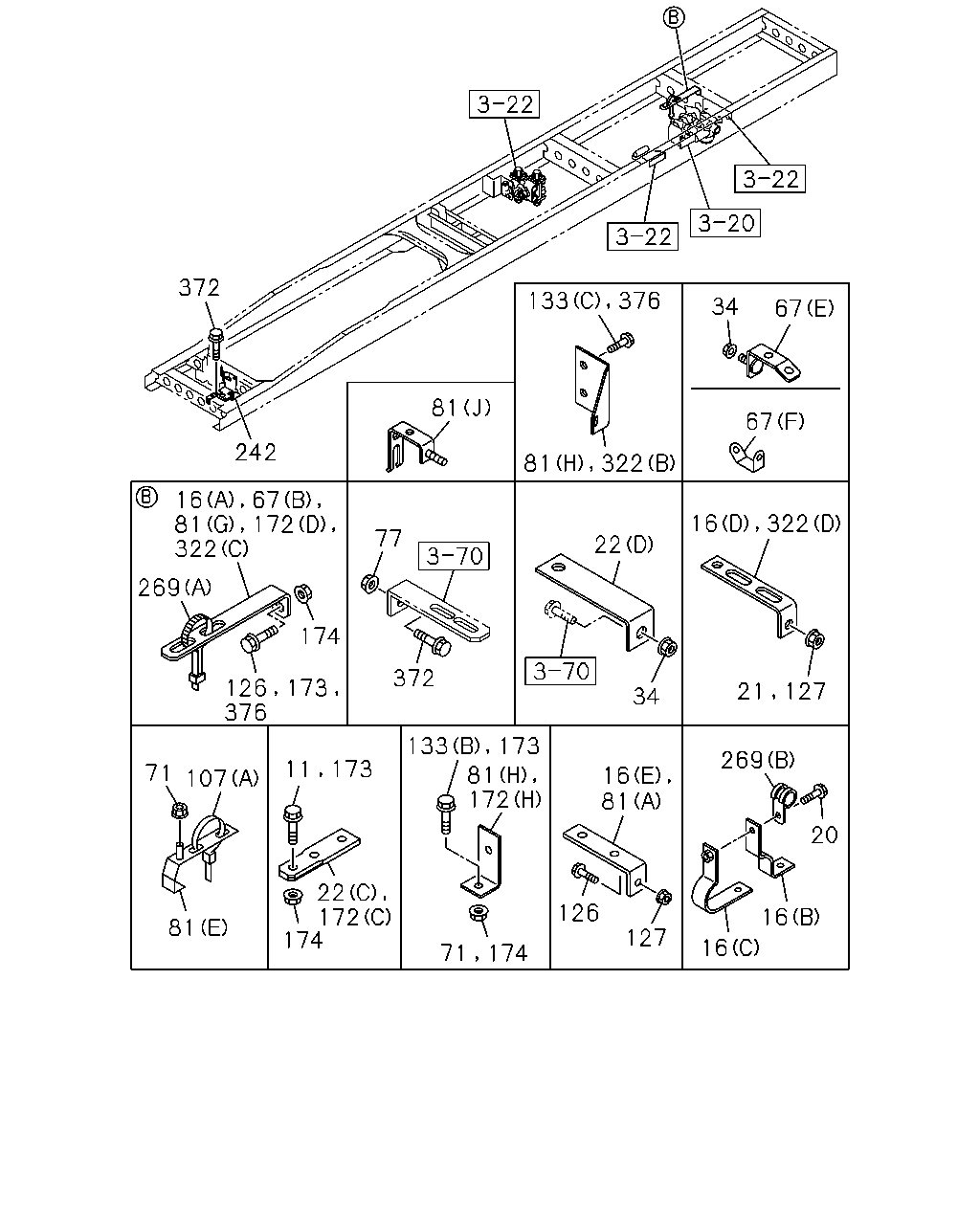

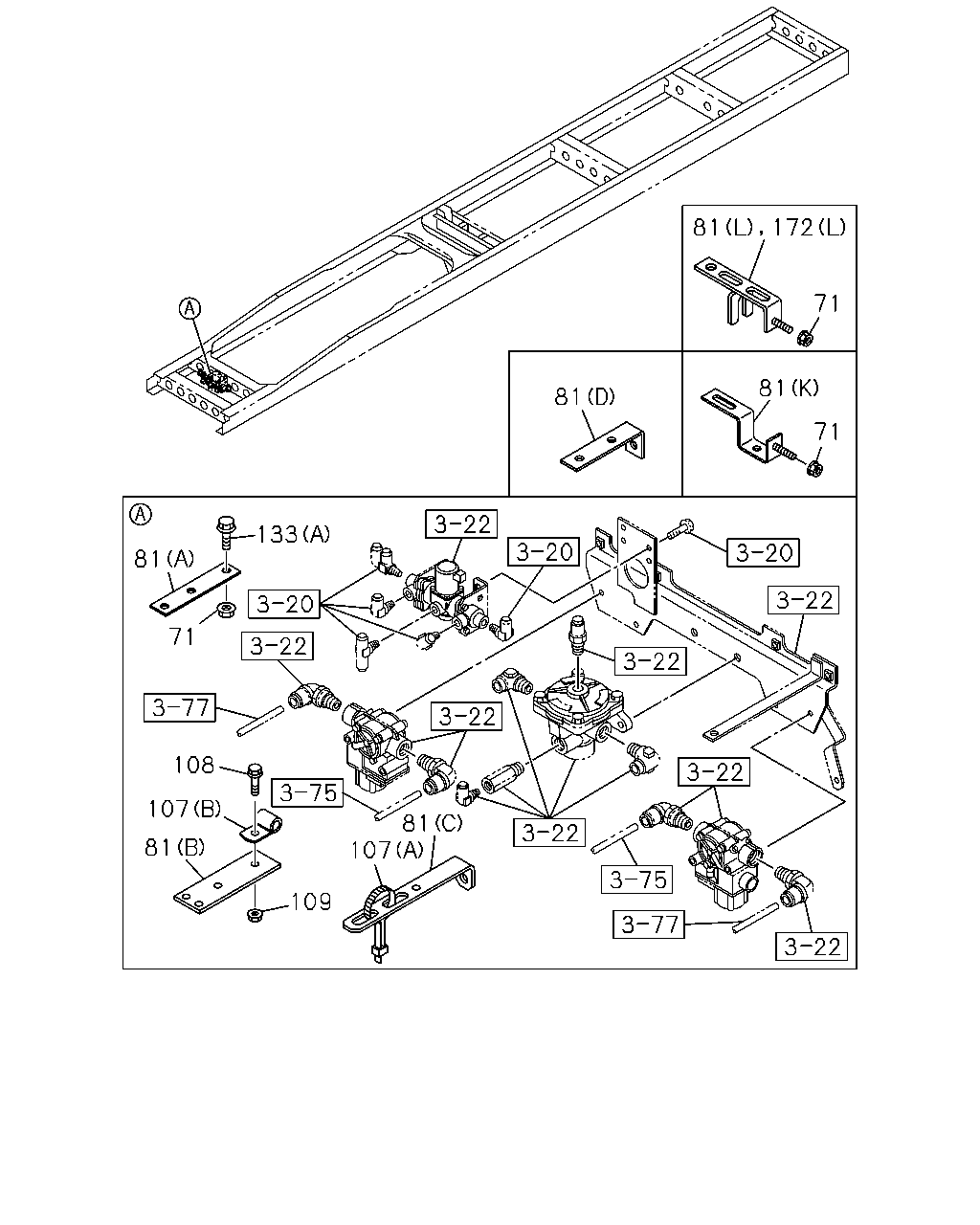

81 |
BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>
(N)
|
8-98182-760-0 |
01 |
1 |
1108- |
● |
|
|
| |
81 |
BRACKET; CLIP
(M)
|
8-98186-380-0 |
01 |
1 |
1106- |
|
● |
● |
| |
81 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(M)
|
8-98186-380-0 |
01 |
1 |
1106- |
● |
|
|
| |
81 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
WHEEL BASE 6500MM(65W)
(C)
L=100 H=30
|
1-47477-645-2 |
02 |
1 |
0808-0812 |
|
|
● |
| |
81 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=100 H=30
|
1-47477-645-2 |
02 |
1 |
0808-0812 |
● |
|
|
| |
81 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
WHEEL BASE 6500MM(65W)
(J)
|
1-47479-381-2 |
02 |
1 |
0808-0812 |
|
|
● |
| |
81 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(J)
|
1-47479-381-2 |
02 |
1 |
0808-0812 |
● |
|
|
| |
81 |
BRACKET; CLIP
(F)
|
8-98119-184-1 |
01 |
1 |
0809- |
|
● |
|
| |
81 |
BRACKET; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=100 H=30
|
1-47477-645-2 |
03 |
1 |
0807-0812 |
● |
|
|
| |
81 |
BRACKET; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(K)
|
8-98129-212-0 |
03 |
1 |
0901-0906 |
● |
|
|
| |
81 |
BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(K)
|
8-98129-212-0 |
03 |
1 |
0907-1012 |
● |
|
|
| |
81 |
BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(L)
|
8-98177-873-0 |
03 |
1 |
1101-1107 |
● |
|
|
| |
81 |
BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(L)
|
8-98177-873-0 |
02 |
1 |
1108- |
● |
|
|
| |
81 |
BRACKET; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(I)
|
8-98118-865-0 |
01 |
1 |
0807-0906 |
● |
|
|
| |
81 |
BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(I)
|
8-98118-865-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
81 |
BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(I)
|
8-98169-434-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
81 |
BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>
(O)
|
8-98182-331-0 |
01 |
1 |
1108- |
● |
|
|
| |
81 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
(H)
|
1-47476-699-2 |
01 |
1 |
0712- |
|
|
● |
| |
81 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(H)
|
1-47476-699-2 |
01 |
1 |
0712- |
● |
|
|
| |
81 |
BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(F)
|
1-47479-693-0 |
03 |
1 |
0801-0803 |
|
|
● |
| |
81 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(F)
|
1-47479-693-0 |
03 |
1 |
0801-0803 |
● |
|
|
| |
81 |
BRACKET; CLIP
(G)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0710- |
|
|
● |
| |
81 |
BRACKET; CLIP
(F)
|
1-47479-693-0 |
02 |
1 |
0710-0711 |
|
|
● |
| |
81 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
(F)
|
1-47479-693-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
81 |
BRACKET; CLIP
(F)
|
1-47479-693-0 |
02 |
1 |
0712-0803 |
|
|
● |
| |
81 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(F)
|
1-47479-693-0 |
02 |
1 |
0712-0803 |
● |
|
|
| |
81 |
BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(F)
|
1-47479-693-0 |
02 |
1 |
0804-0808 |
|
|
● |
| |
81 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(F)
|
1-47479-693-0 |
02 |
1 |
0804-0808 |
● |
|
|
| |
81 |
BRACKET; CLIP
(F)
|
8-98119-184-1 |
02 |
1 |
0809-0907 |
|
|
● |
| |
81 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(F)
|
8-98119-184-1 |
02 |
1 |
0809-0907 |
● |
|
|
| |
81 |
BRACKET; CLIP
(F)
|
8-98119-184-1 |
02 |
1 |
0908- |
|
|
● |
| |
81 |
BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(F)
|
8-98119-184-1 |
02 |
1 |
0908- |
● |
|
|
| |
81 |
BRACKET; CLIP
(H)
L=65
|
1-47477-713-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
81 |
BRACKET; CLIP
(H)
L=65
|
1-47477-713-0 |
01 |
1 |
0712-0902 |
|
● |
● |
| |
81 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(H)
L=65
|
1-47477-713-0 |
01 |
1 |
0712-0902 |
● |
|
|
| |
81 |
BRACKET; CLIP
(H)
L=65 B=25
|
8-98135-584-0 |
01 |
1 |
0903- |
|
● |
● |
| |
81 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(H)
L=65 B=25
|
8-98135-584-0 |
01 |
1 |
0903- |
● |
|
|
| |
81 |
BRACKET; CLIP
(D)
L=60 H=30
|
1-47477-716-1 |
02 |
1 |
0710-0711 |
● |
● |
● |
| |
81 |
BRACKET; CLIP
(D)
L=60 H=30
|
1-47477-716-1 |
02 |
1 |
0712- |
|
● |
● |
| |
81 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
L=60 H=30
|
1-47477-716-1 |
02 |
1 |
0712- |
● |
|
|
| |
81 |
BRACKET; CLIP
WHEEL BASE 4200MM(42W)
(F)
|
1-47479-693-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
81 |
BRACKET; CLIP
(F)
|
1-47479-693-0 |
01 |
1 |
0710-0711 |
|
● |
|
| |
81 |
BRACKET; CLIP
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(F)
|
1-47479-693-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
81 |
BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. AUSTRALIA EQUIPMENT(B13)
(F)
|
1-47479-693-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
81 |
BRACKET; CLIP
(F)
|
1-47479-693-0 |
01 |
1 |
0712-0712 |
|
● |
|
| |
81 |
BRACKET; CLIP
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(F)
|
1-47479-693-0 |
01 |
1 |
0801-0808 |
● |
|
|
| |
81 |
BRACKET; CLIP
EXC. AUSTRALIA EQUIPMENT(B13)
(F)
|
1-47479-693-0 |
01 |
1 |
0801-0808 |
● |
|
|
| |
81 |
BRACKET; CLIP
(F)
|
1-47479-693-0 |
01 |
1 |
0801-0808 |
|
● |
|
| |
81 |
BRACKET; CLIP
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(F)
|
1-47479-693-0 |
01 |
1 |
0809-0809 |
● |
|
|
| |
81 |
BRACKET; CLIP
EXC. AUSTRALIA EQUIPMENT(B13)
(F)
|
1-47479-693-0 |
01 |
1 |
0809-0809 |
● |
|
|
| |
81 |
BRACKET; CLIP
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(F)
|
1-47479-693-0 |
01 |
1 |
0810- |
● |
|
|
| |
81 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(F)
|
1-47479-693-0 |
01 |
1 |
0810- |
● |
|
|
| |
81 |
BRACKET; CLIP
(C)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0710-0711 |
● |
● |
● |
| |
81 |
BRACKET; CLIP
(C)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0712-0806 |
|
● |
● |
| |
81 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0712-0806 |
● |
|
|
| |
81 |
BRACKET; CLIP
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)
(C)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0807-0807 |
|
|
● |
| |
81 |
BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0807-0807 |
● |
|
|
| |
81 |
BRACKET; CLIP
FULLER FS8209HD DD M/T(Y3A)
(C)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0807-0807 |
|
● |
|
| |
81 |
BRACKET; CLIP
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)
WHEEL BASE 5500MM(55W)
(C)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0808-0812 |
|
|
● |
| |
81 |
BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0808-0812 |
● |
|
|
| |
81 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0808-0812 |
● |
|
|
| |
81 |
BRACKET; CLIP
FULLER FS8209HD DD M/T(Y3A)
(C)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0808-0812 |
|
● |
|
| |
81 |
BRACKET; CLIP
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)
(K)
|
8-98129-212-0 |
04 |
1 |
0901-1012 |
|
|
● |
| |
81 |
BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(K)
|
8-98129-212-0 |
04 |
1 |
0901-1012 |
● |
|
|
| |
81 |
BRACKET; CLIP
FULLER FS8209HD DD M/T(Y3A)
(K)
|
8-98129-212-0 |
04 |
1 |
0901-1012 |
|
● |
|
| |
81 |
BRACKET; CLIP
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)
(L)
|
8-98177-873-0 |
04 |
1 |
1101- |
|
|
● |
| |
81 |
BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(L)
|
8-98177-873-0 |
04 |
1 |
1101- |
● |
|
|
| |
81 |
BRACKET; CLIP
FULLER FS8209HD DD M/T(Y3A)
(L)
|
8-98177-873-0 |
04 |
1 |
1101- |
|
● |
|
| |
81 |
BRACKET; CLIP
(A)
L=170
|
1-47479-380-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
81 |
BRACKET; CLIP
(A)
L=170
|
1-47479-380-0 |
01 |
1 |
0712- |
|
● |
● |
| |
81 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=170
|
1-47479-380-0 |
01 |
1 |
0712- |
● |
|
|
| |
81 |
BRACKET; CLIP
(B)
|
8-98031-420-2 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
81 |
BRACKET; CLIP
(B)
|
8-98031-420-2 |
01 |
1 |
0712-1509 |
|
● |
● |
| |
81 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
8-98031-420-2 |
01 |
1 |
0712-1509 |
● |
|
|
| |
81 |
BRACKET; CLIP
WHEEL BASE 4200MM(42W)
(E)
|
8-98047-730-0 |
02 |
1 |
0710-0710 |
● |
|
|
| |
81 |
BRACKET; CLIP
(E)
|
8-98047-730-0 |
02 |
1 |
0710-0710 |
|
● |
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
36 |
1 |
1102- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
41 |
1 |
0812-0907 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
41 |
1 |
0812-0907 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
25 |
1 |
0908-1002 |
|
● |
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
42 |
1 |
0812-1110 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
42 |
1 |
1111- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
42 |
1 |
1111- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
43 |
1 |
0812-0907 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(A)
L=350
|
1-09707-183-0 |
08 |
1 |
0806-0811 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
08 |
1 |
0806-0811 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
08 |
1 |
0812-0906 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
10 |
1 |
0907-0907 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
(A)
L=350
|
1-09707-183-0 |
37 |
1 |
0908- |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
37 |
1 |
0908- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
10 |
1 |
0710-0906 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
08 |
1 |
0907-0907 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
(A)
L=350
|
1-09707-183-0 |
41 |
1 |
0908-1110 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
41 |
1 |
0908-1110 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
41 |
1 |
0908-1110 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
(A)
L=350
|
1-09707-183-0 |
41 |
1 |
1111- |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
41 |
1 |
1111- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
20 |
1 |
0710-0801 |
● |
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
0802-0811 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
0802-0811 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
0802-0811 |
|
● |
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
35 |
1 |
0812-1101 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
35 |
1 |
1102- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
35 |
1 |
0710-0712 |
|
● |
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
26 |
1 |
0801-0806 |
|
● |
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
27 |
1 |
0807-1002 |
|
● |
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
53 |
1 |
1003- |
|
● |
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0710-0711 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0710-0711 |
|
● |
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0712-0712 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0712-0712 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0712-0712 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0712-0712 |
|
● |
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0801-0801 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0801-0801 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0801-0801 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0801-0801 |
|
● |
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
20 |
1 |
0802-0802 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
20 |
1 |
0802-0802 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
25 |
1 |
0803-0811 |
|
|
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
25 |
1 |
0803-0811 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
25 |
1 |
0812-0907 |
|
● |
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
38 |
1 |
0908- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
(A)
L=350
|
1-09707-183-0 |
19 |
1 |
0710-0711 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
19 |
1 |
0712-0811 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
39 |
1 |
0812- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
17 |
1 |
0712-0811 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
37 |
1 |
0812-0907 |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
43 |
1 |
0908- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
H.S.A SYSTEM<6EP>
(B)
ID=35 L=33
|
1-09700-945-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
107 |
CLIP; NYLON TUBE
H.S.A SYSTEM<6EP>
(B)
ID=35 L=33
|
1-09700-945-0 |
01 |
1 |
0712- |
|
● |
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
H.S.A SYSTEM<6EP>
(B)
ID=35 L=33
|
1-09700-945-0 |
01 |
1 |
0712- |
● |
|
|
| |
107 |
CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP>
(B)
ID=39 L=33
|
8-98009-359-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
107 |
CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP>
(B)
ID=39 L=33
|
8-98009-359-0 |
01 |
1 |
0712- |
|
● |
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. H.S.A SYSTEM<6EP>
(B)
ID=39 L=33
|
8-98009-359-0 |
01 |
1 |
0712- |
● |
|
|
| |
128 |
CLIP; NYLON TUBE
L=350
|
1-09707-183-0 |
03 |
1 |
1003- |
|
● |
|
| |
133 |
BOLT; BRKT
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0801-0811 |
|
● |
|
| |
133 |
BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0812-0906 |
● |
|
|
| |
133 |
BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0907- |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(C)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0801-0803 |
|
|
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0801-0803 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
(C)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0804-0811 |
|
|
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0804-0811 |
● |
|
|
| |
133 |
BOLT; BRKT
(C)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0812- |
|
● |
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
(C)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0812- |
|
|
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(C)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0812- |
● |
|
|
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0812- |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
0710- |
|
|
● |
| |
133 |
BOLT; BRKT
(A)
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
0710- |
|
|
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0710-0711 |
|
● |
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0712-0712 |
|
|
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0712-0712 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0712-0712 |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0712-0712 |
|
● |
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0801-0801 |
|
|
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0801-0801 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0802-0811 |
|
|
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0802-0811 |
|
|
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0802-0811 |
● |
|
|
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0802-0811 |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0812-0907 |
|
● |
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0812-0907 |
|
|
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0812-0907 |
|
|
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0812-0907 |
● |
|
|
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0812-0907 |
● |
|
|
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0812-0907 |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0908- |
|
● |
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0908- |
|
|
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0908- |
|
|
● |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0908- |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0908- |
● |
|
|
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0908- |
● |
|
|
| |
133 |
BOLT; BRKT
(B)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0710-0711 |
● |
|
● |
| |
133 |
BOLT; BRKT
(B)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0712-0811 |
|
|
● |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0712-0811 |
● |
|
|
| |
133 |
BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E)
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0812- |
|
|
● |
| |
133 |
BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0812- |
● |
|
|
| |
133 |
BOLT; BRKT
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0812- |
|
● |
|
| |
133 |
BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A)
(B)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0812- |
|
● |
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
06 |
1 |
0710-0711 |
● |
● |
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
06 |
1 |
0712-0802 |
|
● |
● |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
06 |
1 |
0712-0802 |
● |
|
|
| |
133 |
BOLT; BRKT
(B)
M8X30 FLANGE
|
0-28650-830-0 |
06 |
1 |
0803-0811 |
|
● |
● |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M8X30 FLANGE
|
0-28650-830-0 |
06 |
1 |
0803-0811 |
● |
|
|
| |
133 |
BOLT; BRKT
(B)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0812-0907 |
|
|
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0710-0711 |
● |
|
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0712-0712 |
● |
|
● |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0712-0712 |
● |
|
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0712-0712 |
|
|
● |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
● |
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
|
|
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
|
|
● |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
133 |
BOLT; BRKT
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
● |
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
|
|
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
|
|
● |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
133 |
BOLT; BRKT
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0802-0809 |
|
● |
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0802-0809 |
|
|
● |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0802-0809 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0802-0809 |
● |
|
|
| |
133 |
BOLT; BRKT
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0802-0809 |
● |
|
|
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0802-0809 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0802-0809 |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0810-0811 |
|
● |
● |
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0810-0811 |
|
|
● |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0810-0811 |
● |
|
|
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0810-0811 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0810-0811 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0810-0811 |
● |
|
|
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0810-0811 |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0812-0907 |
|
● |
● |
| |
133 |
BOLT; BRKT
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0812-0907 |
● |
|
|
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0812-0907 |
● |
|
|
| |
133 |
BOLT; BRKT
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0908- |
● |
|
|
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0908- |
● |
|
|
| |
133 |
BOLT; BRKT
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0908- |
|
● |
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
L=350
|
1-09707-183-0 |
01 |
1 |
0810- |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=350
|
1-09707-183-0 |
25 |
1 |
0802-0804 |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=350
|
1-09707-183-0 |
26 |
1 |
0805-0806 |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=350
|
1-09707-183-0 |
27 |
1 |
0807-0807 |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=350
|
1-09707-183-0 |
28 |
1 |
0807-0809 |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=350
|
1-09707-183-0 |
26 |
1 |
0810-1008 |
● |
|
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=350
|
1-09707-183-0 |
27 |
1 |
1009- |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(N)
|
8-98182-760-0 |
01 |
1 |
1108- |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(J)
|
8-98169-434-0 |
01 |
1 |
1009-1010 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(K)
|
8-98182-925-0 |
01 |
1 |
1011-1107 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(O)
|
8-98182-331-0 |
01 |
1 |
1108- |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
(H)
L=65
|
1-47477-713-0 |
01 |
1 |
0810-0902 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
(H)
L=65 B=25
|
8-98135-584-0 |
01 |
1 |
0903- |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
|
8-98126-176-0 |
01 |
1 |
0807-1103 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(M)
|
8-98166-032-0 |
01 |
1 |
1104- |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(G)
|
8-98118-865-0 |
01 |
1 |
0807-1008 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(G)
|
8-98169-222-0 |
01 |
1 |
1009- |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0802-0803 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47479-693-0 |
02 |
1 |
0802-0803 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=225
|
1-47477-646-3 |
01 |
1 |
0802- |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
|
8-98031-420-2 |
01 |
1 |
0802- |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0802-0802 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
L=100 H=30
|
1-47477-645-2 |
03 |
1 |
0803-0803 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
0804-0806 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
L=100 H=30
|
1-47477-645-2 |
03 |
1 |
0807-0812 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(I)
|
8-98129-212-0 |
03 |
1 |
0901-1012 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(L)
|
8-98177-873-0 |
03 |
1 |
1101-1107 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(L)
|
8-98177-873-0 |
02 |
1 |
1108- |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
L=60 H=30
|
1-47477-716-1 |
02 |
1 |
0802-0802 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
L=60 H=30
|
1-47477-716-1 |
03 |
1 |
0803-0803 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
L=60 H=30
|
1-47477-716-1 |
02 |
1 |
0804-0804 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
L=60 H=30
|
1-47477-716-1 |
03 |
1 |
0805-0806 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
L=60 H=30
|
1-47477-716-1 |
05 |
1 |
0807- |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(F)
|
1-47477-514-3 |
02 |
1 |
0802-0803 |
● |
|
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(F)
|
1-47477-514-3 |
01 |
1 |
0804- |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0810- |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
06 |
1 |
0802-0803 |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0804- |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0802-0803 |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0804-0806 |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0807- |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28650-830-0 |
06 |
1 |
0802-0804 |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28650-830-0 |
07 |
1 |
0805-0806 |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28650-830-0 |
09 |
1 |
0807-1008 |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28650-830-0 |
10 |
1 |
1009-1104 |
● |
|
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28650-830-0 |
06 |
1 |
1105- |
● |
|
|
| |
174 |
NUT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RIGID SEAT WO/ARM REST<TAZ>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0810- |
● |
|
|
| |
174 |
NUT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
12 |
1 |
0802-0803 |
● |
|
|
| |
174 |
NUT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
08 |
1 |
0804-0804 |
● |
|
|
| |
174 |
NUT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
09 |
1 |
0805-0806 |
● |
|
|
| |
174 |
NUT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
11 |
1 |
0807-1008 |
● |
|
|
| |
174 |
NUT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
12 |
1 |
1009- |
● |
|
|
| |
265 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
L=350
|
1-09707-183-0 |
01 |
1 |
0908- |
● |
|
|
| |
265 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
COUNTRY NEW ZEALAND(CX6)
(B)
L=350
|
1-09707-183-0 |
01 |
1 |
0810-0907 |
|
|
● |
| |
265 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
COUNTRY NEW ZEALAND(CX6)
(B)
L=350
|
1-09707-183-0 |
01 |
1 |
0810-0907 |
● |
|
|
| |
265 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
COUNTRY NEW ZEALAND(CX6)
(B)
L=350
|
1-09707-183-0 |
02 |
1 |
0908- |
|
|
● |
| |
265 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
COUNTRY NEW ZEALAND(CX6)
(B)
L=350
|
1-09707-183-0 |
02 |
1 |
0908- |
● |
|
|
| |
265 |
CLIP; NYLON TUBE
(A)
ID=21 H=25.5 L=26
|
8-94176-806-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
265 |
CLIP; NYLON TUBE
(A)
ID=21 H=25.5 L=26
|
8-94176-806-0 |
01 |
1 |
0712- |
|
● |
● |
| |
265 |
CLIP; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
ID=21 H=25.5 L=26
|
8-94176-806-0 |
01 |
1 |
0712- |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
(C)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
1012- |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
EXC. AIR DRYER<PS7>
(C)
ID=15 & 15
|
1-09709-282-1 |
01 |
1 |
1012- |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0908- |
|
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0908- |
|
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
0801-0811 |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
0812- |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. ANTI LOCK BRAKE<JE5>
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
0812- |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0801-0811 |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0710-0711 |
● |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 6500MM(65W)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0811 |
|
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0811 |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
ANTI LOCK BRAKE<JE5>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0812- |
● |
|
|
| |
269 |
CLIP; BAND,NYLON TUBE
(B)
ID=26 L=27
|
1-09701-006-0 |
02 |
1 |
0710-0710 |
|
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
(B)
ID=28 L=40
|
1-09701-261-0 |
02 |
1 |
0710-0712 |
|
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
(B)
ID=28 L=40
|
1-09701-261-0 |
02 |
1 |
0801- |
|
● |
● |
| |
286 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0908-1011 |
|
|
● |
| |
286 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0908-1011 |
● |
|
|
| |
286 |
CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
|
|
● |
| |
286 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
EURO4 SPECIFICATION<NT4>
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
286 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
286 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
(B)
ID=16 L=50 H=25
|
1-09700-838-0 |
01 |
1 |
0801-0805 |
● |
|
|
| |
286 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0710-0711 |
● |
|
|
| |
286 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
286 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0805 |
● |
|
|
| |
286 |
CLIP; NYLON TUBE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0806-0811 |
|
|
● |
| |
286 |
CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0806-0811 |
● |
|
|
| |
287 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
ID=6.35 & 12
|
1-09709-275-1 |
01 |
1 |
1012-1012 |
● |
|
|
| |
287 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
1012-1012 |
● |
|
|
| |
287 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
1012-1012 |
● |
|
|
| |
297 |
NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0801-0805 |
● |
|
|
| |
297 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0803-0807 |
● |
|
|
| |
297 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0803-0807 |
● |
|
|
| |
297 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0808- |
● |
|
|
| |
297 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
EXC. AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0808- |
● |
|
|
| |
297 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0710 |
● |
|
● |
| |
297 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0710 |
|
|
● |
| |
297 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0710 |
● |
|
|
| |
297 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0711 |
● |
|
● |
| |
297 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0802 |
|
|
● |
| |
297 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0712-0802 |
● |
|
|
| |
297 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0803-0907 |
|
|
● |
| |
297 |
NUT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0803-0907 |
● |
|
|
| |
297 |
NUT; BRKT
ZF9S1110 M/T(Y5E)
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0908- |
|
|
● |
| |
297 |
NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0908- |
● |
|
|
| |
298 |
BOLT; CLIP
WHEEL BASE 6500MM(65W)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0801-0805 |
● |
|
|
| |
318 |
CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2>
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0906-1008 |
● |
|
|
| |
318 |
CLIP; AIR PIPE
TURBO - CONVENTIONAL<Q5T>
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
1009- |
● |
|
|
| |
318 |
CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2>
ID=6.35 & 15
|
1-09709-276-1 |
03 |
1 |
0809-0905 |
● |
|
|
| |
318 |
CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
03 |
1 |
0906-1008 |
● |
|
|
| |
318 |
CLIP; AIR PIPE
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
ID=6.35 & 15
|
1-09709-276-1 |
03 |
1 |
1009- |
● |
|
|
| |
320 |
CLIP; BAND,FLEX FIX
EURO2 SPECIFICATION<NT2>
L=250
|
5-09707-030-1 |
01 |
1 |
0809-1008 |
● |
|
|
| |
320 |
CLIP; BAND,FLEX FIX
TURBO - CONVENTIONAL<Q5T>
L=250
|
5-09707-030-1 |
01 |
1 |
1009- |
● |
|
|
| |
322 |
BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-47476-699-2 |
02 |
1 |
0801-0805 |
● |
|
|
| |
322 |
BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
L=100 H=30
|
1-47477-645-2 |
01 |
1 |
0801-0805 |
● |
|
|
| |
322 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(D)
|
1-47479-598-0 |
02 |
1 |
0803-0807 |
● |
|
|
| |
322 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(D)
|
1-47479-598-0 |
02 |
1 |
0803-0807 |
● |
|
|
| |
322 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(D)
|
1-47479-598-0 |
02 |
1 |
0808- |
● |
|
|
| |
322 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
EXC. AUSTRALIA EQUIPMENT(B13)
(D)
|
1-47479-598-0 |
02 |
1 |
0808- |
● |
|
|
| |
322 |
BRACKET; CLIP
(A)
|
8-98047-730-0 |
02 |
1 |
0710-0710 |
|
|
● |
| |
322 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
(A)
|
8-98047-730-0 |
02 |
1 |
0710-0710 |
● |
|
|
| |
322 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
(A)
|
1-47479-598-0 |
02 |
1 |
0710-0711 |
● |
|
● |
| |
322 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
(A)
|
1-47479-598-0 |
02 |
1 |
0712-0802 |
|
|
● |
| |
322 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47479-598-0 |
02 |
1 |
0712-0802 |
● |
|
|
| |
322 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(A)
|
1-47479-598-0 |
01 |
1 |
0803-0907 |
|
|
● |
| |
322 |
BRACKET; CLIP
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
|
1-47479-598-0 |
01 |
1 |
0803-0907 |
● |
|
|
| |
322 |
BRACKET; CLIP
ZF9S1110 M/T(Y5E)
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(A)
|
1-47479-598-0 |
01 |
1 |
0908- |
|
|
● |
| |
322 |
BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
|
1-47479-598-0 |
01 |
1 |
0908- |
● |
|
|
| |
353 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
ID=18 & 18
|
8-94323-068-0 |
01 |
1 |
0801- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0812-0906 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
6HK1-TCS ENG(80L)
ZF9S1110 M/T(Y5E)
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0812-0906 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
ASSISTOR SHIFT CONTROL<WX8>
EXC. BRAKE REGULATION ADR(TDU)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0812-0906 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
ASSISTOR SHIFT CONTROL<WX8>
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0812-0906 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0812-0906 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
6HK1-TCS ENG(80L)
ZF9S1110 M/T(Y5E)
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
ASSISTOR SHIFT CONTROL<WX8>
EXC. BRAKE REGULATION ADR(TDU)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
ASSISTOR SHIFT CONTROL<WX8>
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0907-1008 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0907-1008 |
|
● |
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1009-1011 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
6HK1-TCS ENG(80L)
ZF9S1110 M/T(Y5E)
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1009-1011 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
ASSISTOR SHIFT CONTROL<WX8>
EXC. BRAKE REGULATION ADR(TDU)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1009-1011 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
ASSISTOR SHIFT CONTROL<WX8>
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1009-1011 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1009-1011 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
EURO4 SPECIFICATION<NT4>
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1009-1011 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1009-1011 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1009-1011 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1009-1011 |
|
● |
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
6HK1-TCS ENG(80L)
ZF9S1110 M/T(Y5E)
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
ASSISTOR SHIFT CONTROL<WX8>
EXC. BRAKE REGULATION ADR(TDU)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
ASSISTOR SHIFT CONTROL<WX8>
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
EXC. BRAKE REGULATION ADR(TDU)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
EURO4 SPECIFICATION<NT4>
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
1012- |
|
● |
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0712-0712 |
|
● |
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0801 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0801 |
|
● |
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0804 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0804 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0801-0804 |
|
● |
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0805-0810 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0805-0810 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0805-0810 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0805-0810 |
|
● |
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0811-0811 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
6HK1-TCS ENG(80L)
ZF9S1110 M/T(Y5E)
WHEEL BASE 6000MM(60W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
EXC. BRAKE REGULATION ADR(TDU)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0811-0811 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0811-0811 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0811-0811 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
01 |
1 |
0811-0811 |
|
● |
|
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0812-0907 |
|
|
● |
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0812-0907 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0908- |
|
|
● |
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0908- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0710-0710 |
● |
|
● |
| |
375 |
CLIP; AIR PIPE
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0710-0710 |
|
|
● |
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 6500MM(65W)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0710-0710 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0710-0712 |
● |
|
● |
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0801-0804 |
|
|
● |
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0801-0804 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0801-0804 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0805-0811 |
|
|
● |
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=350
|
1-09707-183-0 |
02 |
1 |
0805-0811 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
ASSISTOR SHIFT CONTROL<WX8>
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
0812-0907 |
|
|
● |
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
EURO4 SPECIFICATION<NT4>
ASSISTOR SHIFT CONTROL<WX8>
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
0812-0907 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
ASSISTOR SHIFT CONTROL<WX8>
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
0908- |
|
|
● |
| |
375 |
CLIP; AIR PIPE
ZF9S1110 M/T(Y5E)
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
EURO4 SPECIFICATION<NT4>
ASSISTOR SHIFT CONTROL<WX8>
(A)
L=350
|
1-09707-183-0 |
03 |
1 |
0908- |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(B)
ID=15 H=24 L=20
|
1-09700-606-0 |
02 |
1 |
0710-0711 |
|
|
● |
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 6500MM(65W)
(B)
ID=15 H=24 L=20
|
1-09700-606-0 |
02 |
1 |
0710-0711 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
(B)
ID=15 H=24 L=20
|
1-09700-606-0 |
02 |
1 |
0712-0712 |
|
|
● |
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
(B)
ID=15 H=24 L=20
|
1-09700-606-0 |
02 |
1 |
0712-0712 |
● |
|
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
(B)
ID=15 H=24 L=20
|
1-09700-606-0 |
02 |
1 |
0801-0803 |
|
|
● |
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
(B)
ID=15 H=24 L=20
|
1-09700-606-0 |
02 |
1 |
0801-0803 |
● |
|
|
| |
376 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
05 |
1 |
0801-0805 |
● |
|
|
| |
376 |
BOLT; BRKT
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0803-0807 |
● |
|
|
| |
376 |
BOLT; BRKT
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0803-0807 |
● |
|
|
| |
376 |
BOLT; BRKT
ZF9S1110 M/T(Y5E)
WHEEL BASE 4200MM(42W)
AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0808- |
● |
|
|
| |
376 |
BOLT; BRKT
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ASSISTOR SHIFT CONTROL<WX8>
EXC. AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0808- |
● |
|
|
| |
376 |
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0801-0803 |
|
|
● |
| |
376 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0801-0803 |
● |
|
|
| |
376 |
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0804-0811 |
|
|
● |
| |
376 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0804-0811 |
● |
|
|
| |
376 |
BOLT; BRKT
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0812-0907 |
|
|
● |
| |
376 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0812-0907 |
● |
|
|
| |
376 |
BOLT; BRKT
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0908- |
|
|
● |
| |
376 |
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
AUSTRALIA EQUIPMENT(B13)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0908- |
● |
|
|
| |
376 |
BOLT; BRKT
ZF9S1110 M/T(Y5E)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0710-0711 |
● |
|
● |
| |
376 |
BOLT; BRKT
ZF9S1110 M/T(Y5E)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0712-0802 |
|
|
● |
| |
376 |
BOLT; BRKT
ZF9S1110 M/T(Y5E)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0712-0802 |
● |
|
|
| |
376 |
BOLT; BRKT
ZF9S1110 M/T(Y5E)
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0803-0907 |
|
|
● |
| |
376 |
BOLT; BRKT
WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0803-0907 |
● |
|
|
| |
376 |
BOLT; BRKT
ZF9S1110 M/T(Y5E)
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0908- |
|
|
● |
| |
376 |
BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUSTRALIA EQUIPMENT(B13)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0908- |
● |
|
|
