3-77 — BRAKE PIPING; AIR,REAR (#36560) — 235 parça

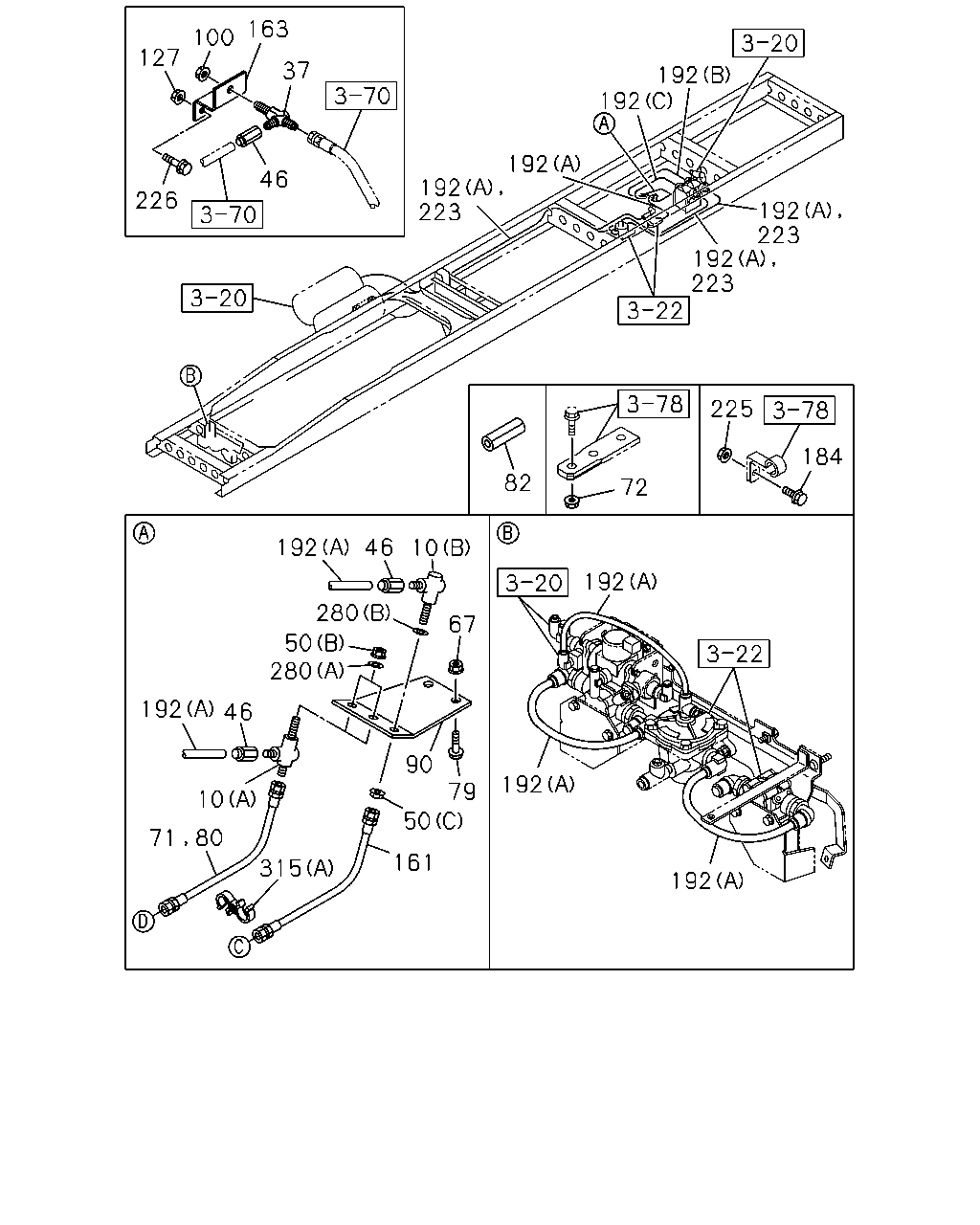

çizim 179628
163 100 127 37 192 192 192 46 192 223 226 192 223 192 223 225 184 82 72 192 46 10 192 280 67 50 280 192 46 90 192 79 10 50 71 80 161 315 192
BalonParca AdiParca NoAdetTipApplied Date A B C
10 CONNECTOR; FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(B13) (B) M16 ELBOW 		0-92135-210-0 01 1 0712-0801 ●
10 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) M16 ELBOW 		0-92135-210-0 01 1 0802- ●
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (B) M16 ELBOW 		0-92135-210-0 01 1 0802- ●
10 CONNECTOR; FLEX HOSE
(A) M16 2WAY 		1-09650-182-1 02 1 0710-0711 ●
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M16 2WAY 		1-09650-182-1 02 1 0712-0801 ●
10 CONNECTOR; FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(B13) (A) M16 2WAY 		1-09650-182-1 02 1 0712-0801 ●
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M16 2WAY 		1-09650-182-1 02 1 0802- ●
10 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M16 2WAY 		1-09650-182-1 02 1 0802- ●
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) M16 2WAY 		1-09650-182-1 02 1 0802- ●
37 UNION; AIR PIPE
M16 2WAY 		1-09650-182-1 01 1 0710-0711 ●
37 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M16 2WAY 		1-09650-182-1 01 1 0712- ●
46 NIPPLE; AIR PIPE
EXC. AUSTRALIA EQUIPMENT(B13) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0712-0801 ●
46 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0802-0803 ●
46 NIPPLE; AIR PIPE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0802-0803 ●
46 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0804- ●
46 NIPPLE; AIR PIPE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0804- ●
46 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0804- ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710-0711 ●
46 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0712-0803 ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0710-0711 ●
46 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0712-0803 ●
50 NUT; UNION BRKT
EXC. AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0712-0801 ●
50 NUT; UNION BRKT
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0710-0711 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0712-0801 ●
50 NUT; UNION BRKT
EXC. AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0712-0801 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-1110 ● ● ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1111- ●
50 NUT; UNION BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1111- ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
67 NUT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
71 HOSE; FLEX,RWD RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) 		1-09363-969-0 02 1 0712-0712 ●
71 HOSE; FLEX,RWD RR
L=660 		1-09363-814-0 02 1 0710-0711 ●
71 HOSE; FLEX,RWD RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=660 		1-09363-814-0 02 1 0712-0712 ●
71 HOSE; FLEX,RWD RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=660 		1-09363-814-0 02 1 0712-0910 ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
72 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 02 1 0712-0712 ●
72 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 01 1 0801- ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
79 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
80 HOSE; FLEX,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=660 		1-09363-814-0 02 1 0911- ●
82 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0710-0711 ●
82 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0710-0711 ●
82 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0712-0811 ●
82 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0712-0811 ●
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 0710-0711 ●
90 BRACKET; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) 		1-47477-851-1 01 1 0712-0801 ●
90 BRACKET; PIPE UNION
EXC. AUSTRALIA EQUIPMENT(B13) 		1-47477-851-1 01 1 0712-0801 ●
90 BRACKET; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) 		1-47477-851-1 01 1 0802- ●
90 BRACKET; PIPE UNION
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) 		1-47477-851-1 01 1 0802- ●
90 BRACKET; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> 		1-47477-851-1 01 1 0802- ●
100 NUT; UNION
M12 		0-91111-512-0 01 1 0710-0711 ●
100 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M12 		0-91111-512-0 01 1 0712- ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 02 1 0812- ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		0-91111-516-0 03 1 0712- ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		0-91111-516-0 03 1 0712- ●
127 NUT; UNION
M16 		0-91111-516-0 02 1 0710-0711 ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		0-91111-516-0 02 1 0712- ●
127 NUT; UNION
M16 		0-91111-516-0 01 1 0710-0801 ●
161 HOSE; FLEX,QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=740 		1-09363-756-0 01 1 0712-0904 ●
161 HOSE; FLEX,QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=680 		1-09363-742-0 01 1 0905- ●
161 HOSE; FLEX,QUICK RELEASE VLV 1-09363-969-0 01 1 0710-0711 ●
161 HOSE; FLEX,QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09363-969-0 01 1 0712-0712 ●
161 HOSE; FLEX,QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) 		1-09363-969-0 01 1 0712- ●
163 BRACKET; FLEX HOSE 8-98092-676-0 01 1 0710-0711 ●
163 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) 		8-98092-676-0 01 1 0712- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ● ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
192 TUBE; NYLON
(B) 		8-98085-803-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 0712-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 0802- ●
192 TUBE; NYLON
(C) 		8-98085-806-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 0712-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 0802- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 0710- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710- ● ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=25 		1-87411-032-0 AR 1 0906- ● ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710- ● ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
226 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
280 WASHER; LK
EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=12.2 		0-91510-812-0 02 1 0712-0801 ●
280 WASHER; LK
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=12.2 		0-91510-812-0 02 1 0802- ●
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) ID=12.2 		0-91510-812-0 02 1 0802- ●
280 WASHER; LK
EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=16.2 		0-91510-816-0 01 1 0712-0801 ●
280 WASHER; LK
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=16.2 		0-91510-816-0 01 1 0802- ●
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (B) ID=16.2 		0-91510-816-0 01 1 0802- ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 0912- ●
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14 		8-94238-572-0 01 1 0912- ●
315 CLIP
(B) ID=14 		8-94238-572-0 02 1 0912- ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0710-0801 ●
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 0802- ●

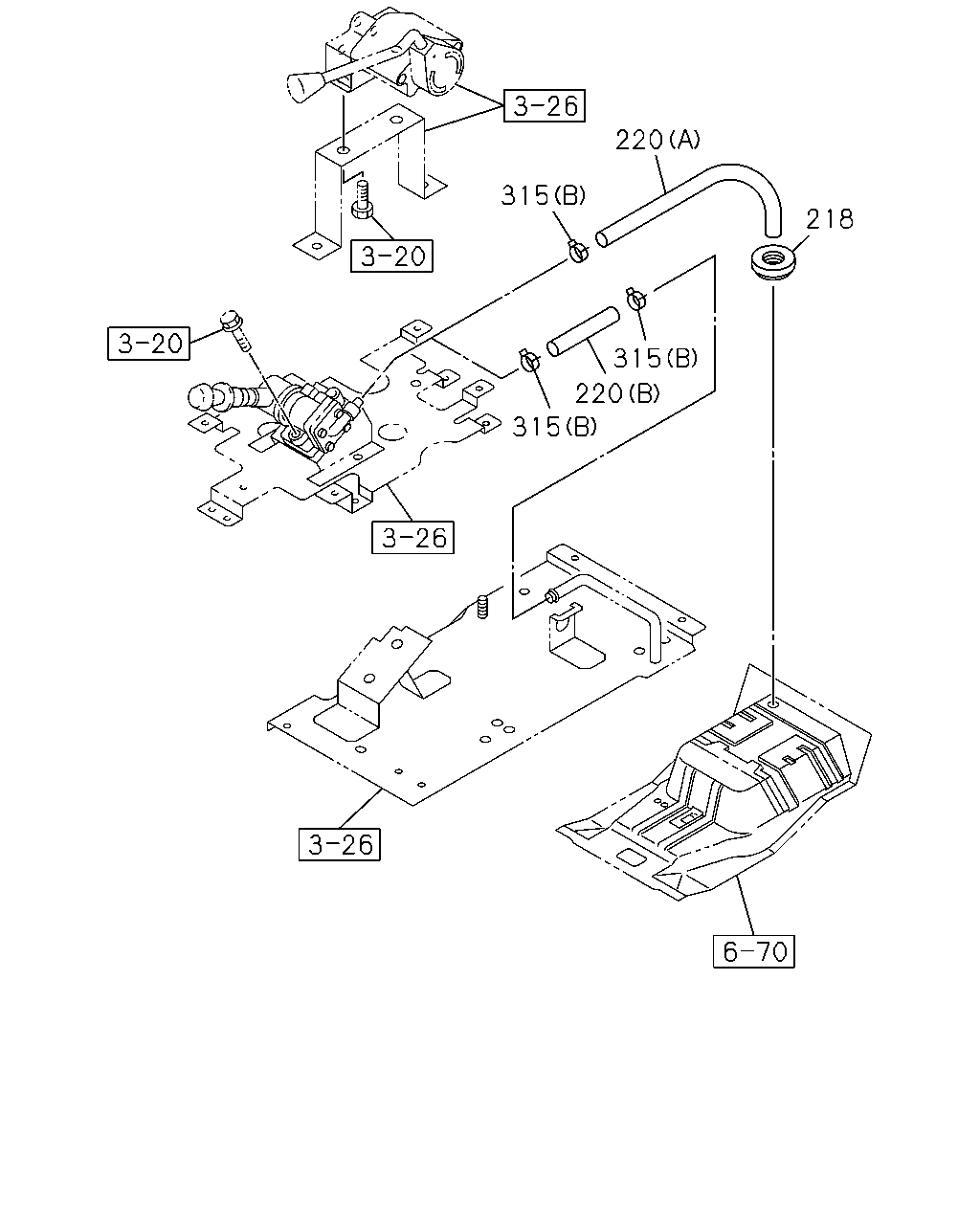

çizim 179668
220 315 218 315 220 315
BalonParca AdiParca NoAdetTipApplied Date A B C
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0912- ●
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 0912- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
(A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0912- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0912- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
(B) L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 0912- ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 0912- ●
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14 		8-94238-572-0 01 1 0912- ●
315 CLIP
(B) ID=14 		8-94238-572-0 02 1 0912- ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0710-0801 ●
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 0802- ●

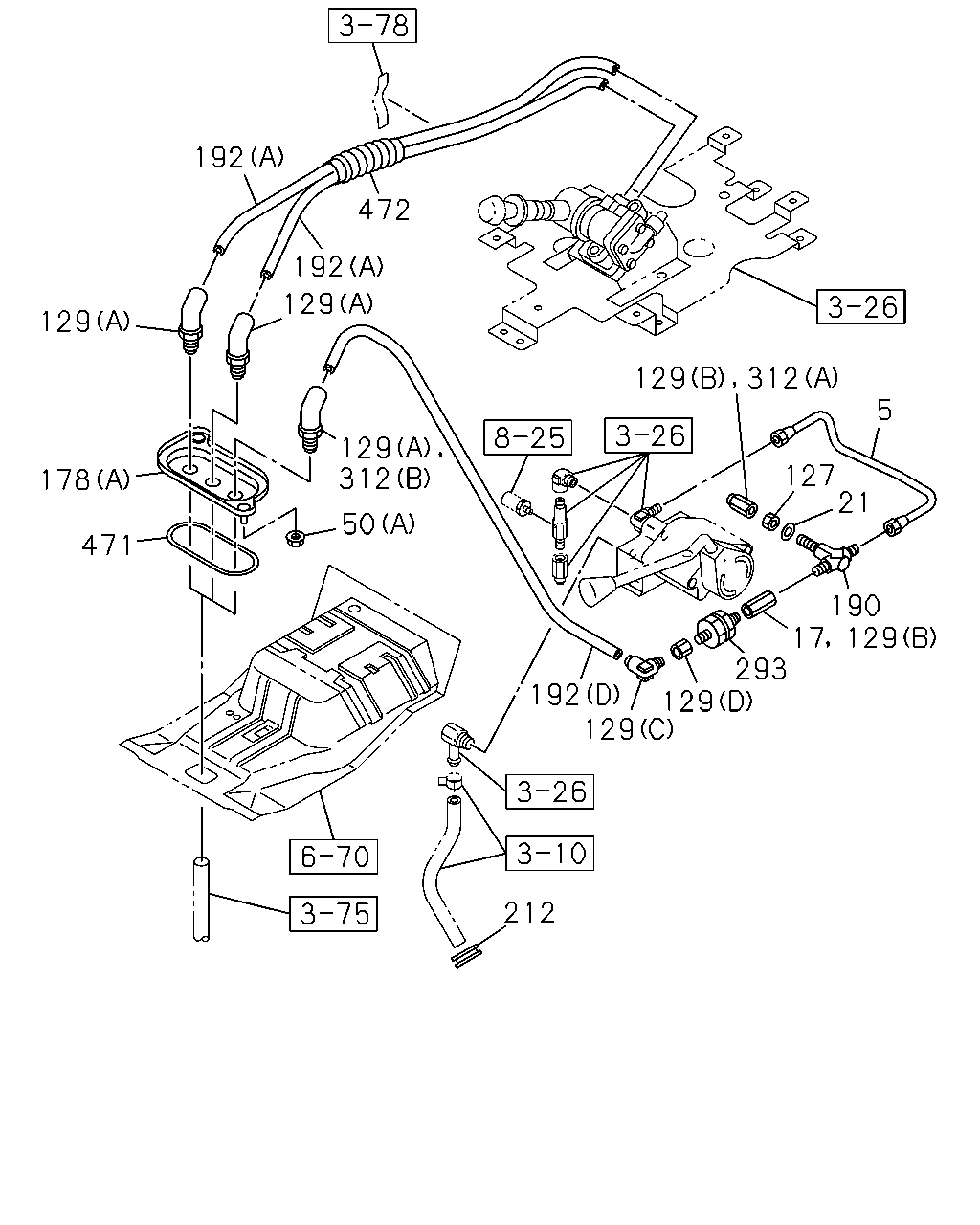

çizim 179714
192 472 192 129 129 5 129 312 127 21 178 50 471 190 293 192 129 129 212 129 312 129 17
BalonParca AdiParca NoAdetTipApplied Date A B C
5 PIPE; AIR,UNION TO PARKING VLV 8-97610-775-1 01 1 0710- ●
17 UNION; AIR PIPE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710-1101 ●
21 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 01 1 0710-0801 ●
50 NUT; UNION BRKT
EXC. AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0712-0801 ●
50 NUT; UNION BRKT
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (C) M16 		0-91111-516-0 01 1 0802- ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0710-0711 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0712-0801 ●
50 NUT; UNION BRKT
EXC. AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0712-0801 ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (B) M12 		0-91111-512-0 02 1 0802- ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-1110 ● ● ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1111- ●
50 NUT; UNION BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1111- ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 02 1 0812- ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		0-91111-516-0 03 1 0712- ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		0-91111-516-0 03 1 0712- ●
127 NUT; UNION
M16 		0-91111-516-0 02 1 0710-0711 ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		0-91111-516-0 02 1 0712- ●
127 NUT; UNION
M16 		0-91111-516-0 01 1 0710-0801 ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-0 01 1 0710-0711 ● ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-0 01 1 0710-0711 ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 0712-1101 ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 0712-1101 ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 0712-1101 ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 0712-1101 ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1102-1110 ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1102-1110 ● ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1102-1110 ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1102-1110 ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1111- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1111- ● ●
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1111- ●
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1111- ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0710-1101 ●
129 CONNECTOR; NYLON TUBE
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1102- ●
129 CONNECTOR; NYLON TUBE
(C) DIN8 ELBOW 		1-09660-924-1 01 1 0710-1006 ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97633-756-0 01 1 1007- ●
129 CONNECTOR; NYLON TUBE
(D) 		1-09660-930-1 01 1 0710-1006 ●
129 CONNECTOR; NYLON TUBE
(D) 		8-97633-768-0 01 1 1007- ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0710-1101 ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98057-823-0 01 1 0712- ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98057-823-0 01 1 0712- ●
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-052-1 01 1 0712- ●
178 BRACKET; UNION
(A) 		8-98017-054-0 01 1 0710-0711 ● ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 0712- ●
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-054-1 01 1 0712- ●
178 BRACKET; UNION
(B) 		8-98057-822-0 01 1 0710-0711 ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98057-822-0 01 1 0712- ●
178 BRACKET; UNION
(A) 		8-98017-056-1 01 1 0710- ●
190 UNION; 3 WAY
M16 3WAY 		0-92148-610-0 01 1 0710-0801 ●
192 TUBE; NYLON
(B) 		8-98085-803-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 0712-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 0802- ●
192 TUBE; NYLON
(C) 		8-98085-806-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 0712-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 0802- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 0710- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ● ●
212 GROMMET; AIR PIPE
OD=24 		9-61166-007-0 01 1 1102- ●
293 VALVE; CHECK 1-48410-479-1 01 1 0710- ●
312 CONNECTOR; SUPPLY
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1102- ●
312 CONNECTOR; SUPPLY
(B) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1102- ●
471 SEAL; BRKT 1-79738-832-0 01 1 0710-1110 ● ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 1111- ● ●
471 SEAL; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79738-832-0 01 1 1111- ●
471 SEAL; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79738-832-0 01 1 1111- ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0710-0711 ● ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0712-1110 ● ●
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 0712-1110 ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1111- ● ●
472 TUBE; SPUTTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 1111- ●

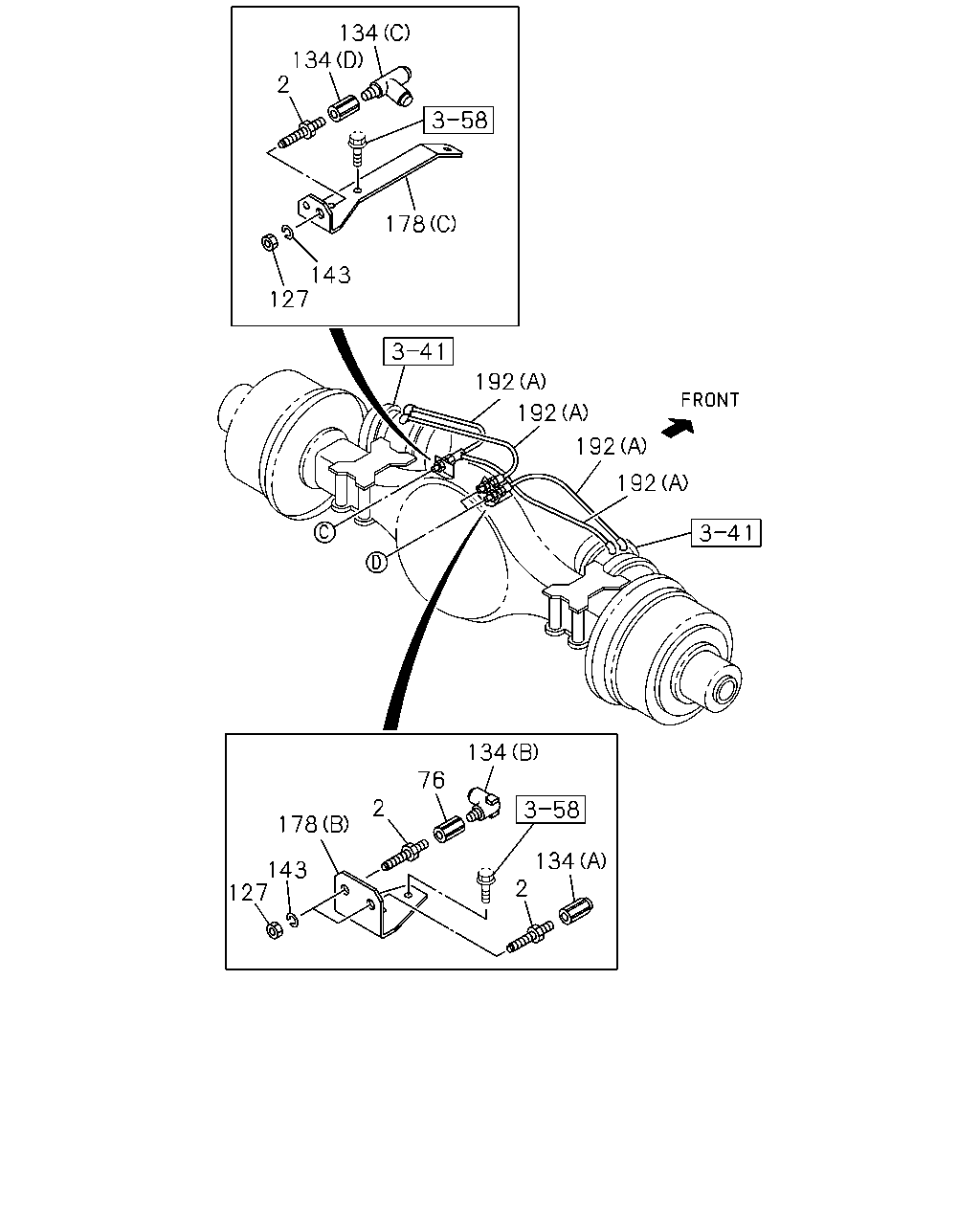

çizim 180032
134 134 2 178 143 127 192 192 192 192 134 76 2 178 134 2 143 127
BalonParca AdiParca NoAdetTipApplied Date A B C
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 L=74 		0-92123-310-0 03 1 0712- ●
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 L=74 		0-92123-310-0 03 1 0712- ●
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 02 1 0710-0711 ●
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 L=74 		0-92123-310-0 02 1 0712- ●
76 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710-0711 ●
76 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0712- ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 02 1 0812- ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		0-91111-516-0 03 1 0712- ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		0-91111-516-0 03 1 0712- ●
127 NUT; UNION
M16 		0-91111-516-0 02 1 0710-0711 ●
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 		0-91111-516-0 02 1 0712- ●
127 NUT; UNION
M16 		0-91111-516-0 01 1 0710-0801 ●
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & RC3/8 STRAIGHT 		1-09660-882-0 02 1 0712- ●
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & RC3/8 STRAIGHT 		1-09660-882-0 02 1 0712- ●
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0712- ●
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0712- ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710-0711 ●
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0712- ●
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-0711 ●
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0712- ●
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=16.2 		0-91510-816-0 03 1 0712- ●
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=16.2 		0-91510-816-0 03 1 0712- ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 02 1 0710-0711 ●
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=16.2 		0-91510-816-0 02 1 0712- ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98057-823-0 01 1 0712- ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98057-823-0 01 1 0712- ●
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-052-1 01 1 0712- ●
178 BRACKET; UNION
(A) 		8-98017-054-0 01 1 0710-0711 ● ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 0712- ●
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-054-1 01 1 0712- ●
178 BRACKET; UNION
(B) 		8-98057-822-0 01 1 0710-0711 ●
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98057-822-0 01 1 0712- ●
178 BRACKET; UNION
(A) 		8-98017-056-1 01 1 0710- ●
192 TUBE; NYLON
(B) 		8-98085-803-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 0712-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 0802- ●
192 TUBE; NYLON
(C) 		8-98085-806-0 01 1 0710-0711 ●
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 0712-0801 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 0802- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 0710- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
