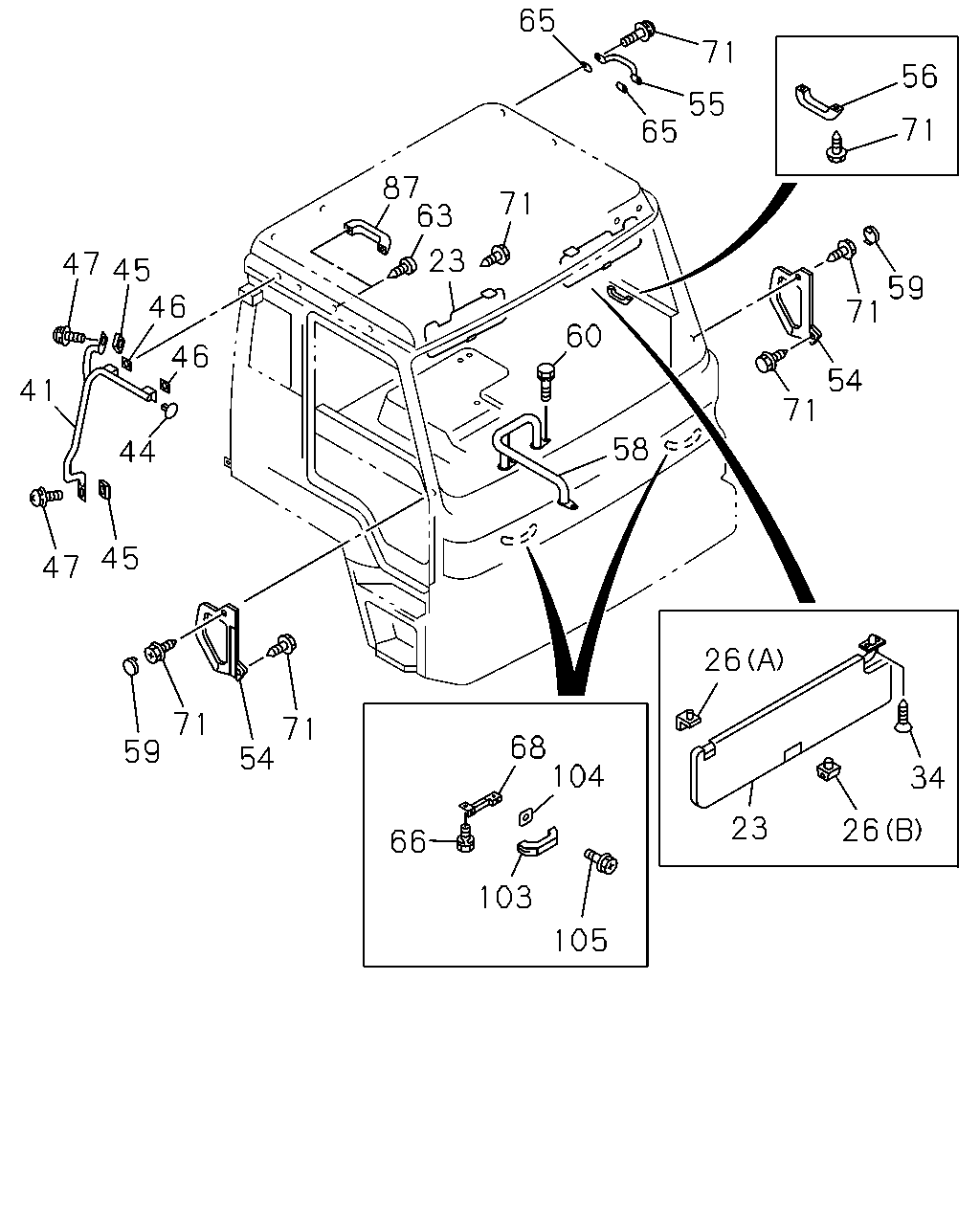

7-43 — SUN VISOR AND ASSIST GRIP (#3656) — 73 parça

65 71 56 55 65 71 87 63 71 23 47 45 46 59 71 60 46 54 41 71 58 44 45 47 26 71 59 71 54 68 104 34 23 26 66 103 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SUN VISOR CHEAPER CAB(SAX)	1-73137-152-0	01	1	9002-9209
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-151-0	01	1	9002-9209
23	SUN VISOR	1-73137-151-0	01	1	9210-9306
23	SUN VISOR	1-73137-169-0	01	1	9307-
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-149-0	01	1	9002-9209
23	SUN VISOR	1-73137-149-0	01	1	9210-9306
23	SUN VISOR	1-73137-155-0	01	1	9307-
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (A)	1-73137-141-0	01	1	9002-9209
26	HOLDER; SUN VISOR (A)	1-73137-141-0	02	1	9210-9306
26	HOLDER; SUN VISOR (A)	1-73137-156-0	02	1	9307-
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (B)	1-73137-150-0	01	1	9002-9209
26	HOLDER; SUN VISOR (B)	1-73137-150-0	02	1	9210-9306
26	HOLDER; SUN VISOR (B)	1-73137-157-0	02	1	9307-
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (A)	1-73137-141-0	02	1	9002-9209
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (B)	1-73137-150-0	02	1	9002-9209
34	SCREW; SUN VISOR M6X20	1-09981-365-0	02	1	9002-
34	SCREW; SUN VISOR EXC. CHEAPER CAB(SAX) M6X20	1-09981-310-0	02	1	9002-9209
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9210-
41	GRIP; ASSIST,BACK SIDE GRIP OUT SIDE<W52> WHITE	1-71997-542-2	01	1	9002-
44	CAP; ASSIST GRIP GRIP OUT SIDE<W52>	1-75997-018-1	01	1	9002-
45	SHEET; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9002-
46	SEAL; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52>	1-71997-691-1	02	1	9002-
47	SCREW; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52> M8X20 W/LK&PL WASHER	1-09981-466-0	02	1	9002-
54	GRIP; ASSIST,QUARTER SIDE	1-73617-055-1	01	1	9002-9306
54	GRIP; ASSIST,QUARTER SIDE	1-73907-187-0	01	1	9307-
54	GRIP; ASSIST,QUARTER SIDE	1-73617-054-1	01	1	9002-9306
54	GRIP; ASSIST,QUARTER SIDE	1-73907-186-0	01	1	9307-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-71997-477-0	01	1	9002-
56	GRIP; ASSIST,SIDE SILL EXC. CHEAPER CAB(SAX) WHITE	1-71998-131-0	02	1	9002-
58	GRIP; ASSIST,ENG HOOD	1-75147-583-0	01	1	9002-
59	COVER; ASSIST GRIP	1-73617-056-0	02	1	9002-9306
59	COVER; ASSIST GRIP	1-73617-060-0	02	1	9307-
60	BOLT; ASSIST GRIP,ENG HOOD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-9112
60	BOLT; ASSIST GRIP,ENG HOOD M6X25	1-09980-544-0	02	1	9201-
60	BOLT; ASSIST GRIP,ENG HOOD M8X20 W/LK&PL WASHER	1-09980-496-0	01	1	9002-9112
60	BOLT; ASSIST GRIP,ENG HOOD M8X25	1-09980-491-0	01	1	9201-
63	PLUG; ASSIST GRIP,HOLE CENTER SEAT DELETE(SP9) OD=15 L=14.5	1-76378-157-0	02	1	9002-9306
63	PLUG; ASSIST GRIP,HOLE EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9002-
65	SHEET; ASSIST GRIP,CAB SIDE UPR GRIP OUT SIDE<W52>	1-71997-478-1	02	1	9002-
66	BOLT; ASSIST GRIP BRKT DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-9306
66	BOLT; ASSIST GRIP BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9307-
66	BOLT; ASSIST GRIP BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	05	1	9002-9306
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-192-0	02	1	9002-
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9002-
71	SCREW M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-
71	SCREW EXC. CHEAPER CAB(SAX) M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-156-0	01	1	9002-9306
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-161-0	01	1	9307-
103	GRIP; ASSIST,FRT PNL WHITE	1-71998-131-0	02	1	9002-
104	SPACER; ASSIST GRIP	1-71997-529-2	04	1	9002-
105	SCREW; ASSIST GRIP M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9002-

13 14 19 18 21 8 20 21 19 20 3 1 8 7 6 12 7 12 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF CHEAPER CAB(SAX)	1-73317-264-0	01	1	9002-9209
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(SAX)	1-73317-262-0	01	1	9002-9209
1	BOARD; HEADER SHELF	1-73317-262-0	01	1	9210-9306
1	BOARD; HEADER SHELF	1-73317-304-0	01	1	9307-
3	FINISHER; HEADER SHELF,FRT	1-73317-146-1	01	1	9002-
6	FINISHER; HEADER SHELF,REAR	1-73317-147-2	01	1	9002-
7	FINISHER; HEADER SHELF,CORNER	1-73317-165-2	01	1	9002-
7	FINISHER; HEADER SHELF,CORNER	1-73317-164-2	01	1	9002-
8	MAT; HD SHELF SAUDI ARABIA EQUIPMENT(WH1)	1-73317-226-0	02	1	9002-9306
8	MAT; HD SHELF EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73317-144-1	02	1	9002-9306
8	MAT; HD SHELF	1-73317-144-1	02	1	9307-
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-231-0	06	1	9002-9306
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-271-0	06	1	9307-
12	SCREW; HEADER SHELF M6X20 W/LK&PL WASHER	1-09981-312-0	08	1	9002-
13	BRACKET ASM; ROOF CTR FRT	1-73317-149-2	01	1	9002-
14	SCREW; BRKT M6X16 W/LK WASHER	9-03910-616-0	05	1	9002-
18	SUPPORT; HEADER SHELF CENTER	1-73317-232-2	01	1	9002-9306
18	SUPPORT; HEADER SHELF CENTER	1-73317-267-0	01	1	9307-
19	SUPPORT ASM; HEADER SHELF	1-73317-155-3	01	1	9002-
19	SUPPORT ASM; HEADER SHELF	1-73317-154-3	01	1	9002-
20	SCREW; SUPPORT,HEADER SHELF M6X16 W/LK WASHER	9-03910-616-0	04	1	9002-
21	SCREW; SUPPORT,HEADER SHELF CENTER M6X20 W/LK&PL WASHER	1-09981-312-0	04	1	9002-
