3-75 — BRAKE PIPING; AIR,FRONT (#36559) — 193 parça

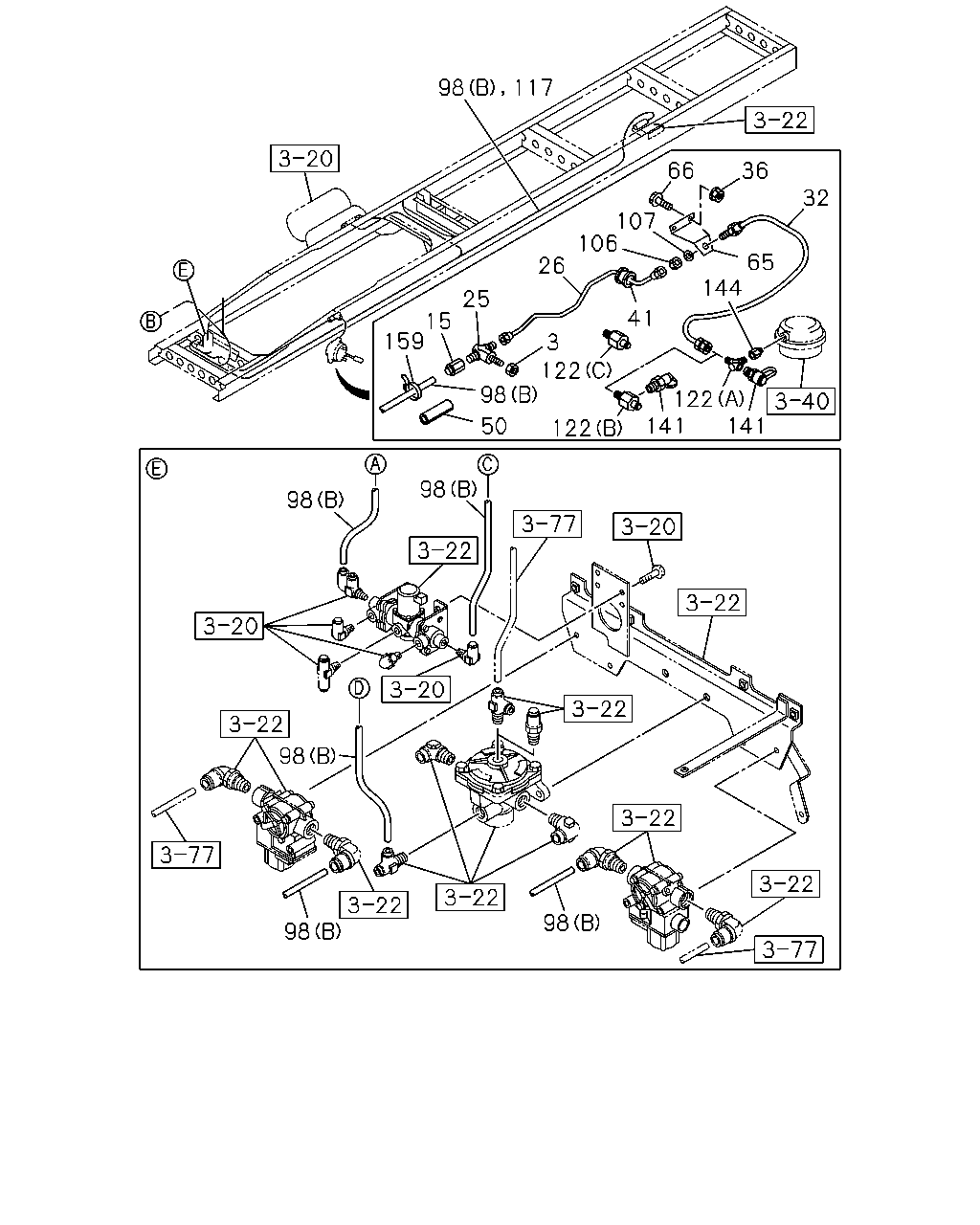

çizim 179634
98 117 66 36 32 107 106 65 144 26 25 41 15 159 3 122 98 122 141 141 50 122 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B C
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 0710-0711 ● ● ●
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 0712- ● ●
3 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		0-91111-512-0 02 1 0712- ●
15 CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0710-0711 ● ● ●
15 CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0712- ● ●
15 CONNECTOR; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0712- ●
25 UNION; AIR PIPE
M16X2 2WAY ELBOW 		1-09654-148-1 02 1 0710-0711 ● ● ●
25 UNION; AIR PIPE
M16X2 2WAY ELBOW 		1-09654-148-1 02 1 0712- ● ●
25 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X2 2WAY ELBOW 		1-09654-148-1 02 1 0712- ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=659 		8-98091-273-0 01 1 0710-0711 ● ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=659 		8-98091-273-0 01 1 0712-0806 ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=659 		8-98091-273-0 01 1 0712-0806 ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=657 		8-98126-150-1 01 1 0807- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=657 		8-98126-150-1 01 1 0807- ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=500 		8-98091-274-0 01 1 0710-0711 ● ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=500 		8-98091-274-1 01 1 0712- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500 		8-98091-274-1 01 1 0712- ●
32 HOSE; FLEX,FRT 8-98090-844-0 02 1 0710-0711 ● ● ●
32 HOSE; FLEX,FRT 8-98090-844-0 02 1 0712- ● ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98090-844-0 02 1 0712- ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ● ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 0712- ● ●
36 NUT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 04 1 0712- ●
41 GROMMET; AIR PIPE
ID=28 OD=35 T=25 		1-09332-011-1 02 1 0710-0711 ● ● ●
41 GROMMET; AIR PIPE
ID=28 OD=35 T=25 		1-09332-011-1 02 1 0712- ● ●
41 GROMMET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0712- ●
50 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0806- ●
50 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0806- ●
50 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 04 1 0710-0711 ●
50 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40 		1-09337-013-0 04 1 0710-0711 ●
50 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 04 1 0712-0804 ●
50 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40 		1-09337-013-0 04 1 0712-0804 ●
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 0710-0711 ● ● ●
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 0712- ● ●
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47476-210-0 01 1 0712- ●
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 0710-0711 ● ● ●
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 0712- ● ●
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47476-211-0 01 1 0712- ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0711 ● ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0712- ● ●
66 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 04 1 0712- ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) 		8-97625-675-0 01 1 0802- ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98111-287-0 01 1 0802- ●
98 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) 		8-98091-308-0 01 1 0712- ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 0710-0711 ● ● ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 0712- ● ●
98 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98091-307-0 01 1 0712- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0710-0711 ● ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0712- ● ●
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 02 1 0712- ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0710-0711 ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0712-1009 ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-516-0 02 1 0712-1009 ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-816-0 02 1 1010- ● ●
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 02 1 1010- ●
117 TUBE; CORRUGATE
WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22 		1-87411-029-0 01 1 0908-1011 ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22 		1-87411-029-0 01 1 0908-1011 ●
117 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22 		1-87411-029-0 01 1 0908-1011 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 01 1 0908-1011 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0807- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0710- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0801- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0802- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 0710- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0710- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=32 		1-87411-036-0 AR 1 0801- ● ● ●
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 0712-1007 ●
122 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE REGULATION ADR(TDU) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K> (B) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1008- ●
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0712-1007 ●
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0712-1007 ●
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K>,ANTI LOCK BRAKE<JE5>,BRAKE REGULATION ADR(TDU) (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1008-1105 ●
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR(TDU) (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1008-1105 ●
122 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K> (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1008-1105 ●
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR(TDU) (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1008-1105 ●
122 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1106- ●
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K>,ANTI LOCK BRAKE<JE5>,BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1106- ●
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) VIN MODEL YEAR 2011<VZB> EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR(TDU) (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1106- ●
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K>,ANTI LOCK BRAKE<JE5>,BRAKE REGULATION ADR(TDU) (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1106- ●
122 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1106- ●
122 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K> (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1106- ●
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) VIN MODEL YEAR 2011<VZB> EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR(TDU) (C) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1106- ●
122 CONNECTOR; FLEX HOSE
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0710-0711 ● ● ●
122 CONNECTOR; FLEX HOSE
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ● ●
122 CONNECTOR; FLEX HOSE
HUB LUBRICATION OIL BATH<C5K> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ●
122 CONNECTOR; FLEX HOSE
(A) M16 & PT3/8 ELBOW 		1-09656-724-0 01 1 0710-0711 ● ● ●
122 CONNECTOR; FLEX HOSE
(A) M16 & PT3/8 ELBOW 		1-09656-724-0 01 1 0712- ● ●
122 CONNECTOR; FLEX HOSE
HUB LUBRICATION OIL BATH<C5K> (A) M16 & PT3/8 ELBOW 		1-09656-724-0 01 1 0712- ●
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0710-0711 ● ● ●
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0712-1007 ● ●
141 CONNECTOR; TEST
HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0712-1007 ●
141 CONNECTOR; TEST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0712-1007 ●
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1008- ● ●
141 CONNECTOR; TEST
HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1008- ●
141 CONNECTOR; TEST
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE REGULATION ADR(TDU) EXC. BRAKE ADJUSTER MANUAL<BJR>,AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1008- ●
144 ADAPTER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0710-0711 ● ● ●
144 ADAPTER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0712- ● ●
144 ADAPTER
HUB LUBRICATION OIL BATH<C5K> NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0712- ●
159 CLIP; NYLON TUBE
EXC. ANTI LOCK BRAKE<JE5> L=350 		1-09707-183-0 01 1 0812- ●
159 CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350 		1-09707-183-0 01 1 0812- ●
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0710-0711 ● ● ●
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0712-0811 ● ●
159 CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350 		1-09707-183-0 01 1 0712-0811 ●
159 CLIP; NYLON TUBE
ANTI LOCK BRAKE<JE5> L=350 		1-09707-183-0 02 1 0812- ●
159 CLIP; NYLON TUBE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350 		1-09707-183-0 02 1 0812- ●
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 0812- ●

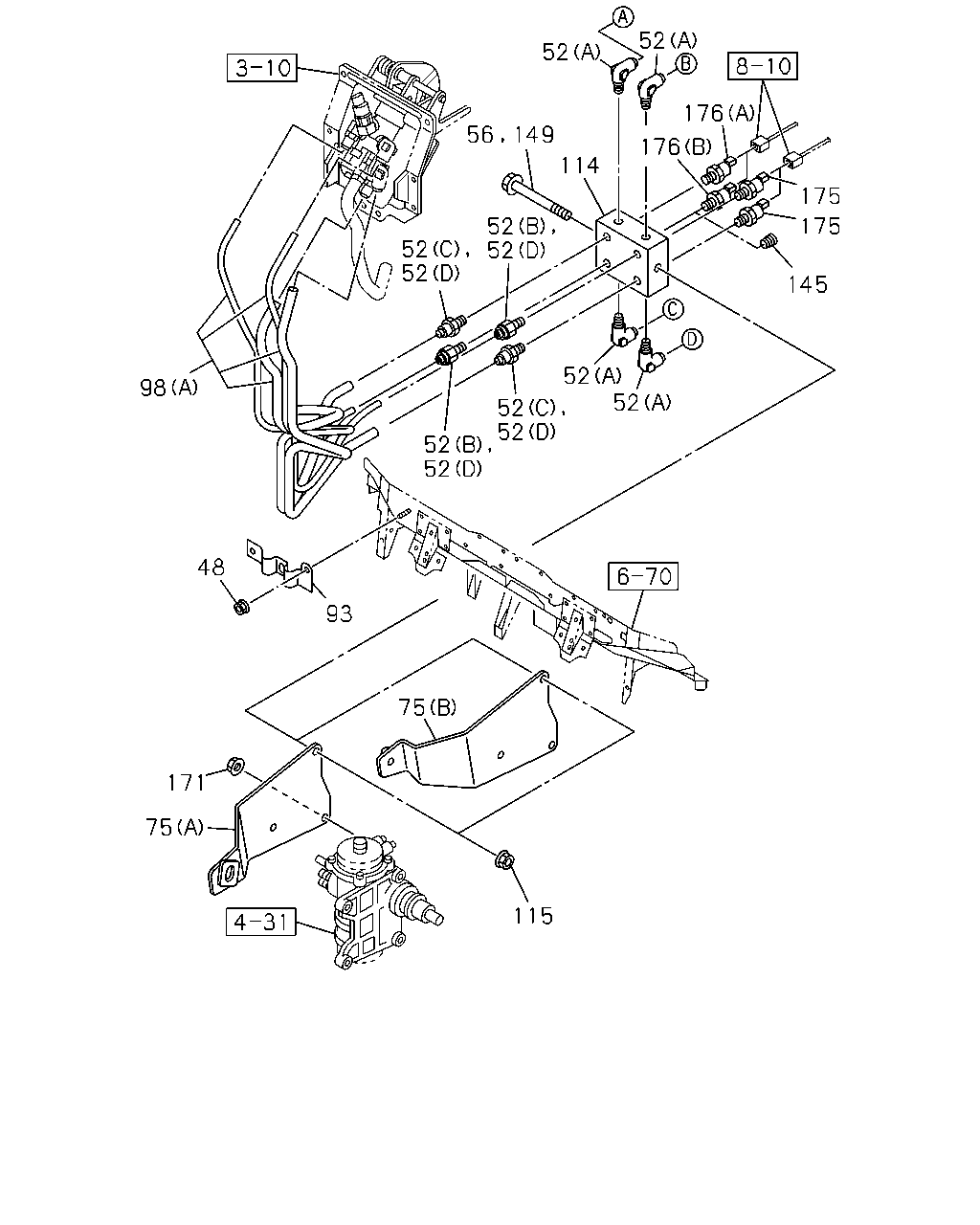

çizim 179653
52 52 176 56 149 176 114 175 52 52 175 52 52 145 52 52 98 52 52 52 52 48 93 75 171 75 115
BalonParca AdiParca NoAdetTipApplied Date A B C
48 NUT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE 		0-91180-210-0 02 1 0802- ●
48 NUT; UNION BRKT
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ● ● ●
48 NUT; UNION BRKT
M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6 FLANGE 		0-91180-106-0 02 1 0712- ●
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 04 1 0802- ●
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0802- ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 0710-0711 ● ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 0712- ● ●
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 0712- ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0710-0711 ● ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0712- ● ●
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0712- ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 0710-0711 ● ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 0712- ● ●
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 0712- ●
56 BOLT; UNION BRKT
M8X100 FLANGE 		0-28050-800-0 01 1 0710-0711 ● ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE 		0-28050-800-0 01 1 0712- ● ●
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X100 FLANGE 		0-28050-800-0 01 1 0712- ●
75 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-98099-485-0 01 1 0803-0803 ●
75 BRACKET; UNION
(B) 		8-98099-485-1 01 1 0804- ● ● ●
75 BRACKET; UNION
(A) 		8-98075-871-1 01 1 0710-0711 ● ● ●
75 BRACKET; UNION
(A) 		8-98075-871-1 01 1 0712-0801 ● ●
75 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98075-871-1 01 1 0712-0801 ●
75 BRACKET; UNION
(A) 		8-98075-871-1 01 1 0802-0802 ● ● ●
75 BRACKET; UNION
(A) 		8-98075-871-1 01 1 0803-0803 ● ●
75 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98075-871-1 01 1 0803-0803 ●
93 BRACKET; UNION,TUBE 8-98044-013-0 01 1 0710-0711 ● ● ●
93 BRACKET; UNION,TUBE 8-98044-013-0 01 1 0712- ● ●
93 BRACKET; UNION,TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98044-013-0 01 1 0712- ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) 		8-97625-675-0 01 1 0802- ●
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98111-287-0 01 1 0802- ●
98 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) 		8-98091-308-0 01 1 0712- ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 0710-0711 ● ● ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 0712- ● ●
98 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98091-307-0 01 1 0712- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ● ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 0710-0711 ● ● ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 0712-0801 ● ●
114 UNION; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98057-394-1 01 1 0712-0801 ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 0802- ● ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 0712-0801 ● ●
115 NUT; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 01 1 0712-0801 ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 0802- ● ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 0710-0711 ● ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 0712-0801 ● ●
145 PLUG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 0712-0801 ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 0802- ● ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 0802- ●
149 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X100 FLANGE 		0-28050-800-0 01 1 0802- ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ● ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
171 NUT; BRACKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91180-210-0 02 1 0712- ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0710-0711 ● ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0712-0801 ● ●
175 SENSOR; AIR PRESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) THREAD R1/4 		1-80220-023-1 02 1 0712-0801 ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0802- ● ● ●
176 SWITCH; AIR PRESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 0712-0801 ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 0802- ●
176 SWITCH; AIR PRESS
(A) STAMP 0.3 		8-98010-857-0 01 1 0710-0711 ● ● ●
176 SWITCH; AIR PRESS
(A) STAMP 0.3 		8-98010-857-0 01 1 0712-0801 ● ●
176 SWITCH; AIR PRESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 0.3 		8-98010-857-0 01 1 0712-0801 ●
176 SWITCH; AIR PRESS
(A) STAMP 0.3 		8-98010-857-0 01 1 0802- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
