Sayfa 3-70 - Isuzu EPC

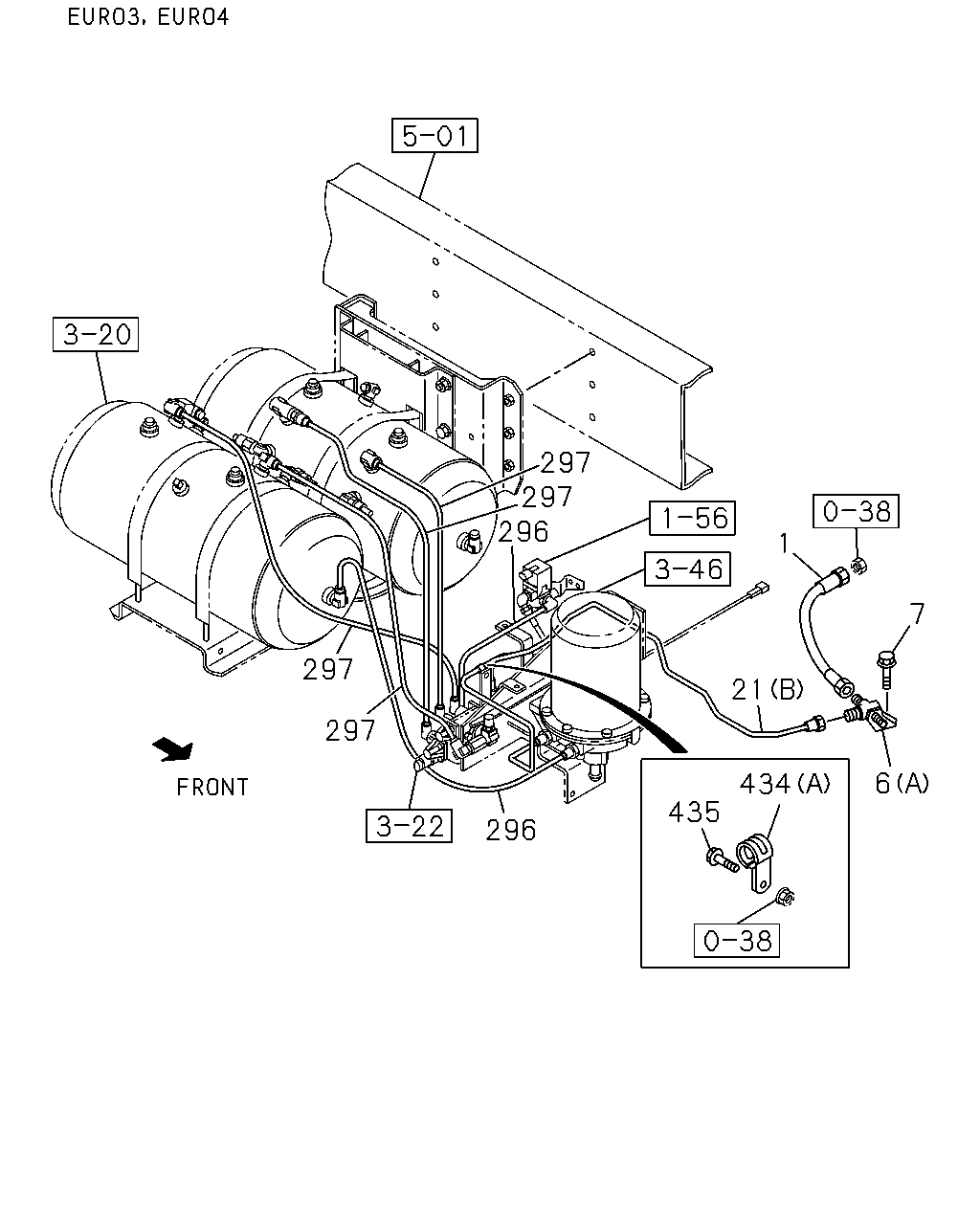

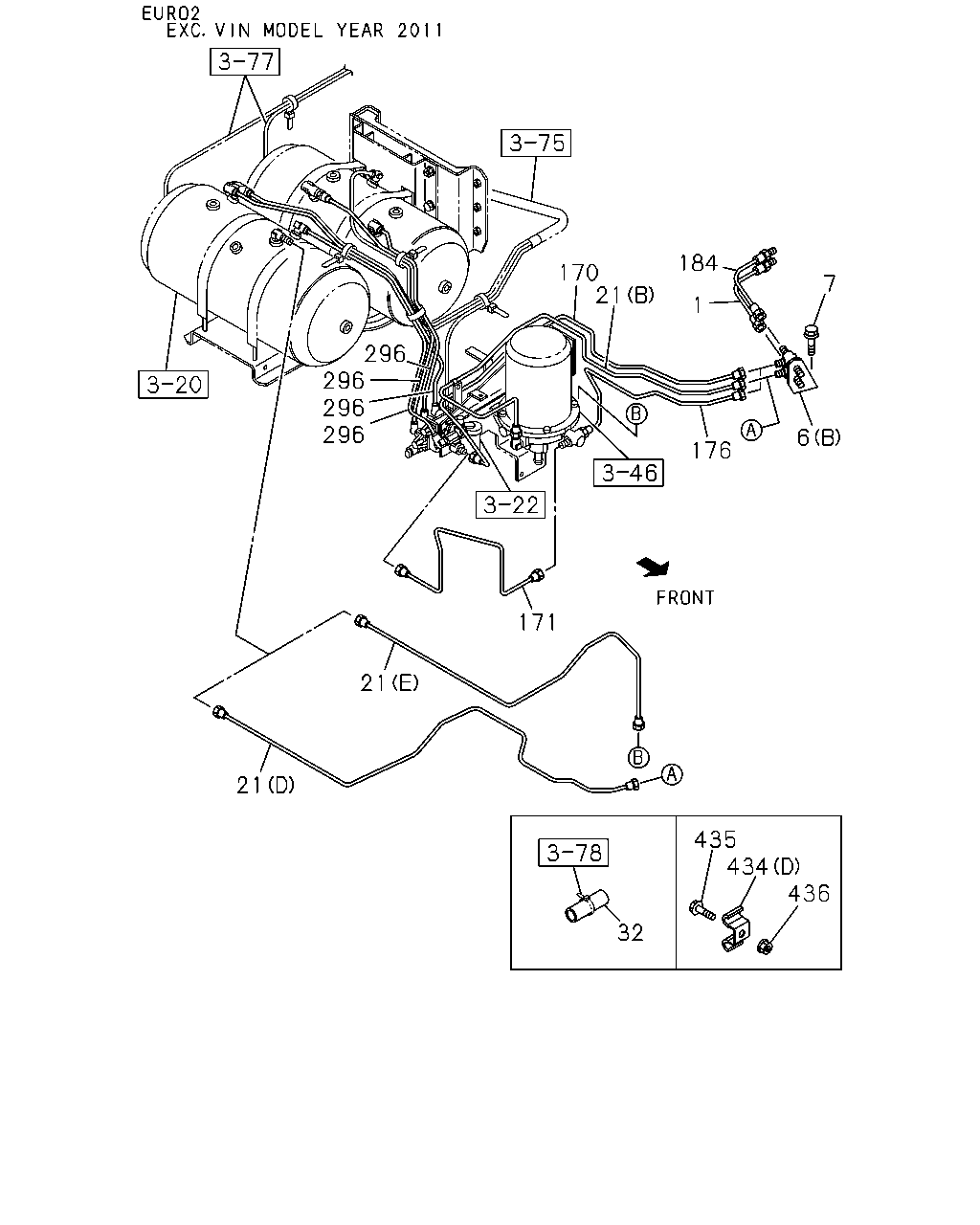

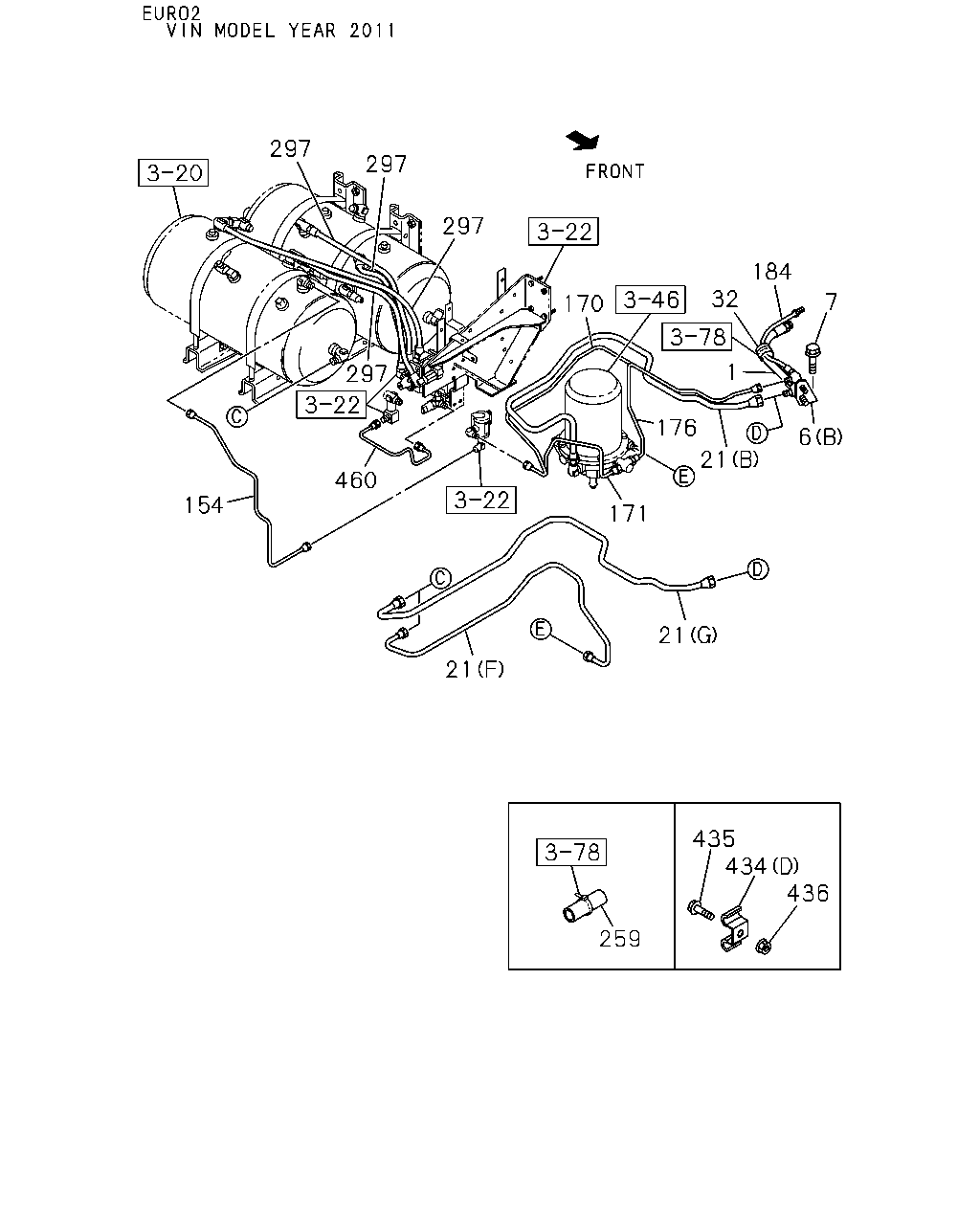

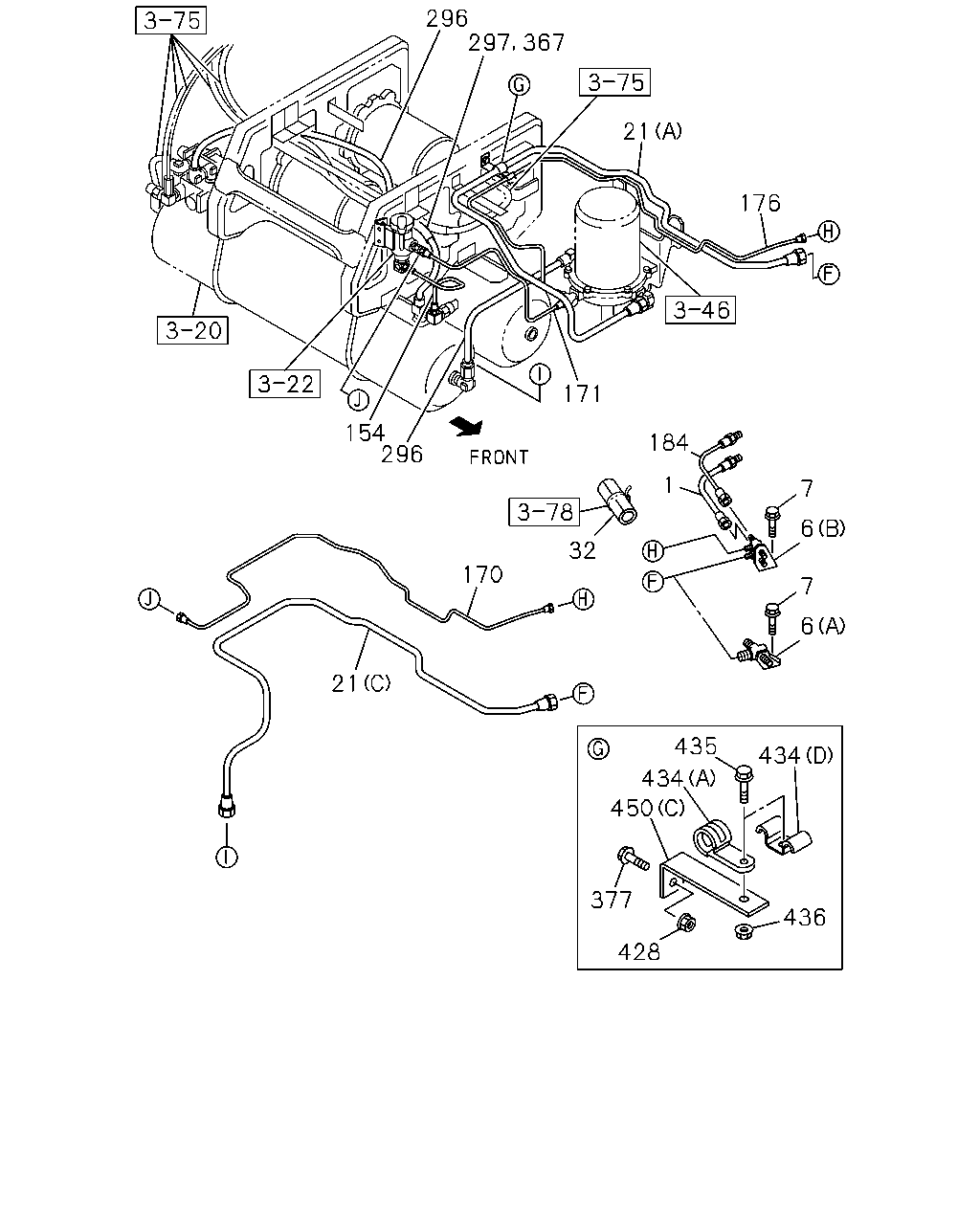

3-70 — BRAKE PIPING; AIR,AIR MASTER (#36558) — 829 parça

184 170 21 7 1 296 296 296 296 6 176 171 21 21 435 434 436 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0710-0808	●	●	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0809-1008		●	●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4> L=320	8-98067-411-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	1009-		●	●
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98117-117-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0710-0808	●	●	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0809-1008		●	●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	1009-		●	●
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1009-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	8-98117-819-0	01	1	0809-0904	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	8-98147-087-0	01	1	0905-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	8-98147-087-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E)	8-98147-087-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1705	8-98101-992-0	01	1	0802-0803	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1823	8-98120-240-0	01	1	0804-0808	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1823	8-98120-240-0	01	1	0809-	●
21	PIPE; AIR,UNION TO AIR DRYER (B)	8-98094-948-1	01	1	0710-0711		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) (B)	8-98094-948-1	01	1	0710-0711	●
21	PIPE; AIR,UNION TO AIR DRYER (B)	8-98094-948-1	01	1	0712-0806		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B)	8-98094-948-1	01	1	0712-0806	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=2033	8-98126-152-1	01	1	0807-0907		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) L=2033	8-98126-152-1	01	1	0807-0907	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=2033	8-98126-152-1	01	1	0908-		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) L=2033	8-98126-152-1	01	1	0908-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) (B) L=1715	8-98095-083-0	01	1	0710-0711	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0710-0711			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0712-0712			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1730	8-98105-723-0	01	1	0712-0712			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0801-0801	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0801-0801	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1730	8-98105-723-0	01	1	0801-0801			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0802-0808	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0802-0808	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0802-0808			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0809-1008			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1009-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1009-	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	1009-			●
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1008	●
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1009-	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0809-1110	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1111-	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1008	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1009-	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0809-1110	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1111-	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-1008	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1009-	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0809-1110	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1111-	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1008	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1009-	●
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=350	1-09363-624-0	01	1	0809-1008	●
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1009-	●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0712-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0712-	●	●	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350	1-09707-183-0	08	1	0801-0805	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350	1-09707-183-0	03	1	0806-0808	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350	1-09707-183-0	03	1	0809-	●
434	CLIP WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712	●
434	CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712			●
434	CLIP WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801			●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0801-0809	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0712-0801		●
434	CLIP WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20	0-95235-536-0	02	1	0712-0801	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0802-0808	●	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008		●	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1009-		●	●
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1009-	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0710-0711	●	●	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0712-		●	●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0712-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-		●	●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-		●	●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0712-	●

297 297 296 1 7 297 21 297 6 434 435 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0710-0808	●	●	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0809-1008		●	●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4> L=320	8-98067-411-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	1009-		●	●
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98117-117-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0710-0808	●	●	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0809-1008		●	●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	1009-		●	●
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1009-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	8-98117-819-0	01	1	0809-0904	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	8-98147-087-0	01	1	0905-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	8-98147-087-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E)	8-98147-087-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1705	8-98101-992-0	01	1	0802-0803	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1823	8-98120-240-0	01	1	0804-0808	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1823	8-98120-240-0	01	1	0809-	●
21	PIPE; AIR,UNION TO AIR DRYER (B)	8-98094-948-1	01	1	0710-0711		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) (B)	8-98094-948-1	01	1	0710-0711	●
21	PIPE; AIR,UNION TO AIR DRYER (B)	8-98094-948-1	01	1	0712-0806		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B)	8-98094-948-1	01	1	0712-0806	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=2033	8-98126-152-1	01	1	0807-0907		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) L=2033	8-98126-152-1	01	1	0807-0907	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=2033	8-98126-152-1	01	1	0908-		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) L=2033	8-98126-152-1	01	1	0908-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) (B) L=1715	8-98095-083-0	01	1	0710-0711	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0710-0711			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0712-0712			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1730	8-98105-723-0	01	1	0712-0712			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0801-0801	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0801-0801	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1730	8-98105-723-0	01	1	0801-0801			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0802-0808	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0802-0808	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0802-0808			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0809-1008			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1009-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1009-	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	1009-			●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0712-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0712-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350	1-09707-183-0	08	1	0801-0805	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350	1-09707-183-0	03	1	0806-0808	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350	1-09707-183-0	03	1	0809-	●
434	CLIP WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712	●
434	CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712			●
434	CLIP WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801			●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0801-0809	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0712-0801		●
434	CLIP WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20	0-95235-536-0	02	1	0712-0801	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0802-0808	●	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008		●	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1009-		●	●
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1009-	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0710-0711	●	●	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0712-		●	●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0712-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-		●	●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0712-	●

297 297 297 184 32 7 170 1 297 176 21 6 460 154 171 21 21 435 434 436 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0710-0808	●	●	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0809-1008		●	●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4> L=320	8-98067-411-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	1009-		●	●
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98117-117-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0710-0808	●	●	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0809-1008		●	●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	1009-		●	●
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1009-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	8-98117-819-0	01	1	0809-0904	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	8-98147-087-0	01	1	0905-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	8-98147-087-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E)	8-98147-087-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1705	8-98101-992-0	01	1	0802-0803	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1823	8-98120-240-0	01	1	0804-0808	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1823	8-98120-240-0	01	1	0809-	●
21	PIPE; AIR,UNION TO AIR DRYER (B)	8-98094-948-1	01	1	0710-0711		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) (B)	8-98094-948-1	01	1	0710-0711	●
21	PIPE; AIR,UNION TO AIR DRYER (B)	8-98094-948-1	01	1	0712-0806		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B)	8-98094-948-1	01	1	0712-0806	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=2033	8-98126-152-1	01	1	0807-0907		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) L=2033	8-98126-152-1	01	1	0807-0907	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=2033	8-98126-152-1	01	1	0908-		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) L=2033	8-98126-152-1	01	1	0908-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) (B) L=1715	8-98095-083-0	01	1	0710-0711	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0710-0711			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0712-0712			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1730	8-98105-723-0	01	1	0712-0712			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0801-0801	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0801-0801	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1730	8-98105-723-0	01	1	0801-0801			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0802-0808	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0802-0808	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0802-0808			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0809-1008			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1009-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1009-	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	1009-			●
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1008	●
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1009-	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-547-0	01	1	1012-1012	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98127-306-0	01	1	0809-0904	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98145-853-0	01	1	0905-1008	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98167-337-0	01	1	1009-1110	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T>	8-98167-337-0	01	1	1111-	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0809-1110	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1111-	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1008	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1009-	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0809-1110	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1111-	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-1008	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1009-	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0809-1110	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1111-	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1008	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1009-	●
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=350	1-09363-624-0	01	1	0809-1008	●
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1009-	●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40	1-09337-013-0	01	1	0710-0711	●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40	1-09337-013-0	01	1	0712-0712	●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40	1-09337-013-0	01	1	0801-0805	●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	0806-0907		●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40	1-09337-013-0	01	1	0806-0907	●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	0908-1008		●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40	1-09337-013-0	01	1	0908-1008	●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40	1-09337-013-0	01	1	1009-1011		●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> ID=29 OD=39 L=40	1-09337-013-0	01	1	1009-1011	●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-		●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-	●
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350	1-09707-183-0	08	1	0801-0805	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350	1-09707-183-0	03	1	0806-0808	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350	1-09707-183-0	03	1	0809-	●
434	CLIP WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712	●
434	CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712			●
434	CLIP WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801			●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0801-0809	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0712-0801		●
434	CLIP WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20	0-95235-536-0	02	1	0712-0801	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0802-0808	●	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008		●	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1009-		●	●
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1009-	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0710-0711	●	●	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0712-		●	●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0712-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-		●	●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-		●	●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0712-	●
460	PIPE; AIR,PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	8-98173-460-0	01	1	1012-1012	●
460	PIPE; AIR,PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1012-	●

296 21 176 171 154 296 184 1 7 6 32 170 7 6 21 435 434 434 450 377 436 428 297 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0710-0808	●	●	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0809-1008		●	●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4> L=320	8-98067-411-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	1009-		●	●
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98117-117-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0710-0808	●	●	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0809-1008		●	●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	1009-		●	●
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1009-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	8-98117-819-0	01	1	0809-0904	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	8-98147-087-0	01	1	0905-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (E)	8-98147-087-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E)	8-98147-087-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1705	8-98101-992-0	01	1	0802-0803	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1823	8-98120-240-0	01	1	0804-0808	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1823	8-98120-240-0	01	1	0809-	●
21	PIPE; AIR,UNION TO AIR DRYER (B)	8-98094-948-1	01	1	0710-0711		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) (B)	8-98094-948-1	01	1	0710-0711	●
21	PIPE; AIR,UNION TO AIR DRYER (B)	8-98094-948-1	01	1	0712-0806		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B)	8-98094-948-1	01	1	0712-0806	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=2033	8-98126-152-1	01	1	0807-0907		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) L=2033	8-98126-152-1	01	1	0807-0907	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=2033	8-98126-152-1	01	1	0908-		●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) L=2033	8-98126-152-1	01	1	0908-	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) (B) L=1715	8-98095-083-0	01	1	0710-0711	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0710-0711			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0712-0712			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1730	8-98105-723-0	01	1	0712-0712			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0801-0801	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1730	8-98105-723-0	01	1	0801-0801	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1730	8-98105-723-0	01	1	0801-0801			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0802-0808	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0802-0808	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0802-0808			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	0809-1008			●
21	PIPE; AIR,UNION TO AIR DRYER WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1009-	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1009-	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1715	8-98095-083-0	01	1	1009-			●
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1008	●
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1009-	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-547-0	01	1	1012-1012	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98127-306-0	01	1	0809-0904	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98145-853-0	01	1	0905-1008	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98167-337-0	01	1	1009-1110	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T>	8-98167-337-0	01	1	1111-	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0809-1110	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1111-	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1008	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1009-	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0809-1110	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1111-	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-1008	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1009-	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0809-1110	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1111-	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1008	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1009-	●
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=350	1-09363-624-0	01	1	0809-1008	●
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1009-	●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0712-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0712-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0712-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0710-	●	●	●
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0801-0809	●
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0801-	●
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	02	1	0802-0803	●
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0801-0803	●
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0802-0803	●
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0804-0809	●
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0804-0809	●
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0810-	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350	1-09707-183-0	08	1	0801-0805	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350	1-09707-183-0	03	1	0806-0808	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350	1-09707-183-0	03	1	0809-	●
434	CLIP WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712	●
434	CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712			●
434	CLIP WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801			●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0801-0809	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0712-0801		●
434	CLIP WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20	0-95235-536-0	02	1	0712-0801	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0802-0808	●	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008		●	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1009-		●	●
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1009-	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0710-0711	●	●	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0712-		●	●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0712-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-		●	●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-		●	●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0712-	●
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98106-046-0	01	1	0801-	●
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98074-610-0	01	1	0801-	●
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) L=65	1-47477-713-0	01	1	0801-0809	●
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25	1-47475-530-0	02	1	0802-0803	●
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25	1-47475-530-0	01	1	0804-	●

12 51 264 202 51 51 296 259 229 91 258 374 374 202 91 202 80 305 221 421 35 80 374 374 374 123 12 465 341 341 296 297 296 297 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	NUT; UNION M12	0-91111-512-0	01	1	0710-0808	●	●	●
12	NUT; UNION M12	0-91111-512-0	01	1	0809-1107		●	●
12	NUT; UNION EURO4 SPECIFICATION<NT4> M12	0-91111-512-0	01	1	0809-1107	●
12	NUT; UNION EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	0809-1107	●
12	NUT; UNION M12	0-91111-512-0	01	1	1108-		●	●
12	NUT; UNION MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	1108-	●
12	NUT; UNION EURO4 SPECIFICATION<NT4> M12	0-91111-512-0	01	1	1108-	●
12	NUT; UNION ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1108-	●
12	NUT; UNION MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	1108-	●
12	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	1108-	●
35	NUT; BRKT EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0809-1104	●
35	NUT; BRKT EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1105-	●
51	UNION MZX6P M/T(RSW) WHEEL BASE 4600MM(46W) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0712	●
51	UNION MZX6P M/T(RSW) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0801-0801	●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0711	●	●	●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0712		●	●
51	UNION FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0712	●
51	UNION WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0712	●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0801-0801		●	●
51	UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0801-0801	●
51	UNION WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0801-0801	●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0801-0808	●	●	●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-		●	●
51	UNION EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-	●
51	UNION (B) M12 2WAY	1-09654-059-2	01	1	0710-0808	●	●	●
51	UNION (B) M12 2WAY	1-09654-059-2	01	1	0809-		●	●
51	UNION EURO4 SPECIFICATION<NT4> (B) M12 2WAY	1-09654-059-2	01	1	0809-	●
80	UNION; 3 WAY MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-0902	●
80	UNION; 3 WAY MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-0902	●
80	UNION; 3 WAY MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-0902	●
80	UNION; 3 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-0902	●
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0903-0905	●
80	UNION; 3 WAY MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0903-0905	●
80	UNION; 3 WAY MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0903-0905	●
80	UNION; 3 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0903-0905	●
80	UNION; 3 WAY MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-0906	●
80	UNION; 3 WAY MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-0906	●
80	UNION; 3 WAY MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-0906	●
80	UNION; 3 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-0906	●
80	UNION; 3 WAY MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0907-1104	●
80	UNION; 3 WAY MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0907-1104	●
80	UNION; 3 WAY MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0907-1104	●
80	UNION; 3 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0907-1104	●
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1105-1107	●
80	UNION; 3 WAY MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1105-1107	●
80	UNION; 3 WAY MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1105-1107	●
80	UNION; 3 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1105-1107	●
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1108-1111	●
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1108-1111	●
80	UNION; 3 WAY MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1108-1111	●
80	UNION; 3 WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1108-1111	●
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-	●
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-	●
91	BRACKET; TUBE CLIP (B) L=150 H=30	1-47477-629-2	02	1	0801-			●
91	BRACKET; TUBE CLIP (A)	1-47479-693-0	01	1	0710-0711		●
91	BRACKET; TUBE CLIP WHEEL BASE 6500MM(65W) (A)	1-47479-693-0	01	1	0710-0711	●
91	BRACKET; TUBE CLIP (A)	1-47479-693-0	01	1	0712-0712		●
91	BRACKET; TUBE CLIP WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A)	1-47479-693-0	01	1	0712-0712	●
91	BRACKET; TUBE CLIP (A)	1-47479-693-0	01	1	0801-0801		●	●
91	BRACKET; TUBE CLIP WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A)	1-47479-693-0	01	1	0801-0801	●
91	BRACKET; TUBE CLIP (A)	1-47479-693-0	01	1	0801-0803		●	●
91	BRACKET; TUBE CLIP WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A)	1-47479-693-0	01	1	0801-0803	●
91	BRACKET; TUBE CLIP (A)	1-47479-693-0	01	1	0804-0808			●
91	BRACKET; TUBE CLIP (A)	8-98119-184-1	01	1	0809-			●
91	BRACKET; TUBE CLIP (B) L=150 H=30	1-47477-629-2	01	1	0710-0711		●
91	BRACKET; TUBE CLIP WHEEL BASE 6500MM(65W) (B) L=150 H=30	1-47477-629-2	01	1	0710-0711	●
91	BRACKET; TUBE CLIP (B) L=150 H=30	1-47477-629-2	01	1	0712-0811		●
91	BRACKET; TUBE CLIP WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) L=150 H=30	1-47477-629-2	01	1	0712-0811	●
91	BRACKET; TUBE CLIP (B) L=150 H=30	1-47477-629-2	01	1	0812-0907		●
91	BRACKET; TUBE CLIP WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) L=150 H=30	1-47477-629-2	01	1	0812-0907	●
91	BRACKET; TUBE CLIP (B) L=150 H=30	1-47477-629-2	01	1	0908-		●
91	BRACKET; TUBE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) L=150 H=30	1-47477-629-2	01	1	0908-	●
123	BRACKET; UNION EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	0809-1107	●
123	BRACKET; UNION MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98118-545-0	01	1	1108-	●
123	BRACKET; UNION ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1108-	●
123	BRACKET; UNION MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98118-545-0	01	1	1108-	●
123	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98118-545-0	01	1	1108-	●
202	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-	●
202	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-0808	●	●	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-0906		●	●
202	ADAPTER EURO4 SPECIFICATION<NT4> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-0906	●
202	ADAPTER MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-0906	●
202	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-0906	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0907-1107		●	●
202	ADAPTER EURO4 SPECIFICATION<NT4> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0907-1107	●
202	ADAPTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0907-1107	●
202	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0907-1107	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1108-1111		●	●
202	ADAPTER EURO4 SPECIFICATION<NT4> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1108-1111	●
202	ADAPTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1108-1111	●
202	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1108-1111	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1112-		●	●
202	ADAPTER EURO4 SPECIFICATION<NT4> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1112-	●
221	BOLT; BRKT EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809	●
221	BOLT; BRKT EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0810-1104	●
221	BOLT; BRKT EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1105-	●
229	ADAPTER; NYLON TUBE ZF9S1110 M/T(Y5E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-0711		●
229	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-0711	●		●
229	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0712-0712		●	●
229	ADAPTER; NYLON TUBE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0712-0712	●
229	ADAPTER; NYLON TUBE ZF9S1110 M/T(Y5E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0801-0803		●
229	ADAPTER; NYLON TUBE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0801-0803	●
229	ADAPTER; NYLON TUBE FULLER FS8209HD DD M/T(Y3A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0801-0803			●
229	ADAPTER; NYLON TUBE FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0804-0811	●
229	ADAPTER; NYLON TUBE FULLER FS8209HD DD M/T(Y3A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0804-0811			●
229	ADAPTER; NYLON TUBE MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0812-0906	●
229	ADAPTER; NYLON TUBE FULLER FS8209HD DD M/T(Y3A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0812-0906			●
229	ADAPTER; NYLON TUBE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0907-1107	●
229	ADAPTER; NYLON TUBE FULLER FS8209HD DD M/T(Y3A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0907-1107			●
229	ADAPTER; NYLON TUBE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1108-	●
229	ADAPTER; NYLON TUBE FULLER FS8209HD DD M/T(Y3A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1108-			●
258	CONNECTOR; NYLON TUBE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1112-	●
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1112-	●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40	1-09337-013-0	01	1	0710-0711	●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40	1-09337-013-0	01	1	0712-0712	●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40	1-09337-013-0	01	1	0801-0805	●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	0806-0907		●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40	1-09337-013-0	01	1	0806-0907	●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	0908-1008		●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) ID=29 OD=39 L=40	1-09337-013-0	01	1	0908-1008	●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40	1-09337-013-0	01	1	1009-1011		●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> ID=29 OD=39 L=40	1-09337-013-0	01	1	1009-1011	●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-		●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-	●
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-	●
264	HOSE; FLEX L=370	1-09363-771-0	01	1	0801-			●
264	HOSE; FLEX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0712-0712	●
264	HOSE; FLEX MZX6P M/T(RSW) EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0712-0712	●
264	HOSE; FLEX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0801-0805	●
264	HOSE; FLEX MZX6P M/T(RSW) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0801-0805	●
264	HOSE; FLEX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0806-0808	●
264	HOSE; FLEX MZX6P M/T(RSW) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0806-0808	●
264	HOSE; FLEX MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0806-0808	●
264	HOSE; FLEX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0809-0906	●
264	HOSE; FLEX MZX6P M/T(RSW) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0809-0906	●
264	HOSE; FLEX MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0809-0906	●
264	HOSE; FLEX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0907-	●
264	HOSE; FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0907-	●
264	HOSE; FLEX MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=310	1-09363-713-0	01	1	0907-	●
264	HOSE; FLEX 6HK1-TCS ENG(80L) EXC. AUSTRALIA EQUIPMENT(B13) L=340	1-09363-617-0	01	1	0712-0712	●
264	HOSE; FLEX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) L=340	1-09363-617-0	01	1	0712-0712	●
264	HOSE; FLEX 6HK1-TCS ENG(80L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=340	1-09363-617-0	01	1	0801-0808	●
264	HOSE; FLEX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=340	1-09363-617-0	01	1	0801-0808	●
264	HOSE; FLEX 6HK1-TCS ENG(80L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=340	1-09363-617-0	01	1	0809-	●
264	HOSE; FLEX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) L=340	1-09363-617-0	01	1	0809-	●
264	HOSE; FLEX MLD6W M/T(Y2C) WHEEL BASE 5000MM(50W) L=250	1-09363-618-0	01	1	0806-0808	●
264	HOSE; FLEX MLD6W M/T(Y2C) WHEEL BASE 5000MM(50W) EURO4 SPECIFICATION<NT4> L=250	1-09363-618-0	01	1	0809-	●
264	HOSE; FLEX MZX6P M/T(RSW) L=300	1-09363-611-0	01	1	0712-0712	●
264	HOSE; FLEX MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) L=300	1-09363-611-0	01	1	0712-0805	●
264	HOSE; FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) L=300	1-09363-611-0	01	1	0806-0906	●
264	HOSE; FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) L=300	1-09363-611-0	01	1	0907-	●
264	HOSE; FLEX L=280	1-09363-672-0	01	1	0710-0711	●	●	●
264	HOSE; FLEX L=280	1-09363-672-0	01	1	0712-0712		●	●
264	HOSE; FLEX FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=280	1-09363-672-0	01	1	0712-0712	●
264	HOSE; FLEX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) L=280	1-09363-672-0	01	1	0712-0712		●
264	HOSE; FLEX FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) L=280	1-09363-672-0	01	1	0712-0712	●
264	HOSE; FLEX FULLER FS8209HD DD M/T(Y3A) L=280	1-09363-672-0	01	1	0712-0712			●
264	HOSE; FLEX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) L=280	1-09363-672-0	01	1	0801-0801		●
264	HOSE; FLEX FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) L=280	1-09363-672-0	01	1	0801-0801	●
264	HOSE; FLEX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) L=280	1-09363-672-0	01	1	0801-0803		●
264	HOSE; FLEX FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=280	1-09363-672-0	01	1	0801-0803	●
264	HOSE; FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=280	1-09363-672-0	01	1	0801-0803	●
264	HOSE; FLEX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=280	1-09363-672-0	01	1	0804-0808		●
264	HOSE; FLEX FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=280	1-09363-672-0	01	1	0804-0808	●
264	HOSE; FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=280	1-09363-672-0	01	1	0804-0808	●
264	HOSE; FLEX ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=280	1-09363-672-0	01	1	0809-		●
264	HOSE; FLEX FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> L=280	1-09363-672-0	01	1	0809-	●
264	HOSE; FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> L=280	1-09363-672-0	01	1	0809-	●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0712-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0712-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●	●
305	UNION ASM; NYLON TUBE EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	0809-1107	●
305	UNION ASM; NYLON TUBE MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1108-	●
305	UNION ASM; NYLON TUBE ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1108-	●
305	UNION ASM; NYLON TUBE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1108-	●
305	UNION ASM; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1108-	●
341	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-0711		●
341	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-0711	●
341	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0712-0712		●
341	BOLT; BRKT WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) M8X30 FLANGE	0-28650-830-0	02	1	0712-0712	●
341	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0801-0801		●
341	BOLT; BRKT WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) M8X30 FLANGE	0-28650-830-0	01	1	0801-0801	●
341	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0801-0802		●
341	BOLT; BRKT WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8X30 FLANGE	0-28650-830-0	01	1	0801-0802	●
341	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-0806		●
341	BOLT; BRKT WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-0806	●
341	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0807-0809		●	●
341	BOLT; BRKT WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) M8X25 FLANGE	0-28650-825-0	01	1	0807-0809	●
341	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0810-0907		●
341	BOLT; BRKT WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) M8X25 FLANGE	0-28650-825-0	01	1	0810-0907	●
341	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0908-		●
341	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (B) M8X25 FLANGE	0-28650-825-0	01	1	0908-	●
341	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0712			●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0712-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0710-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0710-	●	●	●
374	CONNECTOR MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0906	●
374	CONNECTOR MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0906	●
374	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0906	●
374	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0906	●
374	CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-1107	●
374	CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-1107	●
374	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-1107	●
374	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-1107	●
374	CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
374	CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
374	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
374	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> ,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
374	CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
374	CONNECTOR EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1107	●
374	CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-1111	●
374	CONNECTOR ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-1111	●
374	CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-1111	●
374	CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-1111	●
374	CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1112-	●
374	CONNECTOR ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1112-	●
374	CONNECTOR ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711		●
421	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0712		●
421	NUT; BRKT WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) M8 FLANGE	0-91180-108-0	02	1	0712-0712	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0801		●
421	NUT; BRKT WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) M8 FLANGE	0-91180-108-0	01	1	0801-0801	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0906		●
421	NUT; BRKT WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) M8 FLANGE	0-91180-108-0	01	1	0801-0906	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-0907		●
421	NUT; BRKT WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) M8 FLANGE	0-91180-108-0	01	1	0907-0907	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0908-		●
421	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) M8 FLANGE	0-91180-108-0	01	1	0908-	●
465	PLUG MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0809-0906	●
465	PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0809-0906	●
465	PLUG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0907-1107	●
465	PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0907-1107	●
465	PLUG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP>, TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4	9-99204-513-0	01	1	1108-	●
465	PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP>, TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4	9-99204-513-0	01	1	1108-	●

377 450 428 434 435 434 436 450 377 296 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0712-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0712-	●	●	●
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0801-0809	●
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0801-	●
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	02	1	0802-0803	●
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0801-0803	●
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0802-0803	●
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0804-0809	●
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0804-0809	●
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0810-	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1008	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350	1-09707-183-0	08	1	0801-0805	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=350	1-09707-183-0	03	1	0806-0808	●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO4 SPECIFICATION<NT4> (C) L=350	1-09707-183-0	03	1	0809-	●
434	CLIP WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712	●
434	CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0712-0712			●
434	CLIP WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801	●
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0801-0801			●
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0801-0809	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0712-0801		●
434	CLIP WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=20	0-95235-536-0	02	1	0712-0801	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0802-0808	●	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008		●	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1009-		●	●
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1009-	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0710-0711	●	●	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0712-		●	●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0712-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-		●	●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-		●	●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0712-	●
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98106-046-0	01	1	0801-	●
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION FULL FLOATING<W16> EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98074-610-0	01	1	0801-	●
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) L=65	1-47477-713-0	01	1	0801-0809	●
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25	1-47475-530-0	02	1	0802-0803	●
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25	1-47475-530-0	01	1	0804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
