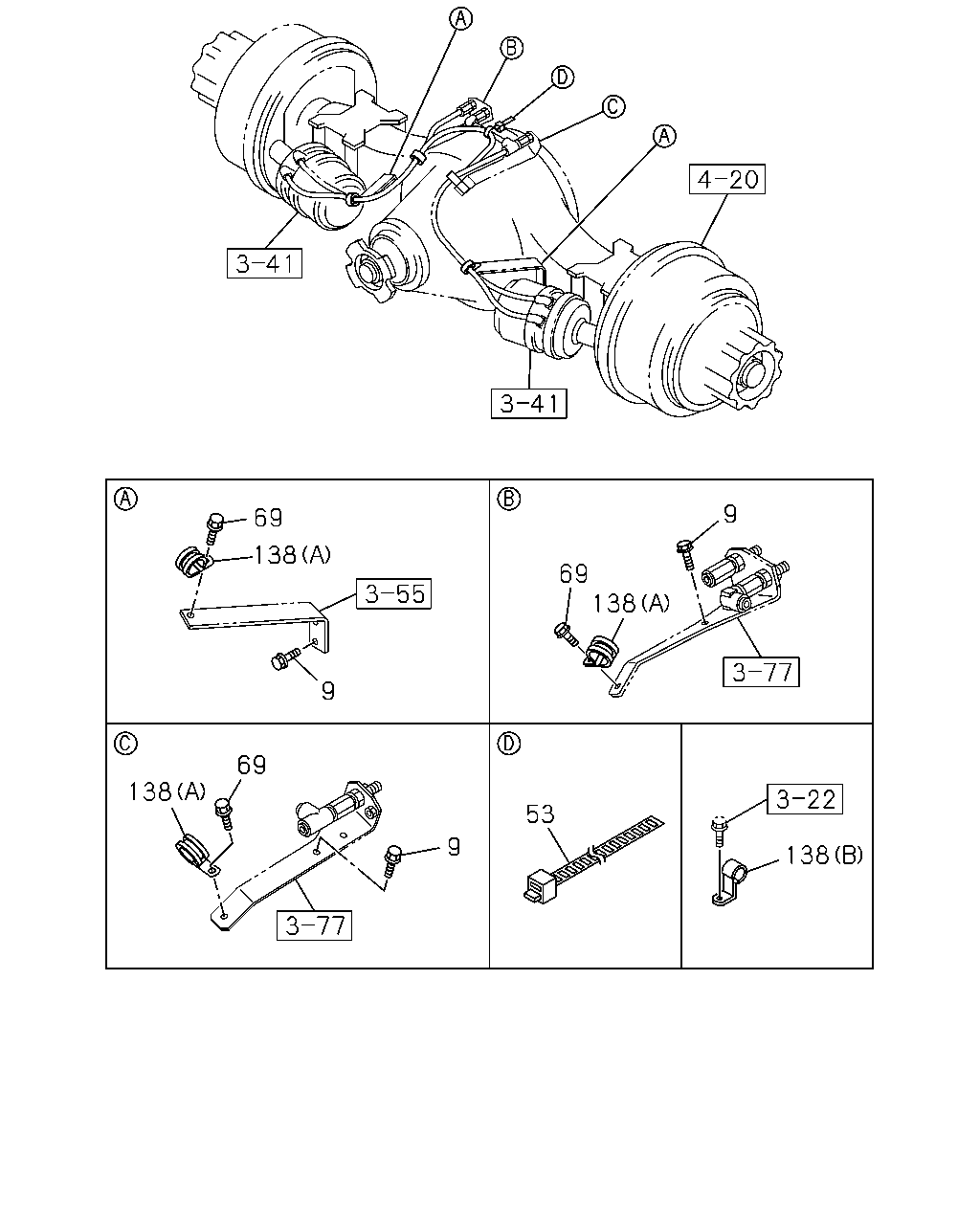

3-58 — FIXING PARTS; OIL PIPING (#36557) — 46 parça

9 69 138 69 138 9 69 138 53 9 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	0807-	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	08	1	0712-	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	08	1	0712-	●
9	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
53	CLIP; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=250	1-09707-126-0	01	1	0712-	●
53	CLIP; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=250	1-09707-126-0	01	1	0712-	●
53	CLIP; UNION L=250	1-09707-126-0	03	1	0710-		●	●
69	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28050-820-0	04	1	0712-	●
69	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28050-820-0	04	1	0712-	●
138	CLIP; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=35 L=33	1-09700-945-0	04	1	0712-	●
138	CLIP; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=35 L=33	1-09700-945-0	04	1	0712-	●
138	CLIP; TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0710-0711	●
138	CLIP; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0712-	●

9 58 112 1 68 1 56 82 82

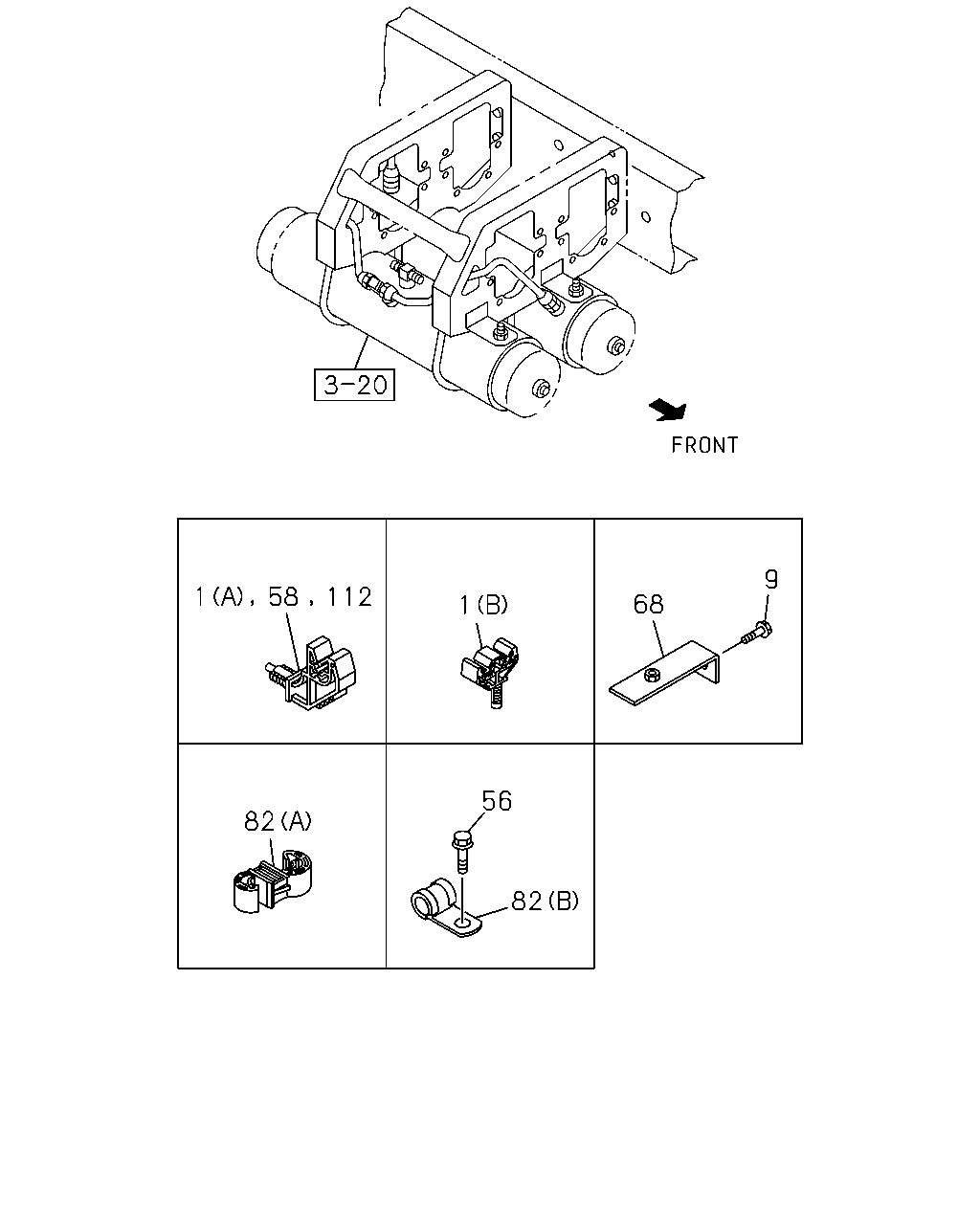

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98012-254-1	03	1	0802-0806	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98012-254-1	04	1	0807-	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35	1-09701-247-1	09	1	0802-0803	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35	1-09701-247-1	08	1	0804-0809	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35	1-09701-247-1	06	1	0810-0906	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35	1-09701-247-1	06	1	0907-	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	0807-	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	08	1	0712-	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	08	1	0712-	●
9	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
56	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	01	1	0807-	●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	05	1	0802-0803	●
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	05	1	0804-0808	●
58	CLIP; OIL PIPE WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	05	1	0809-0809	●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	06	1	0810-	●
58	CLIP; OIL PIPE WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	06	1	0804-0809	●
68	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-519-0	01	1	0807-	●
82	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 L=16	0-95234-625-0	01	1	0807-	●
82	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0802-0803	●
82	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 & 6.35	1-09709-273-1	02	1	0804-0806	●
82	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0807-	●
112	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	03	1	0810-	●
112	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	06	1	0802-0803	●
112	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	03	1	0804-0808	●
112	CLIP; OIL PIPE WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	03	1	0809-0809	●
112	CLIP; OIL PIPE WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	02	1	0810-	●
112	CLIP; OIL PIPE WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	04	1	0804-	●
112	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	05	1	0804-	●
112	CLIP; OIL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35	1-09701-247-1	06	1	0804-	●

59 57

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

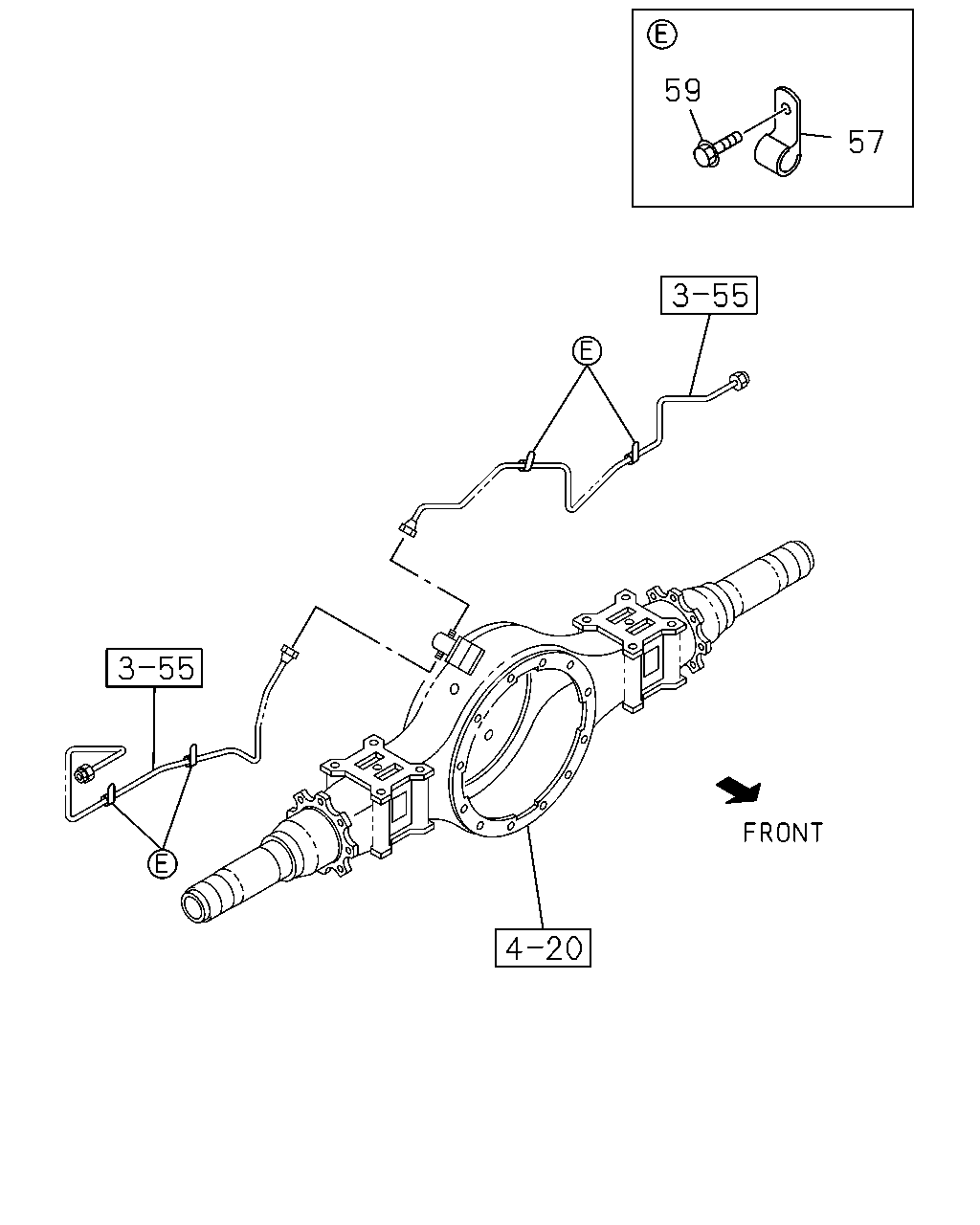

	57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	0-95234-635-0	04	1	0712-	●
	59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28050-810-0	04	1	0712-	●
