1 |
DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(D)
|
1-48190-210-1 |
01 |
1 |
0809-1110 |
● |
|
|
| |
1 |
DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(D)
|
1-48190-210-1 |
01 |
1 |
1111- |
● |
|
|
| |
1 |
DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(C)
|
1-48190-277-1 |
01 |
1 |
0809-1008 |
● |
|
|
| |
1 |
DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(C)
|
1-48190-277-1 |
01 |
1 |
1009- |
● |
|
|
| |
1 |
DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-48190-370-1 |
01 |
1 |
0801-0808 |
● |
|
|
| |
1 |
DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(B)
|
1-48190-370-2 |
01 |
1 |
0809-1110 |
● |
|
|
| |
1 |
DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48190-370-2 |
01 |
1 |
1111-1211 |
● |
|
|
| |
1 |
DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-98225-285-0 |
01 |
1 |
1212- |
● |
|
|
| |
1 |
DRYER; AIR
(A)
|
1-48190-371-1 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
1 |
DRYER; AIR
(A)
|
1-48190-371-2 |
01 |
1 |
0712-0808 |
|
● |
● |
| |
1 |
DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48190-371-2 |
01 |
1 |
0712-0808 |
● |
|
|
| |
1 |
DRYER; AIR
(A)
|
1-48190-371-2 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
1 |
DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48190-371-2 |
01 |
1 |
0809-1008 |
● |
|
|
| |
1 |
DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48190-371-2 |
01 |
1 |
0809-1008 |
● |
|
|
| |
1 |
DRYER; AIR
(A)
|
1-48190-371-2 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
1 |
DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48190-371-2 |
01 |
1 |
1009-1107 |
● |
|
|
| |
1 |
DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48190-371-2 |
01 |
1 |
1009-1107 |
● |
|
|
| |
1 |
DRYER; AIR
(A)
|
1-48190-371-2 |
01 |
1 |
1108-1211 |
|
● |
● |
| |
1 |
DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48190-371-2 |
01 |
1 |
1108-1211 |
● |
|
|
| |
1 |
DRYER; AIR
(A)
|
8-98225-292-0 |
01 |
1 |
1212- |
|
● |
● |
| |
1 |
DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98225-292-0 |
01 |
1 |
1212- |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
(A)
|
1-48199-530-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
5 |
HEATER ASM; AIR DRYER
(A)
|
1-48199-530-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48199-530-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
(A)
|
1-48199-530-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
5 |
HEATER ASM; AIR DRYER
(A)
|
1-48199-530-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-530-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48199-530-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-530-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
(A)
|
1-48199-530-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-530-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-530-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-530-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
(A)
|
1-48199-530-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-530-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-530-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
(A)
|
1-48199-530-0 |
01 |
1 |
1111- |
|
● |
● |
| |
5 |
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-530-0 |
01 |
1 |
1111- |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(C)
|
1-48199-085-0 |
01 |
1 |
0809-1110 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(C)
|
1-48199-085-0 |
01 |
1 |
1111- |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(B)
|
1-48199-085-0 |
02 |
1 |
0809-1008 |
● |
|
|
| |
5 |
HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-085-0 |
02 |
1 |
1009- |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(F)
|
1-48199-403-0 |
01 |
1 |
0809-1110 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(F)
|
1-48199-403-0 |
01 |
1 |
1111- |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(E)
|
1-48199-154-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(E)
|
1-48199-154-0 |
01 |
1 |
1009- |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(D)
|
1-47769-017-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
(D)
|
1-47769-017-0 |
01 |
1 |
0712-0804 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
|
1-47769-017-0 |
01 |
1 |
0712-0804 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(D)
|
1-47769-017-0 |
01 |
1 |
0805-0808 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SINGAPORE EQUIPMENT(2G0)
(D)
|
1-47769-017-0 |
01 |
1 |
0805-0808 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(D)
|
1-47769-017-0 |
01 |
1 |
0809-1107 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(D)
|
1-47769-017-0 |
01 |
1 |
0809-1107 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(D)
|
1-47769-017-0 |
01 |
1 |
1108- |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE
EQUIPMENT(2G0)
(D)
|
1-47769-017-0 |
01 |
1 |
1108- |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(C)
|
1-48199-520-0 |
02 |
1 |
0710-0711 |
● |
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
(C)
|
1-48199-520-0 |
02 |
1 |
0712-0712 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
|
1-48199-520-0 |
02 |
1 |
0712-0712 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(C)
|
1-48199-520-0 |
02 |
1 |
0801-0808 |
● |
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
(C)
|
1-48199-520-0 |
02 |
1 |
0809-1008 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(C)
|
1-48199-520-0 |
02 |
1 |
0809-1008 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(C)
|
1-48199-520-0 |
02 |
1 |
0809-1008 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(C)
|
1-48199-520-0 |
02 |
1 |
0809-1008 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(C)
|
1-48199-520-0 |
02 |
1 |
1009-1107 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(C)
|
1-48199-520-0 |
02 |
1 |
1009-1107 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(C)
|
1-48199-520-0 |
02 |
1 |
1009-1107 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
1-48199-520-0 |
02 |
1 |
1009-1107 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(C)
|
1-48199-520-0 |
02 |
1 |
1108-1110 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(C)
|
1-48199-520-0 |
02 |
1 |
1108-1110 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
1-48199-520-0 |
02 |
1 |
1108-1110 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(C)
|
1-48199-520-0 |
02 |
1 |
1111- |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
1-48199-520-0 |
02 |
1 |
1111- |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(B)
|
1-48199-529-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
(B)
|
1-48199-529-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-48199-529-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(B)
|
1-48199-529-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
(B)
|
1-48199-529-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(B)
|
1-48199-529-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(B)
|
1-48199-529-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(B)
|
1-48199-529-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(B)
|
1-48199-529-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(B)
|
1-48199-529-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(B)
|
1-48199-529-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-529-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(B)
|
1-48199-529-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(B)
|
1-48199-529-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-529-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(B)
|
1-48199-529-0 |
01 |
1 |
1111- |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-529-0 |
01 |
1 |
1111- |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(A)
|
1-48199-579-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
(A)
|
1-48199-579-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48199-579-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(A)
|
1-48199-579-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
(A)
|
1-48199-579-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-579-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48199-579-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-579-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(A)
|
1-48199-579-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-579-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-579-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-579-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(A)
|
1-48199-579-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-579-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-579-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
7 |
RING; SNAP,AIR DRYER
(A)
|
1-48199-579-0 |
01 |
1 |
1111- |
|
● |
● |
| |
7 |
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-579-0 |
01 |
1 |
1111- |
● |
|
|
| |
65 |
BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(B)
|
1-48199-393-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(B)
|
1-48199-393-0 |
01 |
1 |
1009-1110 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-393-0 |
01 |
1 |
1009-1110 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-393-0 |
01 |
1 |
1111- |
● |
|
|
| |
65 |
BOLT; PURGE VLV
(A)
|
1-48199-517-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
65 |
BOLT; PURGE VLV
(A)
|
1-48199-517-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48199-517-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
(A)
|
1-48199-517-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
65 |
BOLT; PURGE VLV
(A)
|
1-48199-517-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-517-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48199-517-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-517-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
(A)
|
1-48199-517-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-517-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-517-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-517-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
(A)
|
1-48199-517-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-517-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-517-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
65 |
BOLT; PURGE VLV
(A)
|
1-48199-517-0 |
01 |
1 |
1111- |
|
● |
● |
| |
65 |
BOLT; PURGE VLV
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-517-0 |
01 |
1 |
1111- |
● |
|
|
| |
68 |
BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(C)
|
1-48199-408-0 |
01 |
1 |
0809-1110 |
● |
|
|
| |
68 |
BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(C)
|
1-48199-408-0 |
01 |
1 |
1111- |
● |
|
|
| |
68 |
BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(B)
|
1-48199-216-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
68 |
BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-216-0 |
01 |
1 |
1009- |
● |
|
|
| |
68 |
BODY; VALVE
(A)
|
1-48199-515-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
68 |
BODY; VALVE
(A)
|
1-48199-515-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
68 |
BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48199-515-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
68 |
BODY; VALVE
(A)
|
1-48199-515-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
68 |
BODY; VALVE
(A)
|
1-48199-515-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
68 |
BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-515-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
68 |
BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48199-515-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
68 |
BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-515-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
68 |
BODY; VALVE
(A)
|
1-48199-515-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
68 |
BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-515-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
68 |
BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-515-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
68 |
BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-515-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
68 |
BODY; VALVE
(A)
|
1-48199-515-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
68 |
BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-515-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
68 |
BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-515-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
68 |
BODY; VALVE
(A)
|
1-48199-515-0 |
01 |
1 |
1111- |
|
● |
● |
| |
68 |
BODY; VALVE
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-515-0 |
01 |
1 |
1111- |
● |
|
|
| |
70 |
VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(B)
|
1-48199-105-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(B)
|
1-48199-105-0 |
01 |
1 |
1009-1110 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-105-0 |
01 |
1 |
1009-1110 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-105-0 |
01 |
1 |
1111- |
● |
|
|
| |
70 |
VALVE; AIR DRYER
(A)
|
1-48199-504-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
70 |
VALVE; AIR DRYER
(A)
|
1-48199-504-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48199-504-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
(A)
|
1-48199-504-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
70 |
VALVE; AIR DRYER
(A)
|
1-48199-504-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-504-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48199-504-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-504-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
(A)
|
1-48199-504-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-504-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-504-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-504-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
(A)
|
1-48199-504-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-504-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-504-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
70 |
VALVE; AIR DRYER
(A)
|
1-48199-504-0 |
01 |
1 |
1111- |
|
● |
● |
| |
70 |
VALVE; AIR DRYER
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-504-0 |
01 |
1 |
1111- |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(B)
|
1-48199-167-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-167-0 |
01 |
1 |
1009- |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48199-427-0 |
01 |
1 |
0801-0808 |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
(A)
|
1-48199-427-0 |
01 |
1 |
0809-1110 |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
(A)
|
1-48199-427-0 |
01 |
1 |
1111- |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
(A)
|
1-48199-562-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
75 |
COVER; CASE,AIR DRYER
(A)
|
1-48199-562-0 |
01 |
1 |
0712-0808 |
|
● |
● |
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48199-562-0 |
01 |
1 |
0712-0808 |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
(A)
|
1-48199-562-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-562-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48199-562-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
(A)
|
1-48199-562-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-562-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-562-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
75 |
COVER; CASE,AIR DRYER
(A)
|
1-48199-562-0 |
01 |
1 |
1108- |
|
● |
● |
| |
75 |
COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-562-0 |
01 |
1 |
1108- |
● |
|
|
| |
76 |
BOLT; COVER,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-48199-412-0 |
04 |
1 |
0801-0808 |
● |
|
|
| |
76 |
BOLT; COVER,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-412-0 |
04 |
1 |
0809-1110 |
● |
|
|
| |
76 |
BOLT; COVER,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-412-0 |
04 |
1 |
1111- |
● |
|
|
| |
76 |
BOLT; COVER,AIR DRYER
|
1-48199-561-0 |
06 |
1 |
0710-0711 |
● |
● |
● |
| |
76 |
BOLT; COVER,AIR DRYER
|
1-48199-561-0 |
06 |
1 |
0712-0808 |
|
● |
● |
| |
76 |
BOLT; COVER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48199-561-0 |
06 |
1 |
0712-0808 |
● |
|
|
| |
76 |
BOLT; COVER,AIR DRYER
|
1-48199-561-0 |
06 |
1 |
0809-1008 |
|
● |
● |
| |
76 |
BOLT; COVER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-561-0 |
06 |
1 |
0809-1008 |
● |
|
|
| |
76 |
BOLT; COVER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
|
1-48199-561-0 |
06 |
1 |
0809-1008 |
● |
|
|
| |
76 |
BOLT; COVER,AIR DRYER
|
1-48199-561-0 |
06 |
1 |
1009-1107 |
|
● |
● |
| |
76 |
BOLT; COVER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-561-0 |
06 |
1 |
1009-1107 |
● |
|
|
| |
76 |
BOLT; COVER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-561-0 |
06 |
1 |
1009-1107 |
● |
|
|
| |
76 |
BOLT; COVER,AIR DRYER
|
1-48199-561-0 |
06 |
1 |
1108- |
|
● |
● |
| |
76 |
BOLT; COVER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-561-0 |
06 |
1 |
1108- |
● |
|
|
| |
78 |
BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-48199-417-0 |
04 |
1 |
0801-0808 |
● |
|
|
| |
78 |
BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-417-0 |
04 |
1 |
0809-1110 |
● |
|
|
| |
78 |
BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-417-0 |
04 |
1 |
1111- |
● |
|
|
| |
78 |
BOLT; OIL FILTER,AIR DRYER
|
1-48199-557-0 |
04 |
1 |
0710-0711 |
● |
● |
● |
| |
78 |
BOLT; OIL FILTER,AIR DRYER
|
1-48199-557-0 |
04 |
1 |
0712-0808 |
|
● |
● |
| |
78 |
BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48199-557-0 |
04 |
1 |
0712-0808 |
● |
|
|
| |
78 |
BOLT; OIL FILTER,AIR DRYER
|
1-48199-557-0 |
04 |
1 |
0809-1008 |
|
● |
● |
| |
78 |
BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-557-0 |
04 |
1 |
0809-1008 |
● |
|
|
| |
78 |
BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
|
1-48199-557-0 |
04 |
1 |
0809-1008 |
● |
|
|
| |
78 |
BOLT; OIL FILTER,AIR DRYER
|
1-48199-557-0 |
04 |
1 |
1009-1107 |
|
● |
● |
| |
78 |
BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-557-0 |
04 |
1 |
1009-1107 |
● |
|
|
| |
78 |
BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-557-0 |
04 |
1 |
1009-1107 |
● |
|
|
| |
78 |
BOLT; OIL FILTER,AIR DRYER
|
1-48199-557-0 |
04 |
1 |
1108- |
|
● |
● |
| |
78 |
BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-557-0 |
04 |
1 |
1108- |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(B)
|
1-48199-177-0 |
02 |
1 |
0809-1008 |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-177-0 |
02 |
1 |
1009- |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48199-436-0 |
06 |
1 |
0801-0808 |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
(A)
|
1-48199-436-0 |
06 |
1 |
0809-1110 |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
(A)
|
1-48199-436-0 |
06 |
1 |
1111- |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
(A)
|
1-48199-436-0 |
08 |
1 |
0710-0711 |
● |
● |
● |
| |
81 |
BOLT; CASE,AIR DRYER
(A)
|
1-48199-436-0 |
08 |
1 |
0712-0808 |
|
● |
● |
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48199-436-0 |
08 |
1 |
0712-0808 |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
(A)
|
1-48199-436-0 |
08 |
1 |
0809-1008 |
|
● |
● |
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-436-0 |
08 |
1 |
0809-1008 |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48199-436-0 |
08 |
1 |
0809-1008 |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
(A)
|
1-48199-436-0 |
08 |
1 |
1009-1107 |
|
● |
● |
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-436-0 |
08 |
1 |
1009-1107 |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-436-0 |
08 |
1 |
1009-1107 |
● |
|
|
| |
81 |
BOLT; CASE,AIR DRYER
(A)
|
1-48199-436-0 |
08 |
1 |
1108- |
|
● |
● |
| |
81 |
BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-436-0 |
08 |
1 |
1108- |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(C)
|
1-48199-166-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
84 |

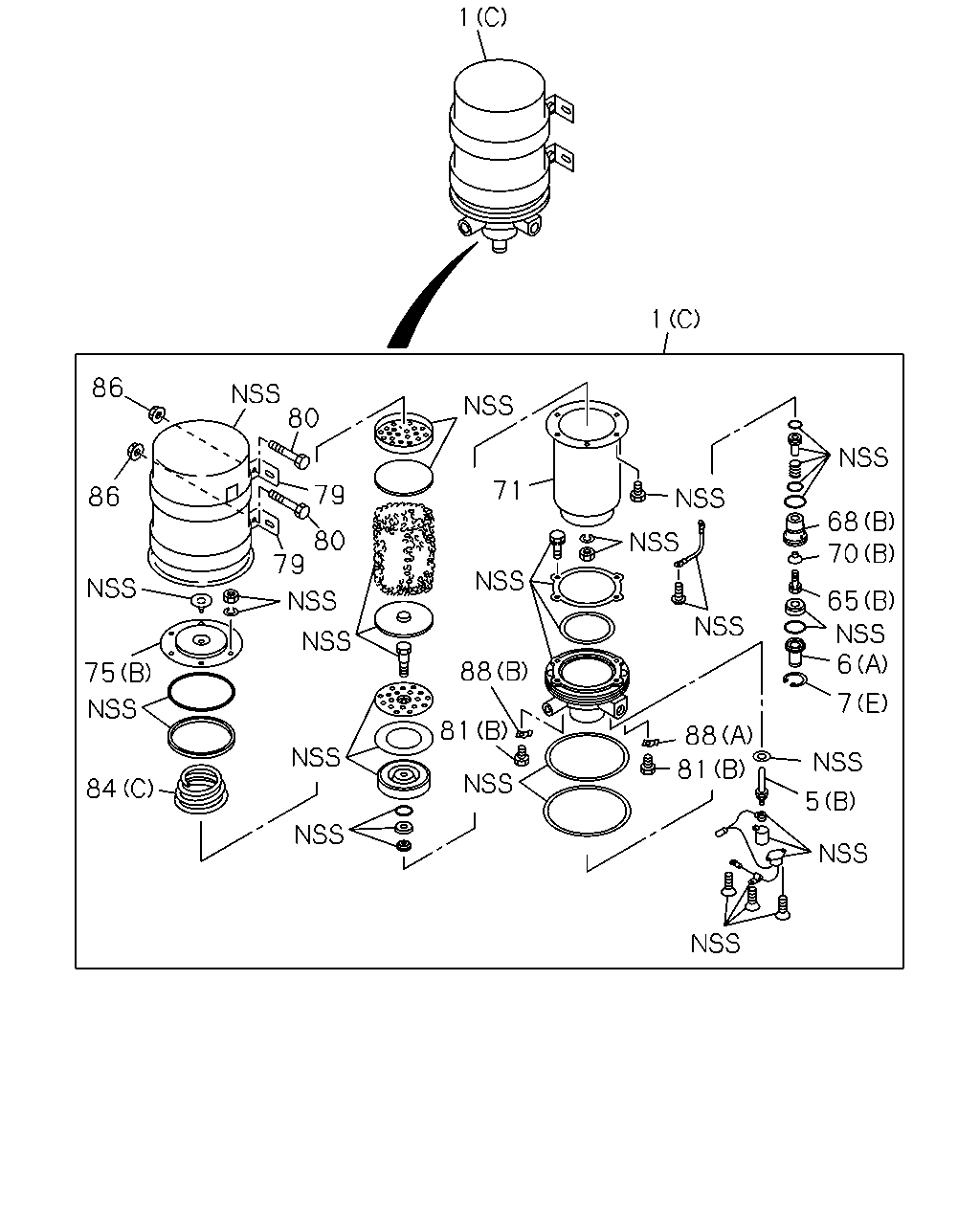

SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(C)
|
1-48199-166-0 |
01 |
1 |
1009- |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48199-425-0 |
01 |
1 |
0801-0808 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
(A)
|
1-48199-425-0 |
01 |
1 |
0809-1110 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
(A)
|
1-48199-425-0 |
01 |
1 |
1111- |
● |
|
|
| |
84 |
SPRING; AIR DRYER
(B)
|
1-48199-523-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
84 |
SPRING; AIR DRYER
(B)
|
1-48199-523-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-48199-523-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
(B)
|
1-48199-523-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
84 |
SPRING; AIR DRYER
(B)
|
1-48199-523-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(B)
|
1-48199-523-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(B)
|
1-48199-523-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(B)
|
1-48199-523-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
(B)
|
1-48199-523-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(B)
|
1-48199-523-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(B)
|
1-48199-523-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-523-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
(B)
|
1-48199-523-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(B)
|
1-48199-523-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-523-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
(B)
|
1-48199-523-0 |
01 |
1 |
1111- |
|
● |
● |
| |
84 |
SPRING; AIR DRYER
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-523-0 |
01 |
1 |
1111- |
● |
|
|
| |
84 |
SPRING; AIR DRYER
(A)
|
1-48199-564-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
84 |
SPRING; AIR DRYER
(A)
|
1-48199-564-0 |
01 |
1 |
0712-0808 |
|
● |
● |
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48199-564-0 |
01 |
1 |
0712-0808 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
(A)
|
1-48199-564-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-564-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48199-564-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
(A)
|
1-48199-564-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-564-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-564-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
84 |
SPRING; AIR DRYER
(A)
|
1-48199-564-0 |
01 |
1 |
1108- |
|
● |
● |
| |
84 |
SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-564-0 |
01 |
1 |
1108- |
● |
|
|
| |

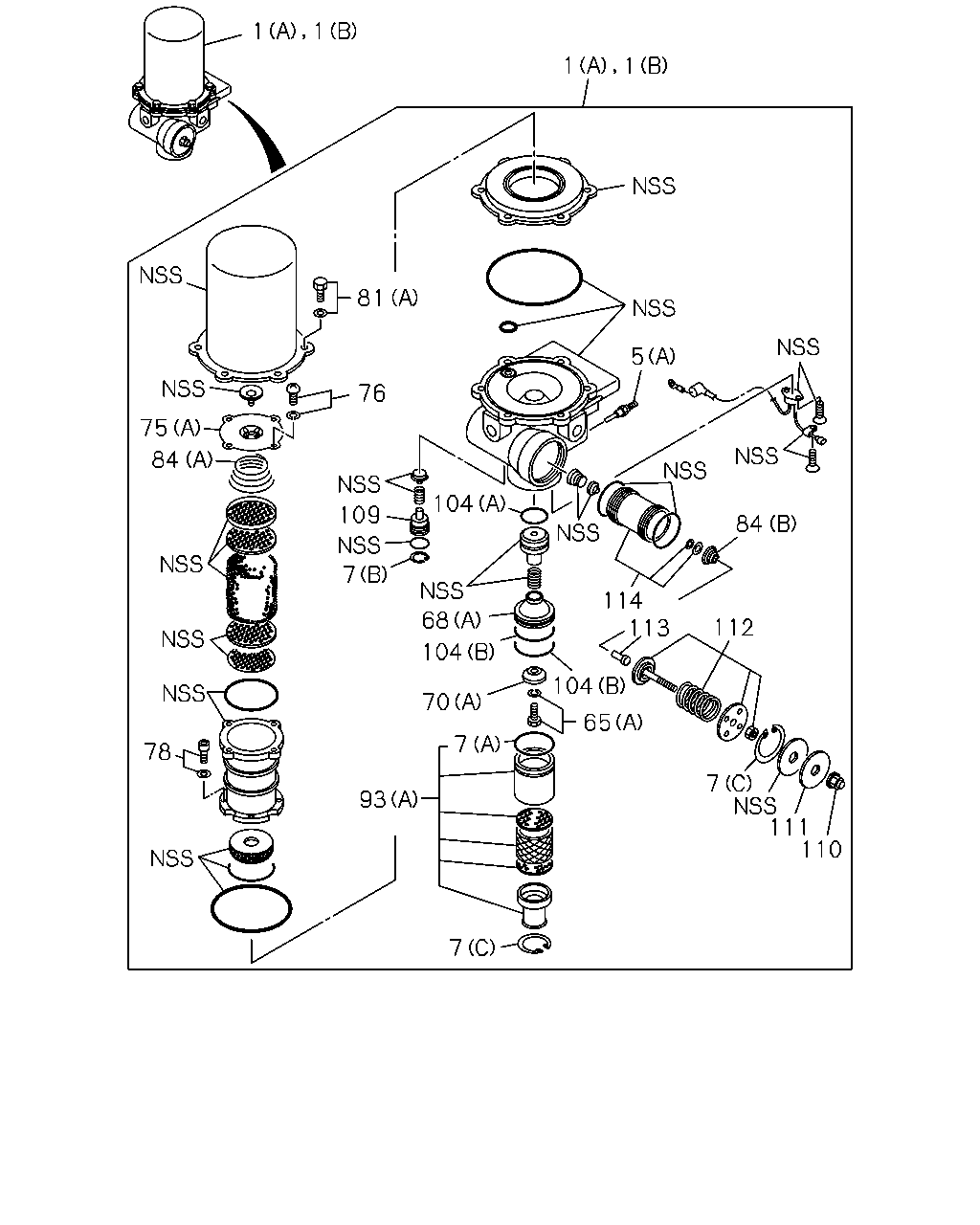

93 |
SILENCER; AIR DRYER
(A)
|
1-48199-619-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
93 |
SILENCER; AIR DRYER
(A)
|
1-48199-619-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48199-619-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
(A)
|
1-48199-619-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
93 |
SILENCER; AIR DRYER
(A)
|
1-48199-619-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-619-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48199-619-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-619-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
(A)
|
1-48199-619-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-619-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-619-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-619-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
(A)
|
1-48199-619-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-619-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-619-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
(A)
|
1-48199-619-0 |
01 |
1 |
1111- |
|
● |
● |
| |
93 |
SILENCER; AIR DRYER
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-619-0 |
01 |
1 |
1111- |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
(B)
|
1-48199-581-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
93 |
SILENCER; AIR DRYER
(B)
|
1-48199-581-0 |
01 |
1 |
0712-0804 |
|
● |
● |
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-48199-581-0 |
01 |
1 |
0712-0804 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
(B)
|
1-48199-581-0 |
01 |
1 |
0805-0808 |
|
● |
● |
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SINGAPORE EQUIPMENT(2G0)
(B)
|
1-48199-581-0 |
01 |
1 |
0805-0808 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
(B)
|
1-48199-581-0 |
01 |
1 |
0809-1107 |
|
● |
● |
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(B)
|
1-48199-581-0 |
01 |
1 |
0809-1107 |
● |
|
|
| |
93 |
SILENCER; AIR DRYER
(B)
|
1-48199-581-0 |
01 |
1 |
1108- |
|
● |
● |
| |
93 |
SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>,SINGAPORE
EQUIPMENT(2G0)
(B)
|
1-48199-581-0 |
01 |
1 |
1108- |
● |
|
|
| |

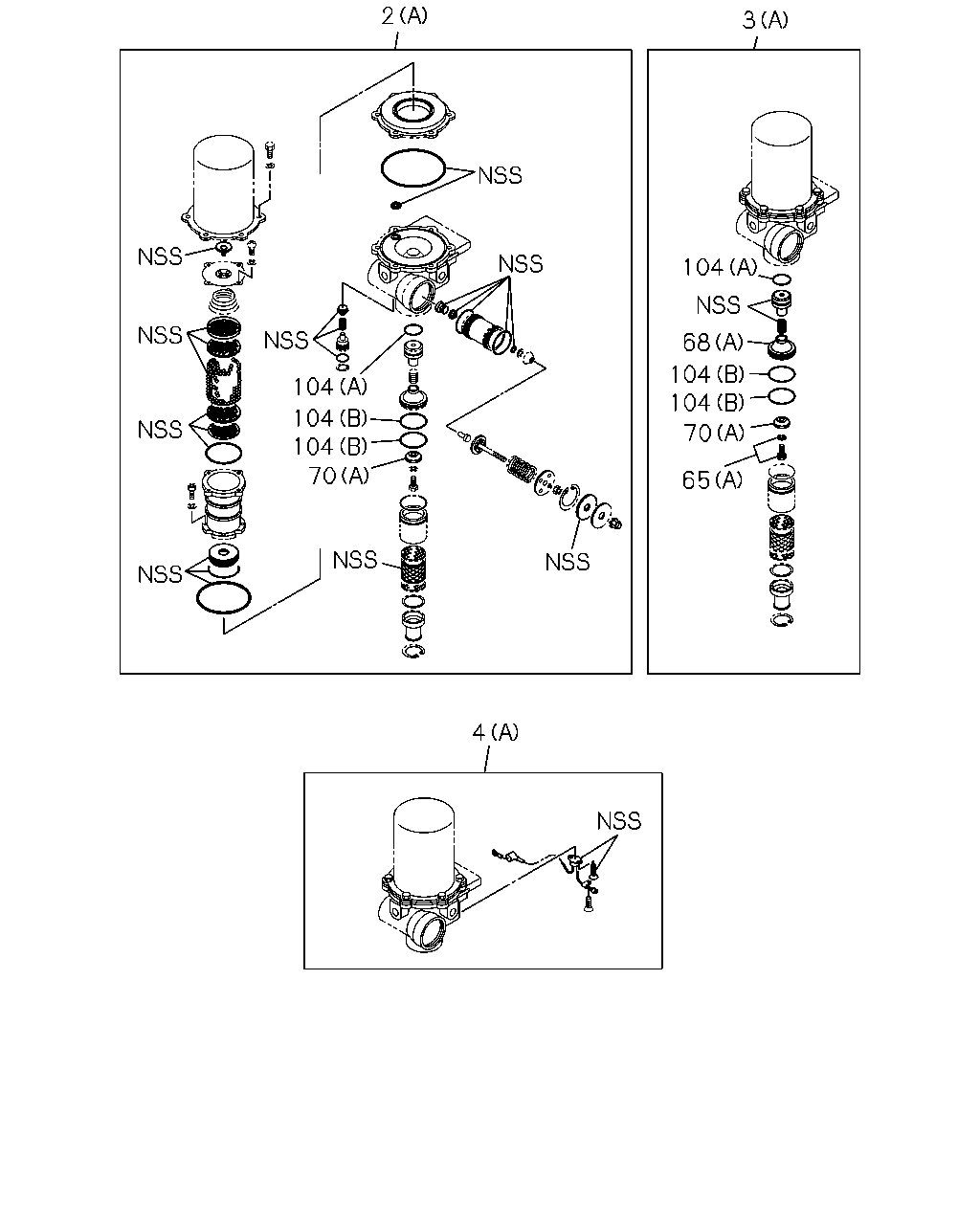

104 |
GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-496-0 |
02 |
1 |
1212- |
● |
|
|
| |
104 |
GASKET
(A)
|
1-48199-495-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
104 |
GASKET
(A)
|
1-48199-495-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48199-495-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
104 |
GASKET
(A)
|
1-48199-495-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
104 |
GASKET
(A)
|
1-48199-495-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-495-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(A)
|
1-48199-495-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
104 |
GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-495-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
104 |
GASKET
(A)
|
1-48199-495-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(A)
|
1-48199-495-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
104 |
GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-495-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-495-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
104 |
GASKET
(A)
|
1-48199-495-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
104 |
GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(A)
|
1-48199-495-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-495-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
104 |
GASKET
(A)
|
1-48199-495-0 |
01 |
1 |
1111-1211 |
|
● |
● |
| |
104 |
GASKET
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
1-48199-495-0 |
01 |
1 |
1111-1211 |
● |
|
|
| |
104 |
GASKET
(A)
|
8-98226-321-0 |
01 |
1 |
1212- |
|
● |
● |
| |
104 |
GASKET
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98226-321-0 |
01 |
1 |
1212- |
● |
|
|
| |
104 |
GASKET
(B)
|
1-48199-496-0 |
02 |
1 |
0710-0711 |
● |
● |
● |
| |
104 |
GASKET
(B)
|
1-48199-496-0 |
02 |
1 |
0712-0712 |
|
● |
● |
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-48199-496-0 |
02 |
1 |
0712-0712 |
● |
|
|
| |
104 |
GASKET
(B)
|
1-48199-496-0 |
02 |
1 |
0801-0808 |
● |
● |
● |
| |
104 |
GASKET
(B)
|
1-48199-496-0 |
02 |
1 |
0809-1008 |
|
● |
● |
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(B)
|
1-48199-496-0 |
02 |
1 |
0809-1008 |
● |
|
|
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
(B)
|
1-48199-496-0 |
02 |
1 |
0809-1008 |
● |
|
|
| |
104 |
GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(B)
|
1-48199-496-0 |
02 |
1 |
0809-1008 |
● |
|
|
| |
104 |
GASKET
(B)
|
1-48199-496-0 |
02 |
1 |
1009-1107 |
|
● |
● |
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
(B)
|
1-48199-496-0 |
02 |
1 |
1009-1107 |
● |
|
|
| |
104 |
GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(B)
|
1-48199-496-0 |
02 |
1 |
1009-1107 |
● |
|
|
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-496-0 |
02 |
1 |
1009-1107 |
● |
|
|
| |
104 |
GASKET
(B)
|
1-48199-496-0 |
02 |
1 |
1108-1110 |
|
● |
● |
| |
104 |
GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
(B)
|
1-48199-496-0 |
02 |
1 |
1108-1110 |
● |
|
|
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-496-0 |
02 |
1 |
1108-1110 |
● |
|
|
| |
104 |
GASKET
(B)
|
1-48199-496-0 |
02 |
1 |
1111-1211 |
|
● |
● |
| |
104 |
GASKET
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-496-0 |
02 |
1 |
1111-1211 |
● |
|
|
| |
104 |
GASKET
(B)
|
1-48199-496-0 |
01 |
1 |
1212- |
|
● |
● |
| |
104 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
1-48199-496-0 |
01 |
1 |
1212- |
● |
|
|
| |
109 |
STOPPER; CHECK VALVE
|
1-48199-539-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
109 |
STOPPER; CHECK VALVE
|
1-48199-539-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
109 |
STOPPER; CHECK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48199-539-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
109 |
STOPPER; CHECK VALVE
|
1-48199-539-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
109 |
STOPPER; CHECK VALVE
|
1-48199-539-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
109 |
STOPPER; CHECK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-539-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
109 |
STOPPER; CHECK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
|
1-48199-539-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
109 |
STOPPER; CHECK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-539-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
109 |
STOPPER; CHECK VALVE
|
1-48199-539-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
109 |
STOPPER; CHECK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-539-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
109 |
STOPPER; CHECK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-539-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
109 |
STOPPER; CHECK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-539-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
109 |
STOPPER; CHECK VALVE
|
1-48199-539-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
109 |
STOPPER; CHECK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-539-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
109 |
STOPPER; CHECK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-539-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
109 |
STOPPER; CHECK VALVE
|
1-48199-539-0 |
01 |
1 |
1111- |
|
● |
● |
| |
109 |
STOPPER; CHECK VALVE
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-539-0 |
01 |
1 |
1111- |
● |
|
|
| |
110 |
NUT; CAP
|
1-48199-527-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
110 |
NUT; CAP
|
1-48199-527-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
110 |
NUT; CAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48199-527-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
110 |
NUT; CAP
|
1-48199-527-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
110 |
NUT; CAP
|
1-48199-527-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
110 |
NUT; CAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-527-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
110 |
NUT; CAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
|
1-48199-527-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
110 |
NUT; CAP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-527-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
110 |
NUT; CAP
|
1-48199-527-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
110 |
NUT; CAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-527-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
110 |
NUT; CAP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-527-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
110 |
NUT; CAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-527-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
110 |
NUT; CAP
|
1-48199-527-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
110 |
NUT; CAP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-527-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
110 |
NUT; CAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-527-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
110 |
NUT; CAP
|
1-48199-527-0 |
01 |
1 |
1111- |
|
● |
● |
| |
110 |
NUT; CAP
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-527-0 |
01 |
1 |
1111- |
● |
|
|
| |
111 |
PLATE; GOVERNOR
|
1-48199-526-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
111 |
PLATE; GOVERNOR
|
1-48199-526-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
111 |
PLATE; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48199-526-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
111 |
PLATE; GOVERNOR
|
1-48199-526-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
111 |
PLATE; GOVERNOR
|
1-48199-526-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
111 |
PLATE; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-526-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
111 |
PLATE; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
|
1-48199-526-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
111 |
PLATE; GOVERNOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-526-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
111 |
PLATE; GOVERNOR
|
1-48199-526-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
111 |
PLATE; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-526-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
111 |
PLATE; GOVERNOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-526-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
111 |
PLATE; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-526-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
111 |
PLATE; GOVERNOR
|
1-48199-526-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
111 |
PLATE; GOVERNOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-526-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
111 |
PLATE; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-526-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
111 |
PLATE; GOVERNOR
|
1-48199-526-0 |
01 |
1 |
1111- |
|
● |
● |
| |
111 |
PLATE; GOVERNOR
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-526-0 |
01 |
1 |
1111- |
● |
|
|
| |
112 |
SCREW & SPRING ASM; AIR DRYER
|
1-48199-524-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
112 |
SCREW & SPRING ASM; AIR DRYER
|
1-48199-524-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
112 |
SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48199-524-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
112 |
SCREW & SPRING ASM; AIR DRYER
|
1-48199-524-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
112 |
SCREW & SPRING ASM; AIR DRYER
|
1-48199-524-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
112 |
SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-524-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
112 |
SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
|
1-48199-524-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
112 |
SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-524-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
112 |
SCREW & SPRING ASM; AIR DRYER
|
1-48199-524-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
112 |
SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-524-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
112 |
SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-524-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
112 |
SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-524-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
112 |
SCREW & SPRING ASM; AIR DRYER
|
1-48199-524-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
112 |
SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-524-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
112 |
SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-524-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
112 |
SCREW & SPRING ASM; AIR DRYER
|
1-48199-524-0 |
01 |
1 |
1111- |
|
● |
● |
| |
112 |
SCREW & SPRING ASM; AIR DRYER
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-524-0 |
01 |
1 |
1111- |
● |
|
|
| |
113 |
STEM; EXHAUST
|
1-48199-522-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
113 |
STEM; EXHAUST
|
1-48199-522-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
113 |
STEM; EXHAUST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48199-522-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
113 |
STEM; EXHAUST
|
1-48199-522-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
113 |
STEM; EXHAUST
|
1-48199-522-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
113 |
STEM; EXHAUST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-522-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
113 |
STEM; EXHAUST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
|
1-48199-522-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
113 |
STEM; EXHAUST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-522-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
113 |
STEM; EXHAUST
|
1-48199-522-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
113 |
STEM; EXHAUST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-522-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
113 |
STEM; EXHAUST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-522-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
113 |
STEM; EXHAUST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-522-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
113 |
STEM; EXHAUST
|
1-48199-522-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
113 |
STEM; EXHAUST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-522-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
113 |
STEM; EXHAUST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-522-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
113 |
STEM; EXHAUST
|
1-48199-522-0 |
01 |
1 |
1111- |
|
● |
● |
| |
113 |
STEM; EXHAUST
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-522-0 |
01 |
1 |
1111- |
● |
|
|
| |
114 |
PISTON ASM; GOVERNOR
|
1-48199-521-0 |
01 |
1 |
0710-0711 |
● |
● |
● |
| |
114 |
PISTON ASM; GOVERNOR
|
1-48199-521-0 |
01 |
1 |
0712-0712 |
|
● |
● |
| |
114 |
PISTON ASM; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48199-521-0 |
01 |
1 |
0712-0712 |
● |
|
|
| |
114 |
PISTON ASM; GOVERNOR
|
1-48199-521-0 |
01 |
1 |
0801-0808 |
● |
● |
● |
| |
114 |
PISTON ASM; GOVERNOR
|
1-48199-521-0 |
01 |
1 |
0809-1008 |
|
● |
● |
| |
114 |
PISTON ASM; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-521-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
114 |
PISTON ASM; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
|
1-48199-521-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
114 |
PISTON ASM; GOVERNOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-521-0 |
01 |
1 |
0809-1008 |
● |
|
|
| |
114 |
PISTON ASM; GOVERNOR
|
1-48199-521-0 |
01 |
1 |
1009-1107 |
|
● |
● |
| |
114 |
PISTON ASM; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
EXC. SINGAPORE EQUIPMENT(2G0)
|
1-48199-521-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
114 |
PISTON ASM; GOVERNOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-521-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
114 |
PISTON ASM; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SINGAPORE EQUIPMENT(2G0)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-521-0 |
01 |
1 |
1009-1107 |
● |
|
|
| |
114 |
PISTON ASM; GOVERNOR
|
1-48199-521-0 |
01 |
1 |
1108-1110 |
|
● |
● |
| |
114 |
PISTON ASM; GOVERNOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO4 SPECIFICATION<NT4>
AIR DRYER<PS7>
|
1-48199-521-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
114 |
PISTON ASM; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-521-0 |
01 |
1 |
1108-1110 |
● |
|
|
| |
114 |
PISTON ASM; GOVERNOR
|
1-48199-521-0 |
01 |
1 |
1111- |
|
● |
● |
| |
114 |
PISTON ASM; GOVERNOR
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-48199-521-0 |
01 |
1 |
1111- |
● |
|
|
