Sayfa 3-41 - Isuzu EPC

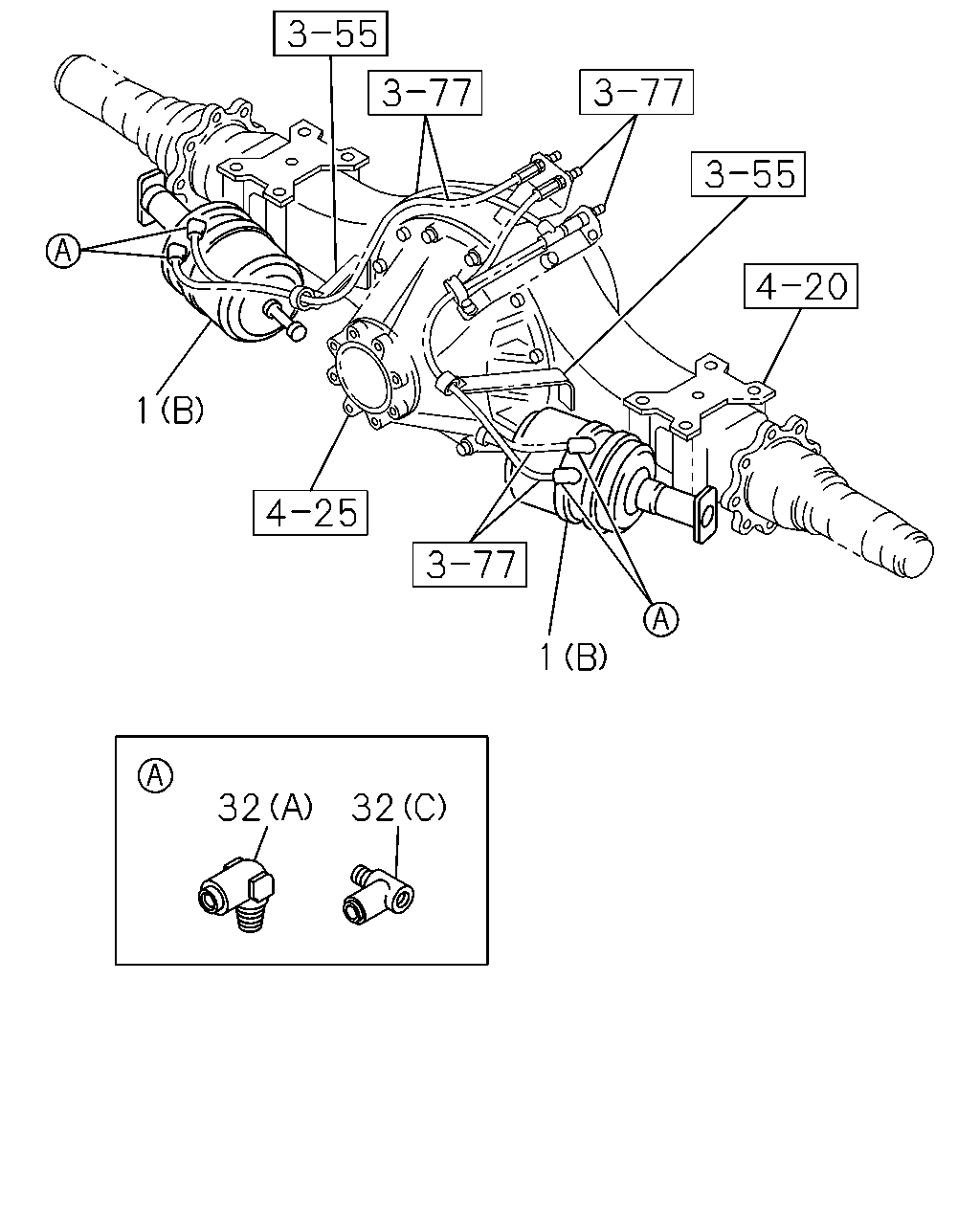

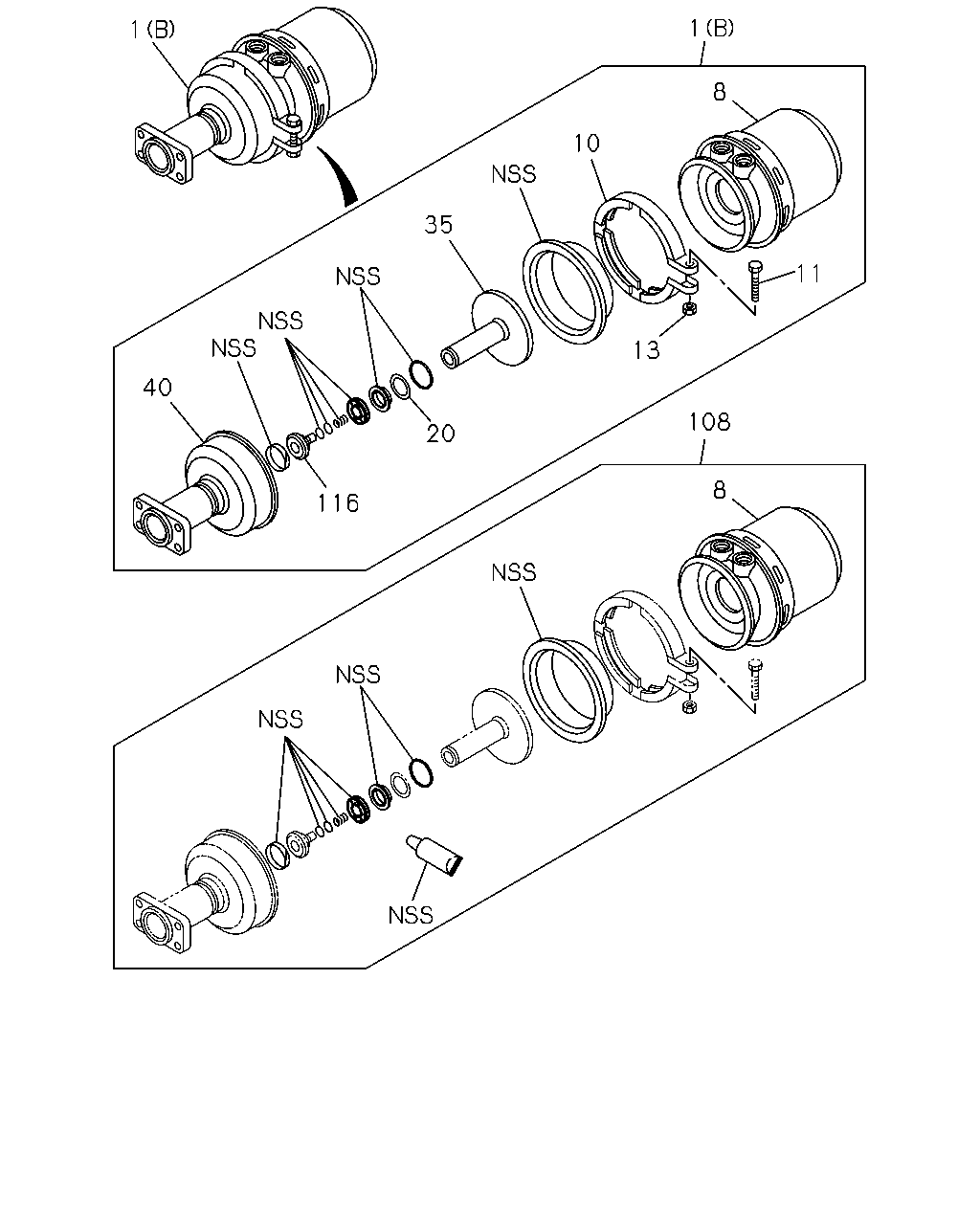

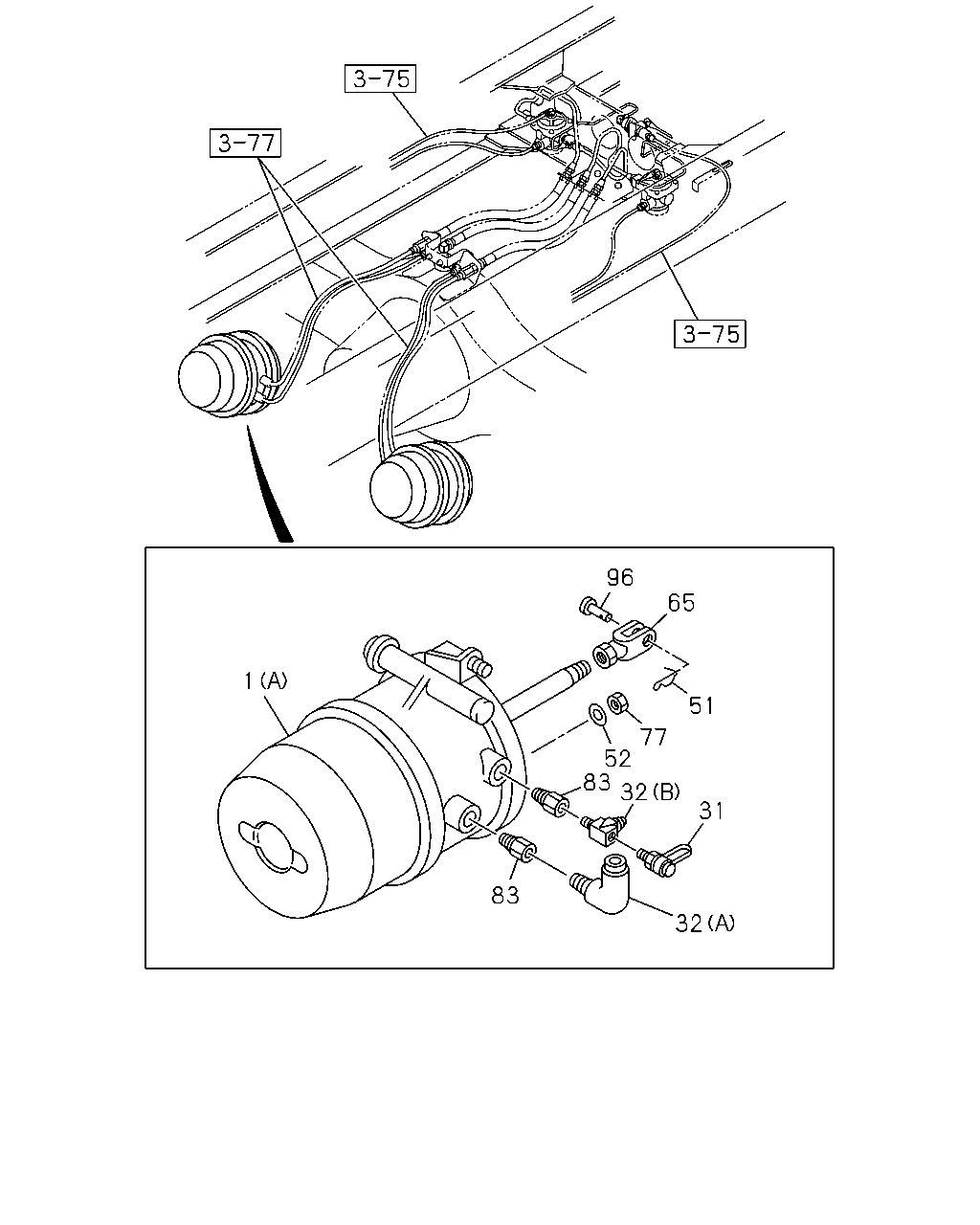

3-41 — REAR BRAKE POWER CHAMBER (#36552) — 160 parça

96 65 1 51 77 52 83 32 31 83 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-877-2	01	1	0712-0804	●
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-877-4	01	1	0805-	●
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-878-2	01	1	0712-0804	●
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-878-4	01	1	0805-	●
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0710-0711	●	●	●
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0712-1205		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-941-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1206-1206		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-959-0	01	1	1206-1206	●
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	1206-1211		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-941-0	01	1	1206-1211	●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1212-		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-959-0	01	1	1212-	●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0710-0711	●	●	●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0712-1205		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-942-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1206-1206		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-960-0	01	1	1206-1206	●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	1206-1211		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-942-0	01	1	1206-1211	●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1212-		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-960-0	01	1	1212-	●
31	CONNECTOR R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0710-0711	●	●	●
31	CONNECTOR R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-1509		●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-1509	●
31	CONNECTOR R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1510-		●	●
31	CONNECTOR HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1510-	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/6 16.5"(W5V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0712-0805	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0806-1004	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/6 16.5"(W5V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0712-0805	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0806-1004	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/6 16.5"(W5V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0712-0805	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0806-	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0710-0711	●	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0712-1509		●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0712-1509	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	1510-		●	●
32	CONNECTOR; SPR CHAMBER HUB LUBRICATION OIL BATH<C5K> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	1510-	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-0711	●	●	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0712-1509		●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0712-1509	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1510-		●	●
32	CONNECTOR; SPR CHAMBER HUB LUBRICATION OIL BATH<C5K> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1510-	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0710-0711	●	●	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0712-1509		●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0712-1509	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	1510-		●	●
32	CONNECTOR; SPR CHAMBER HUB LUBRICATION OIL BATH<C5K> (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	1510-	●
51	PIN; SPLIT	1-48259-275-0	02	1	0710-0711	●	●	●
51	PIN; SPLIT	1-48259-275-0	02	1	0712-		●	●
51	PIN; SPLIT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-275-0	02	1	0712-	●
52	WASHER; PL	1-41519-038-0	04	1	0710-0711	●	●	●
52	WASHER; PL	1-41519-038-0	04	1	0712-		●	●
52	WASHER; PL FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-41519-038-0	04	1	0712-	●
65	JOINT; JAW	1-48259-321-0	02	1	0710-0711	●	●	●
65	JOINT; JAW	1-48259-321-0	02	1	0712-		●	●
65	JOINT; JAW FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-321-0	02	1	0712-	●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0710-0711	●	●	●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0712-		●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-052-0	04	1	0712-	●
83	ADAPTER; SPR CHAMBER NPTF3/8 & RC3/8	1-09660-548-0	02	1	0710-0711	●	●	●
83	ADAPTER; SPR CHAMBER NPTF3/8 & RC3/8	1-09660-548-0	02	1	0712-1509		●	●
83	ADAPTER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NPTF3/8 & RC3/8	1-09660-548-0	02	1	0712-1509	●
83	ADAPTER; SPR CHAMBER NPTF3/8 & RC3/8	1-09660-548-0	02	1	1510-		●	●
83	ADAPTER; SPR CHAMBER HUB LUBRICATION OIL BATH<C5K> NPTF3/8 & RC3/8	1-09660-548-0	02	1	1510-	●
96	PIN; JAW JOINT	1-48259-273-0	02	1	0710-0711	●	●	●
96	PIN; JAW JOINT	1-48259-273-0	02	1	0712-		●	●
96	PIN; JAW JOINT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-273-0	02	1	0712-	●

1 1 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-877-2	01	1	0712-0804	●
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-877-4	01	1	0805-	●
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-878-2	01	1	0712-0804	●
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-878-4	01	1	0805-	●
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0710-0711	●	●	●
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0712-1205		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-941-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1206-1206		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-959-0	01	1	1206-1206	●
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	1206-1211		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-941-0	01	1	1206-1211	●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1212-		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-959-0	01	1	1212-	●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0710-0711	●	●	●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0712-1205		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-942-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1206-1206		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-960-0	01	1	1206-1206	●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	1206-1211		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-942-0	01	1	1206-1211	●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1212-		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-960-0	01	1	1212-	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/6 16.5"(W5V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0712-0805	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0806-1004	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/6 16.5"(W5V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0712-0805	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0806-1004	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/6 16.5"(W5V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0712-0805	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0806-	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0710-0711	●	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0712-1509		●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0712-1509	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	1510-		●	●
32	CONNECTOR; SPR CHAMBER HUB LUBRICATION OIL BATH<C5K> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	1510-	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-0711	●	●	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0712-1509		●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0712-1509	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1510-		●	●
32	CONNECTOR; SPR CHAMBER HUB LUBRICATION OIL BATH<C5K> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1510-	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0710-0711	●	●	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0712-1509		●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0712-1509	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	1510-		●	●
32	CONNECTOR; SPR CHAMBER HUB LUBRICATION OIL BATH<C5K> (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	1510-	●

1 1 8 10 35 11 13 40 108 20 8 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-877-2	01	1	0712-0804	●
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-877-4	01	1	0805-	●
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-878-2	01	1	0712-0804	●
1	CHAMBER ASM; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-878-4	01	1	0805-	●
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0710-0711	●	●	●
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0712-1205		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-941-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1206-1206		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-959-0	01	1	1206-1206	●
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	1206-1211		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-941-0	01	1	1206-1211	●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1212-		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-959-0	01	1	1212-	●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0710-0711	●	●	●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0712-1205		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-942-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1206-1206		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-960-0	01	1	1206-1206	●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	1206-1211		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-942-0	01	1	1206-1211	●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1212-		●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-960-0	01	1	1212-	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-173-1	01	1	0712-0804	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-173-2	01	1	0805-1211	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-173-2	01	1	1212-	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-174-1	01	1	0712-0804	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-174-2	01	1	0805-1211	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-174-2	01	1	1212-	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-231-0	02	1	0712-0804	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-231-0	02	1	0805-	●
11	BOLT; CLAMP RING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-232-0	02	1	0712-0804	●
11	BOLT; CLAMP RING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-232-0	02	1	0805-	●
13	NUT; CLAMP RING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-233-0	02	1	0712-0804	●
13	NUT; CLAMP RING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-233-0	02	1	0805-	●
20	RING; RET FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-236-0	02	1	0712-0804	●
20	RING; RET FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-236-0	02	1	0805-	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-031-0	02	1	0712-0804	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-031-0	02	1	0805-0809	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-253-0	02	1	0810-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-179-0	01	1	0712-0804	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-179-0	01	1	0805-1211	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-179-0	01	1	1212-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-180-0	01	1	0712-0804	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-180-0	01	1	0805-1211	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48251-180-0	01	1	1212-	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-407-1	02	1	0712-0804	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-407-1	02	1	0805-	●
116	GUIDE; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-237-0	02	1	0712-0804	●
116	GUIDE; SPR CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-237-0	02	1	0805-	●
