3-40 — FRONT BRAKE POWER CHAMBER (#36551) — 61 parça

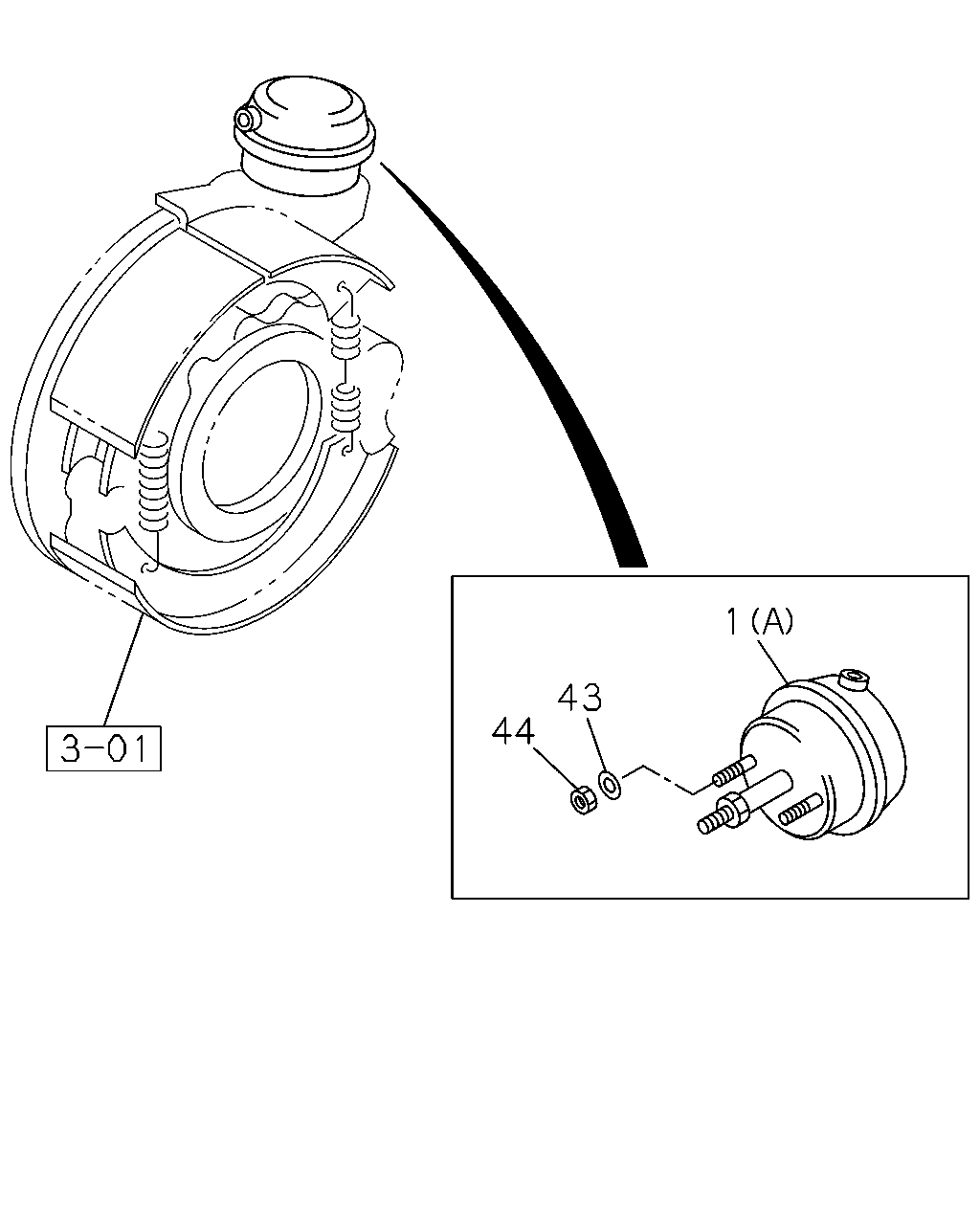

43 44 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-48250-837-0	02	1	0712-0910	●
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98145-680-1	02	1	0911-	●
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-938-0	02	1	0710-0711	●	●	●
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-938-0	02	1	0712-		●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K> (A)	1-48250-938-0	02	1	0712-	●
43	WASHER; LK,POWER CHAMBER	1-41519-038-0	04	1	0710-0711	●	●	●
43	WASHER; LK,POWER CHAMBER	1-41519-038-0	04	1	0712-		●	●
43	WASHER; LK,POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-41519-038-0	04	1	0712-	●
44	NUT; POWER CHAMBER	1-87050-052-0	04	1	0710-0711	●	●	●
44	NUT; POWER CHAMBER	1-87050-052-0	04	1	0712-		●	●
44	NUT; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-87050-052-0	04	1	0712-	●

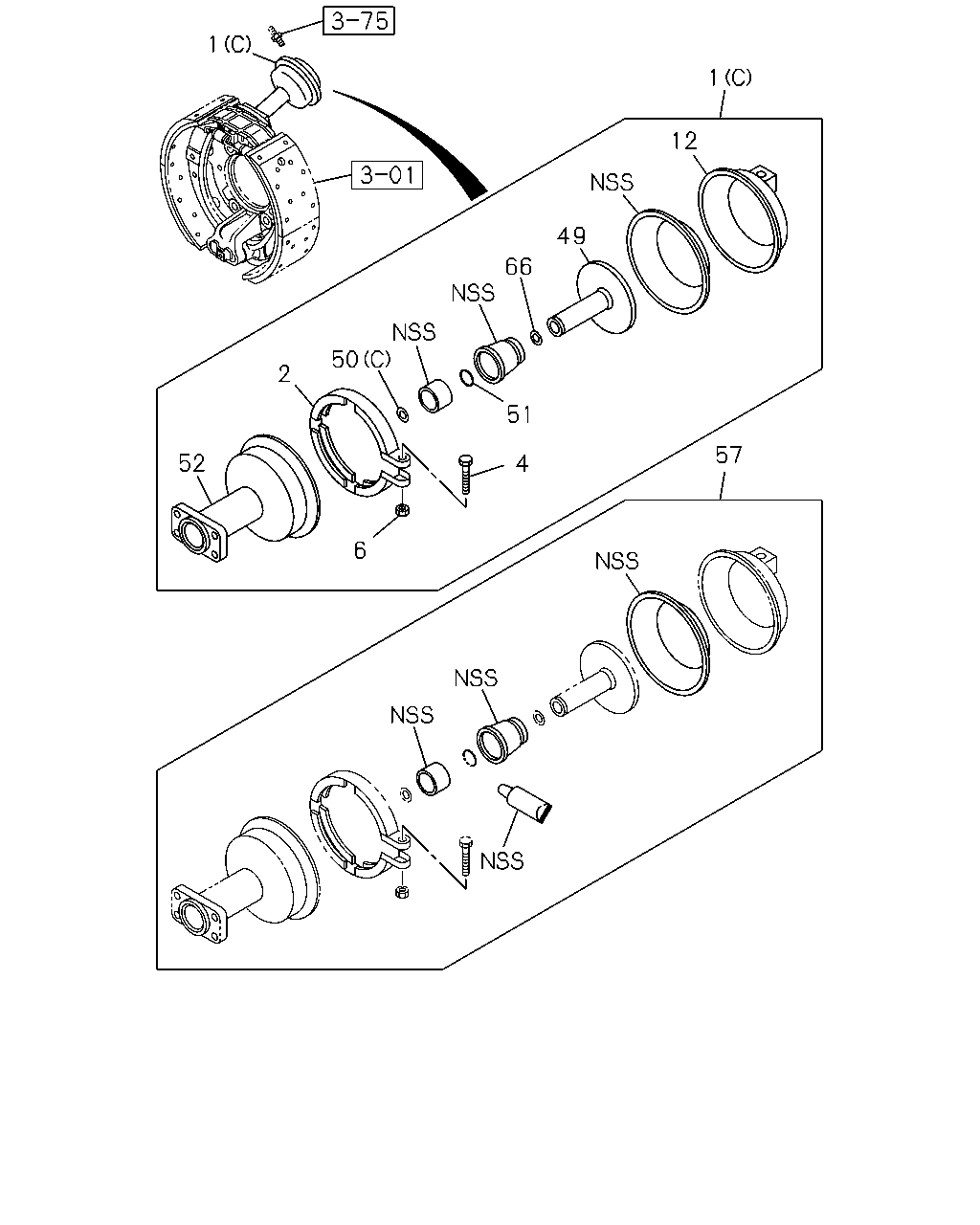

1 1 12 49 66 50 2 51 57 52 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-48250-837-0	02	1	0712-0910	●
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98145-680-1	02	1	0911-	●
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-938-0	02	1	0710-0711	●	●	●
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-938-0	02	1	0712-		●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K> (A)	1-48250-938-0	02	1	0712-	●
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-149-0	02	1	0712-0910	●
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-256-0	02	1	0911-	●
4	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-146-0	04	1	0712-0910	●
4	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-257-0	02	1	0911-	●
6	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-147-0	04	1	0712-0910	●
6	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-147-0	02	1	0911-	●
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-103-0	02	1	0712-	●
49	ROD; PUSH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48263-020-0	02	1	0712-0910	●
49	ROD; PUSH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-969-1	02	1	0911-	●
50	GUIDE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-48269-152-0	02	1	0712-0910	●
50	GUIDE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98146-963-1	02	1	0911-	●
50	GUIDE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-48269-154-0	02	1	0712-0910	●
51	RING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-155-0	02	1	0712-0910	●
51	RING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-966-0	02	1	0911-	●
52	HOUSING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-153-0	02	1	0712-0910	●
52	HOUSING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-195-1	02	1	0911-1403	●
52	HOUSING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98248-793-0	02	1	1404-	●
57	REPAIR KIT; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-85576-326-0	02	1	0712-0910	●
57	REPAIR KIT; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-978-0	02	1	0911-	●
66	SHIM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-965-0	AR	1	0911-	●

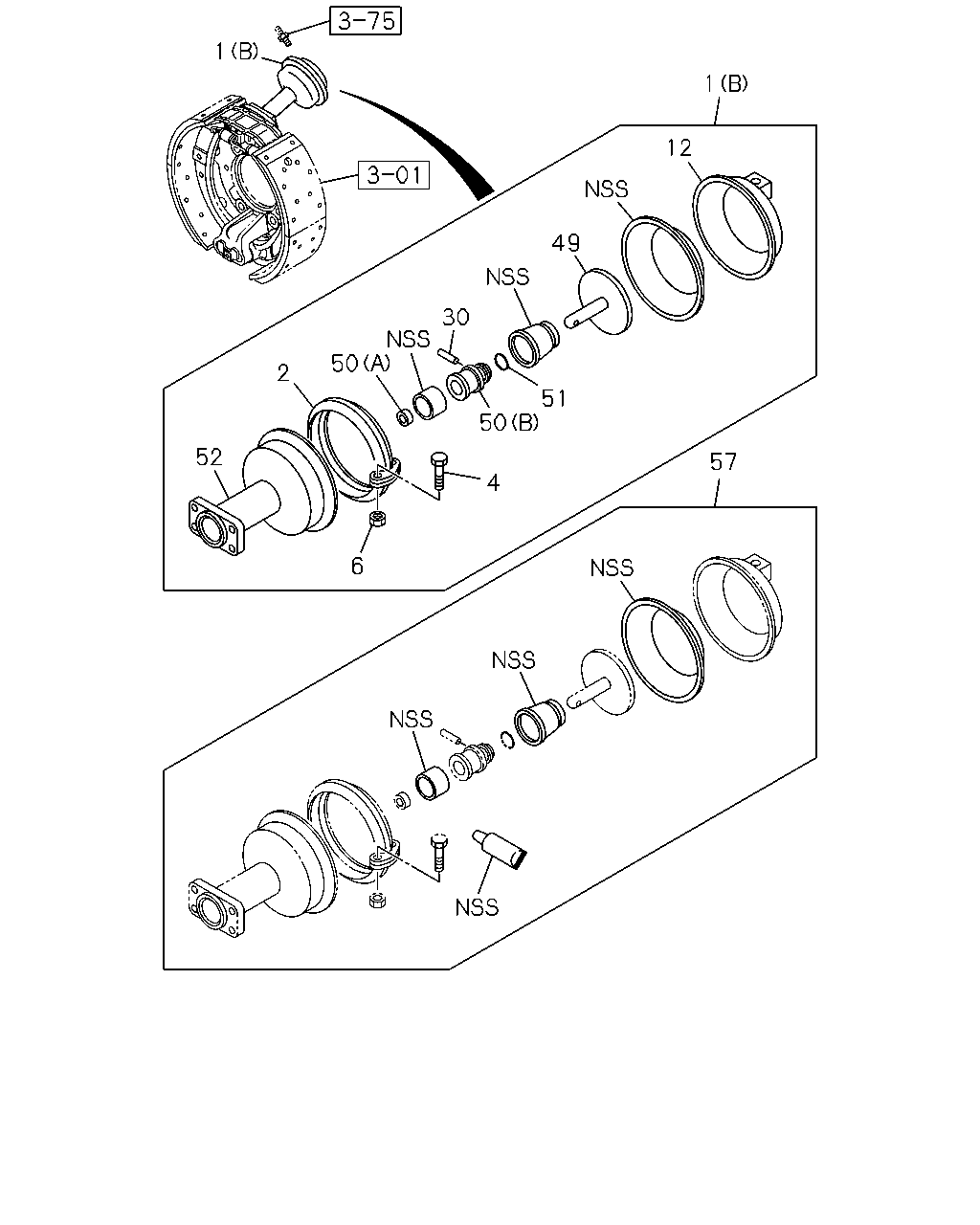

1 1 12 49 30 50 2 51 50 52 57 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-48250-837-0	02	1	0712-0910	●
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98145-680-1	02	1	0911-	●
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-938-0	02	1	0710-0711	●	●	●
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-938-0	02	1	0712-		●	●
1	CHAMBER ASM; POWER,FRT BRK HUB LUBRICATION OIL BATH<C5K> (A)	1-48250-938-0	02	1	0712-	●
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-149-0	02	1	0712-0910	●
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-256-0	02	1	0911-	●
4	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-146-0	04	1	0712-0910	●
4	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-257-0	02	1	0911-	●
6	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-147-0	04	1	0712-0910	●
6	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-147-0	02	1	0911-	●
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-103-0	02	1	0712-	●
30	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-153-0	02	1	0712-0910	●
49	ROD; PUSH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48263-020-0	02	1	0712-0910	●
49	ROD; PUSH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-969-1	02	1	0911-	●
50	GUIDE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-48269-152-0	02	1	0712-0910	●
50	GUIDE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98146-963-1	02	1	0911-	●
50	GUIDE; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-48269-154-0	02	1	0712-0910	●
51	RING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-155-0	02	1	0712-0910	●
51	RING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-966-0	02	1	0911-	●
52	HOUSING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-153-0	02	1	0712-0910	●
52	HOUSING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-195-1	02	1	0911-1403	●
52	HOUSING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98248-793-0	02	1	1404-	●
57	REPAIR KIT; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-85576-326-0	02	1	0712-0910	●
57	REPAIR KIT; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-978-0	02	1	0911-	●
