Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#36548) — 421 parça

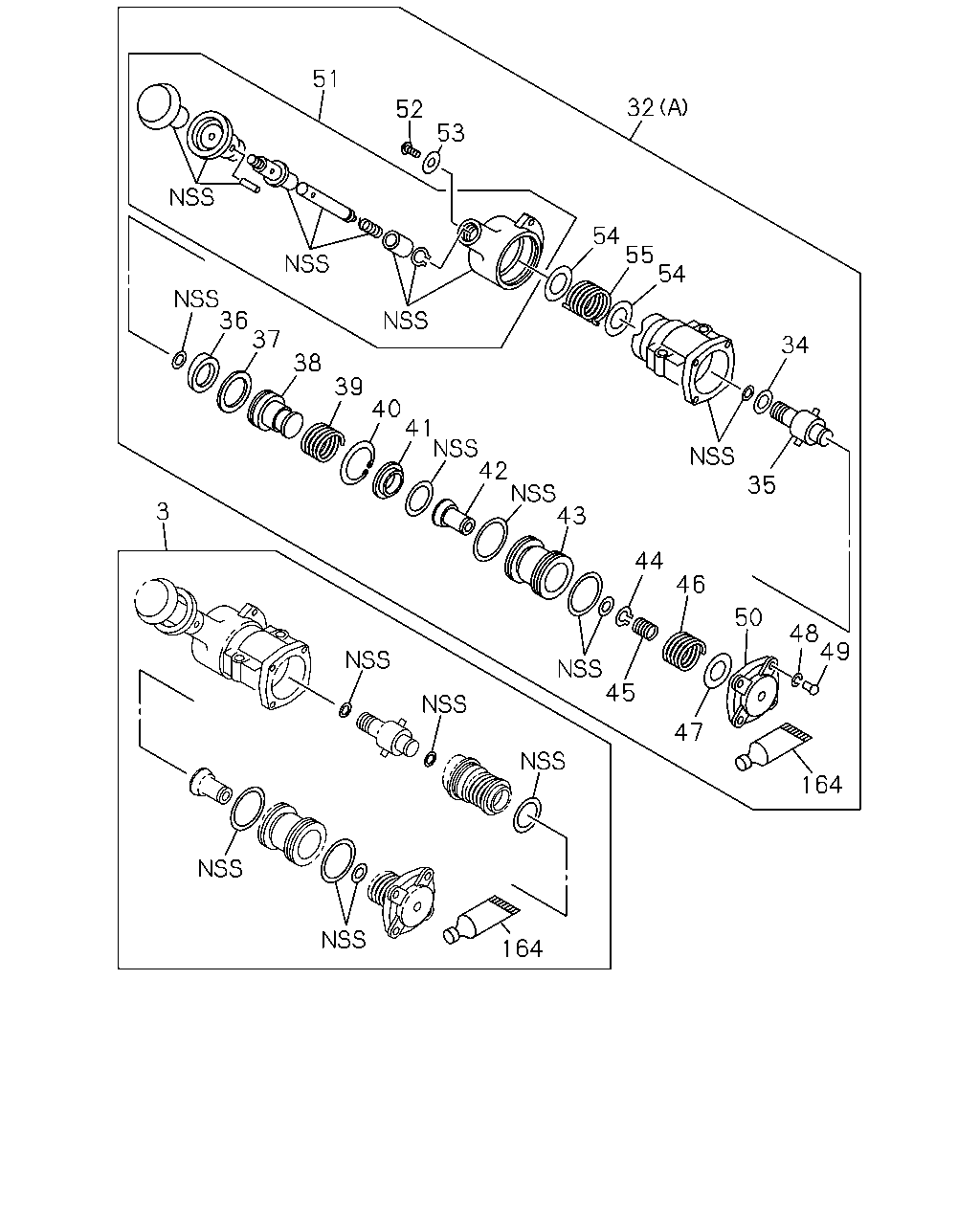

51 32 52 53 54 55 54 36 37 34 38 39 40 41 42 43 35 3 44 46 50 48 49 45 47 164 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	REPAIR KIT; HAND BRK VLV W/GREASE	1-48469-096-0	01	1	0710-0711	●	●	●
3	REPAIR KIT; HAND BRK VLV W/GREASE	1-48469-096-0	01	1	0712-	●		●
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/GREASE	1-48469-096-0	01	1	0712-		●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0710-0711	●	●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0712-0906	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0712-0906		●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0907-	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0907-		●

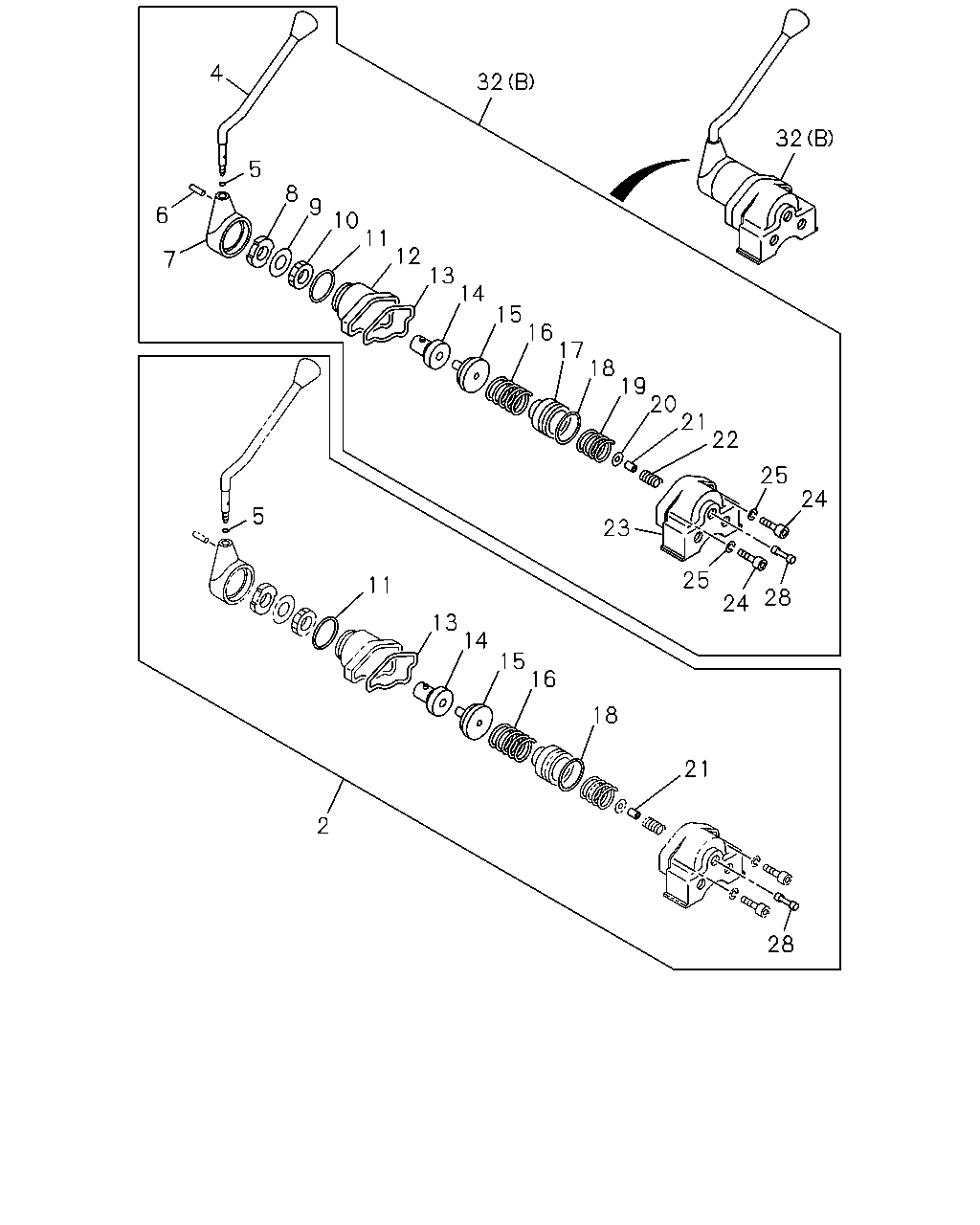

32	VALVE; BRK,HAND CONT (B)	1-48100-674-0	01	1	0710-			●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	0710-			●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0710-0711	●	●	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0712-	●		●
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	0712-		●
35	HOLDER; CAM	1-48469-054-0	01	1	0710-0711	●	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	0712-	●		●
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	0712-		●
36	RING; CAM	1-48469-056-0	01	1	0710-0711	●	●	●
36	RING; CAM	1-48469-056-0	01	1	0712-	●		●
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	0712-		●
37	GUIDE; CAM RING	1-48469-058-0	01	1	0710-0711	●	●	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	0712-	●		●
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	0712-		●
38	SEAT; EXH VLV	1-48469-057-0	01	1	0710-0711	●	●	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	0712-	●		●
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	0712-		●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0710-0711	●	●	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0712-	●		●
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	0712-		●
40	RING; SNAP	1-48469-067-0	01	1	0710-0711	●	●	●
40	RING; SNAP	1-48469-067-0	01	1	0712-	●		●
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	0712-		●
41	SEAT; FEED VLV	1-48469-066-0	01	1	0710-0711	●	●	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	0712-	●		●
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	0712-		●
42	VALVE; FEED	1-48469-065-0	01	1	0710-0711	●	●	●
42	VALVE; FEED	1-48469-065-0	01	1	0712-	●		●
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	0712-		●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0710-0711	●	●	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0712-	●		●
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	0712-		●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0710-0711	●	●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0712-0906	●
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	0712-0906		●
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0907-	●
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	0907-		●
44	RING; SNAP,FEED VLV	1-48469-068-0	01	1	0710-			●
45	SPRING; FEED VLV	1-48469-070-0	01	1	0710-0711	●	●	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	0712-	●		●
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	0712-		●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	0710-0711	●	●	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	0712-	●		●
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	0712-		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0710-0711	●	●	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0712-	●		●
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	0712-		●
48	WASHER; COVER	1-48469-091-0	04	1	0710-0711	●	●
48	WASHER; COVER	1-48469-091-0	04	1	0712-0906	●
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	0712-0906		●
48	WASHER; COVER	1-48469-091-0	04	1	0907-	●
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	0907-		●
49	SCREW; COVER	1-48469-092-0	04	1	0710-0711	●	●
49	SCREW; COVER	1-48469-092-0	04	1	0712-0906	●
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	0712-0906		●
49	SCREW; COVER	1-48469-092-0	04	1	0907-	●
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	0907-		●
49	SCREW; COVER	1-48469-118-0	04	1	0710-			●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	0710-0711	●	●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	0712-0906	●
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	0712-0906		●
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	0907-	●
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	0907-		●
50	COVER; HAND BRK VLV	1-48469-222-0	01	1	0710-			●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	0710-0711	●	●	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	0712-	●		●
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	0712-		●
52	SCREW; HANDLE	1-48469-062-0	01	1	0710-0711	●	●	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0712-	●		●
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	0712-		●
53	WASHER; HANDLE	1-48469-061-0	01	1	0710-0711	●	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0712-	●		●
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	0712-		●
54	SEAT; SPRING	1-48469-082-0	02	1	0710-0711	●	●	●
54	SEAT; SPRING	1-48469-082-0	02	1	0712-	●		●
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	0712-		●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0710-0711	●	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0712-	●		●
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	0712-		●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0710-0711	●	●	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0712-	●		●
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	0712-		●

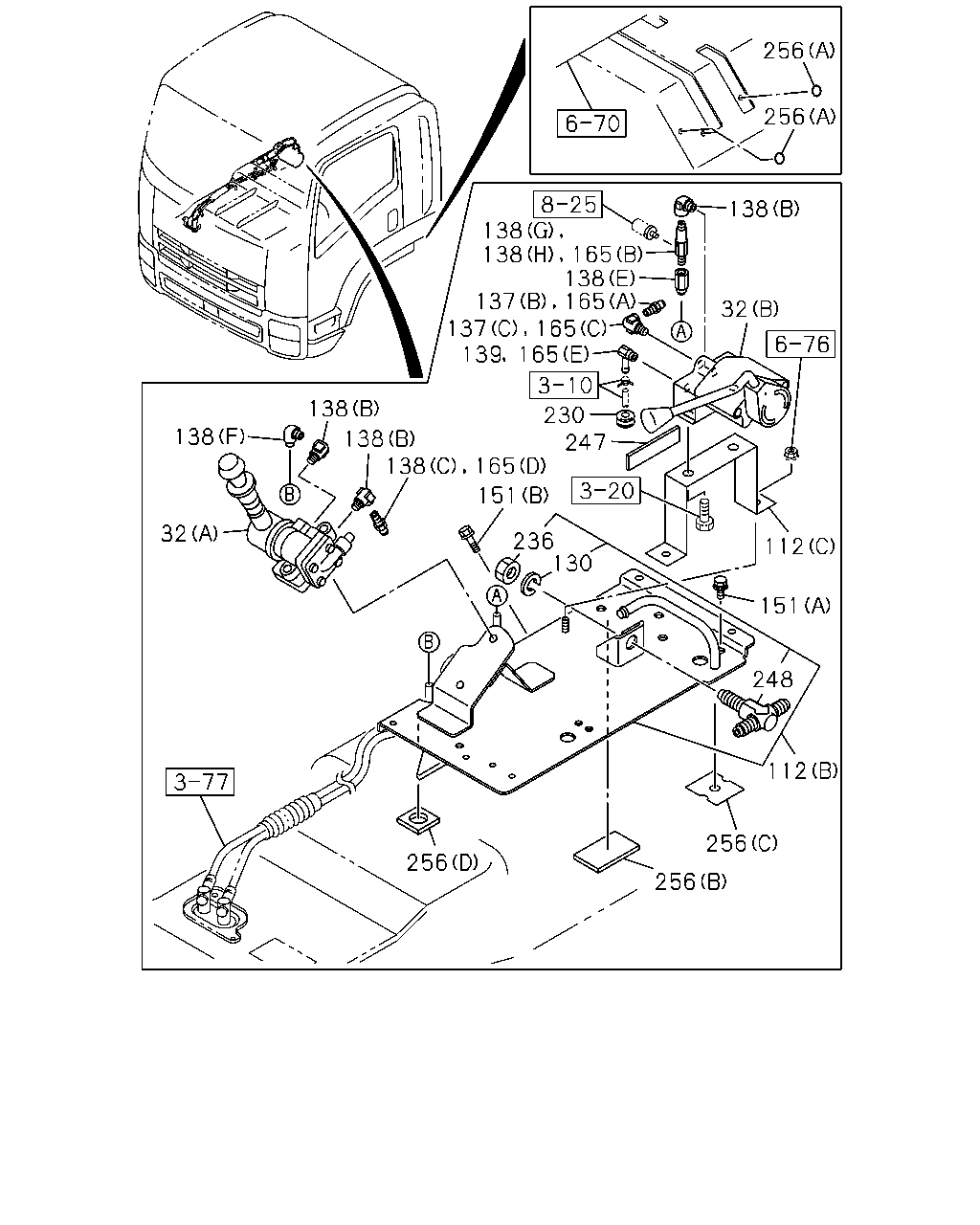

256 256 138 138 138 137 151 32 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0710-0711	●	●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0712-0906	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0712-0906		●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0907-	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0907-		●
32	VALVE; BRK,HAND CONT (B)	1-48100-674-0	01	1	0710-			●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	0710-			●
112	BRACKET; CONT VLV (A)	1-73908-054-7	01	1	0710-0711	●	●
112	BRACKET; CONT VLV (A)	1-73908-054-7	01	1	0712-1110	●
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-73908-054-7	01	1	0712-1110		●
112	BRACKET; CONT VLV (A)	1-73908-054-7	01	1	1111-	●
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-73908-054-7	01	1	1111-		●
112	BRACKET; CONT VLV (C)	1-73908-268-0	01	1	0710-			●
112	BRACKET; CONT VLV (B)	8-97610-416-2	01	1	0710-			●
137	CONNECTOR; SUPPLY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101		●
137	CONNECTOR; SUPPLY (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0710-0801			●
137	CONNECTOR; SUPPLY (B) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	0802-1101			●
137	CONNECTOR; SUPPLY (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0710-1101			●
137	CONNECTOR; SUPPLY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0710-0806			●
137	CONNECTOR; SUPPLY (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0807-1002			●
137	CONNECTOR; SUPPLY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1003-			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0712-0808		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0809-0905		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	1102-1110		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0712-1110		●
138	CONNECTOR; DELIVERY (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0710-0711	●	●
138	CONNECTOR; DELIVERY (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0712-	●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0712-		●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0710-0711	●	●	●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0712-0808	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0712-0808		●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0809-	●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0809-		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0711	●	●	●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-1205	●		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-1205		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-0711			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0712-0808		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0712-0808			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0809-1101		●
138	CONNECTOR; DELIVERY (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0809-1101			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1102-1110		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1102-1110			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1111-			●
138	CONNECTOR; DELIVERY (G) M14	1-09656-391-2	01	1	0710-0808			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0809-0905			●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	03	1	0710-1101			●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1102-			●
138	CONNECTOR; DELIVERY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0710-			●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	04	1	0710-0711	●	●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	04	1	0712-1110	●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	04	1	0712-1110		●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	04	1	1111-	●
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	04	1	1111-		●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	0710-			●
151	BOLT; VLV BRKT (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	0710-			●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	08	1	0710-0711	●	●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	08	1	0712-1110	●
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	08	1	0712-1110		●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	08	1	1111-	●
256	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	08	1	1111-		●
256	SEAL (B)	1-72497-062-1	01	1	0710-			●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	07	1	0710-			●
256	SEAL (C)	1-79996-382-0	01	1	0710-			●
256	SEAL (D)	8-98049-765-0	01	1	0710-			●

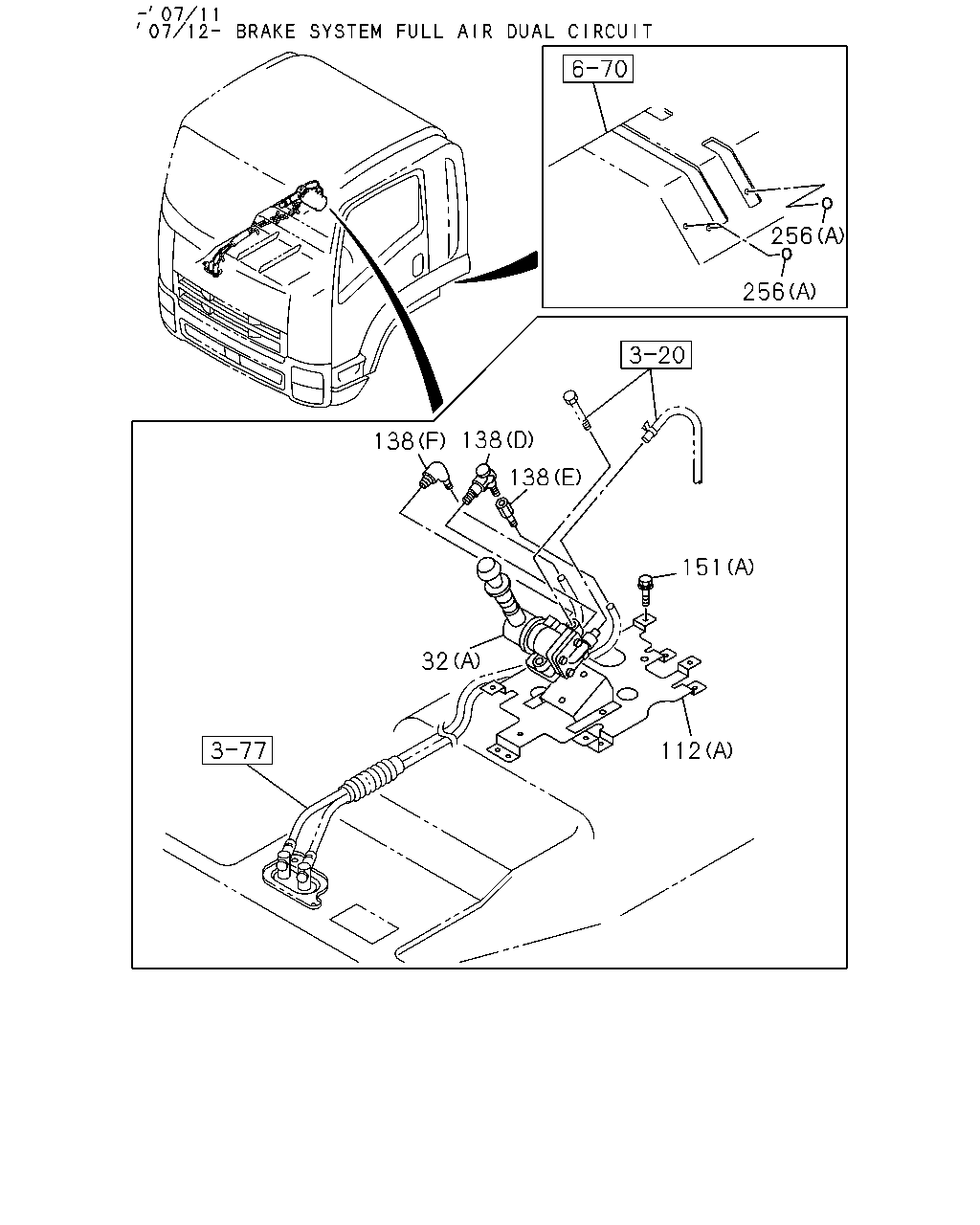

256 256 138 138 138 151 32 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0710-0711	●	●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0712-0906	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0712-0906		●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0907-	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0907-		●
32	VALVE; BRK,HAND CONT (B)	1-48100-674-0	01	1	0710-			●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	0710-			●
112	BRACKET; CONT VLV (A)	1-73908-054-7	01	1	0710-0711	●	●
112	BRACKET; CONT VLV (A)	1-73908-054-7	01	1	0712-1110	●
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-73908-054-7	01	1	0712-1110		●
112	BRACKET; CONT VLV (A)	1-73908-054-7	01	1	1111-	●
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-73908-054-7	01	1	1111-		●
112	BRACKET; CONT VLV (C)	1-73908-268-0	01	1	0710-			●
112	BRACKET; CONT VLV (B)	8-97610-416-2	01	1	0710-			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0712-0808		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0809-0905		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	1102-1110		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0712-1110		●
138	CONNECTOR; DELIVERY (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0710-0711	●	●
138	CONNECTOR; DELIVERY (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0712-	●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0712-		●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0710-0711	●	●	●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0712-0808	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0712-0808		●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0809-	●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0809-		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0711	●	●	●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-1205	●		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-1205		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-0711			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0712-0808		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0712-0808			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0809-1101		●
138	CONNECTOR; DELIVERY (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0809-1101			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1102-1110		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1102-1110			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1111-			●
138	CONNECTOR; DELIVERY (G) M14	1-09656-391-2	01	1	0710-0808			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0809-0905			●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	03	1	0710-1101			●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1102-			●
138	CONNECTOR; DELIVERY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0710-			●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	04	1	0710-0711	●	●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	04	1	0712-1110	●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	04	1	0712-1110		●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	04	1	1111-	●
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	04	1	1111-		●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	0710-			●
151	BOLT; VLV BRKT (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	0710-			●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	08	1	0710-0711	●	●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	08	1	0712-1110	●
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	08	1	0712-1110		●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	08	1	1111-	●
256	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	08	1	1111-		●
256	SEAL (B)	1-72497-062-1	01	1	0710-			●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	07	1	0710-			●
256	SEAL (C)	1-79996-382-0	01	1	0710-			●
256	SEAL (D)	8-98049-765-0	01	1	0710-			●

123 123 123 123 68 122 88 88 143 258 88 233 143 143 143 129 106 129 106 65 143 143 143 65 233 115 137 137 14 137 115 215 138 138 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

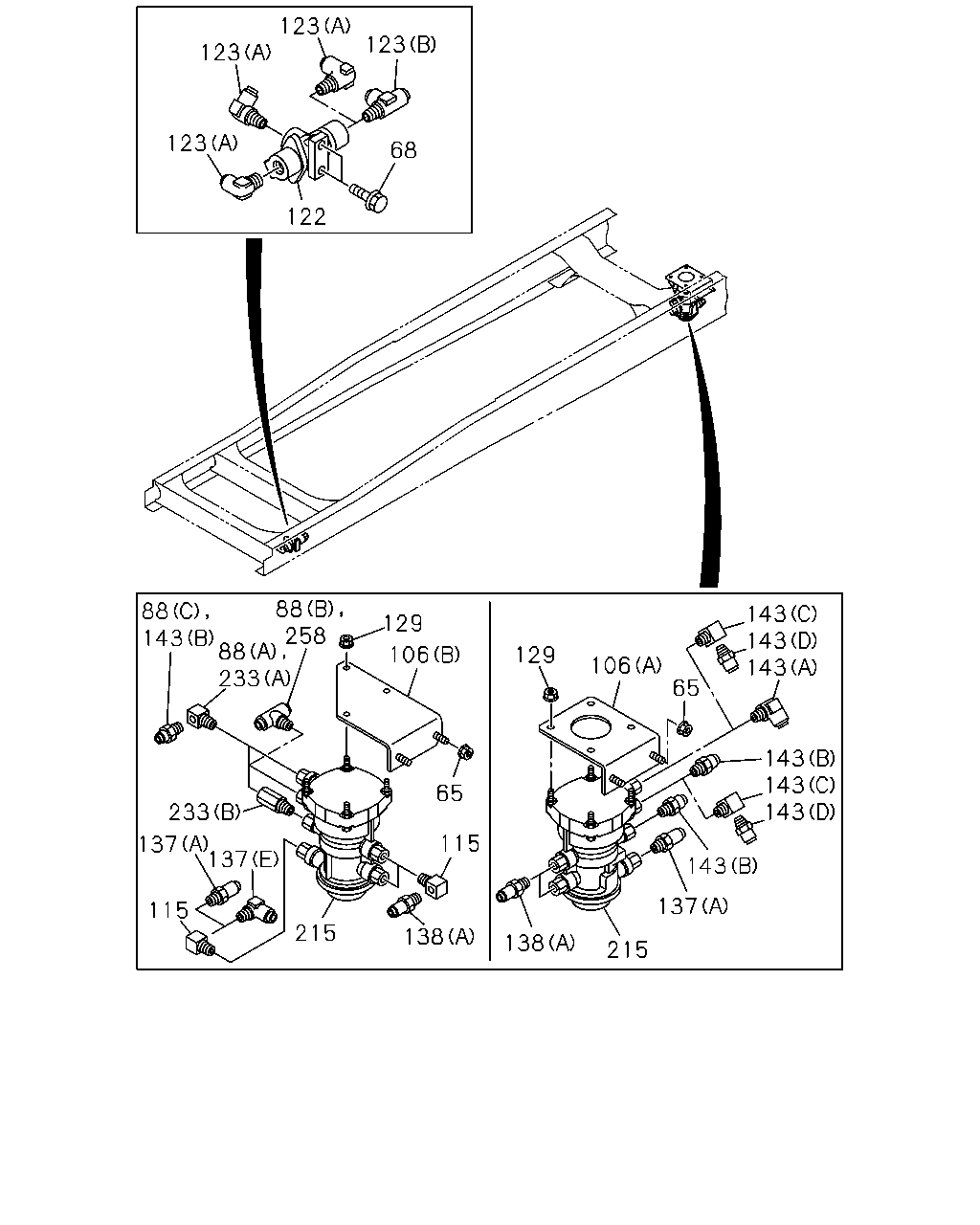

14	FOLLOWER; CAM	1-48129-109-0	01	1	0710-			●
65	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	04	1	0710-0712			●
65	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0801-			●
68	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28050-820-0	02	1	0710-			●
88	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1003-			●
88	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	1003-			●
88	CONNECTOR; ELBOW EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY	1-09660-996-0	02	1	1003-			●
88	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> (A) PT3/8 ELBOW	1-09660-696-0	03	1	0807-1002			●
88	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	1003-			●
88	CONNECTOR; ELBOW EXC. H.S.A SYSTEM<6EP> (A) PT3/8 ELBOW	1-09660-696-0	02	1	0807-1002			●
88	CONNECTOR; ELBOW EXC. H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1003-			●
106	BRACKET; VLV (A)	1-48495-168-0	01	1	0710-0806			●
106	BRACKET; VLV (B)	8-98110-679-1	01	1	0807-			●
115	CONNECTOR; DUAL RELAY VLV PT3/8 ELBOW	1-09660-696-0	03	1	0807-1002			●
115	CONNECTOR; DUAL RELAY VLV PT3/8 ELBOW	1-09660-696-0	02	1	1003-			●
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	0710-			●
123	CONNECTOR; DBL CHECK VLV EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0801-			●
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-0712			●
123	CONNECTOR; DBL CHECK VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0801-			●
123	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0710-0712			●
123	CONNECTOR; DBL CHECK VLV EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0801-			●
129	NUT; VLV M8 FLANGE	0-91180-108-0	04	1	0710-0806			●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0807-			●
137	CONNECTOR; SUPPLY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101		●
137	CONNECTOR; SUPPLY (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0710-0801			●
137	CONNECTOR; SUPPLY (B) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	0802-1101			●
137	CONNECTOR; SUPPLY (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0710-1101			●
137	CONNECTOR; SUPPLY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0710-0806			●
137	CONNECTOR; SUPPLY (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0807-1002			●
137	CONNECTOR; SUPPLY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1003-			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0712-0808		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0809-0905		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	1102-1110		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0712-1110		●
138	CONNECTOR; DELIVERY (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0710-0711	●	●
138	CONNECTOR; DELIVERY (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0712-	●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0712-		●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0710-0711	●	●	●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0712-0808	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0712-0808		●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0809-	●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0809-		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0711	●	●	●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-1205	●		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-1205		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-0711			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0712-0808		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0712-0808			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0809-1101		●
138	CONNECTOR; DELIVERY (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0809-1101			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1102-1110		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1102-1110			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1111-			●
138	CONNECTOR; DELIVERY (G) M14	1-09656-391-2	01	1	0710-0808			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0809-0905			●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	03	1	0710-1101			●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1102-			●
138	CONNECTOR; DELIVERY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0710-			●
143	CONNECTOR; CONT (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0801-0806			●
143	CONNECTOR; CONT EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0807-1002			●
143	CONNECTOR; CONT (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-0712			●
143	CONNECTOR; CONT (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-0806			●
143	CONNECTOR; CONT (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0710-0712			●
143	CONNECTOR; CONT (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-0806			●
143	CONNECTOR; CONT H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0807-1002			●
215	VALVE; TRAILER CONT	1-48240-045-1	01	1	0710-			●
233	ADAPTER; VLV H.S.A SYSTEM<6EP> (A) PT3/8 ELBOW	1-09660-696-0	02	1	1003-			●
233	ADAPTER; VLV (B) PT3/8	1-09664-210-0	01	1	1003-			●
233	ADAPTER; VLV EXC. H.S.A SYSTEM<6EP> (A) PT3/8 ELBOW	1-09660-696-0	01	1	1003-			●
258	CONNECTOR; 3 WAY EXC. H.S.A SYSTEM<6EP> DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0807-1002			●

256 256 138 138 165 138 137 165 137 165 138 32 138 230 247 138 138 138 165 151 32 236 130 112 151 248 112 256 256 256 139 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

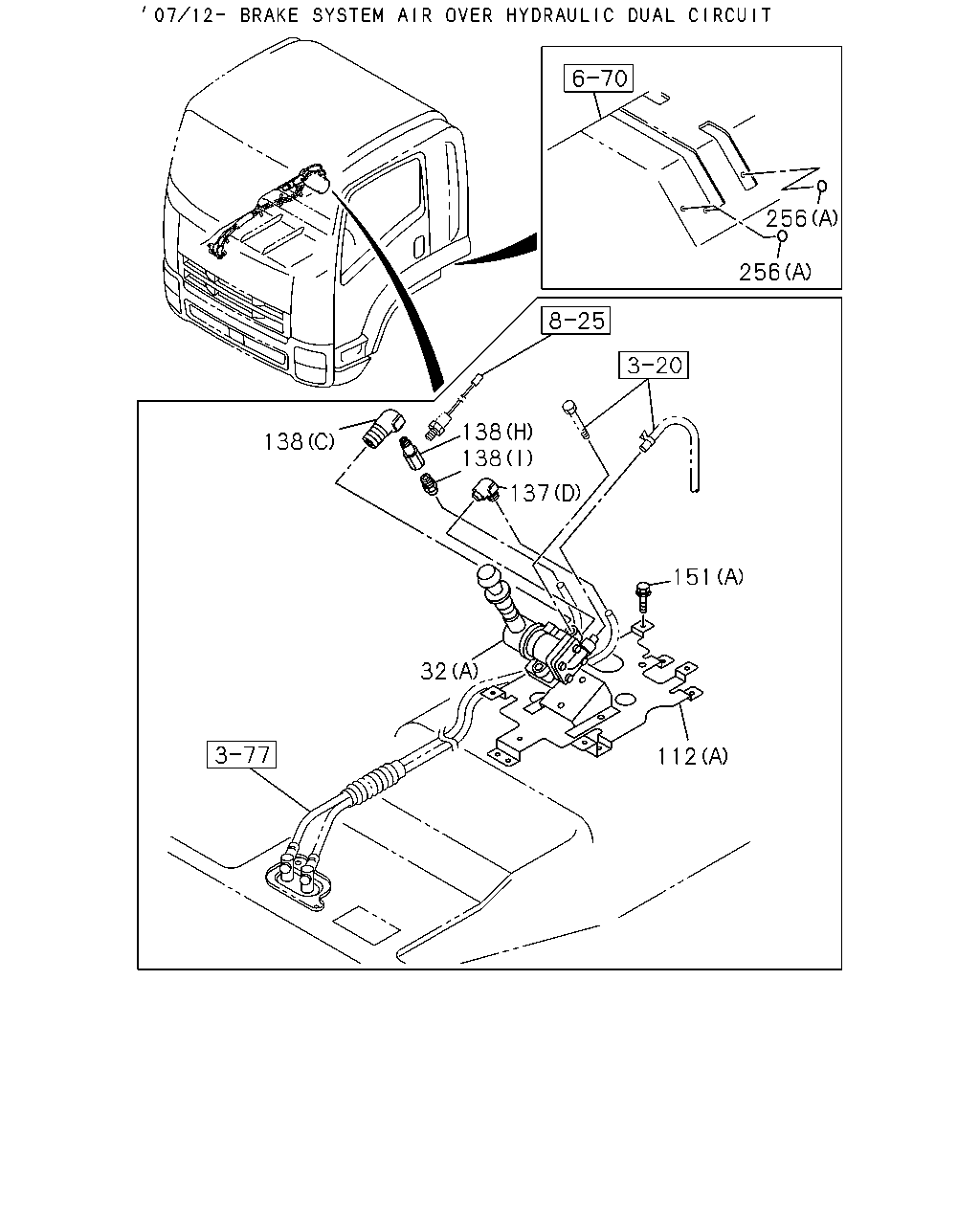

32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0710-0711	●	●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0712-0906	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0712-0906		●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0907-	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0907-		●
32	VALVE; BRK,HAND CONT (B)	1-48100-674-0	01	1	0710-			●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	0710-			●
112	BRACKET; CONT VLV (A)	1-73908-054-7	01	1	0710-0711	●	●
112	BRACKET; CONT VLV (A)	1-73908-054-7	01	1	0712-1110	●
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-73908-054-7	01	1	0712-1110		●
112	BRACKET; CONT VLV (A)	1-73908-054-7	01	1	1111-	●
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-73908-054-7	01	1	1111-		●
112	BRACKET; CONT VLV (C)	1-73908-268-0	01	1	0710-			●
112	BRACKET; CONT VLV (B)	8-97610-416-2	01	1	0710-			●
130	WASHER; LK,VLV ID=16.2	0-91510-816-0	01	1	0807-			●
137	CONNECTOR; SUPPLY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101		●
137	CONNECTOR; SUPPLY (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0710-0801			●
137	CONNECTOR; SUPPLY (B) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	0802-1101			●
137	CONNECTOR; SUPPLY (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0710-1101			●
137	CONNECTOR; SUPPLY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0710-0806			●
137	CONNECTOR; SUPPLY (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0807-1002			●
137	CONNECTOR; SUPPLY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1003-			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0712-0808		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0809-0905		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1101			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	1102-1110		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0712-1110		●
138	CONNECTOR; DELIVERY (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0710-0711	●	●
138	CONNECTOR; DELIVERY (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0712-	●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	0712-		●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0710-0711	●	●	●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0712-0808	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0712-0808		●
138	CONNECTOR; DELIVERY (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0809-	●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0809-		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0711	●	●	●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0712-1101		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-1205	●		●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-1205		●
138	CONNECTOR; DELIVERY (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-	●		●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-0711			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0712-0808		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0712-0808			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0809-1101		●
138	CONNECTOR; DELIVERY (H) PT1/4X3 3WAY	1-09660-335-1	01	1	0809-1101			●
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1102-1110		●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1102-1110			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1111-			●
138	CONNECTOR; DELIVERY (G) M14	1-09656-391-2	01	1	0710-0808			●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0809-0905			●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	03	1	0710-1101			●
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1102-			●
138	CONNECTOR; DELIVERY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0710-			●
139	CONNECTOR; EXH	8-97062-077-1	01	1	0710-1101			●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	04	1	0710-0711	●	●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	04	1	0712-1110	●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	04	1	0712-1110		●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	04	1	1111-	●
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	04	1	1111-		●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	0710-			●
151	BOLT; VLV BRKT (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	0710-			●
165	CONNECTOR; HAND BRK VLV (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1102-			●
165	CONNECTOR; HAND BRK VLV (B) PT1/4X3 3WAY	1-09660-335-1	01	1	1102-			●
165	CONNECTOR; HAND BRK VLV (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1102-			●
165	CONNECTOR; HAND BRK VLV (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1102-			●
165	CONNECTOR; HAND BRK VLV (E)	8-97062-077-1	01	1	1102-			●
230	GROMMET; EXH OD=24	9-61166-007-0	01	1	0710-1101			●
236	NUT M16	0-91111-516-0	01	1	0807-			●
247	SEAL; HOSE 100X40	1-72498-022-1	01	1	0710-			●
248	UNION M16 3WAY	0-92148-610-0	01	1	0802-			●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	08	1	0710-0711	●	●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	08	1	0712-1110	●
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	08	1	0712-1110		●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	08	1	1111-	●
256	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	08	1	1111-		●
256	SEAL (B)	1-72497-062-1	01	1	0710-			●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	07	1	0710-			●
256	SEAL (C)	1-79996-382-0	01	1	0710-			●
256	SEAL (D)	8-98049-765-0	01	1	0710-			●

4 32 32 5 8 9 6 10 11 12 7 13 14 15 16 17 18 19 20 21 22 25 24 5 23 25 11 28 24 13 14 15 16 18 21 2 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	REPAIR KIT; HAND BRK VLV	1-85576-180-0	01	1	0710-			●
4	HANDLE ASM; BRK VLV	1-48119-144-0	01	1	0710-			●
5	GASKET; HANDLE	1-48119-128-0	01	1	0710-			●
6	PIN; SPR	1-48119-143-0	01	1	0710-			●
7	HEAD; BRK VLV	1-48119-131-1	01	1	0710-			●
8	STOPPER; BRK VLV	1-48119-136-0	01	1	0710-			●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0710-			●
10	RING; ADJ	1-48119-122-0	01	1	0710-			●
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0710-			●
12	COVER; BRK VLV	1-48129-097-1	01	1	0710-			●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0710-			●
14	FOLLOWER; CAM	1-48129-109-0	01	1	0710-			●
15	CAM; FOLLOWER	1-48129-110-0	01	1	0710-			●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0710-			●
17	PISTON; SPR	1-48129-095-0	01	1	0710-			●
18	GASKET; BODY	1-48129-096-0	01	1	0710-			●
19	SPRING; PISTON	1-48129-094-0	01	1	0710-			●
20	GUIDE; VLV	1-48129-090-0	01	1	0710-			●
21	VALVE; IN & EXH	1-48121-017-0	01	1	0710-			●
22	SPRING; VLV	1-48123-024-0	01	1	0710-			●
23	BODY; BRK VLV	1-48111-060-1	01	1	0710-			●
24	BOLT; EXH VLV	1-48129-092-0	02	1	0710-			●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0710-			●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0710-			●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0710-0711	●	●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0712-0906	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0712-0906		●
32	VALVE; BRK,HAND CONT (A)	1-48460-306-0	01	1	0907-	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0907-		●
32	VALVE; BRK,HAND CONT (B)	1-48100-674-0	01	1	0710-			●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	0710-			●

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	0710-			●

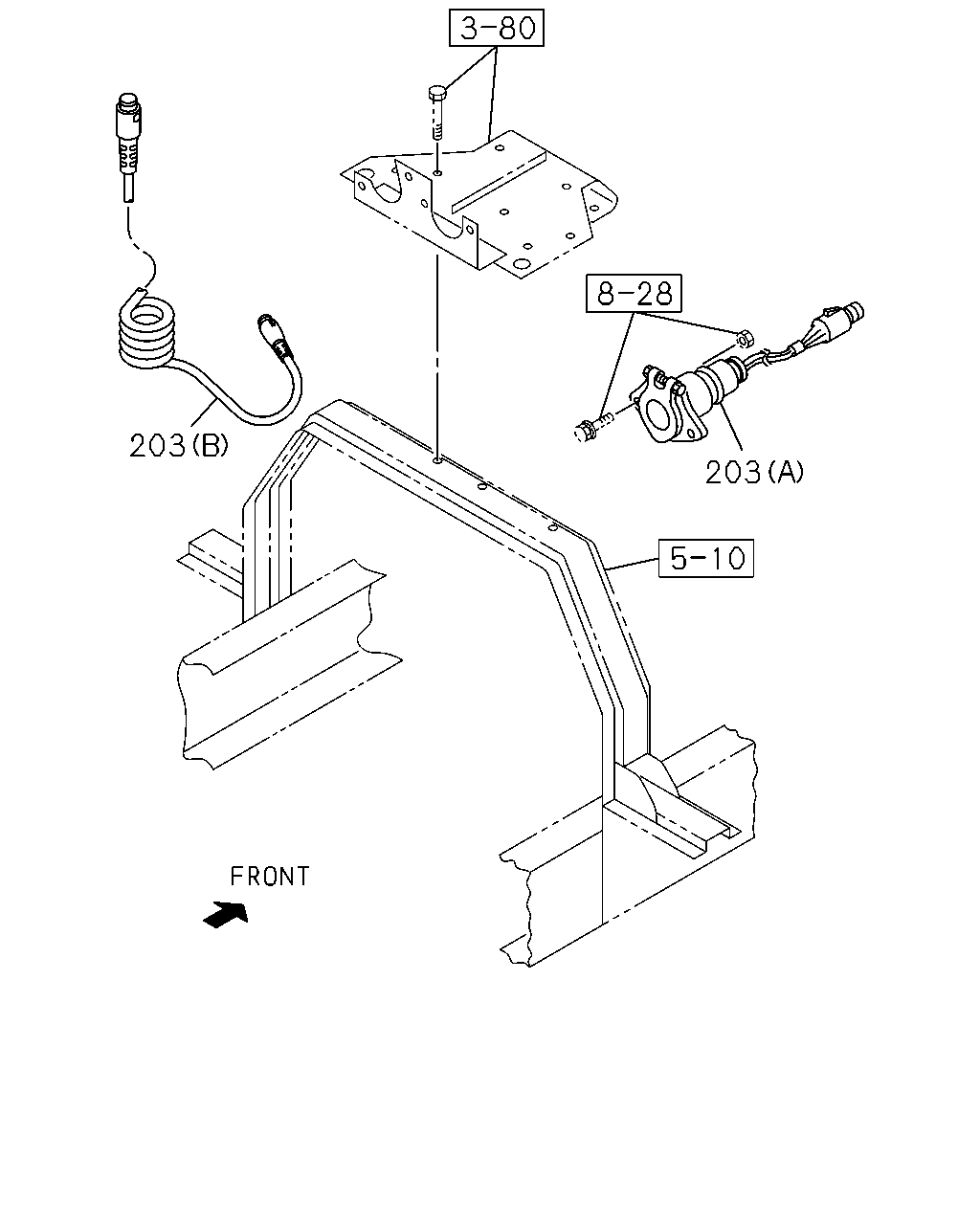

203 203

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	203	CABLE; JUMPER (B)	8-98105-162-1	01	1	0712-			●
	203	CABLE; JUMPER (A) 7P	1-82523-014-0	01	1	0710-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
