◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#36545) — 78 parça
çizim 179633
97
BalonParca AdiParca NoAdetTipApplied Date A B
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 0712- ●
97 GROMMET; PARKING BRK CABLE
(A) 		8-98029-219-1 01 1 0710-0711 ● ●
97 GROMMET; PARKING BRK CABLE
(A) 		8-98029-219-1 01 1 0712- ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 0712- ●

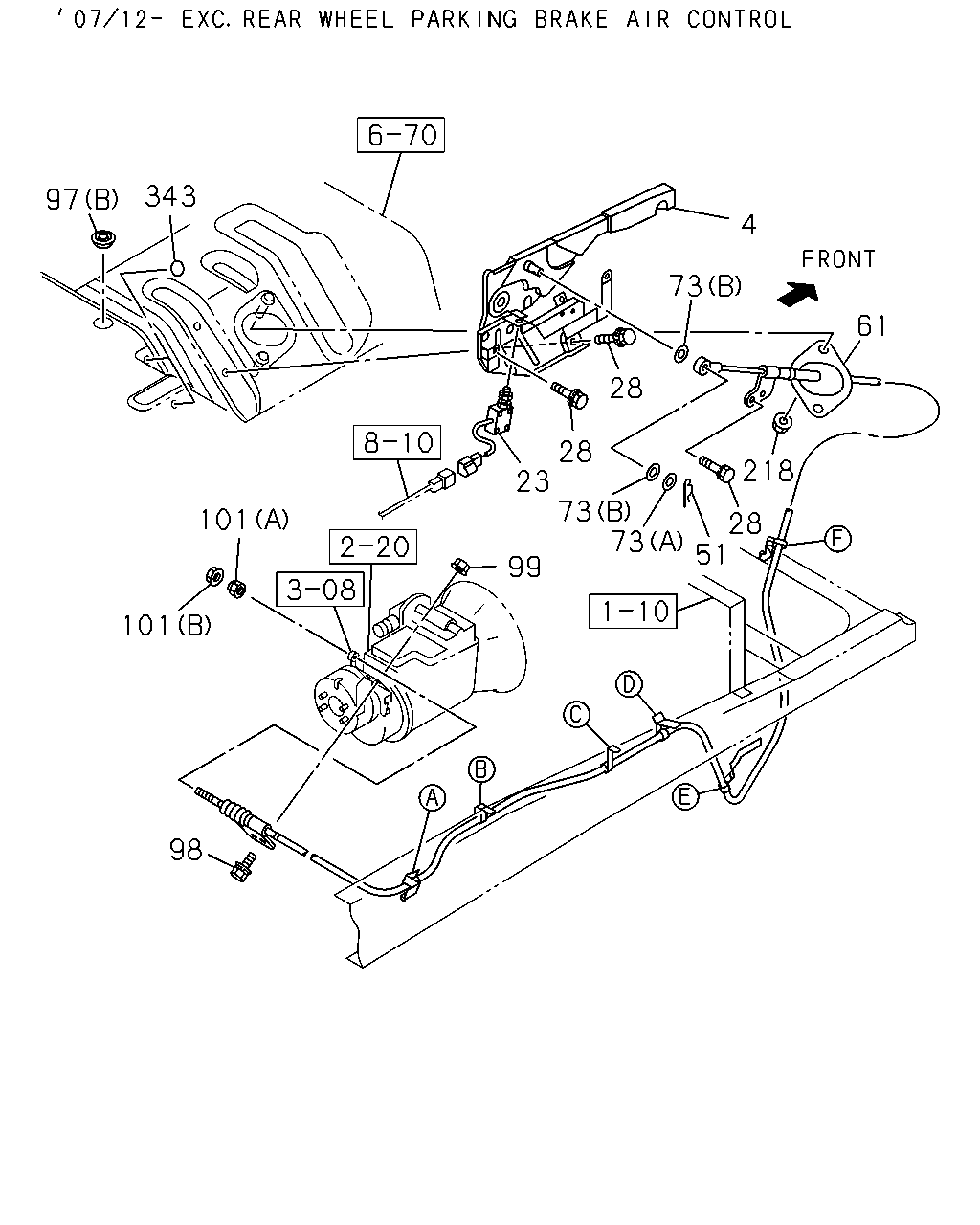

çizim 179879
343 97 4 73 61 28 28 23 73 73 218 101 28 51 99 101 98
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-549-0 01 1 0712- ●
23 SWITCH; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 0712- ●
28 BOLT; HAND BRK LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0712-0904 ●
28 BOLT; HAND BRK LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 0712- ●
61 CABLE; PARKING BRK
FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4695 		8-98106-063-2 01 1 0712-0803 ●
61 CABLE; PARKING BRK
MZX6P M/T(RSW) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4695 		8-98106-063-5 01 1 0804-0906 ●
61 CABLE; PARKING BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4695 		8-98106-063-5 01 1 0907- ●
61 CABLE; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> L=4695 		8-98106-062-2 01 1 0712-0803 ●
61 CABLE; PARKING BRK
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> L=4695 		8-98106-062-5 01 1 0804-0906 ●
61 CABLE; PARKING BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> L=4695 		8-98106-062-5 01 1 0907- ●
61 CABLE; PARKING BRK
MLD6W M/T(Y2C) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4581 		8-98119-720-3 01 1 0806- ●
61 CABLE; PARKING BRK
MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=4501 		8-98119-719-3 01 1 0806- ●
61 CABLE; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4884 		8-98064-884-4 01 1 0712-0712 ●
61 CABLE; PARKING BRK
FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4775 		8-98106-064-2 01 1 0712-0803 ●
61 CABLE; PARKING BRK
MZX6P M/T(RSW) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4775 		8-98106-064-5 01 1 0804-0906 ●
61 CABLE; PARKING BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4775 		8-98106-064-5 01 1 0907- ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4809 		8-98060-166-4 01 1 0712-0712 ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=4615 		8-98106-061-2 01 1 0712-0803 ●
61 CABLE; PARKING BRK
MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=4615 		8-98106-061-5 01 1 0804-0906 ●
61 CABLE; PARKING BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=4615 		8-98106-061-5 01 1 0907- ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30 		0-91610-516-0 01 1 0712- ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19 		8-94206-429-1 02 1 0712- ●
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 0712- ●
97 GROMMET; PARKING BRK CABLE
(A) 		8-98029-219-1 01 1 0710-0711 ● ●
97 GROMMET; PARKING BRK CABLE
(A) 		8-98029-219-1 01 1 0712- ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 0712- ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0712- ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 		1-46259-007-0 01 1 0712- ●
218 NUT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 04 1 0712- ●

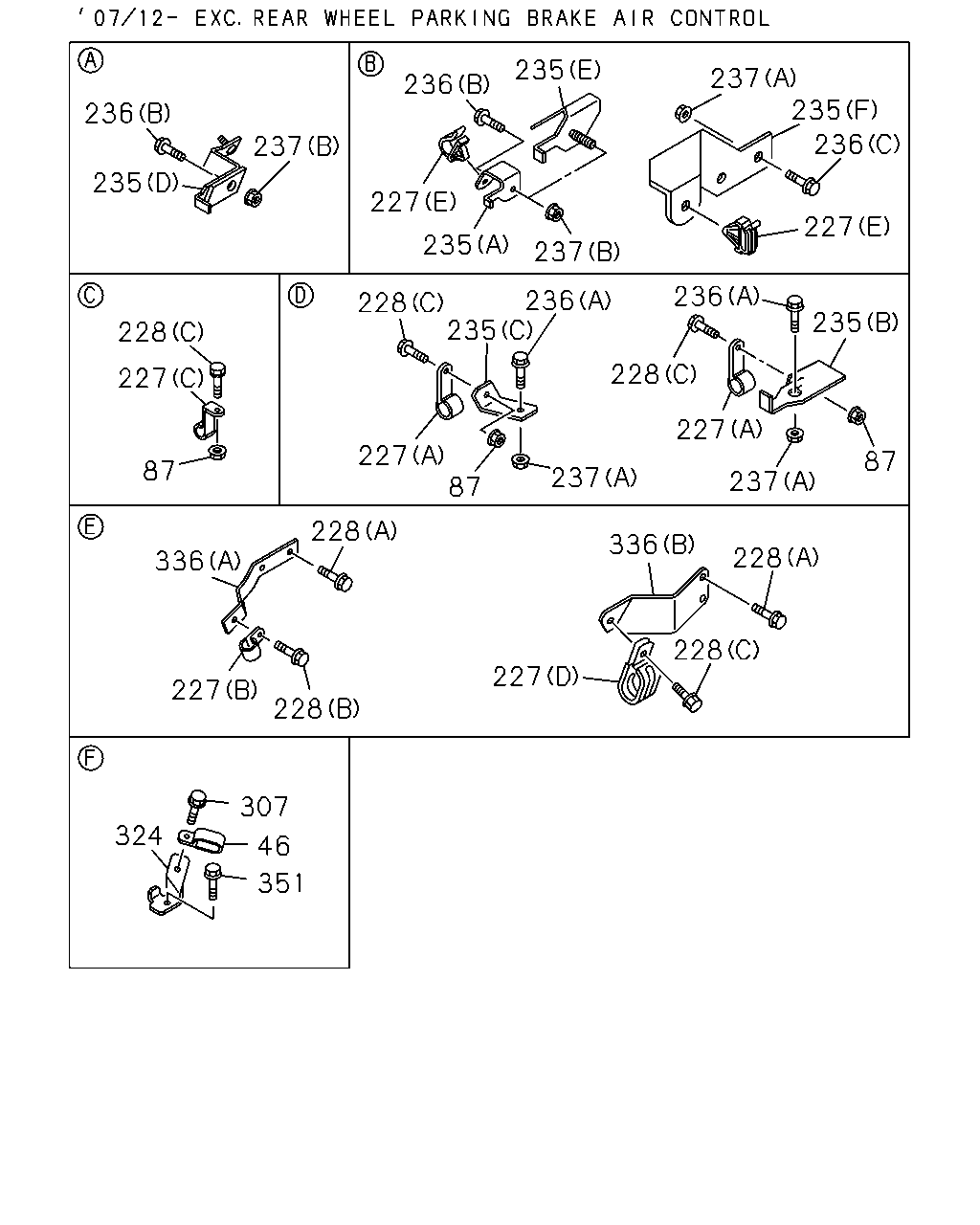

çizim 179900
235 237 235 236 236 236 237 235 227 227 235 237 236 228 236 235 235 228 228 227 227 227 87 87 87 237 237 228 336 228 336 228 227 227 228 307 324 46 351
BalonParca AdiParca NoAdetTipApplied Date A B
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 01 1 0712- ●
87 NUT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
227 CLIP; RAD
FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=14.5 L=40 		1-09701-014-0 01 1 0712- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5 		5-09709-020-0 02 1 0712- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) ID=13 L=20 		0-95235-235-0 01 1 0712-0712 ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 01 1 0712- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) ID=13 L=20 		0-95235-235-0 01 1 0712- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 0712-0801 ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=25 H=60 L=35 		1-09701-103-0 01 1 0802- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=12 L=70 		1-09700-097-1 01 1 0712-0805 ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14.5 L=40 		8-98119-885-0 01 1 0806- ●
228 BOLT; CLIP RAD MTG
FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0712- ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-82699-199-0 01 1 0712- ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98100-151-0 01 1 0712-0807 ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		8-98126-934-0 01 1 0808-1111 ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98100-153-0 01 1 0712-1111 ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) 		8-98100-152-0 01 1 1112- ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98077-903-1 01 1 0712-0803 ●
235 BRACKET; CONT CABLE TO FRAME
MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98077-903-2 01 1 0804-0906 ●
235 BRACKET; CONT CABLE TO FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98077-903-2 01 1 0907- ●
235 BRACKET; CONT CABLE TO FRAME
MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98111-492-0 01 1 0806- ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1112- ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0712-1111 ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1112- ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0807 ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0808-1504 ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28051-030-0 01 1 1505- ●
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-1111 ●
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE 		0-91180-108-0 02 1 1112- ●
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 02 1 0712-0712 ●
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 01 1 0712-0807 ●
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 02 1 0808-1111 ●
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 01 1 1112- ●
307 BOLT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 01 1 0712- ●
324 BRACKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-482-1 01 1 0712- ●
336 BRACKET; RADIATOR
FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98105-405-0 01 1 0712- ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A) 		8-98044-680-0 01 1 0712- ●
351 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 03 1 0712- ●
