Sayfa 3-05 - Isuzu EPC

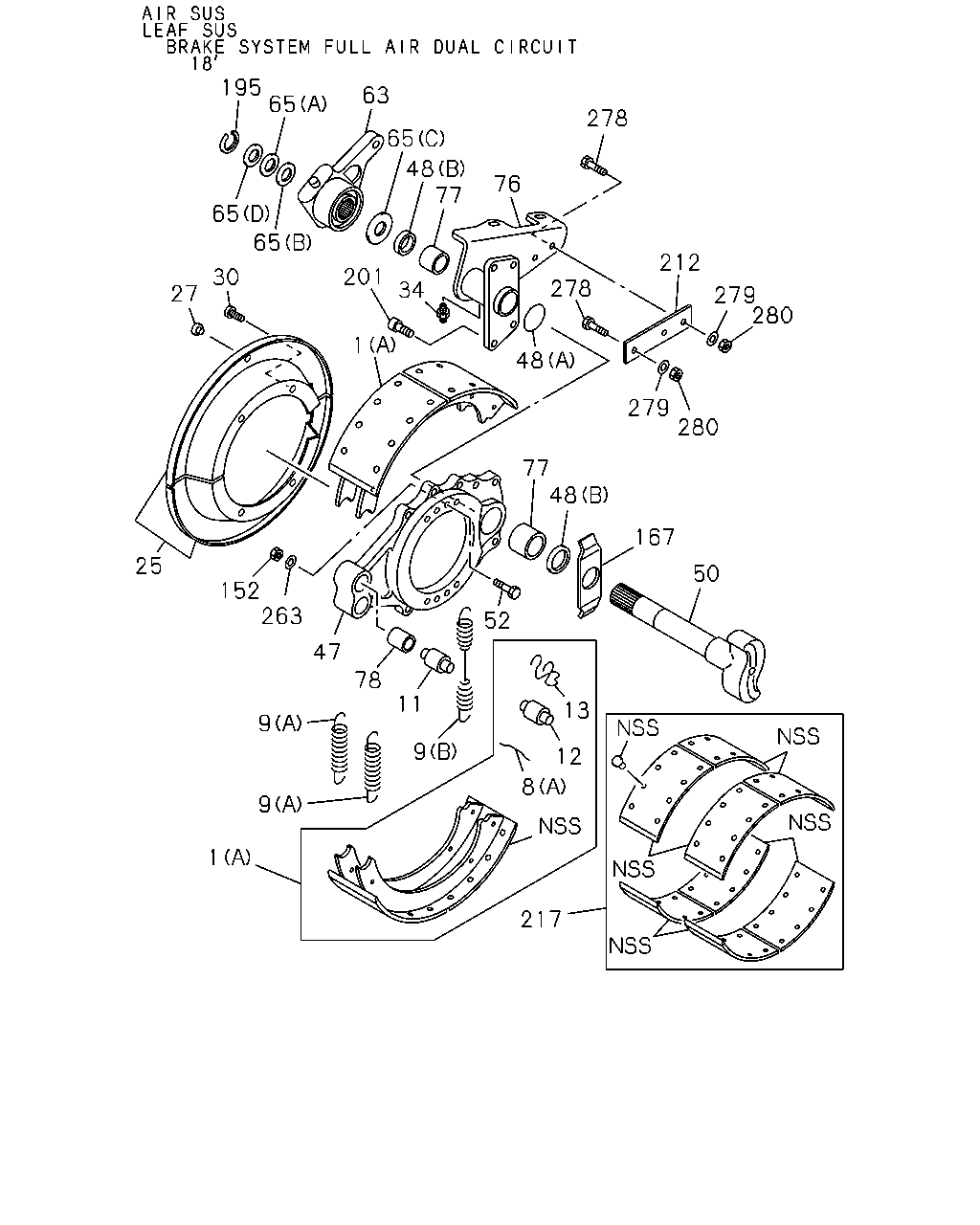

3-05 — REAR WHEEL BRAKE (#36541) — 709 parça

278 212 280 279 280 279 278 48 76 77 48 65 63 65 195 18 65 65 30 27 201 34 1 167 48 77 50 217 8 12 13 52 11 9 78 47 263 152 25 9 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47170-442-0	04	1	0906-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-504-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-504-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-506-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-506-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-505-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-505-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-507-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-507-0	01	1	0805-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47170-520-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47170-520-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47170-522-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47170-522-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47170-521-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47170-521-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47170-523-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47170-523-0	01	1	0906-	●
1	SHOE; BRK,RR (A)	1-47120-734-0	04	1	0710-0711	●	●	●
1	SHOE; BRK,RR (A)	1-47120-734-0	04	1	0712-		●	●
1	SHOE; BRK,RR FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47120-734-0	04	1	0712-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (E)	1-09744-051-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-175-0	04	1	0712-0804	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-175-0	04	1	0805-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47119-135-0	02	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47119-135-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47119-136-0	02	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47119-136-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-116-0	04	1	0710-0711	●	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-116-0	04	1	0712-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-116-0	04	1	0712-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (E)	1-09583-175-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (F)	1-09583-210-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	0712-0804	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	0805-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-361-0	04	1	0712-0905	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-361-0	04	1	0906-	●
9	SPRING; RETURN,BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-47119-114-0	04	1	0712-		●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-114-0	04	1	0712-	●
9	SPRING; RETURN,BRK SHOE (B)	1-47119-115-0	02	1	0710-0711	●	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-47119-115-0	02	1	0712-		●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-115-0	02	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0712-0804	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0805-	●
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=121.5	1-47131-039-0	04	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-040-0	04	1	0710-0711	●	●	●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-040-0	04	1	0712-		●	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47131-040-0	04	1	0712-	●
12	ROLLER; CAM,BRK SHOE	1-47119-141-0	04	1	0710-0711	●	●	●
12	ROLLER; CAM,BRK SHOE	1-47119-141-0	04	1	0712-		●	●
12	ROLLER; CAM,BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-141-0	04	1	0712-	●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	04	1	0710-0711	●	●	●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	04	1	0712-		●	●
13	CLIP; ROLLER PIN,BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-118-0	04	1	0712-	●
25	COVER SET; RR BRK DRUM	1-47151-774-0	02	1	0710-0711	●	●	●
25	COVER SET; RR BRK DRUM	1-47151-774-0	02	1	0712-		●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-774-0	02	1	0712-	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	0712-0804	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	0805-1211	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1212-	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	0712-0804	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	0805-1211	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1212-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-1	02	1	0712-	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-09333-151-0	04	1	0712-0804	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-09333-151-0	04	1	0805-	●
27	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0710-0711	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0712-		●	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-011-0	04	1	0712-	●
30	BOLT; DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12	1-47159-187-0	12	1	0712-0804	●
30	BOLT; DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) M10X12	1-47159-187-0	12	1	0805-	●
30	BOLT; DRUM COVER	1-47159-176-0	12	1	0710-0711	●	●	●
30	BOLT; DRUM COVER	1-47159-176-0	12	1	0712-		●	●
30	BOLT; DRUM COVER FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-176-0	12	1	0712-	●
34	NIPPLE; GREASE,CHAMBER BRKT	1-48259-253-0	02	1	0710-0711	●	●	●
34	NIPPLE; GREASE,CHAMBER BRKT	1-48259-253-0	02	1	0712-		●	●
34	NIPPLE; GREASE,CHAMBER BRKT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-253-0	02	1	0712-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-549-0	01	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-549-0	01	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-550-0	01	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-550-0	01	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-579-0	02	1	0712-0905	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-374-0	02	1	0710-0711	●	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-374-0	02	1	0712-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-374-0	02	1	0712-	●
48	SEAL; OIL,CM/SHF,RR BRK (A)	1-47149-056-0	02	1	0710-0711	●	●	●
48	SEAL; OIL,CM/SHF,RR BRK (A)	1-47149-056-0	02	1	0712-		●	●
48	SEAL; OIL,CM/SHF,RR BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47149-056-0	02	1	0712-	●
48	SEAL; OIL,CM/SHF,RR BRK (B)	1-47149-057-0	04	1	0710-0711	●	●	●
48	SEAL; OIL,CM/SHF,RR BRK (B)	1-47149-057-0	04	1	0712-		●	●
48	SEAL; OIL,CM/SHF,RR BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47149-057-0	04	1	0712-	●
50	CAMSHAFT; BRK,RR BRK	1-47141-124-0	01	1	0710-0711	●	●	●
50	CAMSHAFT; BRK,RR BRK	1-47141-124-0	01	1	0712-		●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-124-0	01	1	0712-	●
50	CAMSHAFT; BRK,RR BRK	1-47141-125-0	01	1	0710-0711	●	●	●
50	CAMSHAFT; BRK,RR BRK	1-47141-125-0	01	1	0712-		●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-125-0	01	1	0712-	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M14X50	1-09040-066-0	02	1	0906-	●
52	BOLT; ANCHOR BRKT	1-47139-122-0	16	1	0710-0711	●	●	●
52	BOLT; ANCHOR BRKT	1-47139-122-0	16	1	0712-		●	●
52	BOLT; ANCHOR BRKT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47139-122-0	16	1	0712-	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-106-0	02	1	0710-0711	●	●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-106-0	02	1	0712-		●	●
63	ADJUSTER ASM; SLACK,RR BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-106-0	02	1	0712-	●
65	SPACER; SLACK ADJ,BRK (A) T=0.06"	1-47139-121-0	02	1	0710-0711	●	●	●
65	SPACER; SLACK ADJ,BRK (A) T=0.06"	1-47139-121-0	02	1	0712-		●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) T=0.06"	1-47139-121-0	02	1	0712-	●
65	SPACER; SLACK ADJ,BRK (B)	1-47149-059-0	02	1	0710-0711	●	●	●
65	SPACER; SLACK ADJ,BRK (B)	1-47149-059-0	02	1	0712-		●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47149-059-0	02	1	0712-	●
65	SPACER; SLACK ADJ,BRK (D) T=0.03"	1-47149-060-0	02	1	0710-0711	●	●	●
65	SPACER; SLACK ADJ,BRK (D) T=0.03"	1-47149-060-0	02	1	0712-		●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) T=0.03"	1-47149-060-0	02	1	0712-	●
65	SPACER; SLACK ADJ,BRK (C)	1-47149-065-0	02	1	0710-0711	●	●	●
65	SPACER; SLACK ADJ,BRK (C)	1-47149-065-0	02	1	0712-		●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47149-065-0	02	1	0712-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-47145-022-0	01	1	0710-		●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-47145-023-0	01	1	0710-		●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-47145-029-0	01	1	0710-0711	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47145-029-0	01	1	0712-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-47145-030-0	01	1	0710-0711	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 45/818" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR41/6 18" ROCKWELL(W6N),FINAL GEAR 41/9 18" ROCKWELL(W8C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47145-030-0	01	1	0712-	●
77	BUSHING	1-47146-012-0	04	1	0710-0711	●	●	●
77	BUSHING	1-47146-012-0	04	1	0712-		●	●
77	BUSHING FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-012-0	04	1	0712-	●
78	BUSHING; BRKT	1-47139-117-0	04	1	0710-0711	●	●	●
78	BUSHING; BRKT	1-47139-117-0	04	1	0712-		●	●
78	BUSHING; BRKT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47139-117-0	04	1	0712-	●
152	NUT; ANCHOR BRKT	1-41229-169-0	16	1	0710-0711	●	●	●
152	NUT; ANCHOR BRKT	1-41229-169-0	16	1	0712-		●	●
152	NUT; ANCHOR BRKT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-41229-169-0	16	1	0712-	●
167	WASHER; ADJ CAM	1-47149-077-0	02	1	0710-0711	●	●	●
167	WASHER; ADJ CAM	1-47149-077-0	02	1	0712-		●	●
167	WASHER; ADJ CAM FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-077-0	02	1	0712-	●
195	RING; SNAP,CM/SHF	1-87050-005-0	02	1	0710-0711	●	●	●
195	RING; SNAP,CM/SHF	1-87050-005-0	02	1	0712-		●	●
195	RING; SNAP,CM/SHF FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-005-0	02	1	0712-	●
201	BOLT; BRKT,POWER CHAMBER	1-47139-119-0	08	1	0710-0711	●	●	●
201	BOLT; BRKT,POWER CHAMBER	1-47139-119-0	08	1	0712-		●	●
201	BOLT; BRKT,POWER CHAMBER FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47139-119-0	08	1	0712-	●
212	STAY	1-47149-081-0	02	1	0710-0711	●	●	●
212	STAY	1-47149-081-0	02	1	0712-		●	●
212	STAY FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-081-0	02	1	0712-	●
217	LINING KIT; RR BRK	1-87050-157-0	01	1	0710-0711	●	●	●
217	LINING KIT; RR BRK	1-87050-157-0	01	1	0712-		●	●
217	LINING KIT; RR BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-157-0	01	1	0712-	●
263	WASHER; PL,ANCHOR BRKT	1-41519-038-0	16	1	0710-0711	●	●	●
263	WASHER; PL,ANCHOR BRKT	1-41519-038-0	16	1	0712-		●	●
263	WASHER; PL,ANCHOR BRKT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-41519-038-0	16	1	0712-	●
278	BOLT; SUPPORT	1-41329-038-0	06	1	0710-0711	●	●	●
278	BOLT; SUPPORT	1-41329-038-0	06	1	0712-		●	●
278	BOLT; SUPPORT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-41329-038-0	06	1	0712-	●
279	WASHER; SUPPORT	1-47149-083-0	06	1	0710-0711	●	●	●
279	WASHER; SUPPORT	1-47149-083-0	06	1	0712-		●	●
279	WASHER; SUPPORT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-083-0	06	1	0712-	●
280	NUT; SUPPORT	1-47149-082-0	06	1	0710-0711	●	●	●
280	NUT; SUPPORT	1-47149-082-0	06	1	0712-		●	●
280	NUT; SUPPORT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-082-0	06	1	0712-	●

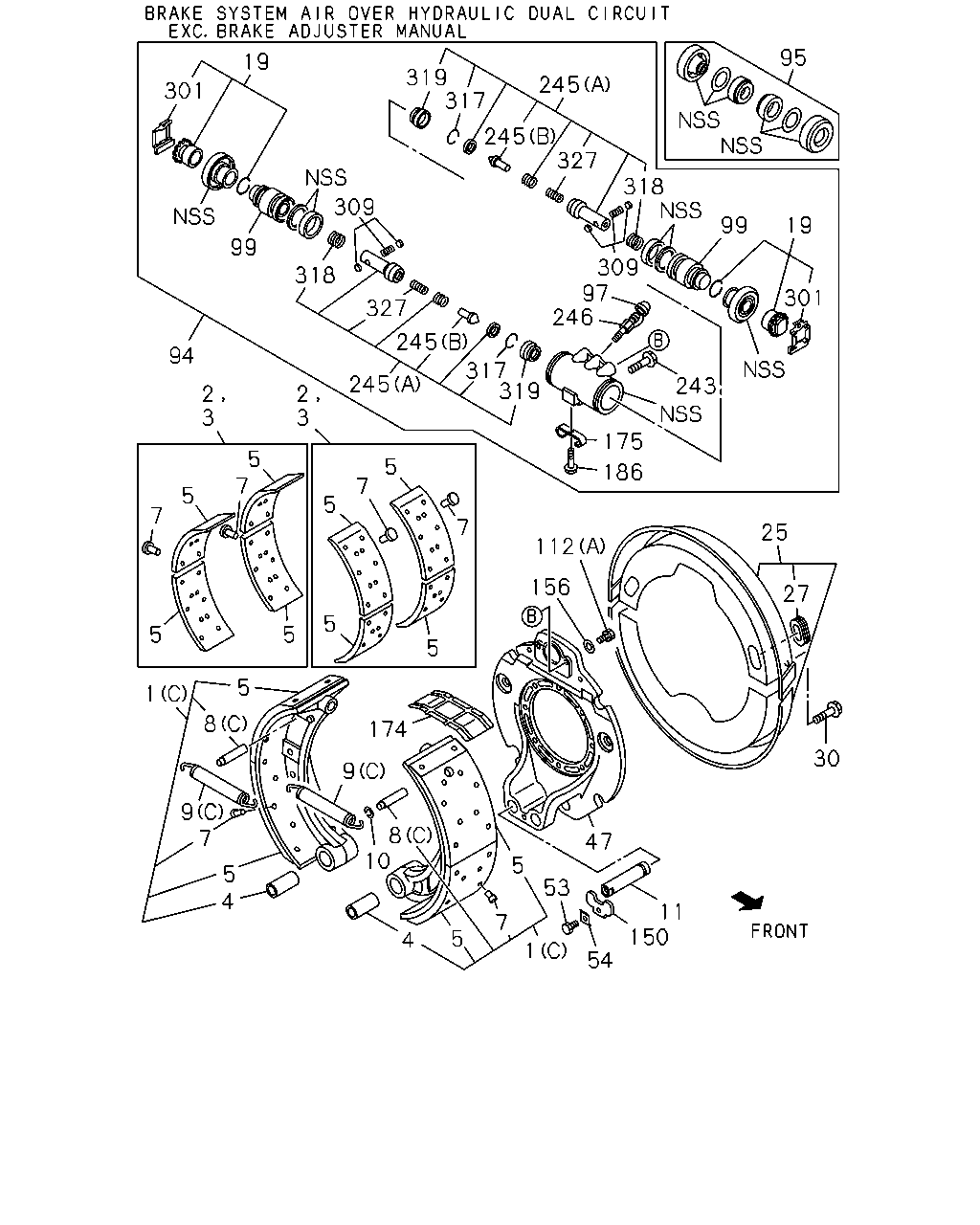

95 19 319 317 245 301 245 327 318 309 99 19 309 97 246 99 318 327 301 245 94 317 319 245 243 2 3 2 3 175 5 7 5 186 7 5 5 7 7 25 112 156 27 5 5 5 5 5 1 8 174 30 9 9 7 8 10 47 5 5 4 53 11 150 7 5 4 1 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47170-442-0	04	1	0906-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-504-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-504-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-506-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-506-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-505-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-505-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-507-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-507-0	01	1	0805-	●

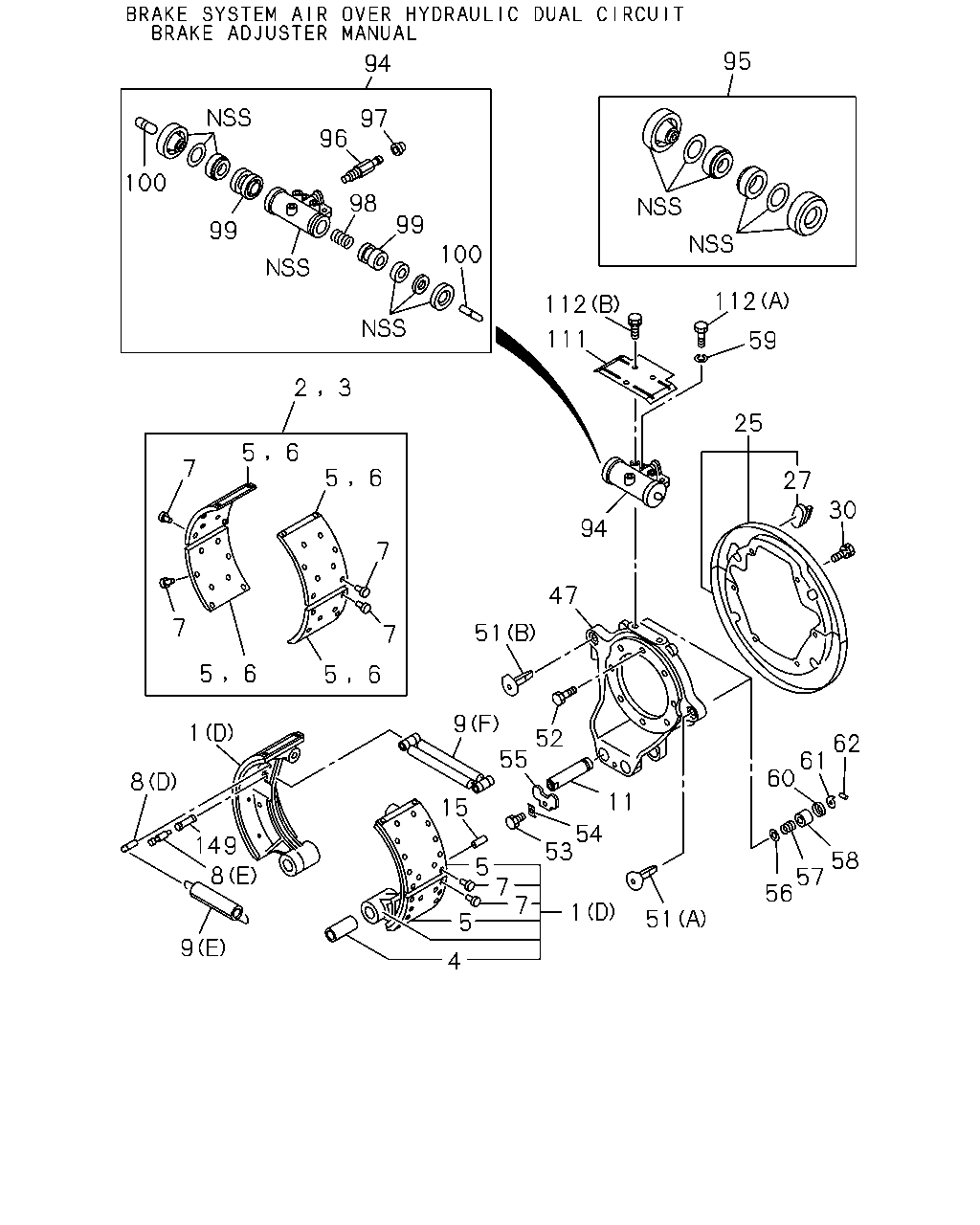

1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47170-520-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47170-520-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47170-522-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47170-522-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47170-521-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47170-521-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47170-523-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47170-523-0	01	1	0906-	●
1	SHOE; BRK,RR (A)	1-47120-734-0	04	1	0710-0711	●	●	●
1	SHOE; BRK,RR (A)	1-47120-734-0	04	1	0712-		●	●
1	SHOE; BRK,RR FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47120-734-0	04	1	0712-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	0906-	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-1	02	1	0712-0804	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-1	02	1	0805-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-396-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-398-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-1	02	1	0712-0804	●
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-1	02	1	0805-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-397-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-399-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	0906-	●
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-012-0	04	1	0712-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-816-0	08	1	0712-0712	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	0712-0804	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	0805-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-814-0	08	1	0712-0905	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	0906-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	0906-	●
7	RIVET; LINING,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	0712-0804	●
7	RIVET; LINING,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	0805-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=18.5	1-09732-034-0	68	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	0906-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=15.5	1-09732-053-0	68	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (E)	1-09744-051-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-175-0	04	1	0712-0804	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-175-0	04	1	0805-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47119-135-0	02	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47119-135-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47119-136-0	02	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47119-136-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-116-0	04	1	0710-0711	●	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-116-0	04	1	0712-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-116-0	04	1	0712-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (E)	1-09583-175-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (F)	1-09583-210-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	0712-0804	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	0805-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-361-0	04	1	0712-0905	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-361-0	04	1	0906-	●
9	SPRING; RETURN,BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-47119-114-0	04	1	0712-		●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-114-0	04	1	0712-	●
9	SPRING; RETURN,BRK SHOE (B)	1-47119-115-0	02	1	0710-0711	●	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-47119-115-0	02	1	0712-		●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-115-0	02	1	0712-	●
10	RING; SNAP,SPR PIN FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	0712-0804	●
10	RING; SNAP,SPR PIN FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	0805-	●
10	RING; SNAP,SPR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10	0-91805-510-0	02	1	0712-0905	●
10	RING; SNAP,SPR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	0906-	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0712-0804	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0805-	●
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=121.5	1-47131-039-0	04	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-040-0	04	1	0710-0711	●	●	●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-040-0	04	1	0712-		●	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47131-040-0	04	1	0712-	●
19	ADJUSTER; RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-015-0	04	1	0712-0905	●
19	ADJUSTER; RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	0906-	●
25	COVER SET; RR BRK DRUM	1-47151-774-0	02	1	0710-0711	●	●	●
25	COVER SET; RR BRK DRUM	1-47151-774-0	02	1	0712-		●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-774-0	02	1	0712-	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	0712-0804	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	0805-1211	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1212-	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	0712-0804	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	0805-1211	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1212-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-1	02	1	0712-	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-09333-151-0	04	1	0712-0804	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-09333-151-0	04	1	0805-	●
27	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0710-0711	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0712-		●	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-011-0	04	1	0712-	●
30	BOLT; DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12	1-47159-187-0	12	1	0712-0804	●
30	BOLT; DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) M10X12	1-47159-187-0	12	1	0805-	●
30	BOLT; DRUM COVER	1-47159-176-0	12	1	0710-0711	●	●	●
30	BOLT; DRUM COVER	1-47159-176-0	12	1	0712-		●	●
30	BOLT; DRUM COVER FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-176-0	12	1	0712-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-549-0	01	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-549-0	01	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-550-0	01	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-550-0	01	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-579-0	02	1	0712-0905	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-374-0	02	1	0710-0711	●	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-374-0	02	1	0712-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-374-0	02	1	0712-	●
53	BOLT; LOCK PLATE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X16	0-20851-016-0	02	1	0712-0804	●
53	BOLT; LOCK PLATE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) M10X16	0-20851-016-0	02	1	0805-	●
54	WASHER; LK,ANCHOR PIN,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-47133-011-0	02	1	0712-0804	●
54	WASHER; LK,ANCHOR PIN,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-47133-011-0	02	1	0805-	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	0906-	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47601-068-0	02	1	0712-0905	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-987-0	02	1	0712-0905	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	0906-	●
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	0712-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	0906-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-372-0	04	1	0712-0905	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	0906-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	0906-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M14X35	0-20851-435-0	04	1	0712-	●
150	PLATE; LK,ANCHOR PIN FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	0712-0804	●
150	PLATE; LK,ANCHOR PIN FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	0805-	●
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-005-0	02	1	0712-0905	●
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-	●
156	WASHER; LK,WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	0-91510-514-0	04	1	0712-0905	●
156	WASHER; LK,WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	0906-	●
174	COVER; CYL,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-081-0	02	1	0712-0905	●
174	COVER; CYL,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	0906-	●
175	HANGER; RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47619-146-0	02	1	0712-0905	●
175	HANGER; RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-146-0	02	1	0906-	●
186	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50540-816-0	02	1	0712-0905	●
186	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	0906-	●
243	BOLT; WHEEL CYL COVER SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50540-816-0	06	1	0712-0905	●
243	BOLT; WHEEL CYL COVER SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	06	1	0906-	●
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47623-027-1	04	1	0712-0905	●
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	0906-	●
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47629-121-0	04	1	0712-0905	●
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	0906-	●
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47615-002-0	02	1	0712-0905	●
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	0906-	●
301	CLIP; ANTI LOTATION FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0712-0804	●
301	CLIP; ANTI LOTATION FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0805-	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0712-0905	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
309	SPRING; ADJUSTER SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-544-0	04	1	0712-0905	●
309	SPRING; ADJUSTER SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	0906-	●
317	RING; RETAINER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47629-119-0	04	1	0712-0905	●
317	RING; RETAINER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	0906-	●
318	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-542-0	04	1	0712-0905	●
318	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	0906-	●
319	RING; DRIVE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	0712-0804	●
319	RING; DRIVE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	0805-	●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47629-120-0	04	1	0712-0905	●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	0906-	●
327	SPRING; ADJ FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	0712-0804	●
327	SPRING; ADJ FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	0805-	●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-543-0	04	1	0712-0905	●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	0906-	●

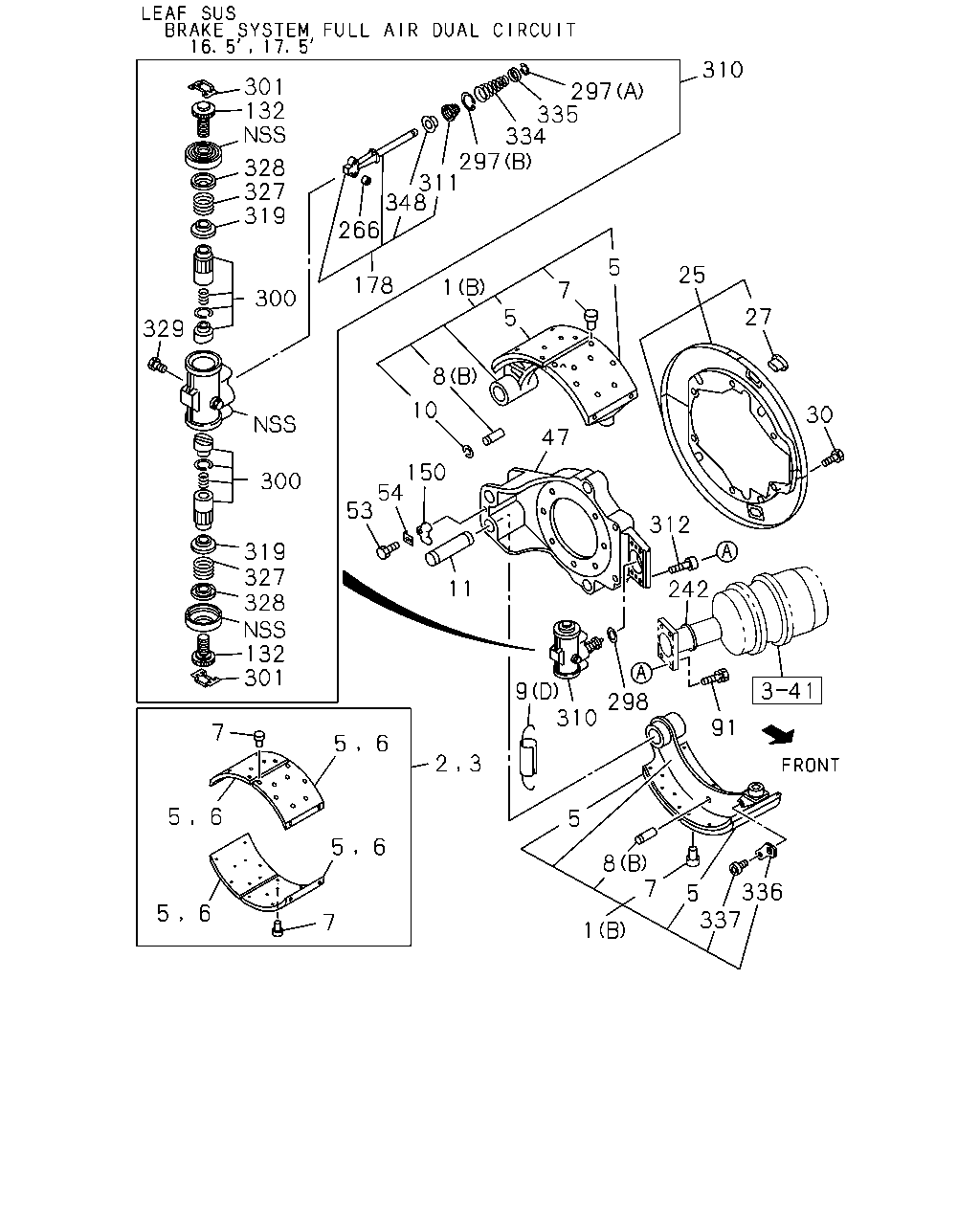

310 301 132 297 335 334 297 311 348 266 328 327 319 5 25 178 1 7 300 27 5 329 8 10 30 47 150 54 53 300 312 319 327 328 132 301 11 242 9 310 298 91 7 5 6 2 5 6 5 5 6 8 7 5 336 337 5 6 7 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47170-442-0	04	1	0906-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-504-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-504-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-506-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-506-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-505-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-505-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-507-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-507-0	01	1	0805-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47170-520-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47170-520-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47170-522-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47170-522-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47170-521-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47170-521-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47170-523-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47170-523-0	01	1	0906-	●
1	SHOE; BRK,RR (A)	1-47120-734-0	04	1	0710-0711	●	●	●
1	SHOE; BRK,RR (A)	1-47120-734-0	04	1	0712-		●	●
1	SHOE; BRK,RR FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47120-734-0	04	1	0712-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	0906-	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-1	02	1	0712-0804	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-1	02	1	0805-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-396-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-398-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-1	02	1	0712-0804	●
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-1	02	1	0805-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-397-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-399-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-816-0	08	1	0712-0712	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	0712-0804	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	0805-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-814-0	08	1	0712-0905	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-815-0	08	1	0712-0905	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-817-0	08	1	0712-0712	●
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	0712-0804	●
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	0805-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-815-0	08	1	0806-0905	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	0907-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	0906-	●
7	RIVET; LINING,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	0712-0804	●
7	RIVET; LINING,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	0805-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=18.5	1-09732-034-0	68	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	0906-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=15.5	1-09732-053-0	68	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (E)	1-09744-051-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-175-0	04	1	0712-0804	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-175-0	04	1	0805-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47119-135-0	02	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47119-135-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47119-136-0	02	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47119-136-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-116-0	04	1	0710-0711	●	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-116-0	04	1	0712-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-116-0	04	1	0712-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (E)	1-09583-175-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (F)	1-09583-210-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	0712-0804	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	0805-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-361-0	04	1	0712-0905	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-361-0	04	1	0906-	●
9	SPRING; RETURN,BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-47119-114-0	04	1	0712-		●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-114-0	04	1	0712-	●
9	SPRING; RETURN,BRK SHOE (B)	1-47119-115-0	02	1	0710-0711	●	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-47119-115-0	02	1	0712-		●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-115-0	02	1	0712-	●
10	RING; SNAP,SPR PIN FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	0712-0804	●
10	RING; SNAP,SPR PIN FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	0805-	●
10	RING; SNAP,SPR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10	0-91805-510-0	02	1	0712-0905	●
10	RING; SNAP,SPR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	0906-	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0712-0804	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0805-	●
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=121.5	1-47131-039-0	04	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-040-0	04	1	0710-0711	●	●	●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-040-0	04	1	0712-		●	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47131-040-0	04	1	0712-	●
25	COVER SET; RR BRK DRUM	1-47151-774-0	02	1	0710-0711	●	●	●
25	COVER SET; RR BRK DRUM	1-47151-774-0	02	1	0712-		●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-774-0	02	1	0712-	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	0712-0804	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	0805-1211	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1212-	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	0712-0804	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	0805-1211	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1212-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-1	02	1	0712-	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-09333-151-0	04	1	0712-0804	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-09333-151-0	04	1	0805-	●
27	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0710-0711	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0712-		●	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-011-0	04	1	0712-	●
30	BOLT; DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12	1-47159-187-0	12	1	0712-0804	●
30	BOLT; DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) M10X12	1-47159-187-0	12	1	0805-	●
30	BOLT; DRUM COVER	1-47159-176-0	12	1	0710-0711	●	●	●
30	BOLT; DRUM COVER	1-47159-176-0	12	1	0712-		●	●
30	BOLT; DRUM COVER FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-176-0	12	1	0712-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-549-0	01	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-549-0	01	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-550-0	01	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-550-0	01	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-579-0	02	1	0712-0905	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-374-0	02	1	0710-0711	●	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-374-0	02	1	0712-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-374-0	02	1	0712-	●
53	BOLT; LOCK PLATE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X16	0-20851-016-0	02	1	0712-0804	●
53	BOLT; LOCK PLATE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) M10X16	0-20851-016-0	02	1	0805-	●
54	WASHER; LK,ANCHOR PIN,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-47133-011-0	02	1	0712-0804	●
54	WASHER; LK,ANCHOR PIN,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-47133-011-0	02	1	0805-	●
91	BOLT; CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45 W/LK WASHER	0-50051-045-0	08	1	0712-0804	●
91	BOLT; CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45 W/LK WASHER	0-50051-045-0	08	1	0805-0906	●
91	BOLT; CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45 W/LK WASHER	0-50551-045-0	08	1	0907-1306	●
91	BOLT; CHAMBER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45	1-47139-174-0	08	1	1307-	●
132	SCREW; ADJ,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-1	04	1	0712-0804	●
132	SCREW; ADJ,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-2	04	1	0805-	●
150	PLATE; LK,ANCHOR PIN FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	0712-0804	●
150	PLATE; LK,ANCHOR PIN FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	0805-	●
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-005-0	02	1	0712-0905	●
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-	●
178	WEDGE; RR WHEEL CYL FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	0712-0804	●
178	WEDGE; RR WHEEL CYL FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	0805-	●
242	SEAL FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-186-0	04	1	0712-0804	●
242	SEAL FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-186-0	04	1	0805-	●
266	ROLLER; WEDGE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47643-007-0	04	1	0712-0804	●
266	ROLLER; WEDGE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47643-007-0	04	1	0805-	●
297	RING; SNAP FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	0712-0804	●
297	RING; SNAP FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	0805-	●
297	RING; SNAP FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	0712-0804	●
297	RING; SNAP FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	0805-	●
298	GASKET FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	0712-0804	●
298	GASKET FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	0805-	●
300	SLEEVE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-0	04	1	0712-0804	●
300	SLEEVE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-1	04	1	0805-	●
301	CLIP; ANTI LOTATION FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0712-0804	●
301	CLIP; ANTI LOTATION FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0805-	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0712-0905	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
310	EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	0712-0804	●
310	EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	0805-	●
311	BOOT; WEDGE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	0712-0804	●
311	BOOT; WEDGE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	0805-	●
312	BOLT; EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0712-0804	●
312	BOLT; EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0805-	●
319	RING; DRIVE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	0712-0804	●
319	RING; DRIVE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	0805-	●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47629-120-0	04	1	0712-0905	●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	0906-	●
327	SPRING; ADJ FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	0712-0804	●
327	SPRING; ADJ FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	0805-	●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-543-0	04	1	0712-0905	●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	0906-	●
328	CAGE; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	0712-0804	●
328	CAGE; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	0805-	●
329	SCREW; LOCATING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	0712-0804	●
329	SCREW; LOCATING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	0805-	●
334	SPRING; ROD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	0712-0804	●
334	SPRING; ROD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	0805-	●
335	RETAINER; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	0712-0804	●
335	RETAINER; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	0805-	●
336	PLATE; PIVOT FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-152-0	04	1	0712-0804	●
336	PLATE; PIVOT FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-152-0	04	1	0805-	●
337	BOLT; PLATE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	0712-0804	●
337	BOLT; PLATE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	0805-	●
348	CAP; EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	0712-0804	●
348	CAP; EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	0805-	●

346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
297	RING; SNAP FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	0712-0804	●
297	RING; SNAP FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	0805-	●
297	RING; SNAP FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	0712-0804	●
297	RING; SNAP FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	0805-	●
301	CLIP; ANTI LOTATION FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0712-0804	●
301	CLIP; ANTI LOTATION FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0805-	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0712-0905	●
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
311	BOOT; WEDGE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	0712-0804	●
311	BOOT; WEDGE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	0805-	●
319	RING; DRIVE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	0712-0804	●
319	RING; DRIVE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	0805-	●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47629-120-0	04	1	0712-0905	●
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	0906-	●
327	SPRING; ADJ FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	0712-0804	●
327	SPRING; ADJ FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	0805-	●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-543-0	04	1	0712-0905	●
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	0906-	●
328	CAGE; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	0712-0804	●
328	CAGE; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	0805-	●
329	SCREW; LOCATING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	0712-0804	●
329	SCREW; LOCATING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	0805-	●
334	SPRING; ROD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	0712-0804	●
334	SPRING; ROD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	0805-	●
335	RETAINER; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	0712-0804	●
335	RETAINER; SPRING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	0805-	●
346	REPAIR KIT; EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	0712-0804	●
346	REPAIR KIT; EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	0805-	●
347	REPAIR KIT; BOOT,EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	0712-0804	●
347	REPAIR KIT; BOOT,EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	0805-	●
348	CAP; EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	0712-0804	●
348	CAP; EXPANDER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	0805-	●

95 94 97 96 100 98 99 99 100 112 112 111 59 2 3 25 5 6 7 5 6 27 30 94 7 47 7 51 7 5 6 5 6 9 1 52 55 62 61 60 8 11 15 54 53 149 58 57 56 5 7 7 8 1 51 5 9 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47170-442-0	04	1	0906-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-504-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-504-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-506-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING	1-47170-506-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-505-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-505-0	01	1	0805-	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-507-0	01	1	0712-0804	●
1	SHOE; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) TRAILING	1-47170-507-0	01	1	0805-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47170-520-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47170-520-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47170-522-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47170-522-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47170-521-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47170-521-0	01	1	0906-	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47170-523-0	01	1	0712-0905	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47170-523-0	01	1	0906-	●
1	SHOE; BRK,RR (A)	1-47120-734-0	04	1	0710-0711	●	●	●
1	SHOE; BRK,RR (A)	1-47120-734-0	04	1	0712-		●	●
1	SHOE; BRK,RR FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47120-734-0	04	1	0712-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	0906-	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-1	02	1	0712-0804	●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-1	02	1	0805-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-396-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-398-0	01	1	0712-0905	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-1	02	1	0712-0804	●
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-1	02	1	0805-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-397-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-399-0	01	1	0712-0905	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	0906-	●
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-012-0	04	1	0712-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-816-0	08	1	0712-0712	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	0712-0804	●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	0805-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-814-0	08	1	0712-0905	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-815-0	08	1	0712-0905	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-817-0	08	1	0712-0712	●
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	0712-0804	●
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	0805-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-815-0	08	1	0806-0905	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	0907-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	0906-	●
7	RIVET; LINING,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	0712-0804	●
7	RIVET; LINING,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	0805-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=18.5	1-09732-034-0	68	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	0906-	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=15.5	1-09732-053-0	68	1	0712-0905	●
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (E)	1-09744-051-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-175-0	04	1	0712-0804	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-175-0	04	1	0805-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LEADING	1-47119-135-0	02	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) LEADING	1-47119-135-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) TRAILING	1-47119-136-0	02	1	0712-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) TRAILING	1-47119-136-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-116-0	04	1	0710-0711	●	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-116-0	04	1	0712-		●	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-116-0	04	1	0712-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (E)	1-09583-175-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (F)	1-09583-210-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	0712-0804	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	0805-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09583-361-0	04	1	0712-0905	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-361-0	04	1	0906-	●
9	SPRING; RETURN,BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-47119-114-0	04	1	0712-		●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-114-0	04	1	0712-	●
9	SPRING; RETURN,BRK SHOE (B)	1-47119-115-0	02	1	0710-0711	●	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-47119-115-0	02	1	0712-		●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-115-0	02	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0712-0804	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0805-	●
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=121.5	1-47131-039-0	04	1	0712-	●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-040-0	04	1	0710-0711	●	●	●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-040-0	04	1	0712-		●	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47131-040-0	04	1	0712-	●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	0906-	●
25	COVER SET; RR BRK DRUM	1-47151-774-0	02	1	0710-0711	●	●	●
25	COVER SET; RR BRK DRUM	1-47151-774-0	02	1	0712-		●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-774-0	02	1	0712-	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	0712-0804	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	0805-1211	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1212-	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	0712-0804	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	0805-1211	●
25	COVER SET; RR BRK DRUM FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1212-	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-1	02	1	0712-	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-09333-151-0	04	1	0712-0804	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-09333-151-0	04	1	0805-	●
27	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0710-0711	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0712-		●	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-011-0	04	1	0712-	●
30	BOLT; DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12	1-47159-187-0	12	1	0712-0804	●
30	BOLT; DRUM COVER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) M10X12	1-47159-187-0	12	1	0805-	●
30	BOLT; DRUM COVER	1-47159-176-0	12	1	0710-0711	●	●	●
30	BOLT; DRUM COVER	1-47159-176-0	12	1	0712-		●	●
30	BOLT; DRUM COVER FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-176-0	12	1	0712-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-549-0	01	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-549-0	01	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-550-0	01	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-550-0	01	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-579-0	02	1	0712-0905	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0712-0804	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0805-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-374-0	02	1	0710-0711	●	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-374-0	02	1	0712-		●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-374-0	02	1	0712-	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	0906-	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	0906-	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M14X50	1-09040-066-0	02	1	0906-	●
52	BOLT; ANCHOR BRKT	1-47139-122-0	16	1	0710-0711	●	●	●
52	BOLT; ANCHOR BRKT	1-47139-122-0	16	1	0712-		●	●
52	BOLT; ANCHOR BRKT FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/718" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47139-122-0	16	1	0712-	●
53	BOLT; LOCK PLATE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X16	0-20851-016-0	02	1	0712-0804	●
53	BOLT; LOCK PLATE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) M10X16	0-20851-016-0	02	1	0805-	●
54	WASHER; LK,ANCHOR PIN,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-47133-011-0	02	1	0712-0804	●
54	WASHER; LK,ANCHOR PIN,RR BRK FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y)	1-47133-011-0	02	1	0805-	●
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-	●
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	0906-	●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	0906-	●
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	0906-	●
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	0906-	●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	0906-	●
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	0906-	●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	0906-	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	0906-	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47601-068-0	02	1	0712-0905	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-987-0	02	1	0712-0905	●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	0906-	●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	0906-	●
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	0712-	●
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	0906-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	0906-	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-372-0	04	1	0712-0905	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	0906-	●
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	0906-	●
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	0906-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	0906-	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M14X35	0-20851-435-0	04	1	0712-	●
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47119-024-0	04	1	0906-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
