3-01 — FRONT WHEEL BRAKE (#36540) — 500 parça

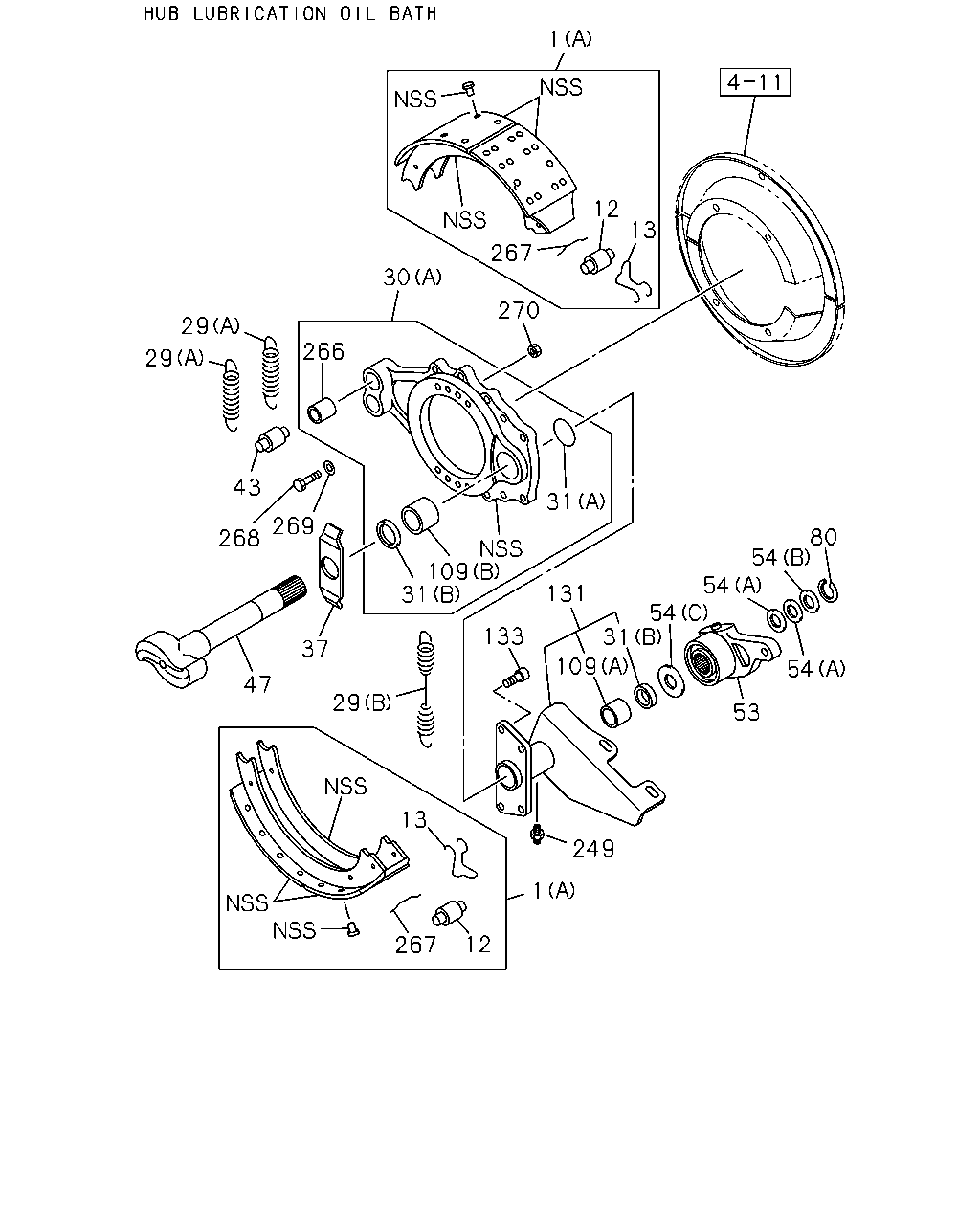

1 12 13 267 270 30 266 29 29 43 268 269 109 31 131 31 133 37 47 29 31 109 54 54 54 80 54 53 249 1 267 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47170-441-0	04	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-47170-316-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-47170-317-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-47170-318-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-47170-319-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-496-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-496-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-497-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-497-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-498-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-498-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-499-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-499-0	01	1	0906-	●
1	SHOE; BRK,FRT (A)	1-47120-832-0	04	1	0710-0711	●	●	●
1	SHOE; BRK,FRT (A)	1-47120-832-0	04	1	0712-		●	●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47120-832-0	04	1	0712-	●
12	ROLLER; CAM,BRK SHOE	1-47119-141-0	02	1	0710-0711	●	●	●
12	ROLLER; CAM,BRK SHOE	1-47119-141-0	02	1	0712-		●	●
12	ROLLER; CAM,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-141-0	02	1	0712-	●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	02	1	0710-0711	●	●	●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	02	1	0712-		●	●
13	CLIP; ROLLER PIN,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-118-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (F)	1-09583-269-1	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	02	1	0712-0906	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	04	1	0907-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (E)	1-09583-359-0	04	1	0712-0905	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (E)	1-09583-359-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0712-		●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0710-0711	●	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0712-		●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0712-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47137-435-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47137-512-0	02	1	0712-1005	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (E)	8-98091-252-0	02	1	1006-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-47137-519-0	02	1	0712-0905	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C)	1-47137-519-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0710-0711	●	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0712-		●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-450-0	01	1	0712-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0710-0711	●	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0712-		●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-451-0	01	1	0712-	●
31	SEAL; OIL,CM/SHF (A)	1-47149-056-0	02	1	0710-0711	●	●	●
31	SEAL; OIL,CM/SHF (A)	1-47149-056-0	02	1	0712-		●	●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (A)	1-47149-056-0	02	1	0712-	●
31	SEAL; OIL,CM/SHF (B)	1-47149-057-0	02	1	0710-0711	●	●	●
31	SEAL; OIL,CM/SHF (B)	1-47149-057-0	02	1	0712-		●	●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-057-0	02	1	0712-	●
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47169-033-0	04	1	0906-	●
37	WASHER; ADJ CAM	1-47149-087-0	02	1	0710-0711	●	●	●
37	WASHER; ADJ CAM	1-47149-087-0	02	1	0712-		●	●
37	WASHER; ADJ CAM HUB LUBRICATION OIL BATH<C5K>	1-47149-087-0	02	1	0712-	●
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> L=115.5	1-47131-044-0	04	1	0712-	●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5	1-47131-038-0	04	1	0712-	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0710-0711	●	●	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0712-		●	●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-040-0	04	1	0712-	●
47	CAMSHAFT; FRT BRK	1-47141-126-0	01	1	0710-0711	●	●	●
47	CAMSHAFT; FRT BRK	1-47141-126-0	01	1	0712-		●	●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-126-0	01	1	0712-	●
47	CAMSHAFT; FRT BRK	1-47141-127-0	01	1	0710-0711	●	●	●
47	CAMSHAFT; FRT BRK	1-47141-127-0	01	1	0712-		●	●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-127-0	01	1	0712-	●
53	ADJUSTER ASM; SLACK	1-48270-107-0	02	1	0710-0711	●	●	●
53	ADJUSTER ASM; SLACK	1-48270-107-0	02	1	0712-		●	●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-107-0	02	1	0712-	●
54	SPACER; CM/SHF (A) T=0.06"	1-47139-121-0	02	1	0710-0711	●	●	●
54	SPACER; CM/SHF (A) T=0.06"	1-47139-121-0	02	1	0712-		●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (A) T=0.06"	1-47139-121-0	02	1	0712-	●
54	SPACER; CM/SHF (B)	1-47149-059-0	02	1	0710-0711	●	●	●
54	SPACER; CM/SHF (B)	1-47149-059-0	02	1	0712-		●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-059-0	02	1	0712-	●
54	SPACER; CM/SHF (A) T=0.03"	1-47149-060-0	02	1	0710-0711	●	●	●
54	SPACER; CM/SHF (A) T=0.03"	1-47149-060-0	02	1	0712-		●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (A) T=0.03"	1-47149-060-0	02	1	0712-	●
54	SPACER; CM/SHF (C)	1-47149-065-0	02	1	0710-0711	●	●	●
54	SPACER; CM/SHF (C)	1-47149-065-0	02	1	0712-		●	●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (C)	1-47149-065-0	02	1	0712-	●
80	RING; SNAP,CM/SHF	1-87050-005-0	02	1	0710-0711	●	●	●
80	RING; SNAP,CM/SHF	1-87050-005-0	02	1	0712-		●	●
80	RING; SNAP,CM/SHF HUB LUBRICATION OIL BATH<C5K>	1-87050-005-0	02	1	0712-	●
109	BUSHING; CM/SHF,FRT BRK (A)	1-47146-012-0	02	1	0710-0711	●	●	●
109	BUSHING; CM/SHF,FRT BRK (A)	1-47146-012-0	02	1	0712-		●	●
109	BUSHING; CM/SHF,FRT BRK HUB LUBRICATION OIL BATH<C5K> (A)	1-47146-012-0	02	1	0712-	●
109	BUSHING; CM/SHF,FRT BRK (B)	1-47146-017-0	02	1	0710-0711	●	●	●
109	BUSHING; CM/SHF,FRT BRK (B)	1-47146-017-0	02	1	0712-		●	●
109	BUSHING; CM/SHF,FRT BRK HUB LUBRICATION OIL BATH<C5K> (B)	1-47146-017-0	02	1	0712-	●
131	BRACKET; POWER CHAMBER	1-48258-194-0	01	1	0710-0711	●	●	●
131	BRACKET; POWER CHAMBER	1-48258-194-0	01	1	0712-		●	●
131	BRACKET; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48258-194-0	01	1	0712-	●
131	BRACKET; POWER CHAMBER	1-48258-195-0	01	1	0710-0711	●	●	●
131	BRACKET; POWER CHAMBER	1-48258-195-0	01	1	0712-		●	●
131	BRACKET; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48258-195-0	01	1	0712-	●
133	BOLT; BRKT	1-47139-116-0	08	1	0710-0711	●	●	●
133	BOLT; BRKT	1-47139-116-0	08	1	0712-		●	●
133	BOLT; BRKT HUB LUBRICATION OIL BATH<C5K>	1-47139-116-0	08	1	0712-	●
249	NIPPLE; GREASE,CHAMBER BRKT	1-48259-253-0	02	1	0710-0711	●	●	●
249	NIPPLE; GREASE,CHAMBER BRKT	1-48259-253-0	02	1	0712-		●	●
249	NIPPLE; GREASE,CHAMBER BRKT HUB LUBRICATION OIL BATH<C5K>	1-48259-253-0	02	1	0712-	●
266	BUSHING; BRKT	1-47139-117-0	04	1	0710-0711	●	●	●
266	BUSHING; BRKT	1-47139-117-0	04	1	0712-		●	●
266	BUSHING; BRKT HUB LUBRICATION OIL BATH<C5K>	1-47139-117-0	04	1	0712-	●
267	PIN; RETURN SPRING,FRT BRK SHOE	1-47119-116-0	02	1	0710-0711	●	●	●
267	PIN; RETURN SPRING,FRT BRK SHOE	1-47119-116-0	02	1	0712-		●	●
267	PIN; RETURN SPRING,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-116-0	02	1	0712-	●
268	BOLT; ANCHOR BRKT	1-47139-122-0	12	1	0710-0711	●	●	●
268	BOLT; ANCHOR BRKT	1-47139-122-0	12	1	0712-		●	●
268	BOLT; ANCHOR BRKT HUB LUBRICATION OIL BATH<C5K>	1-47139-122-0	12	1	0712-	●
269	WASHER; ANCHOR BRKT	1-41519-102-0	28	1	0710-0711	●	●	●
269	WASHER; ANCHOR BRKT	1-41519-102-0	28	1	0712-		●	●
269	WASHER; ANCHOR BRKT HUB LUBRICATION OIL BATH<C5K>	1-41519-102-0	28	1	0712-	●
270	NUT; ANCHOR BRKT	1-41229-169-0	14	1	0710-0711	●	●	●
270	NUT; ANCHOR BRKT	1-41229-169-0	14	1	0712-		●	●
270	NUT; ANCHOR BRKT HUB LUBRICATION OIL BATH<C5K>	1-41229-169-0	14	1	0712-	●

304 278 294 306 23 282 275 29 121 271 264 279 282 271 23 279 305 271 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	9-09940-435-0	02	1	0906-	●
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-196-0	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (F)	1-09583-269-1	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	02	1	0712-0906	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	04	1	0907-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (E)	1-09583-359-0	04	1	0712-0905	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (E)	1-09583-359-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0712-		●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0710-0711	●	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0712-		●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0712-	●
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47619-149-1	04	1	0712-	●
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-034-1	02	1	0712-	●
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47621-017-0	04	1	0712-	●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47621-016-0	04	1	0712-0905	●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47621-016-0	04	1	0906-	●
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-031-0	02	1	0712-	●
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-020-0	02	1	0712-	●
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-192-0	04	1	0712-	●
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-200-0	04	1	0712-	●
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-042-0	02	1	0712-	●
304	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-85576-403-0	02	1	0712-	●
305	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-85576-404-0	02	1	0712-	●
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-044-0	02	1	0712-	●

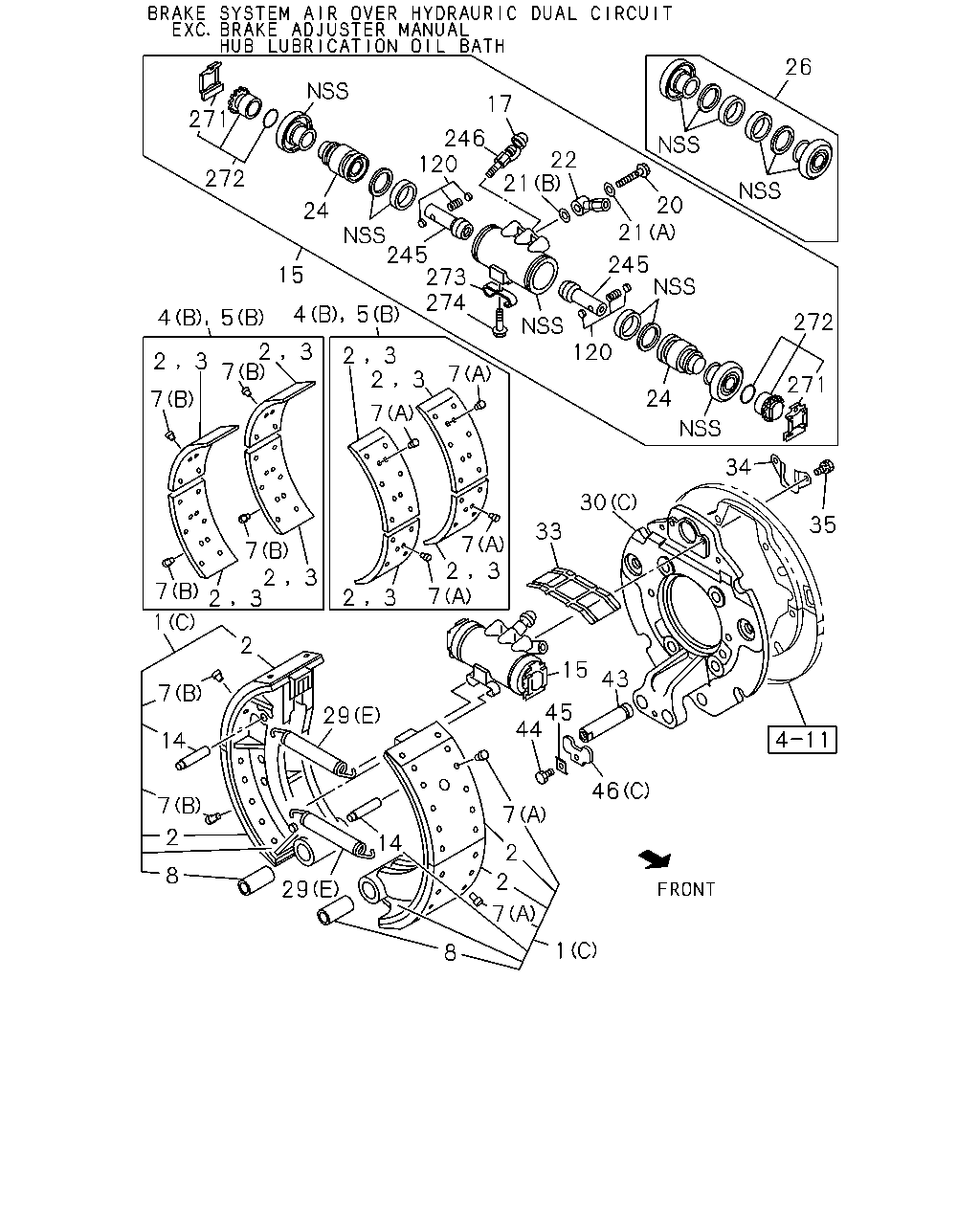

26 17 271 246 120 22 21 272 20 21 24 245 273 274 245 15 5 4 4 5 272 2 7 3 120 2 3 2 2 3 7 3 271 24 7 7 34 7 2 7 30 35 33 7 2 3 3 7 2 2 3 1 2 15 43 7 45 44 29 14 46 7 7 2 14 2 8 2 29 7 1 8 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47170-441-0	04	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-47170-316-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-47170-317-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-47170-318-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-47170-319-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-496-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-496-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-497-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-497-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-498-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-498-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-499-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-499-0	01	1	0906-	●
1	SHOE; BRK,FRT (A)	1-47120-832-0	04	1	0710-0711	●	●	●
1	SHOE; BRK,FRT (A)	1-47120-832-0	04	1	0712-		●	●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47120-832-0	04	1	0712-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-758-0	08	1	0906-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-698-0	08	1	0712-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-812-0	08	1	0712-0905	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47126-812-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-759-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-699-0	08	1	0712-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-813-0	08	1	0712-0905	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47126-813-0	08	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-88311-353-1	02	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-88311-314-0	02	1	0712-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-88311-390-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-88311-390-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-88311-394-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-88311-394-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) BEST VALUE PARTS	1-87610-128-0	01	1	0712-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-88311-354-1	02	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-88311-315-0	02	1	0712-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-391-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-391-0	01	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-395-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-395-0	01	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) L=18.5	1-09732-034-0	40	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) L=15.5	1-09732-053-0	80	1	0712-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) L=18.5	1-09732-034-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (B) L=18.5	1-09732-034-0	80	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A) L=15.5	1-09732-053-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (A) L=15.5	1-09732-053-0	40	1	0906-	●
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47112-020-0	04	1	0712-	●
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47112-011-0	04	1	0712-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5	1-47119-017-1	04	1	0906-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47119-177-1	04	1	0712-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47119-134-0	04	1	0712-0905	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47119-134-0	04	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47601-122-0	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47601-123-0	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47601-041-1	01	1	0712-0905	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47601-041-1	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47601-042-1	01	1	0712-0905	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47601-042-1	01	1	0906-	●
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> OD=12	1-47619-011-0	02	1	0712-	●
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M12X40.5 EYE BOLT	1-47634-006-0	02	1	0712-	●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A) ID=15.2	1-09630-019-0	02	1	0712-	●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=12.2	1-09630-020-0	02	1	0712-	●
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47631-057-1	02	1	0712-	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47624-389-0	04	1	0906-	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47624-370-0	04	1	0712-0905	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47624-370-0	04	1	0906-	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-87830-676-0	02	1	0906-	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-87830-931-0	02	1	0712-0905	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-87830-931-0	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (F)	1-09583-269-1	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	02	1	0712-0906	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	04	1	0907-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (E)	1-09583-359-0	04	1	0712-0905	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (E)	1-09583-359-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0712-		●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0710-0711	●	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0712-		●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0712-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47137-435-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47137-512-0	02	1	0712-1005	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (E)	8-98091-252-0	02	1	1006-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-47137-519-0	02	1	0712-0905	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C)	1-47137-519-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0710-0711	●	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0712-		●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-450-0	01	1	0712-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0710-0711	●	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0712-		●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-451-0	01	1	0712-	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47159-080-0	02	1	0906-	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47159-197-0	02	1	0712-0905	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47159-197-0	02	1	0906-	●
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47159-094-0	02	1	0712-	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> M12X35 W/LK WASHER	0-50551-235-0	04	1	0906-0906	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M12X35 W/LK WASHER	0-50551-235-0	04	1	0907-	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M12X35 W/LK WASHER	0-50051-235-0	04	1	0712-0905	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> M12X35 W/LK WASHER	0-50051-235-0	04	1	0906-0906	●
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> L=115.5	1-47131-044-0	04	1	0712-	●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5	1-47131-038-0	04	1	0712-	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0710-0711	●	●	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0712-		●	●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-040-0	04	1	0712-	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	1-47139-173-0	02	1	0911-	●
44	BOLT; LOCK,ANCHOR PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20851-016-0	02	1	0712-0910	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20851-016-0	02	1	0911-	●
45	WASHER; LK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47133-011-0	02	1	0712-	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-152-0	04	1	0712-	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47133-010-0	02	1	0712-	●
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-47133-005-0	02	1	0712-	●
120	SPRING; LK,ADJ,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-09580-544-0	04	1	0712-0905	●
120	SPRING; LK,ADJ,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-09580-544-0	04	1	0906-	●
245	SHAFT; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47623-027-1	04	1	0712-0905	●
245	SHAFT; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47623-027-1	04	1	0906-	●
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47615-002-0	02	1	0712-0905	●
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47615-002-0	02	1	0906-	●
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47621-017-0	04	1	0712-	●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47621-016-0	04	1	0712-0905	●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47621-016-0	04	1	0906-	●
272	ADJUSTER; MANUAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47621-015-0	04	1	0712-0905	●
272	ADJUSTER; MANUAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47621-015-0	04	1	0906-	●
273	HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47619-145-0	02	1	0712-0905	●
273	HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47619-145-0	02	1	0906-	●
274	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M8X16 W/LK WASHER	0-50540-816-0	02	1	0712-0905	●
274	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> M8X16 W/LK WASHER	0-50540-816-0	02	1	0906-	●

278 294 306 23 282 280 3 40 275 29 276 121 271 25 279 264 281 282 291 277 25 271 281 5 4 23 279 23 7 7 292 292 23 30 30 23 23 2 43 287 1 14 46 29 7 78 2 8 46 45 44 14 2 2 7 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47170-441-0	04	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-47170-316-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-47170-317-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-47170-318-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-47170-319-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-496-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-496-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-497-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-497-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-498-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-498-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-499-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-499-0	01	1	0906-	●
1	SHOE; BRK,FRT (A)	1-47120-832-0	04	1	0710-0711	●	●	●
1	SHOE; BRK,FRT (A)	1-47120-832-0	04	1	0712-		●	●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47120-832-0	04	1	0712-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-758-0	08	1	0906-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-698-0	08	1	0712-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-812-0	08	1	0712-0905	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47126-812-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-759-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-699-0	08	1	0712-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-813-0	08	1	0712-0905	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47126-813-0	08	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-88311-353-1	02	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-88311-314-0	02	1	0712-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-88311-390-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-88311-390-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-88311-394-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-88311-394-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) BEST VALUE PARTS	1-87610-128-0	01	1	0712-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-88311-354-1	02	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-88311-315-0	02	1	0712-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-391-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-391-0	01	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-395-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-395-0	01	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) L=18.5	1-09732-034-0	40	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) L=15.5	1-09732-053-0	80	1	0712-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) L=18.5	1-09732-034-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (B) L=18.5	1-09732-034-0	80	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A) L=15.5	1-09732-053-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (A) L=15.5	1-09732-053-0	40	1	0906-	●
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47112-020-0	04	1	0712-	●
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47112-011-0	04	1	0712-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5	1-47119-017-1	04	1	0906-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47119-177-1	04	1	0712-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47119-134-0	04	1	0712-0905	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47119-134-0	04	1	0906-	●
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	9-09940-435-0	02	1	0906-	●
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-196-0	04	1	0712-	●
25	SCREW; ADJ,FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47623-035-2	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (F)	1-09583-269-1	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	02	1	0712-0906	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	04	1	0907-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (E)	1-09583-359-0	04	1	0712-0905	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (E)	1-09583-359-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0712-		●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0710-0711	●	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0712-		●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0712-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47137-435-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47137-512-0	02	1	0712-1005	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (E)	8-98091-252-0	02	1	1006-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-47137-519-0	02	1	0712-0905	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C)	1-47137-519-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0710-0711	●	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0712-		●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-450-0	01	1	0712-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0710-0711	●	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0712-		●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-451-0	01	1	0712-	●
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47169-031-0	04	1	0906-	●
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> L=115.5	1-47131-044-0	04	1	0712-	●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5	1-47131-038-0	04	1	0712-	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0710-0711	●	●	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0712-		●	●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-040-0	04	1	0712-	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	1-47139-173-0	02	1	0911-	●
44	BOLT; LOCK,ANCHOR PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20851-016-0	02	1	0712-0910	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20851-016-0	02	1	0911-	●
45	WASHER; LK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47133-011-0	02	1	0712-	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-152-0	04	1	0712-	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47133-010-0	02	1	0712-	●
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-47133-005-0	02	1	0712-	●
78	BOLT; LK,PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47119-153-0	04	1	0712-	●
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47619-149-1	04	1	0712-	●
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-034-1	02	1	0712-	●
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47621-017-0	04	1	0712-	●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47621-016-0	04	1	0712-0905	●
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47621-016-0	04	1	0906-	●
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-031-0	02	1	0712-	●
276	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X42.5	1-47139-163-0	08	1	0712-	●
277	RING; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48259-231-0	02	1	0712-	●
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-020-0	02	1	0712-	●
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-192-0	04	1	0712-	●
280	WEDGE; FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47640-012-0	02	1	0712-	●
281	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-247-1	04	1	0712-	●
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-200-0	04	1	0712-	●
287	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> ID=10	0-91805-510-0	08	1	0712-	●
291	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47601-087-0	02	1	0712-	●
292	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0712-	●
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-042-0	02	1	0712-	●
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-044-0	02	1	0712-	●

2 3 2 3 7 2 3 2 3 35 28 34 2 29 41 40 39 38 37 7 33 14 2 42 8 43 1 15 30 36 2 7 36 46 45 44 2 8 26 15 1 17 16 27 20 21 22 21 24 27 23 24 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47170-441-0	04	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-47170-316-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-47170-317-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-47170-318-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-47170-319-0	01	1	0712-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-496-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-496-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-497-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-497-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-498-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) LEADING	1-47170-498-0	01	1	0906-	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-499-0	01	1	0712-0905	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) TRAILING	1-47170-499-0	01	1	0906-	●
1	SHOE; BRK,FRT (A)	1-47120-832-0	04	1	0710-0711	●	●	●
1	SHOE; BRK,FRT (A)	1-47120-832-0	04	1	0712-		●	●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47120-832-0	04	1	0712-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-758-0	08	1	0906-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-698-0	08	1	0712-	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-812-0	08	1	0712-0905	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47126-812-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-759-0	08	1	0906-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-699-0	08	1	0712-	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-813-0	08	1	0712-0905	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47126-813-0	08	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-88311-353-1	02	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-88311-314-0	02	1	0712-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-88311-390-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B) LEADING	1-88311-390-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-88311-394-0	01	1	0712-0905	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B) TRAILING	1-88311-394-0	01	1	0906-	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) BEST VALUE PARTS	1-87610-128-0	01	1	0712-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-88311-354-1	02	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-88311-315-0	02	1	0712-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-391-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-391-0	01	1	0906-	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-395-0	01	1	0712-0905	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (B)	1-88311-395-0	01	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C) L=18.5	1-09732-034-0	40	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) L=15.5	1-09732-053-0	80	1	0712-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) L=18.5	1-09732-034-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (B) L=18.5	1-09732-034-0	80	1	0906-	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A) L=15.5	1-09732-053-0	40	1	0712-0905	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (A) L=15.5	1-09732-053-0	40	1	0906-	●
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47112-020-0	04	1	0712-	●
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47112-011-0	04	1	0712-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> L=73.5	1-47119-017-1	04	1	0906-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47119-177-1	04	1	0712-	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47119-134-0	04	1	0712-0905	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47119-134-0	04	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47601-122-0	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47601-123-0	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47601-041-1	01	1	0712-0905	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47601-041-1	01	1	0906-	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47601-042-1	01	1	0712-0905	●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47601-042-1	01	1	0906-	●
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> L=66.5	1-47615-005-0	02	1	0906-	●
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> OD=12	1-47619-011-0	02	1	0712-	●
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M12X40.5 EYE BOLT	1-47634-006-0	02	1	0712-	●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (A) ID=15.2	1-09630-019-0	02	1	0712-	●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=12.2	1-09630-020-0	02	1	0712-	●
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47631-057-1	02	1	0712-	●
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	9-09940-435-0	02	1	0906-	●
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-196-0	04	1	0712-	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47624-389-0	04	1	0906-	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47624-370-0	04	1	0712-0905	●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47624-370-0	04	1	0906-	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-87830-676-0	02	1	0906-	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-87830-931-0	02	1	0712-0905	●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-87830-931-0	02	1	0906-	●
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47621-009-0	04	1	0906-	●
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47116-002-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (F)	1-09583-269-1	02	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	02	1	0712-0906	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	04	1	0907-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (E)	1-09583-359-0	04	1	0712-0905	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (E)	1-09583-359-0	04	1	0906-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0712-		●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0710-0711	●	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0712-		●	●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0712-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47137-435-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47137-512-0	02	1	0712-1005	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (E)	8-98091-252-0	02	1	1006-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-47137-519-0	02	1	0712-0905	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> (C)	1-47137-519-0	02	1	0906-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0710-0711	●	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0712-		●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-450-0	01	1	0712-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0710-0711	●	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0712-		●	●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-451-0	01	1	0712-	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47159-080-0	02	1	0906-	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47159-197-0	02	1	0712-0905	●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K>	1-47159-197-0	02	1	0906-	●
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K>	1-47159-094-0	02	1	0712-	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> M12X35 W/LK WASHER	0-50551-235-0	04	1	0906-0906	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M12X35 W/LK WASHER	0-50551-235-0	04	1	0907-	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M12X35 W/LK WASHER	0-50051-235-0	04	1	0712-0905	●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>,HUB LUBRICATION OIL BATH<C5K> M12X35 W/LK WASHER	0-50051-235-0	04	1	0906-0906	●
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-47165-058-1	02	1	0906-	●
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47165-059-1	02	1	0906-	●
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47169-033-0	04	1	0906-	●
37	WASHER; ADJ CAM	1-47149-087-0	02	1	0710-0711	●	●	●
37	WASHER; ADJ CAM	1-47149-087-0	02	1	0712-		●	●
37	WASHER; ADJ CAM HUB LUBRICATION OIL BATH<C5K>	1-47149-087-0	02	1	0712-	●
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47169-046-0	04	1	0906-	●
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47169-034-0	04	1	0906-	●
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47169-031-0	04	1	0906-	●
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47169-032-1	04	1	0906-	●
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> EXC. HUB LUBRICATION OIL BATH<C5K>	1-47169-030-0	04	1	0906-	●
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> L=115.5	1-47131-044-0	04	1	0712-	●
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> L=106.5	1-47131-038-0	04	1	0712-	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0710-0711	●	●	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0712-		●	●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-040-0	04	1	0712-	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	1-47139-173-0	02	1	0911-	●
44	BOLT; LOCK,ANCHOR PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20851-016-0	02	1	0712-0910	●
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20851-016-0	02	1	0911-	●
45	WASHER; LK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47133-011-0	02	1	0712-	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-152-0	04	1	0712-	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47133-010-0	02	1	0712-	●
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-47133-005-0	02	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
