Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#36535) — 247 parça

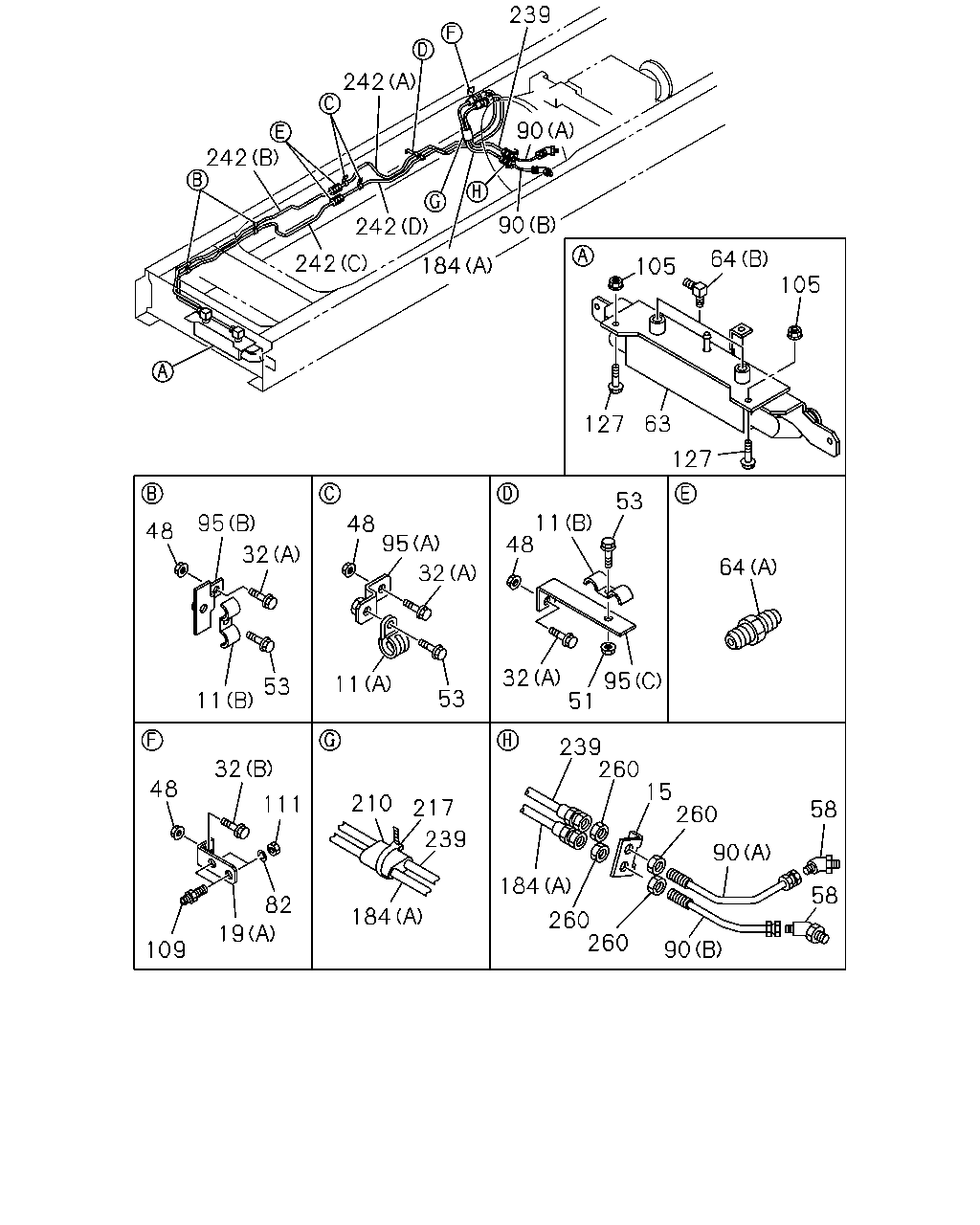

239 242 90 242 242 90 64 242 184 105 105 63 127 127 53 11 48 95 48 95 48 32 64 32 32 51 95 11 53 53 11 239 260 15 260 32 48 210 111 217 58 239 90 184 58 82 184 260 260 19 90 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-	●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (A) ID=19 L=20	0-95235-836-0	02	1	0710-		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	0710-0811		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	04	1	0812-0903		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (B) ID=19 & 19	1-09701-324-0	04	1	0904-0912		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	1001-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98084-148-0	01	1	0712-	●
15	BRACKET; ATF PIPE ALLISON MD3060P A/T(Y4G)	1-47471-409-0	01	1	0710-0912		●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (B)	8-98144-397-0	01	1	1001-		●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98097-570-0	01	1	0710-0811		●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98133-954-0	01	1	0812-0903		●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (A)	8-98133-954-0	01	1	0904-0912		●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98097-570-0	01	1	1001-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0712-	●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	05	1	0710-0912		●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	07	1	1001-		●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0712-	●
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	07	1	0710-0912		●
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	09	1	1001-		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	0712-	●
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0710-0811		●
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	02	1	0812-		●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	0710-0811		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	06	1	0812-0903		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) M8X20 FLANGE	0-28650-820-0	06	1	0904-0912		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	1001-		●
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G)	1-09661-809-0	02	1	0710-0912		●
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G)	8-98144-617-0	02	1	1001-		●
63	COOLER; OIL A/T<X9D>	8-98025-666-2	01	1	0710-		●
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (A)	1-09664-263-0	02	1	0710-0811		●
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (B)	9-09903-722-0	02	1	0710-		●
82	WASHER; LK,UNION ALLISON MD3060P A/T(Y4G) ID=30.5	9-09150-530-0	02	1	0710-0903		●
82	WASHER; LK,UNION ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) ID=30.5	9-09150-530-0	02	1	0904-0912		●
82	WASHER; LK,UNION ALLISON MD3060P A/T(Y4G) ID=30.5	9-09150-530-0	02	1	1001-		●
90	PIPE ASM; ATF ALLISON MD3060P A/T(Y4G) (A)	1-32571-167-0	01	1	0710-0912		●
90	PIPE ASM; ATF ALLISON MD3060P A/T(Y4G) (B)	1-32571-168-0	01	1	0710-0912		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	1-47478-140-0	01	1	0710-1407		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	8-98269-434-0	01	1	1408-		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (A)	1-47479-255-0	02	1	0710-		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (B)	8-98089-351-0	02	1	0710-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98072-008-0	01	1	0712-	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	0710-		●
109	UNION ALLISON MD3060P A/T(Y4G) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0710-0903		●
109	UNION ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0904-0912		●
109	UNION ALLISON MD3060P A/T(Y4G) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1001-		●
111	NUT; UNION ALLISON MD3060P A/T(Y4G) M30	9-09840-252-1	02	1	0710-0903		●
111	NUT; UNION ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) M30	9-09840-252-1	02	1	0904-0912		●
111	NUT; UNION ALLISON MD3060P A/T(Y4G) M30	9-09840-252-1	02	1	1001-		●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	02	1	0710-		●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98025-696-1	01	1	0802-		●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98097-593-0	01	1	0710-0903		●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (A)	8-98097-593-0	01	1	0904-0912		●
210	BAND; FLEX HOSE ALLISON MD3060P A/T(Y4G) L=175	1-09707-178-0	02	1	0710-0811		●
210	BAND; FLEX HOSE ALLISON MD3060P A/T(Y4G) L=175	1-09707-178-0	01	1	0812-		●
217	CLIP; BAND,FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) L=350	1-09707-183-0	01	1	0712-	●
217	CLIP; BAND,FLEX HOSE ALLISON MD3060P A/T(Y4G) L=250	1-09707-126-0	01	1	0710-0811		●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D>	8-98025-697-1	01	1	0802-		●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3060P A/T(Y4G)	8-98097-594-0	01	1	0710-0903		●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W)	8-98097-594-0	01	1	0904-0912		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98097-573-0	01	1	0710-0811		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98112-994-0	01	1	0812-0903		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (A)	8-98112-994-0	01	1	0904-0912		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (G)	8-98144-258-0	01	1	1001-		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (B)	8-98097-574-0	01	1	0710-		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98097-575-0	01	1	0710-0811		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98112-995-0	01	1	0812-0903		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (D)	8-98112-995-0	01	1	0904-0912		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (H)	8-98144-259-0	01	1	1001-		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98097-576-0	01	1	0710-0811		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98113-105-0	01	1	0812-		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98003-674-0	01	1	0712-1507	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98303-637-0	01	1	1508-	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98003-675-0	01	1	0712-1507	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98303-638-0	01	1	1508-	●
260	NUT ALLISON MD3060P A/T(Y4G) M30	1-09400-166-0	04	1	0710-0912		●

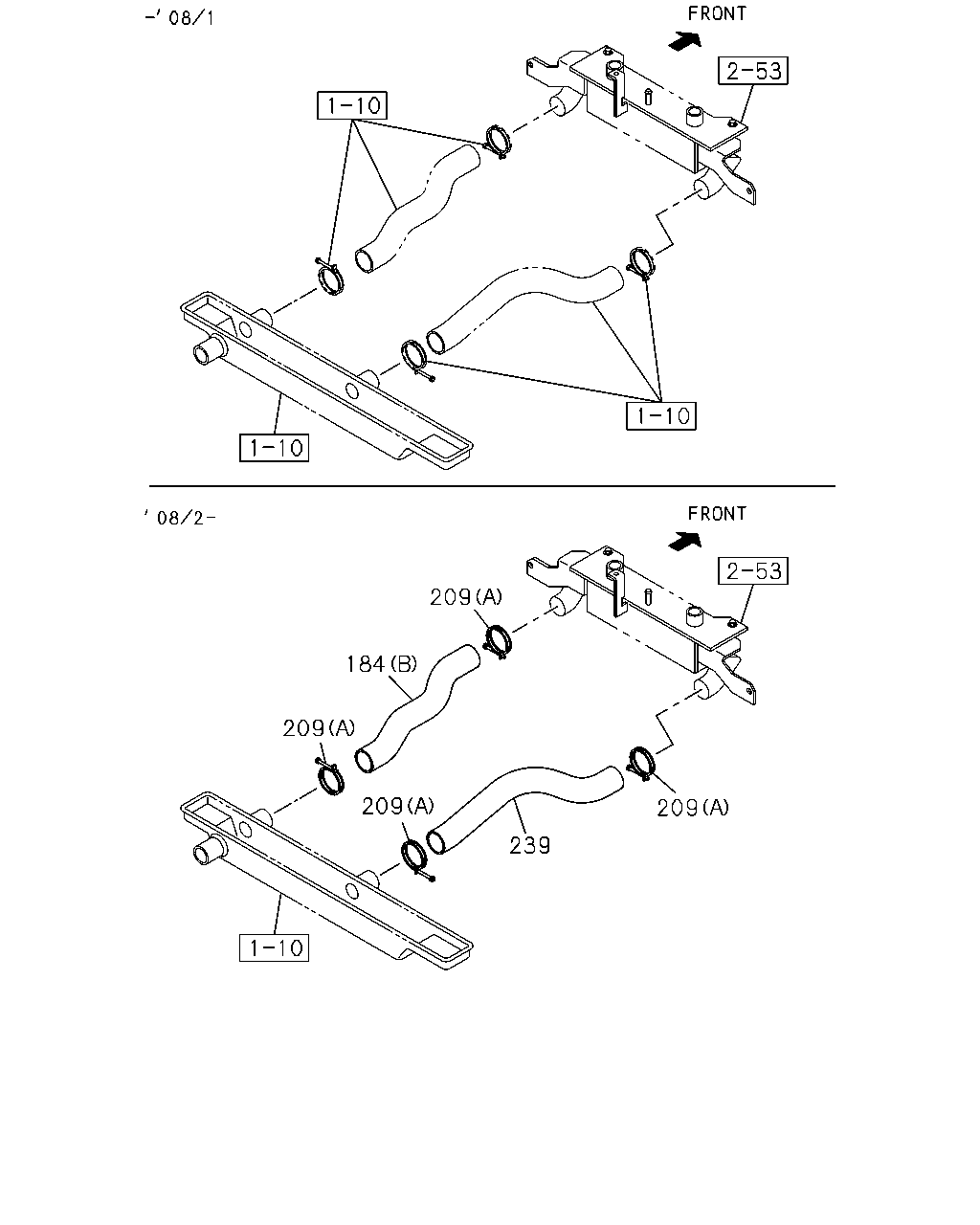

209 184 209 209 209 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98025-696-1	01	1	0802-		●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98097-593-0	01	1	0710-0903		●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (A)	8-98097-593-0	01	1	0904-0912		●
209	CLIP; HOSE ALLISON MD3060P A/T(Y4G) (C) ID=26 L=26	1-09701-236-0	02	1	1001-		●
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	0802-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11-19.5	8-94426-597-0	08	1	0712-1005	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11-17	8-98173-762-0	08	1	1006-1106	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98192-447-0	08	1	1107-	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D>	8-98025-697-1	01	1	0802-		●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3060P A/T(Y4G)	8-98097-594-0	01	1	0710-0903		●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W)	8-98097-594-0	01	1	0904-0912		●

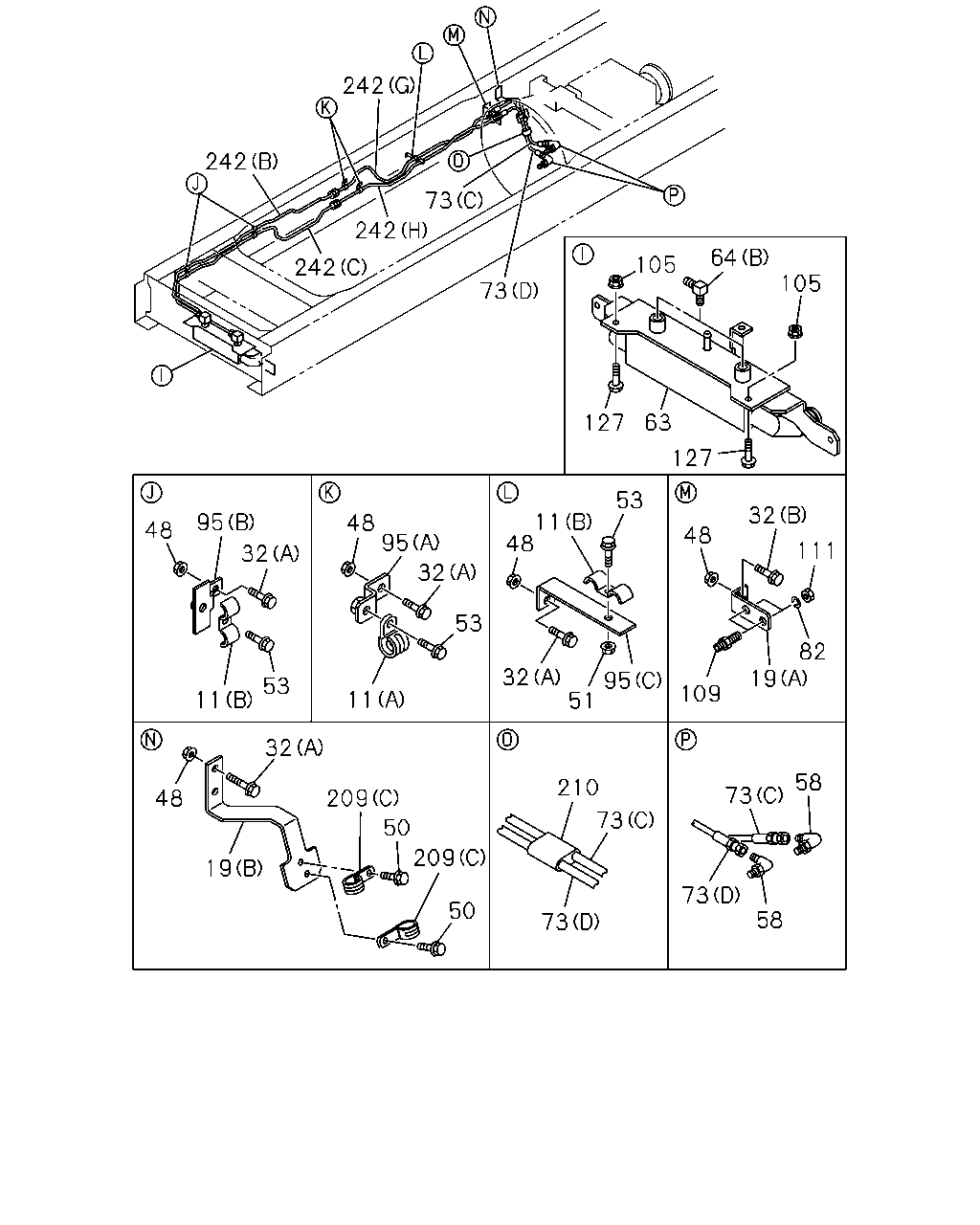

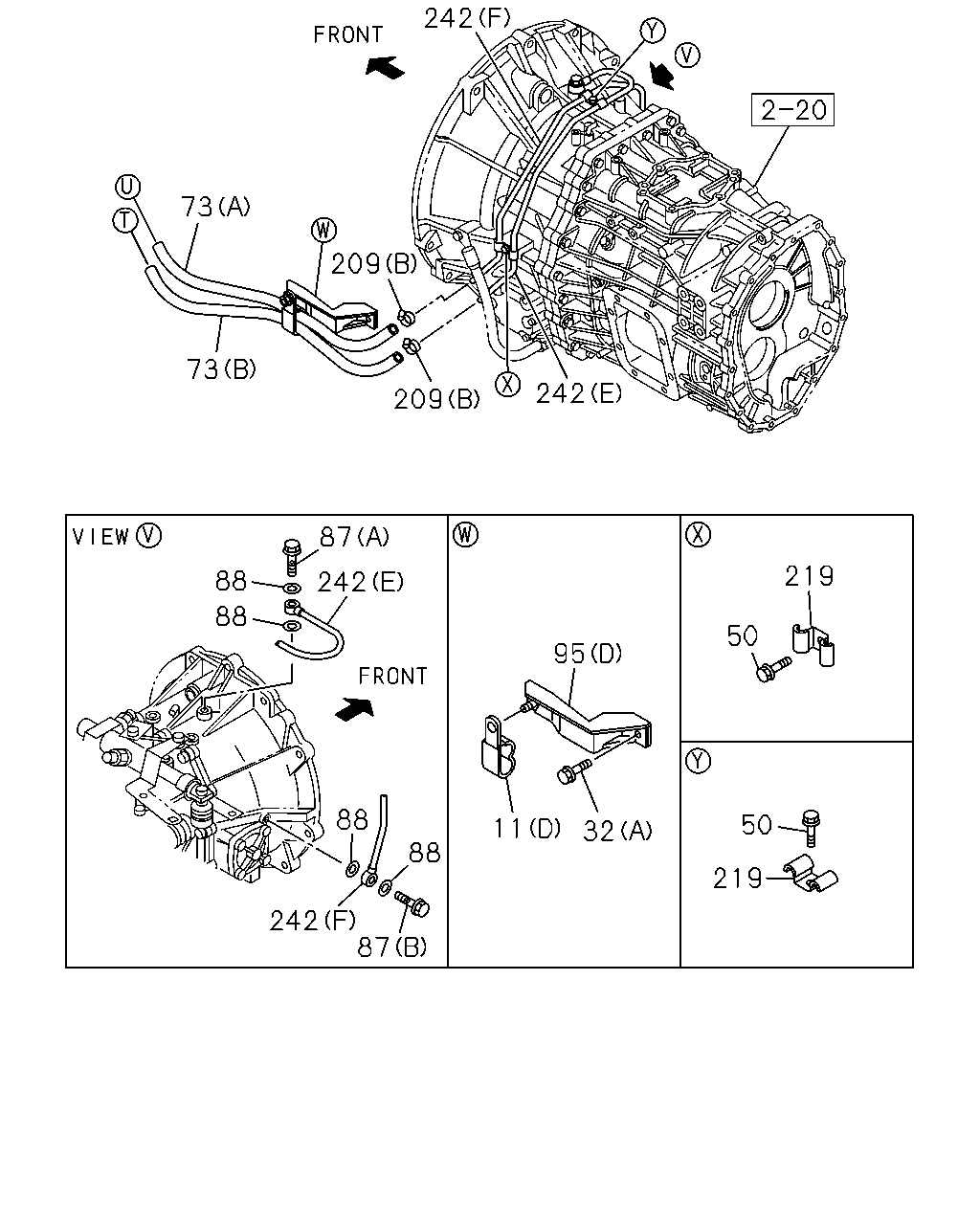

242 242 73 242 64 105 242 105 73 63 127 127 53 32 11 48 95 48 95 48 48 111 32 32 53 82 32 51 19 95 53 109 11 11 32 58 210 73 209 48 73 50 209 19 73 50 58 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-	●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (A) ID=19 L=20	0-95235-836-0	02	1	0710-		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	0710-0811		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	04	1	0812-0903		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (B) ID=19 & 19	1-09701-324-0	04	1	0904-0912		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	1001-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98084-148-0	01	1	0712-	●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (B)	8-98144-397-0	01	1	1001-		●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98097-570-0	01	1	0710-0811		●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98133-954-0	01	1	0812-0903		●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (A)	8-98133-954-0	01	1	0904-0912		●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98097-570-0	01	1	1001-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0712-	●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	05	1	0710-0912		●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	07	1	1001-		●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0712-	●
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	07	1	0710-0912		●
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	09	1	1001-		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0712-0912	●
50	BOLT; CLIP ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	02	1	1001-		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1001-	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	0712-	●
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0710-0811		●
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	02	1	0812-		●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	0710-0811		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	06	1	0812-0903		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) M8X20 FLANGE	0-28650-820-0	06	1	0904-0912		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	1001-		●
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G)	1-09661-809-0	02	1	0710-0912		●
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G)	8-98144-617-0	02	1	1001-		●
63	COOLER; OIL A/T<X9D>	8-98025-666-2	01	1	0710-		●
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (A)	1-09664-263-0	02	1	0710-0811		●
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (B)	9-09903-722-0	02	1	0710-		●
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) (C)	8-98144-618-0	01	1	1001-		●
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) (D)	8-98144-619-0	01	1	1001-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=470	8-98081-844-0	01	1	0712-	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	0712-	●
82	WASHER; LK,UNION ALLISON MD3060P A/T(Y4G) ID=30.5	9-09150-530-0	02	1	0710-0903		●
82	WASHER; LK,UNION ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) ID=30.5	9-09150-530-0	02	1	0904-0912		●
82	WASHER; LK,UNION ALLISON MD3060P A/T(Y4G) ID=30.5	9-09150-530-0	02	1	1001-		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	1-47478-140-0	01	1	0710-1407		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	8-98269-434-0	01	1	1408-		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (A)	1-47479-255-0	02	1	0710-		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (B)	8-98089-351-0	02	1	0710-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98072-008-0	01	1	0712-	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	0710-		●
109	UNION ALLISON MD3060P A/T(Y4G) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0710-0903		●
109	UNION ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0904-0912		●
109	UNION ALLISON MD3060P A/T(Y4G) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1001-		●
111	NUT; UNION ALLISON MD3060P A/T(Y4G) M30	9-09840-252-1	02	1	0710-0903		●
111	NUT; UNION ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) M30	9-09840-252-1	02	1	0904-0912		●
111	NUT; UNION ALLISON MD3060P A/T(Y4G) M30	9-09840-252-1	02	1	1001-		●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	02	1	0710-		●
209	CLIP; HOSE ALLISON MD3060P A/T(Y4G) (C) ID=26 L=26	1-09701-236-0	02	1	1001-		●
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	0802-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11-19.5	8-94426-597-0	08	1	0712-1005	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11-17	8-98173-762-0	08	1	1006-1106	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98192-447-0	08	1	1107-	●
210	BAND; FLEX HOSE ALLISON MD3060P A/T(Y4G) L=175	1-09707-178-0	02	1	0710-0811		●
210	BAND; FLEX HOSE ALLISON MD3060P A/T(Y4G) L=175	1-09707-178-0	01	1	0812-		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98097-573-0	01	1	0710-0811		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98112-994-0	01	1	0812-0903		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (A)	8-98112-994-0	01	1	0904-0912		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (G)	8-98144-258-0	01	1	1001-		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (B)	8-98097-574-0	01	1	0710-		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98097-575-0	01	1	0710-0811		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98112-995-0	01	1	0812-0903		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (D)	8-98112-995-0	01	1	0904-0912		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (H)	8-98144-259-0	01	1	1001-		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98097-576-0	01	1	0710-0811		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98113-105-0	01	1	0812-		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98003-674-0	01	1	0712-1507	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98303-637-0	01	1	1508-	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98003-675-0	01	1	0712-1507	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98303-638-0	01	1	1508-	●

242 73 209 242 73 209 87 219 88 242 88 50 95 88 50 11 32 88 219 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-	●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (A) ID=19 L=20	0-95235-836-0	02	1	0710-		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	0710-0811		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	04	1	0812-0903		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (B) ID=19 & 19	1-09701-324-0	04	1	0904-0912		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	1001-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98084-148-0	01	1	0712-	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0712-	●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	05	1	0710-0912		●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	07	1	1001-		●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0712-0912	●
50	BOLT; CLIP ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	02	1	1001-		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1001-	●
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) (C)	8-98144-618-0	01	1	1001-		●
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) (D)	8-98144-619-0	01	1	1001-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=470	8-98081-844-0	01	1	0712-	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	0712-	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0712-0805	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0712-	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0712-	●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	1-47478-140-0	01	1	0710-1407		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	8-98269-434-0	01	1	1408-		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (A)	1-47479-255-0	02	1	0710-		●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (B)	8-98089-351-0	02	1	0710-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98072-008-0	01	1	0712-	●
209	CLIP; HOSE ALLISON MD3060P A/T(Y4G) (C) ID=26 L=26	1-09701-236-0	02	1	1001-		●
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	0802-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11-19.5	8-94426-597-0	08	1	0712-1005	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11-17	8-98173-762-0	08	1	1006-1106	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98192-447-0	08	1	1107-	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0712-	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98097-573-0	01	1	0710-0811		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98112-994-0	01	1	0812-0903		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (A)	8-98112-994-0	01	1	0904-0912		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (G)	8-98144-258-0	01	1	1001-		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (B)	8-98097-574-0	01	1	0710-		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98097-575-0	01	1	0710-0811		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98112-995-0	01	1	0812-0903		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (D)	8-98112-995-0	01	1	0904-0912		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (H)	8-98144-259-0	01	1	1001-		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98097-576-0	01	1	0710-0811		●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98113-105-0	01	1	0812-		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98003-674-0	01	1	0712-1507	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98303-637-0	01	1	1508-	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98003-675-0	01	1	0712-1507	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98303-638-0	01	1	1508-	●

3 209 209 209 3 209 209 1 217 48 11 53 46 46 11 11 51 46 48 47 47 51 53 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98081-599-0	01	1	0712-	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98096-811-0	01	1	0712-	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98096-812-0	01	1	0712-	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-	●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (A) ID=19 L=20	0-95235-836-0	02	1	0710-		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	0710-0811		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	04	1	0812-0903		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (B) ID=19 & 19	1-09701-324-0	04	1	0904-0912		●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	1001-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98084-148-0	01	1	0712-	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98072-018-0	01	1	0712-	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=50	1-47475-299-2	01	1	0712-	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98045-565-0	01	1	0712-	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	0712-	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	0712-	●
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	07	1	0710-0912		●
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	09	1	1001-		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	04	1	0712-	●
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0710-0811		●
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	02	1	0812-		●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	0710-0811		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	06	1	0812-0903		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) M8X20 FLANGE	0-28650-820-0	06	1	0904-0912		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	1001-		●
209	CLIP; HOSE ALLISON MD3060P A/T(Y4G) (C) ID=26 L=26	1-09701-236-0	02	1	1001-		●
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	0802-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11-19.5	8-94426-597-0	08	1	0712-1005	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11-17	8-98173-762-0	08	1	1006-1106	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98192-447-0	08	1	1107-	●
217	CLIP; BAND,FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) L=350	1-09707-183-0	01	1	0712-	●
217	CLIP; BAND,FLEX HOSE ALLISON MD3060P A/T(Y4G) L=250	1-09707-126-0	01	1	0710-0811		●

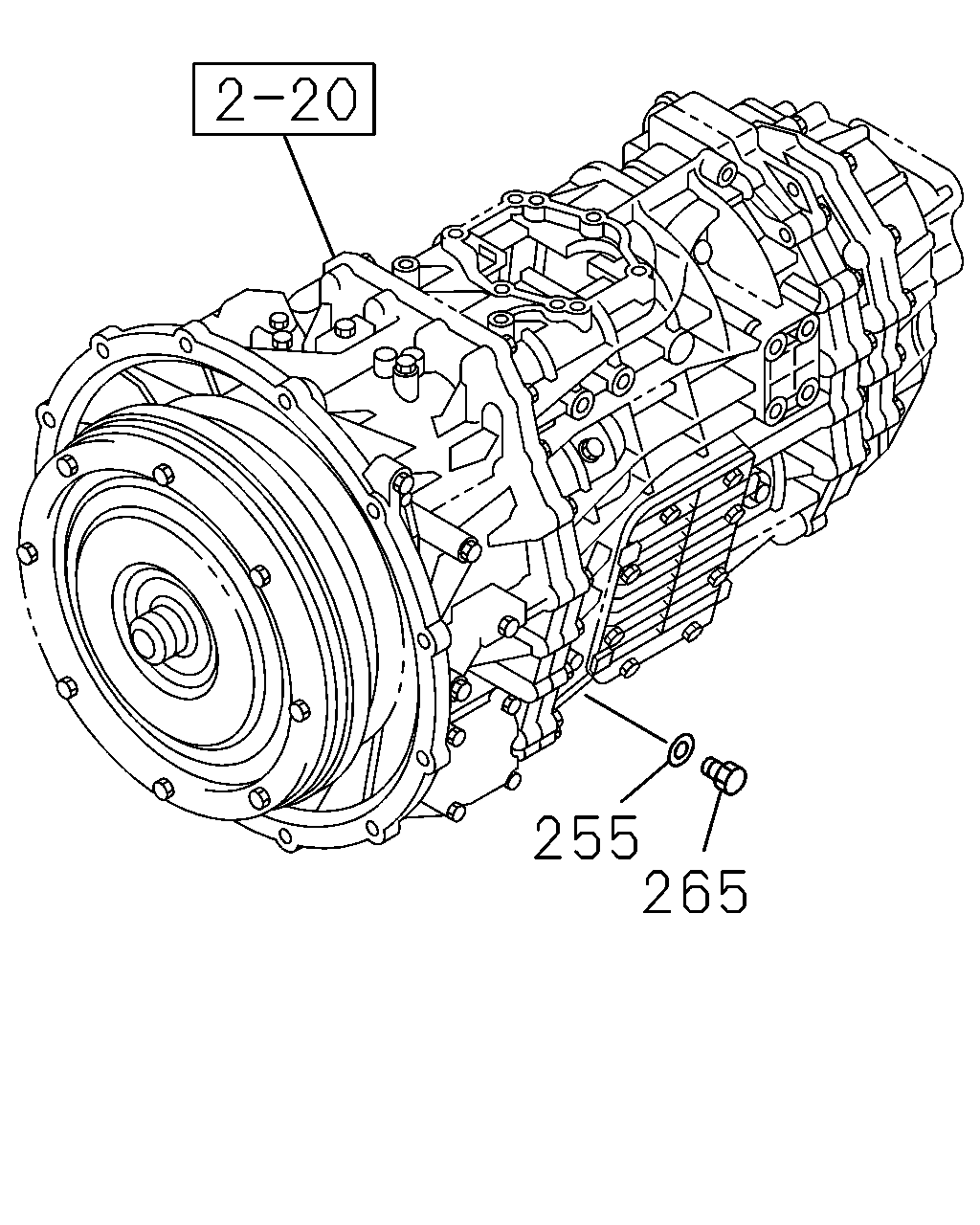

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1405-	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1405-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
