2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#36528) — 178 parça

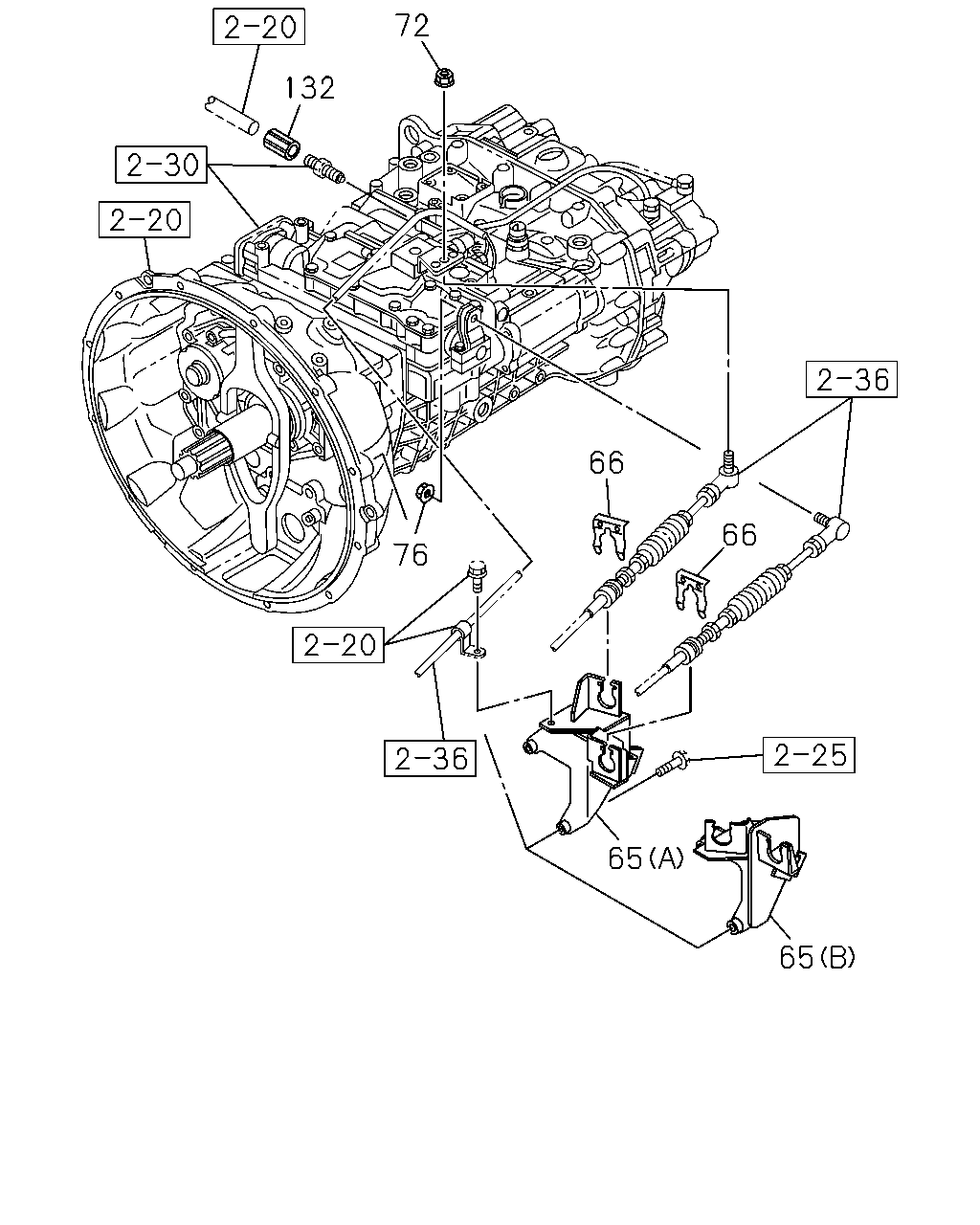

çizim 179581
72 132 66 66 76 65 65
BalonParca AdiParca NoAdetTipApplied Date A B C
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		1-33657-677-0 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33657-672-1 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98010-160-0 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98010-160-0 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98017-428-0 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98017-428-0 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(A) 		8-98049-613-1 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98017-432-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98017-432-0 01 1 0712-0803 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98017-432-0 01 1 0712-0803 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98117-499-0 01 1 0804-0806 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98117-499-0 01 1 0804-0806 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98126-579-0 01 1 0807-0808 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98126-579-0 01 1 0807-0808 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98131-609-0 01 1 0809- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98131-609-0 01 1 0809- ●
66 CLIP; SELECT BRKT
ZF9S1110 M/T(Y5E) ID=22.2 		1-09701-209-1 02 1 0710-0711 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0710-0711 ● ●
66 CLIP; SELECT BRKT
ZF9S1110 M/T(Y5E) ID=22.2 		1-09701-209-1 02 1 0712-1105 ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 0712-1105 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0712-1105 ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 1106- ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1106- ●
72 NUT; TRANS CONT,SELECT
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ● ●
72 NUT; TRANS CONT,SELECT
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0712-1105 ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712-1105 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0712-1105 ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 1106- ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1106- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ● ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0712-0805 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712-0805 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0712-0805 ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0806-0906 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0806-0906 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0806-0906 ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0907- ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0907- ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0907- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 0710-0711 ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 0712- ● ●
132 CONNECTOR; FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0808- ●
132 CONNECTOR; FLEX HOSE
ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0808- ●

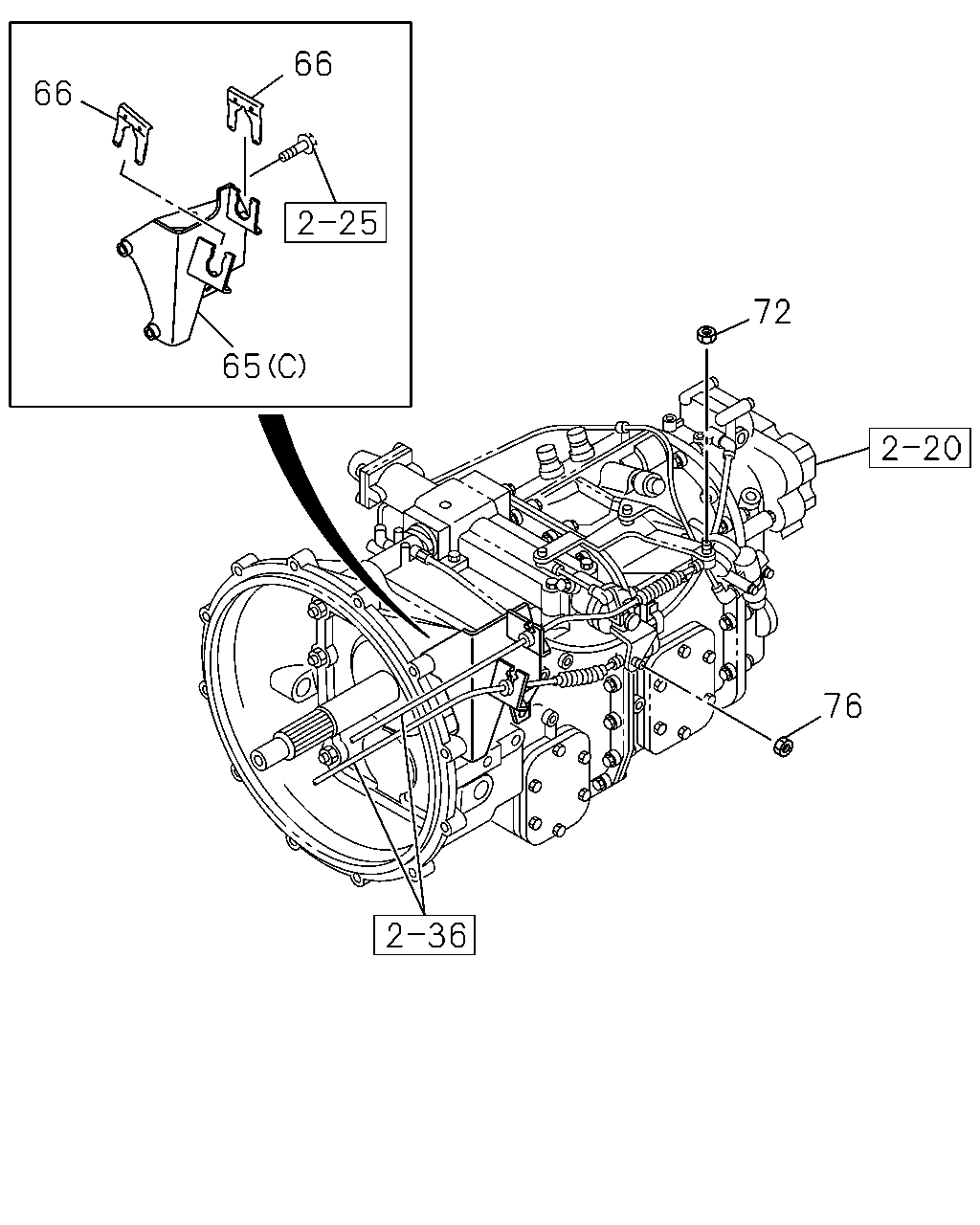

çizim 179608
66 66 72 65 76
BalonParca AdiParca NoAdetTipApplied Date A B C
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		1-33657-677-0 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33657-672-1 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98010-160-0 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98010-160-0 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98017-428-0 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98017-428-0 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(A) 		8-98049-613-1 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98017-432-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98017-432-0 01 1 0712-0803 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98017-432-0 01 1 0712-0803 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98117-499-0 01 1 0804-0806 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98117-499-0 01 1 0804-0806 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98126-579-0 01 1 0807-0808 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98126-579-0 01 1 0807-0808 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98131-609-0 01 1 0809- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98131-609-0 01 1 0809- ●
66 CLIP; SELECT BRKT
ZF9S1110 M/T(Y5E) ID=22.2 		1-09701-209-1 02 1 0710-0711 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0710-0711 ● ●
66 CLIP; SELECT BRKT
ZF9S1110 M/T(Y5E) ID=22.2 		1-09701-209-1 02 1 0712-1105 ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 0712-1105 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0712-1105 ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 1106- ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1106- ●
72 NUT; TRANS CONT,SELECT
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ● ●
72 NUT; TRANS CONT,SELECT
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0712-1105 ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712-1105 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0712-1105 ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 1106- ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1106- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ● ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0712-0805 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712-0805 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0712-0805 ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0806-0906 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0806-0906 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0806-0906 ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0907- ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0907- ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0907- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 0710-0711 ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 0712- ● ●

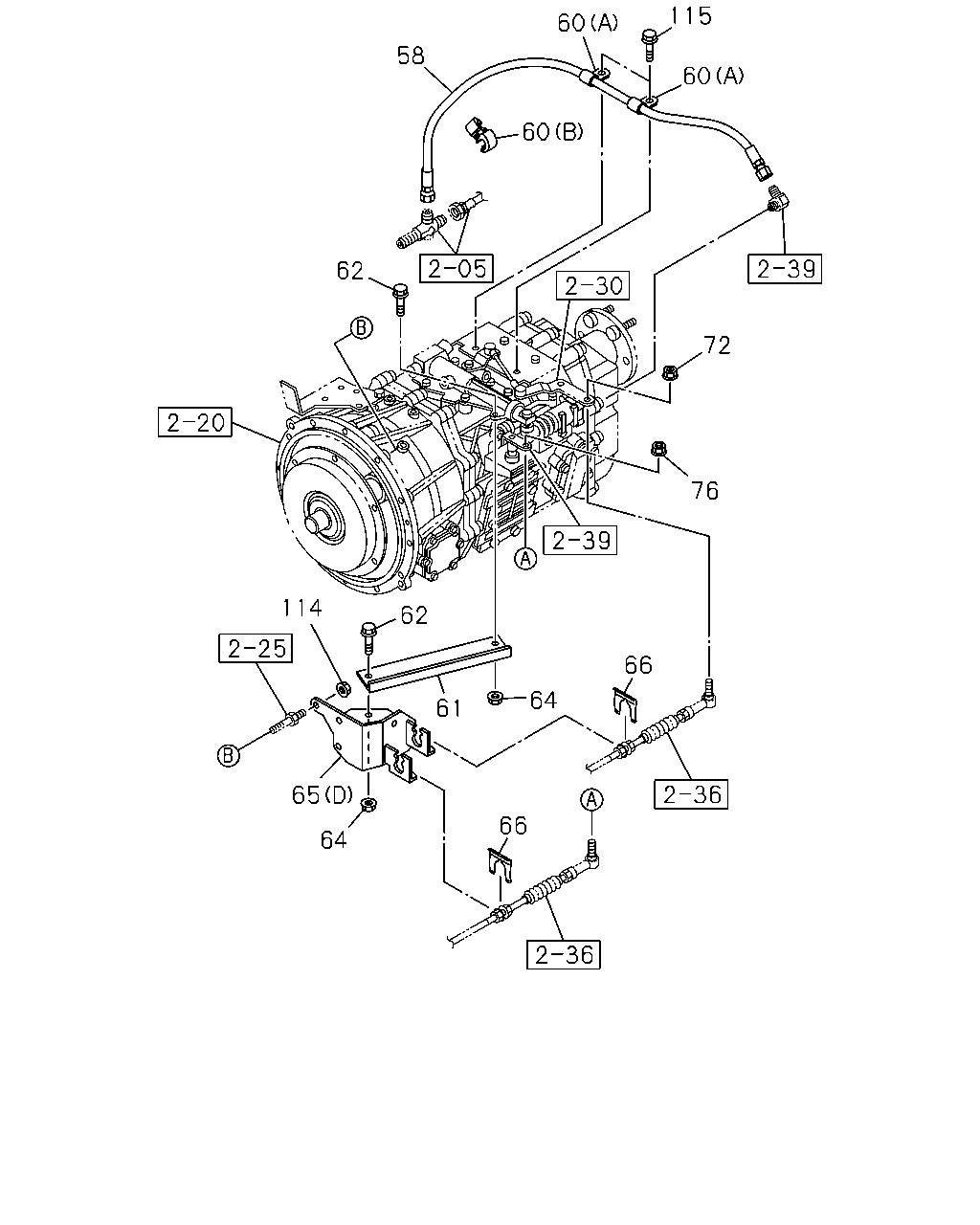

çizim 179860
115 60 58 60 60 62 72 76 114 62 66 64 61 65 66 64
BalonParca AdiParca NoAdetTipApplied Date A B C
58 HOSE; FLEX,POWER ASSISTOR
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=740 		1-09363-675-0 01 1 0806-1008 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 1009- ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0712-0906 ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0907-1008 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1009- ●
60 CLIP; FLEX HOSE
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0712-0805 ●
60 CLIP; FLEX HOSE
MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0806-0906 ●
60 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0907-1008 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1009- ●
60 CLIP; FLEX HOSE
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0712-0805 ●
60 CLIP; FLEX HOSE
MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0806-0906 ●
60 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0907-1008 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1009- ●
61 STAY; BRKT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0806- ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0712-0805 ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0806-0906 ●
61 STAY; BRKT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0806-0906 ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0907- ●
61 STAY; BRKT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0907- ●
62 BOLT; STAY
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0806- ●
62 BOLT; STAY
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0805 ●
62 BOLT; STAY
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0806-0906 ●
62 BOLT; STAY
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0806-0906 ●
62 BOLT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
62 BOLT; STAY
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
64 NUT; STAY
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0712-0805 ●
64 NUT; STAY
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0806-0906 ●
64 NUT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		1-33657-677-0 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33657-672-1 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98010-160-0 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98010-160-0 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98017-428-0 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98017-428-0 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(A) 		8-98049-613-1 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98017-432-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98017-432-0 01 1 0712-0803 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98017-432-0 01 1 0712-0803 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98117-499-0 01 1 0804-0806 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98117-499-0 01 1 0804-0806 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98126-579-0 01 1 0807-0808 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98126-579-0 01 1 0807-0808 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98131-609-0 01 1 0809- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98131-609-0 01 1 0809- ●
66 CLIP; SELECT BRKT
ZF9S1110 M/T(Y5E) ID=22.2 		1-09701-209-1 02 1 0710-0711 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0710-0711 ● ●
66 CLIP; SELECT BRKT
ZF9S1110 M/T(Y5E) ID=22.2 		1-09701-209-1 02 1 0712-1105 ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 0712-1105 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0712-1105 ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 1106- ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1106- ●
72 NUT; TRANS CONT,SELECT
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ● ●
72 NUT; TRANS CONT,SELECT
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0712-1105 ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712-1105 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0712-1105 ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 1106- ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1106- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ● ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0712-0805 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712-0805 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0712-0805 ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0806-0906 ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0806-0906 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0806-0906 ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0907- ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0907- ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0907- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 0710-0711 ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 0712- ● ●
114 NUT; BRKT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0712-0805 ●
114 NUT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0806-0906 ●
114 NUT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0907- ●
115 BOLT; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0805 ●
115 BOLT; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0806-0906 ●
115 BOLT; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0907-1008 ●
115 BOLT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
