◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11106 - FVR/GVR-RHD EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#36527) — 509 parça

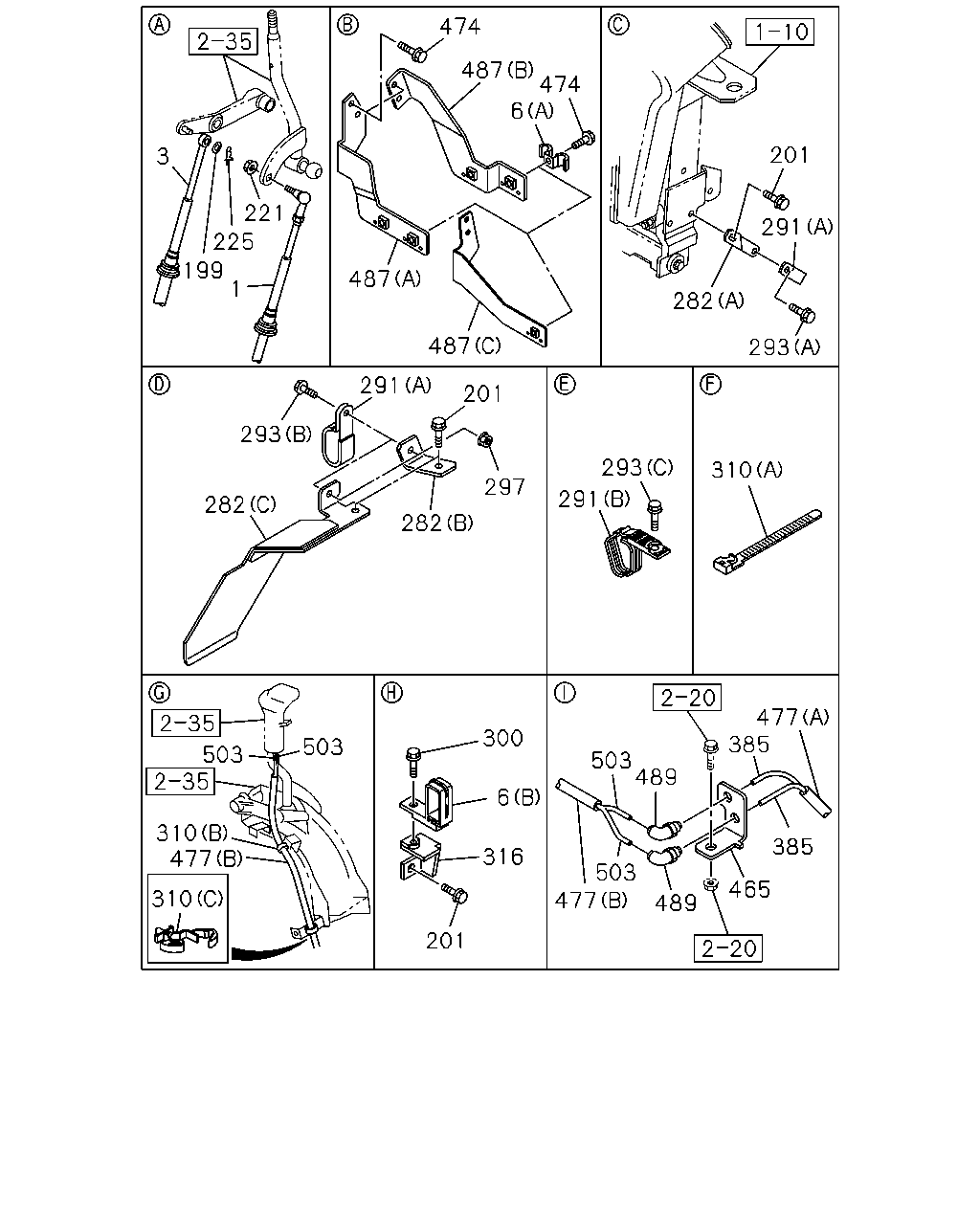

çizim 179636
474 487 474 6 201 3 221 291 225 199 487 1 282 487 293 291 201 293 293 310 297 291 282 282 477 385 300 503 503 503 489 6 310 477 385 316 465 503 477 310 489 201
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3590 		8-98111-795-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3525 		8-98113-108-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98121-075-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3555 		8-98121-073-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98099-964-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3600 		8-98017-474-5 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98017-469-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98017-469-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3610 		8-98047-800-3 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3545 		8-98047-799-3 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3600 		8-98047-804-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3530 		8-98047-803-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3535 		8-98047-801-4 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98010-459-1 01 1 0710-0710 ●
1 CABLE; SHIFT,TRANS CONT
L=3620 		8-98010-459-1 01 1 0710-0710 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98099-965-2 01 1 0711-0711 ●
1 CABLE; SHIFT,TRANS CONT
L=3620 		8-98099-965-2 01 1 0711-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98099-965-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3620 		8-98099-965-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
L=3630 		8-98017-486-4 01 1 0710- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3695 		8-98111-798-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3695 		8-98111-798-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3730 		8-98121-076-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3665 		8-98121-074-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98113-109-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98113-109-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3675 		8-98099-966-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3560 		8-98017-495-3 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3790 		8-98047-814-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3725 		8-98047-813-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3680 		8-98047-818-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3610 		8-98047-817-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3505 		8-98047-815-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98010-495-1 01 1 0710-0710 ●
3 CABLE; SELECT,TRANS CONT
L=3700 		8-98010-495-1 01 1 0710-0710 ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98099-967-1 01 1 0711-0711 ●
3 CABLE; SELECT,TRANS CONT
L=3700 		8-98099-967-1 01 1 0711-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98099-967-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3700 		8-98099-967-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
L=3805 		8-98017-507-3 01 1 0710- ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0710-0711 ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0710-0711 ● ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0712-1105 ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0712-1105 ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0712-1105 ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1106- ● ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1106- ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0711 ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0711 ● ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712-0805 ●
6 CLIP; CABLE
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712-0805 ●
6 CLIP; CABLE
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712-0805 ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712-0805 ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0806 ●
6 CLIP; CABLE
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0806 ●
6 CLIP; CABLE
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0806 ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0806 ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0906 ●
6 CLIP; CABLE
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0906 ●
6 CLIP; CABLE
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0906 ●
6 CLIP; CABLE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0906 ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0906 ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907- ●
6 CLIP; CABLE
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907- ●
6 CLIP; CABLE
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907- ●
6 CLIP; CABLE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907- ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907- ●
199 WASHER; PL,SELECT
ZF9S1110 M/T(Y5E) ID=8.4 OD=16 		0-91614-508-0 01 1 0710-0711 ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0710-0711 ● ●
199 WASHER; PL,SELECT
ZF9S1110 M/T(Y5E) ID=8.4 OD=16 		0-91614-508-0 01 1 0712-1105 ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 0712-1105 ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0712-1105 ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 1106- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1106- ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0805 ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0712-0805 ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 0710-0711 ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0710-0711 ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 0712- ● ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0712- ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X30 FLANGE 		0-28151-230-0 01 1 0710-0711 ●
201 BOLT; BRKT
M12X30 FLANGE 		0-28151-230-0 01 1 0710-0711 ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X30 FLANGE 		0-28151-230-0 01 1 0712-0806 ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12X30 FLANGE 		0-28151-230-0 01 1 0712-0806 ●
201 BOLT; BRKT
M12X30 FLANGE 		0-28151-230-0 01 1 0712-0806 ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 0807- ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 0807- ●
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 0807- ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ● ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0712-1011 ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712-1011 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0712-1011 ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-062-1 01 1 1012-1105 ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1012-1105 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-1105 ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1106- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1106- ●
225 PIN; SELECT CABLE
ZF9S1110 M/T(Y5E) L=27.7 		8-94111-137-0 01 1 0710-0711 ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0710-0711 ● ●
225 PIN; SELECT CABLE
ZF9S1110 M/T(Y5E) L=27.7 		8-94111-137-0 01 1 0712-1105 ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 0712-1105 ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0712-1105 ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 1106- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1106- ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-82699-199-0 01 1 0710-0711 ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0710-0711 ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-82699-199-0 01 1 0712-1103 ● ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0712-1103 ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98171-762-0 01 1 1104- ● ●
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104- ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-419-0 01 1 0710-0711 ●
282 BRACKET; TRANS SIDE
(A) 		8-98010-419-0 01 1 0710-0711 ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-419-0 01 1 0712-0712 ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-419-0 01 1 0712-0712 ●
282 BRACKET; TRANS SIDE
(A) 		8-98010-419-0 01 1 0712-0712 ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-265-2 01 1 0712- ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-265-2 01 1 0712- ●
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 0712- ●
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0711 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712-1105 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712-1105 ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712-1105 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1106- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1106- ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (A) ID=11X2 L=16 		0-95325-026-0 02 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (A) ID=11X2 L=16 		0-95325-026-0 02 1 0712-0903 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 0712-0903 ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (A) ID=11X2 L=16 		0-95325-026-0 02 1 0904-1105 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 0904-1105 ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0904-1105 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1106- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1106- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0711 ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0711 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712-1105 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712-1105 ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0712-1105 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1106- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1106- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0712-0801 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0712-0801 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ●
297 NUT; CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
297 NUT; CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 01 1 0712-1105 ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0712-1105 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-1105 ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1106- ● ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1106- ●
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ●
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0805 ●
300 BOLT; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0805 ●
300 BOLT; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0805 ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0805 ●
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 0806-0806 ●
300 BOLT; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 0806-0806 ●
300 BOLT; CLIP
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 0806-0806 ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0806-0806 ●
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 0806-0906 ●
300 BOLT; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 0806-0906 ●
300 BOLT; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 0806-0906 ●
300 BOLT; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0806-0906 ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0806-0906 ●
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ●
300 BOLT; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ●
300 BOLT; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ●
300 BOLT; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0907- ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0907- ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 0710-0711 ●
310 CLIP; TUBE
(A) L=100 		5-09707-036-1 01 1 0710-0711 ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 0712- ● ●
310 CLIP; TUBE
(A) L=100 		5-09707-036-1 01 1 0712- ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 0710-0711 ●
310 CLIP; TUBE
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0710-0711 ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 0712- ● ●
310 CLIP; TUBE
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0712- ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) ID=12 		8-94218-436-0 01 1 0710-0711 ●
310 CLIP; TUBE
(C) ID=12 		8-94218-436-0 01 1 0710-0711 ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) ID=12 		8-94218-436-0 01 1 0712- ● ●
310 CLIP; TUBE
(C) ID=12 		8-94218-436-0 01 1 0712- ●
316 BRACKET; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 0712-0805 ●
316 BRACKET; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 0806-0806 ●
316 BRACKET; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 0806-0906 ●
316 BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 0907- ●
316 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 0710-0711 ●
316 BRACKET; CLIP 8-98086-439-0 01 1 0710-0711 ● ●
316 BRACKET; CLIP 8-98086-439-0 01 1 0712-0805 ● ●
316 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 0712-0805 ●
316 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 0806- ●
316 BRACKET; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98086-439-0 01 1 0806- ●
316 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 0806- ●
316 BRACKET; CLIP 8-98086-439-0 01 1 0806- ●

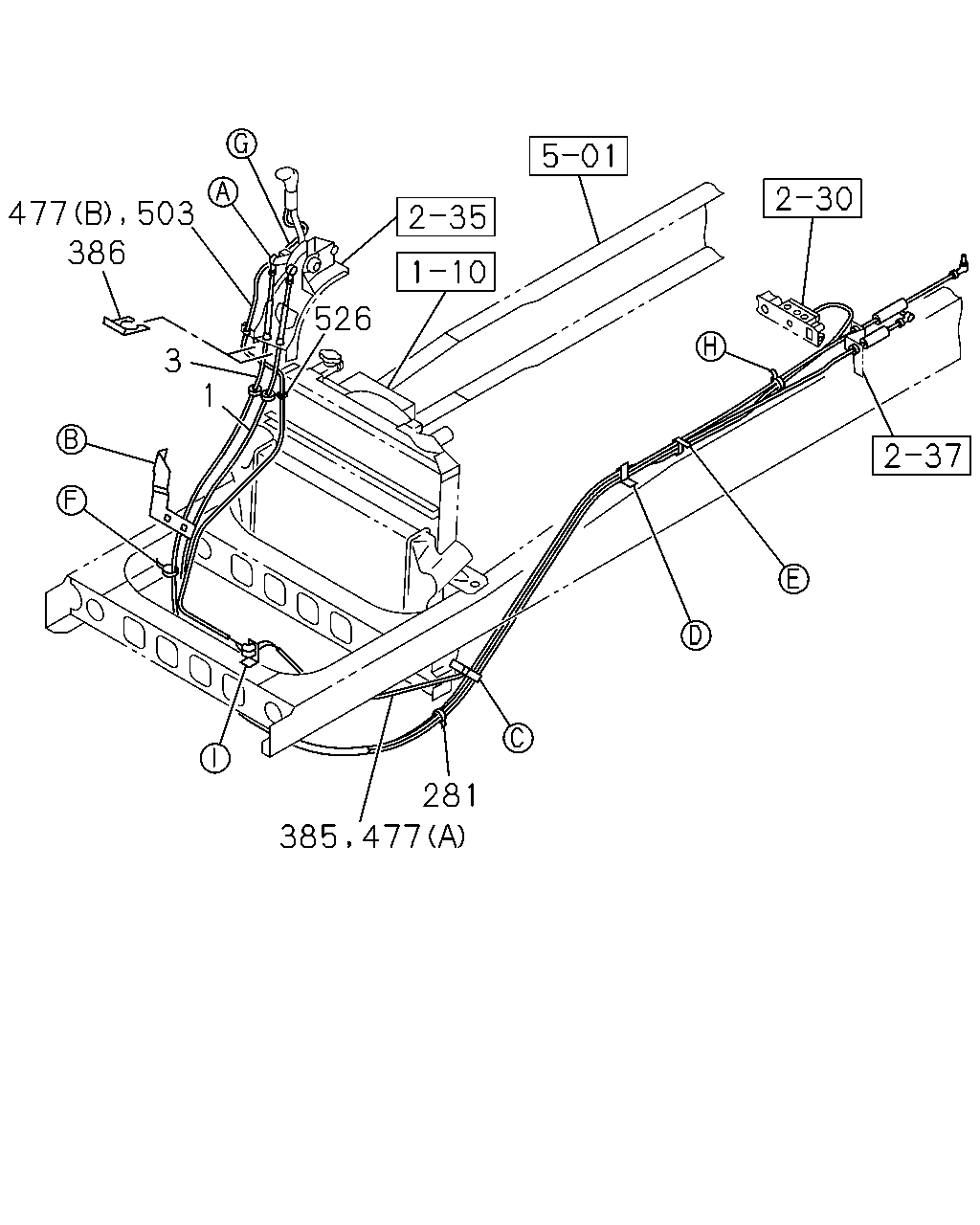

385 TUBE; NYLON
SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0710-0808 ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0710-0711 ●
385 TUBE; NYLON
SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0710-0711 ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0712-0808 ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809- ● ●
385 TUBE; NYLON
SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809- ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98141-474-0 01 1 0906-0907 ● ●
465 BRACKET; CONNECTOR 8-98141-474-0 01 1 0906-0907 ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98141-474-0 01 1 0908- ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98141-474-0 01 1 0908- ● ●
465 BRACKET; CONNECTOR 8-98141-474-0 01 1 0908- ●
465 BRACKET; CONNECTOR 8-98141-474-0 01 1 0908- ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98091-848-0 01 1 0710-0710 ●
465 BRACKET; CONNECTOR 8-98091-848-0 01 1 0710-0710 ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-414-0 01 1 0710-0711 ●
465 BRACKET; CONNECTOR 8-98085-414-0 01 1 0710-0711 ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-414-0 01 1 0712-0906 ● ●
465 BRACKET; CONNECTOR 8-98085-414-0 01 1 0712-0906 ●
474 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0711 ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0711 ● ●
474 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 01 1 0712-1105 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0712-1105 ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0712-1105 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 1106- ● ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 1106- ●
474 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ● ●
474 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 02 1 0712-1105 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0712-1105 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 02 1 0712-1105 ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0712-1105 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1106- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 02 1 1106- ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 1106- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1111- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0710-0802 ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0803-1110 ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1111- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710-0711 ●
477 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710-0711 ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0712-0804 ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0805- ● ●
477 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0805- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0710-0711 ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0710-0711 ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0712-1110 ● ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0712-1110 ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1111- ● ●
487 BRACKET; CONT CABLE
6HK1-TCS ENG(80L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> (C) 		8-98100-413-0 01 1 0712- ●
487 BRACKET; CONT CABLE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98021-920-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98183-009-0 01 1 1101- ●
487 BRACKET; CONT CABLE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98183-009-0 01 1 1101- ●
487 BRACKET; CONT CABLE
ZF9S1110 M/T(Y5E) (A) 		8-98021-923-2 01 1 0710-0711 ●
487 BRACKET; CONT CABLE
(A) 		8-98021-923-2 01 1 0710-0711 ● ●
487 BRACKET; CONT CABLE
ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98021-923-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98021-923-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98021-923-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
(A) 		8-98021-923-2 01 1 0712-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98180-729-0 01 1 1101- ●
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98180-729-0 01 1 1101- ●
487 BRACKET; CONT CABLE
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98180-729-0 01 1 1101- ●
487 BRACKET; CONT CABLE
(A) 		8-98180-729-0 01 1 1101- ●
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 0710-0711 ●
489 CONNECTOR 8-98085-747-0 02 1 0710-0711 ● ●
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 0712- ● ●
489 CONNECTOR 8-98085-747-0 02 1 0712- ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0710-0711 ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0710-0711 ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0712-0804 ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0805- ● ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0805- ●
çizim 179647
386 526 3 1 281 477 503 385 477
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3590 		8-98111-795-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3525 		8-98113-108-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98121-075-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3555 		8-98121-073-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98099-964-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3600 		8-98017-474-5 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98017-469-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98017-469-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3610 		8-98047-800-3 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3545 		8-98047-799-3 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3600 		8-98047-804-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3530 		8-98047-803-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3535 		8-98047-801-4 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98010-459-1 01 1 0710-0710 ●
1 CABLE; SHIFT,TRANS CONT
L=3620 		8-98010-459-1 01 1 0710-0710 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98099-965-2 01 1 0711-0711 ●
1 CABLE; SHIFT,TRANS CONT
L=3620 		8-98099-965-2 01 1 0711-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98099-965-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3620 		8-98099-965-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
L=3630 		8-98017-486-4 01 1 0710- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3695 		8-98111-798-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3695 		8-98111-798-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3730 		8-98121-076-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3665 		8-98121-074-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98113-109-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98113-109-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3675 		8-98099-966-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3560 		8-98017-495-3 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3790 		8-98047-814-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3725 		8-98047-813-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3680 		8-98047-818-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3610 		8-98047-817-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3505 		8-98047-815-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98010-495-1 01 1 0710-0710 ●
3 CABLE; SELECT,TRANS CONT
L=3700 		8-98010-495-1 01 1 0710-0710 ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98099-967-1 01 1 0711-0711 ●
3 CABLE; SELECT,TRANS CONT
L=3700 		8-98099-967-1 01 1 0711-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98099-967-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3700 		8-98099-967-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
L=3805 		8-98017-507-3 01 1 0710- ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0710-0711 ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0710-0711 ● ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0712-0802 ●
281 CLIP; BAND
6HK1-TCS ENG(80L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0712-0802 ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0712-0802 ●
281 CLIP; BAND
6HK1-TCS ENG(80L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0803-0806 ● ●
281 CLIP; BAND
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> L=300 		1-09707-001-1 01 1 0803-0806 ●
281 CLIP; BAND
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> L=300 		1-09707-001-1 01 1 0803-0806 ●
281 CLIP; BAND
6HK1-TCS ENG(80L) L=300 		1-09707-001-1 01 1 0803-0806 ●
281 CLIP; BAND
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=300 		1-09707-001-1 01 1 0803-0806 ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0807- ● ●
281 CLIP; BAND
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> L=300 		1-09707-001-1 01 1 0807- ●
281 CLIP; BAND
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> L=300 		1-09707-001-1 01 1 0807- ●
281 CLIP; BAND
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) L=300 		1-09707-001-1 01 1 0807- ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0807- ●
385 TUBE; NYLON
SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0710-0808 ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0710-0711 ●
385 TUBE; NYLON
SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0710-0711 ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0712-0808 ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809- ● ●
385 TUBE; NYLON
SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809- ●
386 CLIP; CONT CABLE & TUBE
ZF9S1110 M/T(Y5E) 		1-09700-966-1 02 1 0710-0711 ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0710-0711 ● ●
386 CLIP; CONT CABLE & TUBE
ZF9S1110 M/T(Y5E) 		1-09700-966-1 02 1 0712-1105 ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 0712-1105 ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0712-1105 ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 1106- ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1106- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1111- ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0710-0802 ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0803-1110 ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1111- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710-0711 ●
477 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710-0711 ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0712-0804 ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0805- ● ●
477 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0805- ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0710-0711 ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0710-0711 ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0712-1110 ● ●
477 TUBE; CORRUGATE
(A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0712-1110 ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1111- ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0710-0711 ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0710-0711 ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0712-0804 ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0805- ● ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0805- ●
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 0710-0711 ●
526 GROMMET 5-09333-062-0 01 1 0710-0711 ●
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 0712-0804 ● ●
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 0805- ● ●
526 GROMMET 5-09333-062-0 01 1 0805- ●

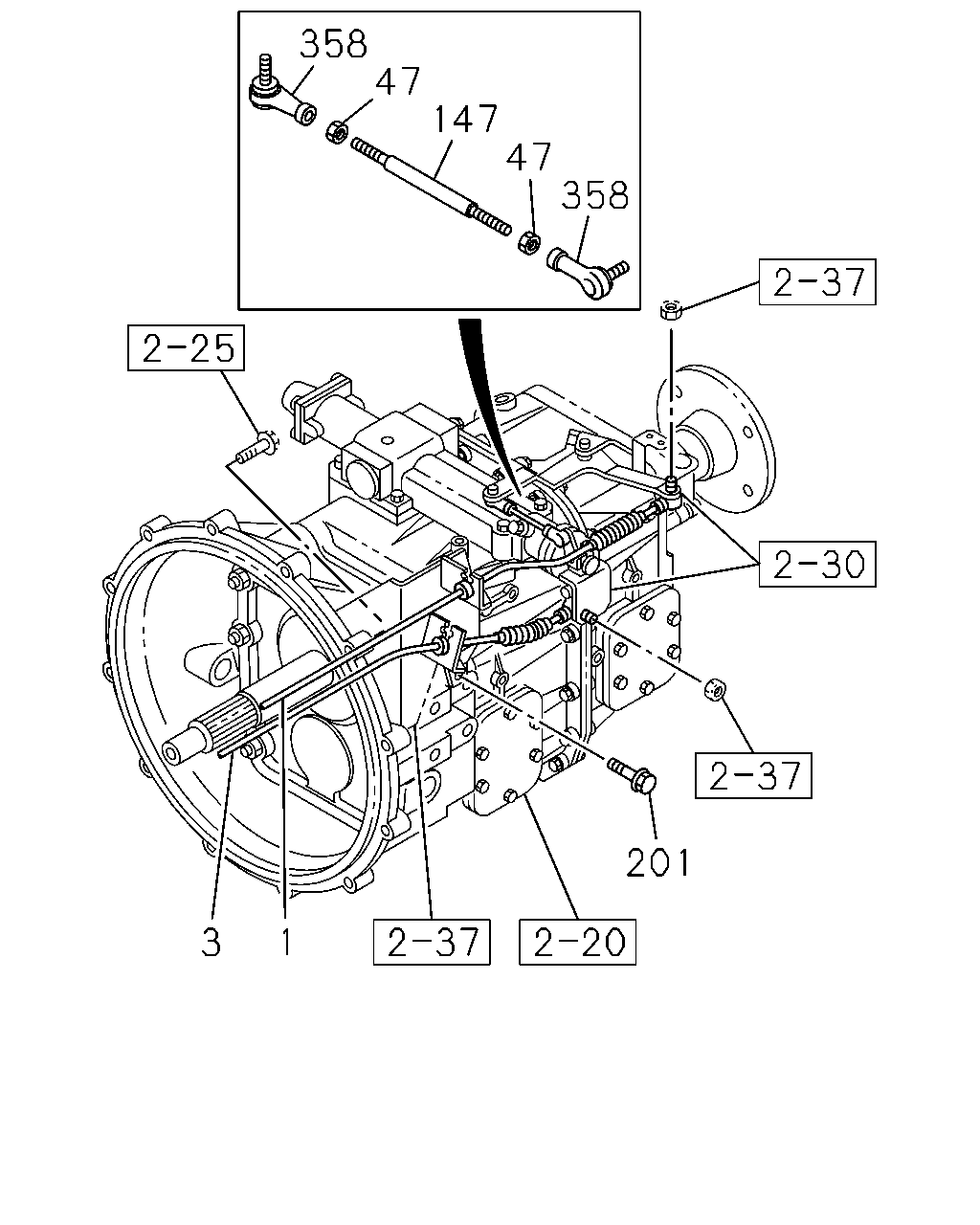

çizim 179865
358 47 147 47 358 201 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3590 		8-98111-795-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3525 		8-98113-108-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98121-075-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3555 		8-98121-073-4 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3595 		8-98099-964-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3600 		8-98017-474-5 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3485 		8-98010-434-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98017-469-4 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3510 		8-98017-469-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3610 		8-98047-800-3 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3545 		8-98047-799-3 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3600 		8-98047-804-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3530 		8-98047-803-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3535 		8-98047-801-4 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98010-459-1 01 1 0710-0710 ●
1 CABLE; SHIFT,TRANS CONT
L=3620 		8-98010-459-1 01 1 0710-0710 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98099-965-2 01 1 0711-0711 ●
1 CABLE; SHIFT,TRANS CONT
L=3620 		8-98099-965-2 01 1 0711-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98099-965-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3620 		8-98099-965-2 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0712- ●
1 CABLE; SHIFT,TRANS CONT
L=3630 		8-98017-486-4 01 1 0710- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3695 		8-98111-798-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3695 		8-98111-798-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3730 		8-98121-076-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3665 		8-98121-074-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98113-109-0 01 1 0806-0806 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3630 		8-98113-109-1 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3675 		8-98099-966-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3560 		8-98017-495-3 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3690 		8-98010-474-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION FULL FLOATING<W16> L=3790 		8-98047-814-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. CAB SUSPENSION FULL FLOATING<W16> L=3725 		8-98047-813-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3680 		8-98047-818-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> L=3610 		8-98047-817-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,CAB SUSPENSION FULL FLOATING<W16> L=3505 		8-98047-815-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98010-495-1 01 1 0710-0710 ●
3 CABLE; SELECT,TRANS CONT
L=3700 		8-98010-495-1 01 1 0710-0710 ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98099-967-1 01 1 0711-0711 ●
3 CABLE; SELECT,TRANS CONT
L=3700 		8-98099-967-1 01 1 0711-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98099-967-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> CAB SUSPENSION FULL FLOATING<W16> L=3700 		8-98099-967-1 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) CAB SUSPENSION FULL FLOATING<W16> EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0712- ●
3 CABLE; SELECT,TRANS CONT
L=3805 		8-98017-507-3 01 1 0710- ●
47 NUT; LK,LINK ROD
M8 		0-91111-508-0 02 1 0710-0711 ●
47 NUT; LK,LINK ROD
FULLER FSO5206B OD M/T(Y4V) M8 		0-91111-508-0 02 1 0712- ●
47 NUT; LK,LINK ROD
M8 		0-91111-508-0 02 1 0712- ●
147 ROD; LINK 0-84000-808-0 01 1 0710-0711 ●
147 ROD; LINK
FULLER FSO5206B OD M/T(Y4V) 		0-84000-808-0 01 1 0712- ●
147 ROD; LINK 0-84000-808-0 01 1 0712- ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0805 ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0712-0805 ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 0710-0711 ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0710-0711 ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 0712- ● ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0712- ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X30 FLANGE 		0-28151-230-0 01 1 0710-0711 ●
201 BOLT; BRKT
M12X30 FLANGE 		0-28151-230-0 01 1 0710-0711 ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X30 FLANGE 		0-28151-230-0 01 1 0712-0806 ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12X30 FLANGE 		0-28151-230-0 01 1 0712-0806 ●
201 BOLT; BRKT
M12X30 FLANGE 		0-28151-230-0 01 1 0712-0806 ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 0807- ●
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 0807- ●
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 0807- ●
358 ROD END; SCREW
L=45.5 		1-09760-118-1 02 1 0710-0711 ●
358 ROD END; SCREW
FULLER FSO5206B OD M/T(Y4V) L=45.5 		1-09760-118-1 02 1 0712- ●
358 ROD END; SCREW
L=45.5 		1-09760-118-1 02 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
