2-30D — GEAR SHIFTER AND QUADRANT BOX (#36525) — 932 parça

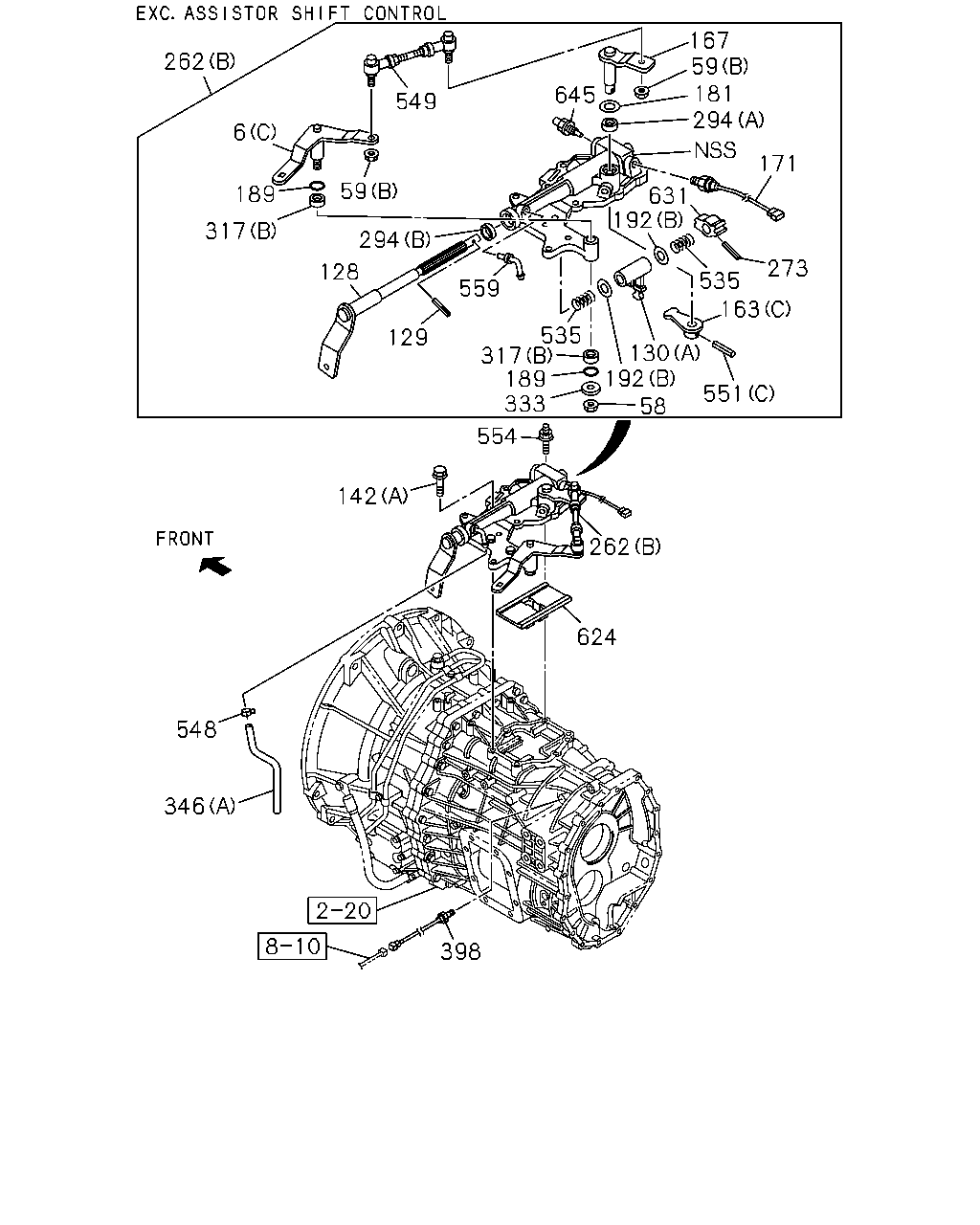

çizim 179853
167 59 181 294 262 645 549 6 189 171 59 631 192 317 294 273 128 535 535 317 189 333 559 163 129 130 192 58 551 554 142 262 624 548 346 398
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33651-686-2 01 1 0806- ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0712-0906 ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0907- ● ●
6 LEVER; RELAY
15" CLUTCH(RE9) (C) 		8-98022-855-0 01 1 0712-0906 ●
6 LEVER; RELAY
15" CLUTCH(RE9) (C) 		8-98022-855-0 01 1 0907- ● ●
6 LEVER; RELAY
EXC. 15" CLUTCH(RE9) (B) 		8-97379-995-0 01 1 0712-0906 ●
6 LEVER; RELAY
EXC. 15" CLUTCH(RE9) (B) 		8-97379-995-0 01 1 0907- ● ●
58 NUT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-110-0 01 1 0712-0805 ●
58 NUT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0907- ●
59 NUT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0712-0805 ●
59 NUT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0806-0906 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0806-0906 ●
59 NUT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0907- ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0907- ●
59 NUT
15" CLUTCH(RE9) (B) M8 FLANGE 		0-91180-108-0 02 1 0712-0805 ●
59 NUT
15" CLUTCH(RE9) (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
15" CLUTCH(RE9) (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ●
128 LEVER; SHIFT,EXTERNAL
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-97306-927-0 01 1 0712-0906 ●
128 LEVER; SHIFT,EXTERNAL
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-97306-927-0 01 1 0907-1507 ● ●
128 LEVER; SHIFT,EXTERNAL
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98305-346-0 01 1 1508- ● ●
129 PIN; SPR,SHIFT
15" CLUTCH(RE9) L=30 OD=4 		1-09748-031-0 01 1 0712-0906 ●
129 PIN; SPR,SHIFT
15" CLUTCH(RE9) L=30 OD=4 		1-09748-031-0 01 1 0907- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33521-165-0 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33521-111-1 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
15" CLUTCH(RE9) (A) 		8-97306-647-0 01 1 0712-0906 ●
130 LEVER; SHIFT,INTERNAL
15" CLUTCH(RE9) (A) 		8-97306-647-0 01 1 0907- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0712-0906 ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-153-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33522-041-4 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
15" CLUTCH(RE9) (C) 		8-97305-663-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
15" CLUTCH(RE9) (C) 		8-97305-663-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (A) 		8-97379-979-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (A) 		8-97379-979-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (B) 		8-97379-990-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (B) 		8-97379-990-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-1 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
15" CLUTCH(RE9) 		8-98022-857-0 01 1 0712-0906 ●
167 LEVER; SELECT,EXTERNAL
15" CLUTCH(RE9) 		8-98022-857-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
EXC. 15" CLUTCH(RE9) 		8-97379-994-0 01 1 0712-0906 ●
167 LEVER; SELECT,EXTERNAL
EXC. 15" CLUTCH(RE9) 		8-97379-994-0 01 1 0907- ● ●
171 SWITCH; NEUTRAL
EXC. 15" CLUTCH(RE9) 		8-98242-172-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0806-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0712-0906 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0907-1306 ● ●
171 SWITCH; NEUTRAL
15" CLUTCH(RE9) 		8-98023-050-0 01 1 1307-1312 ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
15" CLUTCH(RE9) 		8-97367-327-0 01 1 0712-0906 ●
181 WASHER; PL,SELECT LEVER
15" CLUTCH(RE9) 		8-97367-327-0 01 1 0907- ● ●
189 GASKET; SELECT LEVER,CONT BOX
15" CLUTCH(RE9) 		1-09623-594-0 02 1 0712-0805 ●
189 GASKET; SELECT LEVER,CONT BOX
15" CLUTCH(RE9) 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
15" CLUTCH(RE9) 		1-09623-594-0 02 1 0907- ● ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0907- ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0712-0906 ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0907- ● ●
192 WASHER; PL
15" CLUTCH(RE9) (B) 		8-97305-661-0 02 1 0712-0906 ●
192 WASHER; PL
15" CLUTCH(RE9) (B) 		8-97305-661-0 02 1 0907- ● ●
192 WASHER; PL
EXC. 15" CLUTCH(RE9) (C) 		1-09503-280-0 01 1 0712-0906 ●
192 WASHER; PL
EXC. 15" CLUTCH(RE9) (C) 		1-09503-280-0 01 1 0907- ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-476-0 01 1 0712-0906 ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-476-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98207-565-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98249-040-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98241-009-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98276-160-1 01 1 1405-1507 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98305-335-1 01 1 1508- ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-477-0 01 1 0712-0906 ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-477-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98207-566-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98249-041-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98241-010-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98276-161-1 01 1 1405-1507 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98305-336-1 01 1 1508- ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98048-495-3 01 1 0712-0906 ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98048-495-4 01 1 0907-1010 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98107-814-1 01 1 1011-1306 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98241-122-1 01 1 1307-1411 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98296-530-0 01 1 1412-1509 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98331-686-0 01 1 1510- ● ●
273 PIN; SPR,STOPPER
ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4 		1-09748-031-0 01 1 0806- ●
273 PIN; SPR,STOPPER
15" CLUTCH(RE9) D=4.2 L=25 		8-97103-142-0 01 1 0712-0906 ●
273 PIN; SPR,STOPPER
15" CLUTCH(RE9) D=4.2 L=25 		8-97103-142-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A) 		8-97305-662-0 01 1 0712-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A) 		8-97305-662-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B) 		8-97363-225-0 01 1 0712-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B) 		8-97363-225-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C) 		1-09625-600-0 01 1 0712-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C) 		1-09625-600-0 01 1 0907- ● ●
317 BUSHING; LEVER
EXC. 15" CLUTCH(RE9) (A) 		8-97379-997-0 02 1 0712-0906 ●
317 BUSHING; LEVER
EXC. 15" CLUTCH(RE9) (A) 		8-97379-997-0 02 1 0907- ● ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0712-0805 ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0907- ● ●
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0907- ●
333 WASHER; PL,LEVER
15" CLUTCH(RE9) ID=10.5 		0-91610-710-0 01 1 0712-0805 ●
333 WASHER; PL,LEVER
15" CLUTCH(RE9) ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
15" CLUTCH(RE9) ID=10.5 		0-91610-710-0 01 1 0907- ● ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0907- ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (A) 		8-97309-855-0 01 1 1208-1404 ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405- ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0712-0906 ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0907-1204 ● ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (B) 		8-97373-381-0 01 1 0712-0906 ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (B) 		8-97373-381-0 01 1 0907- ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0806-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0712-0906 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0907-1312 ● ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ● ●
535 SPRING; LEVER
15" CLUTCH(RE9) 		8-97385-713-0 02 1 0712-0906 ●
535 SPRING; LEVER
15" CLUTCH(RE9) 		8-97385-713-0 02 1 0907- ● ●
548 CLIP; HOSE
EXC. 15" CLUTCH(RE9) 		8-97031-674-0 01 1 1208-1404 ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 1405- ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 0712-0906 ●
548 CLIP; HOSE 8-97031-674-0 01 1 0907-1204 ● ●
549 ROD; LINK
15" CLUTCH(RE9) 		8-98022-841-0 01 1 0712-0906 ●
549 ROD; LINK
15" CLUTCH(RE9) 		8-98022-841-0 01 1 0907- ● ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0712-0906 ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0907- ● ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0712-0906 ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0907- ● ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0712-0906 ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (D) L=30 OD=4 		1-09748-031-0 02 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (D) L=30 OD=4 		1-09748-031-0 02 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (E) OD=5 		8-97184-905-0 03 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (E) OD=5 		8-97184-905-0 03 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (F) 		8-97379-991-0 01 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (F) 		8-97379-991-0 01 1 0907- ● ●
554 STUD; CONT BOX
15" CLUTCH(RE9) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0712-0906 ●
554 STUD; CONT BOX
15" CLUTCH(RE9) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0907- ● ●
559 PIPE; BREATHER
15" CLUTCH(RE9) 		8-97358-318-0 01 1 1405- ● ●
559 PIPE; BREATHER
15" CLUTCH(RE9) 		8-97358-318-0 01 1 0712-0906 ●
559 PIPE; BREATHER
15" CLUTCH(RE9) 		8-97358-318-0 01 1 0907-1204 ● ●
559 PIPE; BREATHER
EXC. 15" CLUTCH(RE9) 		8-98020-710-0 01 1 0712-0906 ●
559 PIPE; BREATHER
EXC. 15" CLUTCH(RE9) 		8-98020-710-0 01 1 0907- ● ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0712-0906 ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0907- ● ●
631 STOPPER; SPRING
15" CLUTCH(RE9) 		8-97305-666-0 01 1 0712-0906 ●
631 STOPPER; SPRING
15" CLUTCH(RE9) 		8-97305-666-0 01 1 0907- ● ●
631 STOPPER; SPRING
EXC. 15" CLUTCH(RE9) 		8-97379-984-0 01 1 0712-0906 ●
631 STOPPER; SPRING
EXC. 15" CLUTCH(RE9) 		8-97379-984-0 01 1 0907- ● ●
645 DETENT ASM
15" CLUTCH(RE9) 		8-98019-536-0 01 1 0712-0906 ●
645 DETENT ASM
15" CLUTCH(RE9) 		8-98019-536-0 01 1 0907- ● ●

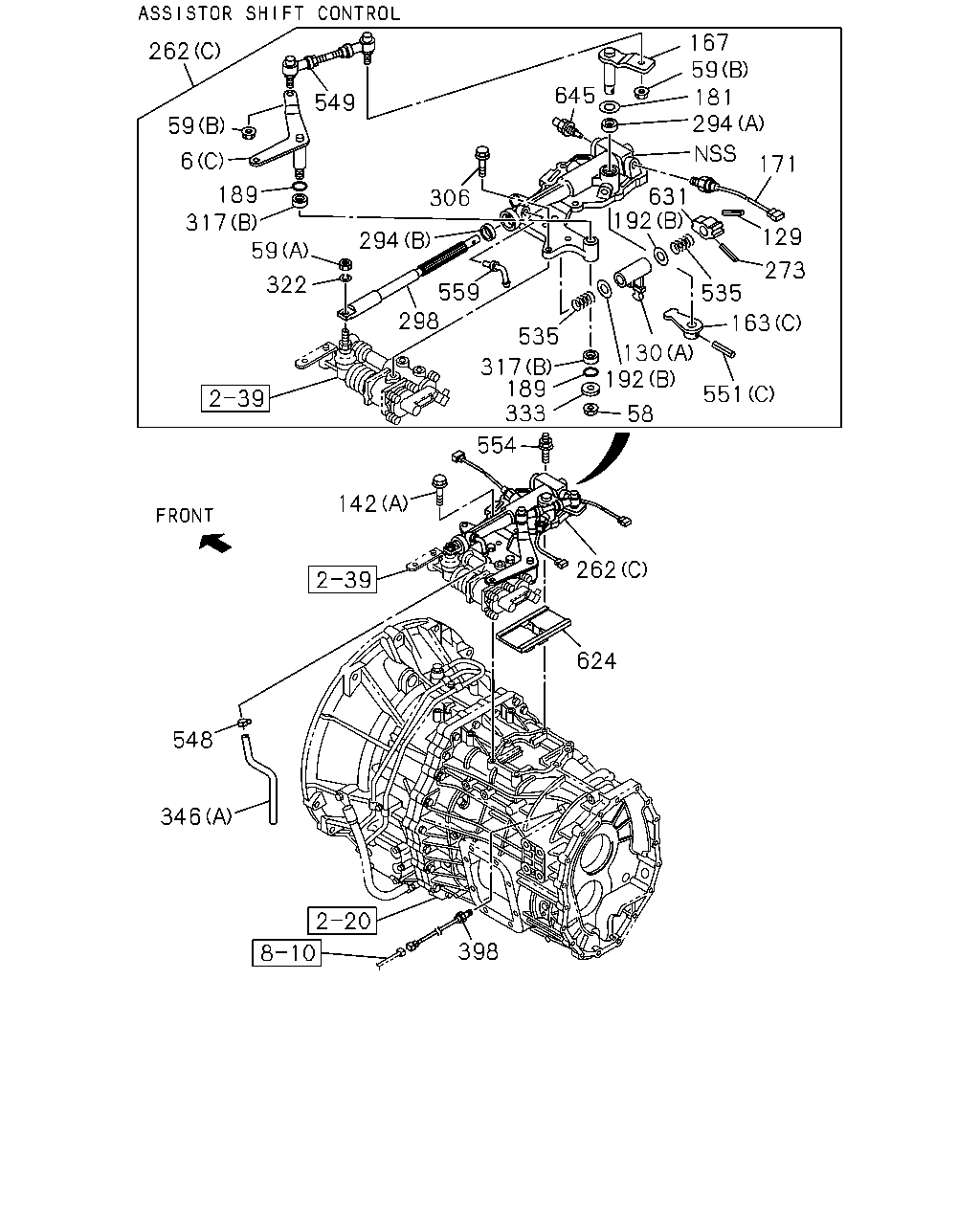

çizim 179858
167 59 181 294 262 645 549 59 6 171 189 317 59 631 192 306 129 294 273 322 559 535 298 163 535 130 192 317 189 333 551 58 554 142 262 624 548 346 398
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33651-686-2 01 1 0806- ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0712-0906 ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0907- ● ●
6 LEVER; RELAY
15" CLUTCH(RE9) (C) 		8-98022-855-0 01 1 0712-0906 ●
6 LEVER; RELAY
15" CLUTCH(RE9) (C) 		8-98022-855-0 01 1 0907- ● ●
6 LEVER; RELAY
EXC. 15" CLUTCH(RE9) (B) 		8-97379-995-0 01 1 0712-0906 ●
6 LEVER; RELAY
EXC. 15" CLUTCH(RE9) (B) 		8-97379-995-0 01 1 0907- ● ●
58 NUT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-110-0 01 1 0712-0805 ●
58 NUT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0907- ●
59 NUT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0712-0805 ●
59 NUT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0806-0906 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0806-0906 ●
59 NUT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0907- ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0907- ●
59 NUT
15" CLUTCH(RE9) (B) M8 FLANGE 		0-91180-108-0 02 1 0712-0805 ●
59 NUT
15" CLUTCH(RE9) (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
15" CLUTCH(RE9) (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ●
129 PIN; SPR,SHIFT
15" CLUTCH(RE9) L=30 OD=4 		1-09748-031-0 01 1 0712-0906 ●
129 PIN; SPR,SHIFT
15" CLUTCH(RE9) L=30 OD=4 		1-09748-031-0 01 1 0907- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33521-165-0 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33521-111-1 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
15" CLUTCH(RE9) (A) 		8-97306-647-0 01 1 0712-0906 ●
130 LEVER; SHIFT,INTERNAL
15" CLUTCH(RE9) (A) 		8-97306-647-0 01 1 0907- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0712-0906 ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-153-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33522-041-4 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
15" CLUTCH(RE9) (C) 		8-97305-663-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
15" CLUTCH(RE9) (C) 		8-97305-663-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (A) 		8-97379-979-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (A) 		8-97379-979-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (B) 		8-97379-990-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (B) 		8-97379-990-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-1 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
15" CLUTCH(RE9) 		8-98022-857-0 01 1 0712-0906 ●
167 LEVER; SELECT,EXTERNAL
15" CLUTCH(RE9) 		8-98022-857-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
EXC. 15" CLUTCH(RE9) 		8-97379-994-0 01 1 0712-0906 ●
167 LEVER; SELECT,EXTERNAL
EXC. 15" CLUTCH(RE9) 		8-97379-994-0 01 1 0907- ● ●
171 SWITCH; NEUTRAL
EXC. 15" CLUTCH(RE9) 		8-98242-172-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0806-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0712-0906 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0907-1306 ● ●
171 SWITCH; NEUTRAL
15" CLUTCH(RE9) 		8-98023-050-0 01 1 1307-1312 ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
15" CLUTCH(RE9) 		8-97367-327-0 01 1 0712-0906 ●
181 WASHER; PL,SELECT LEVER
15" CLUTCH(RE9) 		8-97367-327-0 01 1 0907- ● ●
189 GASKET; SELECT LEVER,CONT BOX
15" CLUTCH(RE9) 		1-09623-594-0 02 1 0712-0805 ●
189 GASKET; SELECT LEVER,CONT BOX
15" CLUTCH(RE9) 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
15" CLUTCH(RE9) 		1-09623-594-0 02 1 0907- ● ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0907- ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0712-0906 ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0907- ● ●
192 WASHER; PL
15" CLUTCH(RE9) (B) 		8-97305-661-0 02 1 0712-0906 ●
192 WASHER; PL
15" CLUTCH(RE9) (B) 		8-97305-661-0 02 1 0907- ● ●
192 WASHER; PL
EXC. 15" CLUTCH(RE9) (C) 		1-09503-280-0 01 1 0712-0906 ●
192 WASHER; PL
EXC. 15" CLUTCH(RE9) (C) 		1-09503-280-0 01 1 0907- ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-476-0 01 1 0712-0906 ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-476-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98207-565-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98249-040-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98241-009-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98276-160-1 01 1 1405-1507 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98305-335-1 01 1 1508- ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-477-0 01 1 0712-0906 ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-477-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98207-566-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98249-041-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98241-010-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98276-161-1 01 1 1405-1507 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98305-336-1 01 1 1508- ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98048-495-3 01 1 0712-0906 ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98048-495-4 01 1 0907-1010 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98107-814-1 01 1 1011-1306 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98241-122-1 01 1 1307-1411 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98296-530-0 01 1 1412-1509 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98331-686-0 01 1 1510- ● ●
273 PIN; SPR,STOPPER
ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4 		1-09748-031-0 01 1 0806- ●
273 PIN; SPR,STOPPER
15" CLUTCH(RE9) D=4.2 L=25 		8-97103-142-0 01 1 0712-0906 ●
273 PIN; SPR,STOPPER
15" CLUTCH(RE9) D=4.2 L=25 		8-97103-142-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A) 		8-97305-662-0 01 1 0712-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A) 		8-97305-662-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B) 		8-97363-225-0 01 1 0712-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B) 		8-97363-225-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C) 		1-09625-600-0 01 1 0712-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C) 		1-09625-600-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-189-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0712-0906 ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0907-1507 ● ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98305-342-0 01 1 1508- ● ●
298 SHAFT; SHIFT LEVER
EXC. 15" CLUTCH(RE9) 		8-97379-978-0 01 1 0712-0906 ●
298 SHAFT; SHIFT LEVER
EXC. 15" CLUTCH(RE9) 		8-97379-978-0 01 1 0907- ● ●
306 BOLT; SHIFT ASSISTOR
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0712-0805 ●
306 BOLT; SHIFT ASSISTOR
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0806-0906 ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0806-0906 ●
306 BOLT; SHIFT ASSISTOR
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0907- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0907- ●
317 BUSHING; LEVER
EXC. 15" CLUTCH(RE9) (A) 		8-97379-997-0 02 1 0712-0906 ●
317 BUSHING; LEVER
EXC. 15" CLUTCH(RE9) (A) 		8-97379-997-0 02 1 0907- ● ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0712-0805 ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0907- ● ●
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0907- ●
322 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0712-0805 ●
322 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0806-0906 ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0806-0906 ●
322 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0907- ● ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0907- ●
333 WASHER; PL,LEVER
15" CLUTCH(RE9) ID=10.5 		0-91610-710-0 01 1 0712-0805 ●
333 WASHER; PL,LEVER
15" CLUTCH(RE9) ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
15" CLUTCH(RE9) ID=10.5 		0-91610-710-0 01 1 0907- ● ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0907- ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (A) 		8-97309-855-0 01 1 1208-1404 ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405- ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0712-0906 ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0907-1204 ● ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (B) 		8-97373-381-0 01 1 0712-0906 ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (B) 		8-97373-381-0 01 1 0907- ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0806-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0712-0906 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0907-1312 ● ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ● ●
535 SPRING; LEVER
15" CLUTCH(RE9) 		8-97385-713-0 02 1 0712-0906 ●
535 SPRING; LEVER
15" CLUTCH(RE9) 		8-97385-713-0 02 1 0907- ● ●
548 CLIP; HOSE
EXC. 15" CLUTCH(RE9) 		8-97031-674-0 01 1 1208-1404 ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 1405- ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 0712-0906 ●
548 CLIP; HOSE 8-97031-674-0 01 1 0907-1204 ● ●
549 ROD; LINK
15" CLUTCH(RE9) 		8-98022-841-0 01 1 0712-0906 ●
549 ROD; LINK
15" CLUTCH(RE9) 		8-98022-841-0 01 1 0907- ● ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0712-0906 ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0907- ● ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0712-0906 ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0907- ● ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0712-0906 ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (D) L=30 OD=4 		1-09748-031-0 02 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (D) L=30 OD=4 		1-09748-031-0 02 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (E) OD=5 		8-97184-905-0 03 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (E) OD=5 		8-97184-905-0 03 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (F) 		8-97379-991-0 01 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (F) 		8-97379-991-0 01 1 0907- ● ●
554 STUD; CONT BOX
15" CLUTCH(RE9) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0712-0906 ●
554 STUD; CONT BOX
15" CLUTCH(RE9) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0907- ● ●
559 PIPE; BREATHER
15" CLUTCH(RE9) 		8-97358-318-0 01 1 1405- ● ●
559 PIPE; BREATHER
15" CLUTCH(RE9) 		8-97358-318-0 01 1 0712-0906 ●
559 PIPE; BREATHER
15" CLUTCH(RE9) 		8-97358-318-0 01 1 0907-1204 ● ●
559 PIPE; BREATHER
EXC. 15" CLUTCH(RE9) 		8-98020-710-0 01 1 0712-0906 ●
559 PIPE; BREATHER
EXC. 15" CLUTCH(RE9) 		8-98020-710-0 01 1 0907- ● ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0712-0906 ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0907- ● ●
631 STOPPER; SPRING
15" CLUTCH(RE9) 		8-97305-666-0 01 1 0712-0906 ●
631 STOPPER; SPRING
15" CLUTCH(RE9) 		8-97305-666-0 01 1 0907- ● ●
631 STOPPER; SPRING
EXC. 15" CLUTCH(RE9) 		8-97379-984-0 01 1 0712-0906 ●
631 STOPPER; SPRING
EXC. 15" CLUTCH(RE9) 		8-97379-984-0 01 1 0907- ● ●
645 DETENT ASM
15" CLUTCH(RE9) 		8-98019-536-0 01 1 0712-0906 ●
645 DETENT ASM
15" CLUTCH(RE9) 		8-98019-536-0 01 1 0907- ● ●

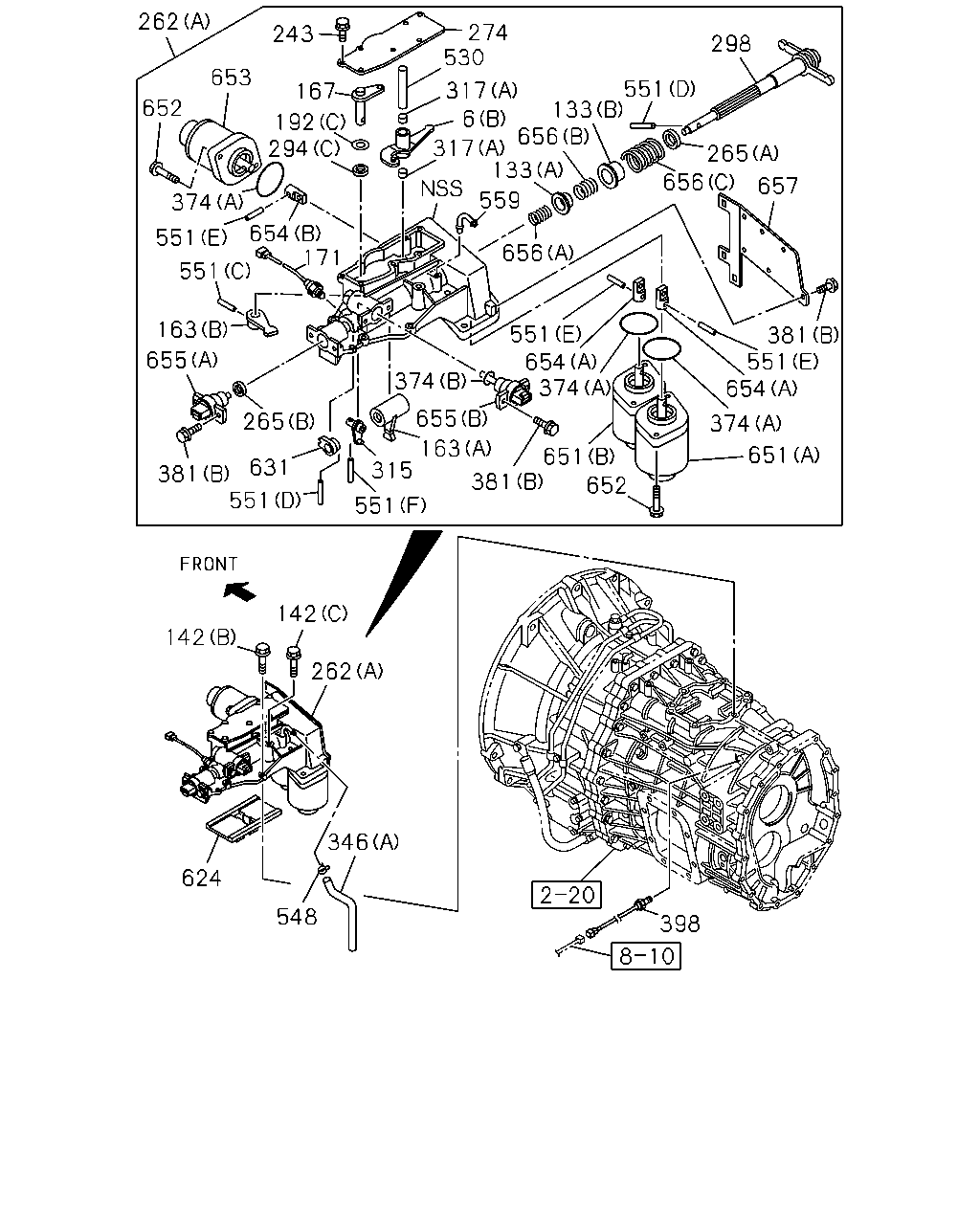

çizim 179872
262 274 530 243 298 653 551 133 656 317 167 652 6 192 294 317 133 265 656 657 559 374 654 171 551 656 551 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 142 142 262 346 624 548 398
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33651-686-2 01 1 0806- ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0712-0906 ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0907- ● ●
6 LEVER; RELAY
15" CLUTCH(RE9) (C) 		8-98022-855-0 01 1 0712-0906 ●
6 LEVER; RELAY
15" CLUTCH(RE9) (C) 		8-98022-855-0 01 1 0907- ● ●
6 LEVER; RELAY
EXC. 15" CLUTCH(RE9) (B) 		8-97379-995-0 01 1 0712-0906 ●
6 LEVER; RELAY
EXC. 15" CLUTCH(RE9) (B) 		8-97379-995-0 01 1 0907- ● ●
133 SEAT; SPR
EXC. 15" CLUTCH(RE9) (A) 		8-97379-988-0 01 1 0712-0906 ●
133 SEAT; SPR
EXC. 15" CLUTCH(RE9) (A) 		8-97379-988-0 01 1 0907- ● ●
133 SEAT; SPR
EXC. 15" CLUTCH(RE9) (B) 		8-97379-989-0 01 1 0712-0906 ●
133 SEAT; SPR
EXC. 15" CLUTCH(RE9) (B) 		8-97379-989-0 01 1 0907- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0712-0906 ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-153-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33522-041-4 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
15" CLUTCH(RE9) (C) 		8-97305-663-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
15" CLUTCH(RE9) (C) 		8-97305-663-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (A) 		8-97379-979-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (A) 		8-97379-979-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (B) 		8-97379-990-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (B) 		8-97379-990-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-1 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
15" CLUTCH(RE9) 		8-98022-857-0 01 1 0712-0906 ●
167 LEVER; SELECT,EXTERNAL
15" CLUTCH(RE9) 		8-98022-857-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
EXC. 15" CLUTCH(RE9) 		8-97379-994-0 01 1 0712-0906 ●
167 LEVER; SELECT,EXTERNAL
EXC. 15" CLUTCH(RE9) 		8-97379-994-0 01 1 0907- ● ●
171 SWITCH; NEUTRAL
EXC. 15" CLUTCH(RE9) 		8-98242-172-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0806-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0712-0906 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0907-1306 ● ●
171 SWITCH; NEUTRAL
15" CLUTCH(RE9) 		8-98023-050-0 01 1 1307-1312 ● ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0712-0906 ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0907- ● ●
192 WASHER; PL
15" CLUTCH(RE9) (B) 		8-97305-661-0 02 1 0712-0906 ●
192 WASHER; PL
15" CLUTCH(RE9) (B) 		8-97305-661-0 02 1 0907- ● ●
192 WASHER; PL
EXC. 15" CLUTCH(RE9) (C) 		1-09503-280-0 01 1 0712-0906 ●
192 WASHER; PL
EXC. 15" CLUTCH(RE9) (C) 		1-09503-280-0 01 1 0907- ● ●
243 BOLT; COVER
EXC. 15" CLUTCH(RE9) M6X12 FLANGE 		0-28050-612-0 11 1 0712-0906 ●
243 BOLT; COVER
EXC. 15" CLUTCH(RE9) M6X12 FLANGE 		0-28050-612-0 11 1 0907-0907 ● ●
243 BOLT; COVER
EXC. 15" CLUTCH(RE9) M6X12 FLANGE 		1-33739-842-0 11 1 0907- ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-476-0 01 1 0712-0906 ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-476-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98207-565-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98249-040-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98241-009-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98276-160-1 01 1 1405-1507 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98305-335-1 01 1 1508- ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-477-0 01 1 0712-0906 ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-477-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98207-566-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98249-041-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98241-010-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98276-161-1 01 1 1405-1507 ● ●
262 BOX ASM; SHIFT CONT
15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98305-336-1 01 1 1508- ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98048-495-3 01 1 0712-0906 ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98048-495-4 01 1 0907-1010 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98107-814-1 01 1 1011-1306 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98241-122-1 01 1 1307-1411 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98296-530-0 01 1 1412-1509 ● ●
262 BOX ASM; SHIFT CONT
EXC. 15" CLUTCH(RE9) (A) 		8-98331-686-0 01 1 1510- ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A) 		8-97363-225-0 01 1 0712-0906 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A) 		8-97363-225-0 01 1 0907- ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B) 		8-97379-981-0 01 1 0712-0906 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B) 		8-97379-981-0 01 1 0907- ● ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		9-33545-017-1 01 1 0806- ●
274 COVER; SHAFT,QUAD BOX
EXC. 15" CLUTCH(RE9) 		8-98020-711-0 01 1 0712-0906 ●
274 COVER; SHAFT,QUAD BOX
EXC. 15" CLUTCH(RE9) 		8-98020-711-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A) 		8-97305-662-0 01 1 0712-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A) 		8-97305-662-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B) 		8-97363-225-0 01 1 0712-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B) 		8-97363-225-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C) 		1-09625-600-0 01 1 0712-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (C) 		1-09625-600-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-189-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0712-0906 ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0907-1507 ● ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98305-342-0 01 1 1508- ● ●
298 SHAFT; SHIFT LEVER
EXC. 15" CLUTCH(RE9) 		8-97379-978-0 01 1 0712-0906 ●
298 SHAFT; SHIFT LEVER
EXC. 15" CLUTCH(RE9) 		8-97379-978-0 01 1 0907- ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-704-0 01 1 0806- ●
315 LEVER; SELECT
EXC. 15" CLUTCH(RE9) 		8-97379-998-0 01 1 0712-0906 ●
315 LEVER; SELECT
EXC. 15" CLUTCH(RE9) 		8-97379-998-0 01 1 0907-1411 ● ●
315 LEVER; SELECT
EXC. 15" CLUTCH(RE9) 		8-98296-526-0 01 1 1412- ● ●
317 BUSHING; LEVER
EXC. 15" CLUTCH(RE9) (A) 		8-97379-997-0 02 1 0712-0906 ●
317 BUSHING; LEVER
EXC. 15" CLUTCH(RE9) (A) 		8-97379-997-0 02 1 0907- ● ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0712-0805 ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0907- ● ●
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0907- ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (A) 		8-97309-855-0 01 1 1208-1404 ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405- ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0712-0906 ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0907-1204 ● ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (B) 		8-97373-381-0 01 1 0712-0906 ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (B) 		8-97373-381-0 01 1 0907- ● ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A) 		8-97349-571-0 03 1 0712-0906 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (A) 		8-97349-571-0 03 1 0907- ● ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B) 		8-97349-573-0 01 1 0712-0906 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). EXC. 15" CLUTCH(RE9) (B) 		8-97349-573-0 01 1 0907- ● ●
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0712-0906 ●
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0907- ● ●
381 BOLT
EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE 		0-28050-612-0 04 1 0712-0906 ●
381 BOLT
EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE 		0-28050-612-0 04 1 0907-0907 ● ●
381 BOLT
EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907- ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0806-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0712-0906 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0907-1312 ● ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ● ●
530 SHAFT; SELECT
EXC. 15" CLUTCH(RE9) 		8-97379-996-0 01 1 0712-0906 ●
530 SHAFT; SELECT
EXC. 15" CLUTCH(RE9) 		8-97379-996-0 01 1 0907- ● ●
548 CLIP; HOSE
EXC. 15" CLUTCH(RE9) 		8-97031-674-0 01 1 1208-1404 ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 1405- ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 0712-0906 ●
548 CLIP; HOSE 8-97031-674-0 01 1 0907-1204 ● ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0712-0906 ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0907- ● ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0712-0906 ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0907- ● ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0712-0906 ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (D) L=30 OD=4 		1-09748-031-0 02 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (D) L=30 OD=4 		1-09748-031-0 02 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (E) OD=5 		8-97184-905-0 03 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (E) OD=5 		8-97184-905-0 03 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (F) 		8-97379-991-0 01 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (F) 		8-97379-991-0 01 1 0907- ● ●
559 PIPE; BREATHER
15" CLUTCH(RE9) 		8-97358-318-0 01 1 1405- ● ●
559 PIPE; BREATHER
15" CLUTCH(RE9) 		8-97358-318-0 01 1 0712-0906 ●
559 PIPE; BREATHER
15" CLUTCH(RE9) 		8-97358-318-0 01 1 0907-1204 ● ●
559 PIPE; BREATHER
EXC. 15" CLUTCH(RE9) 		8-98020-710-0 01 1 0712-0906 ●
559 PIPE; BREATHER
EXC. 15" CLUTCH(RE9) 		8-98020-710-0 01 1 0907- ● ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0712-0906 ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0907- ● ●
631 STOPPER; SPRING
15" CLUTCH(RE9) 		8-97305-666-0 01 1 0712-0906 ●
631 STOPPER; SPRING
15" CLUTCH(RE9) 		8-97305-666-0 01 1 0907- ● ●
631 STOPPER; SPRING
EXC. 15" CLUTCH(RE9) 		8-97379-984-0 01 1 0712-0906 ●
631 STOPPER; SPRING
EXC. 15" CLUTCH(RE9) 		8-97379-984-0 01 1 0907- ● ●
651 SOLENOID ASM; SHIFT
EXC. 15" CLUTCH(RE9) (A) 		8-98048-497-1 01 1 0712-0906 ●
651 SOLENOID ASM; SHIFT
EXC. 15" CLUTCH(RE9) (A) 		8-98048-497-1 01 1 0907- ● ●
651 SOLENOID ASM; SHIFT
EXC. 15" CLUTCH(RE9) (B) 		8-98048-498-1 01 1 0712-0906 ●
651 SOLENOID ASM; SHIFT
EXC. 15" CLUTCH(RE9) (B) 		8-98048-498-1 01 1 0907- ● ●
652 BOLT; SORENOID
EXC. 15" CLUTCH(RE9) M10X25 FLANGE 		0-28151-025-0 06 1 0712-0906 ●
652 BOLT; SORENOID
EXC. 15" CLUTCH(RE9) M10X25 FLANGE 		0-28151-025-0 06 1 0907- ● ●
653 SOLENOID ASM; SELECT
EXC. 15" CLUTCH(RE9) 		8-98002-761-0 01 1 0712-0906 ●
653 SOLENOID ASM; SELECT
EXC. 15" CLUTCH(RE9) 		8-98002-761-0 01 1 0907- ● ●
654 JOINT; SOLENOID,CASE
EXC. 15" CLUTCH(RE9) (A) 		8-97349-473-0 02 1 0712-0906 ●
654 JOINT; SOLENOID,CASE
EXC. 15" CLUTCH(RE9) (A) 		8-97349-473-0 02 1 0907- ● ●
654 JOINT; SOLENOID,CASE
EXC. 15" CLUTCH(RE9) (B) 		8-97380-419-0 01 1 0712-0906 ●
654 JOINT; SOLENOID,CASE
EXC. 15" CLUTCH(RE9) (B) 		8-97380-419-0 01 1 0907- ● ●
655 SENSOR; STROKE
EXC. 15" CLUTCH(RE9) (A) 		8-97324-826-0 01 1 0712-0906 ●
655 SENSOR; STROKE
EXC. 15" CLUTCH(RE9) (A) 		8-97324-826-0 01 1 0907-1010 ● ●
655 SENSOR; STROKE
EXC. 15" CLUTCH(RE9) (A) 		8-98107-823-0 01 1 1011- ● ●
655 SENSOR; STROKE
EXC. 15" CLUTCH(RE9) (B) 		8-97324-827-0 01 1 0712-0906 ●
655 SENSOR; STROKE
EXC. 15" CLUTCH(RE9) (B) 		8-97324-827-0 01 1 0907-1010 ● ●
655 SENSOR; STROKE
EXC. 15" CLUTCH(RE9) (B) 		8-98107-824-0 01 1 1011- ● ●
656 SPRING; SHAFT
EXC. 15" CLUTCH(RE9) (A) 		8-97379-985-0 01 1 0712-0906 ●
656 SPRING; SHAFT
EXC. 15" CLUTCH(RE9) (A) 		8-97379-985-0 01 1 0907- ● ●
656 SPRING; SHAFT
EXC. 15" CLUTCH(RE9) (B) 		8-97379-986-0 01 1 0712-0906 ●
656 SPRING; SHAFT
EXC. 15" CLUTCH(RE9) (B) 		8-97379-986-0 01 1 0907- ● ●
656 SPRING; SHAFT
EXC. 15" CLUTCH(RE9) (C) 		8-97379-987-0 01 1 0712-0906 ●
656 SPRING; SHAFT
EXC. 15" CLUTCH(RE9) (C) 		8-97379-987-0 01 1 0907- ● ●
657 PLATE; SIDE
EXC. 15" CLUTCH(RE9) 		8-98020-712-0 01 1 0712-0906 ●
657 PLATE; SIDE
EXC. 15" CLUTCH(RE9) 		8-98020-712-0 01 1 0907- ● ●

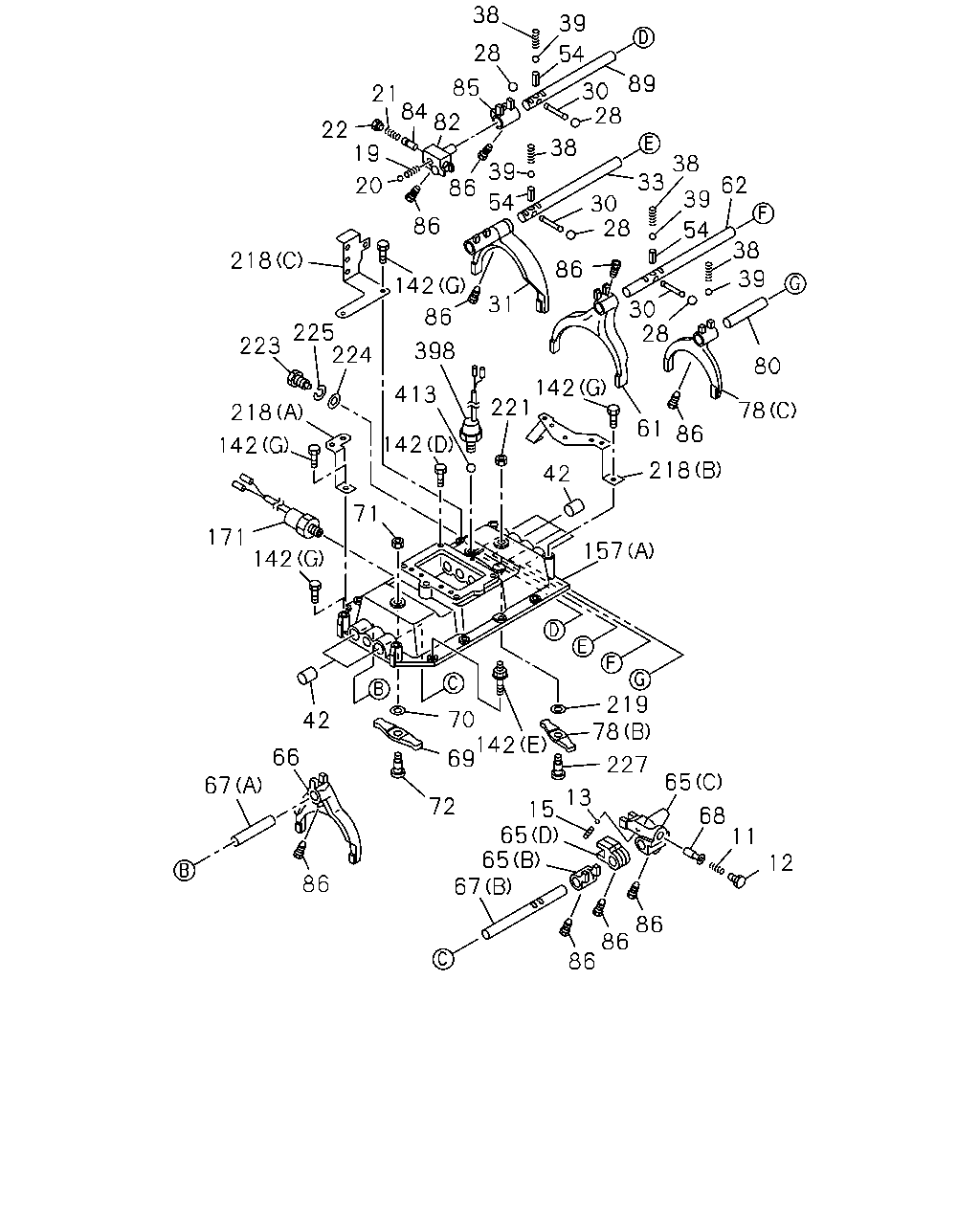

çizim 179945
38 39 28 54 89 85 30 28 21 84 82 22 19 38 38 33 39 62 20 86 39 54 30 28 86 54 38 218 86 39 142 31 30 28 86 225 224 223 398 80 142 221 413 78 218 61 86 142 142 218 42 71 171 157 142 219 78 70 142 69 42 66 227 65 67 13 72 15 65 65 67 68 11 12 86 86 86 86
BalonParca AdiParca NoAdetTipApplied Date A B C
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0806- ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0806- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0806- ●
15 SPRING; LK,SHIFT SLEEVE 1-09580-442-0 01 1 0806- ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 0806- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0806- ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 0806- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0806- ●
28 BALL; INTER LK 9-00097-501-0 04 1 0806- ●
30 PIN; INTER LK 9-33534-003-0 03 1 0806- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 0806- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 0806-1202 ●
33 ROD; SHIFT,LOW & 2ND 8-98207-578-0 01 1 1203- ●
38 SPRING; DETENT
ASSISTOR SHIFT CONTROL<WX8> 		1-09580-379-0 04 1 0806- ●
38 SPRING; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09580-419-0 04 1 0806- ●
39 BALL; DETENT 1-09843-012-0 04 1 0806- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 0806- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0806- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 0806- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 0806-1202 ●
62 ROD; SHIFT,3RD & 4TH 8-98207-586-0 01 1 1203- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		1-33511-202-3 01 1 0806- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 0806- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 0806- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		8-97388-980-1 01 1 0712-0906 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		8-97388-980-1 01 1 0907- ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 0806- ●
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 0712-0906 ●
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 0907- ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		1-33531-235-1 01 1 0806-1202 ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		8-98207-587-0 01 1 1203- ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		1-33531-255-1 01 1 0806-1202 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		8-98207-589-0 01 1 1203- ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 0806- ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 0806- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0806- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0806- ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 0806- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0806- ●
78 ARM; SHIFT,REV
(C) 		1-33511-234-1 01 1 0806- ●
78 ARM; SHIFT,REV
(A) 		8-97388-975-1 01 1 0712-0906 ●
78 ARM; SHIFT,REV
(A) 		8-97388-975-1 01 1 0907- ● ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 0806-1202 ●
80 ROD; SHIFT,REV ARM 8-98207-584-0 01 1 1203- ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 0806- ●
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 0712-0906 ●
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 0907- ● ●
84 SLEEVE; REV 1-33516-025-0 01 1 0806- ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 0806- ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 0806- ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0806-1202 ●
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203- ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0712-0906 ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0907- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0712-0906 ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 0806- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-478-0 01 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0806- ●
171 SWITCH; NEUTRAL
EXC. 15" CLUTCH(RE9) 		8-98242-172-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0806-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0712-0906 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0907-1306 ● ●
171 SWITCH; NEUTRAL
15" CLUTCH(RE9) 		8-98023-050-0 01 1 1307-1312 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0806- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 0806- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 0806- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0806- ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0806- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0806- ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0806- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0806- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0806- ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0806-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0712-0906 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0907-1312 ● ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0806- ●
çizim 179949
382 383
BalonParca AdiParca NoAdetTipApplied Date A B C
382 BRACKET; PARKING BRK CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46147-109-1 01 1 0806- ●
383 BOLT; BRKT,PARK BRAKE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE 		0-28181-022-0 03 1 0806- ●
çizim 179951
295 167 166 59 181 289 59 285 6 189 157 317 142 306 273 289 298 59 322 317 189 333 58 130 163
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33651-686-2 01 1 0806- ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0712-0906 ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0907- ● ●
6 LEVER; RELAY
15" CLUTCH(RE9) (C) 		8-98022-855-0 01 1 0712-0906 ●
6 LEVER; RELAY
15" CLUTCH(RE9) (C) 		8-98022-855-0 01 1 0907- ● ●
6 LEVER; RELAY
EXC. 15" CLUTCH(RE9) (B) 		8-97379-995-0 01 1 0712-0906 ●
6 LEVER; RELAY
EXC. 15" CLUTCH(RE9) (B) 		8-97379-995-0 01 1 0907- ● ●
58 NUT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-110-0 01 1 0712-0805 ●
58 NUT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0907- ●
59 NUT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0712-0805 ●
59 NUT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0806-0906 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0806-0906 ●
59 NUT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0907- ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0907- ●
59 NUT
15" CLUTCH(RE9) (B) M8 FLANGE 		0-91180-108-0 02 1 0712-0805 ●
59 NUT
15" CLUTCH(RE9) (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
15" CLUTCH(RE9) (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33521-165-0 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33521-111-1 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
15" CLUTCH(RE9) (A) 		8-97306-647-0 01 1 0712-0906 ●
130 LEVER; SHIFT,INTERNAL
15" CLUTCH(RE9) (A) 		8-97306-647-0 01 1 0907- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0712-0906 ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 0806- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-478-0 01 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-153-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33522-041-4 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
15" CLUTCH(RE9) (C) 		8-97305-663-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
15" CLUTCH(RE9) (C) 		8-97305-663-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (A) 		8-97379-979-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (A) 		8-97379-979-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (B) 		8-97379-990-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (B) 		8-97379-990-0 01 1 0907- ● ●
166 PIN; SPR,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5 		1-09748-032-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-1 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
15" CLUTCH(RE9) 		8-98022-857-0 01 1 0712-0906 ●
167 LEVER; SELECT,EXTERNAL
15" CLUTCH(RE9) 		8-98022-857-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
EXC. 15" CLUTCH(RE9) 		8-97379-994-0 01 1 0712-0906 ●
167 LEVER; SELECT,EXTERNAL
EXC. 15" CLUTCH(RE9) 		8-97379-994-0 01 1 0907- ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
15" CLUTCH(RE9) 		8-97367-327-0 01 1 0712-0906 ●
181 WASHER; PL,SELECT LEVER
15" CLUTCH(RE9) 		8-97367-327-0 01 1 0907- ● ●
189 GASKET; SELECT LEVER,CONT BOX
15" CLUTCH(RE9) 		1-09623-594-0 02 1 0712-0805 ●
189 GASKET; SELECT LEVER,CONT BOX
15" CLUTCH(RE9) 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
15" CLUTCH(RE9) 		1-09623-594-0 02 1 0907- ● ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0907- ●
273 PIN; SPR,STOPPER
ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4 		1-09748-031-0 01 1 0806- ●
273 PIN; SPR,STOPPER
15" CLUTCH(RE9) D=4.2 L=25 		8-97103-142-0 01 1 0712-0906 ●
273 PIN; SPR,STOPPER
15" CLUTCH(RE9) D=4.2 L=25 		8-97103-142-0 01 1 0907- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0806-1204 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1205-1207 ● ● ●
285 BREATHER; AIR,QUAD BOX
15" CLUTCH(RE9) 		1-33149-003-0 01 1 1208-1404 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1208-1404 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1405- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A) 		1-09625-599-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B) 		1-09625-600-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (C) OD=30 		1-09625-386-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (D) OD=41 		1-09625-647-0 01 1 0806- ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-98023-095-0 01 1 0806- ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-189-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0712-0906 ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0907-1507 ● ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98305-342-0 01 1 1508- ● ●
298 SHAFT; SHIFT LEVER
EXC. 15" CLUTCH(RE9) 		8-97379-978-0 01 1 0712-0906 ●
298 SHAFT; SHIFT LEVER
EXC. 15" CLUTCH(RE9) 		8-97379-978-0 01 1 0907- ● ●
306 BOLT; SHIFT ASSISTOR
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0712-0805 ●
306 BOLT; SHIFT ASSISTOR
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0806-0906 ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0806-0906 ●
306 BOLT; SHIFT ASSISTOR
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0907- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0907- ●
317 BUSHING; LEVER
EXC. 15" CLUTCH(RE9) (A) 		8-97379-997-0 02 1 0712-0906 ●
317 BUSHING; LEVER
EXC. 15" CLUTCH(RE9) (A) 		8-97379-997-0 02 1 0907- ● ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0712-0805 ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0907- ● ●
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0907- ●
322 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0712-0805 ●
322 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0806-0906 ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0806-0906 ●
322 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0907- ● ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0907- ●
333 WASHER; PL,LEVER
15" CLUTCH(RE9) ID=10.5 		0-91610-710-0 01 1 0712-0805 ●
333 WASHER; PL,LEVER
15" CLUTCH(RE9) ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
15" CLUTCH(RE9) ID=10.5 		0-91610-710-0 01 1 0907- ● ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0907- ●
çizim 180015
296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 317 274 142 142 292 285 433 271 317 319 327 323 157 271 289 305 272 130 163 298
BalonParca AdiParca NoAdetTipApplied Date A B C
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33521-165-0 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33521-111-1 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
15" CLUTCH(RE9) (A) 		8-97306-647-0 01 1 0712-0906 ●
130 LEVER; SHIFT,INTERNAL
15" CLUTCH(RE9) (A) 		8-97306-647-0 01 1 0907- ● ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0712-0906 ●
142 BOLT; QUAD BOX
15" CLUTCH(RE9) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0712-0906 ●
142 BOLT; QUAD BOX
EXC. 15" CLUTCH(RE9) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 0806- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-478-0 01 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-153-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		1-33522-041-4 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
15" CLUTCH(RE9) (C) 		8-97305-663-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
15" CLUTCH(RE9) (C) 		8-97305-663-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (A) 		8-97379-979-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (A) 		8-97379-979-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (B) 		8-97379-990-0 01 1 0712-0906 ●
163 LEVER; SELECT,INTERNAL
EXC. 15" CLUTCH(RE9) (B) 		8-97379-990-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-1 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
15" CLUTCH(RE9) 		8-98022-857-0 01 1 0712-0906 ●
167 LEVER; SELECT,EXTERNAL
15" CLUTCH(RE9) 		8-98022-857-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
EXC. 15" CLUTCH(RE9) 		8-97379-994-0 01 1 0712-0906 ●
167 LEVER; SELECT,EXTERNAL
EXC. 15" CLUTCH(RE9) 		8-97379-994-0 01 1 0907- ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
15" CLUTCH(RE9) 		8-97367-327-0 01 1 0712-0906 ●
181 WASHER; PL,SELECT LEVER
15" CLUTCH(RE9) 		8-97367-327-0 01 1 0907- ● ●
187 BOLT; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42 		1-33659-045-0 01 1 0806- ●
188 NUT; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-062-1 01 1 0806- ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0806- ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0806- ●
272 RING; SNAP,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0806- ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		9-33545-017-1 01 1 0806- ●
274 COVER; SHAFT,QUAD BOX
EXC. 15" CLUTCH(RE9) 		8-98020-711-0 01 1 0712-0906 ●
274 COVER; SHAFT,QUAD BOX
EXC. 15" CLUTCH(RE9) 		8-98020-711-0 01 1 0907- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0806-1204 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1205-1207 ● ● ●
285 BREATHER; AIR,QUAD BOX
15" CLUTCH(RE9) 		1-33149-003-0 01 1 1208-1404 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1208-1404 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1405- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A) 		1-09625-599-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B) 		1-09625-600-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (C) OD=30 		1-09625-386-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (D) OD=41 		1-09625-647-0 01 1 0806- ●
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 		0-91111-508-0 02 1 0806- ●
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		1-09440-062-1 02 1 0806- ●
293 WASHER; PL,TAPER BOLT
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22 		0-91610-708-0 01 1 0806- ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-98023-095-0 01 1 0806- ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0806- ●
296 ROD END
EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5 		1-09760-118-1 02 1 0806- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-189-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0712-0906 ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0907-1507 ● ●
298 SHAFT; SHIFT LEVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98305-342-0 01 1 1508- ● ●
298 SHAFT; SHIFT LEVER
EXC. 15" CLUTCH(RE9) 		8-97379-978-0 01 1 0712-0906 ●
298 SHAFT; SHIFT LEVER
EXC. 15" CLUTCH(RE9) 		8-97379-978-0 01 1 0907- ● ●
305 BOOT; LEVER SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-028-0 01 1 0806- ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-704-0 01 1 0806- ●
315 LEVER; SELECT
EXC. 15" CLUTCH(RE9) 		8-97379-998-0 01 1 0712-0906 ●
315 LEVER; SELECT
EXC. 15" CLUTCH(RE9) 		8-97379-998-0 01 1 0907-1411 ● ●
315 LEVER; SELECT
EXC. 15" CLUTCH(RE9) 		8-98296-526-0 01 1 1412- ● ●
317 BUSHING; LEVER
EXC. 15" CLUTCH(RE9) (A) 		8-97379-997-0 02 1 0712-0906 ●
317 BUSHING; LEVER
EXC. 15" CLUTCH(RE9) (A) 		8-97379-997-0 02 1 0907- ● ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0712-0805 ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
15" CLUTCH(RE9) (B) 		1-09330-119-0 02 1 0907- ● ●
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0907- ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-515-0 01 1 0806- ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-474-0 01 1 0806- ●
320 SHAFT; LEVER 8-97377-928-0 01 1 0712-0906 ●
320 SHAFT; LEVER 8-97377-928-0 01 1 0907- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10856-080-0 02 1 0806- ●
323 NUT; LK,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-110-0 01 1 0806- ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 0806- ●
433 GASKET; BUSHING
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0806- ●
çizim 180038
551 78 32 51 684 551 551 65 89 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33651-686-2 01 1 0806- ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0712-0906 ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0907- ● ●
6 LEVER; RELAY
15" CLUTCH(RE9) (C) 		8-98022-855-0 01 1 0712-0906 ●
6 LEVER; RELAY
15" CLUTCH(RE9) (C) 		8-98022-855-0 01 1 0907- ● ●
6 LEVER; RELAY
EXC. 15" CLUTCH(RE9) (B) 		8-97379-995-0 01 1 0712-0906 ●
6 LEVER; RELAY
EXC. 15" CLUTCH(RE9) (B) 		8-97379-995-0 01 1 0907- ● ●
32 ARM; SHIFT,1ST & 2ND 8-98062-167-0 01 1 0712-0906 ●
32 ARM; SHIFT,1ST & 2ND 8-98062-167-0 01 1 0907-1307 ● ●
32 ARM; SHIFT,1ST & 2ND 8-98236-424-1 01 1 1308- ● ●
51 BLOCK; SHIFT,1ST & 2ND 8-98074-457-1 01 1 0712-0906 ●
51 BLOCK; SHIFT,1ST & 2ND 8-98074-457-1 01 1 0907- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		1-33511-202-3 01 1 0806- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 0806- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 0806- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		8-97388-980-1 01 1 0712-0906 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		8-97388-980-1 01 1 0907- ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 0806- ●
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 0712-0906 ●
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 0907- ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0806- ●
78 ARM; SHIFT,REV
(C) 		1-33511-234-1 01 1 0806- ●
78 ARM; SHIFT,REV
(A) 		8-97388-975-1 01 1 0712-0906 ●
78 ARM; SHIFT,REV
(A) 		8-97388-975-1 01 1 0907- ● ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 0806- ●
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 0712-0906 ●
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 0907- ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0806-1202 ●
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203- ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0712-0906 ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0907- ● ●
99 ARM; SHIFT,4TH & 3RD 8-98062-170-0 01 1 0712-0906 ●
99 ARM; SHIFT,4TH & 3RD 8-98062-170-0 01 1 0907-1506 ● ●
99 ARM; SHIFT,4TH & 3RD 8-98309-861-0 01 1 1507- ● ●
102 BLOCK; SHIFT,3RD & 4TH 8-97388-978-2 01 1 0712-0906 ●
102 BLOCK; SHIFT,3RD & 4TH 8-97388-978-2 01 1 0907- ● ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0712-0906 ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0907- ● ●
192 WASHER; PL
15" CLUTCH(RE9) (B) 		8-97305-661-0 02 1 0712-0906 ●
192 WASHER; PL
15" CLUTCH(RE9) (B) 		8-97305-661-0 02 1 0907- ● ●
192 WASHER; PL
EXC. 15" CLUTCH(RE9) (C) 		1-09503-280-0 01 1 0712-0906 ●
192 WASHER; PL
EXC. 15" CLUTCH(RE9) (C) 		1-09503-280-0 01 1 0907- ● ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0712-0906 ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0907- ● ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-474-0 01 1 0806- ●
320 SHAFT; LEVER 8-97377-928-0 01 1 0712-0906 ●
320 SHAFT; LEVER 8-97377-928-0 01 1 0907- ● ●
453 BLOCK; RELAY LEVER 8-97377-927-0 01 1 0712-0906 ●
453 BLOCK; RELAY LEVER 8-97377-927-1 01 1 0907- ● ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0712-0906 ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0907- ● ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0712-0906 ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0907- ● ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0712-0906 ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (D) L=30 OD=4 		1-09748-031-0 02 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (D) L=30 OD=4 		1-09748-031-0 02 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (E) OD=5 		8-97184-905-0 03 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (E) OD=5 		8-97184-905-0 03 1 0907- ● ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (F) 		8-97379-991-0 01 1 0712-0906 ●
551 PIN; SPRING
EXC. 15" CLUTCH(RE9) (F) 		8-97379-991-0 01 1 0907- ● ●
682 ROD; SHIFT,REV,SUB 8-97388-974-0 01 1 0712-0906 ●
682 ROD; SHIFT,REV,SUB 8-97388-974-0 01 1 0907- ● ●
683 ROD; SHIFT,5TH & 6TH 8-98062-173-1 01 1 0712-0906 ●
683 ROD; SHIFT,5TH & 6TH 8-98062-173-1 01 1 0907- ● ●
684 BLOCK; SHIFT,REV,SUB 8-97388-970-0 01 1 0712-0906 ●
684 BLOCK; SHIFT,REV,SUB 8-97388-970-0 01 1 0907- ● ●
685 BOLT; BLOCK
M8X30 FLANGE 		8-98034-764-0 02 1 0712-0906 ●
685 BOLT; BLOCK
M8X30 FLANGE 		8-98034-764-0 02 1 0907- ● ●
çizim 180044
637 237 195 346 636 552 195 158 637 651 406 651 680 630 679 681 178 391 381 632 687 381
BalonParca AdiParca NoAdetTipApplied Date A B C
158 CLIP; HARNESS
ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 0712-0801 ●
158 CLIP; HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0802-0906 ●
158 CLIP; HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0907- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) 		9-09567-113-0 01 1 0712-0906 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) 		9-09567-113-0 01 1 0907- ● ●
195 BOLT
EXC. 15" CLUTCH(RE9) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0906 ●
195 BOLT
EXC. 15" CLUTCH(RE9) M8X20 FLANGE 		0-28650-820-0 02 1 0907- ● ●
237 BRACKET; CABLE,TRANS
EXC. 15" CLUTCH(RE9) 		8-98009-307-1 01 1 0712-0906 ●
237 BRACKET; CABLE,TRANS
EXC. 15" CLUTCH(RE9) 		8-98009-307-1 01 1 0907- ● ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (A) 		8-97309-855-0 01 1 1208-1404 ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405- ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0712-0906 ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0907-1204 ● ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (B) 		8-97373-381-0 01 1 0712-0906 ●
346 HOSE; AIR
EXC. 15" CLUTCH(RE9) (B) 		8-97373-381-0 01 1 0907- ● ●
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0712-0906 ●
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0907- ● ●
381 BOLT
EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE 		0-28050-612-0 04 1 0712-0906 ●
381 BOLT
EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE 		0-28050-612-0 04 1 0907-0907 ● ●
381 BOLT
EXC. 15" CLUTCH(RE9) (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907- ● ●
391 PLUG; SW HOLE
15" CLUTCH(RE9) 		8-97300-273-1 01 1 0712-0906 ●
391 PLUG; SW HOLE
15" CLUTCH(RE9) 		8-97300-273-1 01 1 0907- ● ●
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0712-0906 ●
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0907- ● ●
552 BRACKET
EXC. 15" CLUTCH(RE9) 		8-98005-329-1 01 1 0712-0906 ●
552 BRACKET
EXC. 15" CLUTCH(RE9) 		8-98005-329-1 01 1 0907- ● ●
630 DETENT ASM 8-98019-536-0 04 1 0712-0906 ●
630 DETENT ASM 8-98019-536-0 04 1 0907- ● ●
632 SENSOR; TRANS,REV
EXC. 15" CLUTCH(RE9) 		8-97315-604-1 01 1 0712-0906 ●
632 SENSOR; TRANS,REV
EXC. 15" CLUTCH(RE9) 		8-97315-604-1 01 1 0907- ● ●
636 BRACKET; CLIP 8-97610-096-2 01 1 0712-0906 ●
636 BRACKET; CLIP 8-97610-096-2 01 1 0907- ● ●
637 BOLT; BRACKET
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0906 ●
637 BOLT; BRACKET
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0907- ● ●
637 BOLT; BRACKET
EXC. 15" CLUTCH(RE9) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0906 ●
637 BOLT; BRACKET
EXC. 15" CLUTCH(RE9) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ● ●
651 SOLENOID ASM; SHIFT
EXC. 15" CLUTCH(RE9) (A) 		8-98048-497-1 01 1 0712-0906 ●
651 SOLENOID ASM; SHIFT
EXC. 15" CLUTCH(RE9) (A) 		8-98048-497-1 01 1 0907- ● ●
651 SOLENOID ASM; SHIFT
EXC. 15" CLUTCH(RE9) (B) 		8-98048-498-1 01 1 0712-0906 ●
651 SOLENOID ASM; SHIFT
EXC. 15" CLUTCH(RE9) (B) 		8-98048-498-1 01 1 0907- ● ●
679 BRACKET; HEAT PROTECTOR
EXC. 15" CLUTCH(RE9) 		8-98005-332-0 01 1 0712-0906 ●
679 BRACKET; HEAT PROTECTOR
EXC. 15" CLUTCH(RE9) 		8-98005-332-0 01 1 0907- ● ●
680 BOLT; FLANGE
EXC. 15" CLUTCH(RE9) M10X20 FLANGE 		0-28761-020-0 02 1 0712-0906 ●
680 BOLT; FLANGE
EXC. 15" CLUTCH(RE9) M10X20 FLANGE 		0-28761-020-0 02 1 0907- ● ●
681 NUT; FLANGE
EXC. 15" CLUTCH(RE9) M10 FLANGE 		0-91180-210-0 02 1 0712-0906 ●
681 NUT; FLANGE
EXC. 15" CLUTCH(RE9) M10 FLANGE 		0-91180-210-0 02 1 0907- ● ●
687 GASKET; SENSOR
EXC. 15" CLUTCH(RE9) 		9-09567-113-0 01 1 0712-0906 ●
687 GASKET; SENSOR
EXC. 15" CLUTCH(RE9) 		9-09567-113-0 01 1 0907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
