◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51410 - NPS(AUST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#36522) — 28 parça

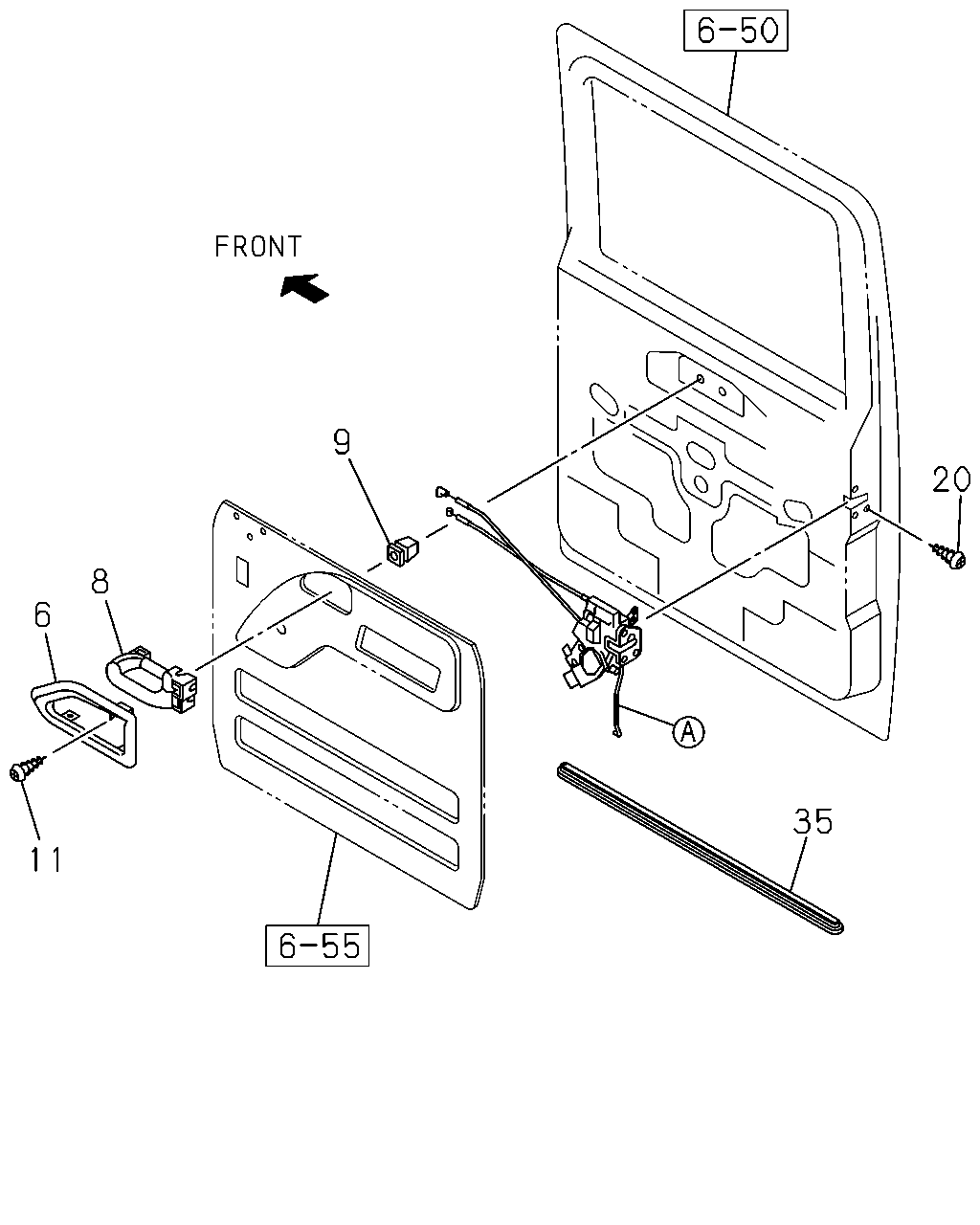

çizim 35747
9 20 8 6 35 11
BalonParca AdiParca NoAdetTipApplied Date
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97405-311-0 01 1 0710-
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97405-312-0 01 1 0710-
8 16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97409-816-0 01 1 0710-
8 16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97409-817-0 01 1 0710-
9 16.345 GROMMET; SCREW,INSIDE HANDLE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0710-
11 16.345 SCREW; INSIDE HANDLE
16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710-
20 16.330 SCREW; DOOR LK
M6X14.5 		8-98004-342-0 06 1 0710-
35 16.155 PLUG; RR DOOR LWR HOLE 8-98009-201-4 02 1 0710-
çizim 99950
17 85 83 84 15 83
BalonParca AdiParca NoAdetTipApplied Date
15 16.341 LINK; RR DOOR LK 8-98058-335-0 01 1 0710-
15 16.341 LINK; RR DOOR LK 8-98058-336-0 01 1 0710-
17 16.330 LOCK; DOOR,RR DOOR 8-98006-865-2 01 1 0710-
17 16.330 LOCK; DOOR,RR DOOR 8-98006-867-2 01 1 0710-
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-342-0 01 1 0710-
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-344-0 01 1 0710-
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-345-0 02 1 0710-
84 16.270 COVER; DOOR LOCK 8-98058-238-0 01 1 0710-
84 16.270 COVER; DOOR LOCK 8-98058-239-0 01 1 0710-
85 16.155 SNAP; RR DOOR LOCK
16.335 		8-98058-226-0 02 1 0710-
85 16.155 SNAP; RR DOOR LOCK
16.335 		8-98058-227-0 02 1 0710-
çizim 99952
3 37 14 1 30 32
BalonParca AdiParca NoAdetTipApplied Date
1 16.360 HANDLE; OUTSIDE,RR DOOR 8-98040-991-2 01 1 0710-
1 16.360 HANDLE; OUTSIDE,RR DOOR 8-98040-992-2 01 1 0710-
3 16.350 BOLT; DOOR OUTSIDE HANDLE
16.183 M6X10 FLANGE 		8-98032-500-0 04 1 0710-0802
3 16.350 BOLT; DOOR OUTSIDE HANDLE
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0803-
14 16.330 HOLDER; DOOR LK ROD
WHITE 		8-97333-303-0 01 1 0710-
14 16.330 HOLDER; DOOR LK ROD
16.350 BLACK 		8-98095-813-0 01 1 0710-
30 16.335 STRIKER; RR DOOR 8-98029-173-2 02 1 0710-
32 16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 0710-
37 16.157 GROMMET; RR DOOR
16.570 		8-94279-724-0 04 1 0710-
