8-65 — CONTROL LEVER; HEATER AND AIR CON (#36510) — 16 parça

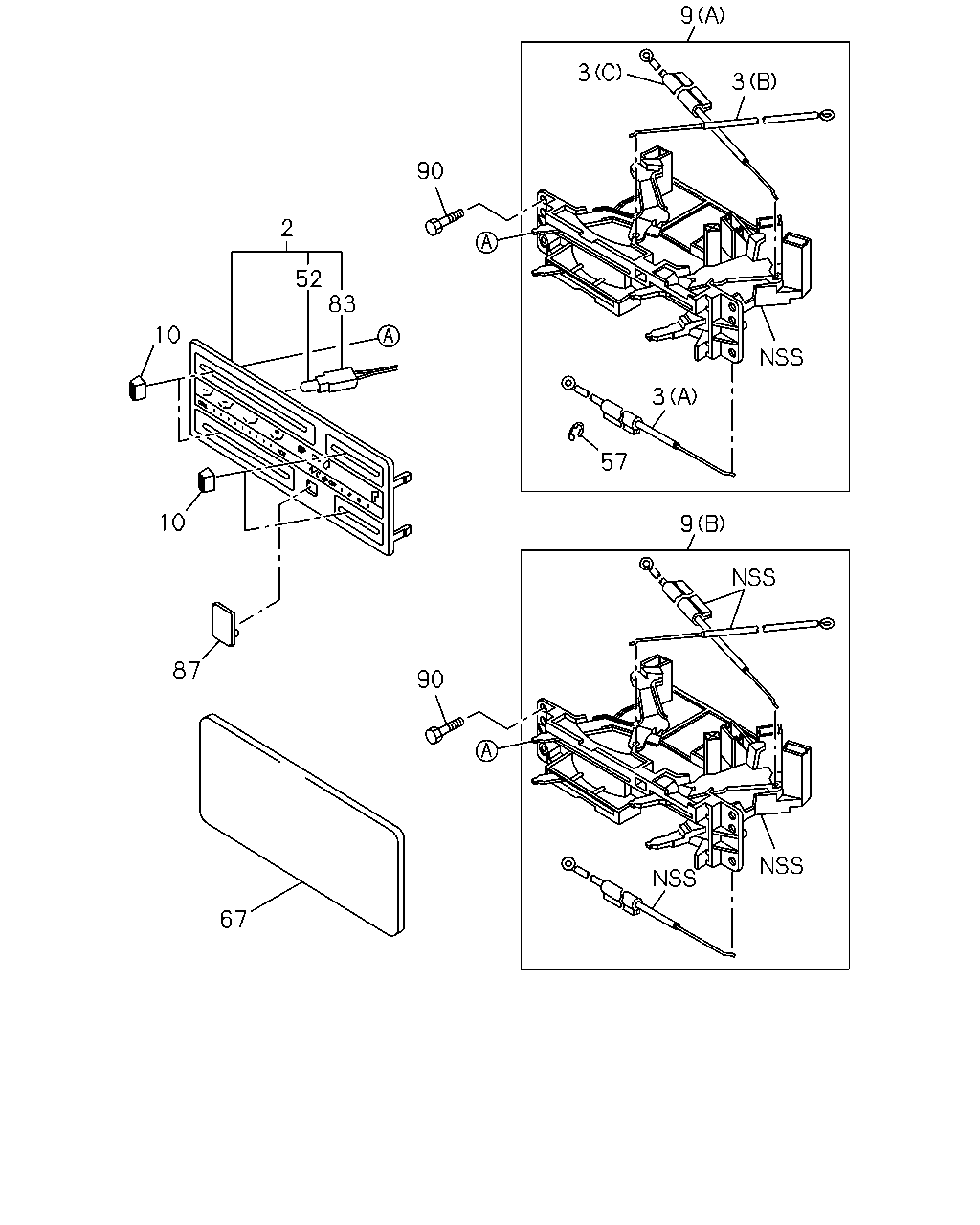

çizim 14217
10 2 52 83 90 3 9 3 3 57 10 87 90 9 67
BalonParca AdiParca NoAdetTipApplied Date
2 08.852 PANEL ASM; CONT,ILLUMINATION 8-97048-331-2 01 1 0612-
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39) (B) MODE 		8-97085-618-1 01 1 0612-
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39) (C) FRESH 		8-97085-619-2 01 1 0612-
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97085-617-2 01 1 0612-
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) 		8-97381-351-0 01 1 0612-
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97073-346-0 01 1 0612-
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97048-613-4 01 1 0612-
10 08.852 KNOB; CONT LEVER
FORGED AIR VENTILATION(C39) 		8-97114-430-0 02 1 0612-
10 08.852 KNOB; CONT LEVER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0612-
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 0612-
52 08.991 BULB; PANEL ILLUMINATION
28V 65MA 		8-97182-225-0 01 1 0612-
57 09.787 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97262-535-0 01 1 0612-
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 0612-
83 08.849 HARNESS; CONT PANEL 8-97308-566-0 01 1 0612-
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0612-
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0612-
