Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#3651) — 193 parça

63 72 90 63 59 66 92 17 13 60 66 17 63 59 60 66 90 66 72 71 60 89 13 71 89 72 63 60 59 92 60 66 63 49 66 59 66 49 72 60 17 60 71 66 71 60 89 17 89 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-729-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-731-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-919-1	01	1	9208-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-917-1	01	1	9208-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-920-1	01	1	9208-
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (D) M8 FLANGE	1-09984-122-0	04	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	06	1	9208-9306
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	04	1	9307-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-737-0	01	1	9002-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-736-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-734-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-804-0	01	1	9002-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71797-052-0	01	1	9208-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71797-114-0	01	1	9208-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9>	1-71737-792-0	01	1	9002-
59	WASHER; LK DOOR MIRROR<D32> (C) ID=8.2	1-09985-177-0	04	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	02	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10	1-09985-180-0	01	1	9002-
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> (C) ID=8.4 OD=22	1-09985-188-0	08	1	9002-
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=18	1-09985-173-0	01	1	9002-
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=8.4 OD=16	1-09985-174-0	01	1	9002-
63	NUT; STAY (A) M10	1-09984-134-0	04	1	9002-
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-
63	NUT; STAY EXC. DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	02	1	9002-
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	02	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9002-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (D) WHITE	1-71798-002-1	04	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A) WHITE	1-71736-578-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C) BLUE WHITE	1-71798-002-1	02	1	9002-
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	04	1	9002-
72	SHEET DOOR MIRROR<D32> (B) ID=8.5 T=3 OD=30	1-71736-247-0	04	1	9007-
72	SHEET EXC. DOOR MIRROR<D32> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (C) D=8 2-HOLE	1-71737-444-0	01	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-
90	BRACKET; MIRROR STAY DOOR MIRROR<D32>	1-71737-764-0	01	1	9002-
90	BRACKET; MIRROR STAY DOOR MIRROR<D32>	1-71737-763-0	01	1	9002-
92	BOLT; STAY BRKT,MIRROR DOOR MIRROR<D32> M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-

63 66 66 49 72 89 25 85 71 13 87 85 63 66 66 17 28 71 72 89 66 66 59 59 63 63 72 72 50 66 30 70 50 72 71 36 89 34 66 35 66 66 63 25 85 13 32 35 86 85 63 27 49 66 66 66 28 71 27 17 32 72 89 26 13 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-729-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-731-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-919-1	01	1	9208-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-917-1	01	1	9208-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-920-1	01	1	9208-
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (D) M8 FLANGE	1-09984-122-0	04	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	06	1	9208-9306
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	04	1	9307-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X50	1-09981-444-0	04	1	9208-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5X40 W/PL WASHER	1-71737-797-0	02	1	9208-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-652-1	01	1	9208-
27	GASKET; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71736-661-0	01	1	9208-
27	GASKET; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-748-0	02	1	9208-
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-678-0	03	1	9208-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-631-6	01	1	9208-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-732-0	01	1	9002-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9208-
34	CAP; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-649-1	01	1	9208-
35	GASKET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71736-661-0	01	1	9208-
35	GASKET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-748-0	02	1	9208-
36	GROMMET; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-678-0	01	1	9208-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-737-0	01	1	9002-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-736-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-734-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-804-0	01	1	9002-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71797-052-0	01	1	9208-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71797-114-0	01	1	9208-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9>	1-71737-792-0	01	1	9002-
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-793-0	01	1	9002-
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-794-1	01	1	9002-
59	WASHER; LK DOOR MIRROR<D32> (C) ID=8.2	1-09985-177-0	04	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	02	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10	1-09985-180-0	01	1	9002-
63	NUT; STAY (A) M10	1-09984-134-0	04	1	9002-
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-
63	NUT; STAY EXC. DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	02	1	9002-
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	02	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9002-
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (D) WHITE	1-71798-002-1	04	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A) WHITE	1-71736-578-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C) BLUE WHITE	1-71798-002-1	02	1	9002-
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	04	1	9002-
72	SHEET DOOR MIRROR<D32> (B) ID=8.5 T=3 OD=30	1-71736-247-0	04	1	9007-
72	SHEET EXC. DOOR MIRROR<D32> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (C) D=8 2-HOLE	1-71737-444-0	01	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=22.2	1-71736-489-2	04	1	9208-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-0	02	1	9208-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-704-0	03	1	9208-9306
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-704-0	02	1	9307-
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-

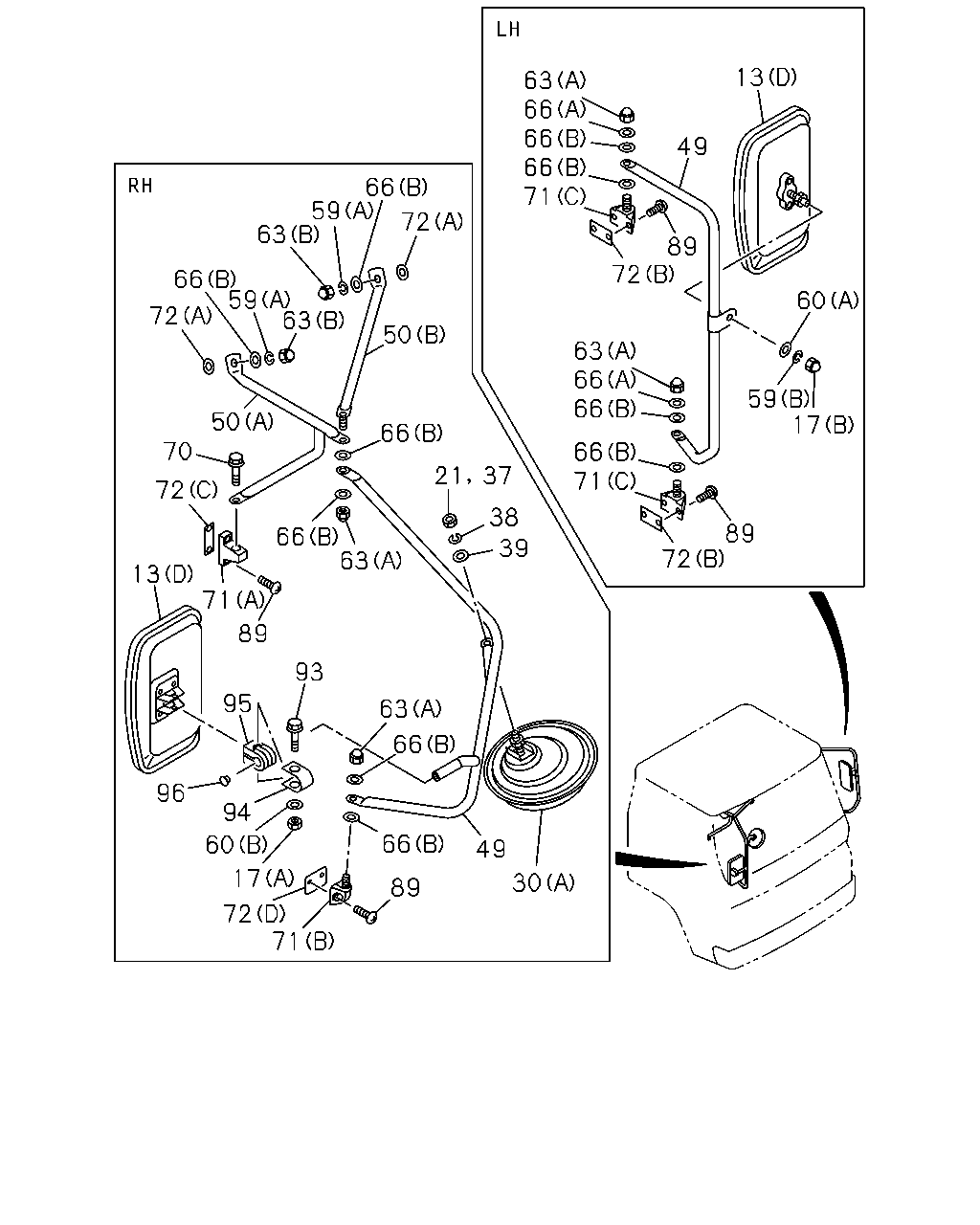

13 63 66 66 66 71 49 66 59 63 72 89 72 66 59 63 60 72 50 63 66 66 59 17 50 66 70 66 71 21 37 72 38 89 72 66 63 39 13 71 89 93 95 63 66 96 94 66 60 49 17 30 89 72 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-729-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-731-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-919-1	01	1	9208-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-917-1	01	1	9208-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-920-1	01	1	9208-
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (D) M8 FLANGE	1-09984-122-0	04	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	06	1	9208-9306
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	04	1	9307-
21	NUT; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5	1-09984-124-0	02	1	9307-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9307-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-631-6	01	1	9208-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-732-0	01	1	9002-
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9002-9306
38	WASHER; LK,UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> ID=8.2	1-09985-177-0	01	1	9002-
39	WASHER; PL,UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> ID=8.4 OD=16	1-09985-174-0	01	1	9002-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-737-0	01	1	9002-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-736-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-734-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-804-0	01	1	9002-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71797-052-0	01	1	9208-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71797-114-0	01	1	9208-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9>	1-71737-792-0	01	1	9002-
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-793-0	01	1	9002-
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-794-1	01	1	9002-
59	WASHER; LK DOOR MIRROR<D32> (C) ID=8.2	1-09985-177-0	04	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	02	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=10	1-09985-180-0	01	1	9002-
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> (C) ID=8.4 OD=22	1-09985-188-0	08	1	9002-
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=18	1-09985-173-0	01	1	9002-
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=8.4 OD=16	1-09985-174-0	01	1	9002-
63	NUT; STAY (A) M10	1-09984-134-0	04	1	9002-
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-
63	NUT; STAY EXC. DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	02	1	9002-
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	02	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9002-
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (D) WHITE	1-71798-002-1	04	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A) WHITE	1-71736-578-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C) BLUE WHITE	1-71798-002-1	02	1	9002-
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	04	1	9002-
72	SHEET DOOR MIRROR<D32> (B) ID=8.5 T=3 OD=30	1-71736-247-0	04	1	9007-
72	SHEET EXC. DOOR MIRROR<D32> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (C) D=8 2-HOLE	1-71737-444-0	01	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-
93	BOLT; BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X45 W/LK&PL WASHER	1-09980-542-0	01	1	9002-
94	HOLDER; BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-755-0	01	1	9002-
95	GASKET; NYLON,BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-290-1	01	1	9002-
96	CAP; MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-292-0	01	1	9002-

13 134 53 132 26 133 25 134 14 85 87 132 85 133 86 2 1 17 21

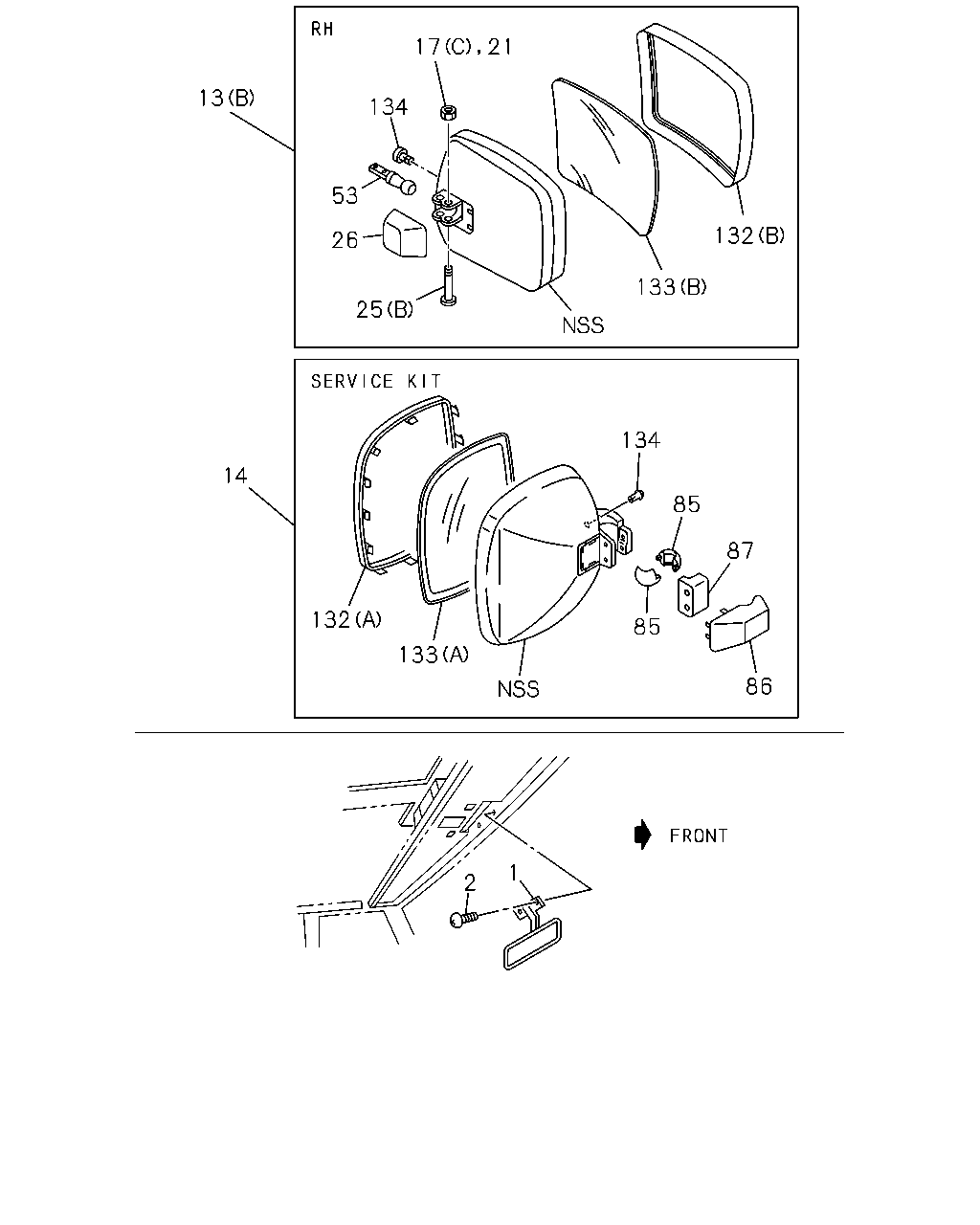

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-026-1	01	1	9002-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-729-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-731-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-919-1	01	1	9208-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-917-1	01	1	9208-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-920-1	01	1	9208-
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-924-0	01	1	9208-
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> PIVOT ID=22.2	1-71707-152-1	01	1	9307-
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (D) M8 FLANGE	1-09984-122-0	04	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	06	1	9208-9306
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	04	1	9307-
21	NUT; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5	1-09984-124-0	02	1	9307-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9307-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X50	1-09981-444-0	04	1	9208-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5X40 W/PL WASHER	1-71737-797-0	02	1	9208-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-652-1	01	1	9208-
53	PIVOT; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-645-1	01	1	9208-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=22.2	1-71736-489-2	04	1	9208-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-0	02	1	9208-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-704-0	03	1	9208-9306
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-704-0	02	1	9307-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	9208-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	9307-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	9307-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-928-0	01	1	9208-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-926-0	01	1	9307-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-929-0	01	1	9307-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	9208-9306
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	03	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
