8-60 — HEATER UNIT; FRONT (#36509) — 91 parça

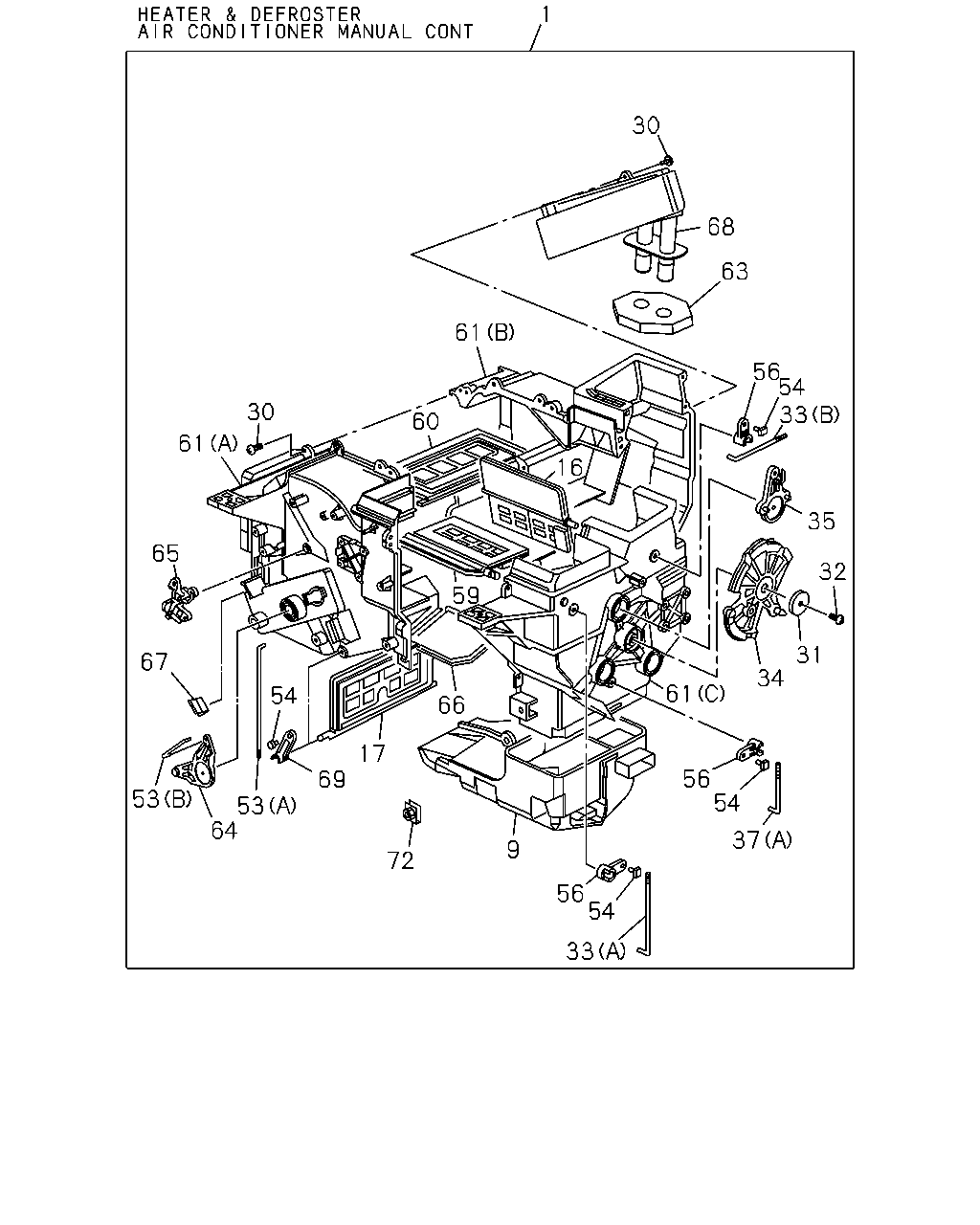

çizim 13466
30 68 63 61 56 54 33 30 60 61 16 35 65 32 59 31 67 34 61 54 66 17 56 54 69 53 53 64 37 9 72 56 54 33 1
BalonParca AdiParca NoAdetTipApplied Date
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 0612-
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0612-
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0612-
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0612-
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0612-
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-557-1 01 1 0612-
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0612-
30 08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0612-
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0612-
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0612-
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0612-
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0612-
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0612-
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0612-
37 08.852 ROD; LEVER
(A) 		8-97087-570-1 01 1 0612-
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (B) 		8-98008-959-0 01 1 0612-
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-566-0 01 1 0612-
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-567-1 01 1 0612-
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0612-
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0612-
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0612-
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 0612-
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0612-
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0612-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0612-
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97115-147-3 01 1 0612-
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97131-580-0 01 1 0612-
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-562-1 01 1 0612-
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-564-1 01 1 0612-
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0612-
67 08.854 CLIP; HTR UNIT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0612-
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0612-
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97251-290-0 01 1 0612-
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-563-1 01 1 0612-
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0612-

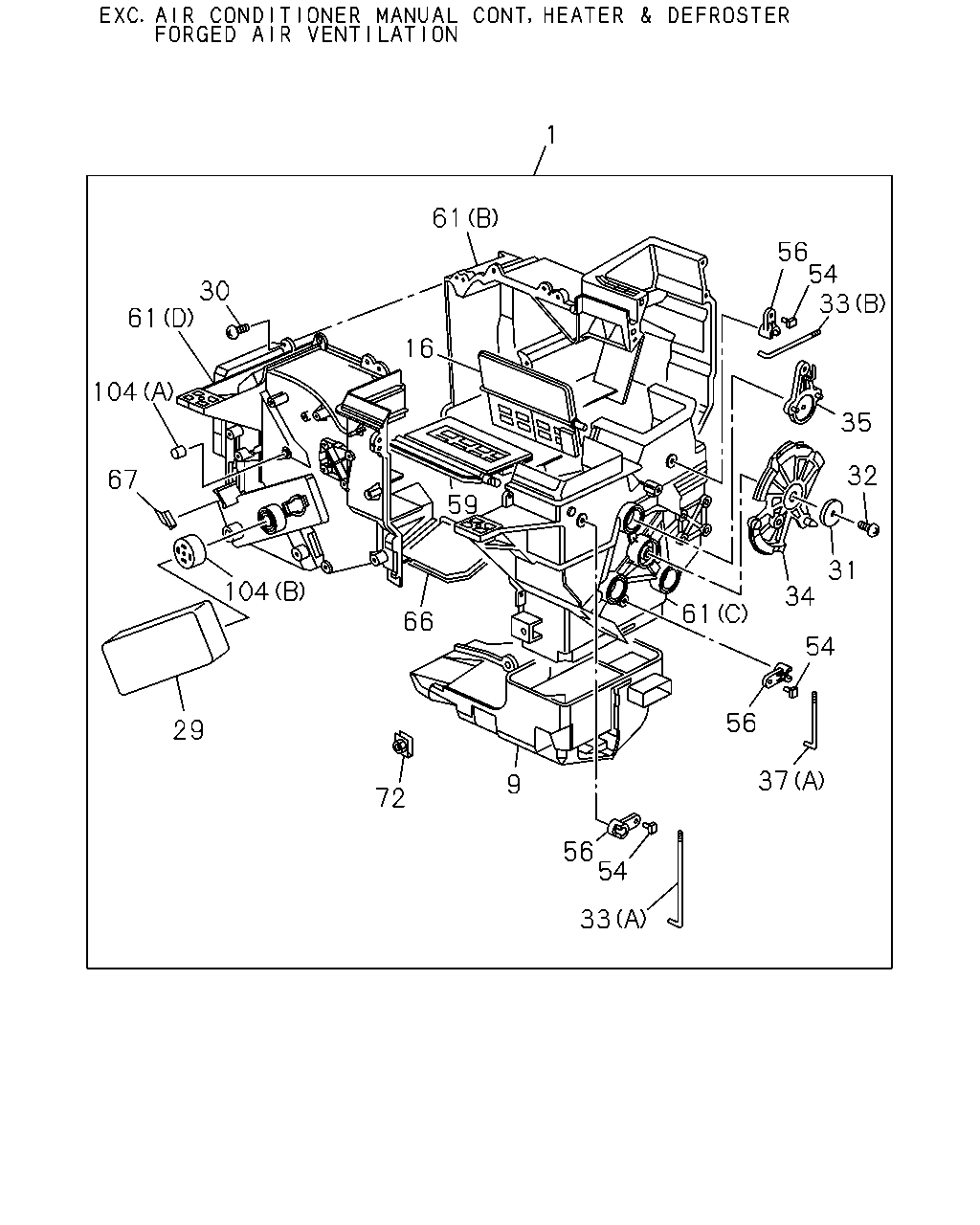

çizim 58412
61 30 61 56 54 33 35 32 31 34 54 56 37 61 104 16 67 104 59 66 29 72 9 56 54 33 1
BalonParca AdiParca NoAdetTipApplied Date
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 0612-
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0612-
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0612-
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0612-
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0612-
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 0612-
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0612-
30 08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0612-
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0612-
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0612-
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0612-
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0612-
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0612-
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0612-
37 08.852 ROD; LEVER
(A) 		8-97087-570-1 01 1 0612-
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (B) 		8-98008-959-0 01 1 0612-
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0612-
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0612-
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0612-
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0612-
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0612-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0612-
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97115-147-3 01 1 0612-
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0612-
67 08.854 CLIP; HTR UNIT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0612-
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0612-
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0612-
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 0612-
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 0612-

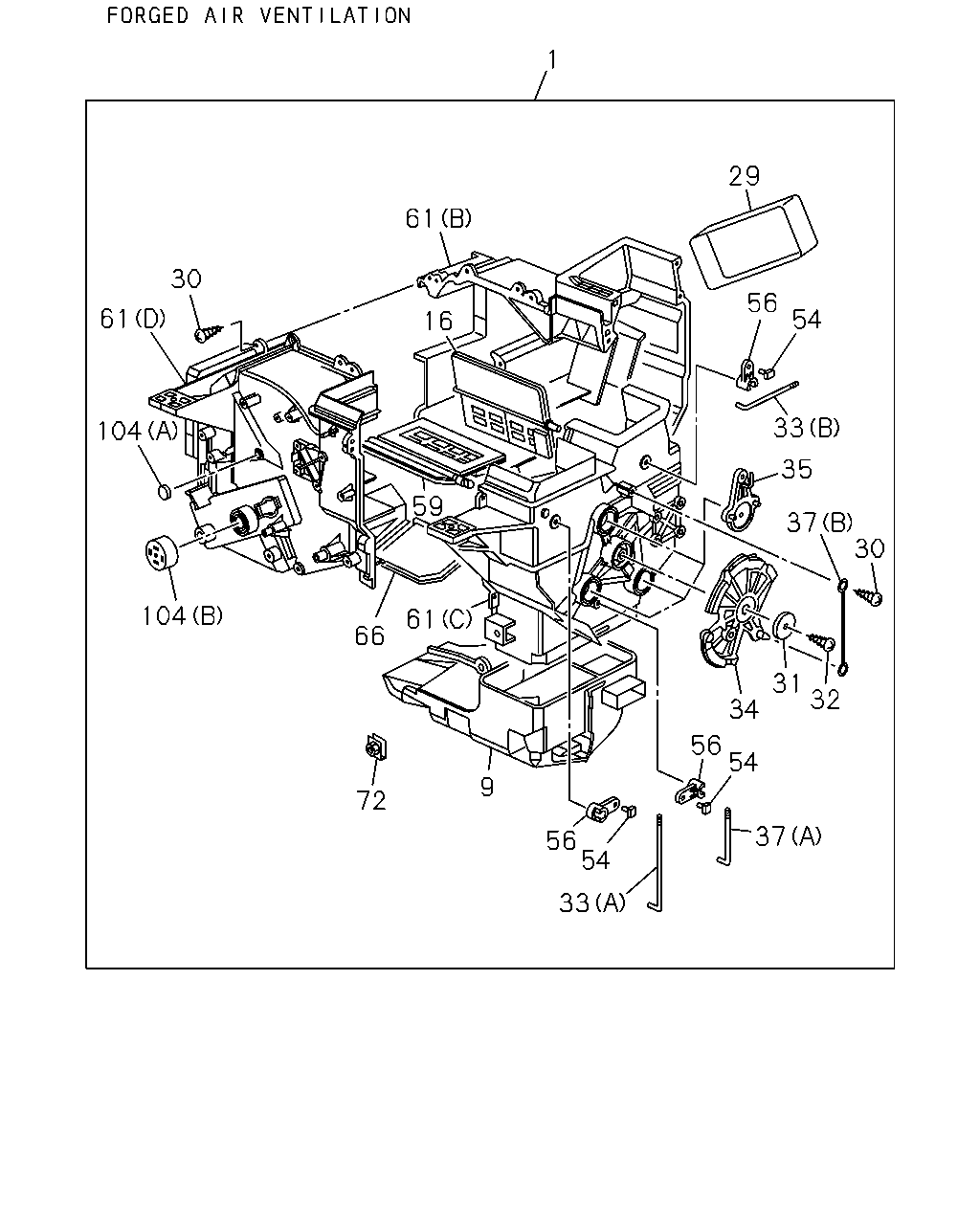

çizim 58418
61 30 61 16 29 56 54 33 35 37 30 31 32 34 56 54 37 56 54 33 72 9 66 61 59 104 104 1
BalonParca AdiParca NoAdetTipApplied Date
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 0612-
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0612-
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0612-
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0612-
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0612-
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 0612-
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0612-
30 08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0612-
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0612-
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0612-
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0612-
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0612-
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0612-
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0612-
37 08.852 ROD; LEVER
(A) 		8-97087-570-1 01 1 0612-
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (B) 		8-98008-959-0 01 1 0612-
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0612-
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0612-
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0612-
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0612-
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0612-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0612-
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97115-147-3 01 1 0612-
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0612-
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0612-
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 0612-
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 0612-
