Isuzu WW
▶
TRUCKS
▶
NPS
▶
51136 - NPS-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#36506) — 30 parça
◀
[840A] NO.3 (2 parça)
[840A] NO.2 (4 parça)
[840A] NO.4 (2 parça)
[840A] NO.1 (22 parça)
▶
371
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
370
08.866 PLATE; BAFFLE,BLOWER UNIT
8-97856-129-2
01
1
0612-
371
08.866 FASTENER; BAFFLE PLATE
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
0612-

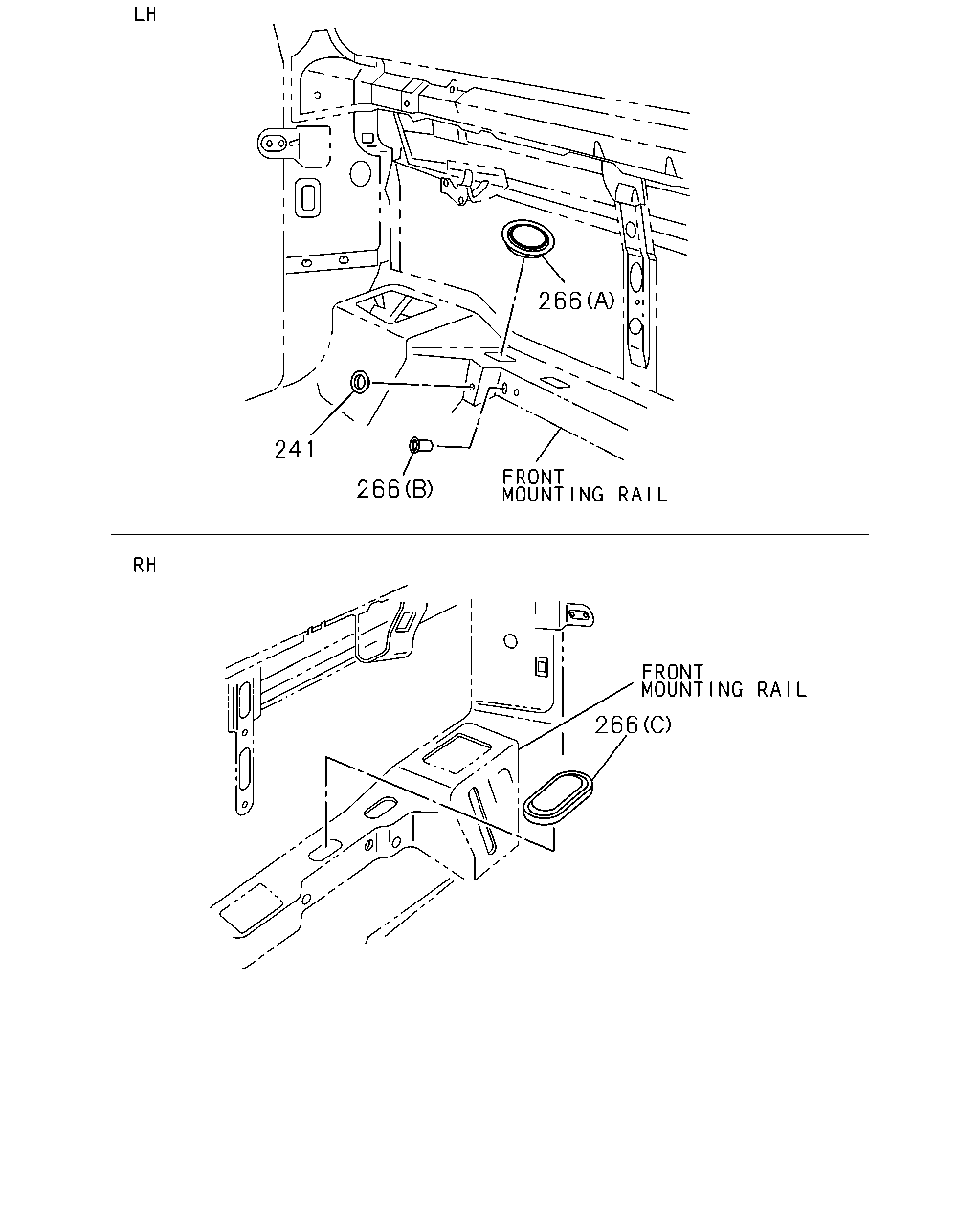

266
241
266
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97037-392-0
01
1
0612-
266
08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37
8-97036-019-0
01
1
0612-
266
08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13
9-09756-019-0
01
1
0612-
266
08.845 PLUG; HTR HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5
8-97036-020-0
01
1
0612-

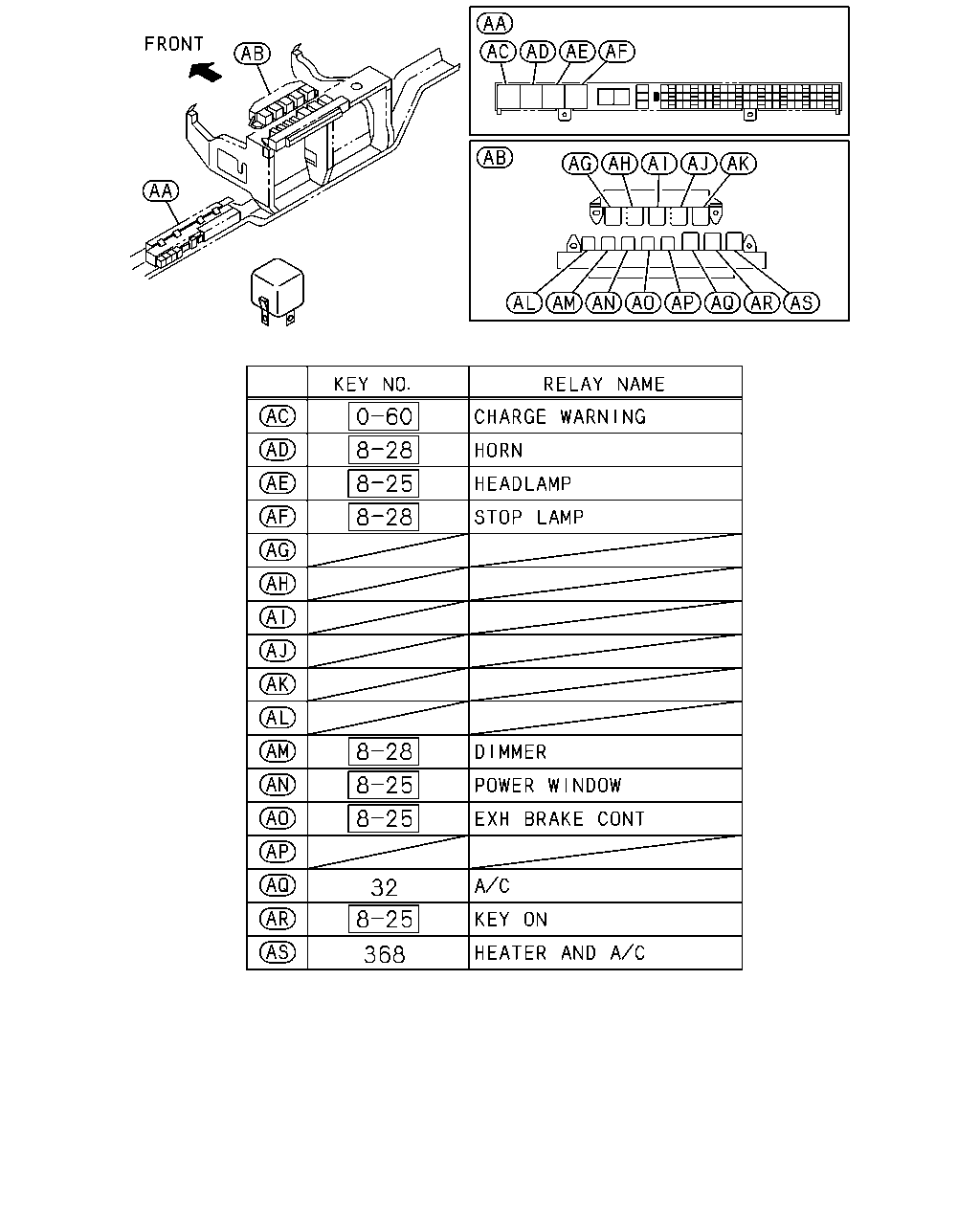

32
368
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC
8-97262-933-0
01
1
0612-
368
09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC
8-97262-933-0
01
1
0612-

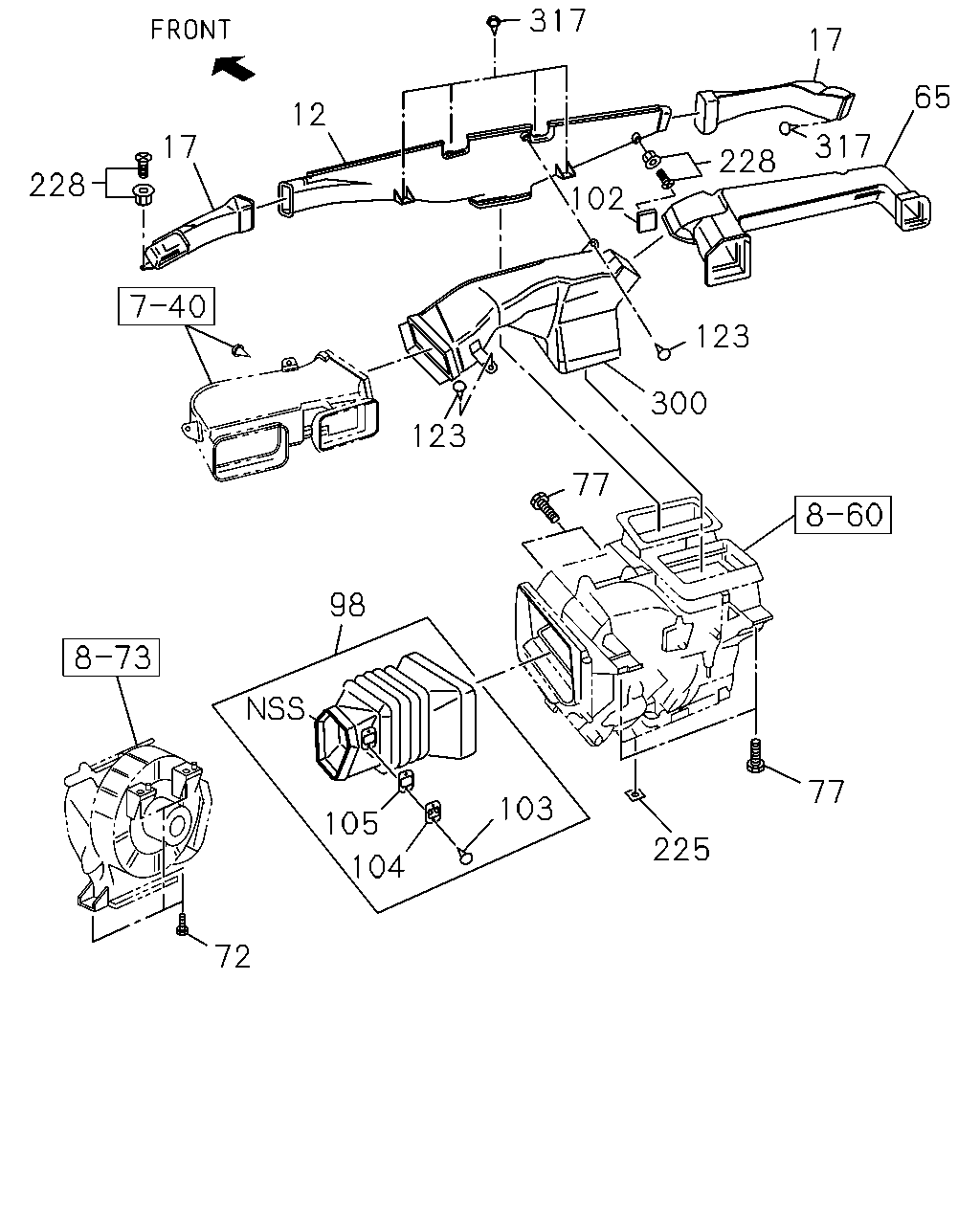

317
17
65
12
317
17
228
228
102
123
123
300
77
98
77
103
105
225
104
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
09.779 NOZZLE; DEFROSTER
EXC. FORGED AIR VENTILATION(C39)
8-97134-965-0
01
1
0612-
17
09.779 NOZZLE; DEFROSTER,SIDE
EXC. FORGED AIR VENTILATION(C39)
8-97262-701-0
01
1
0612-
17
09.779 NOZZLE; DEFROSTER,SIDE
EXC. FORGED AIR VENTILATION(C39)
8-97262-689-0
01
1
0612-
65
09.786 DUCT; VENT,DRIVER SIDE
8-97262-691-0
01
1
0612-
72
08.857 BOLT; BLOWER UNIT
03.162 M6X20 FLANGE
0-28650-620-0
02
1
0612-
72
08.857 BOLT; BLOWER UNIT
M8X35
8-97103-452-0
02
1
0612-
77
08.845 BOLT; HTR UNIT
03.162 M6X20 FLANGE
0-28650-620-0
02
1
0612-
77
08.845 BOLT; HTR UNIT
M8X25
8-97103-451-0
02
1
0612-
98
09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97358-598-0
01
1
0612-
102
09.262 LINING; HTR DUCT
EXC. FORGED AIR VENTILATION(C39)
8-97145-038-0
01
1
0612-
103
08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING
1-83579-114-0
02
1
0612-
104
08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97358-389-0
02
1
0612-
105
08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97020-761-0
01
1
0612-
123
09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39) 09.264 M5X12 W/PL WASHER
8-97147-069-0
01
1
0612-0612
123
09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
0701-
123
09.786 SCREW; DUCT
EXC. FORGED AIR VENTILATION(C39) 09.264 M5X12 W/PL WASHER
8-97147-069-0
02
1
0612-0612
123
09.786 SCREW; DUCT
EXC. FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
02
1
0701-
225
08.845 SEAL; WATER
8-97856-616-0
04
1
0612-
228
09.780 CLIP; DEFROSTER
EXC. FORGED AIR VENTILATION(C39) 12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
0612-
300
09.264 DUCT; VENT,CENTER
8-97262-687-0
01
1
0612-
317
09.264 SCREW; DEFROSTER NOZZLE
EXC. FORGED AIR VENTILATION(C39) M5X12 W/PL WASHER
8-97147-069-0
06
1
0612-0612
317
09.264 SCREW; DEFROSTER NOZZLE
EXC. FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
06
1
0701-
