◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#36505) — 28 parça

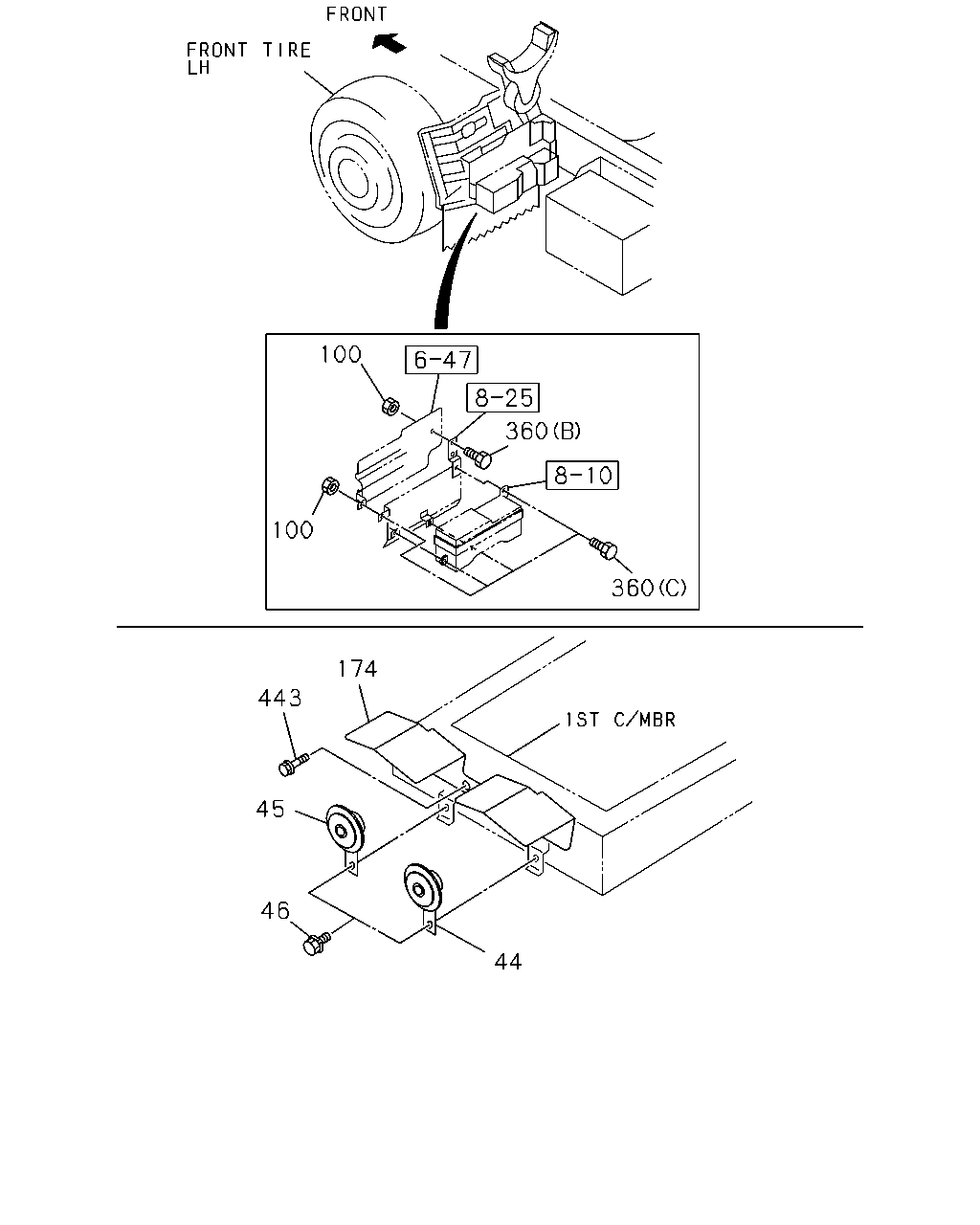

çizim 13464
100 360 100 360 174 443 45 46 44
BalonParca AdiParca NoAdetTipApplied Date
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97211-741-1 01 1 0612-
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) 		8-97109-364-1 01 1 0612-
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG) 		8-97211-740-1 01 1 0612-
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0612-
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0612-
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612-
100 09.277 NUT; RELAY BOX COVER
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0612-
174 02.510 COVER
EXC. INDONESIA EQUIPMENT(S4S) 		8-97370-470-0 01 1 0701-
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0612-
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0612-
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0612-
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 03 1 0612-
443 02.510 BOLT; COVER
EXC. INDONESIA EQUIPMENT(S4S) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0701-

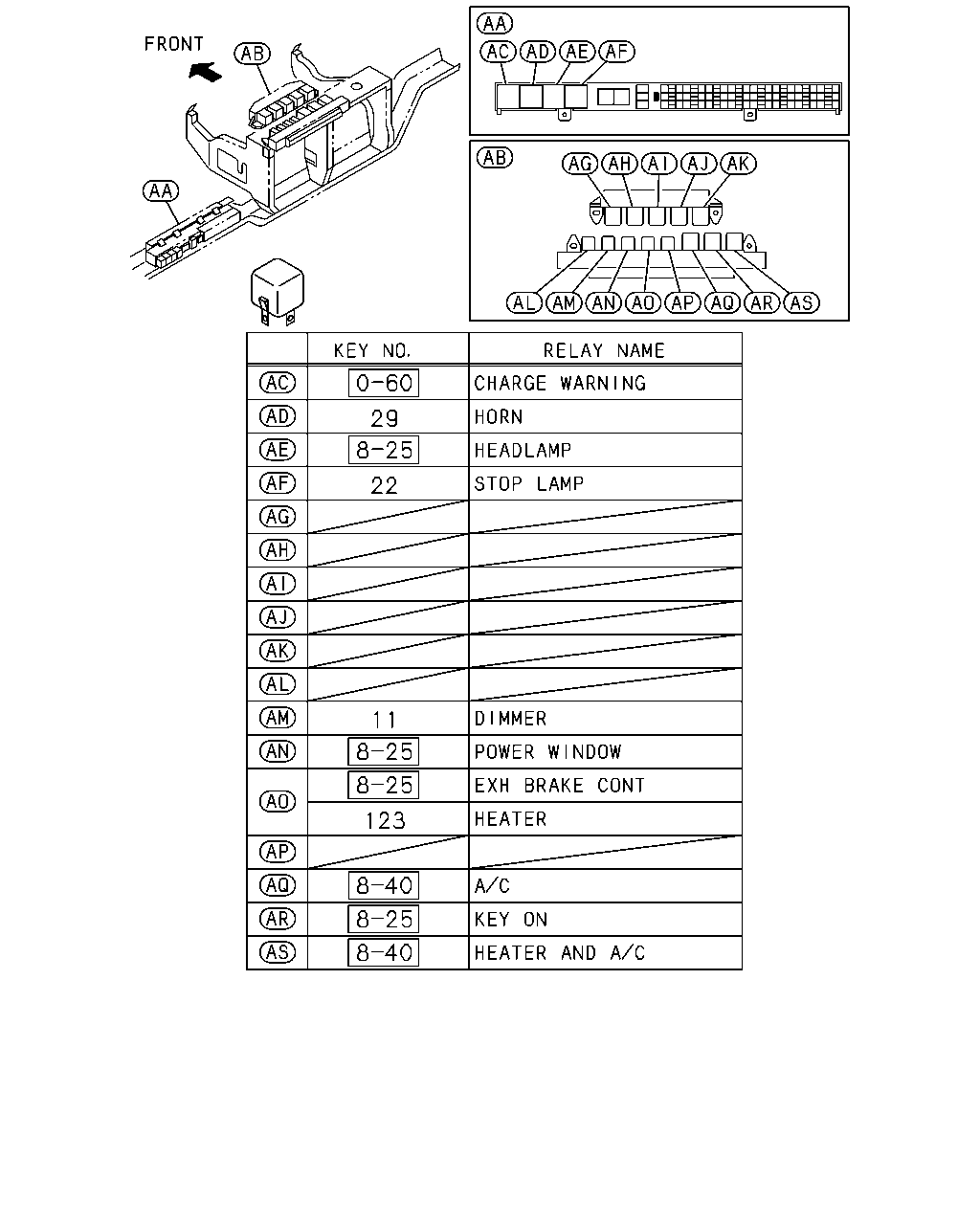

çizim 58280
29 22 11 123
BalonParca AdiParca NoAdetTipApplied Date
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0612-
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0612-
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0612-
123 02.270 RELAY; HTR
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0612-

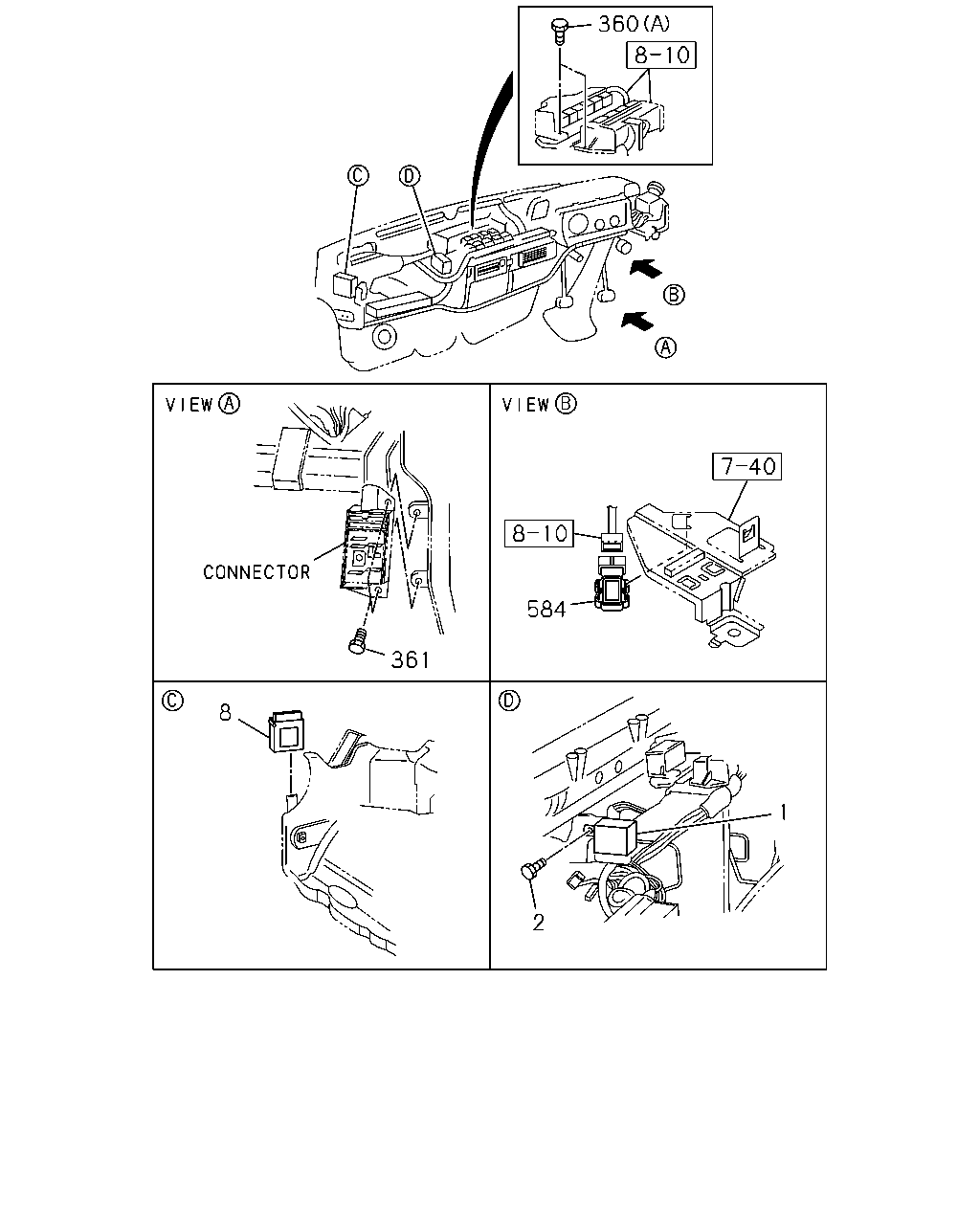

çizim 58486
360 584 361 8 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0612-
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0612-
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0612-
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0612-
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0612-
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0612-
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 03 1 0612-
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0612-
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0612-
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ) 02.510 		8-09350-899-1 01 1 0612-0810
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ) 		8-28180-175-0 01 1 0811-
