◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#36504) — 21 parça
çizim 58007
21 21 2 263 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0612-
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0612-0706
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707-
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0612-
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0612-
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0612-
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0612-

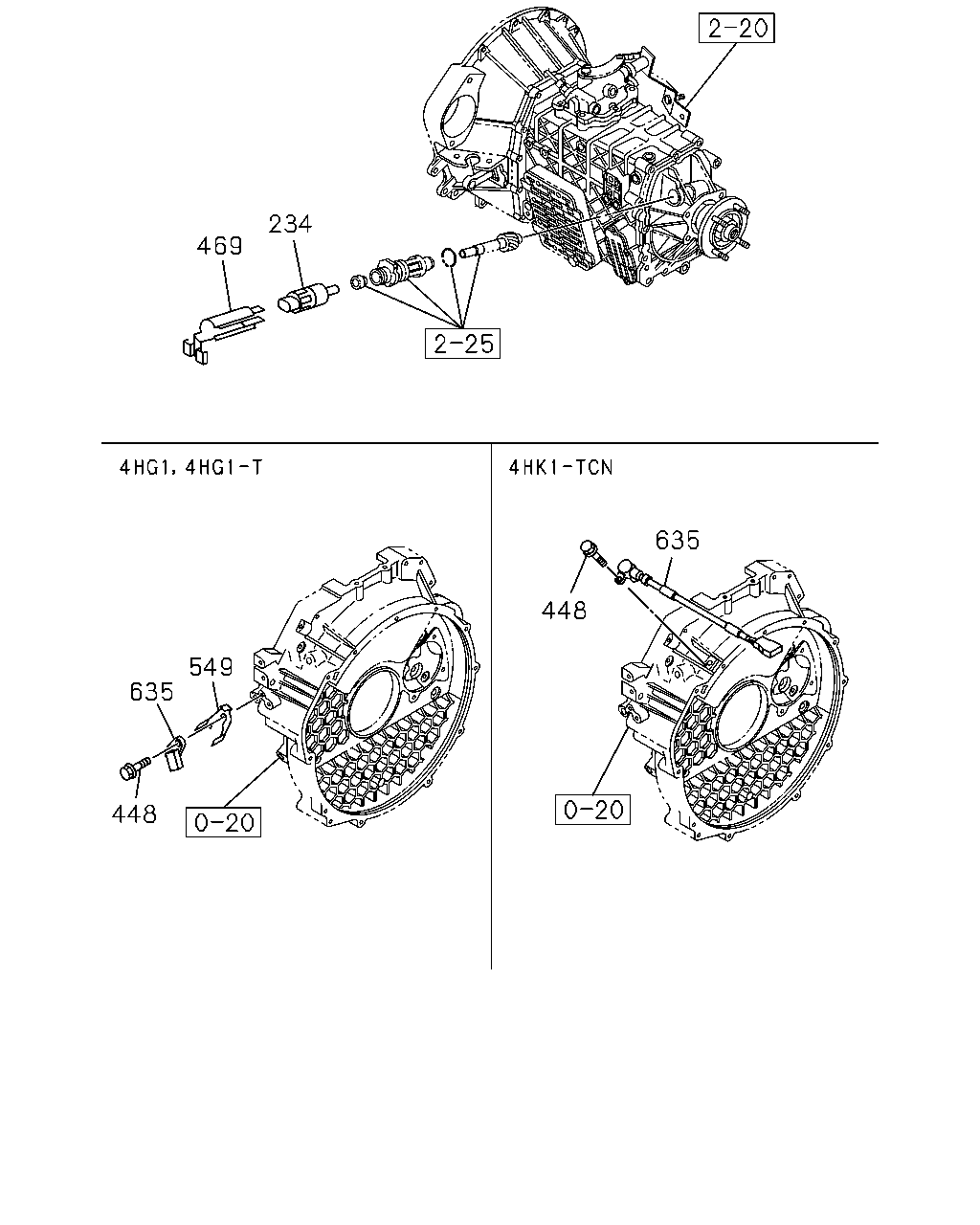

çizim 58684
234 469 635 448 549 635 448
BalonParca AdiParca NoAdetTipApplied Date
234 03.682 SENSOR; VEHICLE SPD
4HG1-T ENG(RDP),4HG1 ENG(RJH) 4 PULSE ALUMINUM 		8-97256-525-0 01 1 0612-
234 03.682 SENSOR; VEHICLE SPD
4HK1-TCN ENG(RDQ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0612-
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0612-
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0612-
469 03.682 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0612-0808
469 03.682 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 0809-
549 02.510 SHEET
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) 09.743 		8-97161-633-2 01 1 0612-0612
549 02.510 SHEET
4HG1 ENG(RJH) GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0612-0612
549 02.510 SHEET
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) 09.743 		8-97161-633-2 01 1 0612-
549 02.510 SHEET
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0612-
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0612-0612
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0612-
635 09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) YAZAKI 		8-97214-325-0 01 1 0612-
635 09.750 SENSOR; TACHOMETER
4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> DENSO 		8-97306-113-1 01 1 0612-
