8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#36503) — 37 parça
◀
[825A] NO.1 (8 parça)
[825A] NO.5 (4 parça)
[825A] NO.3 (12 parça)
[825A] NO.2 (4 parça)
[825A] NO.4 (9 parça)
▶
249
499
307
372
257
307
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
09.778 COVER; SW HOLE,FOG LAMP
09.744
8-97136-694-0
01
1
0612-
249
02.485 SWITCH; HAZARD
8-97202-475-0
01
1
0612-
257
16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (A)
8-97136-694-0
01
1
0612-
257
16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> 16.494 (B)
8-94229-914-1
01
1
0612-
307
08.991 BULB ASM; SW
28V 40MA
8-97116-331-0
02
1
0612-
307
08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA
8-97116-331-0
01
1
0612-
372
08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL>
8-97136-693-0
01
1
0612-
499
09.755 SWITCH; 4X4
8-97140-599-1
01
1
0612-

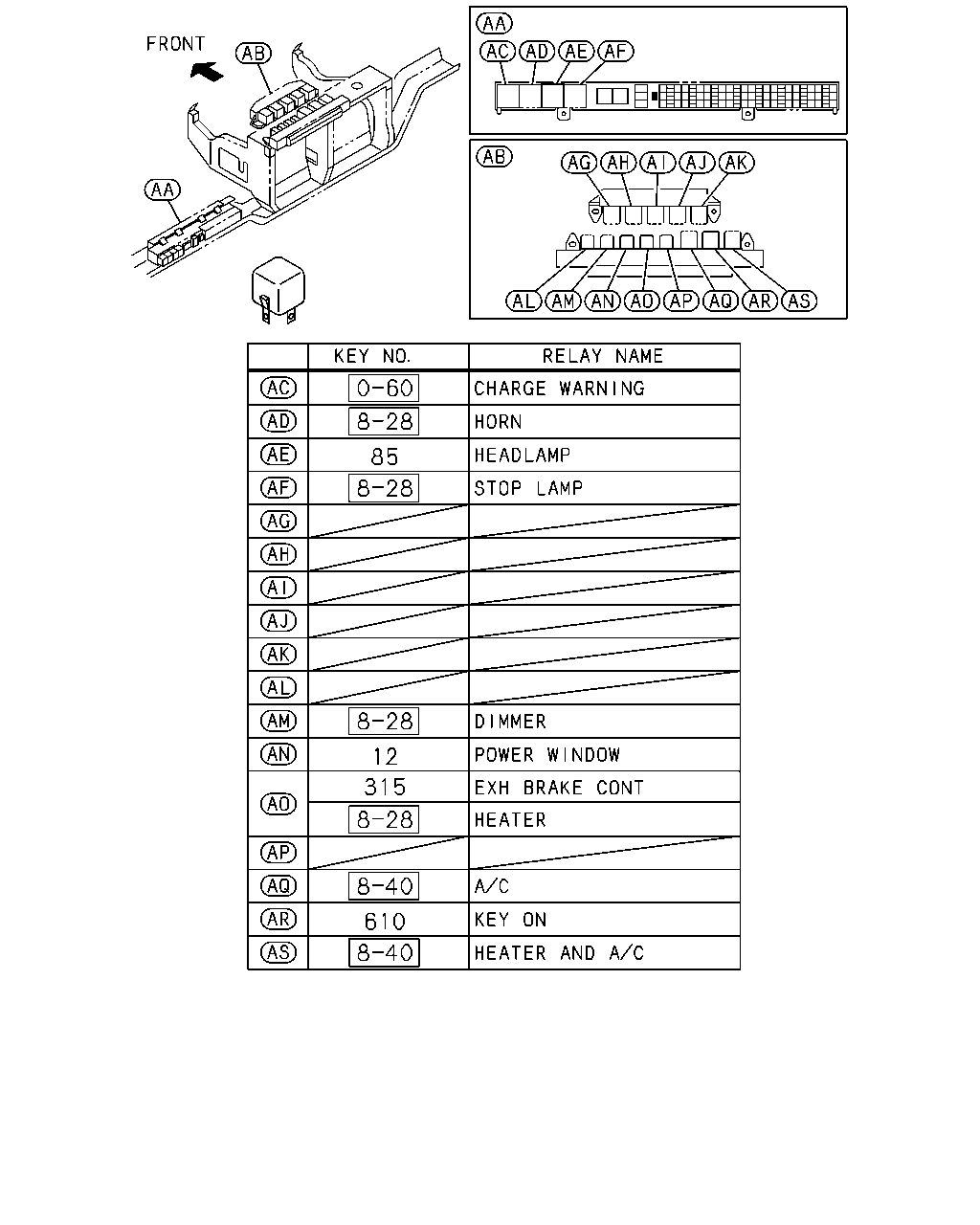

85
12
315
610
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
0612-
85
02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0612-
315
09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0612-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0612-
1
3

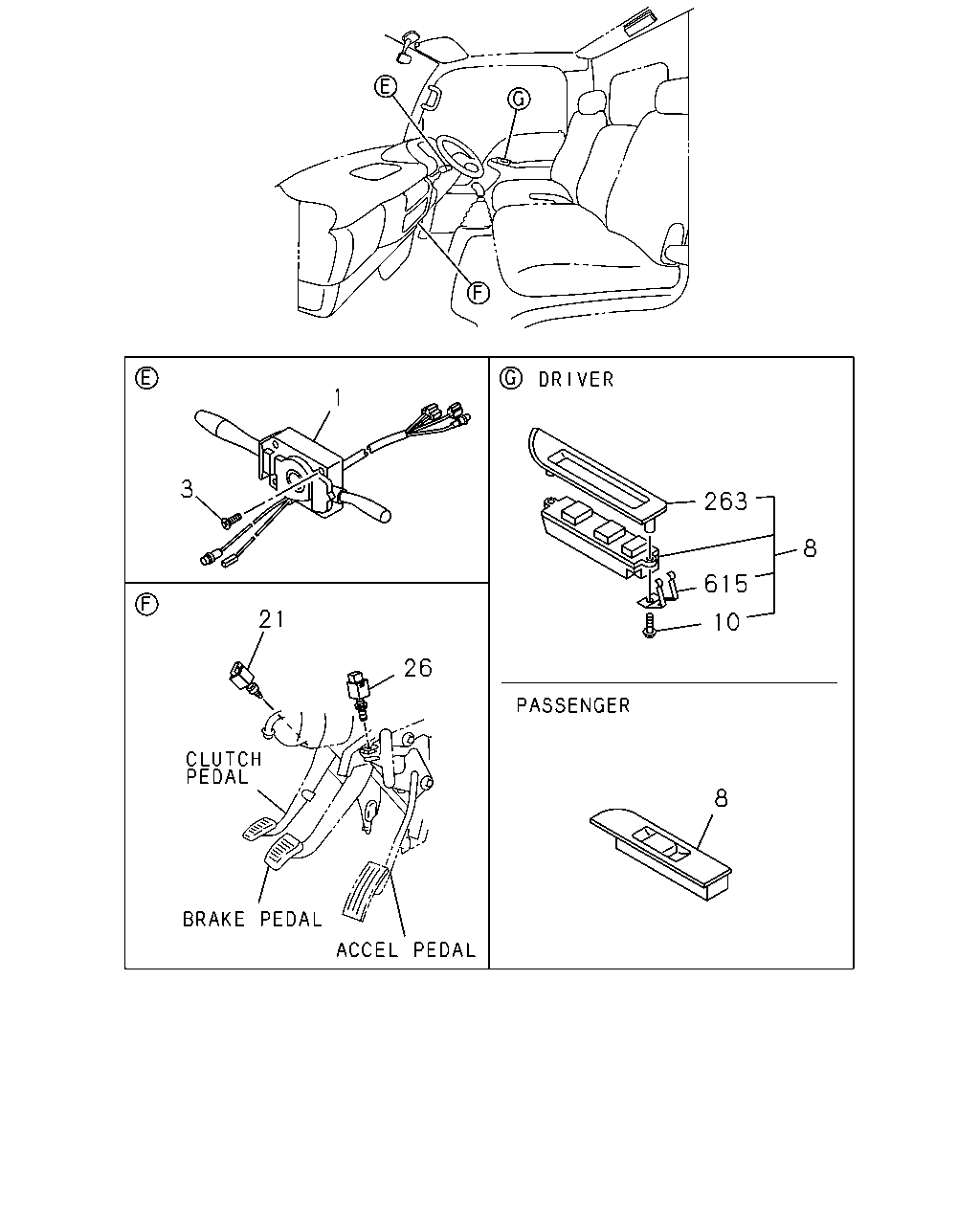

263
8
615
21
10
26
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.895 SWITCH; COMB
INTERMITTENT WIPER<C13>
8-97383-519-0
01
1
0612-
1
02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-97383-515-0
01
1
0612-
3
02.897 SCREW; COMB SW
M5X20 W/LK WASHER
0-36220-520-0
04
1
0612-0612
3
02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
04
1
0701-
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-97214-398-0
01
1
0612-0703
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98075-445-0
01
1
0704-
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-97315-176-0
01
1
0612-
10
03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-97219-239-0
02
1
0612-
21
02.575 SWITCH; CLU
8-97358-248-0
01
1
0612-
26
03.636 SWITCH; ACCEL
4HG1-T ENG(RDP),4HG1 ENG(RJH)
8-97358-315-0
01
1
0612-
263
16.081 COVER; SW
POWER WINDOW FRT DOOR<A32>
8-97219-234-0
01
1
0612-
615
16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-97219-238-0
01
1
0612-

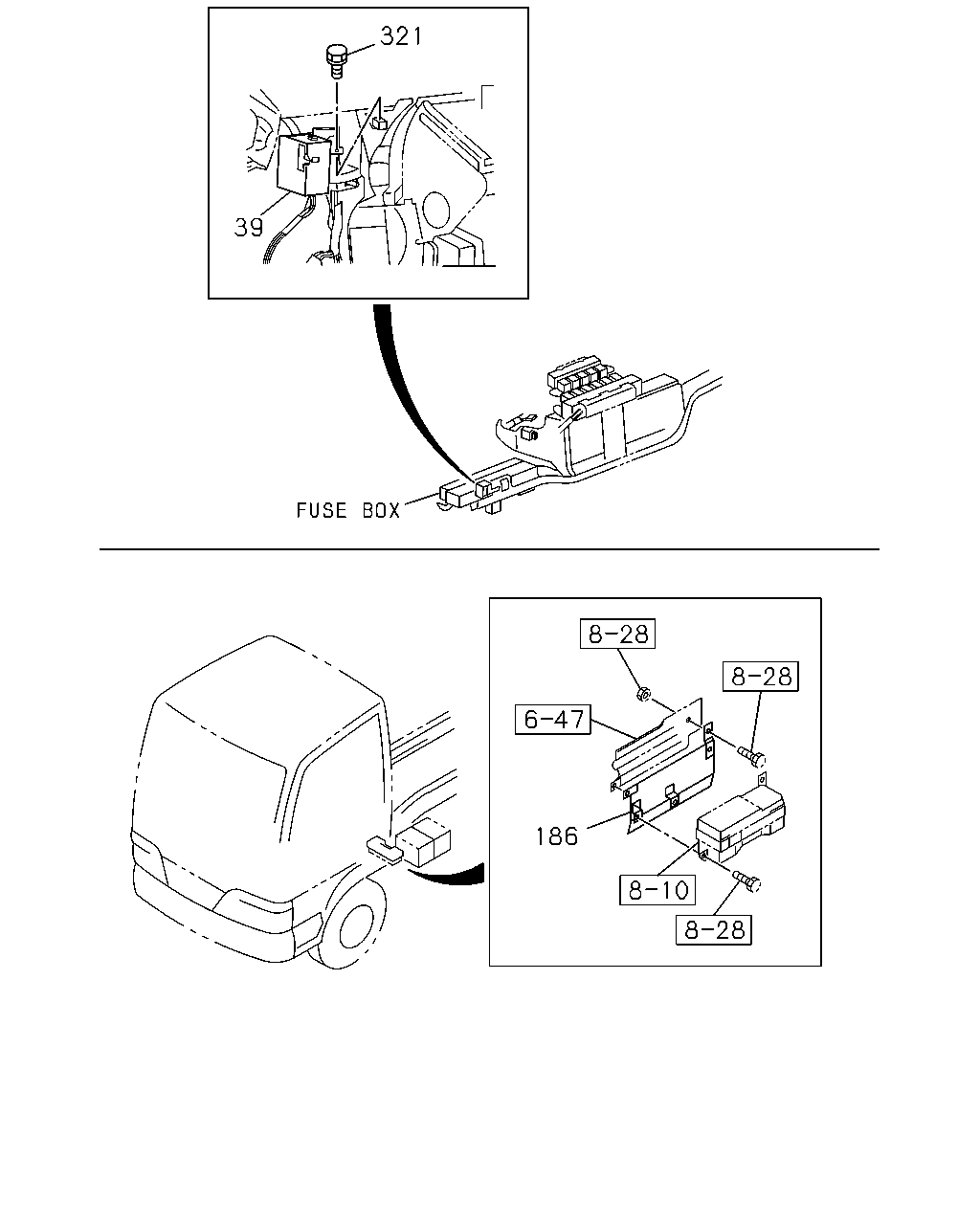

321
39
186
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-97177-214-0
01
1
0612-
186
09.277 BRACKET; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH)
8-97065-157-2
01
1
0612-
321
16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20
8-94436-927-0
01
1
0612-0612
321
16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
0701-
29
30
154
191
496
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF)
8-97855-032-3
02
1
0612-
29
16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF>
8-97855-032-3
01
1
0612-
30
16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X16
8-94279-341-0
02
1
0612-
30
16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> M5X16
8-94279-341-0
01
1
0612-
154
09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0612-
191
02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0612-
257
16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (A)
8-97136-694-0
01
1
0612-
257
16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> 16.494 (B)
8-94229-914-1
01
1
0612-
496
02.510 RELAY; 4WD INDICATION LAMP
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0612-
