8-21 — METER ASM (#36502) — 98 parça

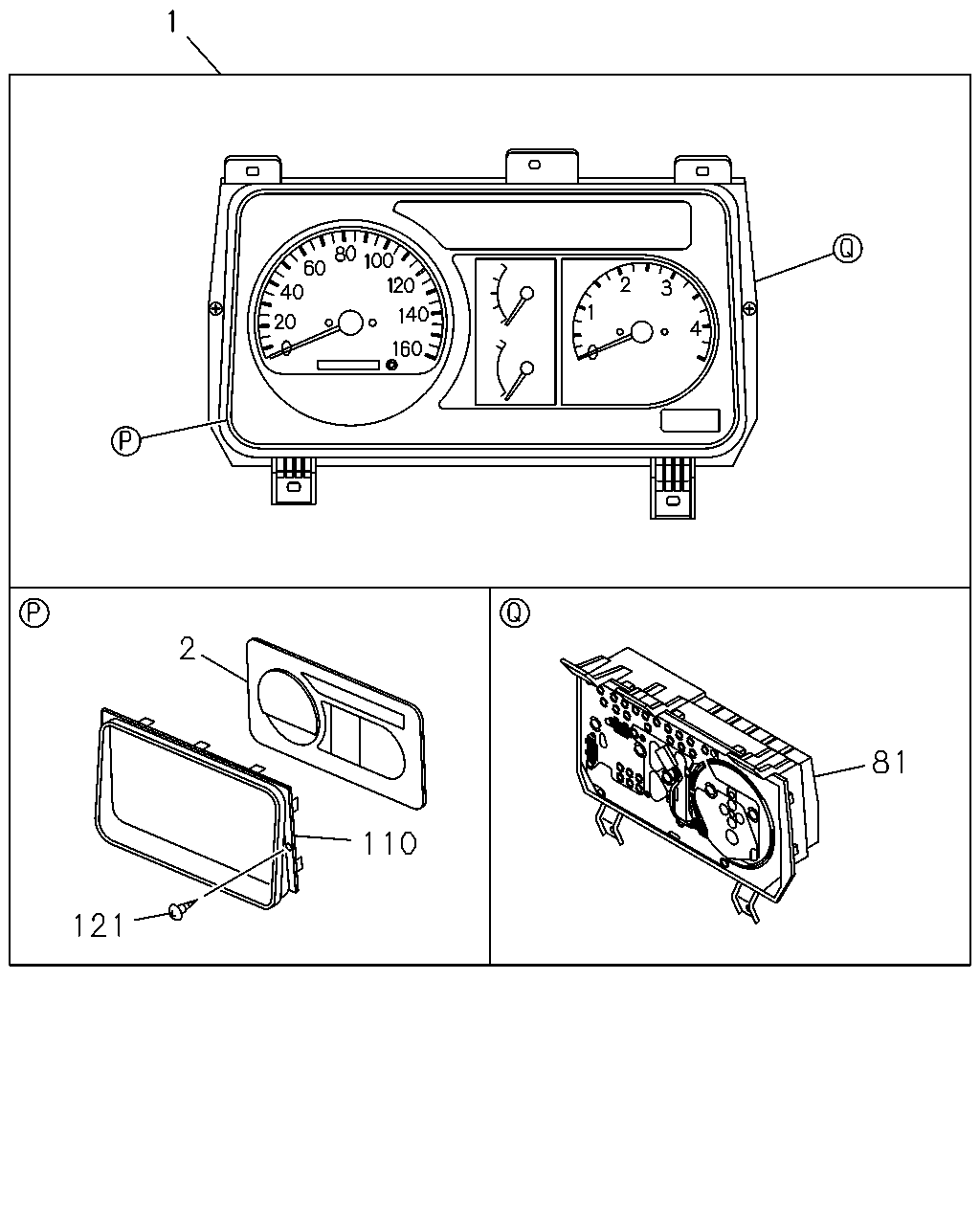

1 2 81 110 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
2	09.735 PANEL; CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-443-0	01	1	0612-
2	09.735 PANEL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-047-0	01	1	0612-
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 09.743	8-98003-835-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-451-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-045-0	01	1	0612-
121	09.744 SCREW; PANEL FIX,CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-100-0	02	1	0612-

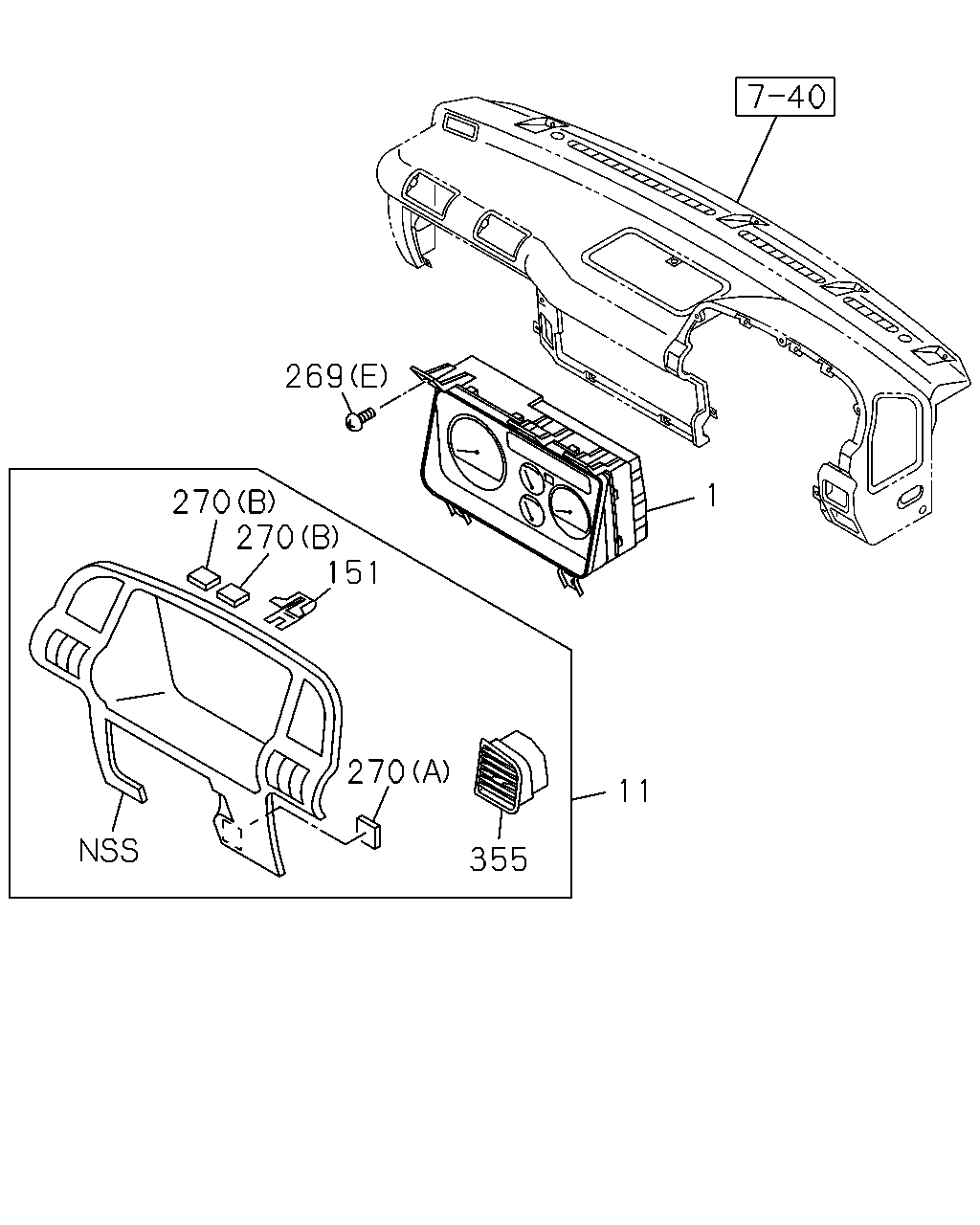

269 1 270 270 151 270 11 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
11	09.743 CLUSTER ASM; METER NEW ZEALAND COUNTRY(CX6) BLACK	8-97404-376-0	01	1	0612-
11	09.743 CLUSTER ASM; METER BLACK	8-97195-965-2	01	1	0612-0612
11	09.743 CLUSTER ASM; METER EXC. NEW ZEALAND COUNTRY(CX6) BLACK	8-97195-965-2	01	1	0612-
151	09.747 CLIP; METER CLUSTER	8-97217-066-0	07	1	0612-
269	09.743 SCREW; METER CLUSTER 08.225 (E) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0612-
269	09.743 SCREW; METER CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (A)	8-97185-523-0	01	1	0612-
269	09.743 SCREW; METER CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (C)	8-97185-525-0	06	1	0612-
269	09.743 SCREW; METER CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (D)	8-97185-528-0	05	1	0612-
269	09.743 SCREW; METER CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (B)	8-97185-524-0	07	1	0612-
269	09.743 SCREW; METER CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B)	8-97185-524-0	08	1	0612-
270	09.743 CUSHION; METER CLUSTER 16.085 (A) 15X30 T=5	8-94270-366-2	01	1	0612-
270	09.743 CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0612-
355	09.748 GRILLE; VENT BLACK	8-97195-967-1	01	1	0612-
355	09.748 GRILLE; VENT BLACK	8-97195-966-1	01	1	0612-

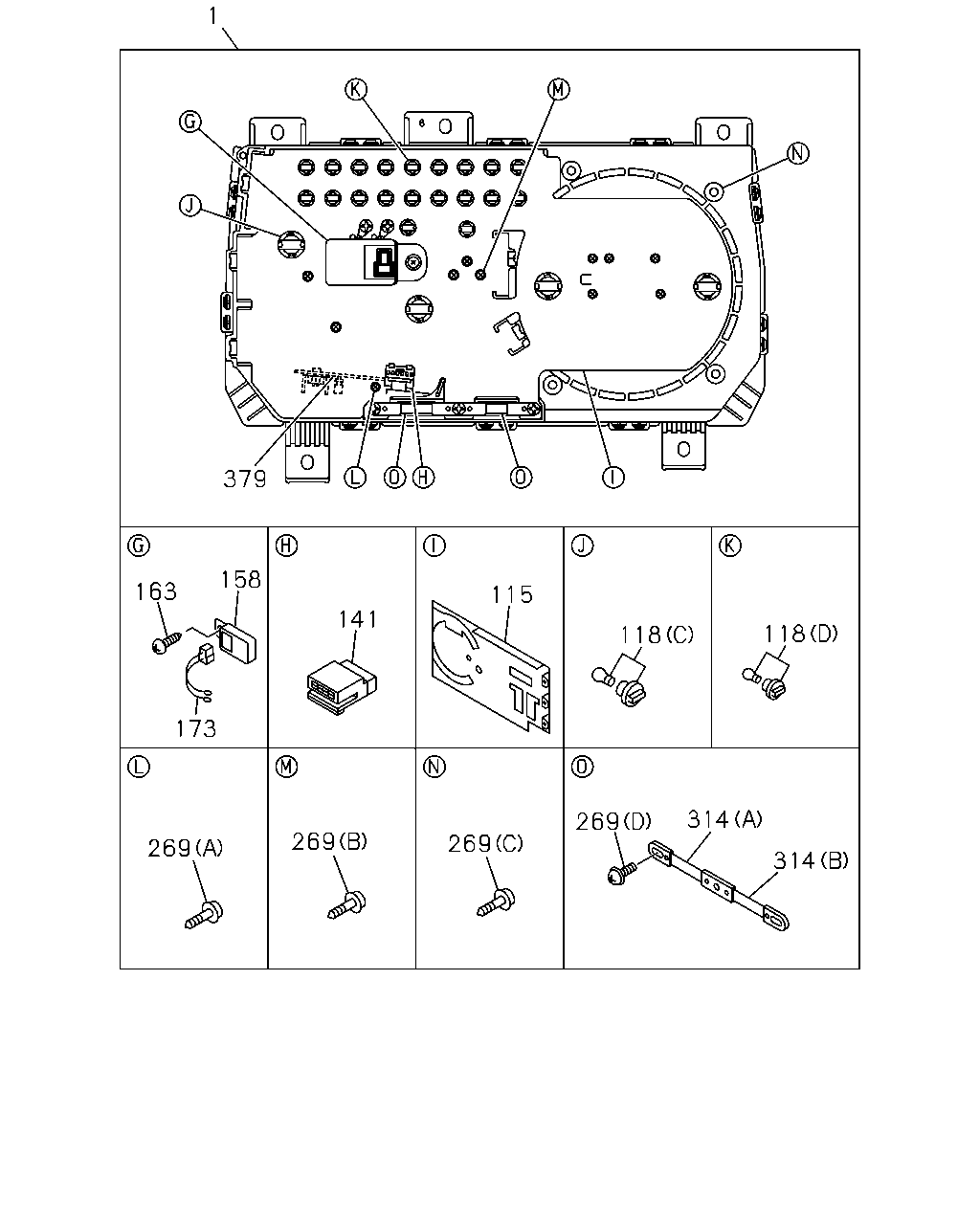

1 379 158 163 115 141 118 118 173 314 269 269 269 269 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-507-0	01	1	0612-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97210-311-0	01	1	0612-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-489-0	01	1	0612-
118	08.991 BULB; CLUSTER METER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (D) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	10	1	0612-
118	08.991 BULB; CLUSTER METER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1> (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	11	1	0612-
118	08.991 BULB; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (C) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	04	1	0612-
118	08.991 BULB; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (D) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	02	1	0612-
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 28V 1.8W	8-97305-177-0	20	1	0612-
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 28V 3W	8-97305-178-0	05	1	0612-
141	09.744 CONNECTOR; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-513-0	01	1	0612-
158	09.765 BUZZER; VAC WARNING 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> 24V	8-97185-519-0	01	1	0612-
158	09.765 BUZZER; VAC WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98003-830-0	01	1	0612-
163	08.977 SCREW; BUZZER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-527-0	01	1	0612-
163	08.977 SCREW; BUZZER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-099-0	02	1	0612-
173	09.744 WIRE; LEAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-643-0	01	1	0612-
269	09.743 SCREW; METER CLUSTER 08.225 (E) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0612-
269	09.743 SCREW; METER CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (A)	8-97185-523-0	01	1	0612-
269	09.743 SCREW; METER CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (C)	8-97185-525-0	06	1	0612-
269	09.743 SCREW; METER CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (D)	8-97185-528-0	05	1	0612-
269	09.743 SCREW; METER CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (B)	8-97185-524-0	07	1	0612-
269	09.743 SCREW; METER CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B)	8-97185-524-0	08	1	0612-
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (A)	8-97185-515-0	01	1	0612-
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (B)	8-97185-516-0	01	1	0612-
379	09.744 CIRCUIT; DROP 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-512-0	01	1	0612-

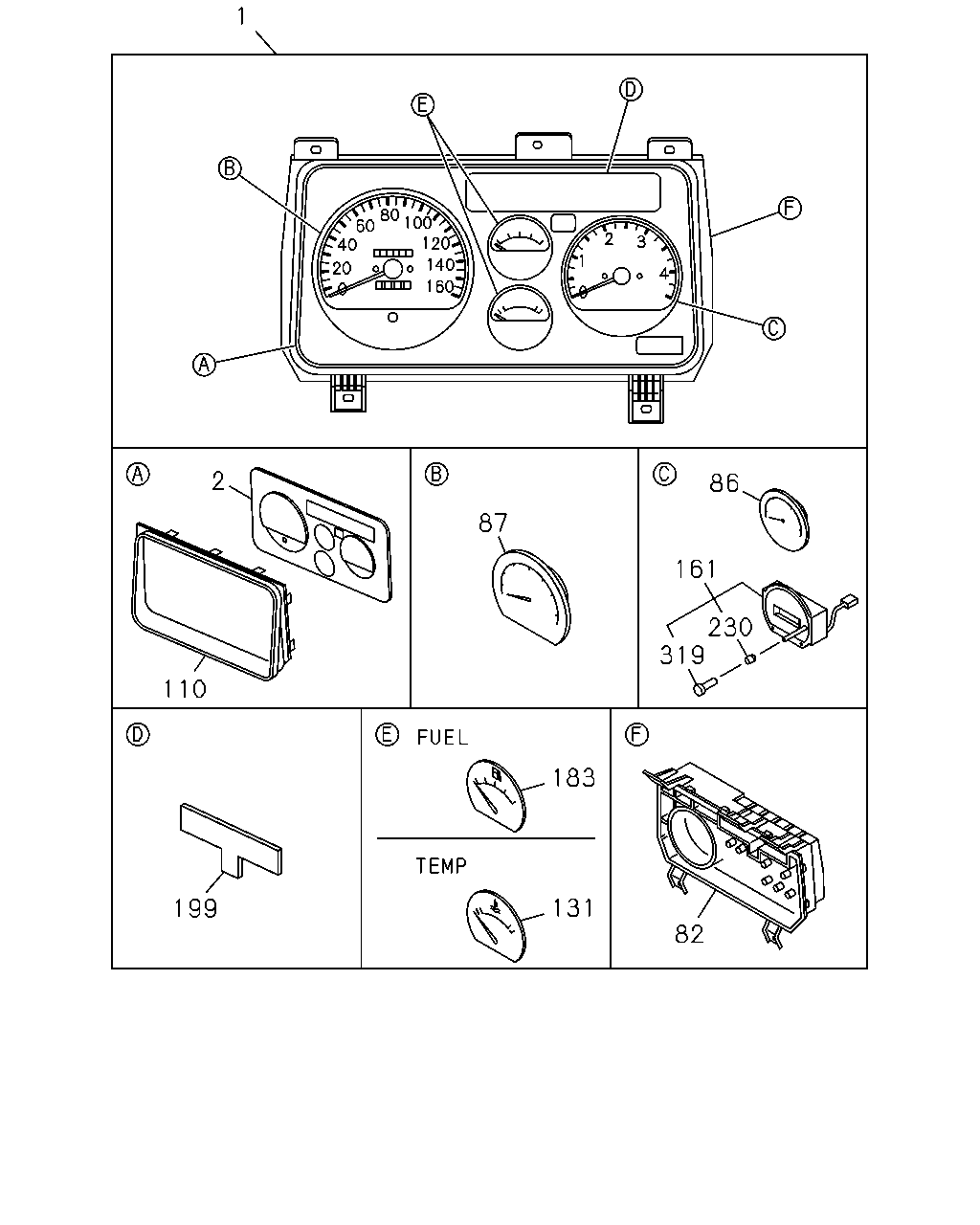

1 2 86 87 161 230 319 110 183 131 199 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
2	09.735 PANEL; CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-443-0	01	1	0612-
2	09.735 PANEL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-047-0	01	1	0612-
82	09.743 CASE ASM; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-448-0	01	1	0612-
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98002-112-0	01	1	0612-
86	09.750 TACHOMETER; CLUSTER METER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98002-115-0	01	1	0612-
87	09.761 SPEEDOMETER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-98002-108-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-451-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-045-0	01	1	0612-
131	01.148 GAUGE; TEMP,CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-98002-121-0	01	1	0612-
161	09.772 CLOCK; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98002-110-0	01	1	0612-
183	03.107 GAUGE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-98002-118-0	01	1	0612-
199	09.772 LENS; WARNING LAMP 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-98002-124-0	01	1	0612-
230	09.772 KNOB; DIGITAL CLOCK,SUB METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-644-0	01	1	0612-
319	09.744 SCREW; KNOB,CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-522-0	01	1	0612-

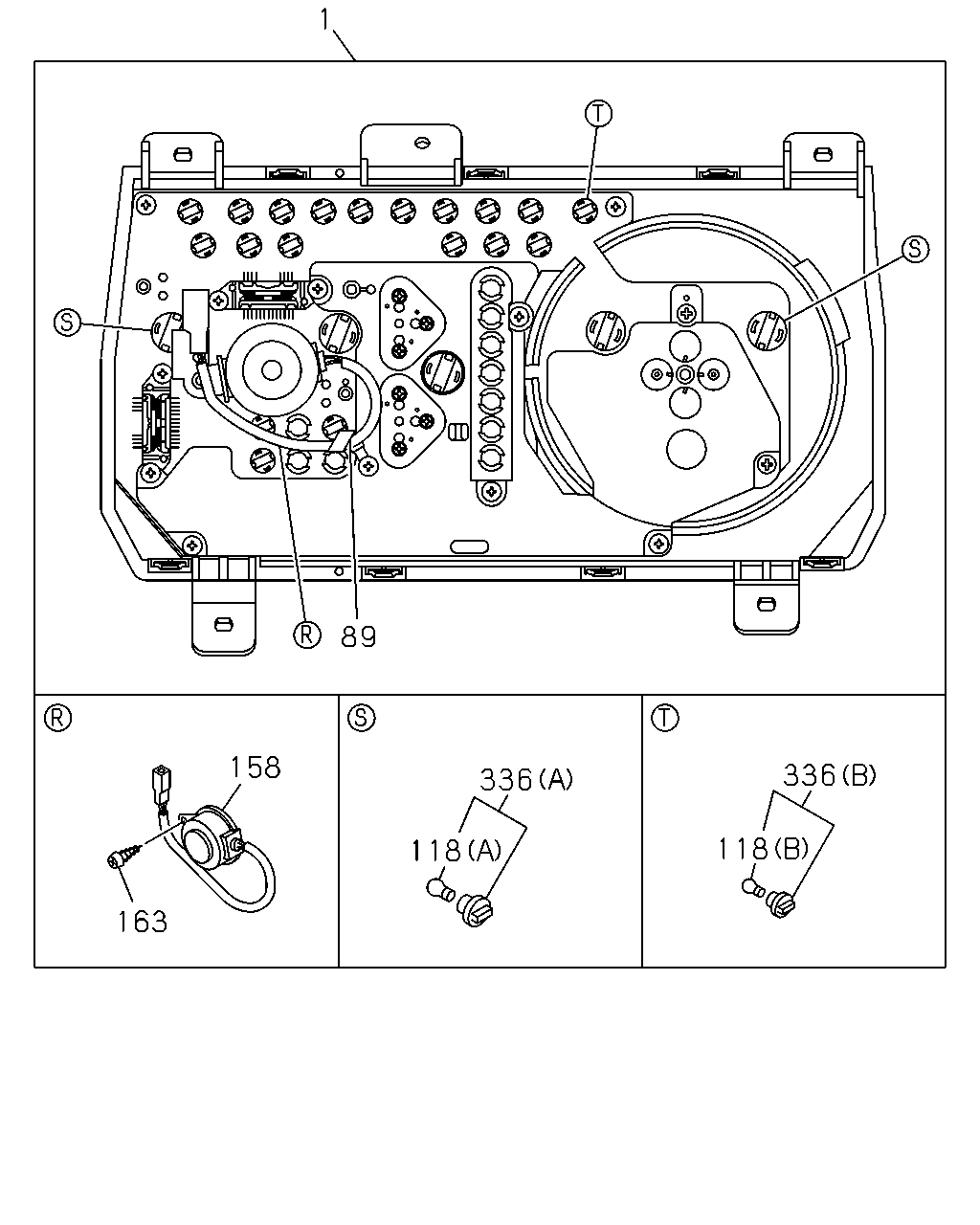

1 89 336 336 118 118 163 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
89	09.761 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97253-928-0	01	1	0612-
118	08.991 BULB; CLUSTER METER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (D) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	10	1	0612-
118	08.991 BULB; CLUSTER METER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1> (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	11	1	0612-
118	08.991 BULB; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (C) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	04	1	0612-
118	08.991 BULB; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (D) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	02	1	0612-
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 28V 1.8W	8-97305-177-0	20	1	0612-
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 28V 3W	8-97305-178-0	05	1	0612-
158	09.765 BUZZER; VAC WARNING 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> 24V	8-97185-519-0	01	1	0612-
158	09.765 BUZZER; VAC WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98003-830-0	01	1	0612-
163	08.977 SCREW; BUZZER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-527-0	01	1	0612-
163	08.977 SCREW; BUZZER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-099-0	02	1	0612-
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A)	8-97185-091-0	20	1	0612-
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B)	8-97185-093-0	05	1	0612-
