◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#36501) — 133 parça

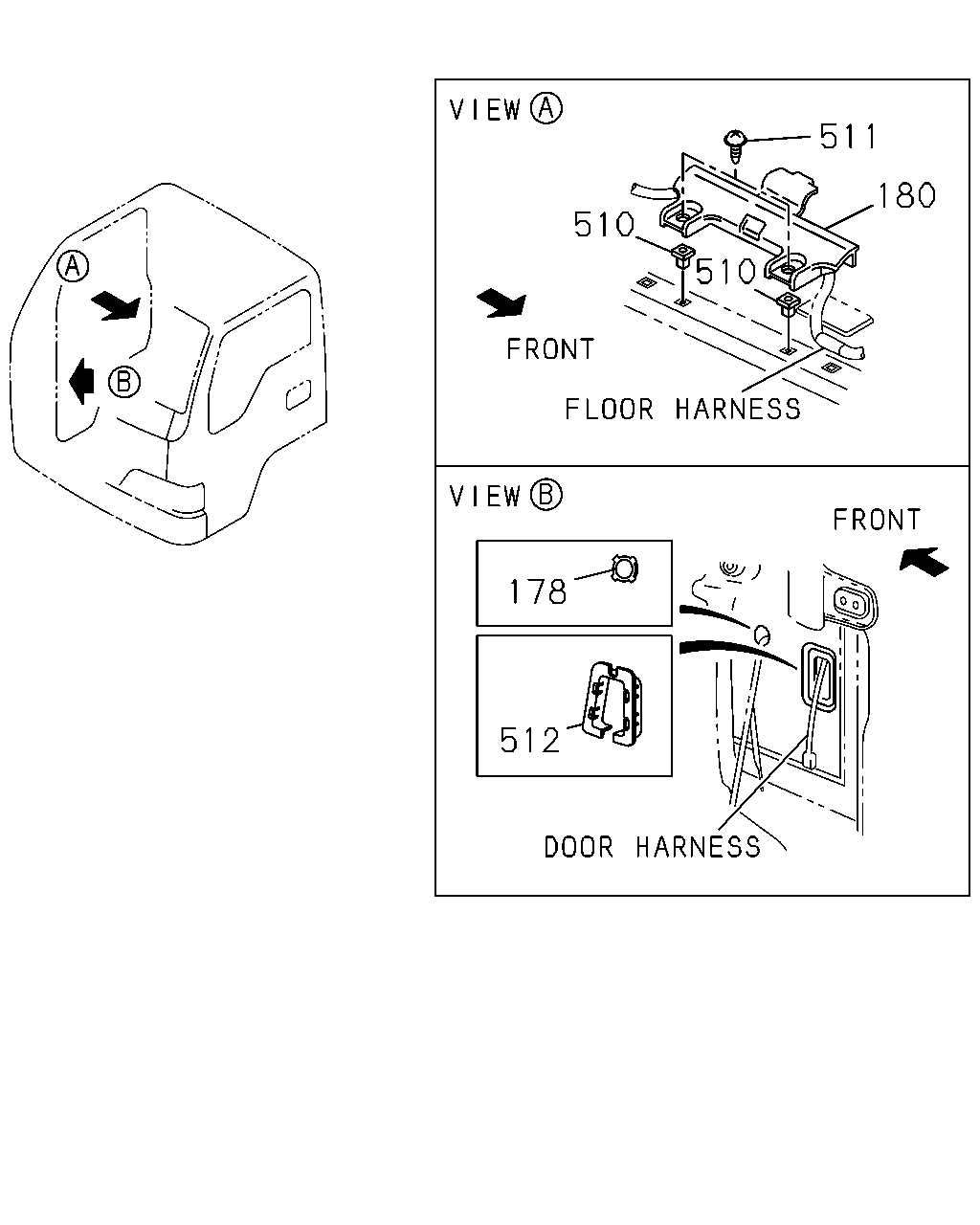

çizim 13290
511 180 510 510 178 512
BalonParca AdiParca NoAdetTipApplied Date
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0612-
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 0612-
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 0612-
511 02.559 SCREW; HARNESS COVER
16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0612-0702
511 02.559 SCREW; HARNESS COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0703-
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 0612-
512 02.559 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 0612-
512 02.559 PROTECTOR; HARNESS
AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 0612-
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/ CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 0612-
512 02.559 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 0612-
çizim 14053
53 53 7 412 504 514 312
BalonParca AdiParca NoAdetTipApplied Date
7 02.559 BRACKET; CONNECTOR
4HK1-TCN ENG(RDQ) 		8-98003-671-1 01 1 0612-
53 02.483 BRACKET; HARNESS
(A) 		8-97377-701-0 01 1 0612-
53 02.483 BRACKET; HARNESS
(B) 		8-98003-048-0 01 1 0612-
312 02.559 BRACKET; CLIP HARNESS 8-97355-918-0 01 1 0612-
412 02.559 BRACKET; HARNESS,TRANS 8-97379-633-0 01 1 0612-
504 02.559 PROTECTOR; HARNESS
04.785 L=200 		8-97096-423-0 01 1 0612-
504 02.559 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) 03.008 L=80 		5-22439-006-0 01 1 0612-
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 0612-
514 02.559 FINISHER; HARNESS
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0612-
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0612-
çizim 57034
48 48 16 48 264 464 48 48 16
BalonParca AdiParca NoAdetTipApplied Date
16 02.559 CLIP; HARNESS
(D) L=135 		1-09987-143-1 02 1 0612-
16 02.559 CLIP; HARNESS
16.065 (E) 1 SET=5 PIECE 		1-09987-214-0 02 1 0612-
16 02.559 CLIP; HARNESS
01.240 (F) ID=14 L=47 		5-09700-319-0 10 1 0612-
16 02.559 CLIP; HARNESS
02.343 (G) ID=10 & 16 		8-94413-325-0 02 1 0612-
16 02.559 CLIP; HARNESS
01.166 (H) ID=22 & 22 		8-94464-837-0 01 1 0612-
16 02.559 CLIP; HARNESS
(I) ID=15-32 		8-97174-404-0 03 1 0612-
16 02.559 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140 		5-09707-031-1 01 1 0612-
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 04 1 0612-
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 		8-97173-307-0 04 1 0612-
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 04 1 0612-
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100 		8-94327-067-1 04 1 0612-
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=100 		8-94327-067-1 04 1 0612-
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=100 		8-94327-067-1 04 1 0612-
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 05 1 0612-
16 02.559 CLIP; HARNESS
AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (B) L=155 		8-97173-307-0 05 1 0612-
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=155 		8-97173-307-0 05 1 0612-
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> (B) L=155 		8-97173-307-0 05 1 0612-
16 02.559 CLIP; HARNESS
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140 		5-09707-031-1 05 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1 ENG(RJH) (C) ID=33 L=63 		1-09700-807-0 05 1 0808-
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
(E) ID=9 		8-97063-874-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
01.240 (A) ID=14 L=47 		5-09700-319-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
01.240 (A) ID=14 L=47 		5-09700-319-0 06 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (F) L=140 		5-09707-031-1 02 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=33 L=63 		1-09700-807-0 05 1 0612-0807
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP) (C) ID=33 L=63 		1-09700-807-0 04 1 0808-
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) ID=31 L=30 		1-09700-969-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) (G) L=110 		8-94149-419-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.115 (H) T=9 & 10.5 		8-97041-091-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) (J) ID=30 W/STUD 		8-97078-642-2 05 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) 02.589 (K) ID=27 		5-09700-323-0 02 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (I) T=6.0 		5-09709-024-0 02 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (I) T=6.0 		5-09709-024-0 02 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (C) ID=33 L=63 		1-09700-807-0 06 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (J) ID=30 W/STUD 		8-97078-642-2 04 1 0612-
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 ID=6 & 10-13 		8-97069-515-0 01 1 0612-
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 (B) T=6.0 		5-09709-024-0 02 1 0612-
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 (A) ID=6.5 		8-94257-639-0 01 1 0612-
çizim 57052
16 16 16 16 22 48 483 22 102 22 488 16 205 142 14 16 48 48 48 16 48 264 48 208
BalonParca AdiParca NoAdetTipApplied Date
14 02.559 CLIP; BAND,HARNESS
03.430 L=200 		8-94464-835-0 01 1 0612-
16 02.559 CLIP; HARNESS
(D) L=135 		1-09987-143-1 02 1 0612-
16 02.559 CLIP; HARNESS
16.065 (E) 1 SET=5 PIECE 		1-09987-214-0 02 1 0612-
16 02.559 CLIP; HARNESS
01.240 (F) ID=14 L=47 		5-09700-319-0 10 1 0612-
16 02.559 CLIP; HARNESS
02.343 (G) ID=10 & 16 		8-94413-325-0 02 1 0612-
16 02.559 CLIP; HARNESS
01.166 (H) ID=22 & 22 		8-94464-837-0 01 1 0612-
16 02.559 CLIP; HARNESS
(I) ID=15-32 		8-97174-404-0 03 1 0612-
16 02.559 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140 		5-09707-031-1 01 1 0612-
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 04 1 0612-
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 		8-97173-307-0 04 1 0612-
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 04 1 0612-
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100 		8-94327-067-1 04 1 0612-
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=100 		8-94327-067-1 04 1 0612-
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=100 		8-94327-067-1 04 1 0612-
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 05 1 0612-
16 02.559 CLIP; HARNESS
AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (B) L=155 		8-97173-307-0 05 1 0612-
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=155 		8-97173-307-0 05 1 0612-
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> (B) L=155 		8-97173-307-0 05 1 0612-
16 02.559 CLIP; HARNESS
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) L=140 		5-09707-031-1 05 1 0612-
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) (C) L=250 		5-09707-030-1 01 1 0612-
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (C) L=250 		5-09707-030-1 01 1 0612-
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) L=140 		5-09707-031-1 03 1 0612-
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.162 (B) L=170 		5-09707-054-0 02 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1 ENG(RJH) (C) ID=33 L=63 		1-09700-807-0 05 1 0808-
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
(E) ID=9 		8-97063-874-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
01.240 (A) ID=14 L=47 		5-09700-319-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
01.240 (A) ID=14 L=47 		5-09700-319-0 06 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (F) L=140 		5-09707-031-1 02 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=33 L=63 		1-09700-807-0 05 1 0612-0807
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP) (C) ID=33 L=63 		1-09700-807-0 04 1 0808-
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) ID=31 L=30 		1-09700-969-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) (G) L=110 		8-94149-419-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.115 (H) T=9 & 10.5 		8-97041-091-0 01 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) (J) ID=30 W/STUD 		8-97078-642-2 05 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) 02.589 (K) ID=27 		5-09700-323-0 02 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (I) T=6.0 		5-09709-024-0 02 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (I) T=6.0 		5-09709-024-0 02 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (C) ID=33 L=63 		1-09700-807-0 06 1 0612-
48 02.559 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (J) ID=30 W/STUD 		8-97078-642-2 04 1 0612-
102 02.559 CLIP; BAND
4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.162 L=170 		5-09707-054-0 01 1 0612-
142 02.559 CLIP; HARNESS,ENG
L=170.3 		1-09987-182-0 01 1 0612-
205 02.559 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0612-
208 02.559 CLIP; HARNESS,MAG VLV
T=6.0 		5-09709-012-0 01 1 0612-
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 ID=6 & 10-13 		8-97069-515-0 01 1 0612-
483 02.559 CLIP; ENG HARNESS
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) 03.162 L=140 		5-09707-031-1 01 1 0612-0612
483 02.559 CLIP; ENG HARNESS
4HG1 ENG(RJH) GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140 		5-09707-031-1 01 1 0612-0612
483 02.559 CLIP; ENG HARNESS
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) 03.162 L=140 		5-09707-031-1 01 1 0612-
483 02.559 CLIP; ENG HARNESS
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140 		5-09707-031-1 01 1 0612-
488 02.559 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0612-
çizim 58277
38 150 150 386 377 38 139 239 19 55 219 294 219 294 515 294 469 519
BalonParca AdiParca NoAdetTipApplied Date
19 02.559 BOLT; PROTECTOR
4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0612-
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0808-
38 02.559 BOLT; CLIP,HARNESS
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0612-
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 02 1 0612-
55 02.559 WASHER; PL,CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.413 ID=6.4 OD=18 		0-91610-706-0 01 1 0612-
139 02.559 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0612-
150 02.343 BOLT; CLIP
4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A) M8X12 FLANGE 		0-28050-812-0 01 1 0612-
150 02.343 BOLT; CLIP
4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0612-
219 02.559 NUT
4HG1-T ENG(RDP) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0808-
219 02.559 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0612-
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0612-
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 (A) M6 FLANGE 		0-91180-106-0 05 1 0612-
219 02.559 NUT
4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 04 1 0612-
239 02.559 BOLT; GRAND
02.343 M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0612-
294 02.559 NUT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0612-
294 02.559 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0612-
294 02.559 NUT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0612-
294 02.559 NUT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0612-
294 02.559 NUT
4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0612-
377 02.559 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0612-
386 02.559 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0612-
469 02.559 NUT; PROTECTOR
4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0612-
515 02.559 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0612-
515 02.559 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0612-
519 02.559 NUT; EARTH CABLE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
