Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#36500) — 145 parça

534 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97385-474-0	01	1	0612-
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) (C)	8-97373-973-0	01	1	0612-
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) (C)	8-98048-566-0	01	1	0612-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (B)	8-97332-133-3	01	1	0612-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A)	8-98023-707-0	01	1	0612-
534	02.483 BOLT 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 00.683 M10X55 FLANGE	8-94399-863-1	03	1	0612-0805
534	02.483 BOLT 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 00.683 M10X55 FLANGE	8-97365-449-0	03	1	0806-

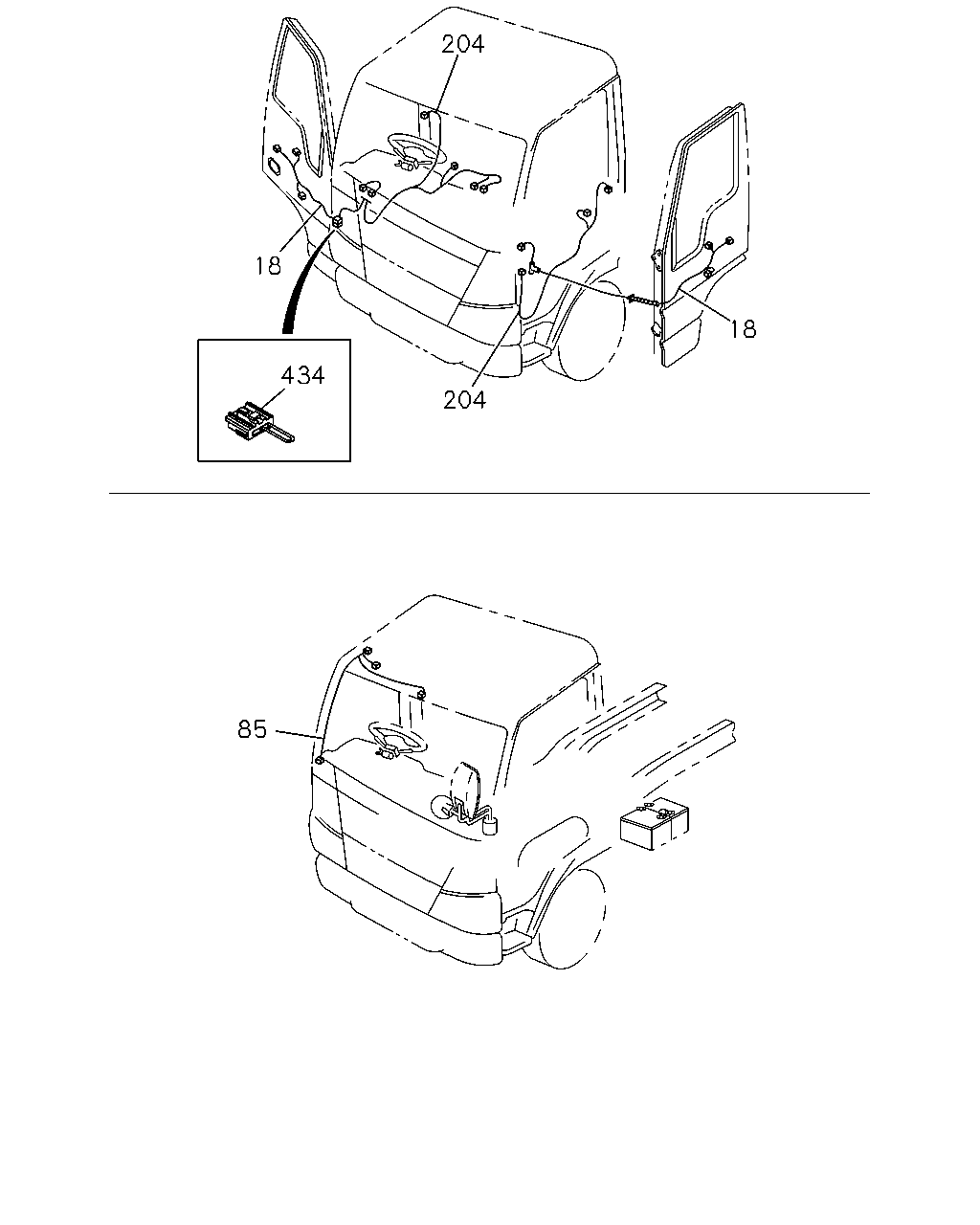

204 18 18 434 204 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	02.480 HARNESS; DOOR AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97312-148-0	01	1	0612-
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0612-
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97226-671-1	01	1	0612-
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0612-
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0612-
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97105-571-1	01	1	0612-
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0612-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0612-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97185-142-1	01	1	0612-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF>	8-97185-142-1	01	1	0612-
85	06.495 HARNESS; ROOM LAMP AUSTRALIA EQUIPMENT(RR3)	8-97364-161-0	01	1	0612-
85	06.495 HARNESS; ROOM LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	8-97364-159-0	01	1	0612-
204	02.559 HARNESS; CABLE,FLOOR ASSIST SIDE	8-97364-140-0	01	1	0612-
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) DRIVER SIDE	8-97364-145-0	01	1	0612-
434	02.559 CONNECTOR; SHORT CIRCUIT 4HK1-TCN ENG(RDQ)	8-97388-448-0	01	1	0612-

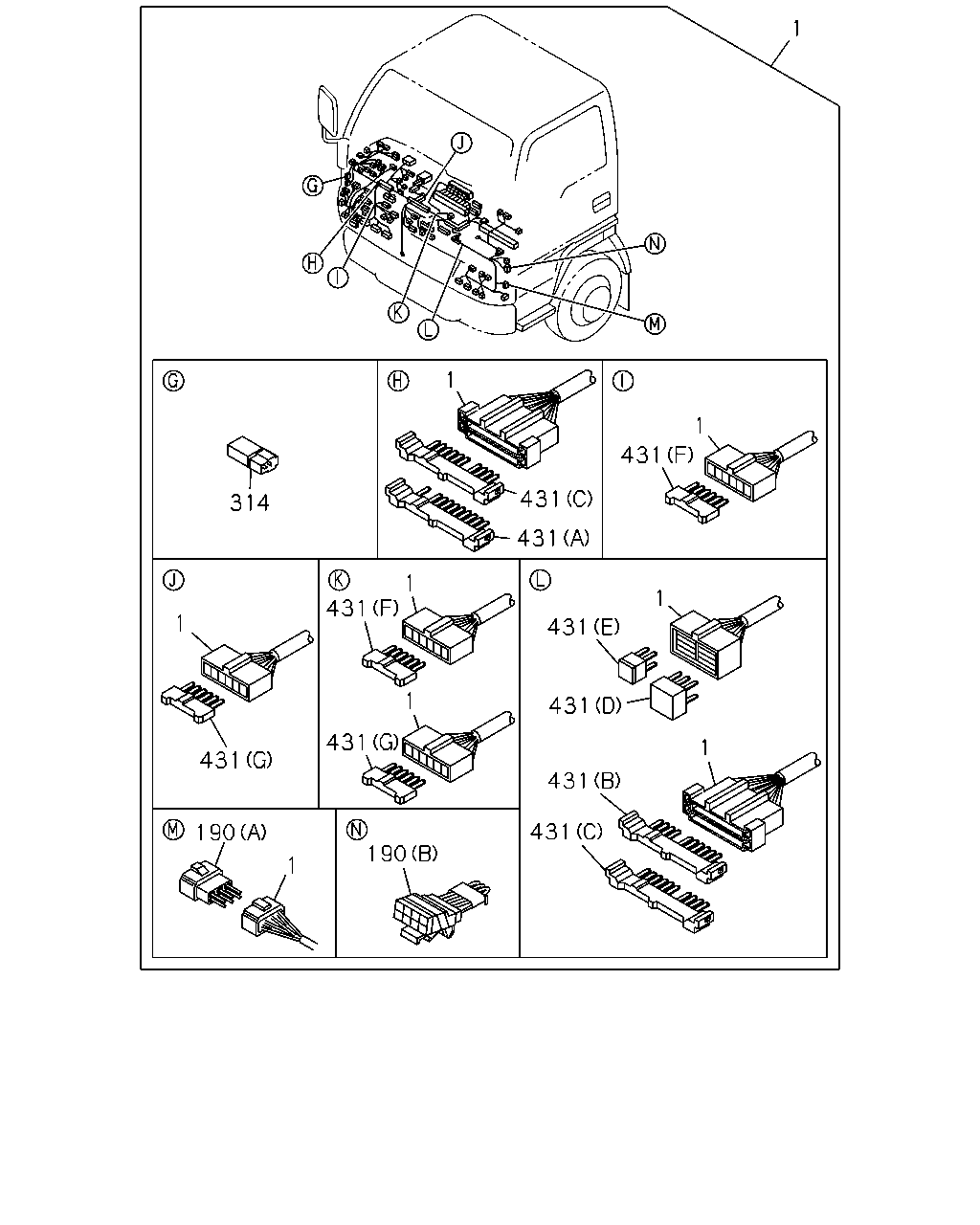

1 1 1 431 431 314 431 1 431 1 1 431 1 431 431 1 431 431 190 431 190 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-014-0	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-106-2	01	1	0612-0612
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-106-2	01	1	0612-
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP)	8-98046-727-0	01	1	0612-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98061-916-0	01	1	0612-
190	02.559 CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13> (B)	8-98036-238-0	01	1	0612-
190	02.559 CONNECTOR; SHORT CIRCUIT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A)	5-82690-411-0	01	1	0612-
314	02.510 RESISTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) BLUE	1-82691-204-0	02	1	0612-
431	02.530 CONNECTOR; JOINT (B) 10P BLUE	1-82699-598-0	01	1	0612-
431	02.530 CONNECTOR; JOINT (E) 4P	8-97077-939-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (E) 4P	8-97077-939-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (E) 4P	8-97077-939-0	01	1	0612-
431	02.530 CONNECTOR; JOINT (D) 6P	8-97077-941-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (D) 6P	8-97077-941-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D) 6P	8-97077-941-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 10P GREEN	1-82699-599-0	04	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 10P BROWN	1-82699-601-0	03	1	0612-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (F) 6P	1-82691-206-0	03	1	0612-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G) 3P & 3P	1-82698-170-0	03	1	0612-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C) 10P GREEN	1-82699-599-0	02	1	0612-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A) 10P BROWN	1-82699-601-0	01	1	0612-

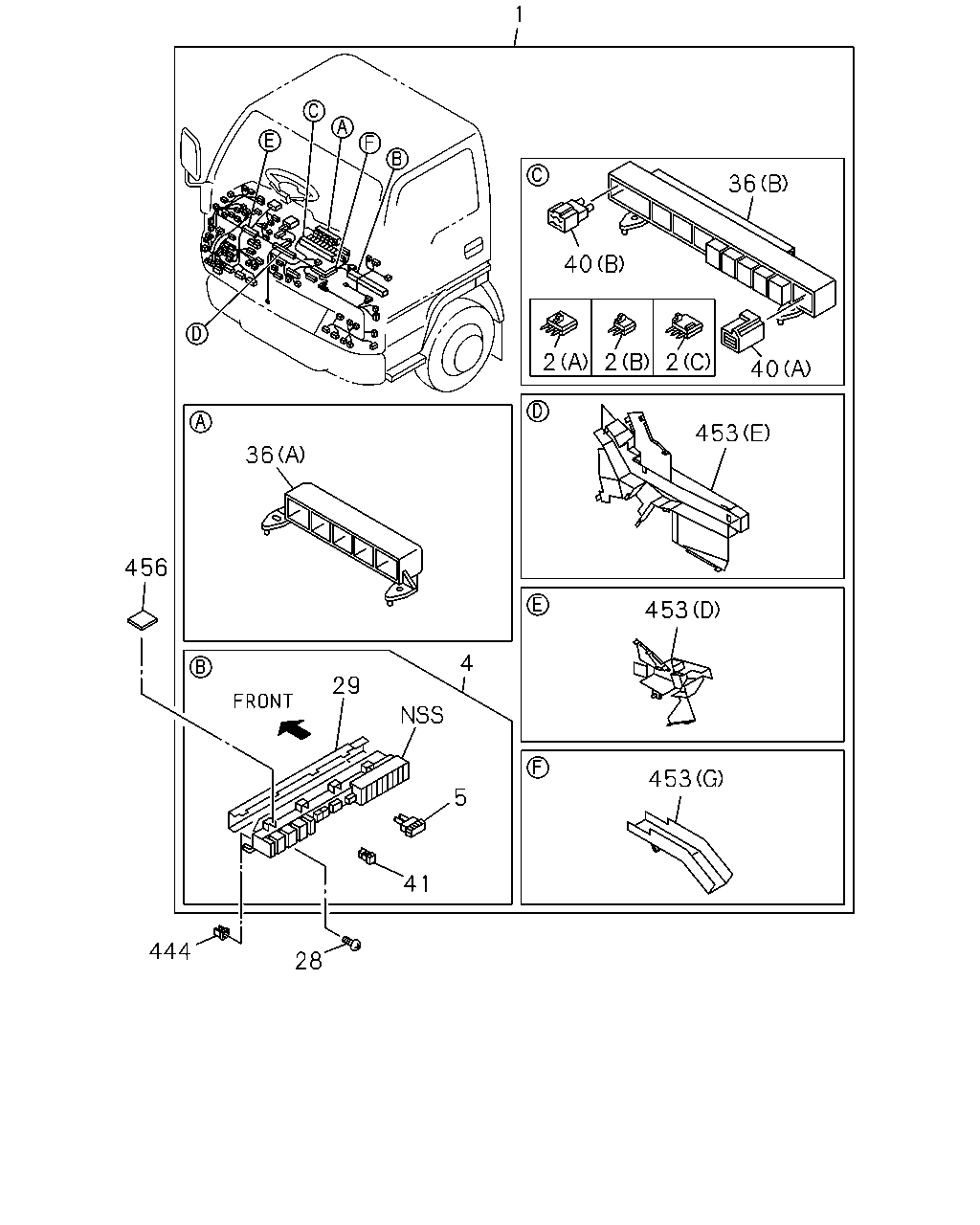

1 36 40 2 2 2 40 453 36 456 453 4 29 453 5 41 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-014-0	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-106-2	01	1	0612-0612
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-106-2	01	1	0612-
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP)	8-98046-727-0	01	1	0612-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98061-916-0	01	1	0612-
2	02.483 DIODE; CABLE HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0612-
2	02.483 DIODE; CABLE HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0612-
2	02.483 DIODE; CABLE HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A) BLACK 3P-1.5A	8-94422-640-1	01	1	0612-
4	02.483 BOX ASM; FUSE,HARNESS	8-97187-921-1	01	1	0612-
5	02.485 FUSE; FACIA HARNESS 08.965 15A MINI BLUE	8-97062-023-0	07	1	0612-
5	02.485 FUSE; FACIA HARNESS 08.965 20A MINI YELLOW	8-97062-024-0	02	1	0612-
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.965 10A MINI RED	8-97062-022-0	12	1	0612-
5	02.485 FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) 08.965 10A MINI RED	8-97062-022-0	17	1	0612-
28	02.483 SCREW; FUSE BOX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0612-0612
28	02.483 SCREW; FUSE BOX 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-
29	02.483 COVER; FUSE BOX	8-97074-955-0	01	1	0612-
36	02.530 BOX; RELAY (B)	8-97187-918-1	01	1	0612-
36	02.530 BOX; RELAY 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A)	8-97087-640-2	01	1	0612-
40	02.483 BOX; DIODE (B) NATURAL 8P	8-97200-753-0	01	1	0612-
40	02.483 BOX; DIODE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A) BLACK 8P	8-97078-064-1	01	1	0612-
41	08.821 PULLER; FUSE	8-97103-388-0	01	1	0612-
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0612-
453	02.483 PROTECTOR; HARNESS (G)	8-97088-615-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS (E)	8-97259-730-3	01	1	0612-
453	02.483 PROTECTOR; HARNESS (D)	8-97261-653-2	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (C)	8-97093-668-1	01	1	0612-0612
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97093-668-1	01	1	0612-0612
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-97093-668-1	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-0612
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B)	8-97062-169-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A)	8-97120-591-1	01	1	0612-
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	0612-

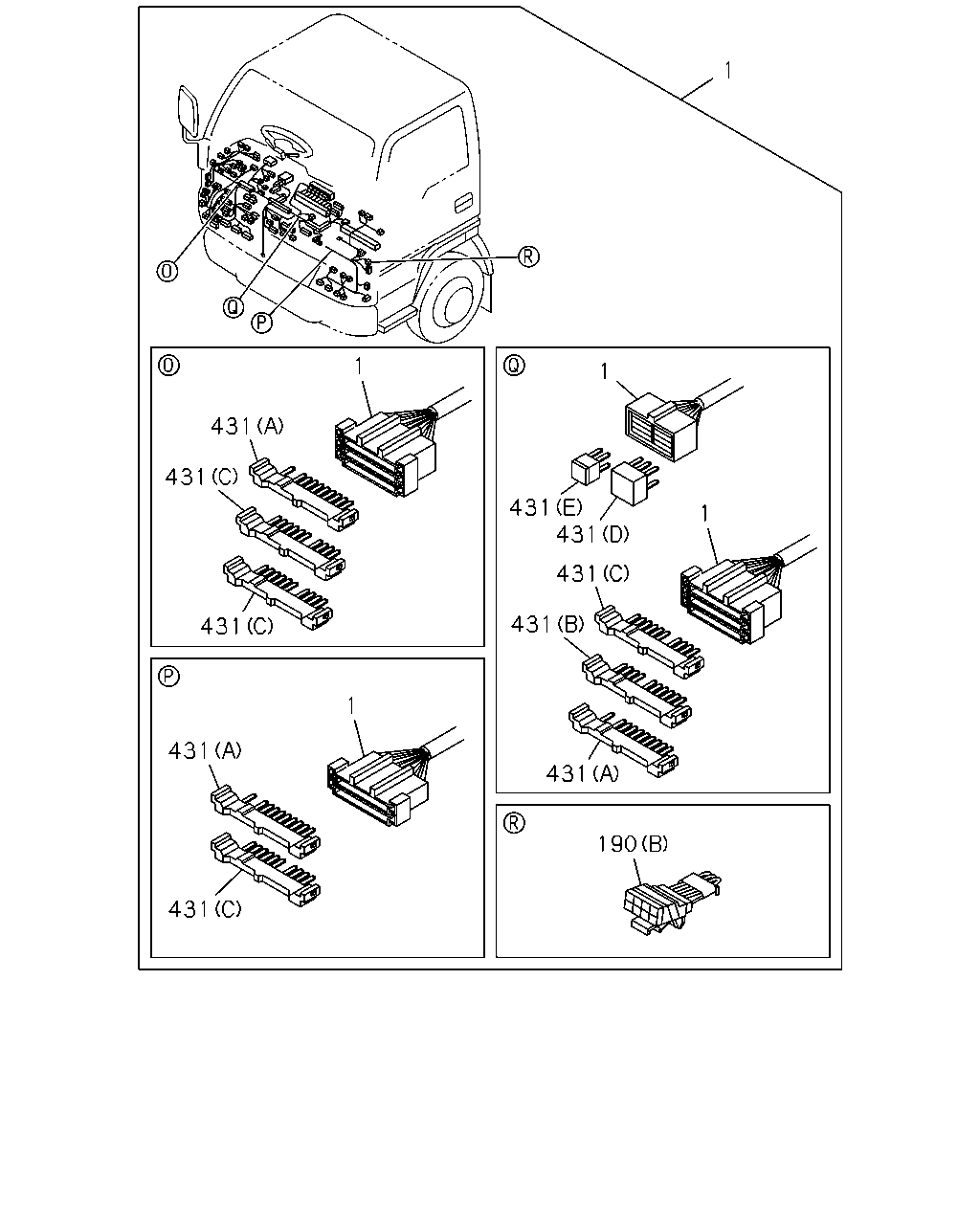

1 1 1 431 431 431 431 1 431 431 431 1 431 431 190 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-014-0	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-106-2	01	1	0612-0612
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-106-2	01	1	0612-
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP)	8-98046-727-0	01	1	0612-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98061-916-0	01	1	0612-
190	02.559 CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13> (B)	8-98036-238-0	01	1	0612-
190	02.559 CONNECTOR; SHORT CIRCUIT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A)	5-82690-411-0	01	1	0612-
431	02.530 CONNECTOR; JOINT (B) 10P BLUE	1-82699-598-0	01	1	0612-
431	02.530 CONNECTOR; JOINT (E) 4P	8-97077-939-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (E) 4P	8-97077-939-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (E) 4P	8-97077-939-0	01	1	0612-
431	02.530 CONNECTOR; JOINT (D) 6P	8-97077-941-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (D) 6P	8-97077-941-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D) 6P	8-97077-941-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 10P GREEN	1-82699-599-0	04	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 10P BROWN	1-82699-601-0	03	1	0612-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (F) 6P	1-82691-206-0	03	1	0612-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G) 3P & 3P	1-82698-170-0	03	1	0612-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C) 10P GREEN	1-82699-599-0	02	1	0612-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A) 10P BROWN	1-82699-601-0	01	1	0612-

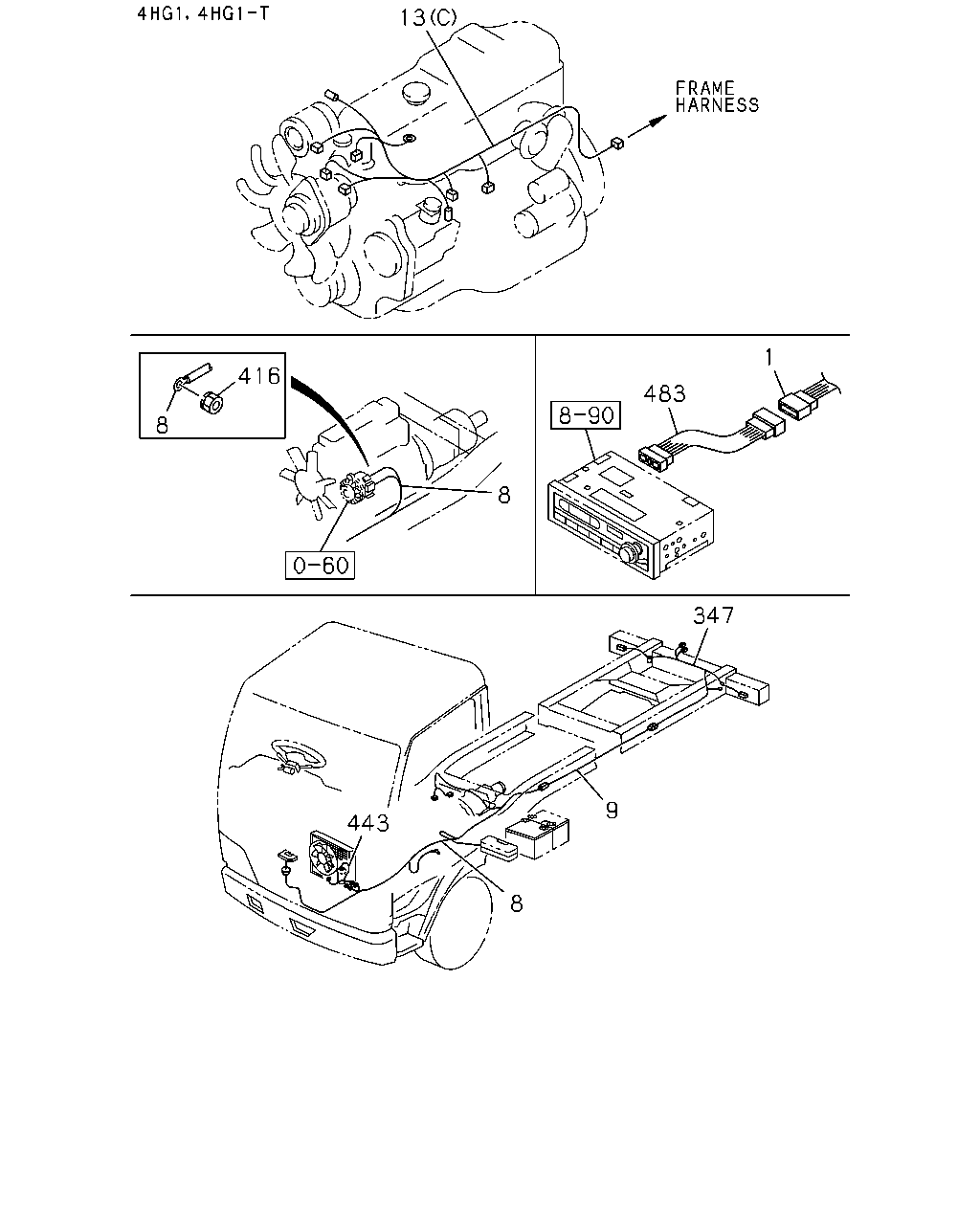

13 1 416 483 8 8 347 9 443 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-014-0	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-106-2	01	1	0612-0612
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-106-2	01	1	0612-
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP)	8-98046-727-0	01	1	0612-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98061-916-0	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98062-164-0	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-015-0	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-019-1	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-98046-723-1	01	1	0612-
9	02.480 HARNESS; FRAME,RR	8-97377-066-1	01	1	0612-
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97385-474-0	01	1	0612-
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) (C)	8-97373-973-0	01	1	0612-
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) (C)	8-98048-566-0	01	1	0612-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (B)	8-97332-133-3	01	1	0612-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A)	8-98023-707-0	01	1	0612-
347	02.480 HARNESS; CABLE,RR BODY	8-97364-152-0	01	1	0612-
416	02.559 NUT; TERMINAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0612-
443	02.480 HARNESS; EXT,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)	8-98012-984-1	01	1	0612-
483	02.480 HARNESS; EXT,RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ)	8-97383-850-0	01	1	0612-

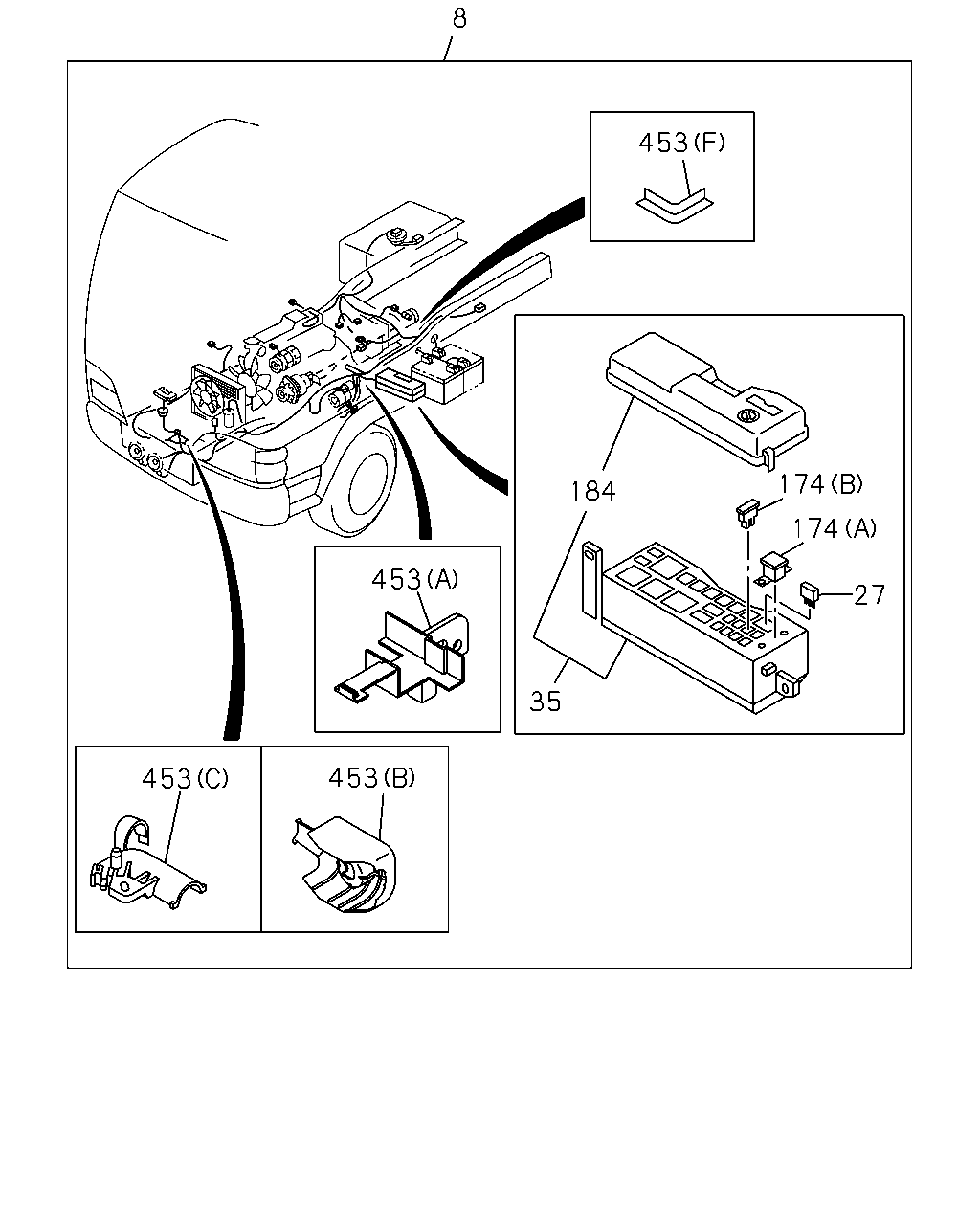

8 453 174 184 174 453 27 35 453 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98062-164-0	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-015-0	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-019-1	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-98046-723-1	01	1	0612-
27	08.965 FUSE UNIT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) 10A MINI RED	8-97062-022-0	01	1	0612-
27	08.965 FUSE UNIT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) 15A MINI BLUE	8-97062-023-0	01	1	0612-
35	02.530 BOX; RELAY & FUSE	8-97377-739-0	01	1	0612-
174	08.965 FUSE; SLOW BLOW (A) 100A BLUE	8-94388-306-0	01	1	0612-
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-97183-643-0	01	1	0612-
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (B) 60A YELLOW	8-97219-407-0	01	1	0612-0612
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) (B) 60A YELLOW	8-97219-407-0	01	1	0612-
174	08.965 FUSE; SLOW BLOW 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (B) 40A GREEN	8-97183-644-0	01	1	0612-0612
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S) (B) 40A GREEN	8-97183-644-0	01	1	0612-
174	08.965 FUSE; SLOW BLOW 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (B) 40A GREEN	8-97183-644-0	01	1	0612-
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B) 40A GREEN	8-97183-644-0	02	1	0612-
174	08.965 FUSE; SLOW BLOW 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B) 60A YELLOW	8-97219-407-0	02	1	0612-
174	08.965 FUSE; SLOW BLOW 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) (B) 60A YELLOW	8-97219-407-0	02	1	0612-
184	02.559 COVER; RELAY & FUSE BOX	8-97377-741-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS (G)	8-97088-615-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS (E)	8-97259-730-3	01	1	0612-
453	02.483 PROTECTOR; HARNESS (D)	8-97261-653-2	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (C)	8-97093-668-1	01	1	0612-0612
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97093-668-1	01	1	0612-0612
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-97093-668-1	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-0612
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B)	8-97062-169-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A)	8-97120-591-1	01	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
