◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#3650) — 60 parça

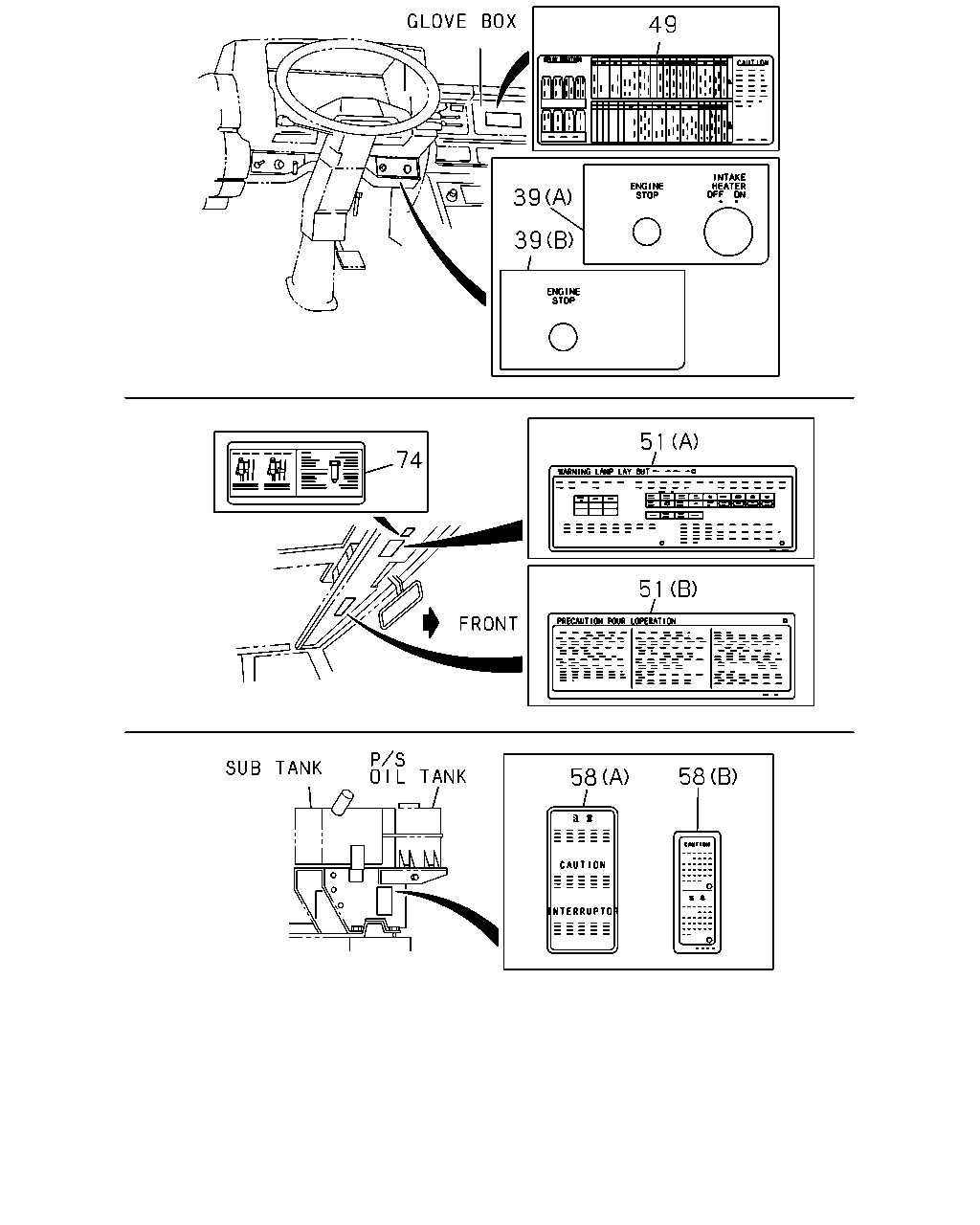

çizim 3601
49 39 39 51 74 51 58 58
BalonParca AdiParca NoAdetTipApplied Date
39 PLATE; CAUTION,ENG STOP
INTAKE HEATER<SL2> (A) 		1-85877-230-0 01 1 9002-
39 PLATE; CAUTION,ENG STOP
EXC. INTAKE HEATER<SL2> (B) 		1-85877-199-0 01 1 9002-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85887-795-1 01 1 9002-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS CHINESE<SL7> 		1-85887-691-4 01 1 9002-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85880-572-0 01 1 9002-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85887-514-1 01 1 9002-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		1-85880-570-0 01 1 9002-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A) 		1-85887-512-1 01 1 9002-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (B) 		1-85880-569-0 01 1 9002-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A) 		1-85887-454-1 01 1 9002-
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (B) 		1-85880-571-0 01 1 9002-
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85887-513-2 01 1 9002-
58 PLATE; CAUTION,ENG START
CAUTIONS ARABIAN<WJ7> (B) 		1-85887-537-0 01 1 9002-
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> (B) 		1-85887-536-0 01 1 9002-
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A) 		1-85887-457-0 01 1 9002-
58 PLATE; CAUTION,ENG START
CAUTIONS FRENCH<WJ8> (B) 		1-85887-535-0 01 1 9002-
74 PLATE; CAUTION,CHANGE LEV
RTO11613 M/T FULLER(MV6) COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85881-617-0 01 1 9307-
74 PLATE; CAUTION,CHANGE LEV
RTO11613 M/T FULLER(MV6) COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> CAUTIONS FRENCH<WJ8> 		1-85881-618-0 01 1 9307-
74 PLATE; CAUTION,CHANGE LEV
RTO11613 M/T FULLER(MV6) COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> CAUTIONS ARABIAN<WJ7> 		1-85881-619-0 01 1 9307-
74 PLATE; CAUTION,CHANGE LEV
RT11609A M/T FULLER(PQ4),RTX11609B M/T FULLER(X8W) COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85881-614-0 01 1 9307-
74 PLATE; CAUTION,CHANGE LEV
RT11609A M/T FULLER(PQ4),RTX11609B M/T FULLER(X8W) COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> CAUTIONS FRENCH<WJ8> 		1-85881-615-0 01 1 9307-
74 PLATE; CAUTION,CHANGE LEV
RT11609A M/T FULLER(PQ4),RTX11609B M/T FULLER(X8W) COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> CAUTIONS ARABIAN<WJ7> 		1-85881-616-0 01 1 9307-
çizim 36510
1 1 53 10 4 4 7 5 186 173
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
RTO11609B M/T FULLER(X4Z) (A) 		1-85881-521-1 01 1 9002-9306
1 PLATE; CAUTION,SHIFT PATTERN
RTO11613 M/T FULLER(MV6),RT11609A M/T FULLER(PQ4), RTX11609B M/T FULLER(X8W) (B) 		1-85881-519-0 01 1 9002-
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-85886-797-0 01 1 9504-
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) (A) 		1-85886-640-0 01 1 9002-9306
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) (B) 		1-85886-726-0 01 1 9307-9503
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 		1-85886-726-0 01 1 9504-
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-85886-634-0 01 1 9002-9310
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) (A) 		1-85886-634-0 01 1 9311-9503
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ,TAIWAN EQUIPMENT(WW5) (A) 		1-85886-634-0 01 1 9504-
4 LABEL; ENG MAINTENANCE
12PD1 C ENG(43L) (B) 		1-85886-727-0 01 1 9307-
5 LABEL; TIRE AIR PRESSURE 1-85881-387-0 01 1 9002-9003
5 LABEL; TIRE AIR PRESSURE 1-85881-655-0 01 1 9004-
7 LABEL; EMISSION
10PD1 STD ENG(40L) INJ PUMP Q SET SPECIAL ECE(T1M) 		8-97042-609-0 01 1 9102-9205
7 LABEL; EMISSION
10PD1 STD ENG(40L) CAUTIONS ECE<WX4> 		8-97042-609-0 01 1 9206-
10 PLATE; NAME
EXH HEAT WARNING<W50> 		1-85877-250-1 01 1 9012-
53 PLATE; CAUTION,MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-85877-356-0 01 1 9002-
173 PLATE; CAUTION,FUEL FILTER 1-85886-176-0 01 1 9307-
186 PLATE; CAUTION,PARTIAL OIL FILTER
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> L TYPE ENG<90L> EXC. OIL FILTER CENTRIFUGAL<E6S> 		1-85886-180-0 01 1 9307-
çizim 37261
60 60 60 6 63 228
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53639-004-0 01 1 9307-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> 		1-85883-114-0 01 1 9307-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		1-85883-113-0 01 1 9307-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> 		1-53639-005-0 01 1 9307-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> 		1-85883-108-0 01 1 9307-
60 PLATE; CAUTION,CAB TILT
AUTO CAB TILT<WV2> (A) 		1-85883-097-0 02 1 9307-
60 PLATE; CAUTION,CAB TILT
AUTO CAB TILT<WV2> (B) 		1-85883-162-0 01 1 9307-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> (C) 		1-85881-529-0 01 1 9002-
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> (C) 		1-85881-527-0 01 1 9002-
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (C) 		1-85881-511-0 01 1 9002-
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> (C) 		1-85881-528-0 01 1 9002-
63 PLATE; CAUTION,SEAT AIR
CAUTIONS ARABIAN<WJ7> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) EXC. TAIWAN EQUIPMENT(WW5) 		1-75537-202-0 01 1 9002-
63 PLATE; CAUTION,SEAT AIR
CAUTIONS CHINESE<SL7> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) EXC. TAIWAN EQUIPMENT(WW5) 		1-75537-200-0 01 1 9002-
63 PLATE; CAUTION,SEAT AIR
CAUTIONS FRENCH<WJ8> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) EXC. TAIWAN EQUIPMENT(WW5) 		1-75537-201-0 01 1 9002-
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT(WW5),CAUTIONS SPANISH<YN1> 		1-75537-199-0 01 1 9002-
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) TAIWAN EQUIPMENT(WW5) 		1-75537-199-0 01 1 9002-
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) CAUTIONS SPANISH<YN1> EXC. TAIWAN EQUIPMENT(WW5) 		1-75537-203-0 01 1 9002-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS CHINESE<SL7> 		1-85887-934-0 01 1 9307-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> 		1-85887-935-0 01 1 9307-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS FRENCH<WJ8> 		1-85887-936-0 01 1 9307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
