◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#36498) — 55 parça

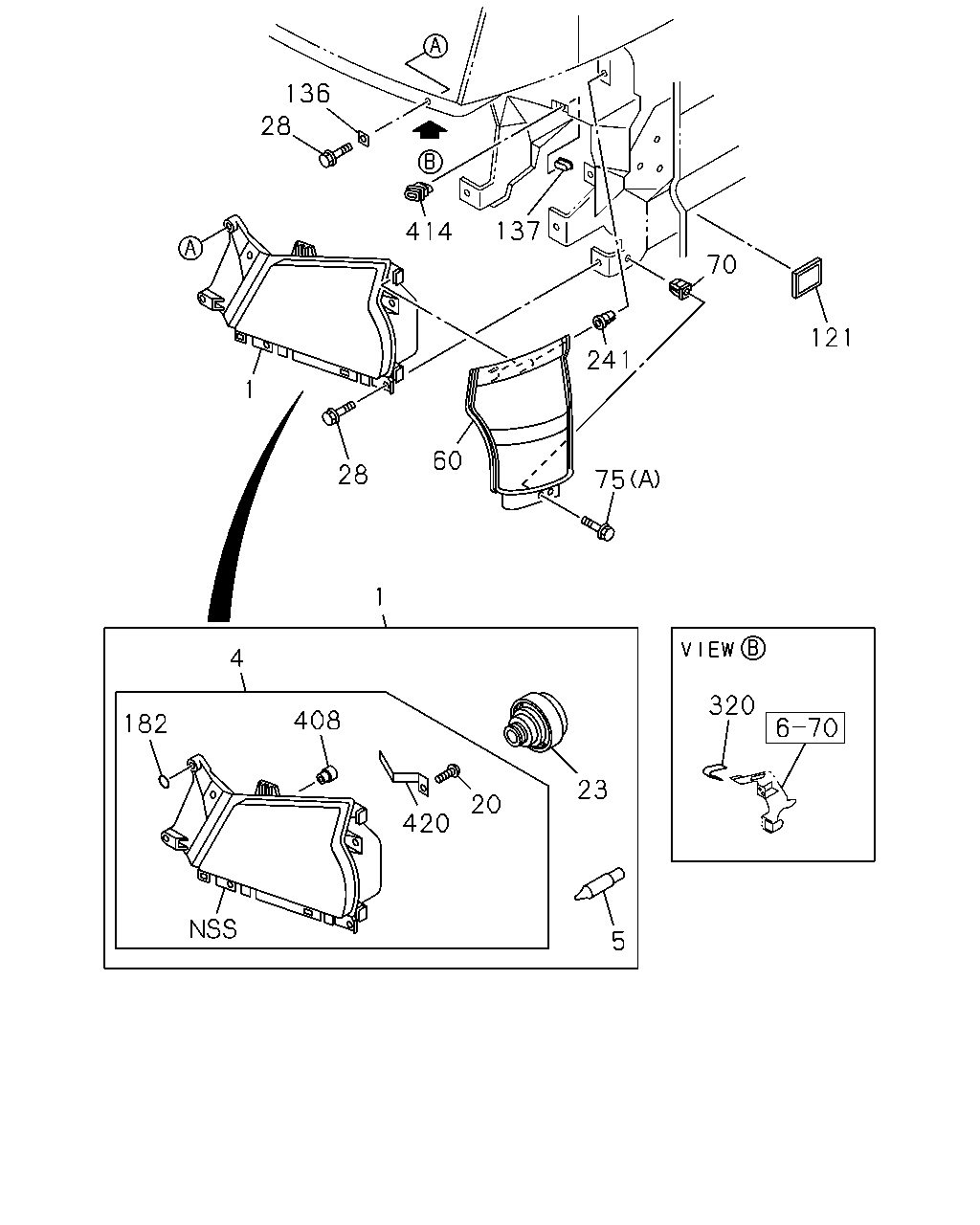

çizim 58357
136 28 137 414 70 121 241 1 60 28 75 1 4 320 408 182 23 20 420 5
BalonParca AdiParca NoAdetTipApplied Date
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97372-529-5 01 1 0612-
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97372-528-5 01 1 0612-
4 02.727 HEADLAMP UNIT 8-98009-819-0 01 1 0612-
4 02.727 HEADLAMP UNIT 8-98009-818-0 01 1 0612-
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0612-
20 02.736 SCREW; HEADLAMP 8-97378-871-0 02 1 0612-
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0612-
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0612-
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98010-884-0 01 1 0612-0701
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98053-941-0 01 1 0702-
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98010-883-0 01 1 0612-0701
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98053-940-0 01 1 0702-
60 02.585 LAMP ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98010-892-0 01 1 0612-
60 02.585 LAMP ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98010-891-0 01 1 0612-
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0612-
75 02.587 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING 		8-97374-995-0 02 1 0612-
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0612-
121 02.575 REFLECTOR; REFLEX 8-98013-990-0 02 1 0612-
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 0612-
137 02.726 GROMMET; HEADLAMP 8-97581-666-0 02 1 0612-
182 02.722 GASKET; HEADLAMP 8-97378-869-0 02 1 0612-
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0612-
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0612-
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0612-
414 02.736 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0612-
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0612-

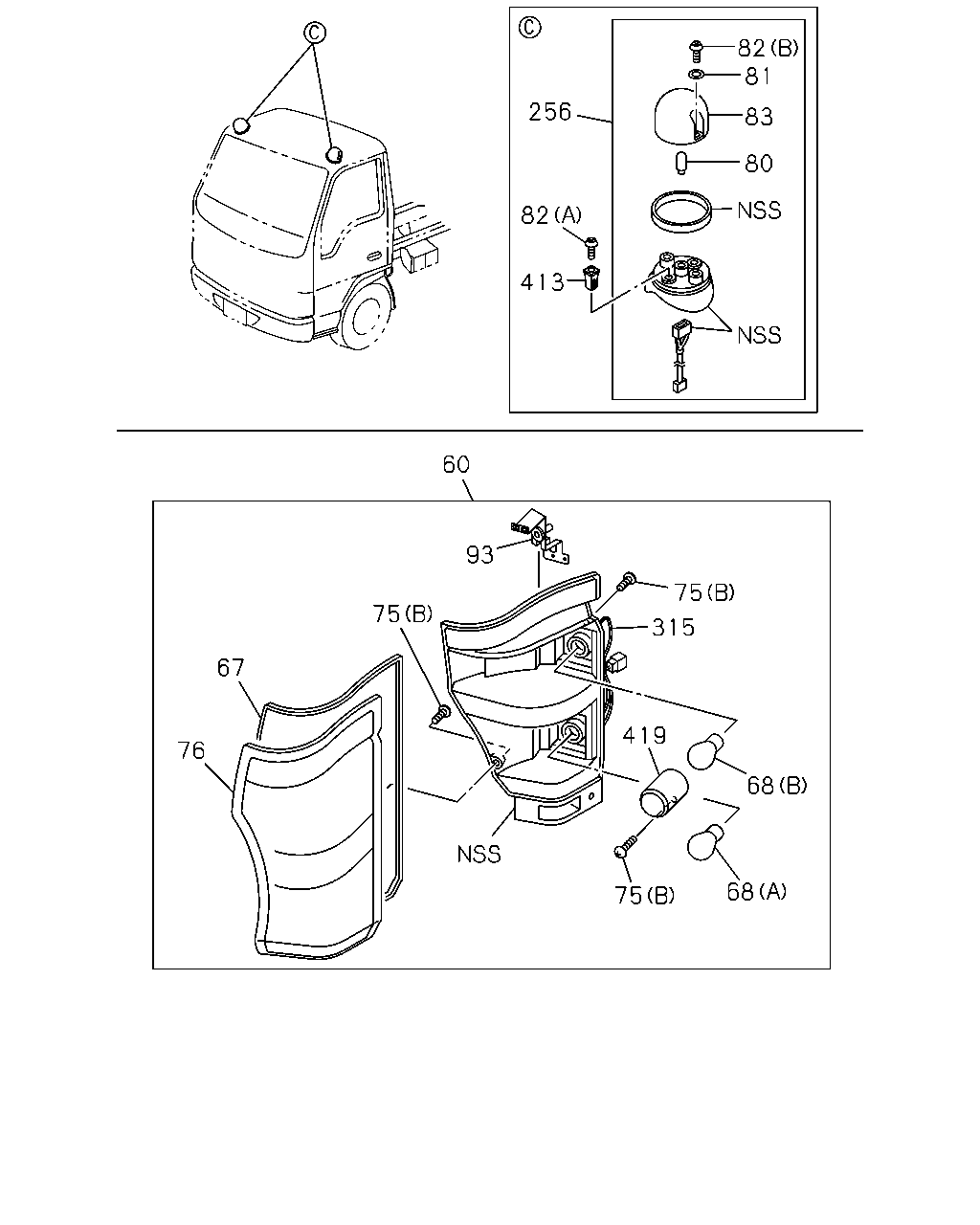

çizim 58416
81 256 83 80 82 413 60 93 75 75 315 67 419 76 68 68 75 82
BalonParca AdiParca NoAdetTipApplied Date
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98010-884-0 01 1 0612-0701
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98053-941-0 01 1 0702-
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98010-883-0 01 1 0612-0701
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98053-940-0 01 1 0702-
60 02.585 LAMP ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98010-892-0 01 1 0612-
60 02.585 LAMP ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98010-891-0 01 1 0612-
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0612-
68 08.991 BULB; FRT COMB LAMP
(A) 24V 21/5W 		8-94125-957-0 02 1 0612-
68 08.991 BULB; FRT COMB LAMP
(B) 24V 21W AMBER 		8-97323-806-0 02 1 0612-
75 02.587 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING 		8-97374-995-0 02 1 0612-
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0612-
76 02.589 LENS; FRT COMB LAMP
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-97378-962-0 01 1 0612-
76 02.589 LENS; FRT COMB LAMP
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-97378-961-0 01 1 0612-
76 02.589 LENS; FRT COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-97378-966-0 01 1 0612-
76 02.589 LENS; FRT COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-97378-965-0 01 1 0612-
80 08.991 BULB; MARKER LAMP
AUSTRALIA EQUIPMENT(RR3) 24V 5W 		8-94135-397-0 02 1 0612-
81 02.587 SEAT; SCREW
AUSTRALIA EQUIPMENT(RR3) 		1-82219-012-0 04 1 0612-
82 02.587 SCREW; MARKER LAMP
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82219-011-0 04 1 0612-
82 02.587 SCREW; MARKER LAMP
AUSTRALIA EQUIPMENT(RR3) 16.716 (A) M6X25 TAPPING 		9-07067-625-0 04 1 0612-
83 02.589 LENS; MARKER LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97318-299-0 02 1 0612-
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0612-
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0612-
256 02.589 LAMP; MARKER
AUSTRALIA EQUIPMENT(RR3) 		8-97307-626-0 01 1 0612-
256 02.589 LAMP; MARKER
AUSTRALIA EQUIPMENT(RR3) 		8-97307-625-0 01 1 0612-
315 02.596 HARNESS; FRT COMB LAMP
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98010-917-0 02 1 0612-
315 02.596 HARNESS; FRT COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-98010-916-0 02 1 0612-
413 02.575 GROMMET; SCREW,MARKER LAMP FIX
AUSTRALIA EQUIPMENT(RR3) 		8-97289-492-0 04 1 0612-
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0612-
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0612-
