7-50 — FRONT SEAT (#36496) — 88 parça
çizim 57781
1 18 24 228 2 16 99 17 19 12 13 15 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-492-2 01 1 0612-
1 16.720 BACK ASM; SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-371-3 01 1 0612-
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97397-955-3 01 1 0612-
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97400-474-3 01 1 0612-
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-674-3 01 1 0612-
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-480-3 01 1 0612-
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-680-3 01 1 0612-
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-493-1 01 1 0612-
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-372-2 01 1 0612-
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97397-965-2 01 1 0612-
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97400-475-2 01 1 0612-
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-675-2 01 1 0612-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-481-2 01 1 0612-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-681-2 01 1 0612-
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-494-1 01 1 0612-
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97397-976-1 01 1 0612-
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97397-970-1 01 1 0612-
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97397-972-1 01 1 0612-
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-488-1 01 1 0612-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97397-978-1 01 1 0612-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-682-1 01 1 0612-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-495-1 01 1 0612-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97397-986-1 01 1 0612-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97397-980-1 01 1 0612-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97397-982-1 01 1 0612-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-489-1 01 1 0612-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97397-988-1 01 1 0612-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-683-1 01 1 0612-
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> 		8-97854-055-1 01 1 0612-
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> 		8-97854-055-1 01 1 0612-
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> 		8-97854-986-1 01 1 0612-
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0612-
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0612-
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 0612-
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0612-
18 16.682 COVER; RECLINING
GRAY 		8-97398-249-0 01 1 0612-
19 16.686 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0612-
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97398-250-0 01 1 0612-0804
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97415-445-0 01 1 0805-
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97869-043-0 01 1 0612-
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> 		8-97854-059-3 01 1 0612-
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0612-
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT, LONG SIZE<7UG> 		8-97854-059-3 01 1 0612-
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0612-
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0612-
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0612-
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0612-
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0612-
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0612-
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 0612-

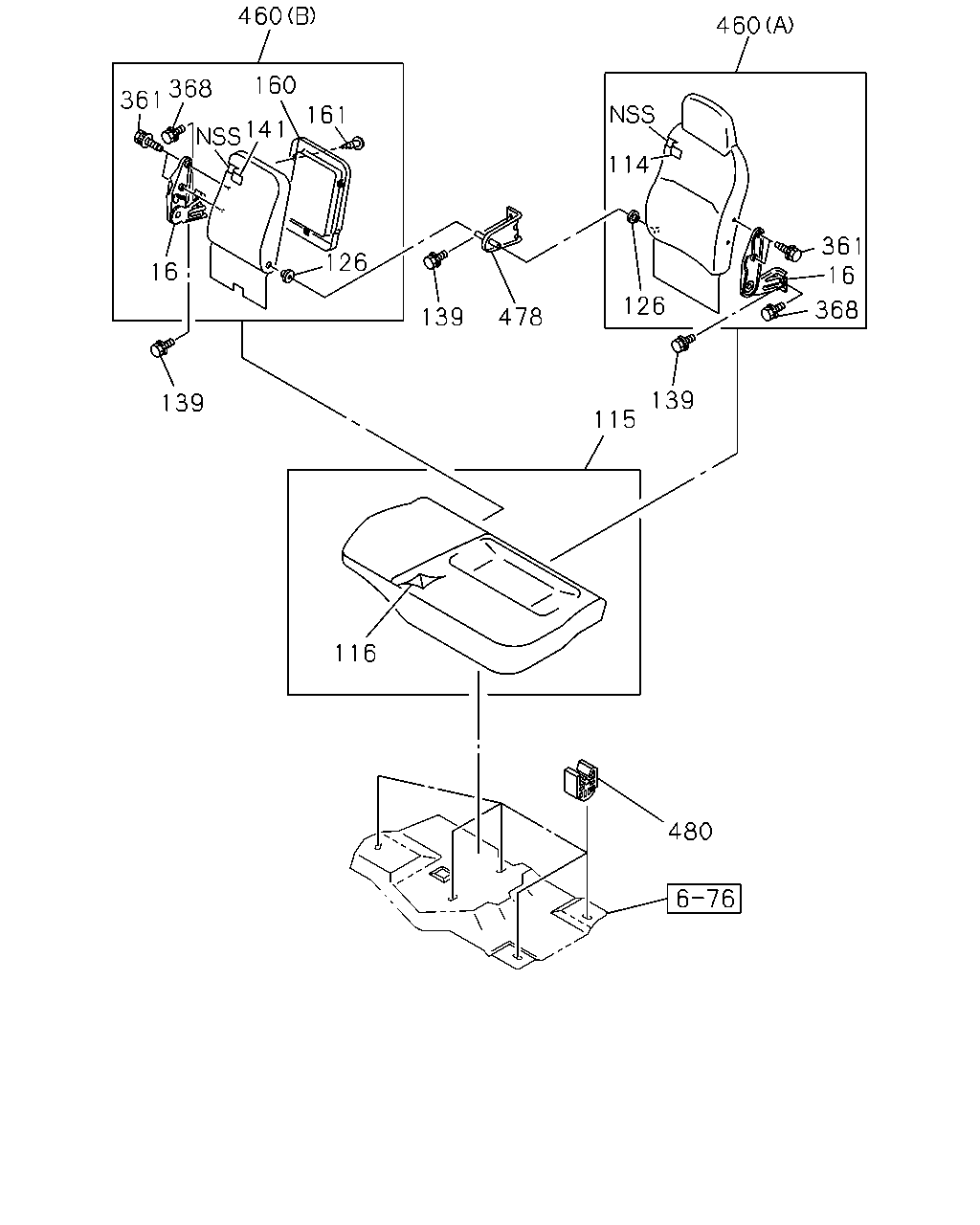

çizim 58399
460 460 160 368 361 161 141 114 361 16 126 16 126 368 139 478 139 139 115 116 480
BalonParca AdiParca NoAdetTipApplied Date
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0612-
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0612-
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 0612-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-696-1 01 1 0612-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97397-998-2 01 1 0612-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-690-2 01 1 0612-
115 16.720 CUSHION ASM; PASSENGER SEAT
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-668-2 01 1 0612-
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97400-661-2 01 1 0612-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-660-2 01 1 0612-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-706-1 01 1 0612-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97400-701-1 01 1 0612-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-700-1 01 1 0612-
126 16.686 BUSHING; HINGE,RECLINING
AUSTRALIA EQUIPMENT(RR3) 		8-97854-900-0 02 1 0612-0804
126 16.686 BUSHING; HINGE,RECLINING
AUSTRALIA EQUIPMENT(RR3) 		8-98069-558-0 02 1 0805-
126 16.686 BUSHING; HINGE,RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97854-900-0 01 1 0612-0804
126 16.686 BUSHING; HINGE,RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97854-900-0 01 1 0612-0804
126 16.686 BUSHING; HINGE,RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-98069-558-0 01 1 0805-
126 16.686 BUSHING; HINGE,RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-98069-558-0 01 1 0805-
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0612-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-699-1 01 1 0612-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97398-005-2 01 1 0612-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97400-697-2 01 1 0612-
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97398-252-1 01 1 0612-
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0612-
361 16.682 BOLT; ADJ,RECLINING
AUSTRALIA EQUIPMENT(RR3) M8X18 		8-94279-109-1 04 1 0612-
361 16.682 BOLT; ADJ,RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3) M8X18 		8-94279-109-1 02 1 0612-
361 16.682 BOLT; ADJ,RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3) M8X18 		8-94279-109-1 02 1 0612-
368 16.682 BOLT; SEAT
AUSTRALIA EQUIPMENT(RR3) 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0612-
368 16.682 BOLT; SEAT
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0612-
368 16.682 BOLT; SEAT
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0612-
460 16.670 BACK ASM; PASSENGER SEAT
AUSTRALIA EQUIPMENT(RR3) (A) DARK GRAY 		8-97400-656-1 01 1 0612-
460 16.670 BACK ASM; PASSENGER SEAT
AUSTRALIA EQUIPMENT(RR3) (B) DARK GRAY 		8-97400-659-1 01 1 0612-
460 16.670 BACK ASM; PASSENGER SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> (A) DARK GRAY 		8-97396-972-3 01 1 0612-
460 16.670 BACK ASM; PASSENGER SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> (B) DARK GRAY 		8-97397-446-2 01 1 0612-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) (A) DARK GRAY 		8-97400-651-2 01 1 0612-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) (B) DARK GRAY 		8-97400-657-2 01 1 0612-
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-184-0 01 1 0612-
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0612-
