◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#36483) — 59 parça

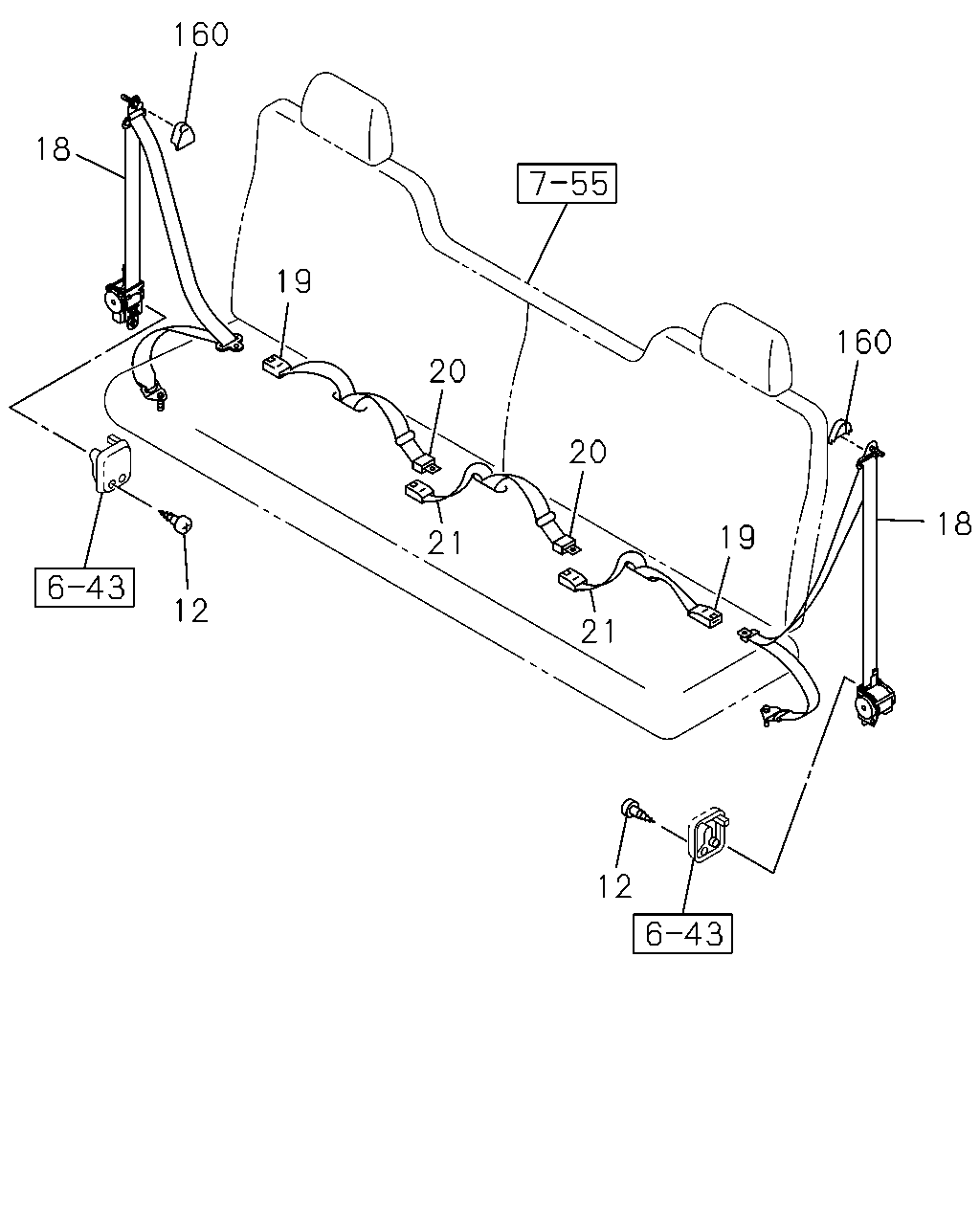

çizim 76147
160 18 19 160 20 20 18 19 21 12 21 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1012- ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-185-8 02 1 1012- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-184-2 02 1 1012- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97411-511-3 01 1 1012- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97411-512-3 01 1 1012- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-187-2 01 1 1012- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-188-2 01 1 1012- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> FRONT PASSENGER GRAY 		8-97405-991-0 01 1 1012- ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> FRONT PASSENGER GRAY 		8-97405-991-0 01 1 1012- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> REAR GRAY 		8-97405-991-0 02 1 1012- ●

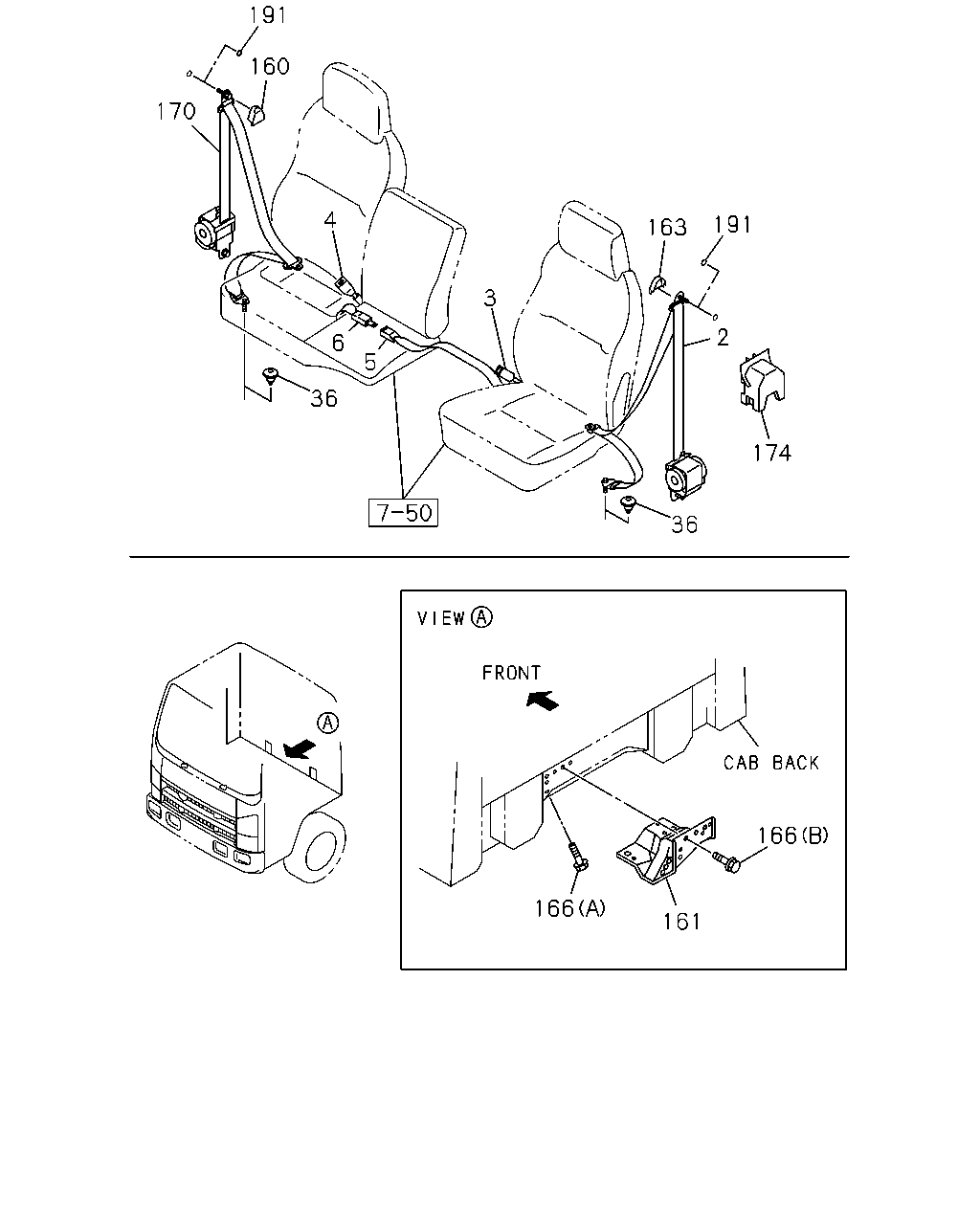

çizim 76627
191 160 170 4 191 163 3 2 6 5 36 174 36 166 166 161
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> GRAY 		8-97405-179-9 01 1 1012-1406 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT TENSIONER FRT<A70> GRAY 		8-97428-456-0 01 1 1407- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> GRAY 		8-97405-180-7 01 1 1012-1406 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97428-457-1 01 1 1407- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> GRAY 		8-97405-175-2 01 1 1012- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-175-2 01 1 1012- ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> GRAY 		8-97405-178-0 01 1 1012- ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-178-0 01 1 1012- ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> GRAY 		8-97405-182-1 01 1 1012- ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-182-1 01 1 1012- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> GRAY 		8-97411-507-2 01 1 1012- ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97411-507-2 01 1 1012- ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,SEAT BELT TENSIONER FRT<A70> 16.714 OD=22 		9-61168-535-0 02 1 1012- ● ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.714 OD=22 		9-61168-535-0 02 1 1012- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> FRONT PASSENGER GRAY 		8-97405-991-0 01 1 1012- ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> FRONT PASSENGER GRAY 		8-97405-991-0 01 1 1012- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> REAR GRAY 		8-97405-991-0 02 1 1012- ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 16.545 		8-98017-005-2 01 1 1012- ● ●
163 16.714 COVER; ADJUSTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> GRAY 		8-97405-991-0 01 1 1012- ● ● ●
163 16.714 COVER; ADJUSTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-991-0 01 1 1012- ●
166 16.714 BOLT; SEAT BELT ANCHOR
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1012- ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1012- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 05 1 1012- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1012- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> GRAY 		8-97405-179-9 01 1 1012-1406 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-456-0 01 1 1407- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> EXC. SEAT BELT - DELETE<8NY> GRAY 		8-97428-456-0 01 1 1407- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49>, SEAT BELT TENSIONER FRT<A70> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-7 01 1 1012-1406 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-457-1 01 1 1407- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5>, SEAT BELT - DELETE<8NY> GRAY 		8-97428-457-1 01 1 1407- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. SEAT BELT - DELETE<8NY> GRAY 		8-97428-457-1 01 1 1407- ● ●
174 16.714 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1012- ● ● ●
191 16.650 SEAL; SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,SEAT BELT TENSIONER FRT<A70> 16.592 OD=36 WHITE 		1-76778-007-0 02 1 1012- ● ● ●
191 16.650 SEAL; SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.592 OD=36 WHITE 		1-76778-007-0 02 1 1012- ●

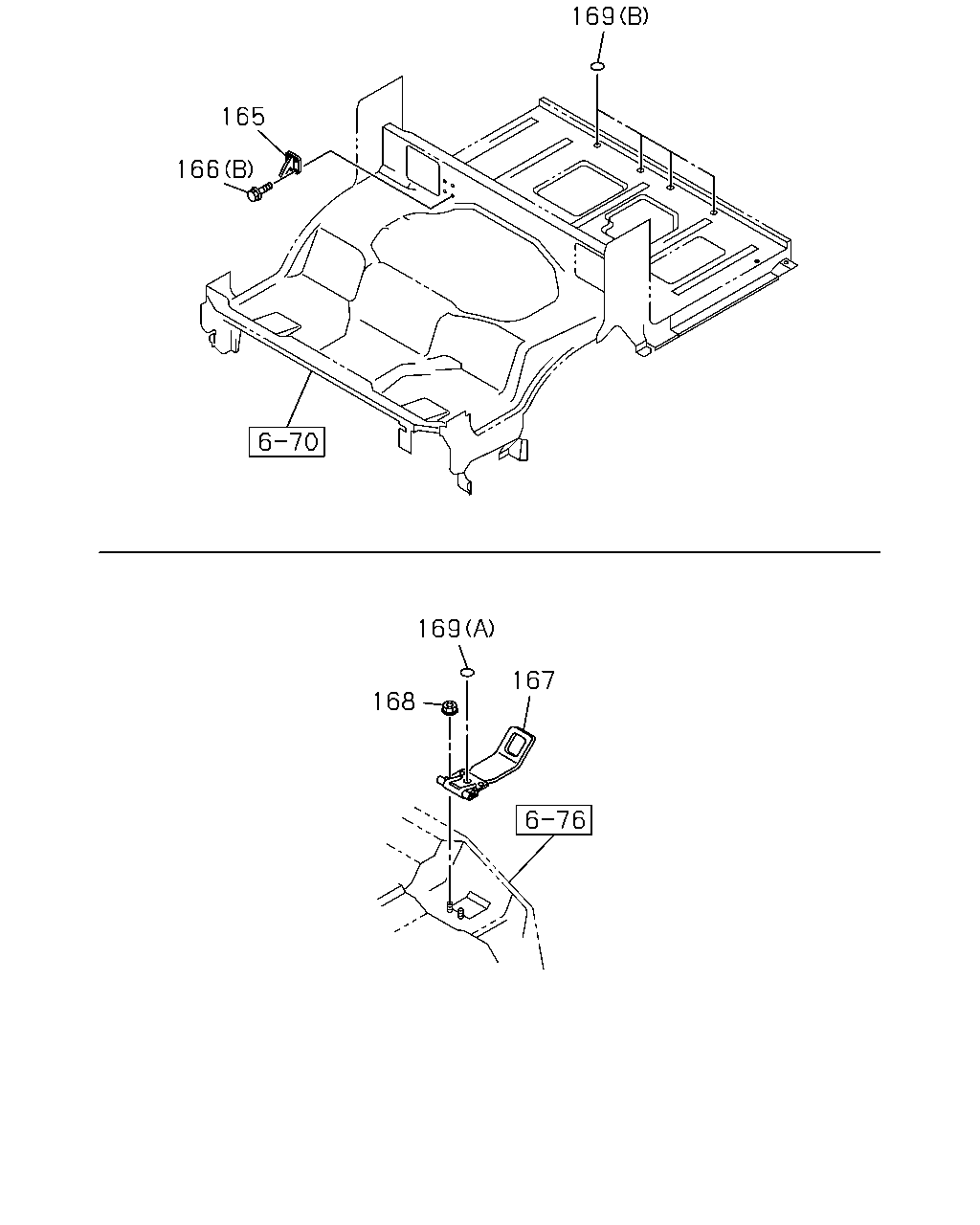

çizim 77081
169 165 166 169 167 168
BalonParca AdiParca NoAdetTipApplied Date A B C D
165 16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 1012- ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-98040-143-0 01 1 1012- ●
166 16.714 BOLT; SEAT BELT ANCHOR
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1012- ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1012- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 05 1 1012- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1012- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
167 16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 1012- ● ●
167 16.714 PLATE; ANCHOR 8-97589-140-0 01 1 1012- ●
168 16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
169 16.650 SEAL
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49>,SEAT BELT TENSIONER FRT<A70> 16.545 (A) OD=32 BLACK 		8-98031-126-0 02 1 1012- ● ● ●
169 16.650 SEAL
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.545 (A) OD=32 BLACK 		8-98031-126-0 02 1 1012- ●
169 16.650 SEAL
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.545 (B) OD=32 BLACK 		8-98031-126-0 04 1 1012- ●
