◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#36481) — 156 parça

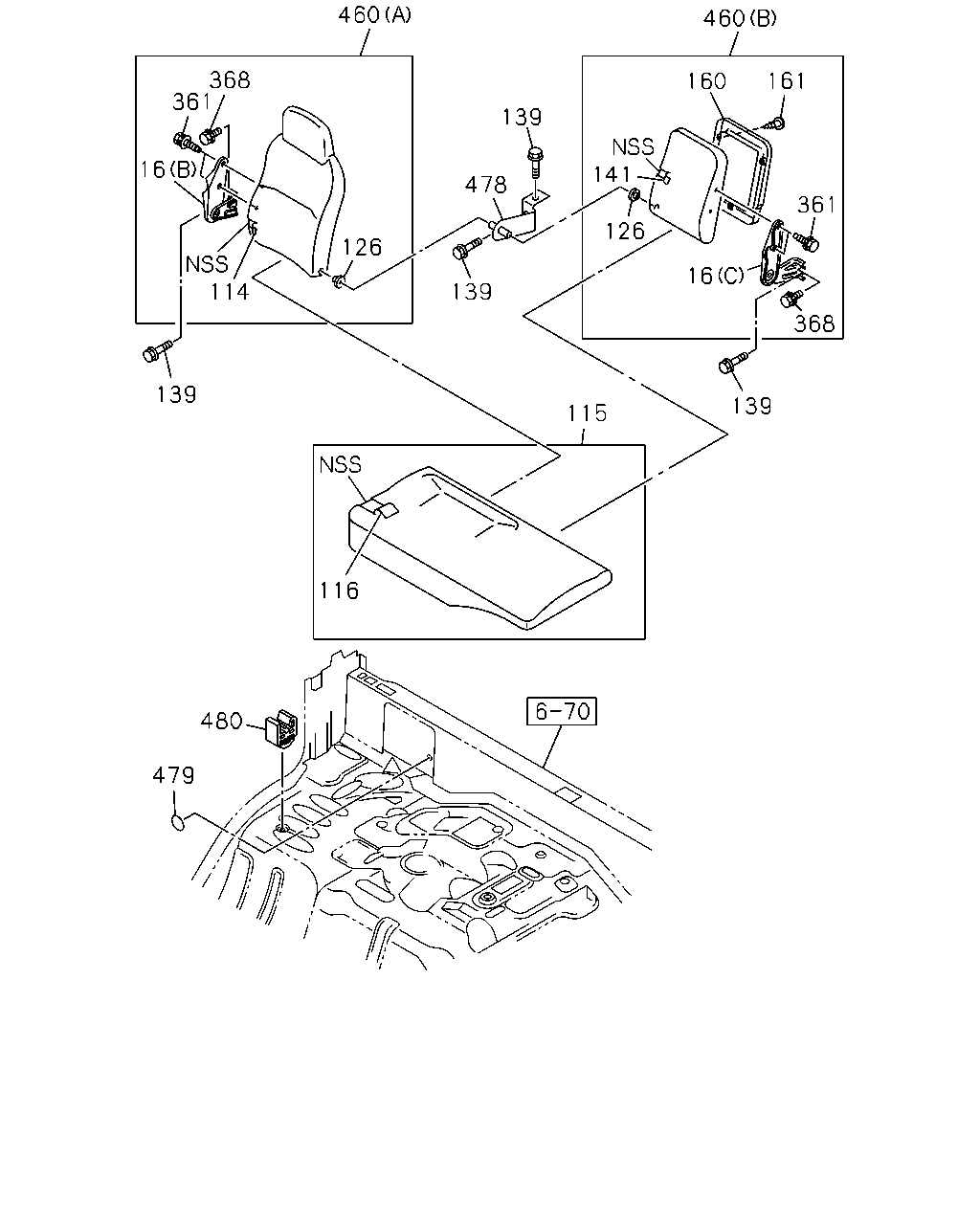

çizim 76500
460 368 361 16 114 126 139 478 139 460 160 161 361 141 126 16 368 139 115 116 479 480 139
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB 		8-97859-273-3 01 1 1012-1511 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB 		8-97859-273-3 01 1 1512- ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB 		8-97859-273-3 01 1 1512- ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB 		8-97859-273-3 01 1 1512- ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB 		8-97859-274-3 01 1 1012- ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) 		8-98005-418-1 01 1 1012- ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
HEAD RESTRAINT - CENTER SEAT<AW8> VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97466-987-0 01 1 1512- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
HEAD RESTRAINT - CENTER SEAT<AW8> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97466-988-0 01 1 1512- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97418-724-0 01 1 1012-1511 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-724-0 01 1 1012-1511 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97418-724-0 01 1 1512- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-724-0 01 1 1512- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-296-0 01 1 1012-1511 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-296-0 01 1 1012-1511 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-296-0 01 1 1512- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-296-0 01 1 1512- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-169-1 01 1 1012- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97414-169-1 01 1 1012- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-295-0 01 1 1012- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-295-0 01 1 1012- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97418-709-2 01 1 1012- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-709-2 01 1 1012- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-326-3 01 1 1012- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-326-3 01 1 1012- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97411-537-5 01 1 1012- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97411-537-5 01 1 1012- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-327-3 01 1 1012- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-327-3 01 1 1012- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97418-738-1 01 1 1012- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-738-1 01 1 1012- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97421-346-2 01 1 1012- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-346-2 01 1 1012- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-168-3 01 1 1012- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97414-168-3 01 1 1012- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-347-2 01 1 1012- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97421-347-2 01 1 1012- ●
126 16.686 BUSHING; HINGE,RECLINING
HEAD RESTRAINT - CENTER SEAT<AW8> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> 		8-98069-558-0 01 1 1512- ● ●
126 16.686 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 		8-98069-558-0 02 1 1012-1511 ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 		8-98069-558-0 02 1 1512- ● ●
126 16.686 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> 		8-98069-558-0 02 1 1512- ● ●
126 16.686 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> 		8-98069-558-0 02 1 1512- ● ●
139 16.679 BOLT; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> M8X20 W/PL WASHER 		8-98031-841-0 03 1 1512- ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 1012-1511 ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 1512- ● ●
139 16.679 BOLT; PASSENGER SEAT
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> M8X20 W/PL WASHER 		8-98031-841-0 04 1 1512- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-308-0 01 1 1012-1511 ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-308-0 01 1 1012-1511 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-308-0 01 1 1512- ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-308-0 01 1 1512- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-307-1 01 1 1012- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-307-1 01 1 1012- ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97418-728-0 01 1 1012-1511 ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-728-0 01 1 1012-1511 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97418-728-0 01 1 1512- ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-728-0 01 1 1512- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-171-2 01 1 1012- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97414-171-2 01 1 1012- ●
160 16.650 CONSOLE; UPR,BACK CENTER
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY 		8-97405-361-1 01 1 1012-1511 ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY 		8-97405-361-1 01 1 1512- ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-361-1 01 1 1512- ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-361-1 01 1 1512- ● ●
161 16.650 SCREW; CONSOLE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4X12 		8-94279-351-0 04 1 1012-1511 ● ● ● ●
161 16.650 SCREW; CONSOLE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4X12 		8-94279-351-0 04 1 1512- ● ●
161 16.650 SCREW; CONSOLE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> M4X12 		8-94279-351-0 04 1 1512- ● ●
161 16.650 SCREW; CONSOLE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> M4X12 		8-94279-351-0 04 1 1512- ● ●
361 16.682 BOLT; ADJ,RECLINING
HEAD RESTRAINT - CENTER SEAT<AW8> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X18 		8-94279-109-1 02 1 1512- ● ●
361 16.682 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X18 		8-94279-109-1 04 1 1012-1511 ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X18 		8-94279-109-1 04 1 1512- ● ●
361 16.682 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> M8X18 		8-94279-109-1 04 1 1512- ● ●
361 16.682 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> M8X18 		8-94279-109-1 04 1 1512- ● ●
368 16.682 BOLT; SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 1512- ● ●
368 16.682 BOLT; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 1012-1511 ● ● ● ●
368 16.682 BOLT; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 1512- ● ●
368 16.682 BOLT; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 1512- ● ●
368 16.682 BOLT; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 1512- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97466-983-0 01 1 1512- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97466-984-0 01 1 1512- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> (A) DARK GRAY 		8-97418-695-0 01 1 1012-1511 ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97418-695-0 01 1 1012-1511 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> (A) DARK GRAY 		8-97418-695-0 01 1 1512- ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97418-695-0 01 1 1512- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> 16.770 (B) DARK GRAY 		8-97418-699-2 01 1 1012-1511 ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> 16.770 (B) DARK GRAY 		8-97418-699-2 01 1 1012-1511 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> 16.770 (B) DARK GRAY 		8-97418-699-2 01 1 1512- ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> 16.770 (B) DARK GRAY 		8-97418-699-2 01 1 1512- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97421-283-0 01 1 1012-1511 ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-283-0 01 1 1012-1511 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97421-283-0 01 1 1512- ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-283-0 01 1 1512- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-302-1 01 1 1012-1511 ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-302-1 01 1 1012-1511 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-302-1 01 1 1512- ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-302-1 01 1 1512- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97411-538-4 01 1 1012- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> (A) DARK GRAY 		8-97411-538-4 01 1 1012- ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97411-539-4 01 1 1012- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> (B) DARK GRAY 		8-97411-539-4 01 1 1012- ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-282-0 01 1 1012- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97421-282-0 01 1 1012- ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-301-1 01 1 1012- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-301-1 01 1 1012- ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA
HEAD RESTRAINT - CENTER SEAT<AW8> 		8-97868-187-0 01 1 1512- ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-98002-092-0 01 1 1012-1511 ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-98002-092-0 01 1 1512- ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> 		8-98002-092-0 01 1 1512- ● ●
479 16.716 PLUG; HINGE
HEAD RESTRAINT - CENTER SEAT<AW8> 16.165 OD=25 BLACK 		1-76798-019-0 02 1 1512- ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 1012- ● ● ● ●

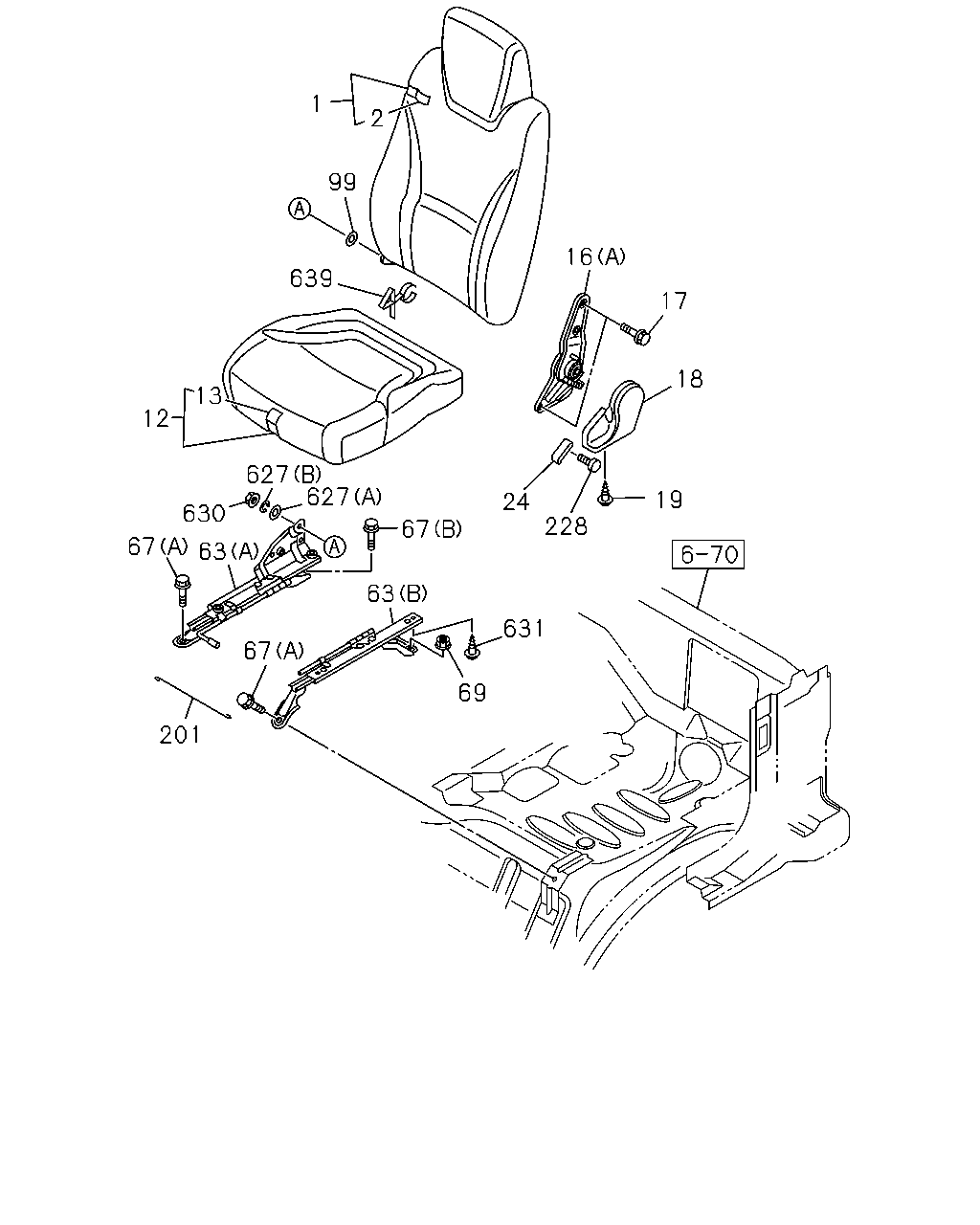

çizim 76536
1 2 99 16 639 17 18 13 12 627 627 19 24 630 228 67 67 63 63 631 67 69 201
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.720 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-160-7 01 1 1012- ● ● ● ●
1 16.720 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-155-5 01 1 1012- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-237-1 01 1 1012- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-236-1 01 1 1012- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-038-2 01 1 1012- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-152-2 01 1 1012- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-256-0 01 1 1012- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-255-0 01 1 1012- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-163-3 01 1 1012- ● ● ●
12 16.670 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>, INSPECTIONENGINE COVER<8GA> DARK GRAY 		8-97414-153-3 01 1 1012- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-243-2 01 1 1012- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>, INSPECTIONENGINE COVER<8GA> DARK GRAY 		8-97421-242-2 01 1 1012- ● ● ●
12 16.670 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-165-0 01 1 1012- ● ● ●
12 16.670 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-710-0 01 1 1012- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-250-2 01 1 1012- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-249-2 01 1 1012- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-164-2 01 1 1012- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>, INSPECTIONENGINE COVER<8GA> DARK GRAY 		8-97414-154-2 01 1 1012- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-262-2 01 1 1012- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>, INSPECTIONENGINE COVER<8GA> DARK GRAY 		8-97421-261-2 01 1 1012- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-166-0 01 1 1012- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-711-0 01 1 1012- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-270-2 01 1 1012- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-269-2 01 1 1012- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB 		8-97859-273-3 01 1 1012-1511 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB 		8-97859-273-3 01 1 1512- ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB 		8-97859-273-3 01 1 1512- ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB 		8-97859-273-3 01 1 1512- ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB 		8-97859-274-3 01 1 1012- ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) 		8-98005-418-1 01 1 1012- ● ● ● ●
17 16.682 BOLT; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M10X20 		8-98062-661-0 04 1 1012- ● ● ● ●
18 16.682 COVER; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY 		8-97409-361-0 01 1 1012- ● ● ● ●
19 16.686 SCREW; COVER
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1012- ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY 		8-97409-362-0 01 1 1012- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) INNER 		8-98002-907-2 01 1 1012- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) OUTER 		8-98002-908-1 01 1 1012- ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1012- ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1012- ● ● ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 1012- ● ● ● ●
99 16.716 BUSHING; SEAT BACK
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 		8-98112-751-0 01 1 1012- ● ● ● ●
201 16.682 CABLE; ADJ
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 		8-98003-086-1 01 1 1012- ● ● ● ●
228 16.714 SCREW; KNOB
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1012- ● ● ● ●
627 16.682 WASHER; FRT SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 1012- ● ● ● ●
627 16.682 WASHER; FRT SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 1012- ● ● ● ●
630 16.682 NUT; CAP
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 1012- ● ● ● ●
631 16.682 BOLT; ADJ,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> OUTER M8X25 W/LK WASHER 		8-98062-658-0 02 1 1012- ● ● ● ●
631 16.682 BOLT; ADJ,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INNER M8X32 W/LK WASHER 		8-98062-659-0 02 1 1012- ● ● ● ●
639 16.679 CLIP; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 1012- ● ●
639 16.679 CLIP; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 		8-98097-693-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
