Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#36477) — 325 parça

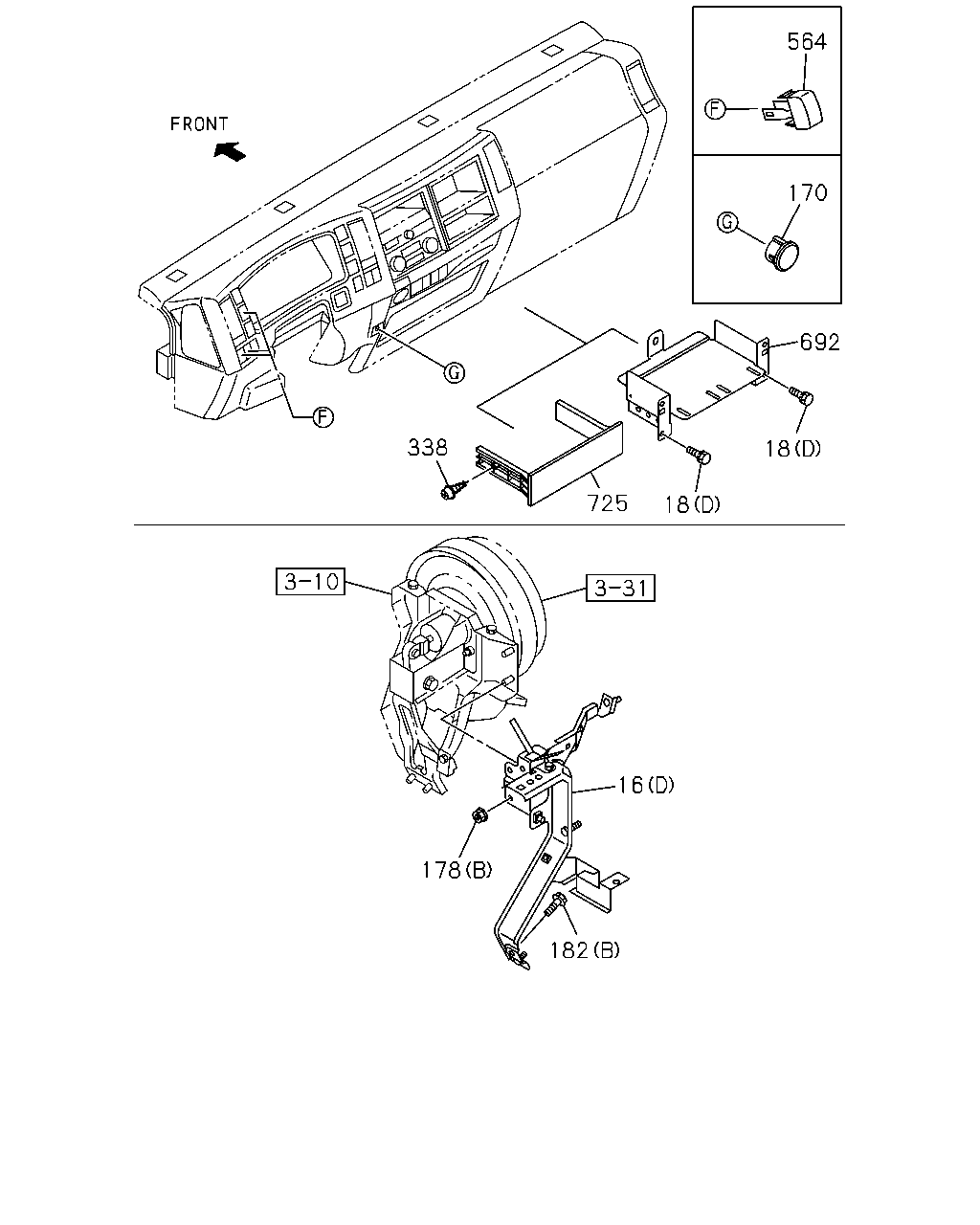

564 170 692 338 18 725 18 16 178 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-97585-532-0	01	1	1012-	●
16	16.085 BRACKET; INST PNL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-532-0	01	1	1012-		●	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C)	8-97585-612-2	01	1	1012-	●
16	16.085 BRACKET; INST PNL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97585-612-2	01	1	1012-		●	●	●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1012-1511	●		●	●
16	16.085 BRACKET; INST PNL DUMP CHASSIS(V4D) (A)	8-98100-403-1	01	1	1012-1511		●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98100-403-1	01	1	1012-1511		●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1512-	●		●	●
16	16.085 BRACKET; INST PNL DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98100-403-1	01	1	1512-		●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98100-403-1	01	1	1512-		●
16	16.085 BRACKET; INST PNL EXC. PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1012-	●		●	●
16	16.085 BRACKET; INST PNL EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1012-		●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98093-380-3	01	1	1012-1503		●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98278-076-0	01	1	1504-		●
18	16.085 BOLT; BRKT TACHOGRAPH DIGITAL<EBB> 09.647 (D) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1012-	●
18	16.085 BOLT; BRKT TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1012-		●
18	16.085 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1012-	●	●	●	●
18	16.085 BOLT; BRKT 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1012-1012	●	●	●	●
18	16.085 BOLT; BRKT 16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	8-98177-720-0	02	1	1101-1212	●	●	●	●
18	16.085 BOLT; BRKT 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1301-	●	●	●	●
18	16.085 BOLT; BRKT EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR	8-98058-632-0	03	1	1012-	●	●	●	●
170	16.165 COVER; HOLE	8-98070-401-2	01	1	1012-	●	●	●	●
178	16.085 NUT; INST PANEL 01.062 (A) M6 FLANGE	0-91180-106-0	03	1	1012-	●	●	●	●
178	16.085 NUT; INST PANEL TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER	8-94279-050-0	02	1	1012-		●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1012	●
182	16.085 BOLT; BRKT,INST PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1012		●	●	●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1101-1212	●
182	16.085 BOLT; BRKT,INST PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1101-1212		●	●	●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●
182	16.085 BOLT; BRKT,INST PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1012-1012	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	8-98177-720-0	03	1	1101-1212	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1301-	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1012-	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	1012-		●
338	16.081 SCREW; COVER TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1012-	●
338	16.081 SCREW; COVER TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1012-		●
564	16.081 COVER; SW	8-98025-954-1	03	1	1012-	●	●	●	●
692	16.085 BRACKET; TACHOGRAPH TACHOGRAPH DIGITAL<EBB>	8-98094-272-0	01	1	1012-	●
692	16.085 BRACKET; TACHOGRAPH TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT>	8-98094-272-0	01	1	1012-		●
725	16.081 COVER; TACHOGRAPH TACHOGRAPH DIGITAL<EBB> 09.650 BLACK	8-97407-896-2	01	1	1012-	●
725	16.081 COVER; TACHOGRAPH TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK	8-97407-896-2	01	1	1012-		●

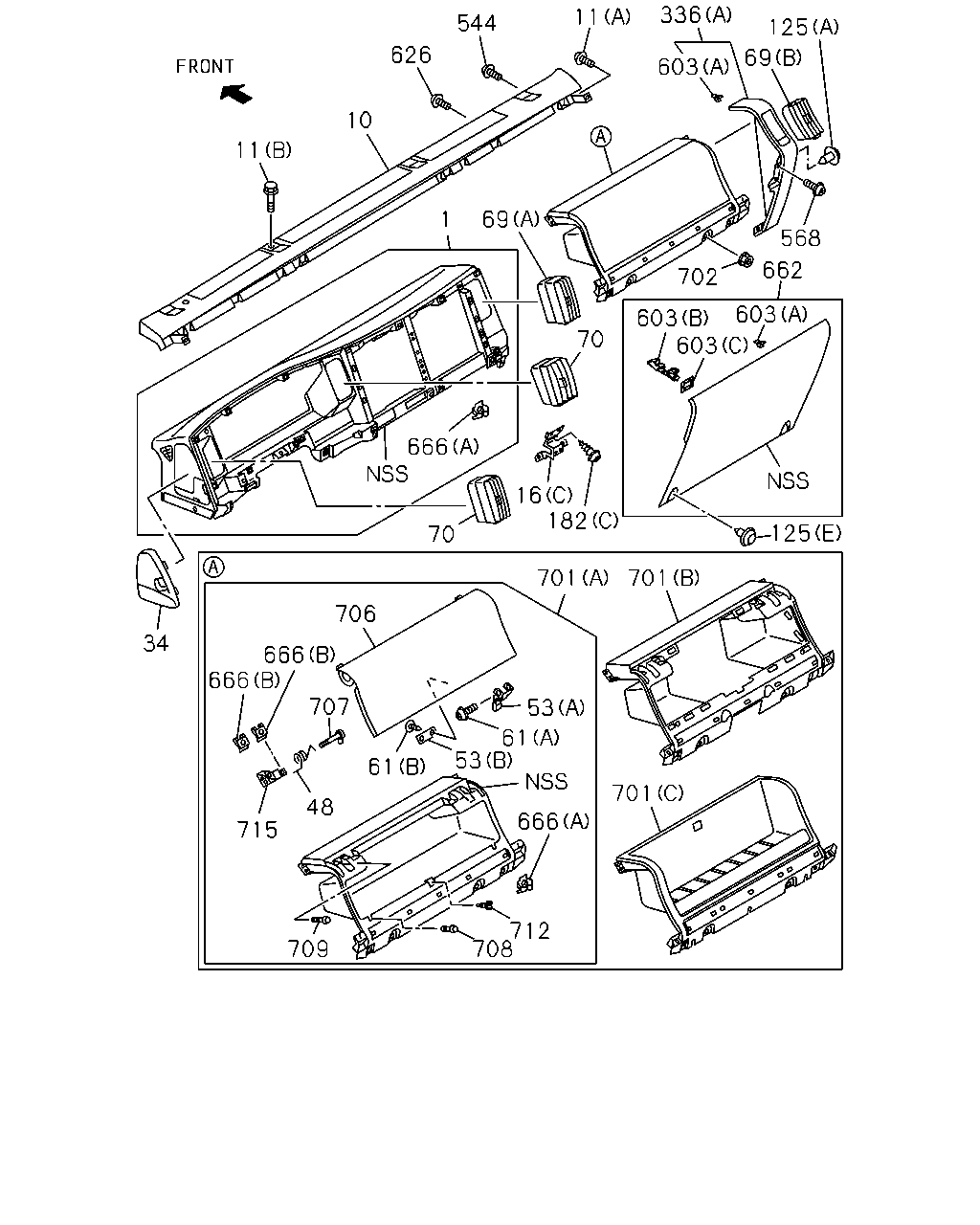

11 10 626 544 11 336 603 69 125 1 69 702 568 662 603 603 603 70 16 182 701 701 125 70 706 666 666 707 34 715 61 48 53 61 53 666 701 712 708 709 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.080 PANEL; INST GRAY	8-97406-004-4	01	1	1012-	●	●	●	●
10	16.069 PANEL ASM; GARNISH GRAY	8-97419-683-5	01	1	1012-	●	●	●	●
11	16.090 BOLT; INST PNL (A) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	1012-1012	●	●	●	●
11	16.090 BOLT; INST PNL (A) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	08	1	1101-1212	●	●	●	●
11	16.090 BOLT; INST PNL (A) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	1301-	●	●	●	●
11	16.090 BOLT; INST PNL (B) M6X25 W/LK&PL WASHER	8-98018-440-0	04	1	1012-	●	●	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-97585-532-0	01	1	1012-	●
16	16.085 BRACKET; INST PNL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-532-0	01	1	1012-		●	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C)	8-97585-612-2	01	1	1012-	●
16	16.085 BRACKET; INST PNL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97585-612-2	01	1	1012-		●	●	●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1012-1511	●		●	●
16	16.085 BRACKET; INST PNL DUMP CHASSIS(V4D) (A)	8-98100-403-1	01	1	1012-1511		●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98100-403-1	01	1	1012-1511		●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1512-	●		●	●
16	16.085 BRACKET; INST PNL DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98100-403-1	01	1	1512-		●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98100-403-1	01	1	1512-		●
16	16.085 BRACKET; INST PNL EXC. PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1012-	●		●	●
16	16.085 BRACKET; INST PNL EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1012-		●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98093-380-3	01	1	1012-1503		●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98278-076-0	01	1	1504-		●
34	16.085 LID; OIL TANK GRAY	8-97406-003-1	01	1	1012-	●	●	●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98034-986-0	01	1	1012-1311	●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-98034-986-0	01	1	1012-1311			●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-410-0	01	1	1312-1405	●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-97926-410-0	01	1	1312-1405			●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98270-763-0	01	1	1406-	●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-98270-763-0	01	1	1406-			●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98034-987-0	01	1	1012-1311	●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-98034-987-0	01	1	1012-1311			●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-411-0	01	1	1312-1405	●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-97926-411-0	01	1	1312-1405			●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98270-764-0	01	1	1406-	●	●
48	16.110 SPRING; GLOVE BOX LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-98270-764-0	01	1	1406-			●	●
53	16.115 STRIKER; GLOVE BOX COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98108-913-0	01	1	1012-1405	●	●
53	16.115 STRIKER; GLOVE BOX COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A)	8-98108-913-0	01	1	1012-1405			●	●
53	16.115 STRIKER; GLOVE BOX COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98270-765-0	01	1	1406-	●	●
53	16.115 STRIKER; GLOVE BOX COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B)	8-98270-765-0	01	1	1406-			●	●
61	16.100 SCREW; GLOVE BOX COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98108-915-0	01	1	1012-1405	●	●
61	16.100 SCREW; GLOVE BOX COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A)	8-98108-915-0	01	1	1012-1405			●	●
61	16.100 SCREW; GLOVE BOX COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85	8-97926-404-0	02	1	1406-	●	●
61	16.100 SCREW; GLOVE BOX COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M4X85	8-97926-404-0	02	1	1406-			●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (A)	8-98028-561-2	01	1	1012-	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B)	8-98028-562-2	01	1	1012-	●	●	●	●
70	09.264 GRILLE; CENTER,AIR OUTLET	8-98028-563-2	02	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL (D) GRAY	8-97408-063-0	02	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL (A) GRAY	8-97408-817-0	02	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL (E) GRAY	8-97419-968-1	02	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL 16.165 (C)	8-98004-025-0	01	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	01	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	02	1	1012-1511	●	●	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	02	1	1512-	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1012	●
182	16.085 BOLT; BRKT,INST PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1012		●	●	●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1101-1212	●
182	16.085 BOLT; BRKT,INST PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1101-1212		●	●	●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●
182	16.085 BOLT; BRKT,INST PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1012-1012	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	8-98177-720-0	03	1	1101-1212	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1301-	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1012-	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	1012-		●
336	16.081 COVER; INST PANEL SIDE PTO MANUAL CONTROL(6WC) (B) GRAY	8-97415-670-1	01	1	1012-1511	●		●	●
336	16.081 COVER; INST PANEL SIDE DUMP CHASSIS(V4D) (B) GRAY	8-97415-670-1	01	1	1012-1511		●
336	16.081 COVER; INST PANEL SIDE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) GRAY	8-97415-670-1	01	1	1012-1511		●
336	16.081 COVER; INST PANEL SIDE PTO MANUAL CONTROL(6WC) (B) GRAY	8-97415-670-1	01	1	1512-	●	●		●
336	16.081 COVER; INST PANEL SIDE DUMP CHASSIS(V4D) (B) GRAY	8-97415-670-1	01	1	1512-			●
336	16.081 COVER; INST PANEL SIDE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) GRAY	8-97415-670-1	01	1	1512-			●
336	16.081 COVER; INST PANEL SIDE (A) GRAY	8-97406-002-3	01	1	1012-	●	●	●	●
336	16.081 COVER; INST PANEL SIDE EXC. PTO MANUAL CONTROL(6WC) (B) GRAY	8-97406-000-4	01	1	1012-1511	●		●	●
336	16.081 COVER; INST PANEL SIDE EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) GRAY	8-97406-000-4	01	1	1012-1511		●
336	16.081 COVER; INST PANEL SIDE EXC. PTO MANUAL CONTROL(6WC) (B) GRAY	8-97406-000-4	01	1	1512-	●	●		●
336	16.081 COVER; INST PANEL SIDE EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) GRAY	8-97406-000-4	01	1	1512-			●
544	16.085 SCREW; TRAY 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1012-1101	●	●	●	●
544	16.085 SCREW; TRAY 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	03	1	1102-1212	●	●	●	●
544	16.085 SCREW; TRAY 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1301-	●	●	●	●
568	09.744 BOLT; COVER 16.090 SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●	●	●	●
568	09.744 BOLT; COVER 16.090 SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●	●	●	●
568	09.744 BOLT; COVER 16.090 SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●
603	16.090 CLIP; COVER ALGERIA EQUIPMENT(WN1) 16.085 (A)	8-98021-271-0	03	1	1408-1411		●	●
603	16.090 CLIP; COVER ALGERIA EQUIPMENT(WN1) 16.085 (A)	8-98021-271-0	03	1	1412-		●	●
603	16.090 CLIP; COVER ALGERIA EQUIPMENT(WN1) (B)	8-98152-030-0	02	1	1408-1411		●	●
603	16.090 CLIP; COVER ALGERIA EQUIPMENT(WN1) (B)	8-98152-030-0	02	1	1412-		●	●
603	16.090 CLIP; COVER ALGERIA EQUIPMENT(WN1) (C)	8-98152-031-0	02	1	1408-1411		●	●
603	16.090 CLIP; COVER ALGERIA EQUIPMENT(WN1) (C)	8-98152-031-0	02	1	1412-		●	●
603	16.090 CLIP; COVER 16.085 (A)	8-98021-271-0	01	1	1012-	●	●	●	●
603	16.090 CLIP; COVER 16.085 (A)	8-98021-271-0	05	1	1012-1407	●	●	●	●
603	16.090 CLIP; COVER 16.085 (A)	8-98021-271-0	05	1	1408-1411	●			●
603	16.090 CLIP; COVER EXC. ALGERIA EQUIPMENT(WN1) 16.085 (A)	8-98021-271-0	05	1	1408-1411		●	●
603	16.090 CLIP; COVER 16.085 (A)	8-98021-271-0	05	1	1412-	●			●
603	16.090 CLIP; COVER EXC. ALGERIA EQUIPMENT(WN1) 16.085 (A)	8-98021-271-0	05	1	1412-		●	●
626	16.080 RETAINER 16.069 OD=15 BLACK	8-94279-804-0	02	1	1012-	●	●	●	●
662	16.081 COVER; LWR,INST PANEL ALGERIA EQUIPMENT(WN1) GRAY	8-97418-533-2	01	1	1408-1411		●	●
662	16.081 COVER; LWR,INST PANEL ALGERIA EQUIPMENT(WN1) GRAY	8-97418-533-2	01	1	1412-		●	●
662	16.081 COVER; LWR,INST PANEL GRAY	8-97405-258-2	01	1	1012-1407	●	●	●	●
662	16.081 COVER; LWR,INST PANEL GRAY	8-97405-258-2	01	1	1408-1411	●			●
662	16.081 COVER; LWR,INST PANEL EXC. ALGERIA EQUIPMENT(WN1) GRAY	8-97405-258-2	01	1	1408-1411		●	●
662	16.081 COVER; LWR,INST PANEL GRAY	8-97405-258-2	01	1	1412-	●			●
662	16.081 COVER; LWR,INST PANEL EXC. ALGERIA EQUIPMENT(WN1) GRAY	8-97405-258-2	01	1	1412-		●	●
666	16.085 INSERT; INST PANEL COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98037-629-0	02	1	1012-	●	●
666	16.085 INSERT; INST PANEL COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A)	8-98037-629-0	02	1	1012-			●	●
666	16.085 INSERT; INST PANEL COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98038-450-0	04	1	1012-1311	●	●
666	16.085 INSERT; INST PANEL COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B)	8-98038-450-0	04	1	1012-1311			●	●
666	16.085 INSERT; INST PANEL COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5	8-97926-400-0	04	1	1312-	●	●
666	16.085 INSERT; INST PANEL COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5	8-97926-400-0	04	1	1312-			●	●
666	16.085 INSERT; INST PANEL (A)	8-98037-629-0	15	1	1012-	●	●	●	●
701	16.100 TRAY; INST AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT-I/P ASSIS SIDE WITH LI D<JDN>,COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY	8-97416-908-2	01	1	1012-	●	●
701	16.100 TRAY; INST COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY	8-97415-542-6	01	1	1012-1405	●	●
701	16.100 TRAY; INST COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY	8-97415-542-6	01	1	1012-1405			●	●
701	16.100 TRAY; INST COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY	8-97429-702-1	01	1	1406-	●	●
701	16.100 TRAY; INST COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY	8-97429-702-1	01	1	1406-			●	●
701	16.100 TRAY; INST COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER<AK5> (C) GRAY	8-97422-091-1	01	1	1012-	●	●
701	16.100 TRAY; INST COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (C) GRAY	8-97422-091-1	01	1	1012-			●	●
702	16.069 NUT; TRAY 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●	●	●
706	16.081 LID; TRAY INST COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97415-541-0	01	1	1012-1405	●	●
706	16.081 LID; TRAY INST COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY	8-97415-541-0	01	1	1012-1405			●	●
706	16.081 LID; TRAY INST COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97429-992-0	01	1	1406-	●	●
706	16.081 LID; TRAY INST COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY	8-97429-992-0	01	1	1406-			●	●
707	09.744 SHAFT; TRAY INST LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98035-730-1	02	1	1012-1311	●	●
707	09.744 SHAFT; TRAY INST LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-98035-730-1	02	1	1012-1311			●	●
707	09.744 SHAFT; TRAY INST LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-393-0	02	1	1312-	●	●
707	09.744 SHAFT; TRAY INST LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-97926-393-0	02	1	1312-			●	●
708	16.100 STOPPER; TRAY INST LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98010-867-1	02	1	1012-	●	●
708	16.100 STOPPER; TRAY INST LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-98010-867-1	02	1	1012-			●	●
709	16.085 SCREW; TRAY INST COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING	0-71040-516-0	04	1	1012-	●	●
709	16.085 SCREW; TRAY INST COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING	0-71040-516-0	04	1	1012-			●	●
712	16.110 LOCK; TRAY INST LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98031-846-0	01	1	1012-	●	●
712	16.110 LOCK; TRAY INST LID COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-98031-846-0	01	1	1012-			●	●
715	16.081 SUPPORT; TRAY,HINGE COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98034-928-0	01	1	1012-1311	●	●
715	16.081 SUPPORT; TRAY,HINGE COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-98034-928-0	01	1	1012-1311			●	●
715	16.081 SUPPORT; TRAY,HINGE COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-396-0	01	1	1312-	●	●
715	16.081 SUPPORT; TRAY,HINGE COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-97926-396-0	01	1	1312-			●	●
715	16.081 SUPPORT; TRAY,HINGE COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98034-929-0	01	1	1012-1311	●	●
715	16.081 SUPPORT; TRAY,HINGE COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-98034-929-0	01	1	1012-1311			●	●
715	16.081 SUPPORT; TRAY,HINGE COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-397-0	01	1	1312-	●	●
715	16.081 SUPPORT; TRAY,HINGE COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>	8-97926-397-0	01	1	1312-			●	●

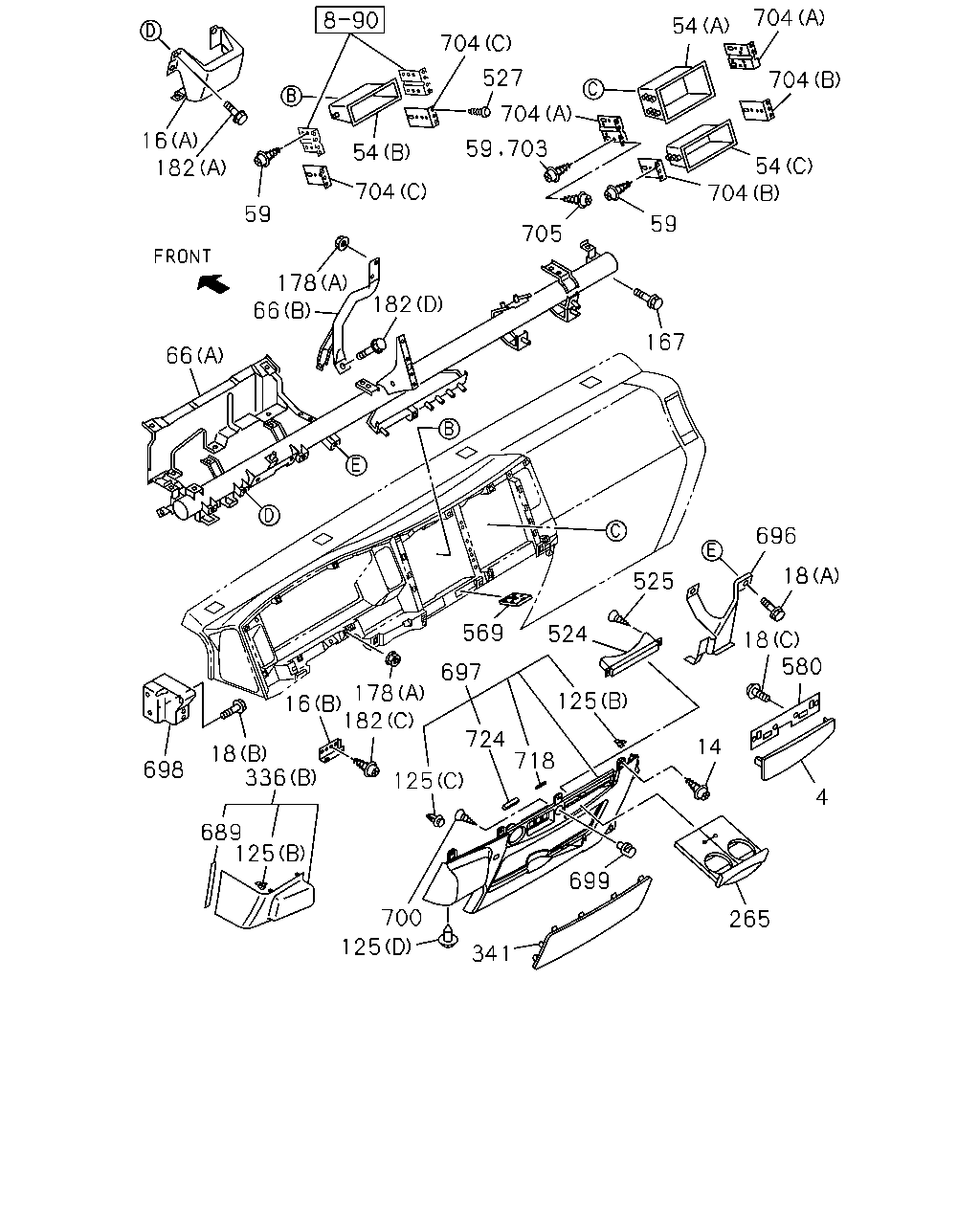

704 54 704 527 704 704 16 182 54 54 704 704 59 59 705 178 66 182 167 66 696 18 525 569 524 18 580 178 16 182 697 125 724 718 14 18 336 698 125 4 689 125 699 700 265 125 341 59 703

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	16.080 COVER; INST PNL EXC. CUP HOLDER<7KZ> GRAY	8-97407-898-1	01	1	1012-	●	●	●	●
14	16.085 SCREW; INST PNL 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1012-1012	●	●	●	●
14	16.085 SCREW; INST PNL 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1101-1212	●	●	●	●
14	16.085 SCREW; INST PNL 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-97585-532-0	01	1	1012-	●
16	16.085 BRACKET; INST PNL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-532-0	01	1	1012-		●	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C)	8-97585-612-2	01	1	1012-	●
16	16.085 BRACKET; INST PNL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97585-612-2	01	1	1012-		●	●	●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1012-1511	●		●	●
16	16.085 BRACKET; INST PNL DUMP CHASSIS(V4D) (A)	8-98100-403-1	01	1	1012-1511		●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98100-403-1	01	1	1012-1511		●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1512-	●		●	●
16	16.085 BRACKET; INST PNL DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98100-403-1	01	1	1512-		●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98100-403-1	01	1	1512-		●
16	16.085 BRACKET; INST PNL EXC. PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1012-	●		●	●
16	16.085 BRACKET; INST PNL EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1012-		●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98093-380-3	01	1	1012-1503		●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98278-076-0	01	1	1504-		●
18	16.085 BOLT; BRKT TACHOGRAPH DIGITAL<EBB> 09.647 (D) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1012-	●
18	16.085 BOLT; BRKT TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1012-		●
18	16.085 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1012-	●	●	●	●
18	16.085 BOLT; BRKT 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1012-1012	●	●	●	●
18	16.085 BOLT; BRKT 16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	8-98177-720-0	02	1	1101-1212	●	●	●	●
18	16.085 BOLT; BRKT 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1301-	●	●	●	●
18	16.085 BOLT; BRKT EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR	8-98058-632-0	03	1	1012-	●	●	●	●
54	16.100 POCKET; CENTER CLUSTER (C) H=69.8 BLACK	8-97408-865-3	01	1	1012-	●	●	●	●
54	16.100 POCKET; CENTER CLUSTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK	8-97408-865-3	01	1	1012-	●
54	16.100 POCKET; CENTER CLUSTER EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C) H=69.8 BLACK	8-97408-865-3	01	1	1012-		●	●	●
54	16.100 POCKET; CENTER CLUSTER (B) H=58.4 BLACK	8-97408-864-3	01	1	1012-1406	●	●	●
54	16.100 POCKET; CENTER CLUSTER TACHOGRAPH 140KM/H<SM8> (B) H=58.4 BLACK	8-97408-864-3	01	1	1012-1406		●
54	16.100 POCKET; CENTER CLUSTER EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK	8-97408-864-3	01	1	1012-1406				●
54	16.100 POCKET; CENTER CLUSTER (B) H=58.4 BLACK	8-97408-864-3	01	1	1407-	●	●	●
54	16.100 POCKET; CENTER CLUSTER TACHOGRAPH 140KM/H<SM8> (B) H=58.4 BLACK	8-97408-864-3	01	1	1407-		●	●
54	16.100 POCKET; CENTER CLUSTER EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK	8-97408-864-3	01	1	1407-				●
54	16.100 POCKET; CENTER CLUSTER EXC. TACHOGRAPH DIGITAL<EBB> (A) H=108.4 BLACK	8-97407-129-3	01	1	1012-1406	●
54	16.100 POCKET; CENTER CLUSTER EXC. TACHOGRAPH DIGITAL<EBB>, TACHOGRAPH140KM/H<SM8> (A) H=108.4 BLACK	8-97407-129-3	01	1	1012-1406		●
54	16.100 POCKET; CENTER CLUSTER (A) H=108.4 BLACK	8-97407-129-3	01	1	1012-1406			●	●
54	16.100 POCKET; CENTER CLUSTER EXC. TACHOGRAPH DIGITAL<EBB> (A) H=108.4 BLACK	8-97407-129-3	01	1	1407-	●
54	16.100 POCKET; CENTER CLUSTER EXC. TACHOGRAPH DIGITAL<EBB>, TACHOGRAPH140KM/H<SM8> (A) H=108.4 BLACK	8-97407-129-3	01	1	1407-		●
54	16.100 POCKET; CENTER CLUSTER EXC. TACHOGRAPH 140KM/H<SM8> (A) H=108.4 BLACK	8-97407-129-3	01	1	1407-			●
54	16.100 POCKET; CENTER CLUSTER (A) H=108.4 BLACK	8-97407-129-3	01	1	1407-				●
59	16.100 SCREW; CLUSTER POCKET T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1012-1406	●	●	●	●
59	16.100 SCREW; CLUSTER POCKET T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1012-1406	●	●	●
59	16.100 SCREW; CLUSTER POCKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1012-1406	●
59	16.100 SCREW; CLUSTER POCKET EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1012-1406		●	●	●
59	16.100 SCREW; CLUSTER POCKET TACHOGRAPH 140KM/H<SM8> T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1012-1406		●
59	16.100 SCREW; CLUSTER POCKET EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1012-1406				●
59	16.100 SCREW; CLUSTER POCKET T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1407-	●	●	●	●
59	16.100 SCREW; CLUSTER POCKET T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1407-	●	●	●
59	16.100 SCREW; CLUSTER POCKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1407-	●
59	16.100 SCREW; CLUSTER POCKET EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1407-		●	●	●
59	16.100 SCREW; CLUSTER POCKET TACHOGRAPH 140KM/H<SM8> T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1407-		●	●
59	16.100 SCREW; CLUSTER POCKET EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1407-				●
66	16.085 REINFORCEMENT; INST PANEL AIR BAG DRIVER & PASSENGER<AK5> EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98192-945-0	01	1	1310-	●	●
66	16.085 REINFORCEMENT; INST PANEL EXC. AIR BAG DRIVER & PASSENGER<AK5>, KDPREPARATORY PACK VAR.4<7TV> (A)	8-98192-944-0	01	1	1310-	●	●
66	16.085 REINFORCEMENT; INST PANEL EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98192-944-0	01	1	1310-			●	●
66	16.085 REINFORCEMENT; INST PANEL AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98098-028-3	01	1	1012-1309	●	●
66	16.085 REINFORCEMENT; INST PANEL AIR BAG DRIVER & PASSENGER<AK5> KD PREPARATORY PACK VAR.4<7TV> (A)	8-98098-028-3	01	1	1310-	●	●
66	16.085 REINFORCEMENT; INST PANEL (B)	8-97585-579-1	01	1	1012-	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL EXC. AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98089-365-3	01	1	1012-1309	●	●
66	16.085 REINFORCEMENT; INST PANEL (A)	8-98089-365-3	01	1	1012-1309			●	●
66	16.085 REINFORCEMENT; INST PANEL KD PREPARATORY PACK VAR.4<7TV> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98089-365-3	01	1	1310-	●	●
66	16.085 REINFORCEMENT; INST PANEL KD PREPARATORY PACK VAR.4<7TV> (A)	8-98089-365-3	01	1	1310-			●	●
125	16.085 CLIP; INST PANEL (D) GRAY	8-97408-063-0	02	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL (A) GRAY	8-97408-817-0	02	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL (E) GRAY	8-97419-968-1	02	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL 16.165 (C)	8-98004-025-0	01	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	01	1	1012-	●	●	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	02	1	1012-1511	●	●	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	02	1	1512-	●	●	●	●
167	16.085 BOLT; REINF TO INST 16.090 M8X23 FLANGE	8-97264-766-0	04	1	1012-	●	●	●	●
178	16.085 NUT; INST PANEL 01.062 (A) M6 FLANGE	0-91180-106-0	03	1	1012-	●	●	●	●
178	16.085 NUT; INST PANEL TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER	8-94279-050-0	02	1	1012-		●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1012	●
182	16.085 BOLT; BRKT,INST PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1012		●	●	●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1101-1212	●
182	16.085 BOLT; BRKT,INST PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1101-1212		●	●	●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●
182	16.085 BOLT; BRKT,INST PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1012-1012	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	8-98177-720-0	03	1	1101-1212	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1301-	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1012-	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	1012-		●
265	16.100 HOLDER; CUP CUP HOLDER<7KZ> GRAY	8-97418-528-0	01	1	1012-	●	●	●	●
336	16.081 COVER; INST PANEL SIDE PTO MANUAL CONTROL(6WC) (B) GRAY	8-97415-670-1	01	1	1012-1511	●		●	●
336	16.081 COVER; INST PANEL SIDE DUMP CHASSIS(V4D) (B) GRAY	8-97415-670-1	01	1	1012-1511		●
336	16.081 COVER; INST PANEL SIDE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) GRAY	8-97415-670-1	01	1	1012-1511		●
336	16.081 COVER; INST PANEL SIDE PTO MANUAL CONTROL(6WC) (B) GRAY	8-97415-670-1	01	1	1512-	●	●		●
336	16.081 COVER; INST PANEL SIDE DUMP CHASSIS(V4D) (B) GRAY	8-97415-670-1	01	1	1512-			●
336	16.081 COVER; INST PANEL SIDE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) GRAY	8-97415-670-1	01	1	1512-			●
336	16.081 COVER; INST PANEL SIDE (A) GRAY	8-97406-002-3	01	1	1012-	●	●	●	●
336	16.081 COVER; INST PANEL SIDE EXC. PTO MANUAL CONTROL(6WC) (B) GRAY	8-97406-000-4	01	1	1012-1511	●		●	●
336	16.081 COVER; INST PANEL SIDE EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) GRAY	8-97406-000-4	01	1	1012-1511		●
336	16.081 COVER; INST PANEL SIDE EXC. PTO MANUAL CONTROL(6WC) (B) GRAY	8-97406-000-4	01	1	1512-	●	●		●
336	16.081 COVER; INST PANEL SIDE EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) GRAY	8-97406-000-4	01	1	1512-			●
341	16.110 LID; FUSE BOX GRAY	8-97406-043-1	01	1	1012-1205	●	●	●	●
341	16.110 LID; FUSE BOX GRAY	8-97423-659-0	01	1	1206-	●	●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-98054-414-0	01	1	1012-	●	●	●	●
525	16.100 SCREW; CUP STAND CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1012-1012	●	●	●	●
525	16.100 SCREW; CUP STAND CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	03	1	1101-1212	●	●	●	●
525	16.100 SCREW; CUP STAND CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1301-	●	●	●	●
527	16.100 CLIP; INST CLUSTER EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 16.742 DARK GRAY	8-97098-326-0	01	1	1012-	●	●	●	●
569	16.100 HOLDER; CARD	8-97410-276-1	01	1	1012-	●	●	●	●
580	16.080 BRACKET; COVER EXC. CUP HOLDER<7KZ>	8-98091-546-0	01	1	1012-	●	●	●	●
689	09.743 SEAL; INST EXC. PTO MANUAL CONTROL(6WC)	8-98068-244-0	01	1	1012-1511	●		●	●
689	09.743 SEAL; INST EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-98068-244-0	01	1	1012-1511		●
689	09.743 SEAL; INST EXC. PTO MANUAL CONTROL(6WC)	8-98068-244-0	01	1	1512-	●	●		●
689	09.743 SEAL; INST EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-98068-244-0	01	1	1512-			●
696	16.085 BRACKET; KNEE	8-98098-126-0	01	1	1012-1109	●	●	●	●
696	16.085 BRACKET; KNEE	8-98071-234-0	01	1	1110-1211	●	●	●	●
696	16.085 BRACKET; KNEE	8-98201-847-0	01	1	1212-	●	●	●	●
697	16.080 PANEL; INST CENTER GRAY	8-97405-999-8	01	1	1012-1205	●	●	●	●
697	16.080 PANEL; INST CENTER GRAY	8-97423-657-1	01	1	1206-	●	●	●	●
698	16.085 BRACKET; INST BAR SIDE	8-98089-256-1	01	1	1012-	●	●	●	●
698	16.085 BRACKET; INST BAR SIDE	8-98089-257-1	01	1	1012-	●	●	●	●
699	16.081 HOOK; INST PANEL GRAY	8-97408-927-0	01	1	1012-	●	●	●	●
700	16.090 BOLT; HOOK SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●	●	●	●
700	16.090 BOLT; HOOK SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●	●	●	●
700	16.090 BOLT; HOOK SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●
703	16.085 SCREW; CENTER POCKET EXC. TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1012-1406	●
703	16.085 SCREW; CENTER POCKET EXC. TACHOGRAPH DIGITAL<EBB>, TACHOGRAPH140KM/H<SM8> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1012-1406		●
703	16.085 SCREW; CENTER POCKET 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1012-1406			●	●
703	16.085 SCREW; CENTER POCKET EXC. TACHOGRAPH DIGITAL<EBB> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1407-	●
703	16.085 SCREW; CENTER POCKET EXC. TACHOGRAPH DIGITAL<EBB>, TACHOGRAPH140KM/H<SM8> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1407-		●
703	16.085 SCREW; CENTER POCKET EXC. TACHOGRAPH 140KM/H<SM8> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1407-			●
703	16.085 SCREW; CENTER POCKET 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1407-				●
704	16.085 BRACKET; CENTER POCKET (B)	8-97585-616-2	02	1	1012-	●	●	●	●
704	16.085 BRACKET; CENTER POCKET EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) (C)	8-98107-549-0	02	1	1012-	●	●	●	●
704	16.085 BRACKET; CENTER POCKET EXC. TACHOGRAPH DIGITAL<EBB> (A)	8-97585-618-2	02	1	1012-	●	●
704	16.085 BRACKET; CENTER POCKET (A)	8-97585-618-2	02	1	1012-			●	●
705	16.100 SCREW; BRACKET CENTER POCKET 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1012-1012	●	●	●	●
705	16.100 SCREW; BRACKET CENTER POCKET EXC. TACHOGRAPH DIGITAL<EBB> 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1012-1012	●	●
705	16.100 SCREW; BRACKET CENTER POCKET 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1012-1012			●	●
705	16.100 SCREW; BRACKET CENTER POCKET M5X20 HEXALOBULAR SOCKET	8-98177-743-0	04	1	1101-1212	●	●	●	●
705	16.100 SCREW; BRACKET CENTER POCKET EXC. TACHOGRAPH DIGITAL<EBB> M5X20 HEXALOBULAR SOCKET	8-98177-743-0	04	1	1101-1212	●	●
705	16.100 SCREW; BRACKET CENTER POCKET M5X20 HEXALOBULAR SOCKET	8-98177-743-0	04	1	1101-1212			●	●
705	16.100 SCREW; BRACKET CENTER POCKET 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1301-	●	●	●	●
705	16.100 SCREW; BRACKET CENTER POCKET EXC. TACHOGRAPH DIGITAL<EBB> 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1301-	●	●
705	16.100 SCREW; BRACKET CENTER POCKET 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1301-			●	●
705	16.100 SCREW; BRACKET CENTER POCKET EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	1012-1012	●	●	●	●
705	16.100 SCREW; BRACKET CENTER POCKET EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) M5X20 HEXALOBULAR SOCKET	8-98177-743-0	01	1	1101-1212	●	●	●	●
705	16.100 SCREW; BRACKET CENTER POCKET EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	1301-	●	●	●	●
718	16.100 SEAL; COVER 5X30	8-98176-199-0	01	1	1206-	●	●	●	●
718	16.100 SEAL; COVER 8X80	8-98200-040-0	01	1	1110-	●	●	●	●
718	16.100 SEAL; COVER 4X35	8-98200-041-0	01	1	1110-	●	●	●	●
724	16.085 INSULATOR; INST PANEL	8-98200-042-0	01	1	1110-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
