7-20 — MIRROR AND MIRROR STAY (#36475) — 153 parça

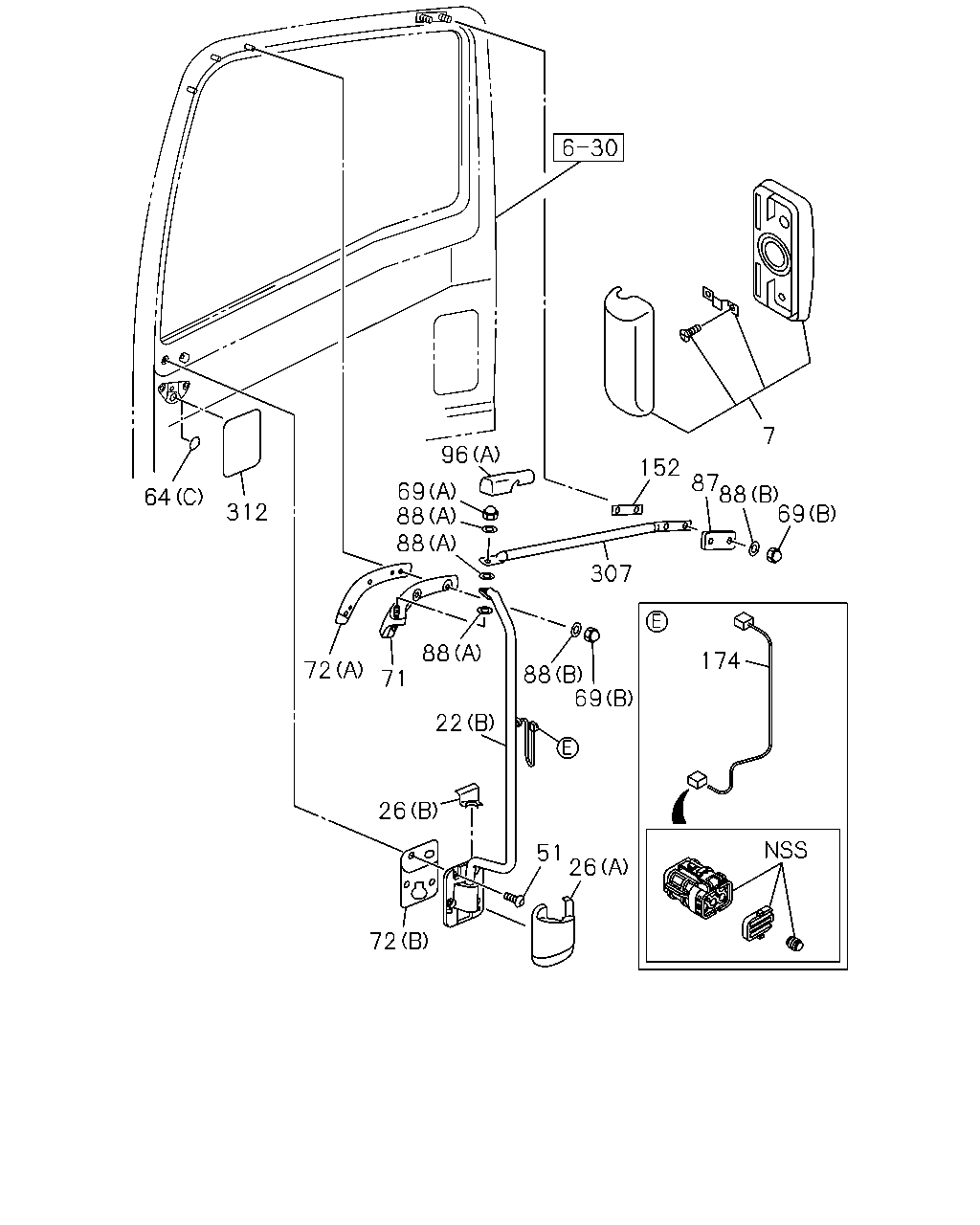

çizim 76565
7 96 152 87 88 69 69 88 88 64 312 307 88 174 72 88 69 71 22 26 51 26 72
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98043-060-1 01 1 1012- ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98043-176-1 01 1 1012- ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98043-058-1 01 1 1012- ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98043-174-1 01 1 1012- ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,SAUDI ARABIA EQUIPMENT(GH3),MIRRO R - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-991-1 01 1 1012- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,SAUDI ARABIA EQUIPMENT(GH3),MIRRO R - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-992-1 01 1 1012- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SAUDI ARABIA EQUIPMENT(GH3) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98043-056-2 01 1 1012- ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> SAUDI ARABIA EQUIPMENT(GH3) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98043-172-2 01 1 1012- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98075-044-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98188-201-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98075-045-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98188-202-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-514-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (B) 		8-98067-514-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-180-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (B) 		8-98166-180-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-515-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (B) 		8-98067-515-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-181-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (B) 		8-98166-181-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-030-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-176-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-031-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-177-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-037-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-178-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-038-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-179-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-510-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98067-510-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98158-846-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98158-846-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-511-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98067-511-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98158-847-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98158-847-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-512-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98067-512-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98158-848-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98158-848-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-513-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98067-513-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98158-849-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98158-849-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (A) 		8-98070-510-0 01 1 1012- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (A) 		8-98070-503-0 01 1 1012- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> EXC. UNDER MIRROR<RR9> (A) 		8-98070-508-0 01 1 1012- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 1012- ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 1012- ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 1012- ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 1012- ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1012- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1012- ● ● ●
51 16.069 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.323 M8X23 		8-97310-216-1 08 1 1012- ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1012- ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1012- ● ●
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1012- ● ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1012-1310 ● ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1311- ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1311- ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT 		8-98059-913-0 02 1 1012-1404 ● ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT 		1-09984-134-0 02 1 1405- ● ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 1012- ● ● ● ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-793-2 01 1 1012- ● ● ● ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-794-2 01 1 1012- ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 1012- ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 1012- ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 1012- ● ● ● ●
87 16.069 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-789-0 02 1 1012- ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1012- ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1012- ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 1012- ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (B) 		8-98027-552-2 02 1 1012- ● ● ●
152 16.069 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-786-0 02 1 1012- ● ● ● ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.480 		8-98079-660-0 02 1 1012-1301 ● ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MID DLE ARM<8ML> 02.480 		8-98079-660-0 02 1 1302-1601 ● ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.480 		8-98079-660-0 02 1 1602- ● ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-784-2 01 1 1012- ● ● ● ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-785-2 01 1 1012- ● ● ● ●
312 16.081 TAPE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98164-812-0 02 1 1012- ● ● ● ●

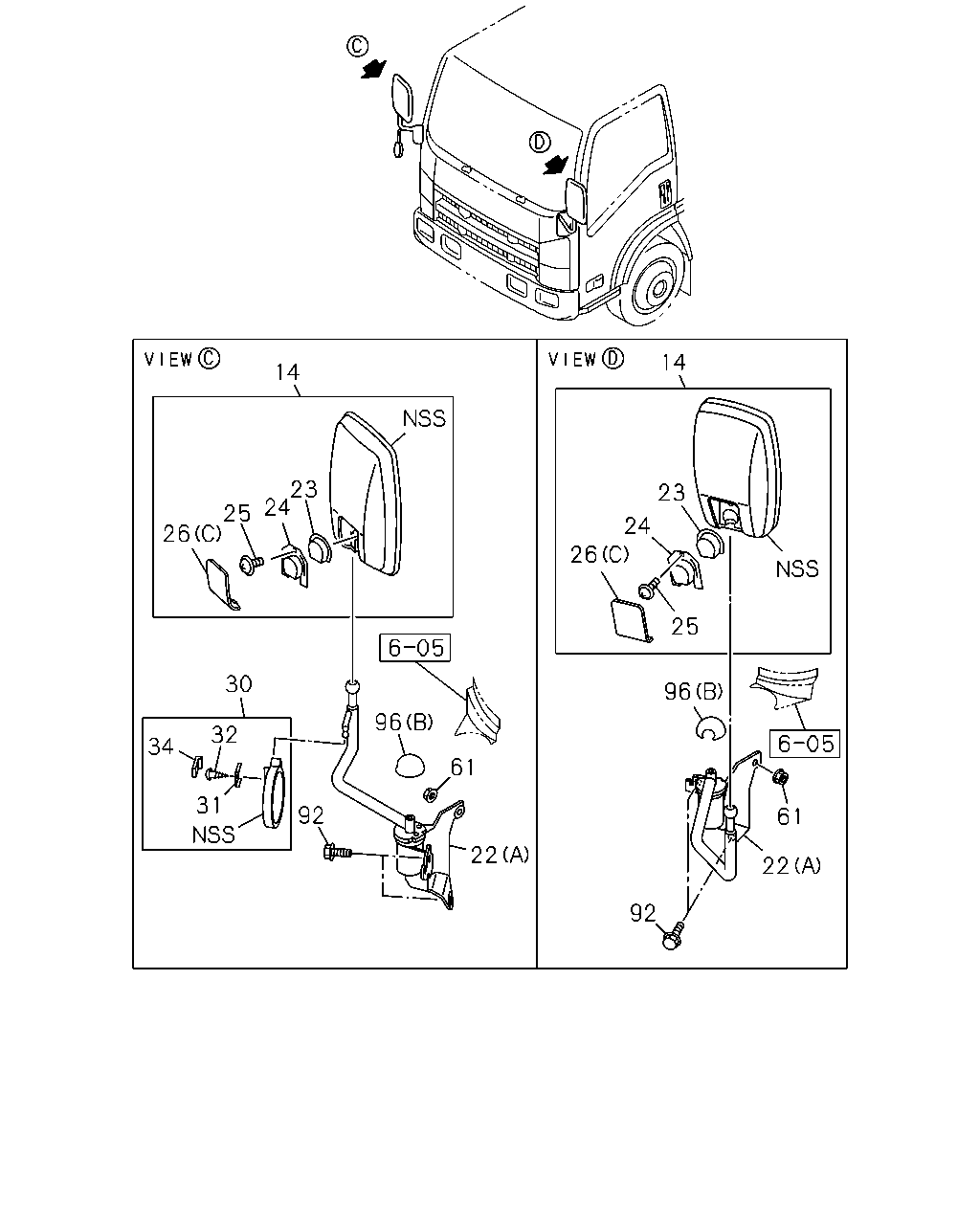

çizim 76567
14 14 23 24 23 25 26 24 26 25 30 96 96 32 34 61 31 92 61 22 22 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 		8-94262-542-3 01 1 1012- ● ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 		8-94262-542-3 01 1 1012- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98075-044-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98188-201-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98075-045-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98188-202-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-514-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (B) 		8-98067-514-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-180-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (B) 		8-98166-180-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-515-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (B) 		8-98067-515-1 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-181-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (B) 		8-98166-181-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-030-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-176-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-031-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-177-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-037-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-178-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-038-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-179-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-510-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98067-510-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98158-846-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98158-846-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-511-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98067-511-0 01 1 1012-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98158-847-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98158-847-0 01 1 1205- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-512-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98067-512-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98158-848-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98158-848-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98067-513-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98067-513-0 01 1 1012-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98158-849-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98158-849-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (A) 		8-98070-510-0 01 1 1012- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (A) 		8-98070-503-0 01 1 1012- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> EXC. UNDER MIRROR<RR9> (A) 		8-98070-508-0 01 1 1012- ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> T=2.0 		8-94262-545-0 01 1 1012- ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> T=2.0 		8-94262-545-0 01 1 1012- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> T=1.6 		8-94262-546-1 01 1 1012- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> T=1.6 		8-94262-546-1 01 1 1012- ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> M6X30 		8-94279-365-0 01 1 1012- ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> M6X30 		8-94279-365-0 01 1 1012- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 1012- ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 1012- ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 1012- ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 1012- ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1012- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1012- ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 		8-94262-625-2 01 1 1012- ● ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 		8-94262-631-0 01 1 1012- ● ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> M5X18 		8-94279-372-0 02 1 1012- ● ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 		8-94262-629-0 01 1 1012- ● ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 1012- ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S TAY<6TF> (B) 		8-98027-552-2 02 1 1012- ● ● ●

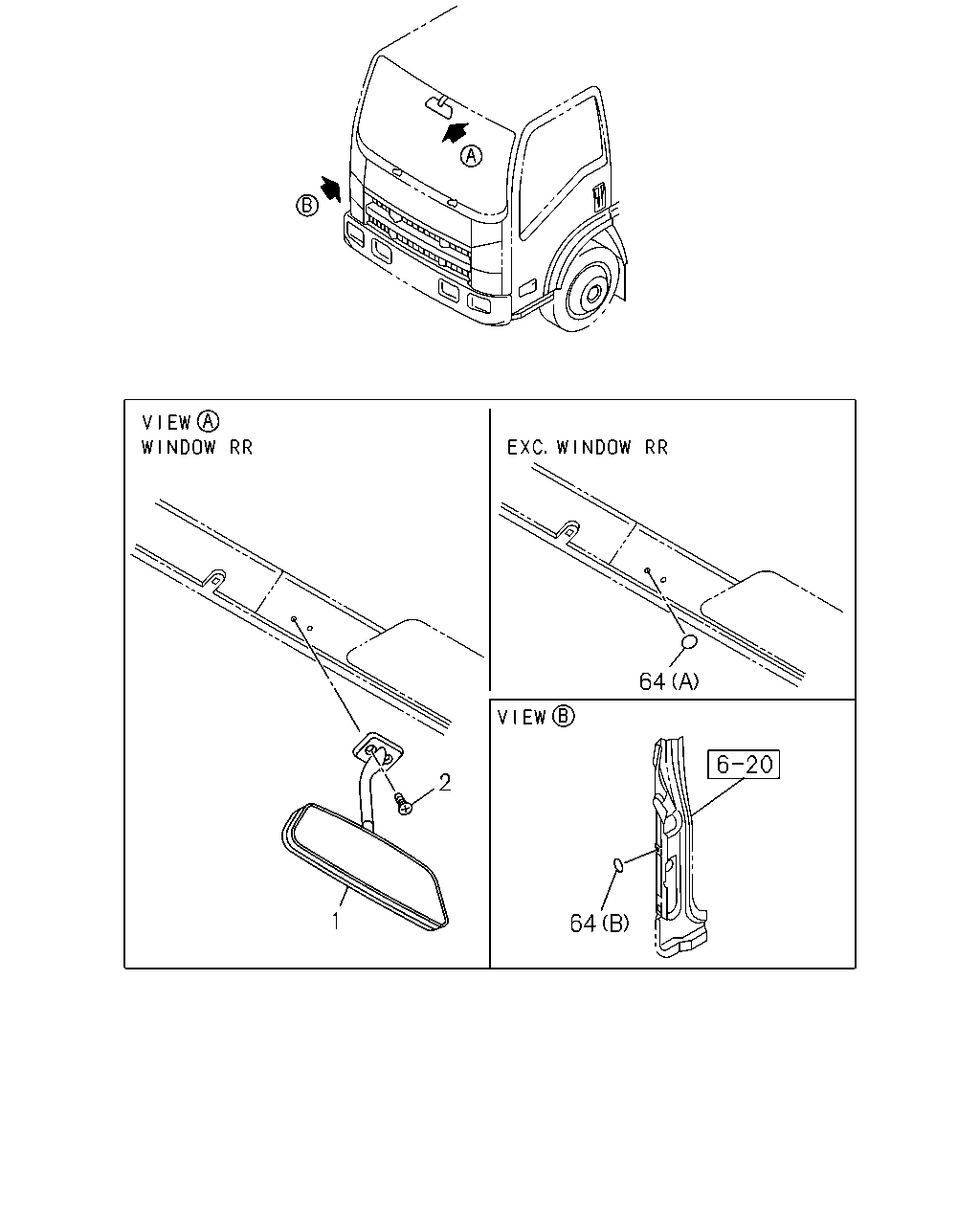

çizim 103342
64 2 1 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1012- ● ●
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 1012- ● ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 1012- ● ●
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 1012- ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1012- ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1012- ● ●
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1012- ● ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1012-1310 ● ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1311- ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1311- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
