◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#36469) — 106 parça

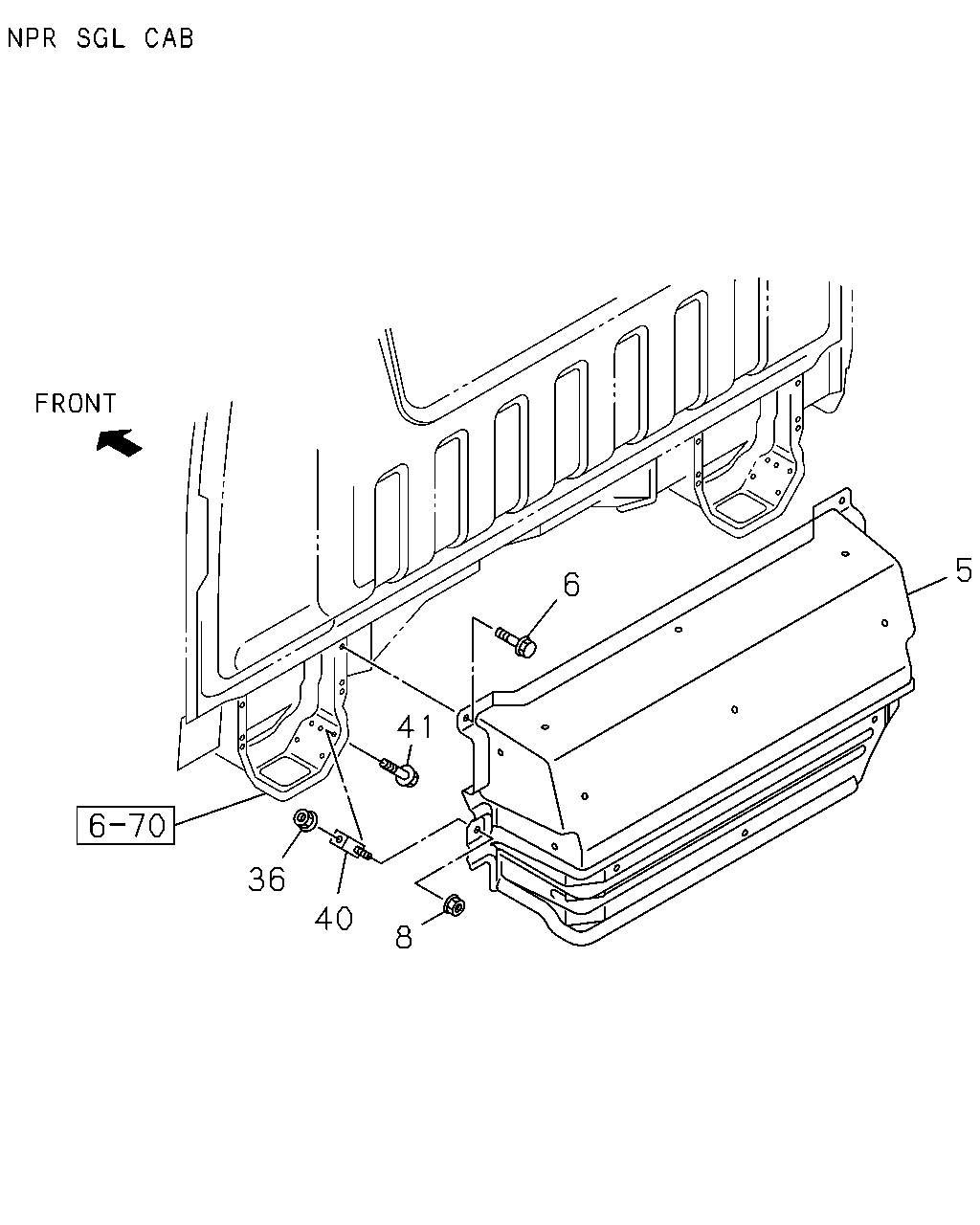

çizim 76060
5 6 41 36 40 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SM OOTHER(8GF) 		8-98011-595-0 01 1 1012-1406 ●
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98011-595-0 01 1 1407- ●
6 16.587 BOLT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SM OOTHER(8GF) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1012-1406 ●
6 16.587 BOLT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1407- ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SM OOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1012-1406 ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1407- ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SM OOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1406 ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407-1511 ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) COUNTRY ALGERIA<D2G> NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COUNTRY ALGERIA<D2G>,UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B),ALGE RIA EQUIPMENT(WN1),MINI BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SM OOTHER(8GF) 		8-97322-264-0 02 1 1012-1406 ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97322-264-0 02 1 1407-1511 ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) COUNTRY ALGERIA<D2G> NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97322-264-0 02 1 1512- ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COUNTRY ALGERIA<D2G>,UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B),ALGE RIA EQUIPMENT(WN1),MINI BUS CHASSIS VAR.2(6GQ) 		8-97322-264-0 02 1 1512- ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SM OOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1012-1406 ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1407-1511 ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) COUNTRY ALGERIA<D2G> NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COUNTRY ALGERIA<D2G>,UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B),ALGE RIA EQUIPMENT(WN1),MINI BUS CHASSIS VAR.2(6GQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●

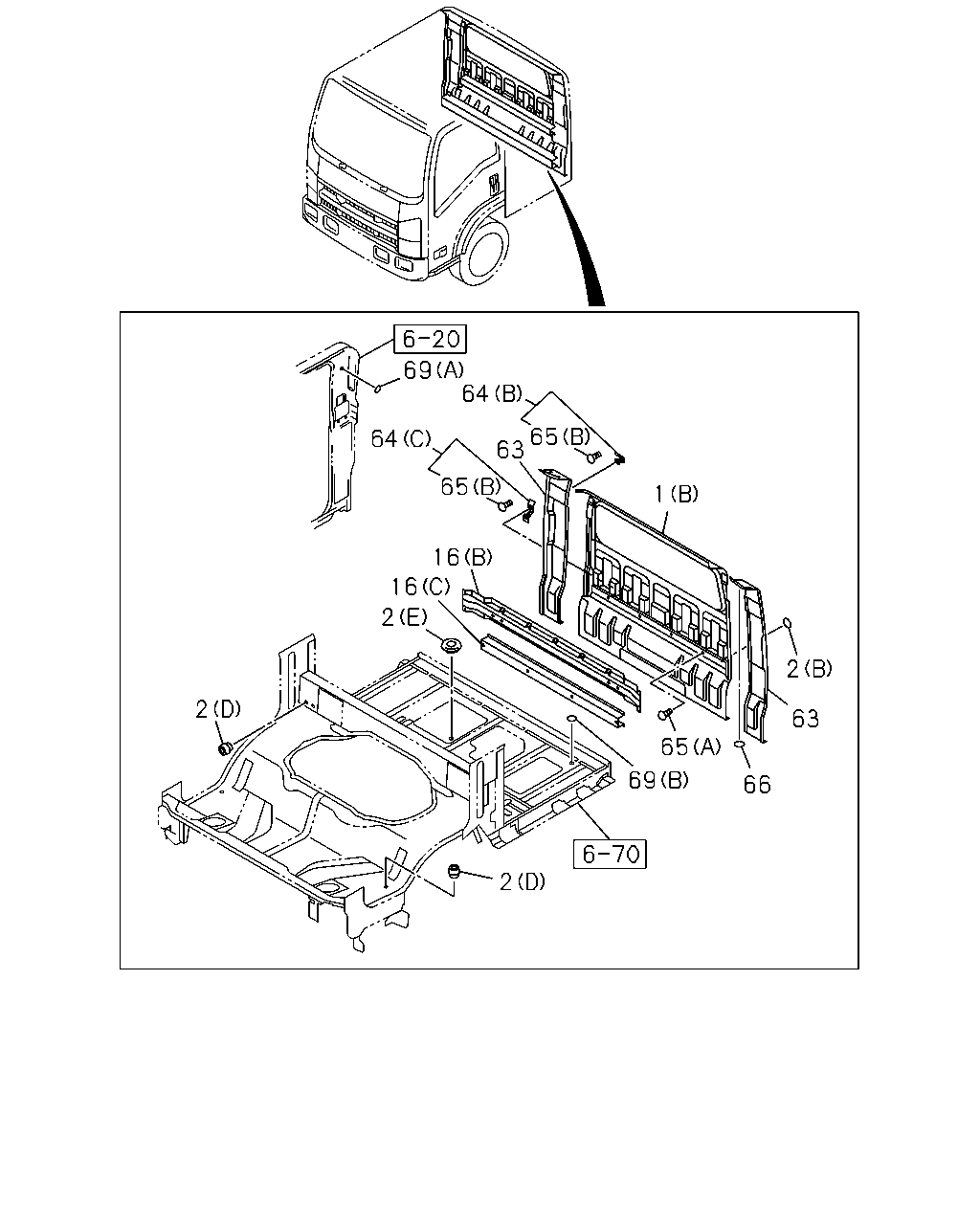

çizim 76562
69 64 65 63 64 65 1 16 16 2 2 2 63 65 69 66 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-304-3 01 1 1012- ●
1 16.587 PANEL; BACK OUTER
EXC. GLASS BACK LIGHT DELETE<8CA> (A) 		8-97584-304-3 01 1 1012- ● ●
1 16.587 PANEL; BACK OUTER
RR BODY FLAT BED<RS6>,DUMP BODY LONG SHINMEIWA<RS9> EXC. WINDOW RR<8LF> (A) 		8-97584-311-4 01 1 1012-1109 ●
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED<RS6>,DUMP BODY LONG SHINMEIWA<RS9> (A) 		8-97584-311-4 01 1 1012-1109 ●
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> (A) 		8-97584-311-4 01 1 1012-1109 ●
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> (A) 		8-97584-311-4 01 1 1110- ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 1012- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1012- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1012-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1012-1109 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1110- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1012-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1012-1109 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1110- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1012- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1012- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1012- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 1012- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 1012- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 1012- ●
63 16.575 PANEL; BACK,SIDE 8-97583-750-6 01 1 1012- ●
63 16.575 PANEL; BACK,SIDE 8-97583-751-5 01 1 1012- ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1012- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1012- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1012- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1012- ● ● ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED<RS6>,DUMP BODY LONG SHINMEIWA<RS9> EXC. GLASS BACK LIGHT DELETE<8CA> 16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1109 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED<RS6>,DUMP BODY LONG SHINMEIWA<RS9> EXC. WINDOW RR<8LF> 16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1109 ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1109 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D),GLASS BACK LIGHTDELETE<8CA> 16.588 (A) M6X12 		8-98013-112-0 04 1 1110- ●
65 17.198 STUD; BACK PANEL
DUMP CHASSIS(V4D) EXC. GLASS BACK LIGHT DELETE<8CA> 16.588 (A) M6X12 		8-98013-112-0 04 1 1110- ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 1110- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1012- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1012- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1012- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1012- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1012-1310 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1012-1310 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1311- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1311- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1012-1310 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1311- ● ● ●
69 16.587 SEAL; LOCATION HOLE
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.592 (A) OD=36 WHITE 		1-76778-007-0 02 1 1012- ●
69 16.587 SEAL; LOCATION HOLE
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1012- ●

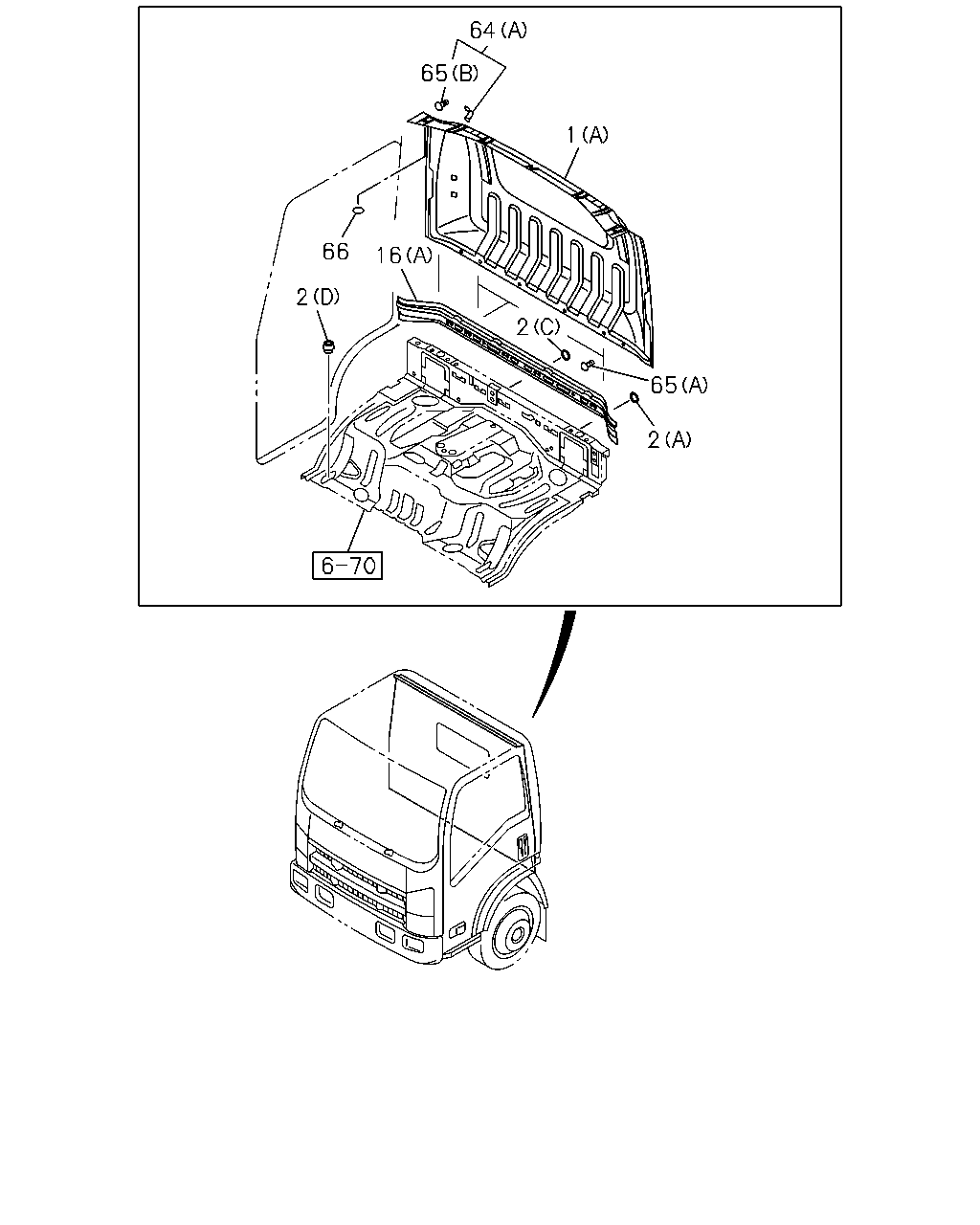

çizim 103339
64 65 1 66 16 2 2 65 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-304-3 01 1 1012- ●
1 16.587 PANEL; BACK OUTER
EXC. GLASS BACK LIGHT DELETE<8CA> (A) 		8-97584-304-3 01 1 1012- ● ●
1 16.587 PANEL; BACK OUTER
RR BODY FLAT BED<RS6>,DUMP BODY LONG SHINMEIWA<RS9> EXC. WINDOW RR<8LF> (A) 		8-97584-311-4 01 1 1012-1109 ●
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED<RS6>,DUMP BODY LONG SHINMEIWA<RS9> (A) 		8-97584-311-4 01 1 1012-1109 ●
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> (A) 		8-97584-311-4 01 1 1012-1109 ●
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> (A) 		8-97584-311-4 01 1 1110- ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 1012- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1012- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1012-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1012-1109 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1110- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1012-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1012-1109 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1110- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1012- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1012- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1012- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 1012- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 1012- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 1012- ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1012- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1012- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1012- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1012- ● ● ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED<RS6>,DUMP BODY LONG SHINMEIWA<RS9> EXC. GLASS BACK LIGHT DELETE<8CA> 16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1109 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED<RS6>,DUMP BODY LONG SHINMEIWA<RS9> EXC. WINDOW RR<8LF> 16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1109 ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1109 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D),GLASS BACK LIGHTDELETE<8CA> 16.588 (A) M6X12 		8-98013-112-0 04 1 1110- ●
65 17.198 STUD; BACK PANEL
DUMP CHASSIS(V4D) EXC. GLASS BACK LIGHT DELETE<8CA> 16.588 (A) M6X12 		8-98013-112-0 04 1 1110- ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 1110- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1012- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1012- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1012- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1012- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1012-1310 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1012-1310 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1311- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1311- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1012-1310 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1311- ● ● ●
