◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#36456) — 29 parça

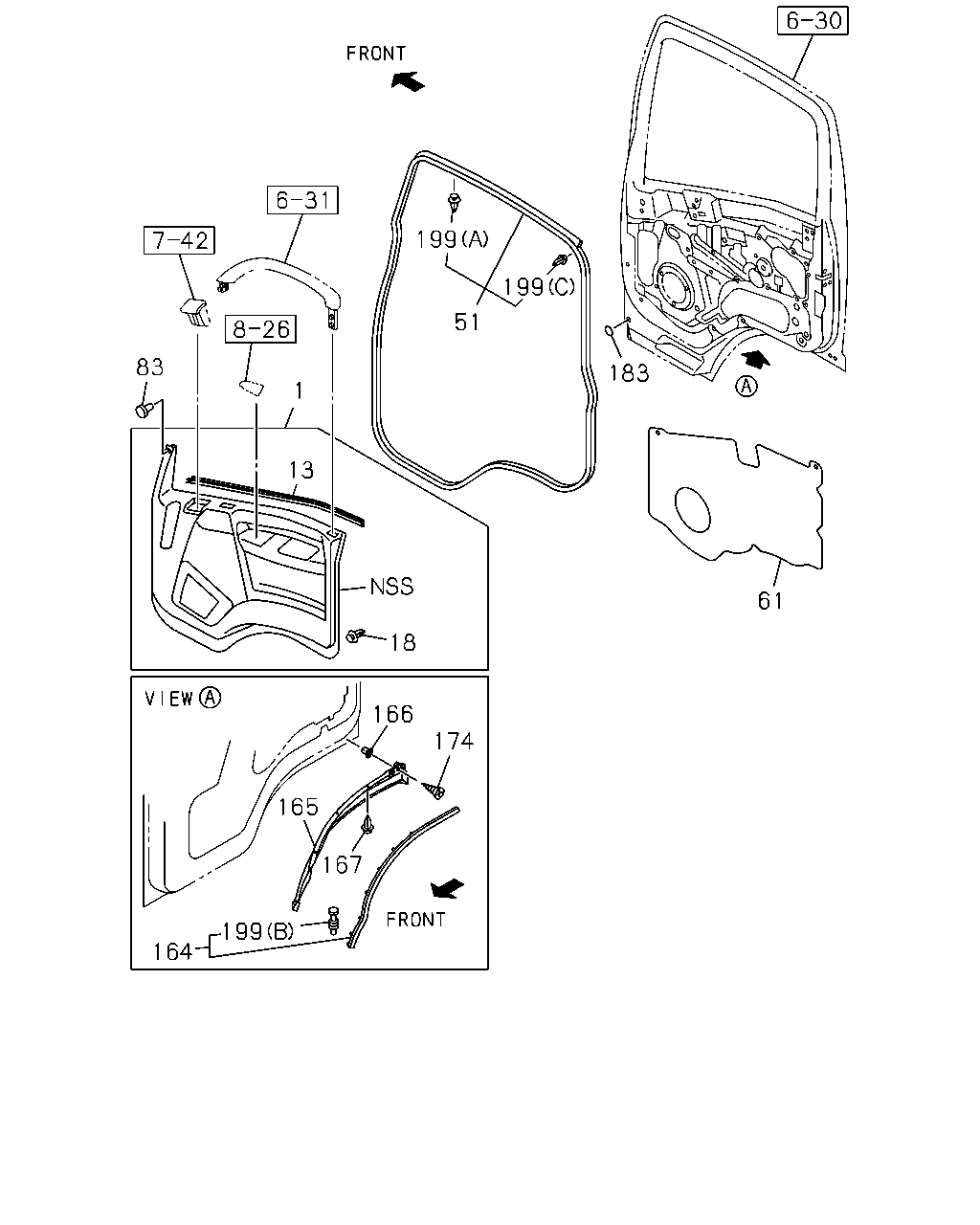

çizim 76032
199 199 51 183 83 1 13 61 18 166 174 165 167 199 164
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.165 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 1012- ●
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 1012- ● ●
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97405-304-6 01 1 1012- ●
1 16.165 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 1012- ●
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-306-6 01 1 1012- ● ●
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97405-306-6 01 1 1012- ●
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 1012- ● ●
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97405-305-6 01 1 1012- ●
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-307-6 01 1 1012- ● ●
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97405-307-6 01 1 1012- ●
13 16.165 SEAL; DOOR TRIM 8-98029-201-1 01 1 1012- ● ● ● ●
13 16.165 SEAL; DOOR TRIM 8-98029-202-1 01 1 1012- ● ● ● ●
18 16.165 CLIP; DOOR PAD 8-98004-025-0 14 1 1012- ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR 8-98029-198-3 01 1 1012- ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR 8-98029-199-3 01 1 1012- ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-98029-394-2 01 1 1012- ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-98029-395-2 01 1 1012- ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
EXC. 2-SPEAKER SYSTEM BASE<U95> 		8-98029-396-0 02 1 1012- ● ● ● ●
83 16.165 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 1012- ● ● ● ●
164 16.165 SEAL; SUB,SILL SIDE 8-98022-741-1 02 1 1012- ● ● ● ●
165 16.165 LINER; DOOR LWR 8-98022-738-1 01 1 1012- ● ● ● ●
165 16.165 LINER; DOOR LWR 8-98022-739-1 01 1 1012- ● ● ● ●
166 16.155 PLUG; HOLE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1012- ● ● ● ●
167 16.165 CLIP; LINER
08.155 D6X16 PUSH RIVET 		1-09983-105-0 06 1 1012- ● ● ● ●
174 16.175 SCREW; LINER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1012- ● ● ● ●
183 16.165 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ● ● ●
199 16.165 CLIP; SEAL
(B) NATURAL 		8-98027-457-0 20 1 1012- ● ● ● ●
199 16.165 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1012- ● ● ● ●
199 16.165 CLIP; SEAL
(C) RED 		8-98062-271-0 02 1 1012- ● ● ● ●
