6-01 — FRONT BUMPER (#36447) — 75 parça

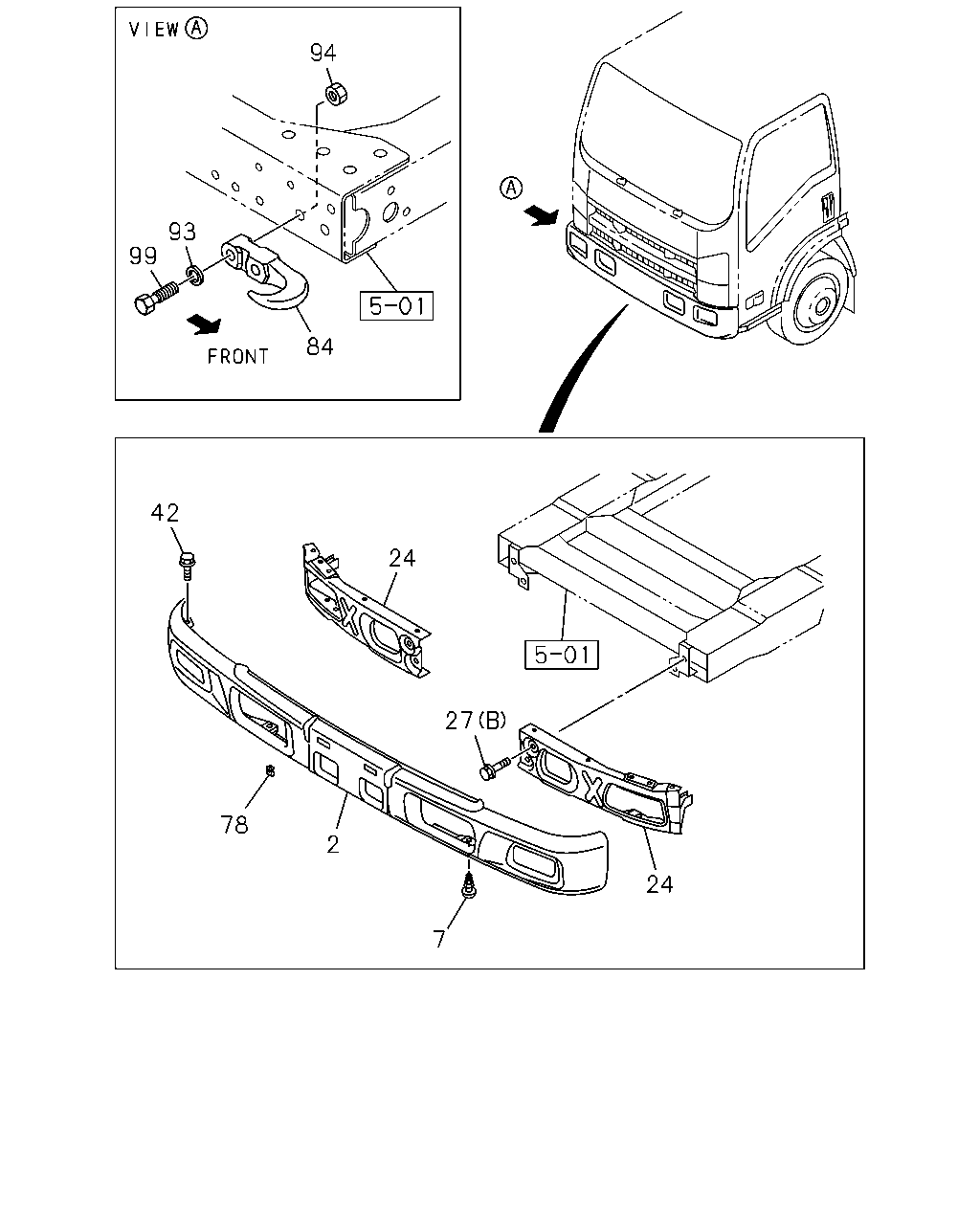

94 84 93 99 42 24 27 78 2 7 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	07.831 BUMPER; FRT,CENTER FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER	8-98055-079-2	01	1	1012-	●	●	●	●
2	07.831 BUMPER; FRT,CENTER FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY	8-97405-627-5	01	1	1012-	●	●	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE	8-97405-628-5	01	1	1012-	●	●	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE	8-97405-629-5	01	1	1012-	●	●	●	●
2	07.831 BUMPER; FRT,CENTER FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER	8-98055-080-2	01	1	1012-	●	●	●	●
2	07.831 BUMPER; FRT,CENTER FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY	8-97405-634-5	01	1	1012-	●	●	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE	8-97405-635-5	01	1	1012-	●	●	●	●
2	07.831 BUMPER; FRT,CENTER BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE	8-97405-636-5	01	1	1012-	●	●	●	●
7	07.833 SCREW; FRT BUMPER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M6X20 TAPPING	8-98082-975-0	03	1	1012-	●	●		●
24	07.869 BAR; FRT BUMPER 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS)	8-98025-184-5	01	1	1012-1012	●	●	●	●
24	07.869 BAR; FRT BUMPER	8-98025-184-5	01	1	1101-	●	●	●	●
24	07.869 BAR; FRT BUMPER 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS)	8-98025-185-5	01	1	1012-1012	●	●	●	●
24	07.869 BAR; FRT BUMPER	8-98025-185-5	01	1	1101-	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1409-1511			●
27	07.833 BOLT; BUMPER TO BACK BAR ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G> 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1512-			●
27	07.833 BOLT; BUMPER TO BACK BAR COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1512-			●
27	07.833 BOLT; BUMPER TO BACK BAR 4JJ1-TCS ENG(LFB) 16.679 (A) M8X20 W/PL WASHER	8-98031-841-0	02	1	1012-	●
27	07.833 BOLT; BUMPER TO BACK BAR 4JJ1-TCC ENG(RDU) 16.679 (A) M8X20 W/PL WASHER	8-98031-841-0	02	1	1012-		●		●
27	07.833 BOLT; BUMPER TO BACK BAR (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1012-1301	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1302-	●	●	●	●
42	07.874 BOLT; BUMPER 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 08.143 M6X16 W/LK&PL WASHER	0-52010-616-0	10	1	1012-1012	●	●	●	●
42	07.874 BOLT; BUMPER 08.143 M6X16 W/LK&PL WASHER	0-52010-616-0	10	1	1101-	●	●	●	●
78	07.874 NUT; SPIRE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) M6	8-98029-416-0	02	1	1012-1012	●	●	●	●
78	07.874 NUT; SPIRE M6	8-98029-416-0	02	1	1101-	●	●	●	●
84	07.068 HOOK	8-97387-665-0	01	1	1012-	●	●	●	●
93	07.068 WASHER; LK,HOOK 06.174 ID=14.2	0-91510-814-0	02	1	1012-	●	●	●	●
94	07.068 NUT; HOOK 07.833 M14	0-91110-514-0	01	1	1012-	●	●	●	●
99	07.039 BOLT; HOOK M14X55	0-10956-455-0	02	1	1012-1103	●	●	●	●
99	07.039 BOLT; HOOK M14X55	8-97301-262-0	02	1	1104-	●	●	●	●

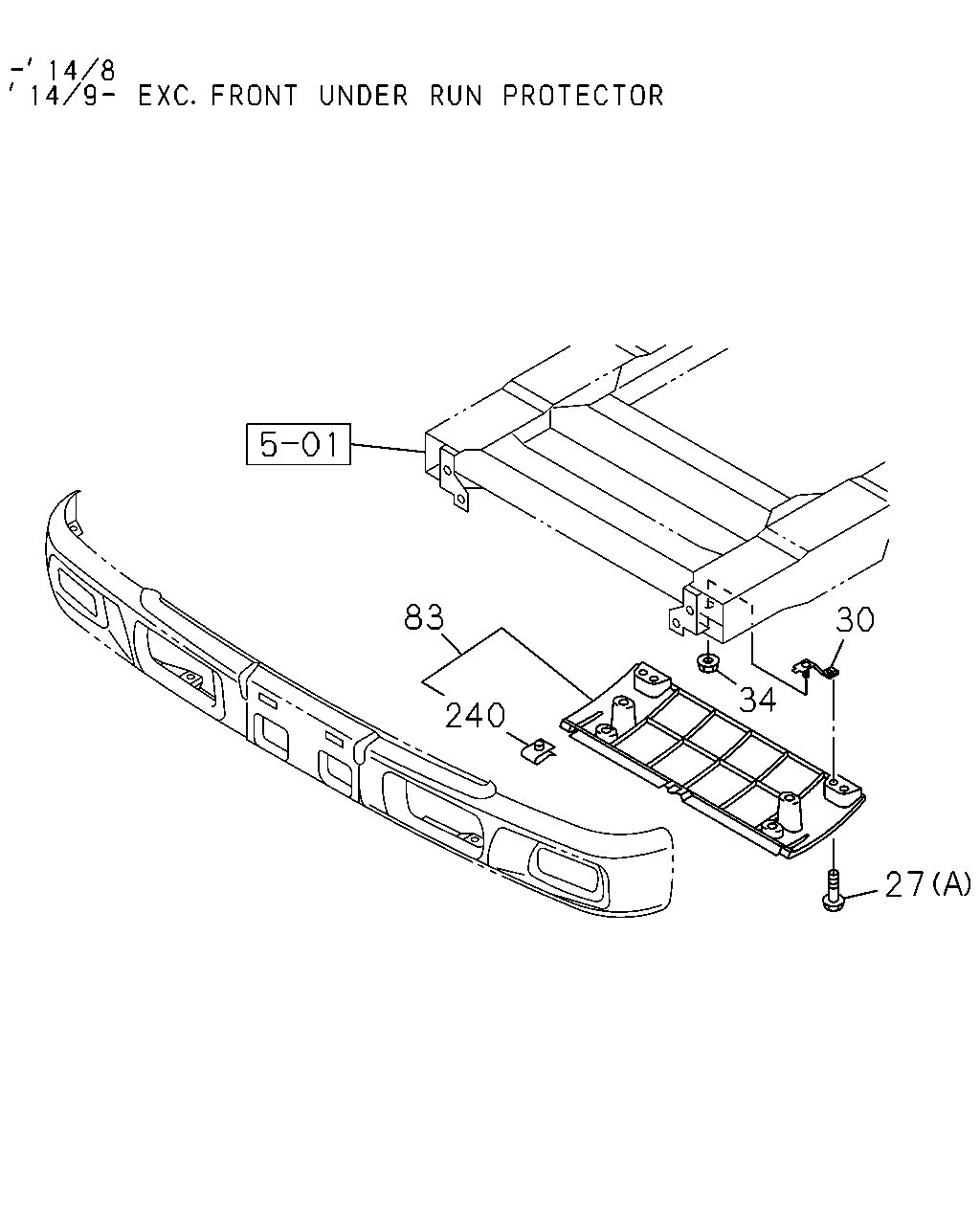

83 240 30 34 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
27	07.833 BOLT; BUMPER TO BACK BAR COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1409-1511			●
27	07.833 BOLT; BUMPER TO BACK BAR ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G> 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1512-			●
27	07.833 BOLT; BUMPER TO BACK BAR COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1512-			●
27	07.833 BOLT; BUMPER TO BACK BAR 4JJ1-TCS ENG(LFB) 16.679 (A) M8X20 W/PL WASHER	8-98031-841-0	02	1	1012-	●
27	07.833 BOLT; BUMPER TO BACK BAR 4JJ1-TCC ENG(RDU) 16.679 (A) M8X20 W/PL WASHER	8-98031-841-0	02	1	1012-		●		●
27	07.833 BOLT; BUMPER TO BACK BAR (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1012-1301	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1302-	●	●	●	●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC)	8-98025-203-0	01	1	1012-1301	●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC)	8-98025-203-0	01	1	1012-1301		●		●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC)	8-98025-203-0	01	1	1302-	●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) EXC. PTO MANUAL CONTROL(6WC)	8-98025-203-0	01	1	1302-		●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98025-203-0	01	1	1302-		●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC)	8-98025-203-0	01	1	1302-				●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCS ENG(LFB) EXC. PTO MANUAL CONTROL(6WC)	8-98025-203-0	02	1	1012-	●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-98025-203-0	02	1	1012-		●
30	07.869 BRACKET; FRT BUMPER 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC)	8-98025-203-0	02	1	1012-				●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1301	●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1301		●		●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1302-	●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCC ENG(RDU) DUMP CHASSIS(V4D) EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1302-		●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	1302-		●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1302-				●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCS ENG(LFB) EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●
34	07.874 NUT; BRKT,BUMPER 4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-				●
83	07.833 GUIDE; AIR,FRT BUMPER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98025-201-1	01	1	1012-	●	●		●
240	07.833 NUT; AIR GUIDE,FRT BUMPER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 16.550	1-71996-035-1	03	1	1012-	●	●		●

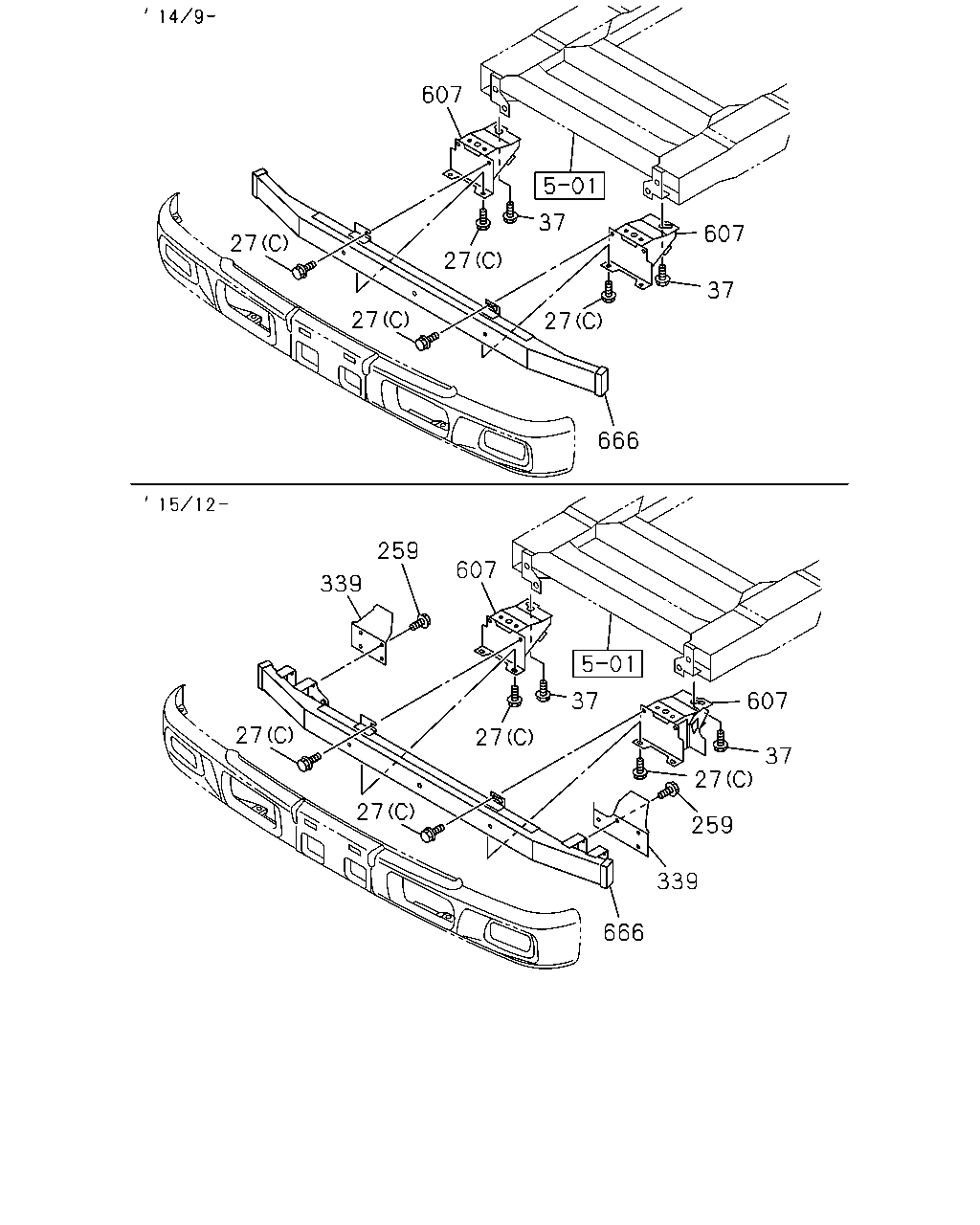

607 37 607 37 27 666 27 27 27 259 607 37 27 339 27 27 339 666 259 27 607 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
27	07.833 BOLT; BUMPER TO BACK BAR COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1409-1511			●
27	07.833 BOLT; BUMPER TO BACK BAR ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G> 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1512-			●
27	07.833 BOLT; BUMPER TO BACK BAR COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3) 00.029 (C) M10X30 FLANGE	0-28651-030-0	06	1	1512-			●
27	07.833 BOLT; BUMPER TO BACK BAR 4JJ1-TCS ENG(LFB) 16.679 (A) M8X20 W/PL WASHER	8-98031-841-0	02	1	1012-	●
27	07.833 BOLT; BUMPER TO BACK BAR 4JJ1-TCC ENG(RDU) 16.679 (A) M8X20 W/PL WASHER	8-98031-841-0	02	1	1012-		●		●
27	07.833 BOLT; BUMPER TO BACK BAR (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1012-1301	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (B) M10X30 W/TORQUES	8-98092-250-0	04	1	1302-	●	●	●	●
37	01.263 BOLT; BRKT TO BUMPER LWR COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3) 09.003 M12X35 FLANGE	0-28651-235-0	06	1	1409-1511			●
37	01.263 BOLT; BRKT TO BUMPER LWR ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G> 09.003 M12X35 FLANGE	0-28651-235-0	06	1	1512-			●
37	01.263 BOLT; BRKT TO BUMPER LWR COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3) 09.003 M12X35 FLANGE	0-28651-235-0	06	1	1512-			●
259	07.833 BOLT; COVER FRONT UNDER RUN PROTECTOR<EBE> ALGERIA EQUIPMENT(WN1) EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G> 01.531 M8X20 FLANGE	0-28650-820-0	08	1	1512-			●
339	07.831 COVER; SNOW GUARD FRONT UNDER RUN PROTECTOR<EBE> ALGERIA EQUIPMENT(WN1) EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G>	8-98126-477-0	01	1	1512-			●
339	07.831 COVER; SNOW GUARD FRONT UNDER RUN PROTECTOR<EBE> ALGERIA EQUIPMENT(WN1) EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G>	8-98200-449-1	01	1	1512-			●
607	07.869 BRACKET FRONT UNDER RUN PROTECTOR<EBE> ALGERIA EQUIPMENT(WN1) EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G>	8-98199-136-0	01	1	1512-			●
607	07.869 BRACKET ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G>	8-98199-135-0	01	1	1512-			●
607	07.869 BRACKET COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3)	8-98281-194-0	01	1	1409-			●
607	07.869 BRACKET COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3)	8-98292-827-0	01	1	1409-			●
666	07.831 PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> ALGERIA EQUIPMENT(WN1) EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G>	8-98199-128-0	01	1	1512-			●
666	07.831 PROTECTOR; UNDER COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> SAUDI ARABIA EQUIPMENT(GH3)	8-98232-025-0	01	1	1409-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
