◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65F - REAR LEAF SPRING ▶
4-65F — REAR LEAF SPRING (#36440) — 24 parça

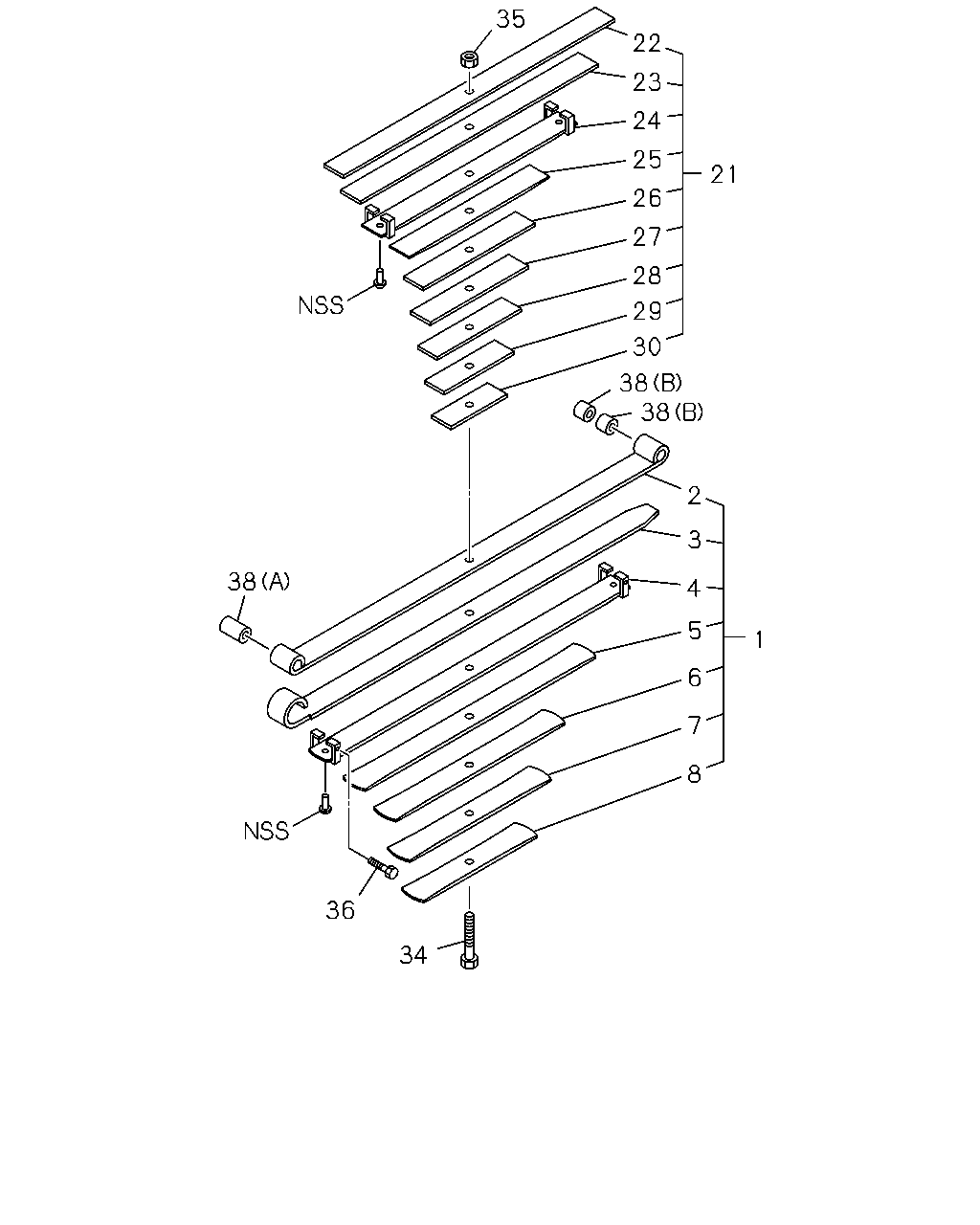

çizim 77070
35 22 23 24 25 21 26 27 28 29 30 38 38 2 3 38 4 5 1 6 7 8 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-309-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-310-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-311-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-312-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-313-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-314-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-315-0 01 1 -
8 07.505 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-316-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-317-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-318-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-319-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-320-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-321-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-322-0 01 1 -
27 07.505 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-323-0 01 1 -
28 07.505 SPRING; LEAF,NO 7,RR SUB
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-324-0 01 1 -
29 07.505 SPRING; LEAF,NO 8,RR SUB
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-325-0 01 1 -
30 07.505 SPRING; LEAF,NO 9,RR SUB
ASM PART: A = 8-98025-047-0, 98025047 		8-98094-326-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=170 ASM PART: A = 8-98025-047-0, 98025047 		8-98095-012-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98025-047-0, 98025047 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: A = 8-98025-047-0, 98025047 		8-98040-332-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98025-047-0, 98025047 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: A = 8-98025-047-0, 98025047 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98025-047-0, 98025047 		8-97074-826-0 01 1 -
