◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51405 - NHR(RHD)EURO4 W/DOC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#36428) — 48 parça

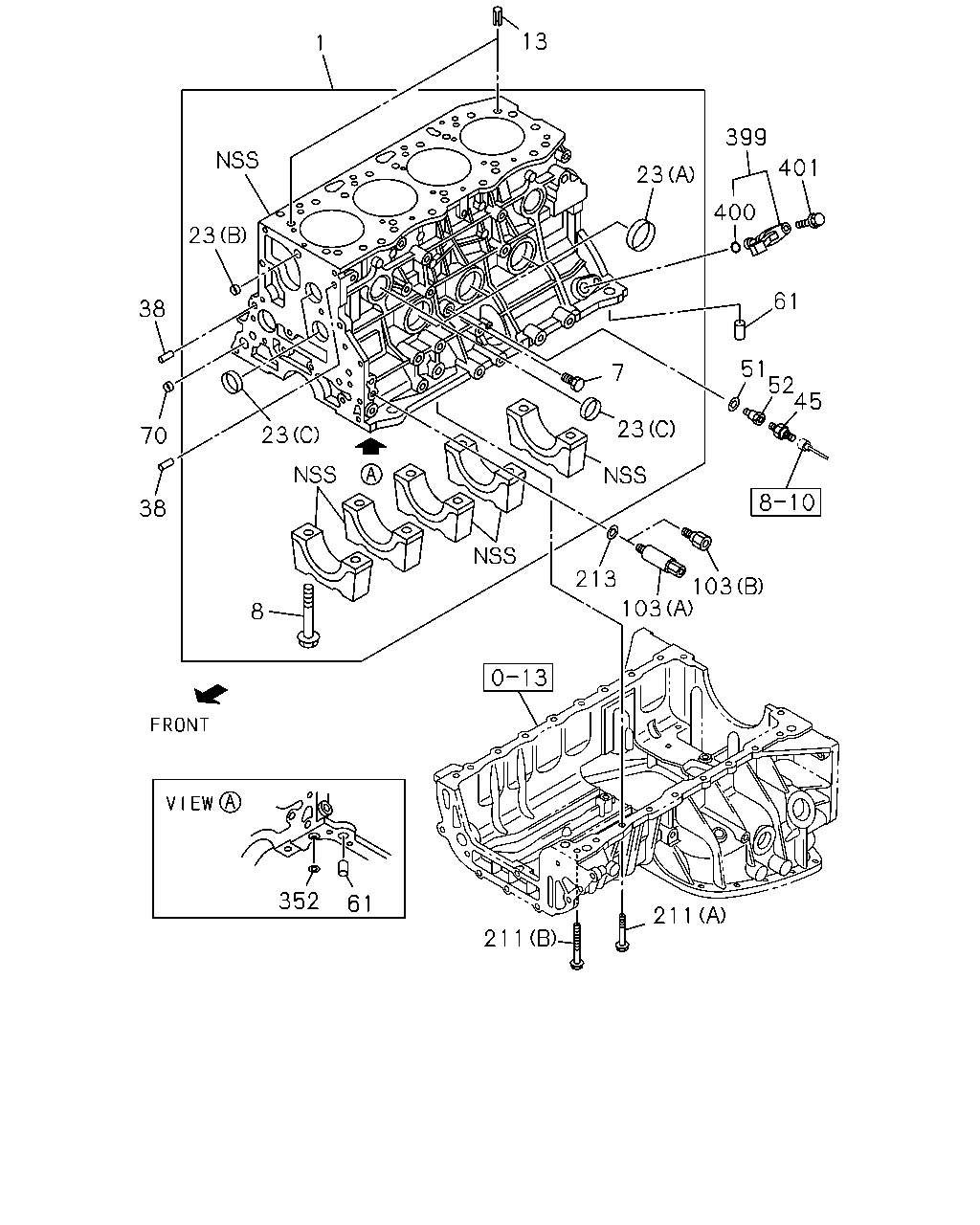

çizim 114863
211 211 103 213 45 52 51 61 401 400 399 23 7 23 8 23 70 38 23 38 13 1 352 61 103
BalonParca AdiParca NoAdetTipApplied Date
1 00.033 BLOCK ASM; CYL 8-97386-617-5 01 1 1202-1209
1 00.033 BLOCK ASM; CYL 8-98240-635-1 01 1 1210-
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1202-1510
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 02 1 1511-
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1202-1510
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 20 1 1511-
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1202-
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1202-1510
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1511-
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1202-1510
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1511-
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 02 1 1202-
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1202-1510
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1511-
38 00.206 PIN; TIMING GEAR CASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 1202-
45 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1202-
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 1202-
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-98089-872-0 01 1 1202-1501
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 1502-
61 00.206 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 1202-
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1202-
103 01.531 NIPPLE; OIL FEED
(A) 		8-97316-983-4 01 1 1202-1212
103 01.531 NIPPLE; OIL FEED
00.293 (B) 		8-94469-596-0 01 1 1301-
211 01.428 BOLT; CRANKCASE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 19 1 1202-
211 01.428 BOLT; CRANKCASE
00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1202-
213 01.531 GASKET; NIPPLE,OIL FEED
08.955 ID=10.2 OD=16.0 		9-09571-410-0 01 1 1202-
352 01.429 GASKET; C/BL TO CRANKCASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-116-0 01 1 1202-
399 00.724 SENSOR; CRANKSHAFT POSITION
02.361 		8-97312-108-1 01 1 1202-
400 00.724 GASKET; CRANKSHAFT POSITION SENS
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1202-
401 00.724 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1202-

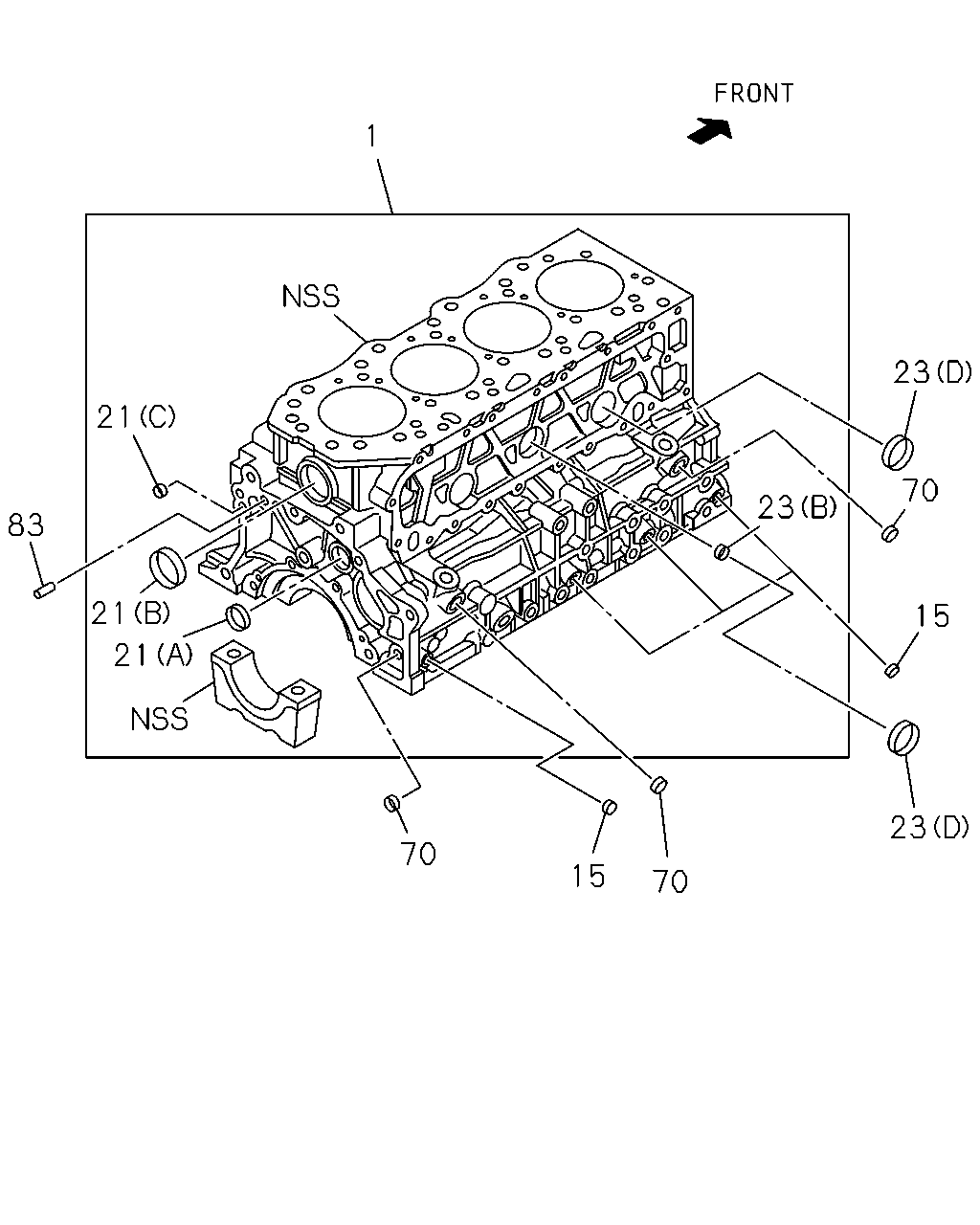

çizim 114870
23 15 70 23 23 70 15 70 1 21 83 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 00.033 BLOCK ASM; CYL 8-97386-617-5 01 1 1202-1209
1 00.033 BLOCK ASM; CYL 8-98240-635-1 01 1 1210-
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 04 1 1202-
21 00.034 CUP; SEALING,RR
00.253 (C) OD=12.3 		5-09600-013-0 01 1 1202-1510
21 00.034 CUP; SEALING,RR
00.253 (C) OD=12.3 		5-09600-013-0 01 1 1511-
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1202-1510
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1511-
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1202-1510
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1511-
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1202-1510
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1511-
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1202-1510
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1511-
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 02 1 1202-
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1202-1510
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1511-
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1202-
83 00.685 PIN; FLYWHEEL HSG
08.939 OD=10 L=32 		9-08161-032-0 01 1 1202-
