0-22 — ENGINE MOUNTING (#36420) — 33 parça

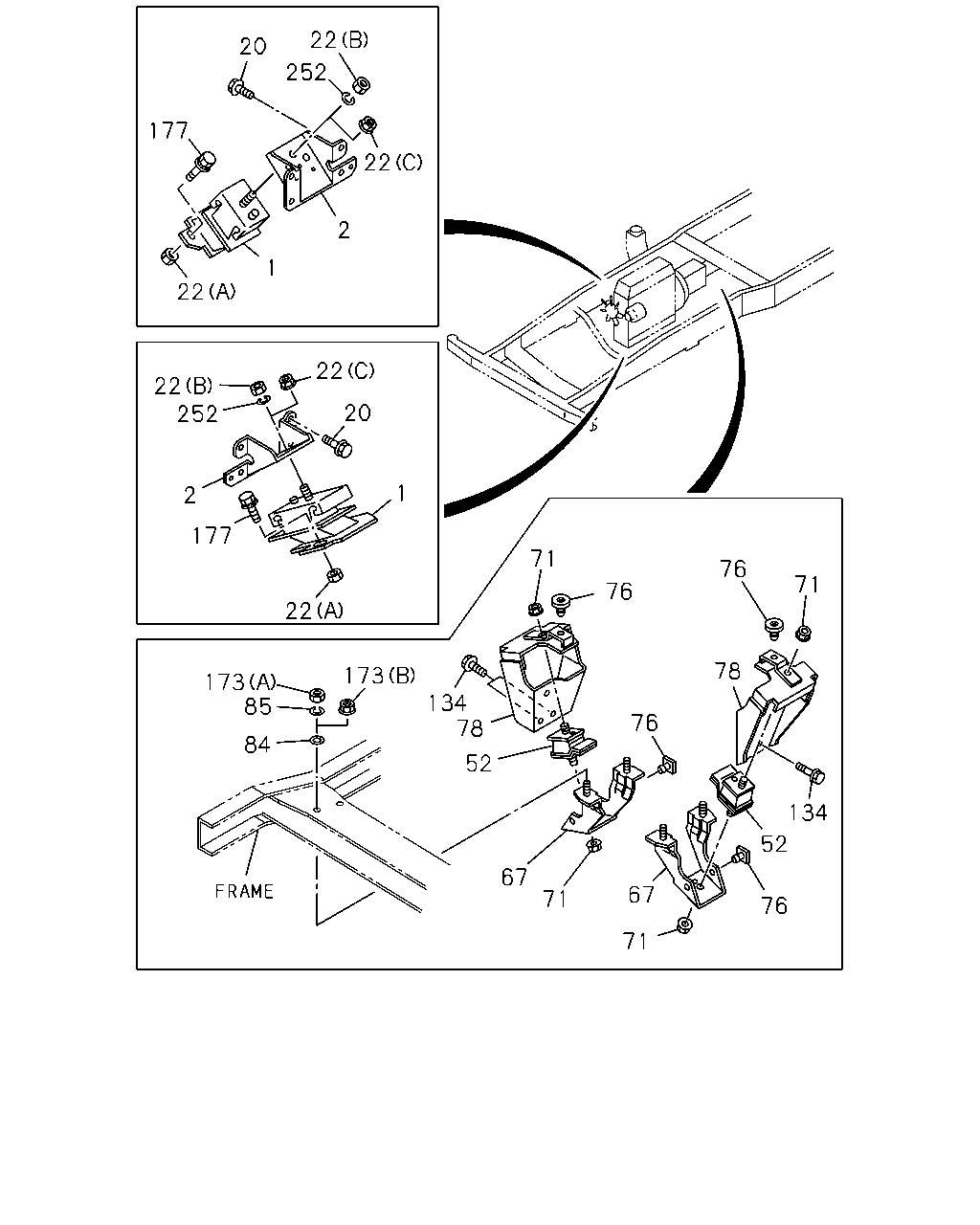

çizim 20980
22 20 252 177 22 2 1 22 22 22 252 20 1 2 177 71 76 71 76 22 78 173 173 85 134 78 76 84 52 134 52 67 67 71 76 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97120-497-1 01 1 0211- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97120-498-1 01 1 0211- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97201-669-0 01 1 0211- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97201-671-0 01 1 0211- ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0211- ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0211-0512 ● ●
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0601- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0211-0512 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0601-0612 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (C) M12 FLANGE 		0-91180-112-0 02 1 0701- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0211- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-566-0 01 1 0211-0306 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-0 01 1 0307- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-0 01 1 0211- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0211-0602 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 06 1 0211- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-562-0 01 1 0211- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-563-0 01 1 0211- ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0211-0605 ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0211-0603 ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0604-0610 ● ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0211-0512 ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0601- ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 (A) M10 		9-09110-410-0 04 1 0211-0512 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 (A) M10 		0-91110-510-0 04 1 0601-0610 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0611- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0211- ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0211-0603 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0612 ● ●
