0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#36419) — 67 parça

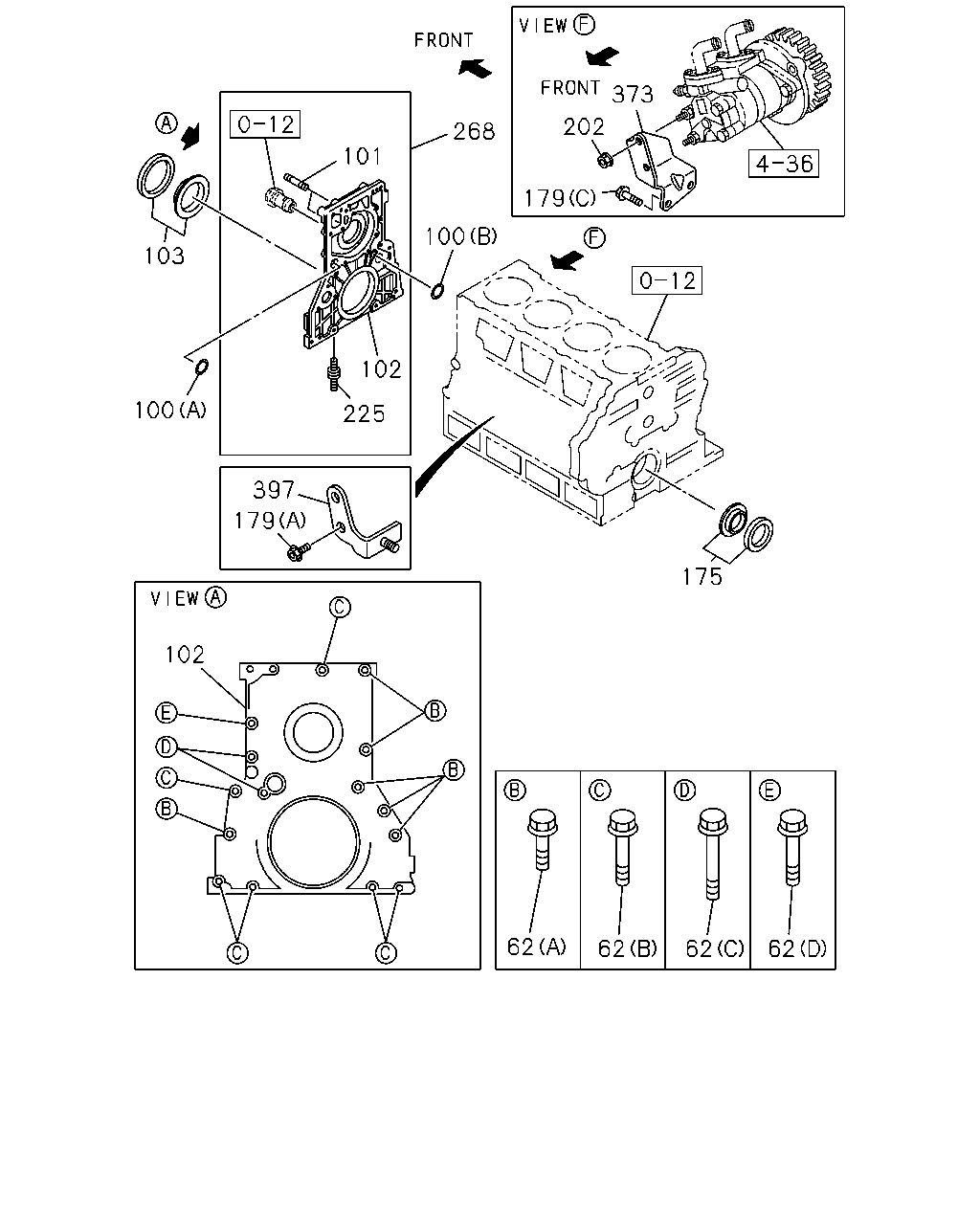

373 202 268 101 179 100 103 102 100 225 397 179 175 102 62 62 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	00.206 BOLT; COVER 02.559 (A) M8X25 FLANGE	0-28680-825-0	06	1	0211-0512	●	●
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●
62	00.206 BOLT; COVER 02.183 (B) M8X35 FLANGE	0-28680-835-0	05	1	0211-0512	●	●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	05	1	0601-0706	●	●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	0707-0708	●	●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	05	1	0709-0807	●	●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	0808-	●	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0211-0706	●	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	02	1	0707-0708	●	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0709-0807	●	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	02	1	0808-	●	●
62	00.206 BOLT; COVER 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0306-0512	●	●
62	00.206 BOLT; COVER 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0211-	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0211-	●	●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0211-	●	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	9-04110-818-0	01	1	0211-0604	●	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	0605-	●	●
102	00.137 RETAINER; FRT	8-97212-677-0	01	1	0211-0807	●	●
102	00.137 RETAINER; FRT	8-98081-351-1	01	1	0808-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0211-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0211-	●	●
179	00.206 BOLT; BRKT ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0501		●
179	00.206 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●	●
179	00.206 BOLT; BRKT 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●
179	00.206 BOLT; BRKT 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
179	00.206 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE	0-28181-018-0	02	1	0303-		●
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0311		●
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0312-0602		●
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0211-	●	●
268	00.206 COVER; FRT	8-97305-076-1	01	1	0211-0807	●	●
268	00.206 COVER; FRT	8-98079-080-1	01	1	0808-	●	●
373	00.206 BRACKET; PUMP HYDRO BRAKE BOOSTER<7QQ>	8-97149-333-0	01	1	0303-		●
397	00.206 BRACKET; CONNECTOR ENGINE POWER N-SPEC(7QV)	8-97163-042-0	01	1	0211-0501		●

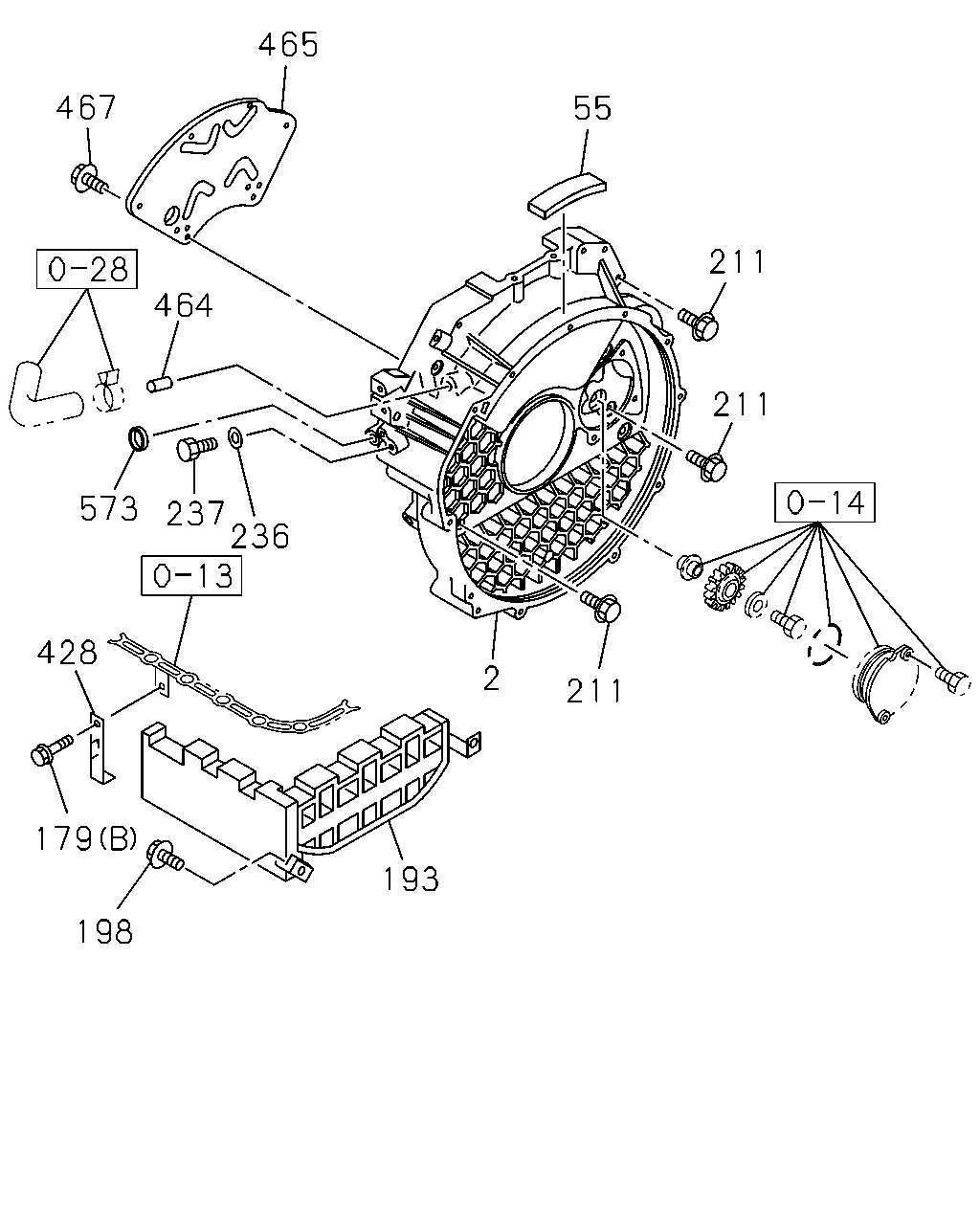

465 467 55 211 464 211 573 237 236 428 2 211 179 193 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.683 HOUSING; FLYWHEEL	8-97241-584-0	01	1	0211-0308	●	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-4	01	1	0309-	●	●
55	00.206 COVER; NOISE SHIELD	8-97215-618-0	01	1	0211-	●
179	00.206 BOLT; BRKT ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0501		●
179	00.206 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●	●
179	00.206 BOLT; BRKT 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●
179	00.206 BOLT; BRKT 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
179	00.206 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 00.004 (C) M10X18 FLANGE	0-28181-018-0	02	1	0303-		●
193	01.428 SPACER; STAY TO OIL,PAN EXC. ENGINE POWER N-SPEC(7QV)	8-97224-867-2	01	1	0211-0501	●	●
193	01.428 SPACER; STAY TO OIL,PAN	8-97224-867-2	01	1	0502-	●	●
198	01.428 BOLT; STAY TO OIL PAN EXC. ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE	0-28181-220-0	02	1	0211-0501	●	●
198	01.428 BOLT; STAY TO OIL PAN 02.483 M12X20 FLANGE	0-28181-220-0	02	1	0502-0512	●	●
198	01.428 BOLT; STAY TO OIL PAN 03.162 M12X20 FLANGE	0-28151-220-0	02	1	0601-	●	●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	0211-0512	●	●
211	00.669 BOLT; HSG 00.029 M10X40 FLANGE	0-28751-040-0	01	1	0601-	●	●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	0211-0302	●	●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	0303-	●
211	00.669 BOLT; HSG EXC. HYDRO BRAKE BOOSTER<7QQ> M8X65 W/PL WASHER	8-94388-781-0	02	1	0303-		●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0211-	●	●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	0211-	●	●
211	00.669 BOLT; HSG HYDRO BRAKE BOOSTER<7QQ> M8X20,M8X65 L=90	8-97200-622-1	02	1	0303-		●
236	00.669 GASKET; FLYWHEEL HSG ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-0501		●
237	00.686 PLUG; FLYWHEEL HSG ENGINE POWER N-SPEC(7QV) 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0211-0501		●
428	00.206 BRACKET; SPACER EXC. ENGINE POWER N-SPEC(7QV)	8-97215-647-0	01	1	0211-0501	●	●
428	00.206 BRACKET; SPACER	8-97215-647-0	01	1	0502-	●	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0211-	●	●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	0211-0308	●	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0309-	●	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0211-0507	●	●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0508-0805	●	●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	0806-	●	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0211-	●	●
