1 |

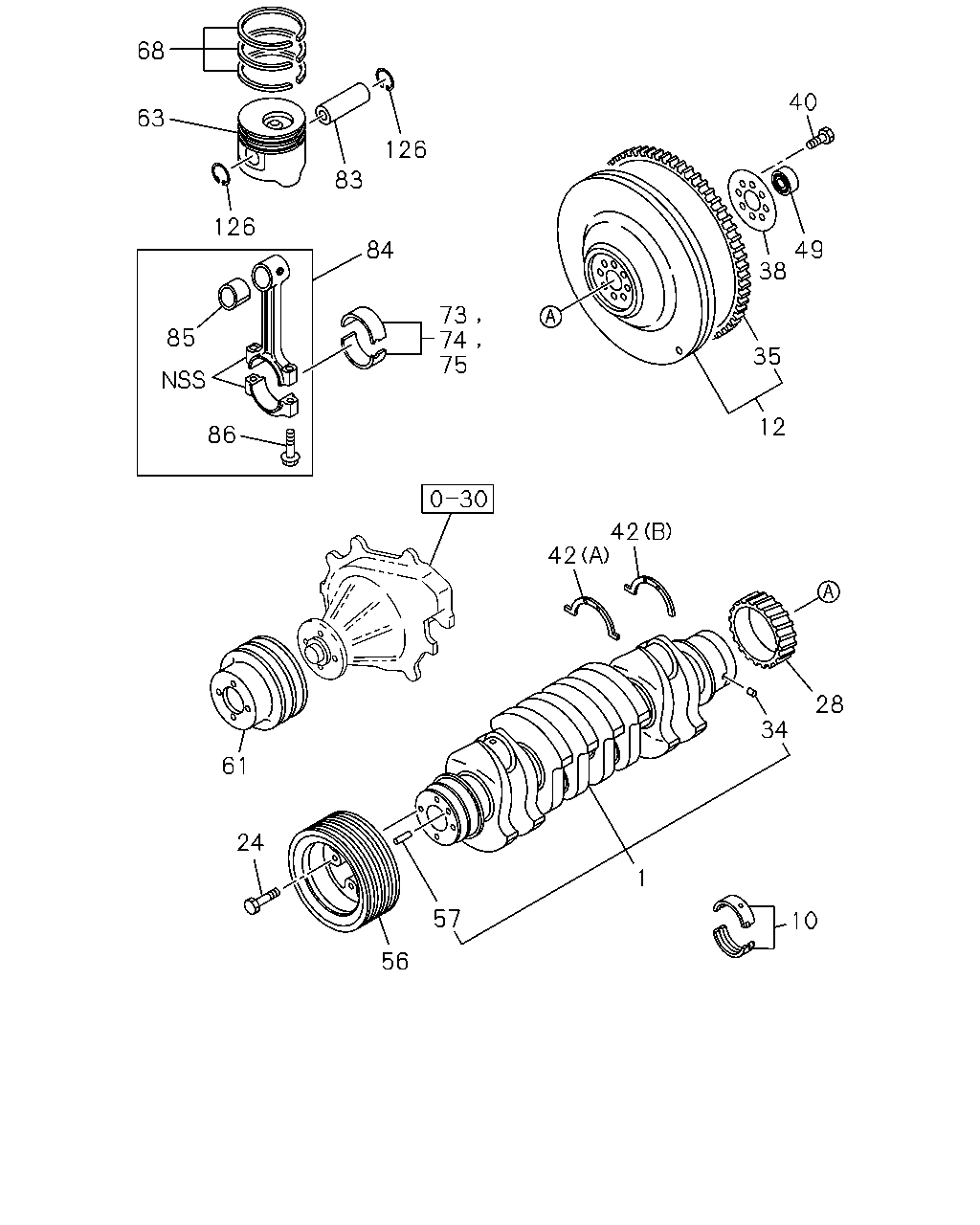

00.646 CRANKSHAFT
|
8-97112-981-3 |
01 |
1 |
0211- |
● |
● |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97219-456-0 |
05 |
1 |
0211-0303 |
● |
● |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97219-457-0 |
05 |
1 |
0211-0303 |
● |
● |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97219-458-0 |
05 |
1 |
0211-0303 |
● |
● |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-1 |
05 |
1 |
0308- |
● |
● |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-1 |
05 |
1 |
0308- |
● |
● |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-1 |
05 |
1 |
0308- |
● |
● |
| |
12 |
00.666 FLYWHEEL
|
8-97330-892-1 |
01 |
1 |
0211- |
● |
● |
| |
24 |
00.659 BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
0211- |
● |
● |
| |
28 |
00.728 GEAR; CR/SHF
Z=42
|
8-97109-626-1 |
01 |
1 |
0211- |
● |
● |
| |
34 |
00.738 PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0211- |
● |
● |
| |
35 |
00.673 GEAR; RING
Z=138
|
8-97046-366-1 |
01 |
1 |
0211- |
● |
● |
| |
38 |
00.862 WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
0211- |
● |
● |
| |
40 |
00.669 BOLT; FLYWHEEL
M16X42
|
8-97178-013-0 |
08 |
1 |
0211- |
● |
● |
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
0211-0703 |
● |
● |
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(A)
|
8-97386-548-0 |
01 |
1 |
0704- |
● |
● |
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
0211-0703 |
● |
● |
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(B)
|
8-97386-549-0 |
02 |
1 |
0704- |
● |
● |
| |
49 |
00.669 BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
0211- |
● |
● |
| |
56 |
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97222-031-3 |
01 |
1 |
0211- |
● |
● |
| |
57 |
00.662 PIN; PULLEY
08.939
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
0211-0212 |
● |
● |
| |
57 |
00.662 PIN; PULLEY
08.939
OD=8 L=20
|
9-08160-820-0 |
02 |
1 |
0301-0304 |
● |
● |
| |
57 |
00.662 PIN; PULLEY
00.862
OD=8 L=20
|
9-08150-820-0 |
02 |
1 |
0305- |
● |
● |
| |
61 |
00.659 PULLEY; FAN DRIVE
2-GROOVE
|
8-97174-757-3 |
01 |
1 |
0211- |
● |
● |
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-97176-657-2 |
04 |
1 |
0211- |
|
● |
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-97183-666-1 |
04 |
1 |
0211- |
● |
|
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97109-462-0 |
04 |
1 |
0211- |
|
● |
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97219-054-0 |
04 |
1 |
0211- |
● |
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97045-800-0 |
04 |
1 |
0211- |
● |
● |
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
GREEN
|
8-97045-801-0 |
04 |
1 |
0211- |
● |
● |
| |
74 |
00.616 METAL SET; CONN ROD,U/S=0.25
|
8-97175-127-0 |
04 |
1 |
0211- |
● |
● |
| |
75 |
00.616 METAL SET; CONN ROD,U/S=0.50
|
8-97175-128-0 |
04 |
1 |
0211- |
● |
● |
| |
83 |
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-589-1 |
04 |
1 |
0211- |
● |
● |
| |
84 |
00.603 ROD ASM; CONN
|
8-97135-032-5 |
04 |
1 |
0211- |
● |
● |
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-036-0 |
04 |
1 |
0211-0805 |
● |
● |
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
00.603
|
8-98075-233-0 |
04 |
1 |
0806-0905 |
● |
● |
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-98121-309-0 |
04 |
1 |
0906- |
● |
● |
| |
86 |
00.623 BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
0211-1004 |
● |
● |
| |
86 |
00.623 BOLT; CONNROD
M13X57 FLANGE
|
8-98091-141-0 |
08 |
1 |
1005- |
● |
● |
| |
126 |
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94318-798-2 |
08 |
1 |
0211- |
● |
● |
