0-13 — OIL PAN AND LEVEL GAUGE (#36416) — 25 parça

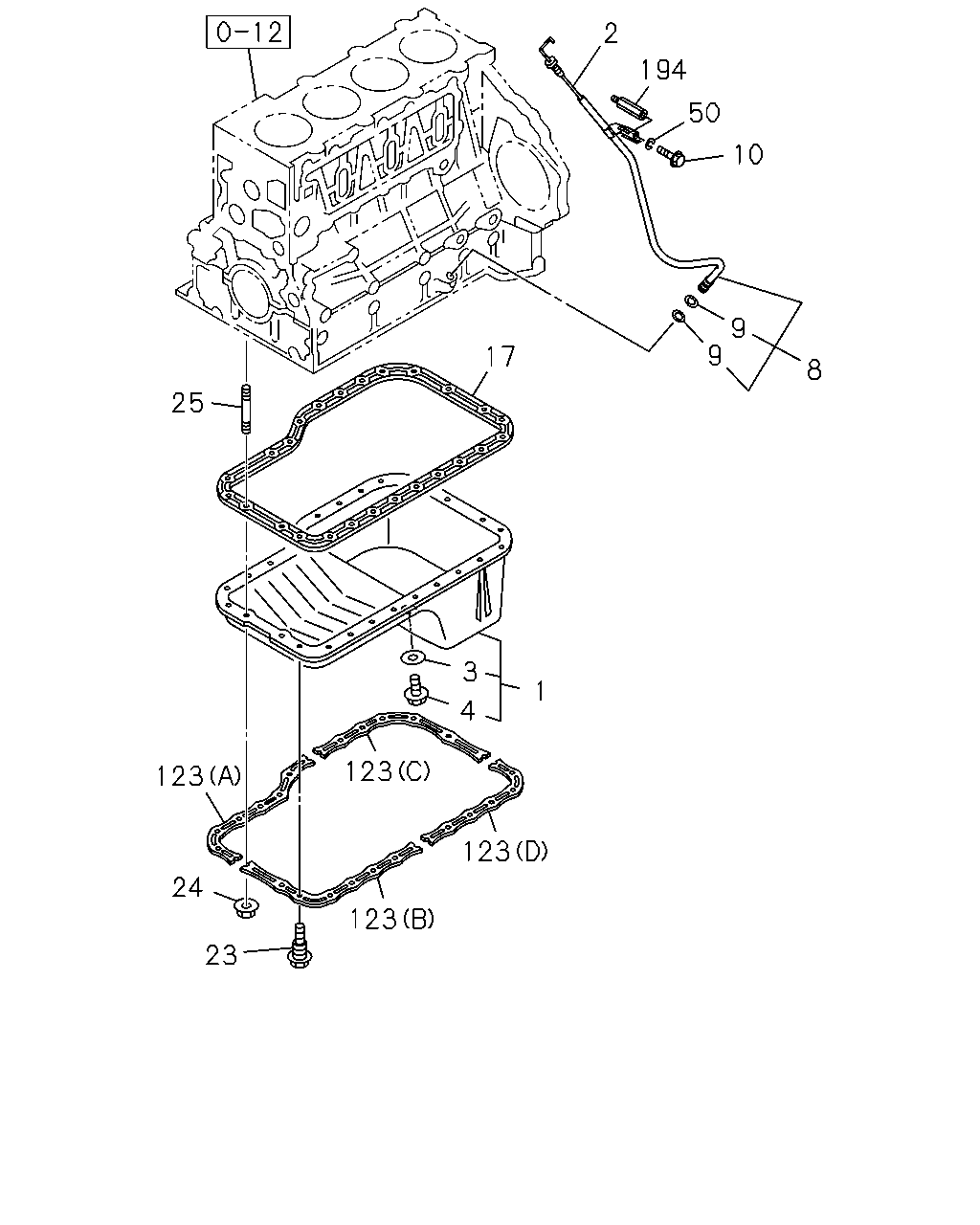

çizim 74626
2 194 50 10 9 9 17 8 25 3 1 4 123 123 123 24 123 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-97305-077-0 01 1 0211-0405 ● ●
1 01.426 PAN ASM; OIL 8-97385-249-0 01 1 0406- ● ●
2 01.516 GAUGE; OIL LEVEL 8-97094-460-2 01 1 0211- ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0211- ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0211- ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97101-907-1 01 1 0211- ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0211- ● ●
10 01.516 BOLT; GUIDE TUBE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0512 ● ●
10 01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97190-191-1 01 1 0211-0402 ● ●
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0403- ● ●
23 01.428 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0211- ● ●
24 01.453 NUT; OIL PAN
07.633 M8 FLANGE 		0-91150-108-0 13 1 0211-0602 ● ●
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE 		0-91180-108-0 13 1 0603- ● ●
25 01.453 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0211- ● ●
25 01.453 STUD; OIL PAN
01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0211- ● ●
50 01.516 WASHER; PL,GUIDE TUBE
04.085 ID=10.5 OD=22 		9-09164-610-0 01 1 0211-0605 ● ●
50 01.516 WASHER; PL,GUIDE TUBE
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0606- ● ●
123 01.516 RUBBER; SEAL OIL
ENGINE POWER N-SPEC(7QV) (D) 		8-97187-000-0 01 1 0211-0501 ●
123 01.516 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0211- ● ●
123 01.516 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0211- ● ●
123 01.516 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0211- ● ●
123 01.516 RUBBER; SEAL OIL
EXC. ENGINE POWER N-SPEC(7QV) (D) 		8-97212-596-0 01 1 0211-0501 ● ●
123 01.516 RUBBER; SEAL OIL
(D) 		8-97212-596-0 01 1 0502- ● ●
194 01.429 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0211- ● ●
