Isuzu WW
▶
TRUCKS
▶
NPR
▶
51356 - NPR/NQR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶

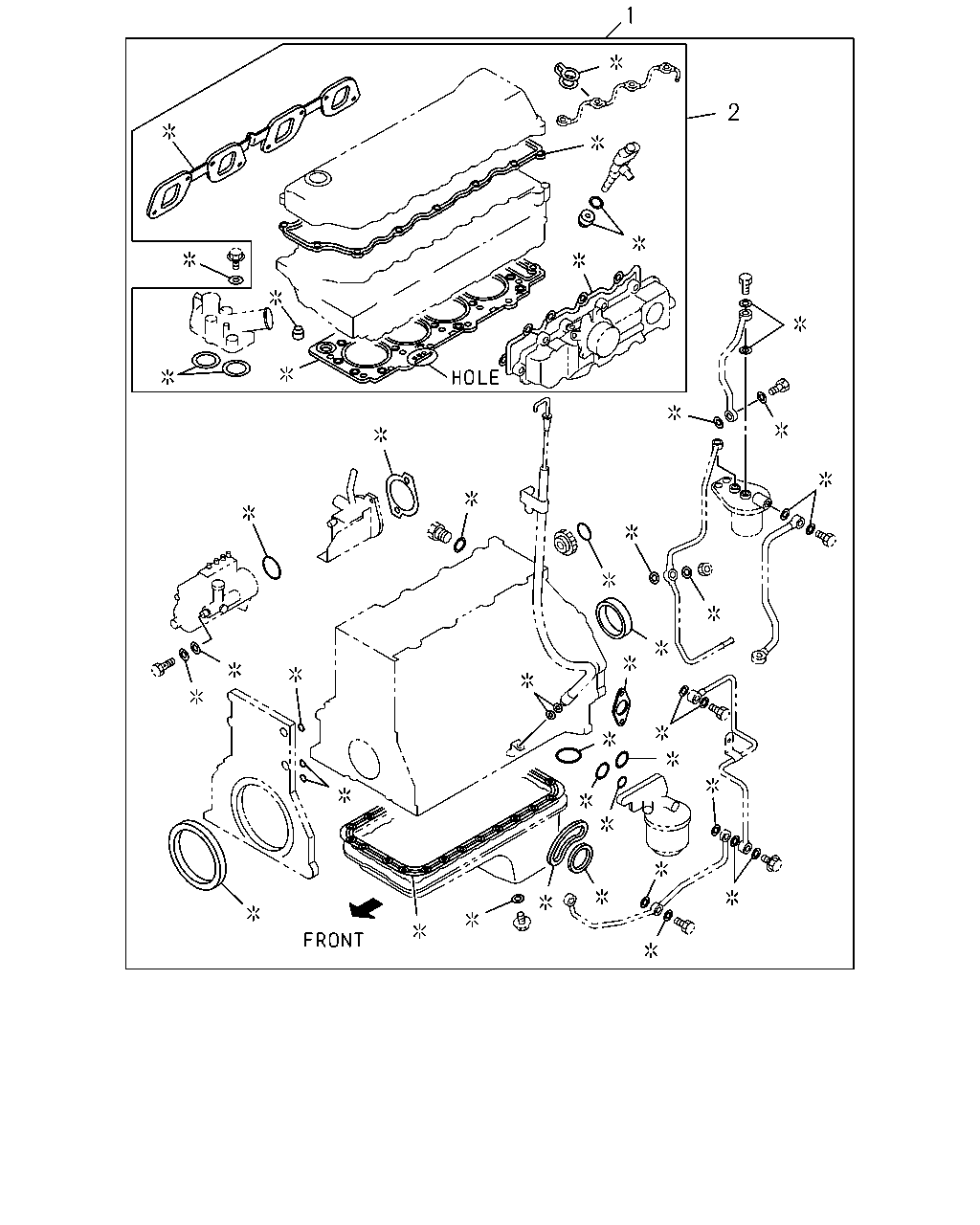

0-05 - ENGINE GASKET KIT
▶
0-05 — ENGINE GASKET KIT
(#36412) — 24 parça
Tümü
A - 4HF1-S ENG
B - 4HG1 ENG
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87814-344-4
01
1
0211-0910
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87814-428-3
01
1
0911-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87814-345-4
01
1
0211-0910
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87814-429-3
01
1
0911-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87814-346-4
01
1
0211-0910
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87814-430-3
01
1
0911-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87814-347-4
01
1
0211-0910
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
5-87815-653-1
01
1
0911-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87814-348-4
01
1
0211-0910
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
5-87815-654-1
01
1
0911-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87814-349-4
01
1
0211-0910
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
5-87815-655-1
01
1
0911-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
5-87814-229-1
01
1
0211-0910
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
5-87813-957-3
01
1
0911-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
5-87814-230-1
01
1
0211-0910
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
5-87813-958-3
01
1
0911-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
5-87814-231-1
01
1
0211-0910
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
5-87813-959-3
01
1
0911-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
5-87814-232-1
01
1
0211-0910
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
5-87815-656-1
01
1
0911-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
5-87814-233-1
01
1
0211-0910
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
5-87815-657-1
01
1
0911-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
5-87814-234-1
01
1
0211-0910
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
5-87815-658-1
01
1
0911-
●
