6-70 — FLOOR PANEL (#3641) — 32 parça

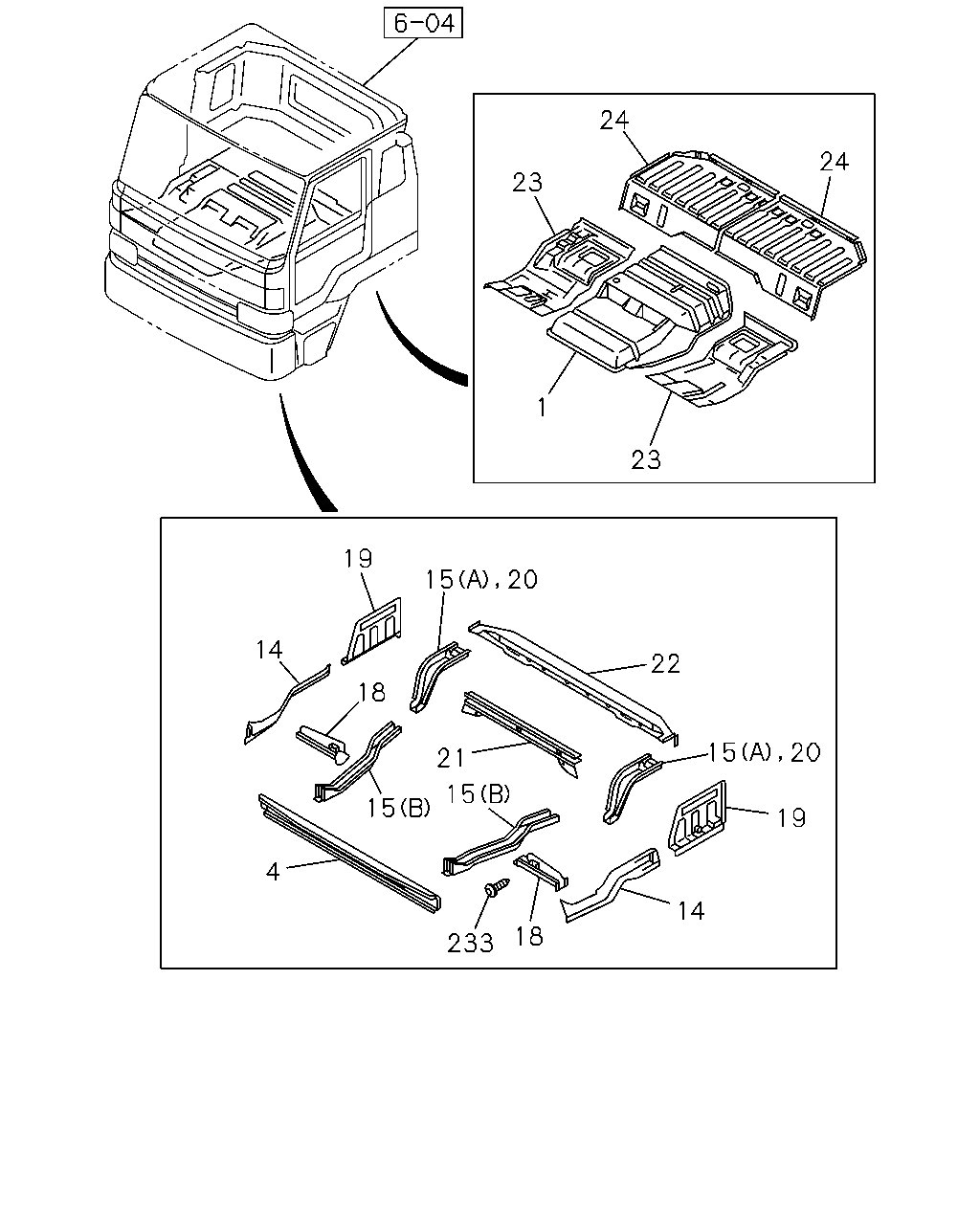

çizim 37259
24 24 23 1 23 19 15 20 14 22 18 15 20 21 15 15 19 4 14 18 233
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62172-278-1 01 1 9002-
4 FRAME; FLOOR,FRT 1-62472-382-5 01 1 9002-
14 PANEL; FLOOR SIDE,FRT 1-62472-264-6 01 1 9002-
14 PANEL; FLOOR SIDE,FRT 1-62472-263-6 01 1 9002-
15 FRAME; UNDER
(B) 		1-62472-333-3 01 1 9002-9205
15 FRAME; UNDER
(B) 		1-62472-556-0 01 1 9206-
15 FRAME; UNDER
(B) 		1-62472-332-3 01 1 9002-
15 FRAME; UNDER
(A) 		1-62472-208-7 01 1 9307-
15 FRAME; UNDER
(A) 		1-62472-209-6 01 1 9307-
18 FRAME; FLOOR,CENTER SIDE 1-62472-455-1 01 1 9002-9105
18 FRAME; FLOOR,CENTER SIDE 1-62472-551-1 01 1 9106-
18 FRAME; FLOOR,CENTER SIDE 1-62472-311-1 01 1 9002-
19 PANEL; FLOOR SIDE,REAR 1-62472-325-1 01 1 9002-9105
19 PANEL; FLOOR SIDE,REAR 1-62472-566-0 01 1 9106-
19 PANEL; FLOOR SIDE,REAR 1-62472-106-7 01 1 9002-
20 FRAME; FLOOR SIDE,REAR 1-62472-209-6 01 1 9002-9306
20 FRAME; FLOOR SIDE,REAR 1-62472-208-7 01 1 9002-9306
21 FRAME; FLOOR CENTER
SAUDI ARABIA EQUIPMENT(WH1) 		1-62472-371-1 01 1 9002-9002
21 FRAME; FLOOR CENTER 1-62472-371-1 01 1 9003-9105
21 FRAME; FLOOR CENTER 1-62472-571-0 01 1 9106-
21 FRAME; FLOOR CENTER
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-62472-370-1 01 1 9002-9002
22 FRAME; FLOOR REAR 1-62472-338-3 01 1 9002-9012
22 FRAME; FLOOR REAR 1-62472-543-4 01 1 9101-
23 PANEL; FLOOR,SIDE 1-62172-374-5 01 1 9002-
23 PANEL; FLOOR,SIDE 1-62172-368-5 01 1 9002-
24 PANEL; BED PAN 1-62172-344-5 01 1 9002-9402
24 PANEL; BED PAN
EXC. TAIWAN EQUIPMENT(WW5),PARKING BRAKE VALVE LEVER TYPE<W48> 		1-62172-344-5 01 1 9403-
24 PANEL; BED PAN
TAIWAN EQUIPMENT(WW5) 		1-62172-344-5 01 1 9403-
24 PANEL; BED PAN
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-62172-599-0 01 1 9403-
24 PANEL; BED PAN
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-62172-598-0 01 1 9403-
233 PLUG; GUSSET,UNDER FRAME,CAB
D4.7X11 		1-76378-154-0 04 1 9002-9107
233 PLUG; GUSSET,UNDER FRAME,CAB
D4.7X11 		1-76378-154-0 07 1 9108-
